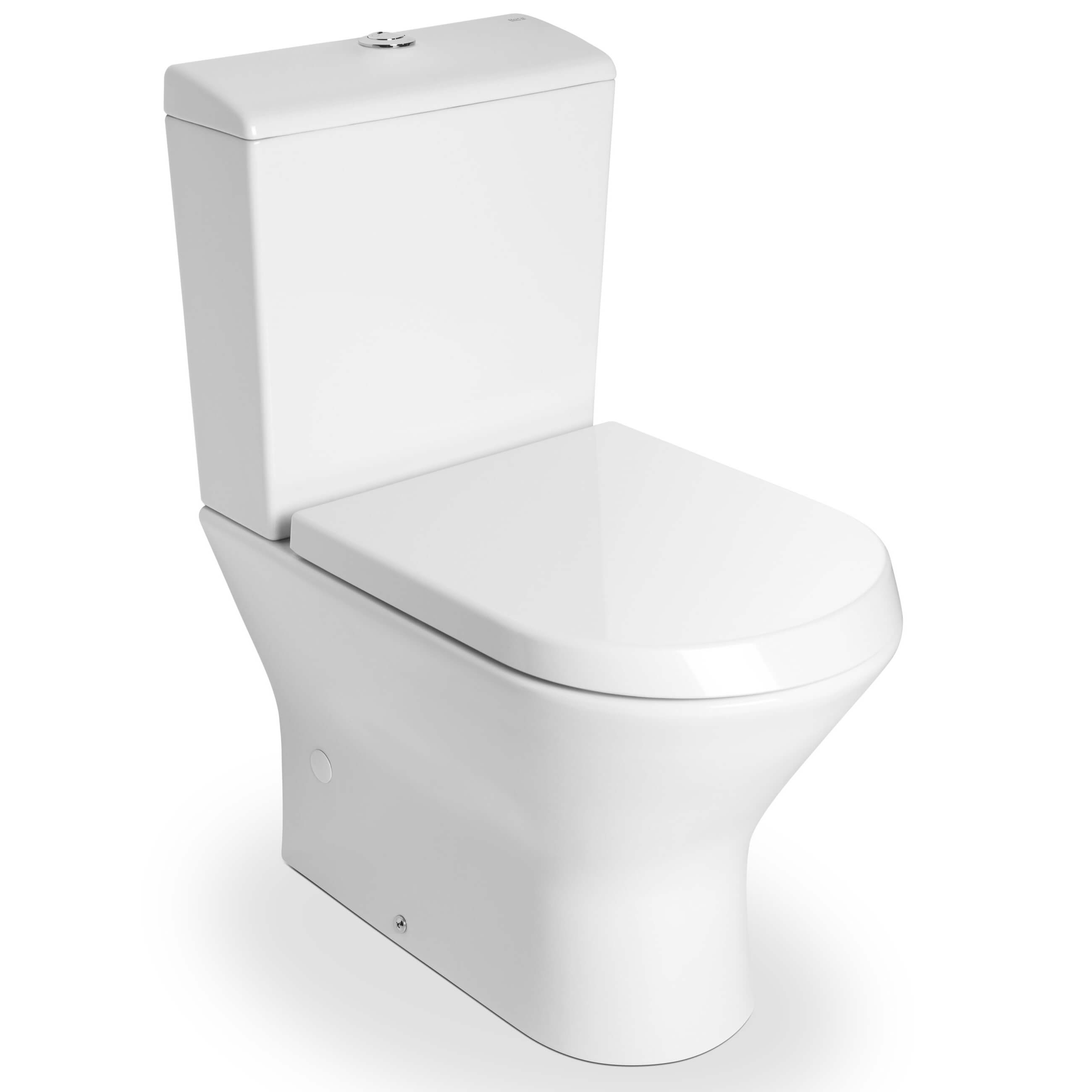

Roca Nexo Compact Close Coupled White WC Pan With Cistern 615mm - 342642000

Cyber Monday Deal
QS-V55573 small Image 1
QS-V55573 small Image 2
QS-V55573 small Image 3



2-3 Working Days Approx

4.0 out of 5 4.0 out of 5

Based on 3 Ratings.

Shipping: £20.00

Optional Toilet Seat
Key Features
  • Box rim WC pan
  • 6-3 litre dual flush cistern
  • Made from Vitreous China
  • Comes with a 25-year guarantee from the manufacturer
SKU Code: QS-V55573

MFC Code: 342642000|341645000

Roca Nexo 342642000 Details

Roca Nexo Compact Close Coupled WC Pan comes with a cistern and luxury toilet seat. The floor standing back to wall pan features an attractive tapering base, occupies space economically and projects minimally from the wall. Constructed from high-grade material suitable for luxury chinaware, it features a box rim. The cistern and toilet seat come with a guarantee of 2 years while the white finish pan comes with a guarantee of 25 years.

  • Back-to-wall pan.
  • Projection from wall: 615mm.
  • Comes in a white finish.
  • Floor-standing.
  • Outlet type: Dual
  • Size : 360mm x 390mm [Width x Height].
  • Cistern and luxury toilet seat come with two years of guarantee from the manufacturer.
  • Toilet seat sold separately [See option below].
  • The manufacturing code of this product is 342642000 and 341645000.

Info / Size (mm)

  • Toilet
  • Width: 360 mm
  • Projection: 615 mm
  • Height: 780 mm

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Toilet Design
  • : Back to Wall Toilet
  • ⤷ Range
  • : Nexo
  • ⤷ Coating
  • : Without Coating
  • ⤷ Colour
  • : White
  • ⤷ Country of Origin
  • : Spain
  • ⤷ Warranty/Guarantee
  • : 25 Years
  • ⤷ Material
  • : Vitreous china
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Floor Mounted
  • ⤷ Pan Width
  • : 360
  • ⤷ Pan Height
  • : 390
  • ⤷ Toilet Overall Height
  • : 780
  • ⤷ Projection (Depth)
  • : 615
  • ⤷ Cistern Included
  • : Yes
  • ⤷ Cistern Width
  • : 360
  • ⤷ Flush Type
  • : Dual Flush
  • ⤷ Full Flush Volume in litres
  • : 6
  • ⤷ Half Flush Volume in litres
  • : 3
  • ⤷ Flush Mechanism
  • : Push Button
  • ⤷ Cistern Lever Or Button Placement
  • : Top
  • ⤷ Outlet
  • : Dual
  • ⤷ Configuration
  • : Pan and Cistern
  • ⤷ Rough In
  • : 210
  • ⤷ Seat Included
  • : Sold Separately
  • ⤷ Barcode
  • : 8414329795226
  • ⤷ Bowl Shape
  • : Round
  • ⤷ Product Type
  • : Close Coupled Toilet
  • ⤷ Cistern Depth (projection)
  • : 140
  • ⤷ Base width
  • : 230
  • ⤷ Outlet Diameter
  • : 102
  • ⤷ Base to centre of outlet
  • : 190

Total: £345.31 2-3 Working Days Approx QS Supplies

4 Features Included In This Product Explained

Horizontal Outlet

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Vitreous-China Material

Vitreous-China Material

It is a compound of glass and silica-based materials applied as a coat on porcelain products such as WC pans, urinals, baths and basins to protect them from scratches and stains as an anti-vandal measure.

Vertical Outlet

Vertical Outlet

It is a toilet where the plumbing exits through the floor. Such toilets should be placed a few inches higher than the rest of the floor to compensate for the plumbing.



A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.
