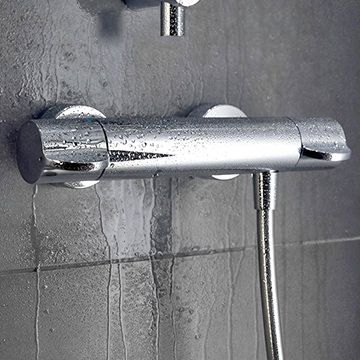

Lecico Aqua S Concealed Thermostatic Square Handle Shower Valve

Aqua S TPAQS03 Details

When you have a sophisticated and luxurious space, the last thing you want to do is add an eyesore to it. With the Concealed Thermostatic Square Handle Shower Valve, even your shower space can be as elegant as the rest of the bathroom. This Lecico Aqua S product comes in a smooth shape, made out of brass, zinc, and stainless steel that feels soft to the touch and finishes in a shining chrome finish.

This valve can be installed in both medium and high water pressure systems with at least 0.5 bar to a maximum of 5.0 bar water pressure. The thermostatic cartridge maintains the showering temperature to +/- 2c, preventing possible scalding accidents.

Comes in a chrome finish.
Suitable for medium and high water pressure systems.
Works on minimum 0.5 bar to maximum 5.0 bar water pressure.
Connection Inlet: G 3/4 inch.
Connection Outlet: G 1/2 inch.
Thermostatic cartridge and 3/4 inch quarter turn cartridge.
The temperature factory set to a 38ºC.
The thermostatic cartridge maintains the showering temperature to +/- 2c, giving a stable outlet temperature.
Automatic shut-off in the event of cold water supply failure.
Refer to the technical diagram for complete technical dimensions.

Download the Data Sheet PDF from the additional info section.
Details of 1 Outlet - Twin Handle Valve - TPAQS03.
Weight: 2.4kg.
Size: 120mm x 200mm [Width x Height].
The valve features one outlet.
Details of 2 Outlet - Triple Handle Valve - TPAQS02.
Weight: 3.1kg.
Size: 120mm x 280mm [Width x Height].
The valve features two outlet.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Shape
: Square
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass, Zinc, Stainless Steel
⤷ Theme
: Modern
⤷ Installation Type
: Concealed
⤷ Inlet Connections
: G 3/4 inch
⤷ Minimum Operating Pressure (Bar)
: 6.8 Litre in 0.5 Bar

⤷ Flow Rates (l/min)
: 0.5
⤷ Handle Style
: Square
⤷ Temperature Control
: 38ºC
⤷ Number of Outlet
: 1 And 2
⤷ Outlet Connection
: G 1/2 inch
⤷ Cartridge Included
: Yes
⤷ Cartridge Type
: Thermostatic Cartridge

Additional Info & Downloads

Download the Product Data Sheet Of 1 Outlet Valve Pdf File Download the Product Data Sheet Of 2 Outlet Valve Pdf File

Total: £186.58 3-4 Working Days Approx QS Supplies

5 Features Included In This Product Explained

Stainless Steel Material

Stainless Steel is an iron alloy with anti-rust and anti-corrosive properties, unlike iron. It contains a minimum of 10.5% of chromium and less than 1.2% of carbon and other metal alloys. Its corrosion resistance and mechanical properties can be improved by adding nickel, molybdenum, titanium, niobium, or manganese. This robust, hygienic, hard-wearing base material is popular in the construction of steel products.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...
