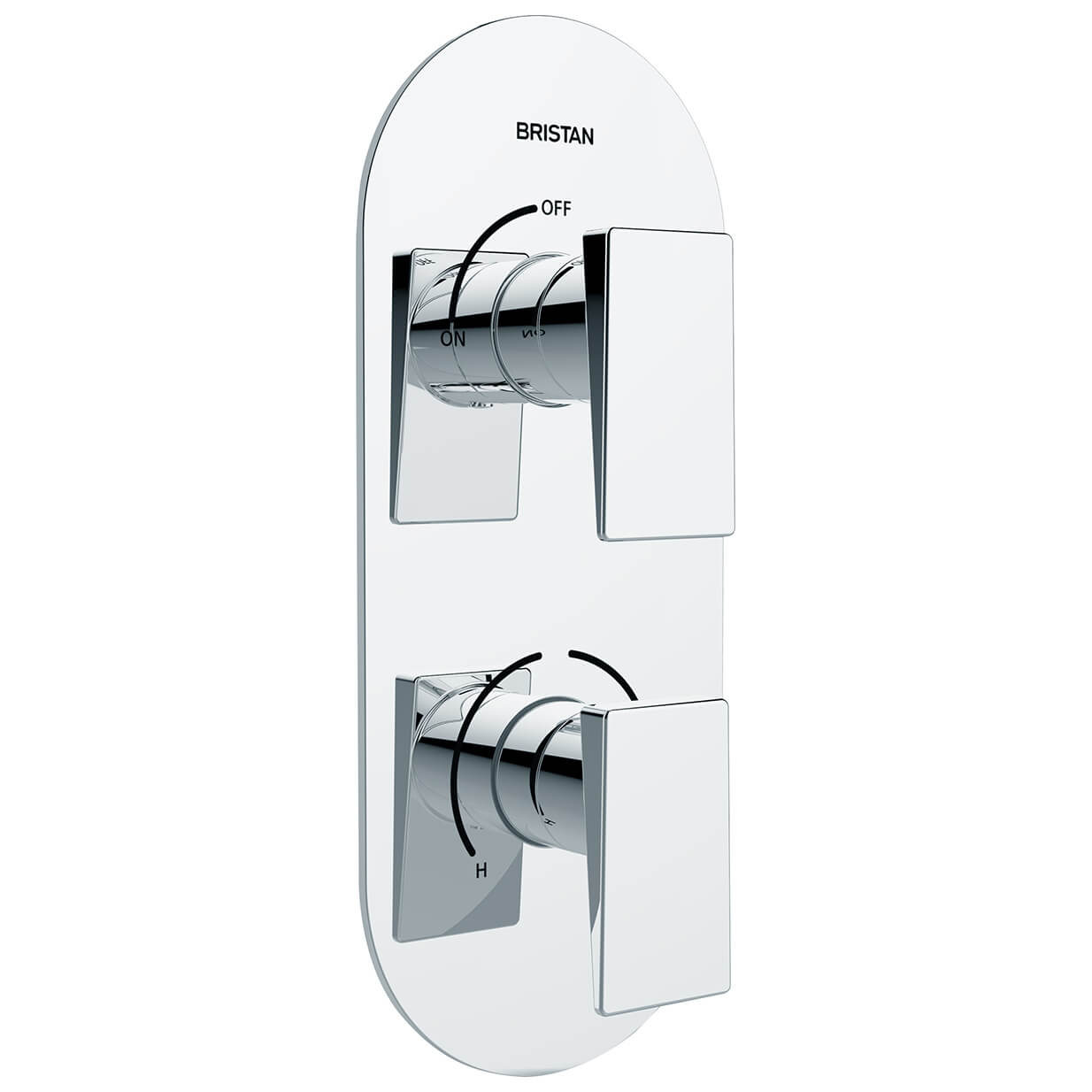

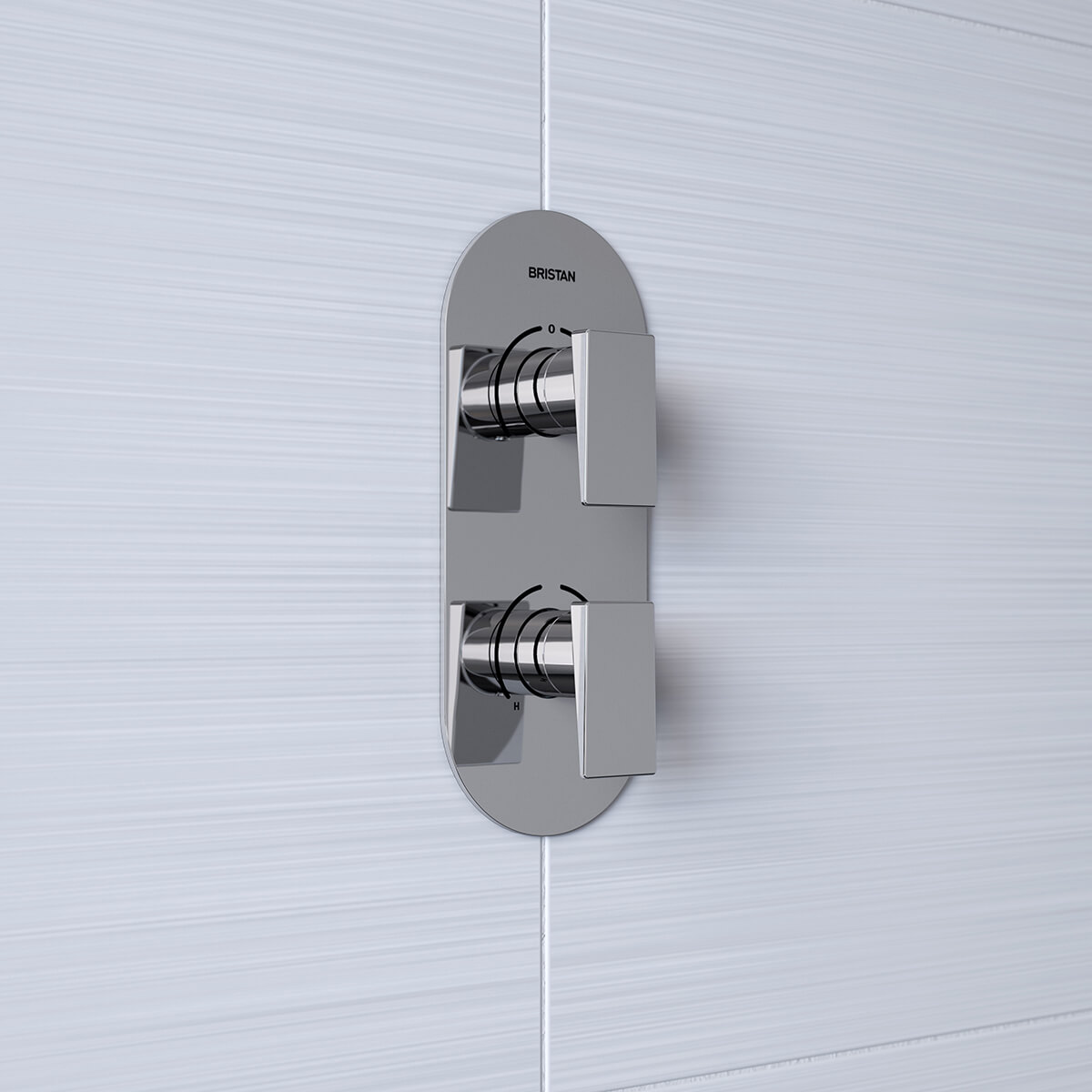

Bristan Sail Recessed Dual Control Thermostatic Chrome Shower Valve

Bristan Sail Details

MFC: SAI SHCVO C

Elevate your showering moments to a delightfully refreshing level with this Bristan Sail Recessed Thermostatic Dual Control Valve. Manufactured to the highest standards from premium quality brass for performing its duties flawlessly over many years, this aqua adornment comes complete with integral two outlet diverter. Suitable for low and high water pressure system, this unit incorporates with ceramic disc valve for ensuring uniform water flow and smooth performance. For ensuring your peace of mind, this unit comes with a full five-year manufacturer guarantee against any manufacturing defects.

Key Features

✔WRAS Approved
✔No of Controls: 2
✔Supplied with a Wall Outlet
✔Metal Backplate and Handles for Added Durability
✔5-Year Guarantee Against any Manufacturing Defects

Available in 2 Variations: Single Outlet and Two Outlet Diverter
It Comes in a Chrome Plated Finish
15mm Inlet Connections
Deck Mounted Installation
Check Valve Supplied: Yes
Contemporary and Stylish Design
Valve Cartridge Type: Recessed
Maximum Static Pressure: 10 Bar
Size of Valve [mm]: 105 x 240mm [Depth x Height]
Size of Valve [cm]: 10.5 x 24cm [Depth x Height]
The Shower Valve has Been Designed to Fit in any Uk Wall Cavity; Therefore, it Only Needs a 35mm Deep Cavity Space
Fitting Depth, Including Plasterboard and Tiles: 60-75mm [6-7.5cm]
Minimum Cold Water Supply Temperature: 4°C
Maximum Hot Water Supply Temperature: 80°C
Plumbing System: Suitable for All Plumbing Systems
Requires Rear Access to Service the Filters
Cartridge Can be Accessed from the Front
Suitable for Low and High Water Pressure Systems
Required Minimum 0.2 Bar to Maximum 5.0 Bar Water Pressure
Refer to the Technical Image for the Technical Dimension
Download the Product datasheet and Installation Instruction PDF File from the Additional Info Section
10 Years On Parts and 1 Year On Labour Guarantee for Peace of Mind from Bristan
Details of Single Outlet:
Manufactured Using Brass Material
Connection Inlet: 15mm Compression
Connection Outlet: 15mm Compression
Flow Control Valve Type: 3/4 Inch Ceramic Disc Valve & Thermostatic Cartridge
Maximum Hot Water Temperature: 80°C
Pre-Set Outlet Temperature: 42°C
Details of Two Outlets:
Integral Two-Outlet Diverter
Manufacture Using Brass and ABS Material
Valve/Cartridge Type: 40mm Single Lever Cartridge
Maximum Hot Water Supply Temperature: 65°C
Connection Inlet: 15mm Compression
Connection Outlet: G 1/2 Inch

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Handle Position
: Front
⤷ Range
: Sail
⤷ Colour
: Chrome
⤷ Shape
: Rounded
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Inlet Centres
: 150
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Lever

⤷ WRAS Approved
: Yes
⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 100
⤷ Backplate Height
: 240
⤷ Number of Handles
: 2
⤷ Number of Outlet
: 1, 2
⤷ Diverter Included
: Optional
⤷ Orientation
: Portrait
⤷ Barcode
: 5014868030234
⤷ Plumbing Option
: Concealed
⤷ Maximum Operating Pressure (Bar)
: 5.0

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instructions Pdf File

Bristan Sail Recessed Dual Control Thermostatic Chrome Shower Valve

£289.20

RRP: ~~£490.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

8 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

2 Outlets 1 On

There are two outlet connections, of which only one can be used at a given time.

Drenching

Drenching in Bristan showers means these showers soak you thoroughly, giving you the most indulgent showering experience.

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

ABS Plastic

ABS, or Acrylonitrile butadiene styrene, is a thermoplastic polymer used to manufacture many non-food products. It is inexpensive and can be easily shaped and machined. It also features high strength, stiffness, increased chemical and temperature resistance, electrical insulation and a glossy look.
