Flova Moonlight Square Thermostatic Shower Valve with Head and Handset

Flova Moonlight Details

MFC: ML2PK1-SQ

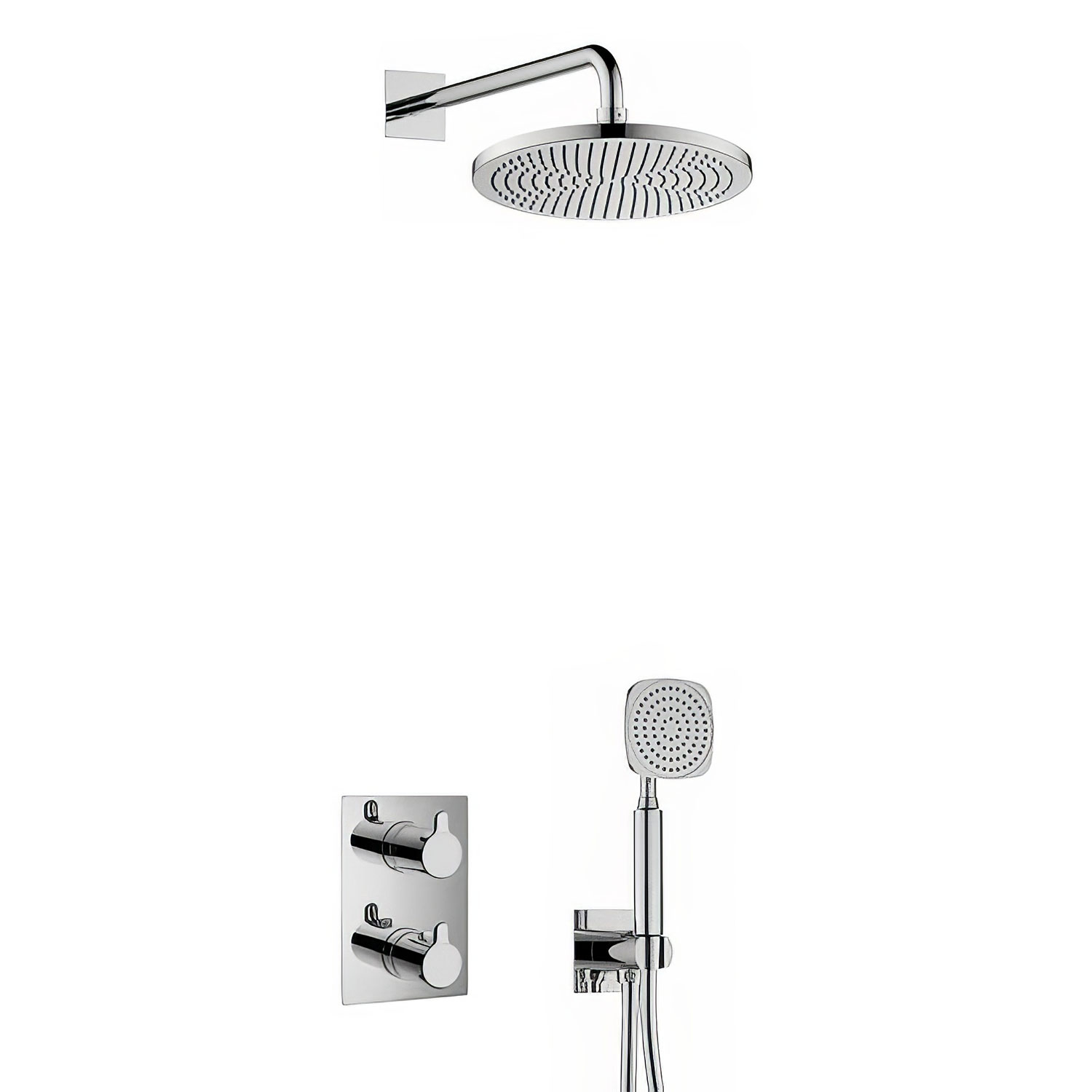

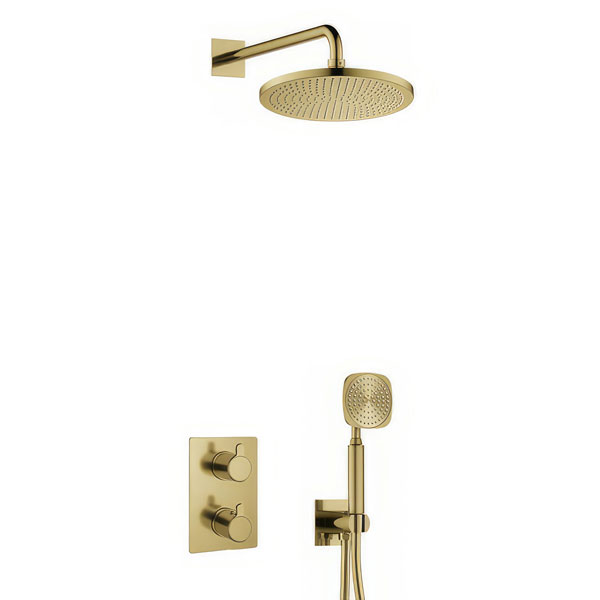

Flova Moonlight Concealed Square Thermostatic Shower Valve with Showerhead and Handheld.

Key Features

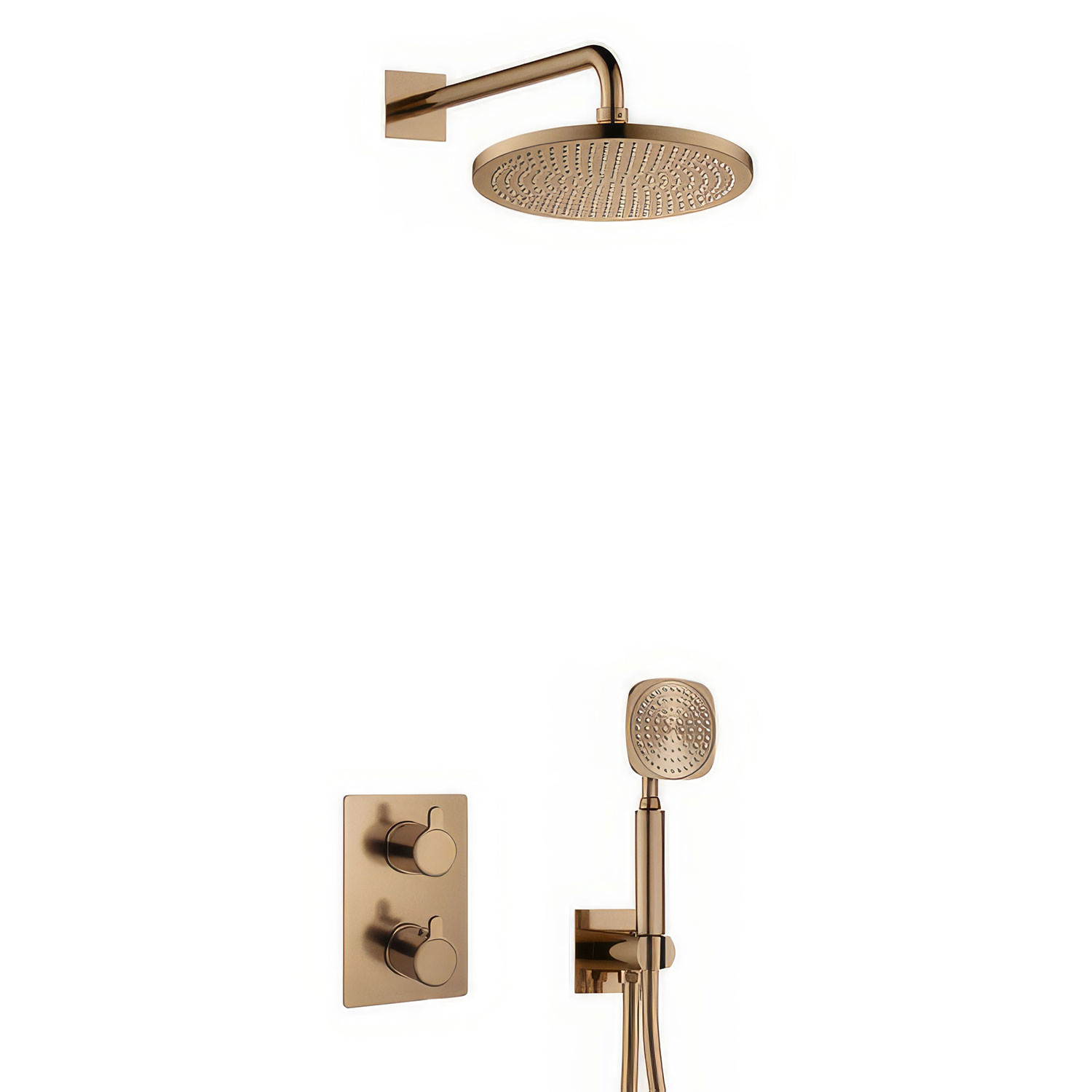

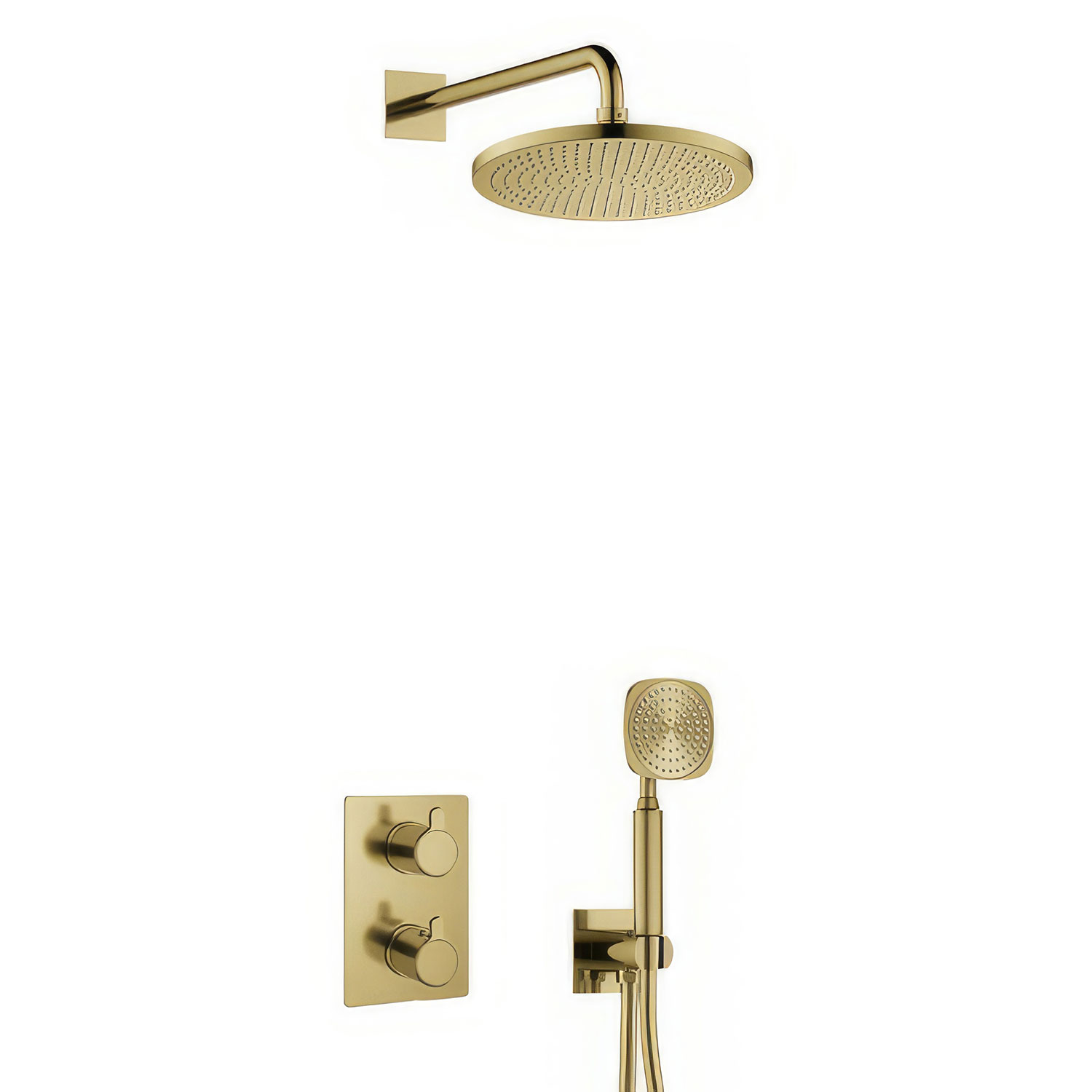

✔Available in Diamond Chrome, Gun Metal, Matt Black, Brushed Brass And Brushed Bronze [Optional]
✔Pack Includes: Shower Valve with Trim, Shower Handset with Hose, Wall Outlet Elbow and Showerhead with Arm
✔Installation: Wall Mounted / Concealed
✔15 Years of Guarantee from the Manufacturer Against any Manufacturing Defects

Constructed using 100% Solid Brass
Features Thermostatic anti-scald
Thermostatic Temperature Control
Refer to the Technical Drawing for more Technical Details
Download the AfterCare Guide PDF from the Additional Info & Download Section
SmartBOX Finishing Set - Trim
Size: Width 120 x Height 185mm
Shape: Rectangular
Control: 2
Handle: Short Lever
SuperSlim Thermostatic SlimBOX
Outlet: 1 outlet
Size: Width 93 x Height 156mm
Inlet and Outlet Connection: G1/2 Inch
Constructed Using Solid Brass
Super slim 57mm [5.7cm] Installation Depth
Suitable to Use with MP- Medium Pressure [0.5 Bars]
Recommended Minimum Water Pressure of 0.5 Bars for Better Flow
Thermostatic Anti-Scald Shut-Off Feature, that keeps the entire Family Safe
The Safety Lock Feature Prevents Accidental Scalding
The Thermostatically Controlled Temperature (Compensating for Fluctuations without the User Interface)
Easy to Fit System with Multiple Fixing Points, Which Can be Accessed Via Front or Back
Fit and Forget Design with Full Access to All Components
Self-Levelling Spirit Level Included for Precise and Easy Installation
Minimum and Maximum Depth Indicator and Outlet Identification
Ridged Installation Box to Protect Components During Installation
Shower Handset
Pressure Boost Hand Shower
Shape: Square
Head Size: Width 90 x Height 90mm
Suitable for a Low water pressure system
Requires a minimum 0.2 bar operating water pressure
Shower Hose
Material: Smooth PVC
Length: 1500mm
G1/2 Inch Inlet Connection
Wall Outlet Elbow
Comes with Handset Holder
Size: Ø60mm x Depth 70mm
G1/2 Inch Inlet and Outlet Connection
Shower Head
250mm Round Showerhead
Features Air-Mix Rainshower
Height: 65mm
G1/2 Inch Inlet Connection
1-Outlet
Suitable for Medium Water Pressure system
Requires 0.5 bar operating water pressure
Shower Arm
65mm Square Backplate
Length: 400mm
G1/2 Inch Inlet and Outlet Connection

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Year
⤷ Material
: Brass | PVC
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Thermostatic
⤷ Inlet Connections
: G1/2 Inch
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500
⤷ Configuration
: Shower Valve | Head | Arm | Handset | Hose
⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 120

⤷ Backplate Height
: 185
⤷ Anti-Scald
: Yes
⤷ Product Type
: Shower Set
⤷ Showerhead Type
: Fixed
⤷ Showerhead Finish
: Chrome
⤷ Hose Type
: Smooth
⤷ Auto shutdown if hot or cold supplies fail
: Yes
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Head)
: Air-Mixed Rain
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 250mm
⤷ Hose Retainer Included
: Yes
⤷ Outlet Elbow Included
: Yes

Additional Info & Downloads

Download the AfterCare Pdf File

Flova Moonlight Concealed Square Thermostatic Shower Valve with Showerhead and Handheld

£916.80

RRP: ~~£1146.00~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Air-Mix Rainshower

An Air-Mix Rainshower in a Flova bathroom aerates the water that flows through the showerhead for a softer showering experience.
Read more...
