Flova Moonlight SmartBox Round Shower Valve, Short Lever Handle

Flova Moonlight Details

MFC: ML-TRIM/RO|SMBOX-UNI

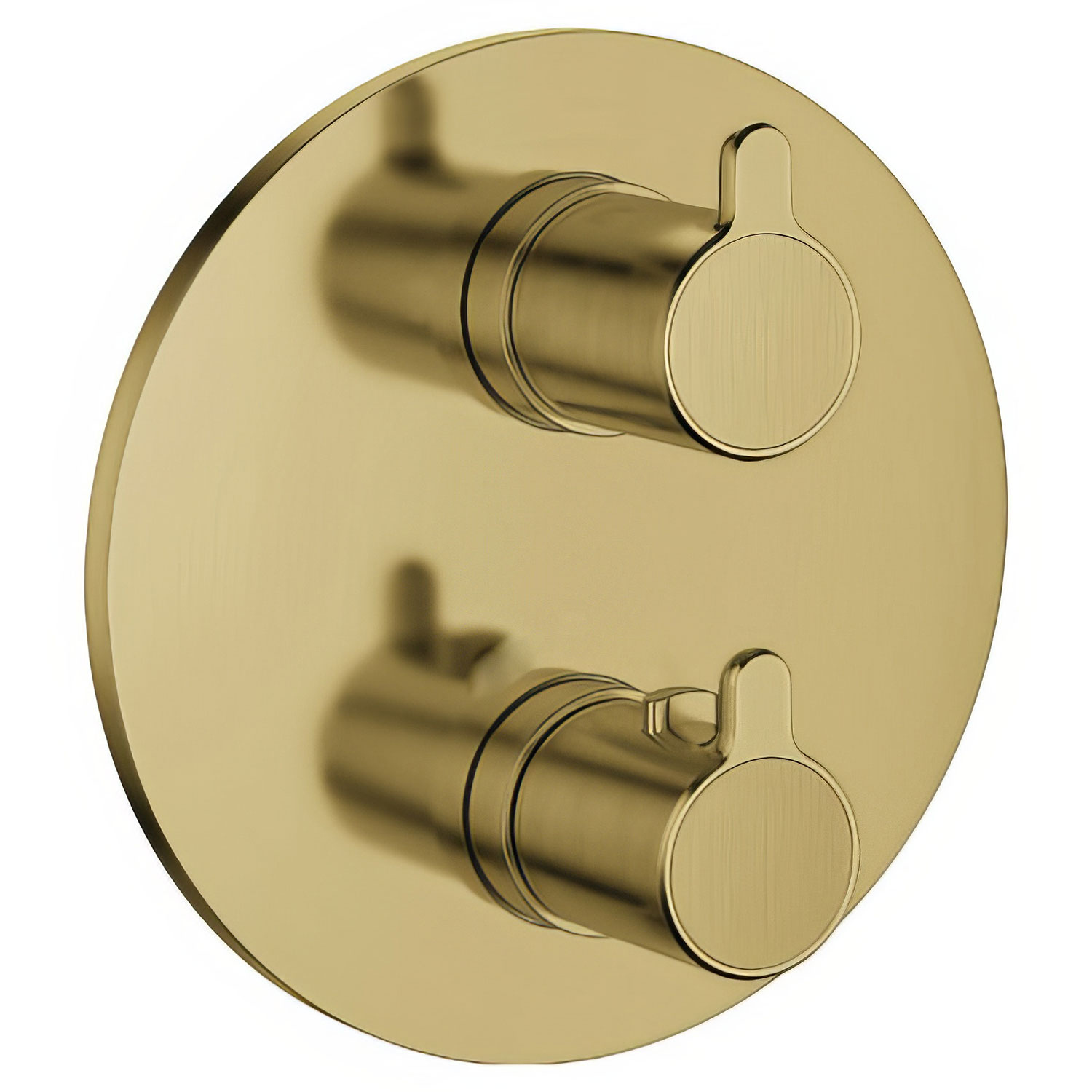

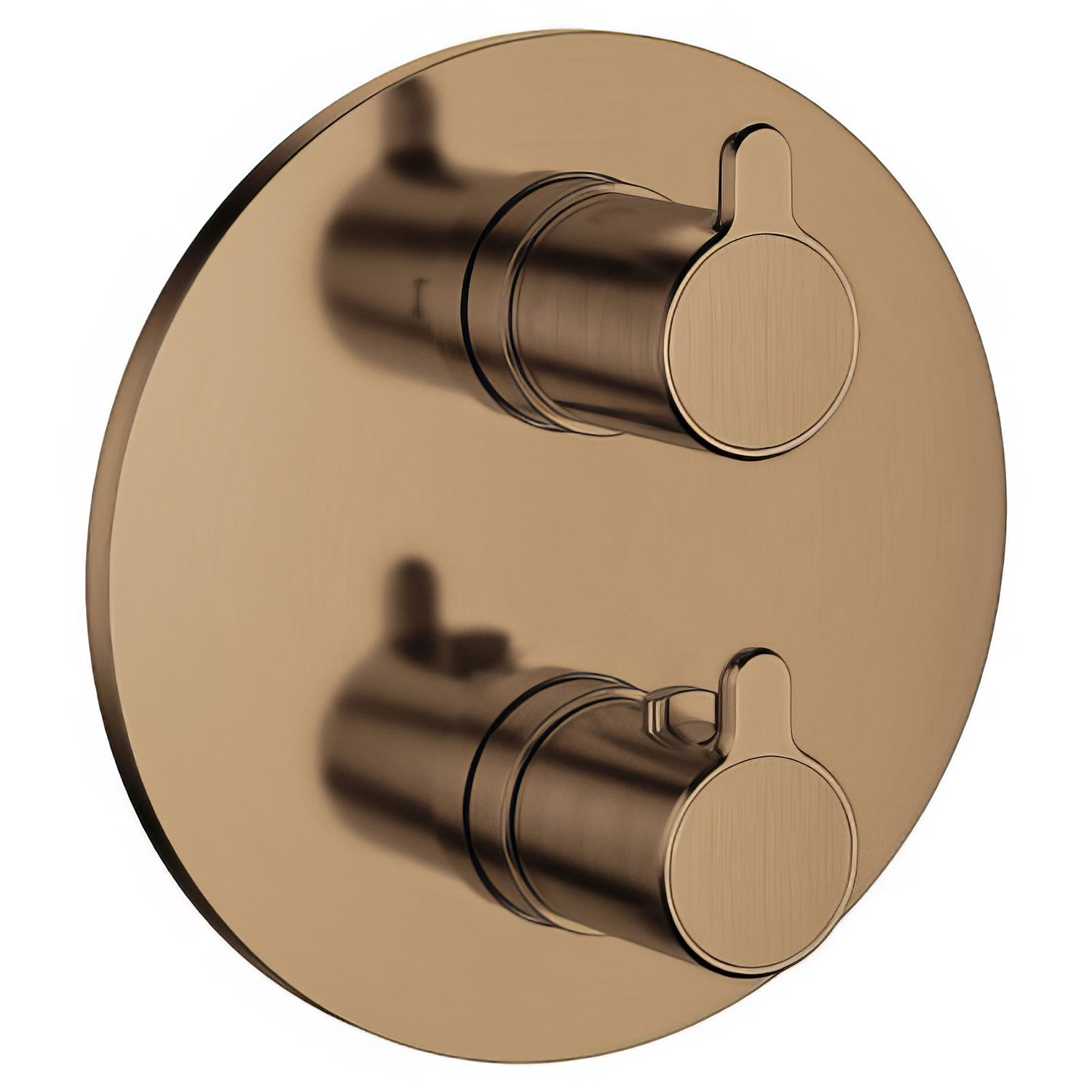

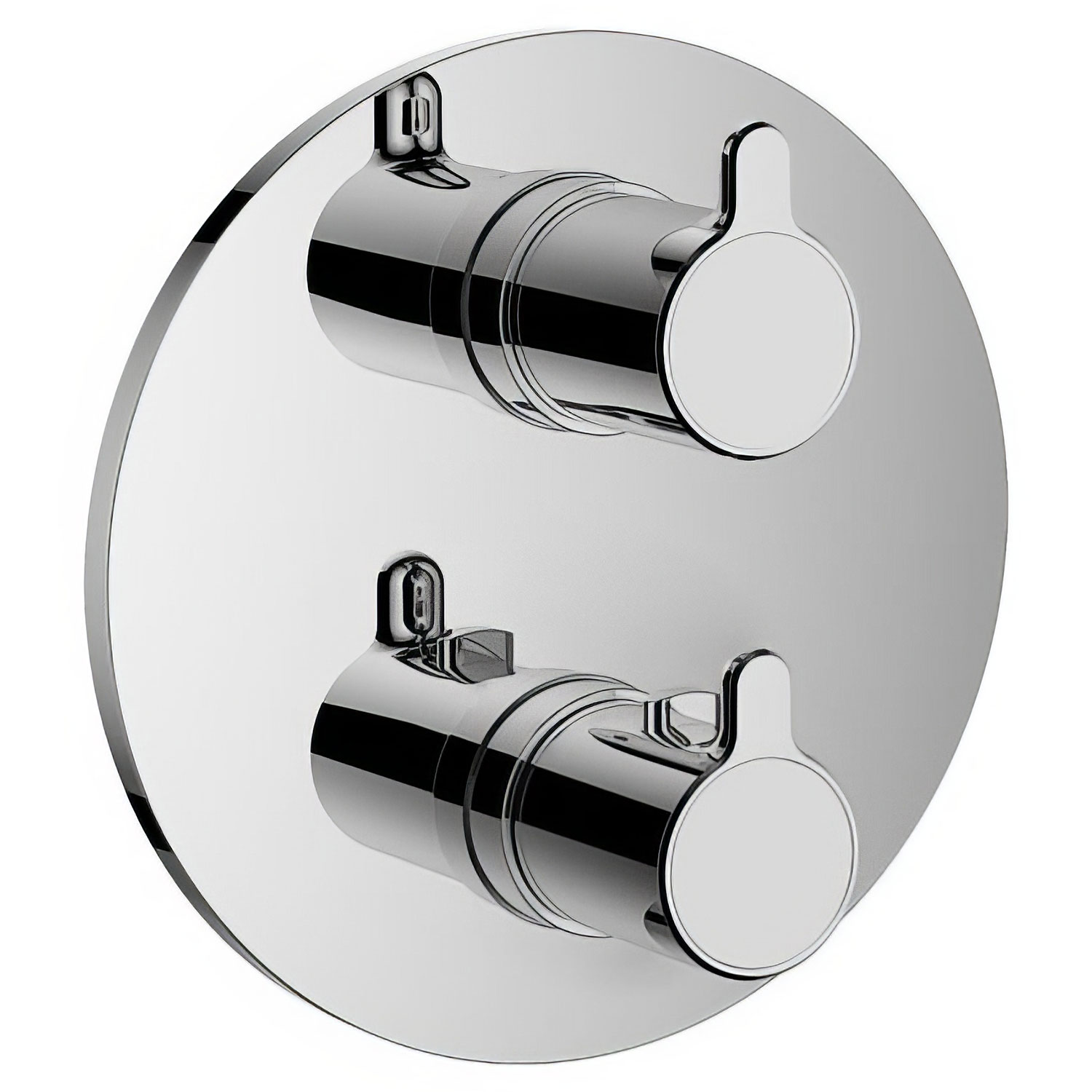

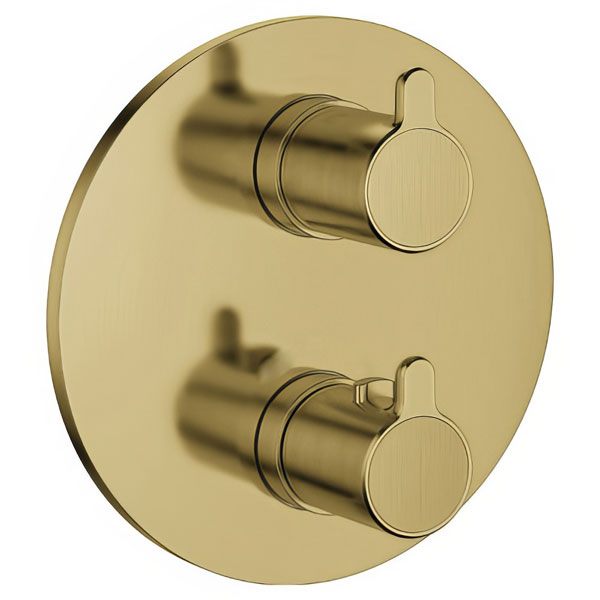

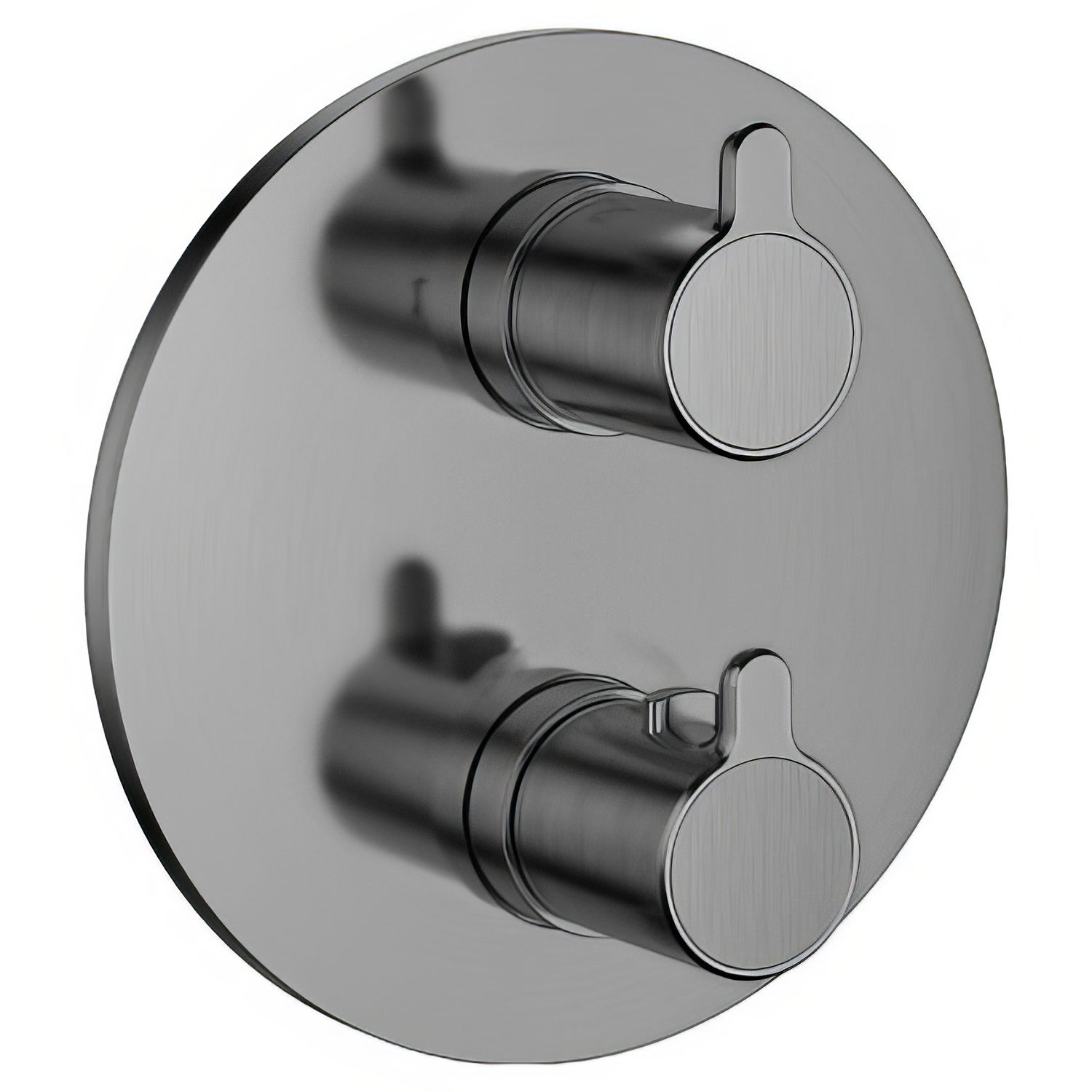

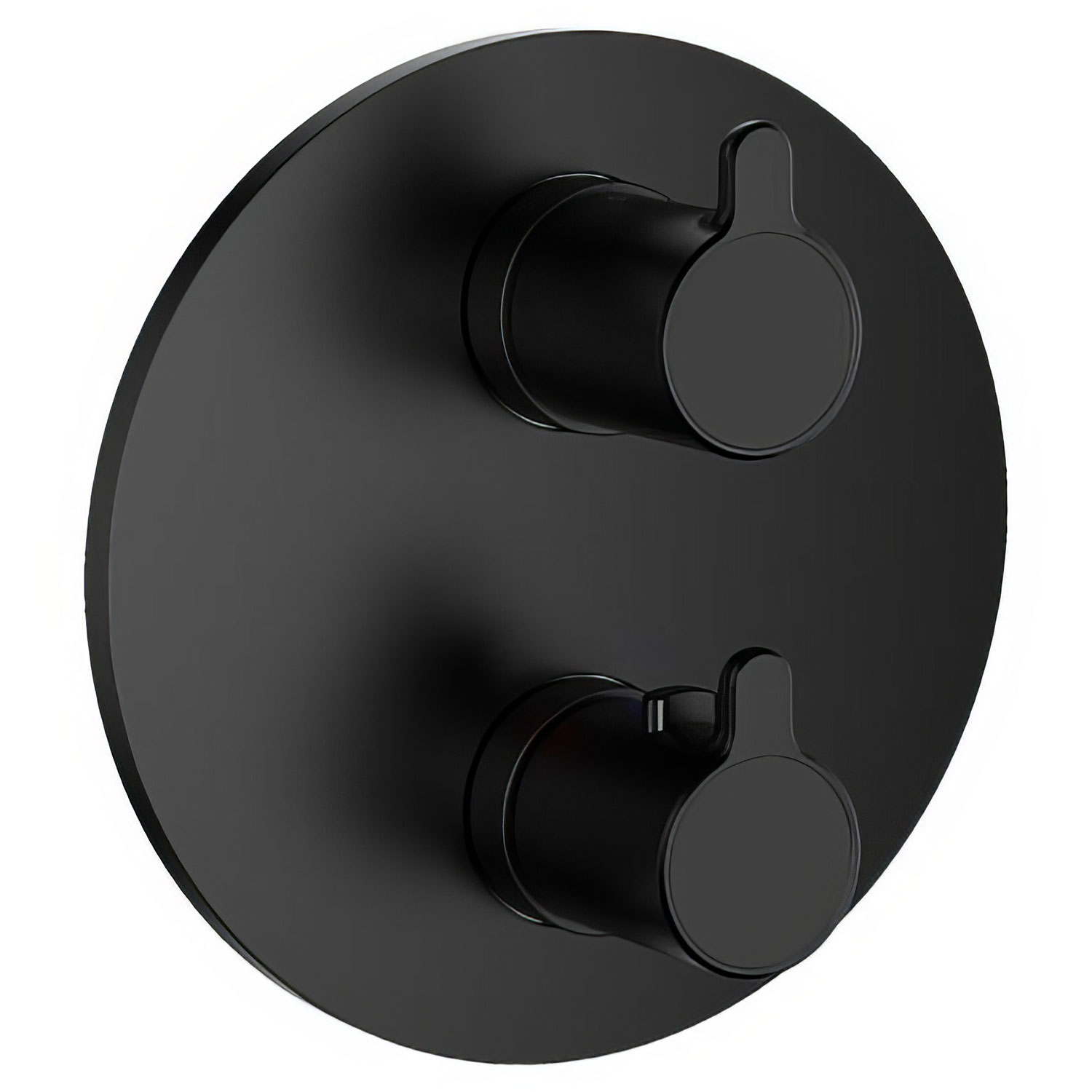

Flova Moonlight Concealed SmartBox Round Finishing Set - Short Lever Handle.

Key Features

✔Available in Diamond Chrome, Brushed Bronze, Brushed Brass And Matt Black [Optional]
✔Constructed using 100% Solid Brass
✔Installation: Wall Mounted / Concealed
✔15 Years of Guarantee from the Manufacturer Against any Manufacturing Defects

2 Control
Features Thermostatic anti-scald
Shape: Round
Suitable to use with Universal 1, 2 or 3 outlet Thermostatic SmartBOX shower valve
Thermostatic Temperature Control
Specification for Thermostatic SmartBOX Shower Valve:
Constructed Using Solid Brass
Super slim 57mm [5.7cm] Installation Depth
Suitable to Use with MP- Medium Pressure [0.5 Bars]
Recommended Minimum Water Pressure of 0.5 Bars for Better Flow
Complete Peace of Mind with the Thermostatic Anti-Scald Shut-Off Feature, Which keeps the Whole Family the Same
The Safety Lock Feature Prevents Accidental Scalding
The Thermostatically Controlled Temperature Throughout the Shower by Compensating for Fluctuations without the User interface
Easy to Fit System with Multiple Fixing Points Which Can be Accessed Via Front or Back
Fix Supply Allows Complete Installation and Commissioning of the Concealed Box and the final Trim to be Fitted Upon Completion
Fit and Forget Design with Full Access to All Components
Self-Levelling Spirit Level Included for Precise and Easy Installation
Minimum and Maximum Depth Indicator and Outlet Identification
Ridged Installation Box to Protect Components During Installation, Which Can be Removed and Disregarded On a Final Fix
Refer Technical Drawing for more Technical Details
Download After Care Guide PDF from the Additional Info & Download Section.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting / Tilting
⤷ Range
: Moonlight
⤷ Colour
: Chrome
⤷ Shape
: Round
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Concealed
⤷ Valve Included
: Yes
⤷ Overall Height
: 190
⤷ Width
: 190

⤷ Inlet Connections
: G1/2
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Handle Style
: Short Lever
⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 190
⤷ Backplate Height
: 190
⤷ Anti-Scald
: Yes
⤷ Number of Handles
: 2
⤷ Barcode
: 5057199987457
⤷ Product Type
: SmartBOX Finishing Set | Thermostatic SlimBox

Additional Info & Downloads

Download the AfterCare Pdf File

This item can also be found in:

Flova Moonlight Concealed SmartBox Round Shower Valve - Short Lever Handle

£410.39

RRP: ~~£610.00~~

STOCK AVAILABLITY: 3-4 Working Days Approx

QS Supplies

1 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...
