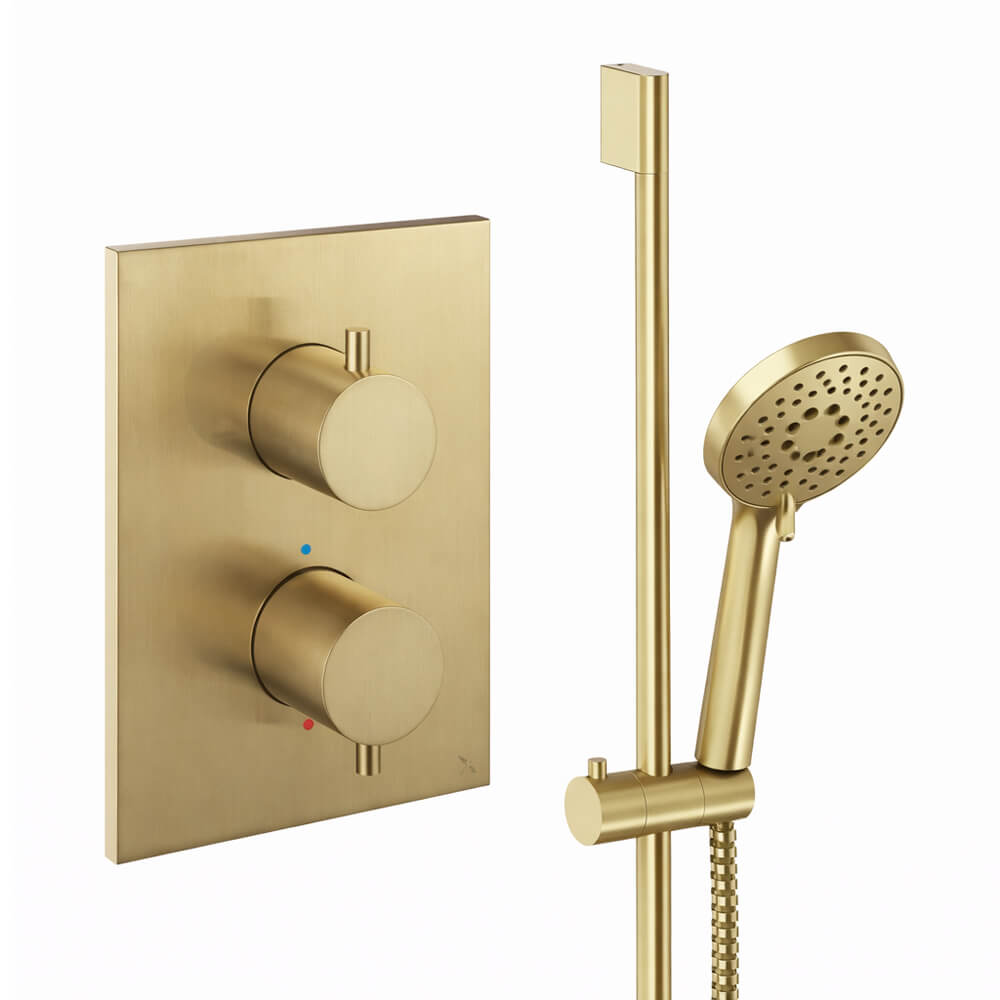

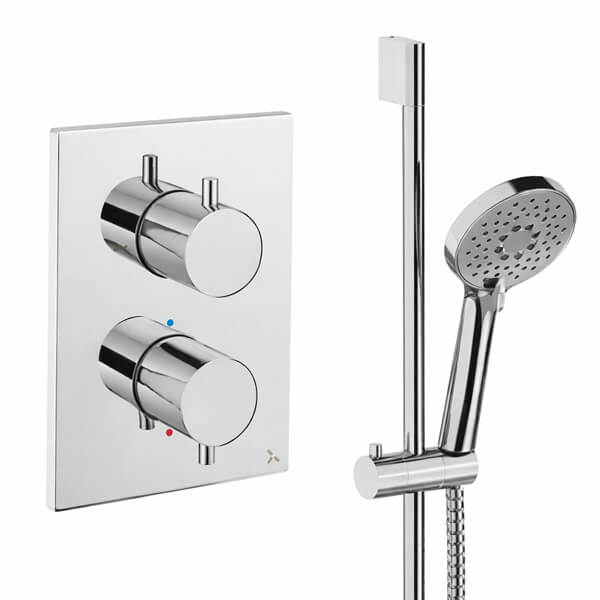

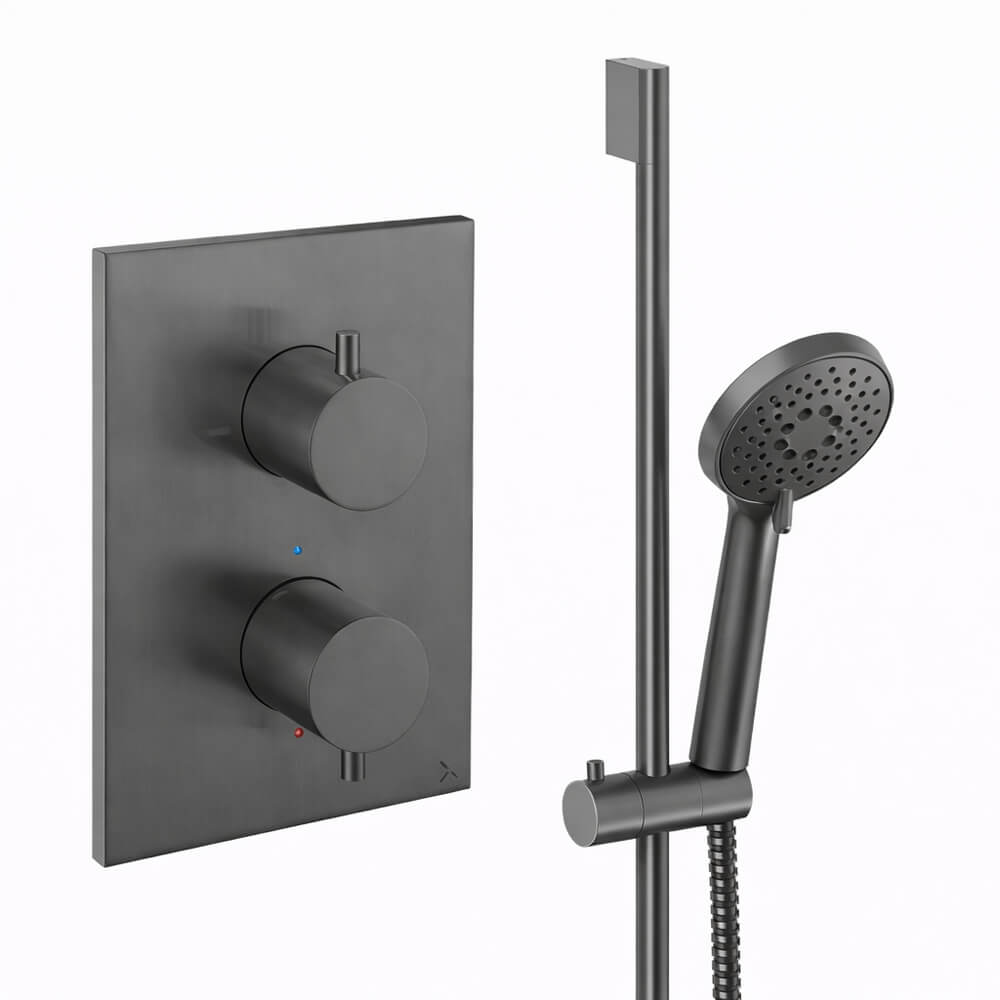

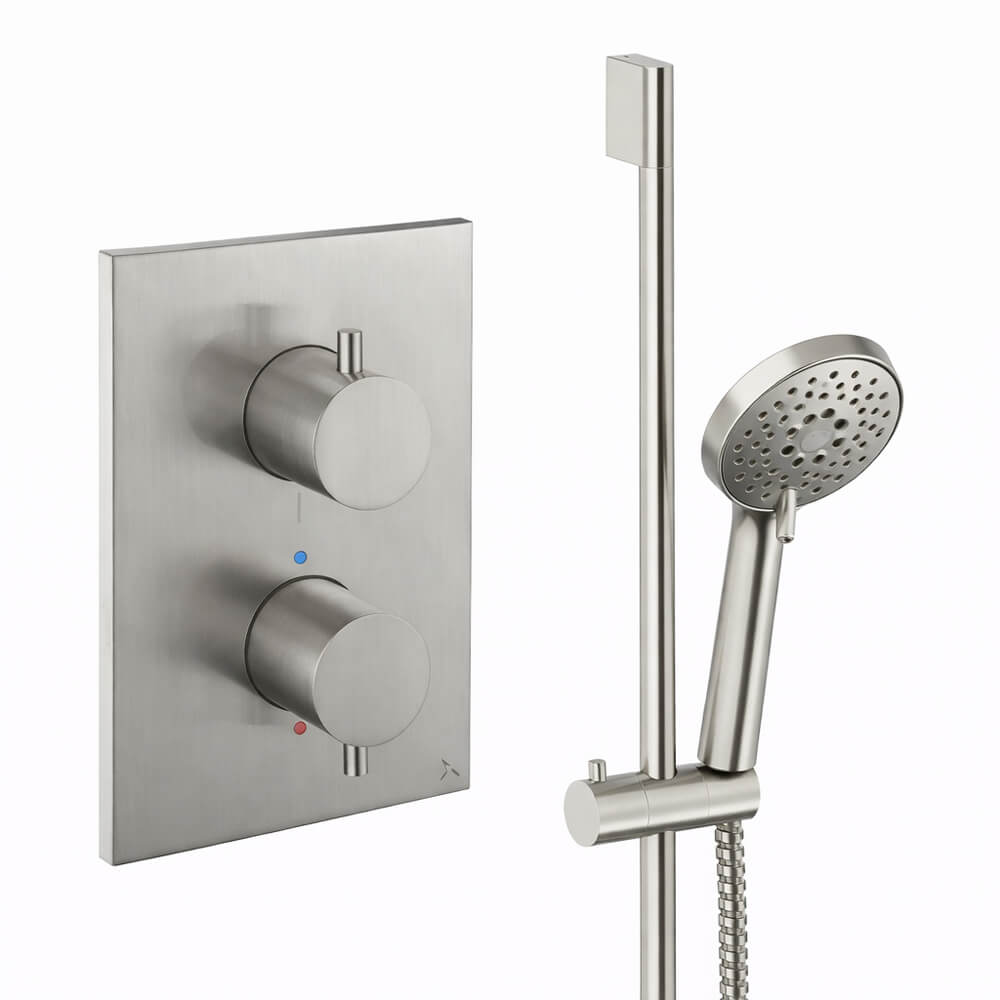

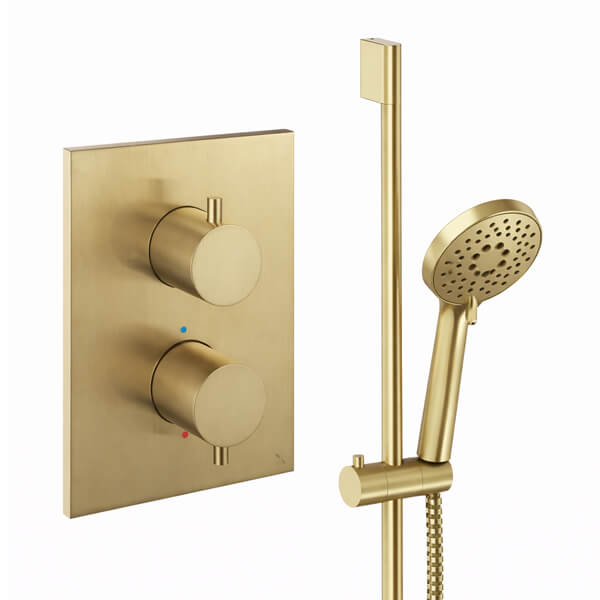

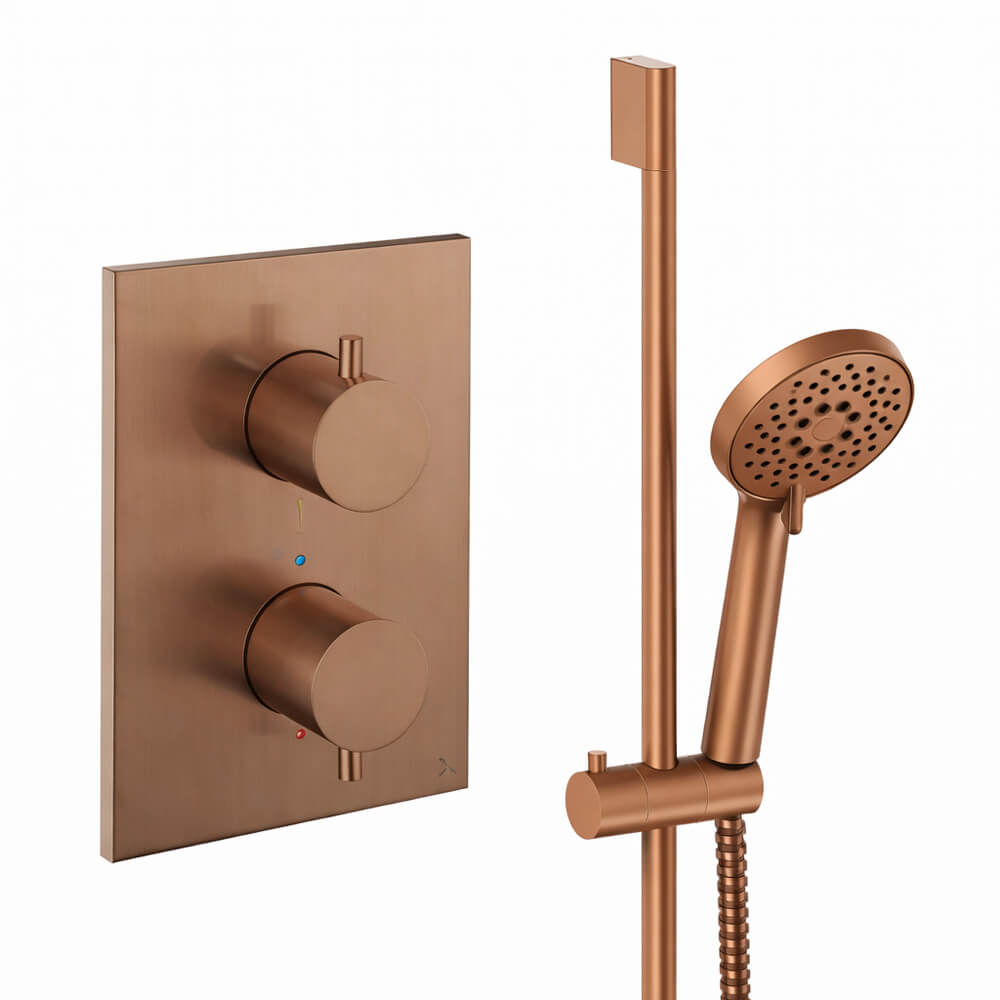

Crosswater Crossbox MPRO 1-Outlet Thermostatic Valve and Slide Rail Kit with Handset

Crosswater Crossbox MPRO Details

MFC: CBSET2C

Crosswater Crossbox MPRO Concealed 1-Outlet Thermostatic Valve and Slide Rail Kit with 3-Function Handset

Key Features

✔Available in Chrome, Matt Black, Brushed Brass, Brushed Bronze, Brushed Nickel and Slate Finish [Optional]
✔Shower Set Includes - Trim Set, Valve Body, Slide Rail, Round Hand Shower with Hose and Wall Outlet
✔Long-lasting reliability, durability, and performance are ensured by premium solid brass and ABS construction

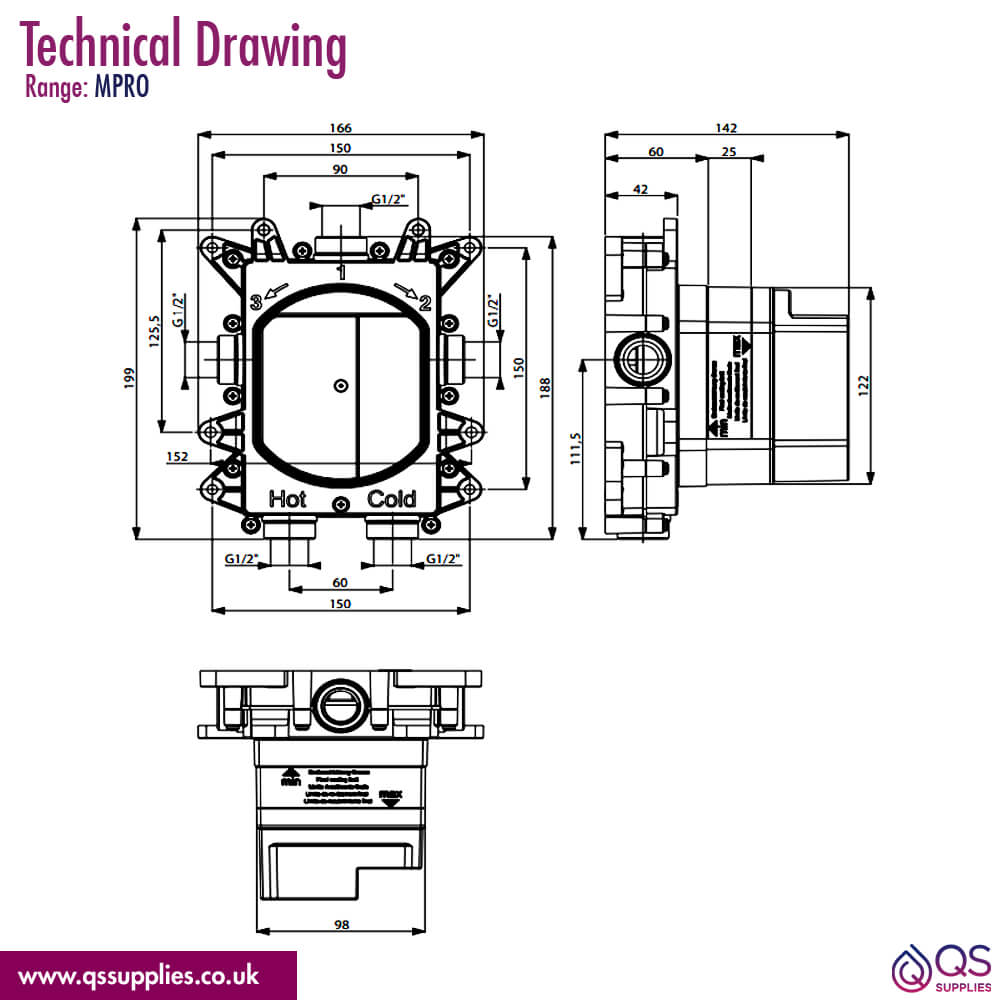

Refer to The Technical Diagram for Complete Technical Dimensions
15-Years of Guarantee from the Manufacturer Against any Manufacturing Defects
5-Years of Guarantee from the Manufacturer for Cartridge
Features Of MPRO 2 Control Concealed Rectangular Trim Set:
Manufactured Using Brass Material
Number of Outlets: 1
Number of Functions: 1
KIWA-Approved Product
Wall-Mounted Installation
Suitable for High Water Pressure System
Inlet Connection: G1/2-Inch
Requires Minimum 1.0 Bar and Maximum 5.0 Bar Operating Water Pressure
Standard: EN 1111:2017
Thermostatically-Controlled for 100% Safety
Easy-to-Use
Weight: 1.9kg
Features Of Thermostatic Shower Valve Outlet:
Easy-fit Installation box
KIWA-Approved Product
Inlet and Outlet Connections: G 1/2-Inch
Headword: Thermo Cartridge, Flow Controls
Works On a Minimum of 1.0 Bar or Above Water Pressure
Built-In, 'Easy-Switch' Thermostatic Module Allows for Simple, Quick Flow Reversal if Feeds are Plumbed in the Wrong Way Round
Features Of Shower Set:
Shape: Round
Comes with Handset Holder
Hose Length: 1500mm [150cm]
Rail Height: 698mm [69.8cm]
Requires a Minimum 1.0 Bar and a Maximum 5.0 Bar Operating Water Pressure
Comes with Shower Hose
Slides Up and Down, Twist and Lock
3 Function Shower Handset
G1/2" Inlet Connection

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass | ABS
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Thermostatic
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Hose Included
: Yes
⤷ Configuration
: Valve with Slide Rail Kit Set
⤷ Temperature Control
: Thermostatic

⤷ Backplate Width
: 120
⤷ Backplate Height
: 215
⤷ Compliance/Approvals/Standard
: WRAS | KIWA
⤷ Product Type
: Shower Set
⤷ Separate temperature and power controls
: Yes
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: 3
⤷ Rail Length
: 698
⤷ Outlet Elbow Included
: Yes

Crosswater Crossbox MPRO Concealed 1-Outlet Thermostatic Valve and Slide Rail Kit with 3-Function Handset

£559.20

RRP: ~~£699.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.
