Roper Rhodes Note White Back To Wall WC Pan



2 Working Days Approx

3.4 out of 5 3.4 out of 5

Based on 11 Ratings.

Shipping: £20.00

Key Features
  • Sleek lines give a perfect uncluttered look
  • Completes with conceals unsightly pipework
  • Twenty years guarantee from Roper Rhodes against manufacturing defects
SKU Code: QS-V6169


Roper Rhodes Note NBWPAN Details

The New-age design of Roper Rhodes Note Back to Wall WC Pan is precisely what is required in modern mid-size bathrooms. Designed for convenience, it conceals unsightly pipework with ease and projects minimally from the wall. Its sleek lines and smooth surface give it an uncluttered look and facilitate cleaning. Constructed from superior quality ceramic, it is extremely sturdy and suitable for long-term use and is compatible with the same brand's soft close toilet seat.

  • Manufacturing code of this product: NBWPAN.
  • Highly durable WC pan.
  • Size [mm]: 360mm x 420mm [Width x Height].
  • Size [cm]: 36cm x 42cm [Width x Height].
  • Projection from wall: 500mm (50cm).
  • Supplied with super sleek feature.
  • Refer to the technical image for the complete technical dimension.
  • Soft-close toilet seat shown in the image is not included.
  • Note Soft Close Toilet Seat - 8704WSC [Optional].

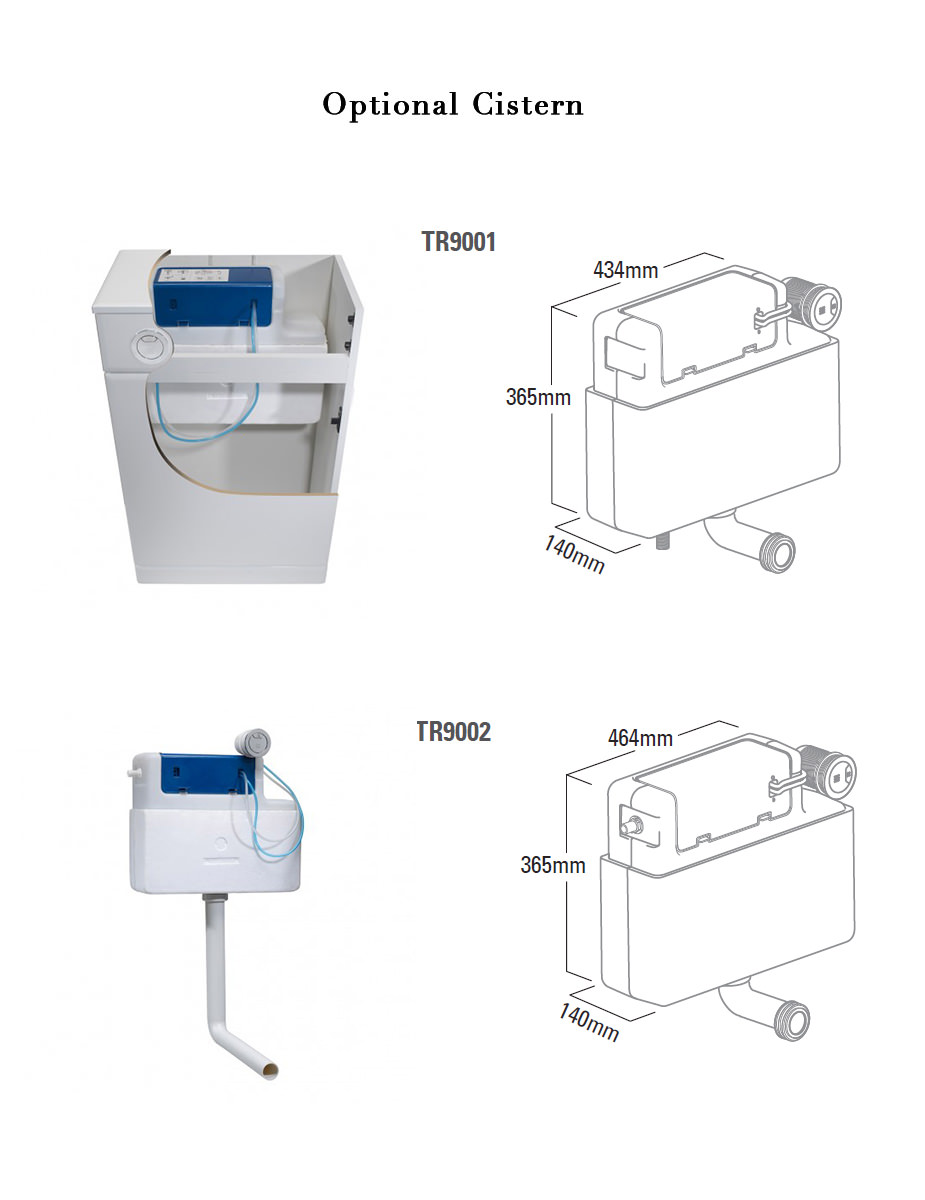

  • Torrent Concealed Dual Flush Cistern - TR9001 [Optional].
  • Cascade Concealed Dual Flush Cistern - TR9002 [Optional].

Info / Size (mm)

  • Toilet
  • Width: 360 mm
  • Projection: 500 mm
  • Height: 420 mm

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Range
  • : Note
  • ⤷ Coating
  • : Without Coating
  • ⤷ Colour
  • : White
  • ⤷ Weight in kg
  • : 27
  • ⤷ Country of Origin
  • : Europe
  • ⤷ Warranty/Guarantee
  • : 20 Years
  • ⤷ Material
  • : Ceramic
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Floor Mounted
  • ⤷ Projection (Depth)
  • : 500
  • ⤷ Width
  • : 360
  • ⤷ Outlet
  • : Horizontal | Vertical
  • ⤷ Configuration
  • : Bowl Only
  • ⤷ Height
  • : 420
  • ⤷ Seat Included
  • : Sold Separately
  • ⤷ Seat Type
  • : Soft-Close
  • ⤷ Seat Finish
  • : White
  • ⤷ Barcode
  • : 5016519184860
  • ⤷ Bowl Shape
  • : D-Shape
  • ⤷ Seat Post Hole Centers
  • : 120
  • ⤷ Base width
  • : 215
  • ⤷ Base Depth (projection)
  • : 340
  • ⤷ Outlet Diameter
  • : 102
  • ⤷ Base to centre of outlet
  • : 180

Customise Your Product

Soft Close Toilet Seat
Soft Close Toilet Seat

Toilet seat specially designed to fit Version WC range. Note: The image shown is for illustration purpose only.

Concealed Dual Flush Cistern
Concealed Dual Flush Cistern

Two concealed dual flush [6/3 litres] cisterns are available 1-Torrent with bottom inlet and 2-Cascade with side inlet. It comes complete with a chrome finish push button.

Total: £331.38 2 Working Days Approx QS Supplies

3 Features Included In This Product Explained

Optional: Soft-Close Seat

Optional: Soft-Close Seat

Soft-closing seats are a new alternative to classic toilet seats. Their modern design allows them to close slowly, while their controlled manner of closing does not require you to assist them. It also shuts automatically, allowing it to come down at a pace that does not make much noise.



A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.

Horizontal Outlet

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

You've Selected which adds to a total of

Reviews & Ratings

Rate this Item.:

Questions & Answers

Submit Your Questions 1 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Christian Asked :

Where is Roper Rhodes Note Back to wall toilet (NBWPAN) made? Can it be fitted with a slim cistern? Can it be fitted with a high quality non-soft close seat? Thanks

Answered By QS Team Answered by the QS Technical Team

The Note range is made in Italy. For Compatible Cistern - Torrent (TR9001) or Cascade (TR9002), depending on whether the water feed is bottom or side access. For SoftClose Seat - Define Soft Close Quick Release Seat 8704WSC. All options are available in the product.

Was this answer helpful?
Accepted Answer 1 Thumbs Down 0
