RAK Compact Back-To-Wall WC Pan With Soft Close Seat Urea

Rak Compact CO17AWHA Details

RAK Compact Back To Wall WC Pan With Soft Close Seat Urea is stylishly created from solid vitreous china and is a fine example of the fresh and modern appearance of white gloss ceramic, capable of being merged with almost any contemporary decor or colour scheme. The floor-mounted round pan unit is supplied with P Trap and S Trap and comes included with Urea soft close seat and cover and is compatible with back-to-wall units. The alluringly curvaceous and stylish solution for the bathroom is designed for comforting use and can fit into even compact spaces.

Includes: Pan and Soft close seat.
Installation Type: Floor Mounted.
Suitable for use with Back Wall WC Unit.
Urea soft close seat and cover.
Projection from wall: 510mm - (51cm).
Width: 370mm - (37cm).

Height: 400mm - (40cm).
Trap type : P Trap & S Trap.
Trapway type: Concealed.
Bowl shape: Round.
Weight: 21 Kg.

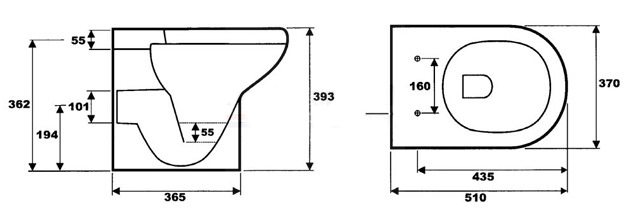

Refer to the technical diagram for more technical details.

Info / Size (mm)

Toilet
Width: 370 mm
Projection: 510 mm
Height: 393 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Compact
⤷ Colour
: White
⤷ Weight in kg
: 21
⤷ Country of Origin
: Dubai
⤷ Warranty/Guarantee
: 25 Years
⤷ Material
: Vitreous China
⤷ Theme
: Modern
⤷ Installation Type
: Floor Mounted
⤷ Projection (Depth)
: 510
⤷ Width
: 370
⤷ Outlet
: Horizontal / Vertical
⤷ Configuration
: Pan Only
⤷ Height
: 400

⤷ Rough In
: 100
⤷ Seat Included
: Yes
⤷ Seat Type
: Soft Close
⤷ Seat Finish
: White
⤷ Barcode
: 5057199900210
⤷ Bowl Shape
: Round
⤷ Seat Post Hole Centers
: 158
⤷ Front Of Bowl To Centre Of Seat Holes
: 435
⤷ Base Depth (projection)
: 385
⤷ Pan fixing centres
: 355
⤷ Outlet Diameter
: 100
⤷ Base to centre of outlet
: 190

Total: £193.25 3 Working Days Approx QS Supplies

5 Features Included In This Product Explained

Vertical Outlet

It is a toilet where the plumbing exits through the floor. Such toilets should be placed a few inches higher than the rest of the floor to compensate for the plumbing.

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Soft-Close Seat

Soft-closing seats are a new alternative to classic toilet seats. Their modern design allows them to close slowly, while their controlled manner of closing does not require you to assist them. It also shuts automatically, allowing it to come down at a pace that does not make much noise.

Urea

It is a plastic moulded under high pressure and offers durability and rigidity with scratch and chemical resistance. It is also antimicrobial and anti-bacterial.

Vitreous-China Material

It is a compound of glass and silica-based materials applied as a coat on porcelain products such as WC pans, urinals, baths and basins to protect them from scratches and stains as an anti-vandal measure.
