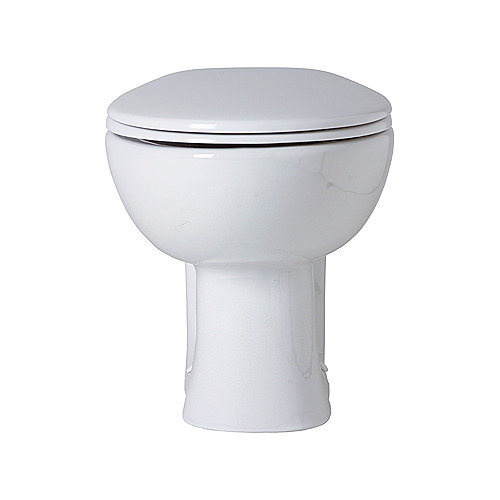

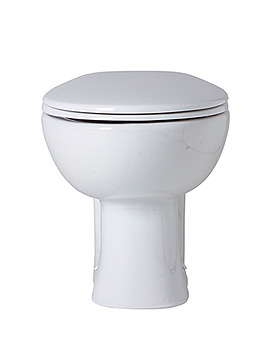

Ideal Standard Studio White Back-To-Wall WC Pan 550mm

£343.37

RRP: £563.69

STOCK AVAILABLITY:

In-Stock In Stock

3.5 out of 5 3.5 out of 5

Based on 8 Ratings.

Shipping: £20.00

Delivery in 2 Working Days Approx.
Key Features
  • Water-efficient
  • Part an extensive suit
  • Fabricated using vitreous china material
  • Lifetime guarantee from the manufacturer against any manufacturing defects
SKU Code: QS-V29390

MFC Code: E801601

Ideal Standard Studio E801601 Details

The delicate curves of the toilet are attractive and come with the promise of comfort. Spruce-up your bath area with this premium back-to-wall pan from Ideal Standard Studio and enjoy the difference. This classic design with a 365mm wide bowl uses space economically and is ideal for compact bathrooms. The WC pan is screwed to the floor using concealed brackets, it features a concealed cistern, wash-down bowl and box flushing rim for a seamless finish.

It comes with a fabulous white finish, an optionally available seat and waterproof sealant, and carries a lifetime guarantee from Ideal Standard for its material and fabrication. Place it beside a wall-hung vanity unit or any vanity unit of your choice to give your bathroom a fab look.

  • The manufacturing code of this product is E801601.
  • It comes in a white finish.
  • With horizontal outlet.
  • Size [mm]: 365mm x 550mm x 400mm [Width x Depth x Height].
  • Size [cm]: 36.5cm x 55cm x 40cm [Width x Depth x Height].
  • Weight: 19 kg.
  • WC pan screwed to the floor using concealed brackets.
  • Joint to wall sealed with waterproof sealant [not supplied].
  • For complete size details, please refer to the technical drawing.
  • Suitable for domestic and commercial use.
  • They are frequently used in education, healthcare, hotels, office, residential, sports and leisure.
  • Toilet seat shown in the image are not included - sold separately.
  • Concealed Cistern - [See Option].

Info / Size (mm)

  • Toilet
  • Width: 365 mm
  • Projection: 550 mm
  • Height: 400 mm

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Range
  • : Studio
  • ⤷ Colour
  • : White
  • ⤷ Weight in kg
  • : 19
  • ⤷ Country of Origin
  • : EU
  • ⤷ Warranty/Guarantee
  • : Lifetime
  • ⤷ Material
  • : Vitreous China
  • ⤷ Theme
  • : Contemporary
  • ⤷ Installation Type
  • : Floor Mounted
  • ⤷ Projection (Depth)
  • : 550
  • ⤷ Width
  • : 365
  • ⤷ Outlet
  • : Horizontal
  • ⤷ Configuration
  • : Bowl Only
  • ⤷ Height
  • : 400
  • ⤷ Rough In
  • : 165
  • ⤷ Seat Included
  • : Sold Separately
  • ⤷ Barcode
  • : 5017830388258
  • ⤷ Bowl Shape
  • : Elongated
  • ⤷ Base width
  • : 210
  • ⤷ Base Depth (projection)
  • : 415
  • ⤷ Pan fixing centres
  • : 125
  • ⤷ Outlet Diameter
  • : 102
  • ⤷ Base to centre of outlet
  • : 190

Customise Your Product

WC Frame
WC Frame

Frame for WC and bidet. Please Note: The image shown is for illustration purpose only.

Concept Toilet Seat
Concept Toilet Seat

Splendid Toilet Seat for your WC. Please Note Image Is For Illustration Purpose Only.

Total: £343.37 4 Working Days Approx QS Supplies

4 Features Included In This Product Explained

Horizontal Outlet

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Optional: Dual-Flush

Optional: Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.

Vitreous-China Material

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Hidden Fixation System

Hidden Fixation System

It is safe and easy and allows for greater design freedom. Easy and quick installation is made for products like Water Closets and Bidets with neatly concealed out-of-sight fixings. A single person can complete the installation without trouble using the fixation system, which holds up the ceramic for installation.
