RAK Series 600 White Back-To-Wall WC Pan With Soft Close Seat

4.5 Stars

Based on 6 Ratings.

RAK Series 600 White Back-To-Wall WC Pan With Soft Close Seat

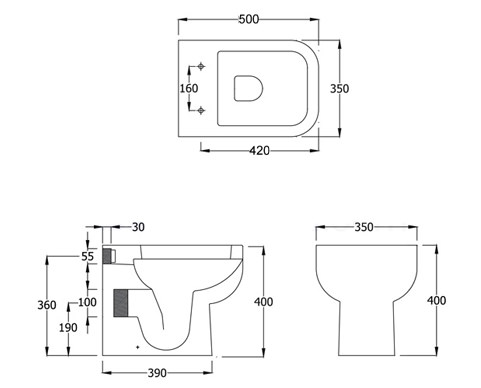

Technical drawing QS-V36219 / SE16AWHA|RAKSEAT014

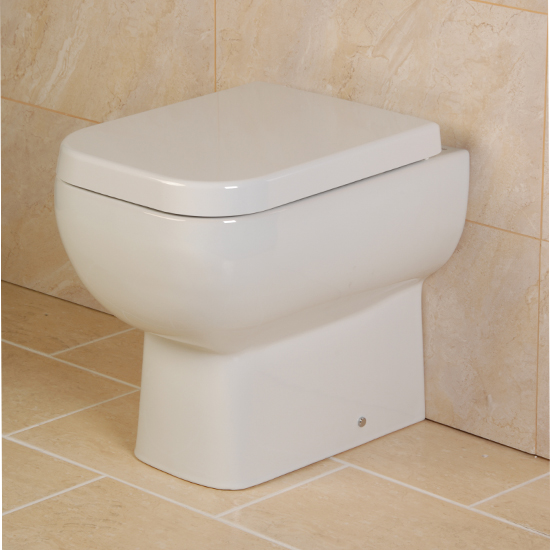

Additional image of RAK Series 600 White Back-To-Wall WC Pan With Soft Close Seat

Additional image for QS-V36219 Rak Ceramics - SE16AWHA|RAKSEAT014

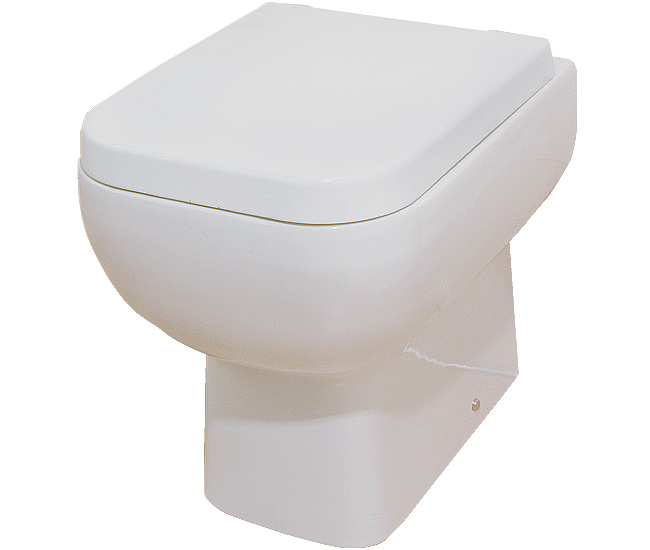

Alternate image of RAK Series 600 White Back-To-Wall WC Pan With Soft Close Seat

Video

£178.50

RRP: ~~£351.00~~

SKU: QS-V36219

Select WC

Standard Pan With Slimline Wrap Over Soft Close Seat £178.50
Standard Pan With Slimline Sandwich Soft-Close Seat £178.50
Rimless Pan With Slimline Wrap Over Seat £192.64

Selected: OP-186703 - Standard Pan With Slimline Wrap Over Soft Close Seat

QTY

Shipping: FREE ^* Check Postcodes

Delivery in 4 Working Days Approx.

Stock Availability:

In-Stock

Rak Series 600 Details

MFC: SE16AWHA|RAKSEAT014

RAK's Series 600 Back to Wall WC Pan with Soft-Close Seat will impress you with its new-age rectangular shape with rounded corners. It uses space economically and fits with ease in small to midsize bathrooms. Crafted from superior quality vitreous china, it is finished in glossy white finish, which enhances its curvaceous form. This comforting toilet can also be purchased in a rimless model for greater hygiene. Comfortable and long-lasting, it is guaranteed for 25 years against any construction defect and can be used with a concealed cistern and cistern support frame available optionally.

Key Features

✔It Comes in an Alpine White Finish
✔Rimless WC Pan [Optional]
✔Made from the Best Quality Vitreous China
✔25-Year Guarantee from the Manufacturer

Includes: Pan and Urea Soft-Close Seat
Choice of Seats: Slimline Wrap Over / Sandwich Seat
Installation Type: Floor-Mounted
Size [mm]: 350 x 490 x 400mm [Width x Projection x Height]
Size [cm]: 35 x 49 x 40cm [Width x Projection x Height]
Bowl Shape: Square
Weight: 27.6 Kg
Refer to the Technical Diagram for More Technical Details
Toilet Seat Carry 2-Year of Guarantee from the Manufacturer

Info / Size (mm)

Toilet
Width: 350 mm
Projection: 500 mm
Height: 400 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Series 600
⤷ Colour
: White
⤷ Weight in kg
: 28
⤷ Country of Origin
: Dubai
⤷ Warranty/Guarantee
: 25 Years
⤷ Material
: Vitreous China
⤷ Theme
: Modern
⤷ Installation Type
: Floor Mounted
⤷ Water Saving
: Yes
⤷ Projection (Depth)
: 490
⤷ Rimless Bowl
: Sold Separately
⤷ Width
: 350
⤷ Outlet
: Horizontal
⤷ Configuration
: Pan Only

⤷ Compact Design
: Yes
⤷ Height
: 400
⤷ Rough In
: 25
⤷ Seat Included
: Yes
⤷ Seat Type
: Soft Close
⤷ Seat Finish
: White
⤷ Barcode
: 5057199941480
⤷ Bowl Shape
: Square
⤷ Seat Post Hole Centers
: 160
⤷ Front Of Bowl To Centre Of Seat Holes
: 430
⤷ Pan fixing centres
: 360
⤷ Outlet Diameter
: 100
⤷ Base to centre of outlet
: 190

Videos

Video of RAK Ceramics Rimless technology

£178.50

RRP: ~~£351.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

4 Features Included In This Product Explained

Optional: Rimless

A rimless toilet does not have a brim at its edge, from which the water usually flows when you flush. Instead of flowing from the top, such toilets shoot water towards its edge and around it, allowing no missing spots with filth remaining after a flush. These toilets also remove any spaces for germs to hide and breed, providing a hygienic alternative for your bathroom.

Soft-Close Seat

Soft-closing seats are a new alternative to classic seats. Their modern design hinges allow them to close slowly and gently.

Urea

Urea-formaldehyde is a plastic moulded under high pressure, offering durability, rigidity, and resistance to scratches and chemicals.

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Reviews & Ratings

Rate this Item.:

Hide All Reviews

By: susan From : teddington Overall Rating: Date: September 7, 2015 Looks good but loo seat and soft close let it down

This product looks good and was not expensive, however, the soft close stopped working very quickly and the product is difficult to clean as the underside of the lid has lots of nooks and crannies and corners you can't get into. I would change it if it were not for the fact that the flooring is fitted around it and that would be too expensive to replace.

Helpful?

Quality:

Style

Value for Money

By: Paul From : Farnham Overall Rating: Date: March 10, 2016 First RAK product bought - very impressed - does the job

First Time bought a RAK product. They are obviously very good value. The Quality is just as good as other more expensive makes. The seat mechanism and quality is very good. Would Recommend. Also Would Recommend QS Supplies.

Helpful?

Quality:

Style

Value for Money

By: steve From : Bristol Overall Rating: Date: June 21, 2015 High Quality

Very high quality pan and seat, excellent build and design, the compact size is perfect for our en-suite. really pleased with this product and at a great price from QS

Helpful?

Quality:

Style

Value for Money

Questions & Answers

Submit Your Questions 7+ Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Sarah Asked :
I can't find a recommended concealed cistern for the Rak series 600 rimless. Is it compatible with all?

Answered By QS Team

The following are the compatible cisterns:
1) RAK Concealed Cistern For Furniture Complete With Cable Operated Push Button
2) RAK 12cm Front Flush Regular Concealed White Cistern
3) RAK Ecofix Top/Front Access Concealed White Cistern 404mm Wide

Was this answer helpful?

Nigel Asked :
Hi- RAK series 6 RIMLESS back-to-wall floor standing WC QSv36219 (RIMLESS option with soft close seat)- does the WC have a brace bar (or plate) at the rear base/is there a picture you can send of the rear as I a need to establish whether it will fit the protruding waste pipe.

Answered By QS Team

Please refer to the attached image of the Series 600 Back-to-wall pan.

Was this answer helpful?

Adam Asked :
My plumber has also asked me to buy a flush pipe - i.e. the L-shaped pipe 40mm that runs from the cistern to the pan. Can you supply it?

Answered By QS Team

All our L shape pipes come with cisterns. I'm afraid it is not something we have as a spare part.

Was this answer helpful?

Gary Asked :
Would a standard concealed cistern fit this toilet instead of the one suggested on your website? Cheers

Answered By QS Team

You can fit most makes of concealed cistern if not using the one suggested.

Was this answer helpful?

Elspeth Asked :
Hi, I need 2 back-to-wall WCs with cisterns and cabinets - so far I can find the WC with cistern option, but no cabinets - should I be looking in a different section? Thanks

Answered By QS Team

You can get the WC cabinet here: https://www.qssupplies.co.uk/Bathroom-Furniture/Back-To-Wall-WC-Unit/Product/468.htm.

Was this answer helpful?

Ellie Asked :
Can the rank 600 Back-To-Wall (490mm) be used with the hand grohe concealed cistern? Thanks

Answered By QS Team

Many thanks for your enquiry, we can’t see any reason why it wouldn’t work with RAK Series 600 Back-To-Wall pan.

Was this answer helpful?

Irek Asked :
Hi, I am looking for a soft closing seat for the RAK series 600 Back-To-Wall pan. Can you give me the price, please? Regards Irek

Answered By QS Team

For the price, please visit refer our product code QS-V72887 or view URL http://www.qssupplies.co.uk/bathroom-furniture-shower-taps/108245.htm.

Was this answer helpful?
