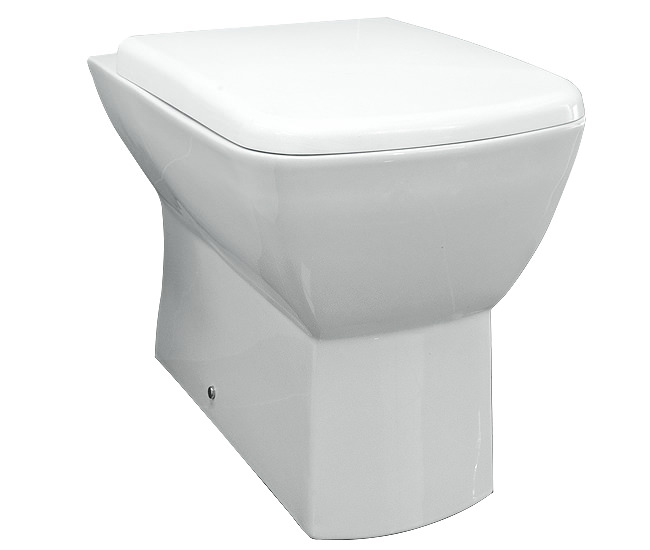

RAK Summit Back-To-Wall White WC Pan With Soft-Close Toilet Seat - 540mm Projection


RRP: £439.00

Delivery In:

4 Working Days Approx.

Not Yet Rated No Rating

Shipping: FREE* Check Postcodes

Key Features
  • Includes soft-close toilet seat
  • It comes in a white finish
  • Constructed using high quality vitreous china
  • 20 years of guarantee from the manufacturer
SKU Code: QS-V36313


Rak Summit SM16AWHA Details

Up your bathrooms style quotient effortlessly by installing this Back to Wall WC Pan from RAK Ceramics Summit range. The product, attractively shaped into a square shaped bowl, comes with a soft-close toilet seat included in the design. Crafted from Vitreous quality China, it features flawless White finish and is backed by a 20-year guarantee against all manufacturing defects. The glossy fixture is elegant and will update any modern or traditional decor with ease.

  • Width: 360mm - (36cm).
  • Depth [Projection]: 540mm - (54cm).
  • Height: 400mm - (40cm).
  • Concealed cistern sold separately [See option].

Info / Size (mm)

  • Toilet
  • Width: 360 mm
  • Projection: 540 mm
  • Height: 400 mm

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Range
  • : Summit
  • ⤷ Colour
  • : White
  • ⤷ Country of Origin
  • : Dubai
  • ⤷ Warranty/Guarantee
  • : 20 Years
  • ⤷ Material
  • : Vitreous China
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Floor Mounted
  • ⤷ Projection (Depth)
  • : 540
  • ⤷ Width
  • : 360
  • ⤷ Outlet
  • : Horizontal
  • ⤷ Configuration
  • : Pan Only
  • ⤷ Height
  • : 400
  • ⤷ Seat Included
  • : Yes
  • ⤷ Seat Type
  • : Soft Close
  • ⤷ Seat Finish
  • : White
  • ⤷ Barcode
  • : 5057199025609
  • ⤷ Bowl Shape
  • : Square
  • ⤷ Seat Post Hole Centers
  • : 155
  • ⤷ Front Of Bowl To Centre Of Seat Holes
  • : 430
  • ⤷ Base Depth (projection)
  • : 460
  • ⤷ Pan fixing centres
  • : 350
  • ⤷ Outlet Diameter
  • : 100
  • ⤷ Base to centre of outlet
  • : 190

Customise Your Product

Rak Cistern
Rak Cistern

The dimension of this product is 480 x 375mm, and it is finished in Alpine White. The flushing capacity can be adjusted from 6 to 3 litres to 4.5 to 3 litres. It comes with adjustable legs. The image shown is for illustration purposes only.

Total: £221.76 4 Working Days Approx QS Supplies

1 Features Included In This Product Explained

Soft-Close Seat

Soft-Close Seat

Soft-closing seats are a new alternative to classic toilet seats. Their modern design allows them to close slowly, while their controlled manner of closing does not require you to assist them. It also shuts automatically, allowing it to come down at a pace that does not make much noise.

You've Selected which adds to a total of

Reviews & Ratings

Rate this Item.:

Questions & Answers

Submit Your Questions 1 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Tony Asked :

Hi, can you tell me the base width of the RAK Summit BTW pan pls and are they in stock, pls, and the length from the back of the pan to the base? Regards Tony

Answered By QS Team Answered by the QS Technical Team

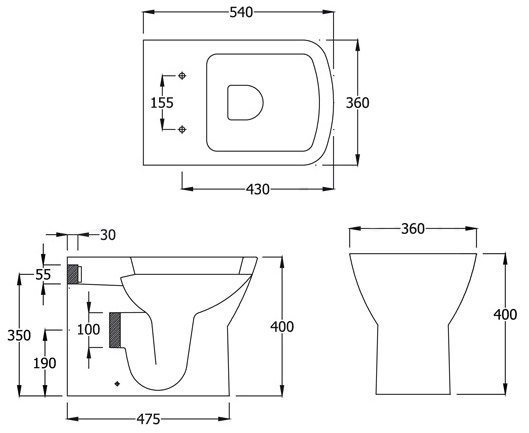

Base width is 220mm, and length from the back of the pan to the front of the base is 460mm. For more technical details, please refer dimensional drawing given above. For stock availability, please call our sales department at 0116 251 0051.
