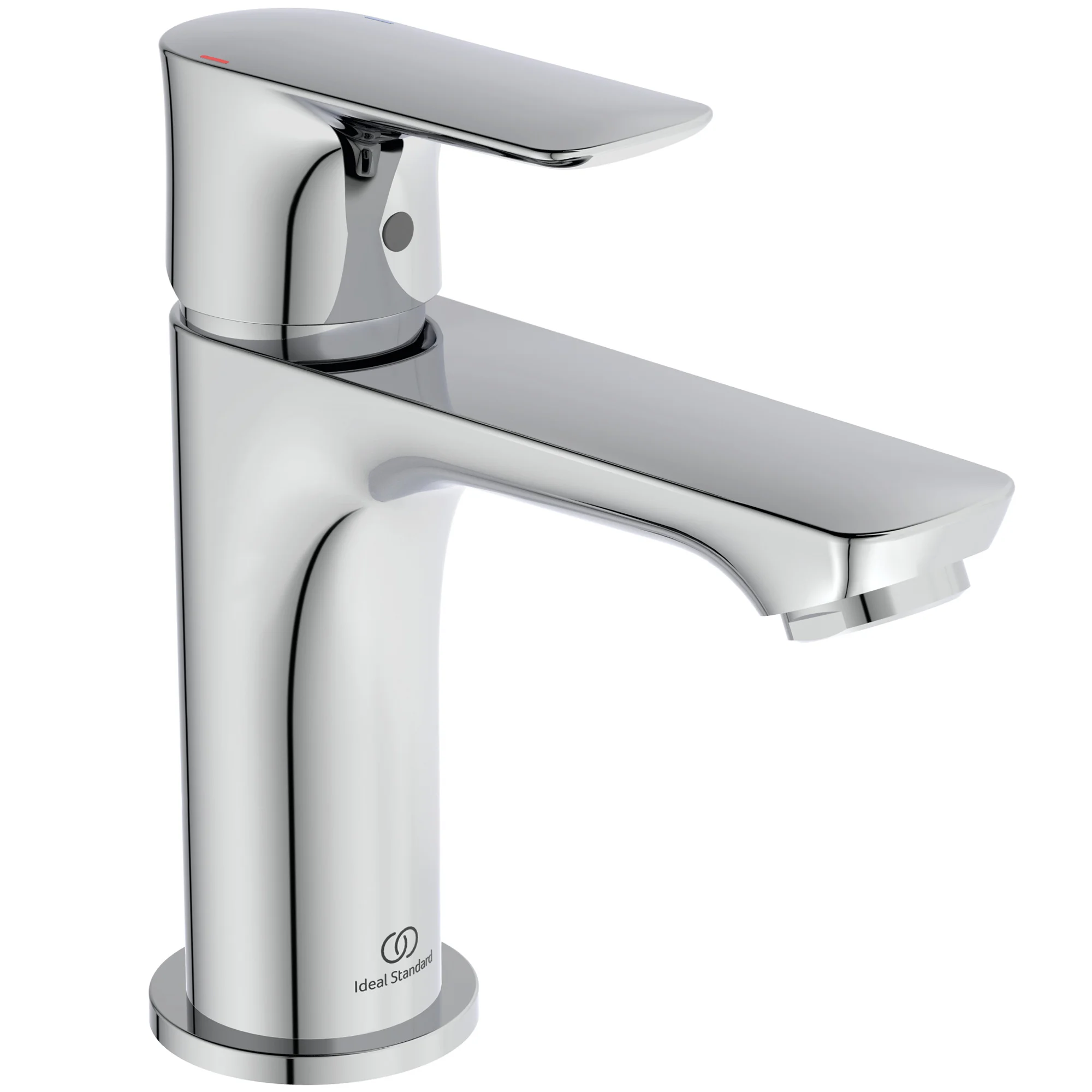

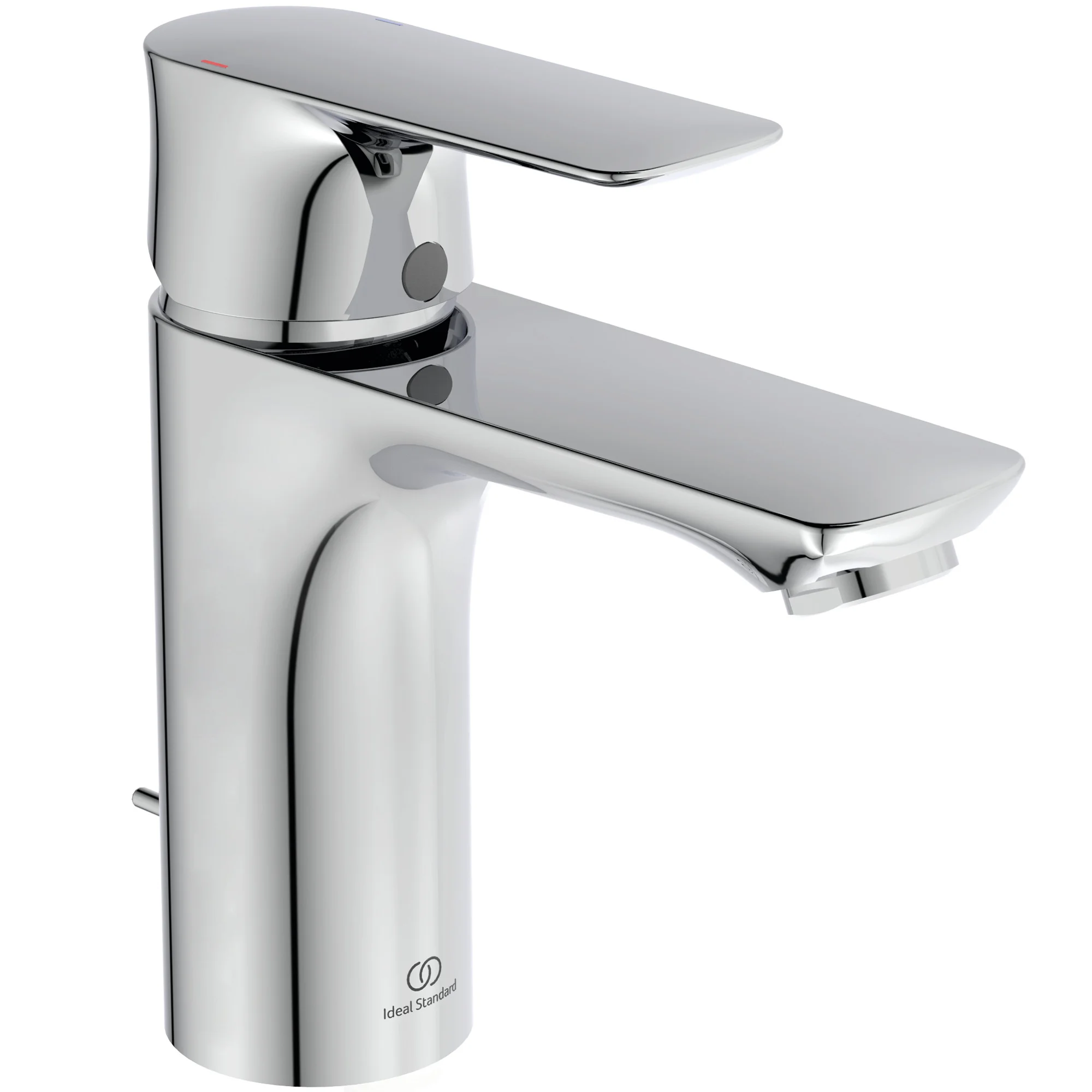

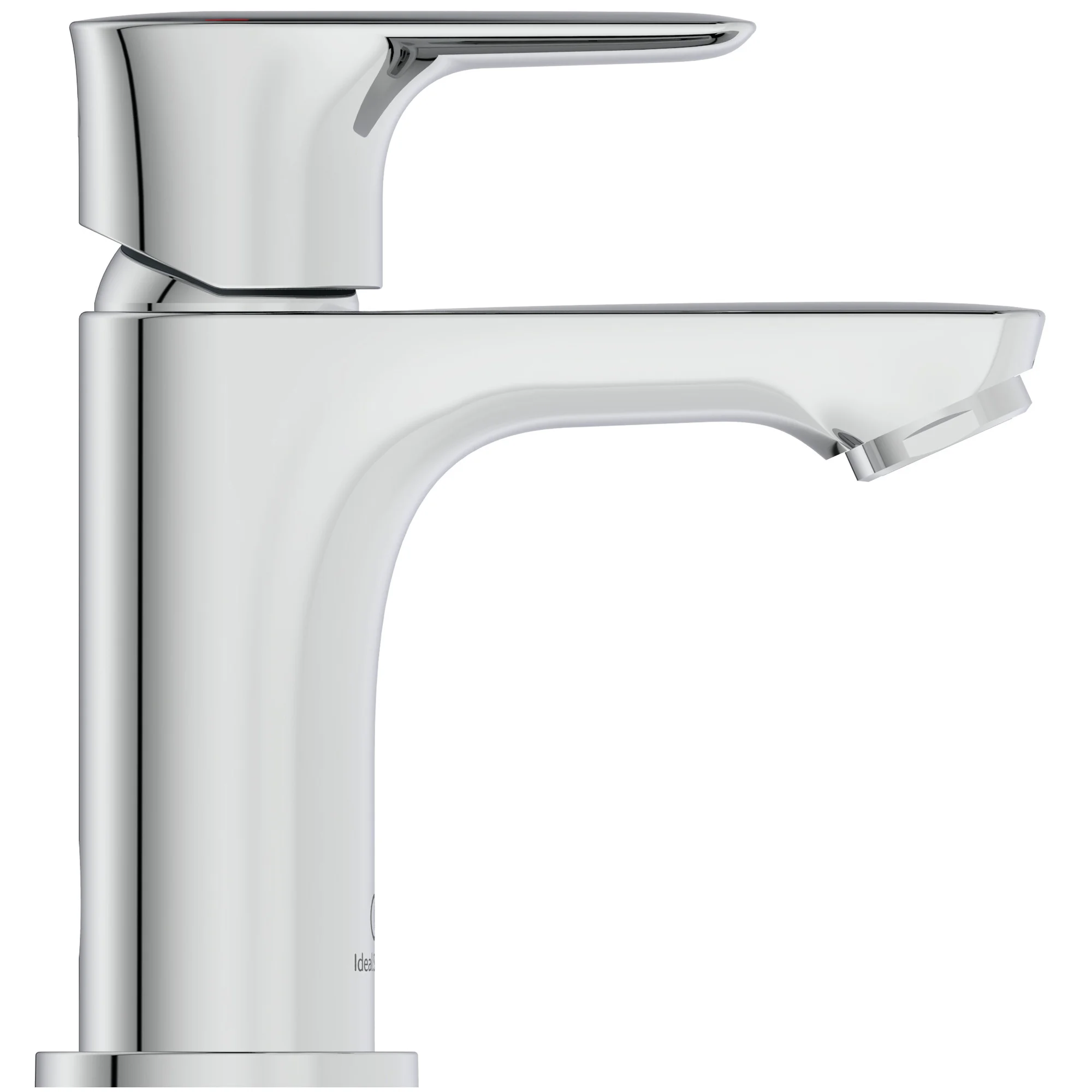

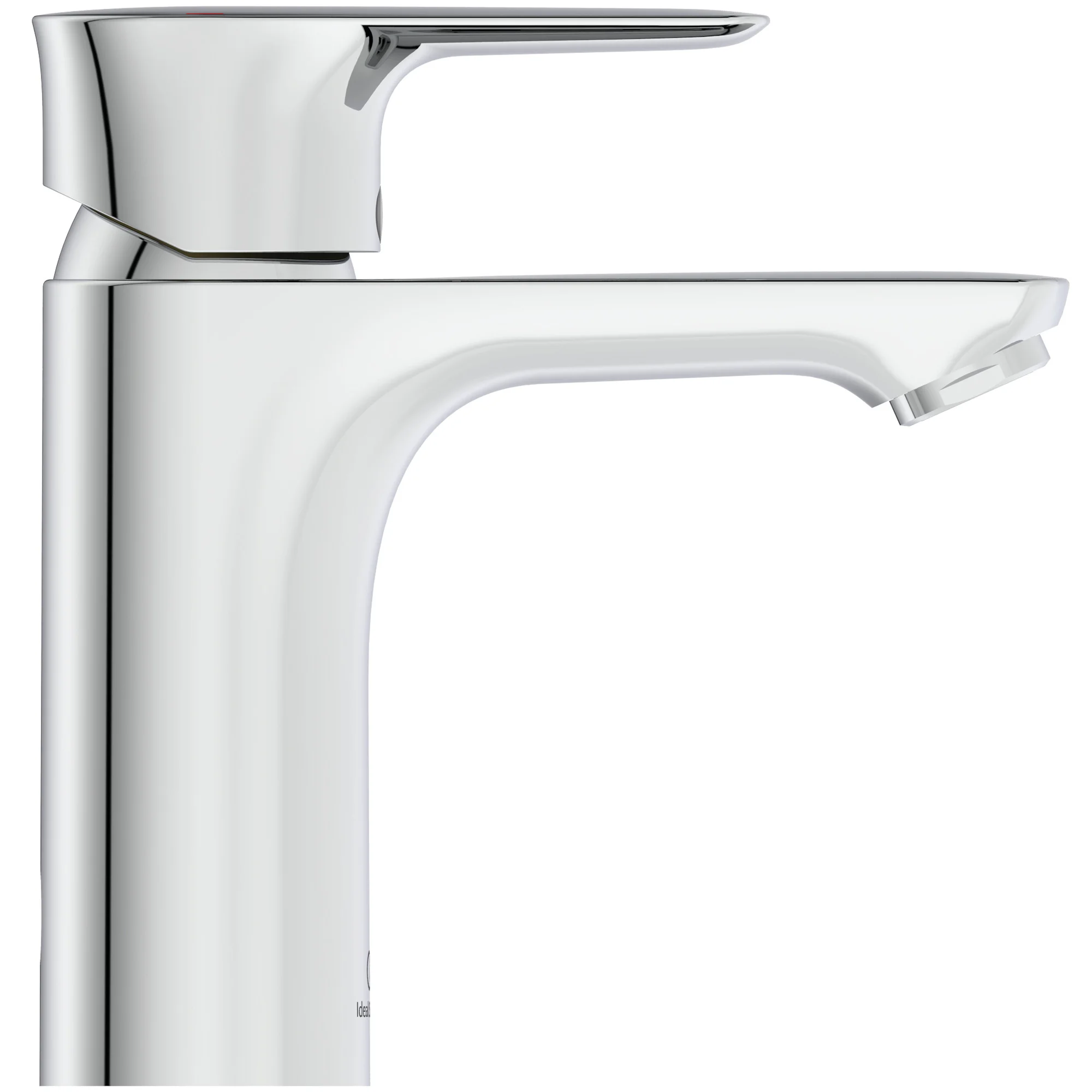

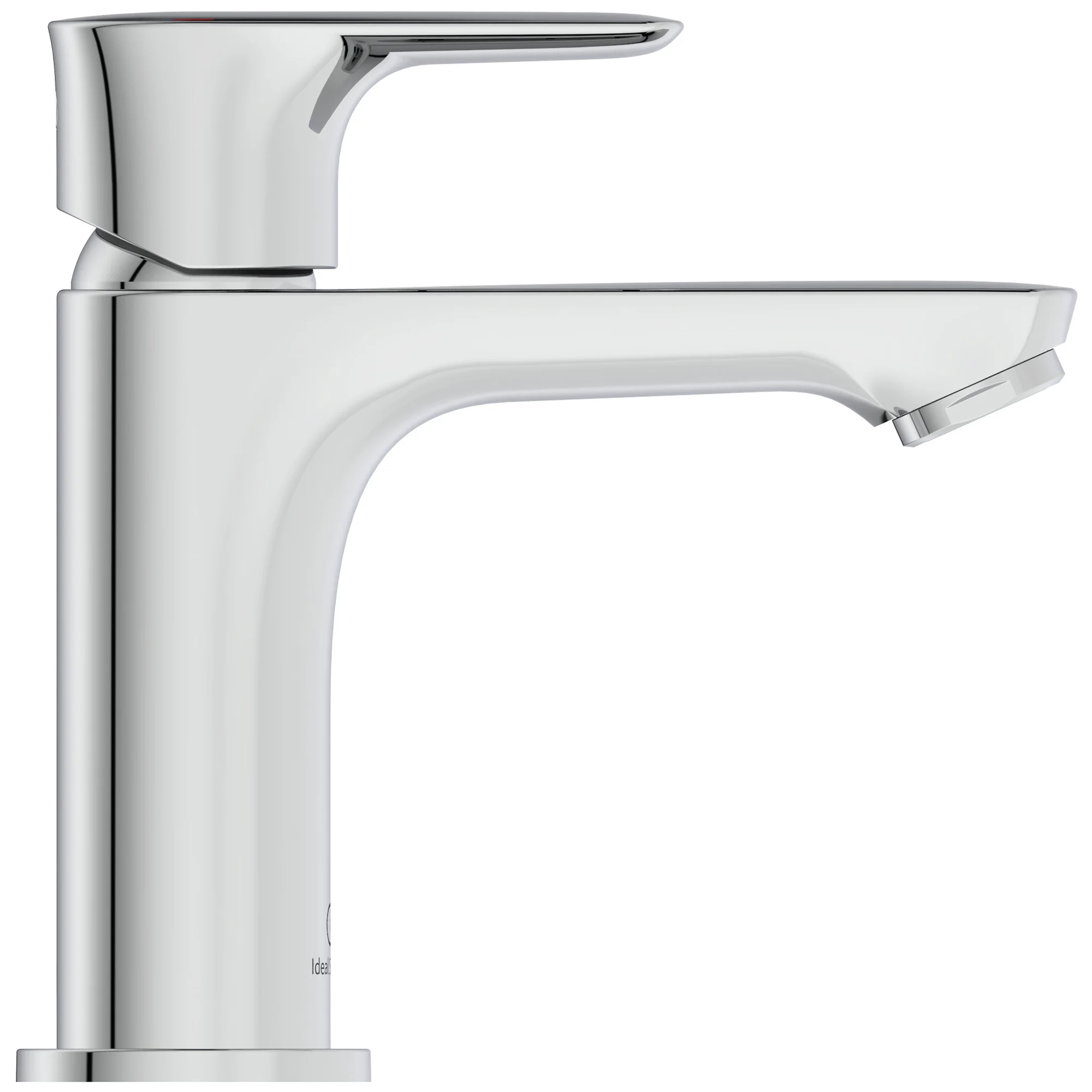

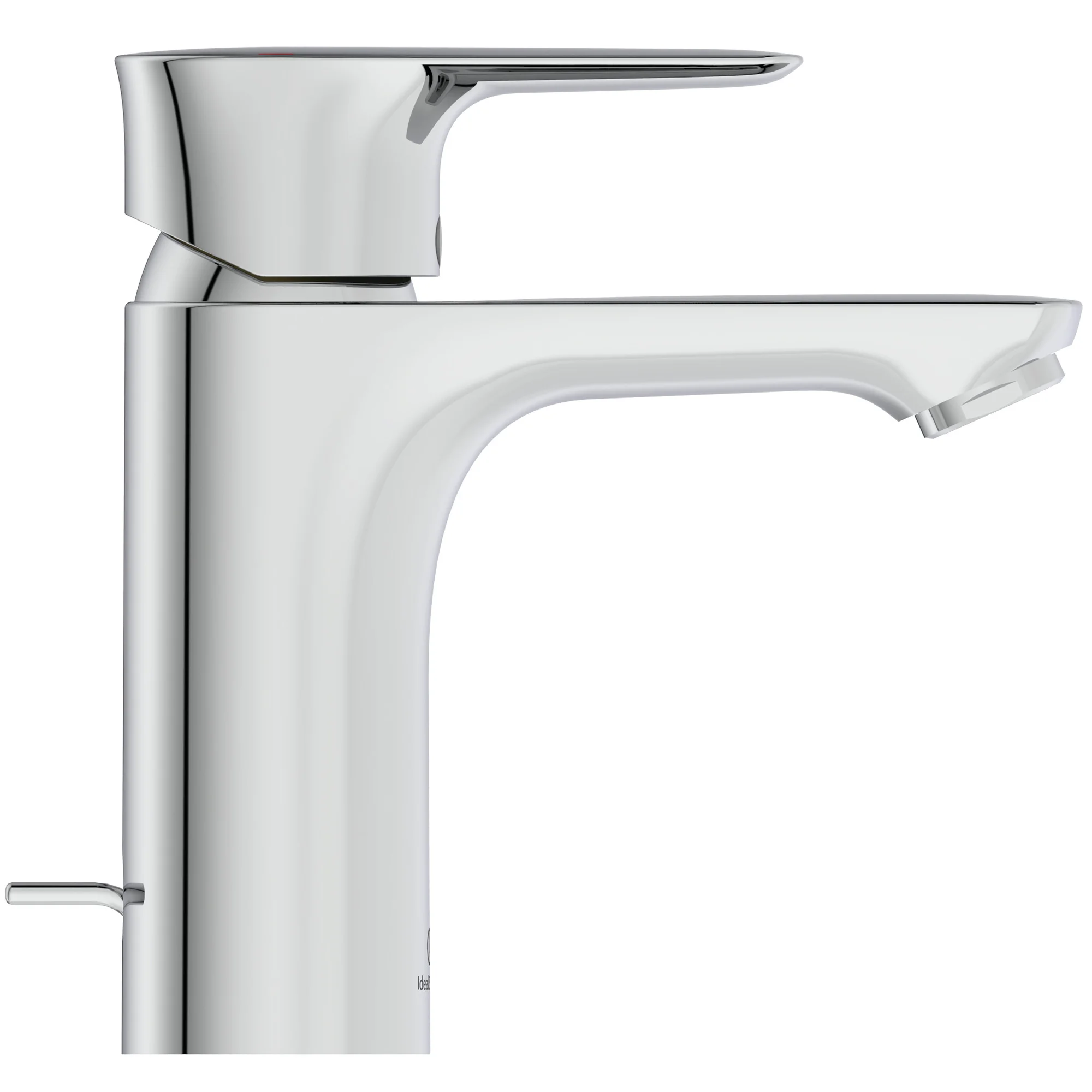

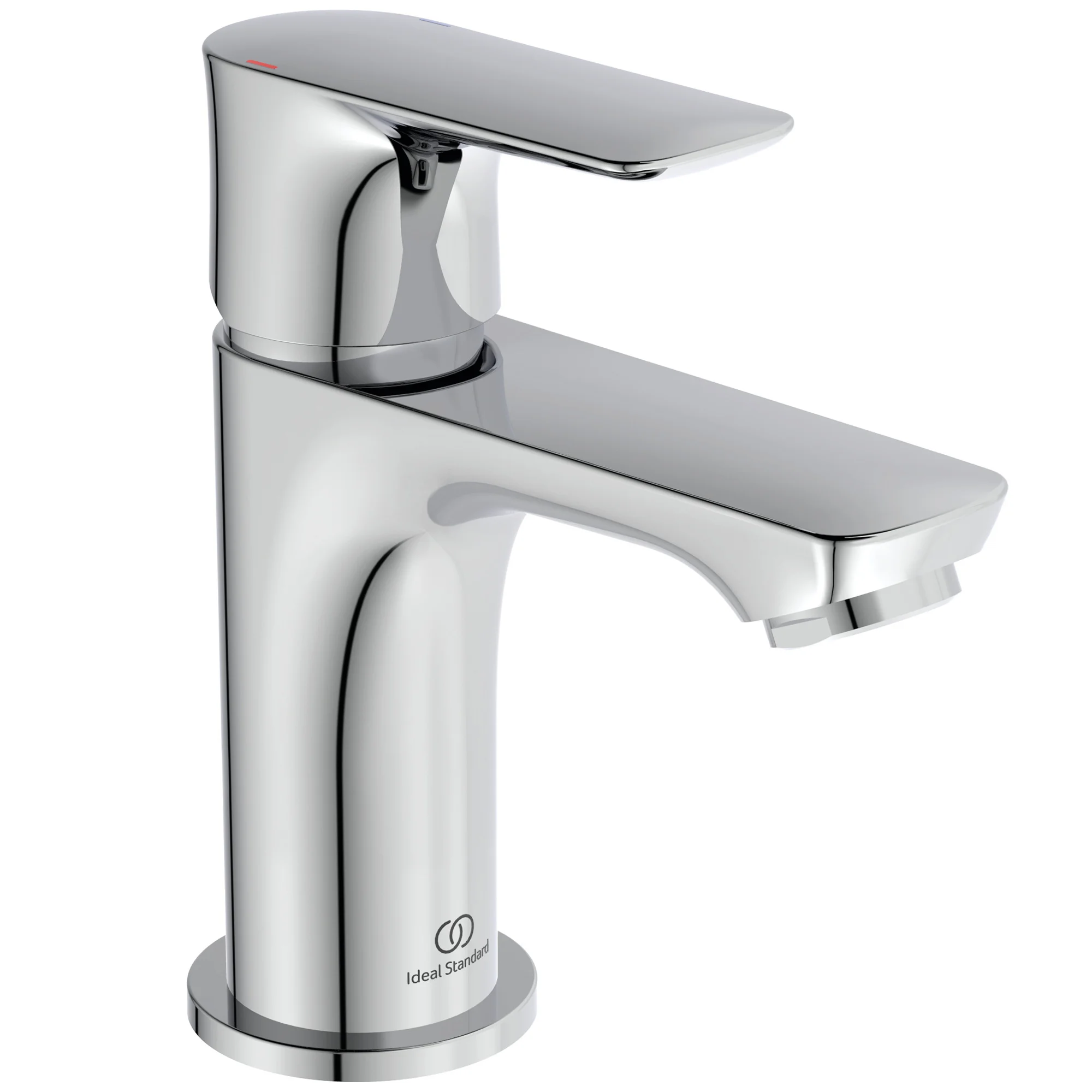

Ideal Standard Connect Air Basin Mixer Tap with Flat Lever Handle - Deck Mounted

Not Yet Rated No Rating

£173.29

RRP: £216.62
SKU: QS-V110696
Product Variants
Select Finish Step 1
Select Height Step 2
Select Tap Step 3
Pay in 3-Interest Free Payments
Shipping

Shipping: £7.95

Stock Availability

Stock Availability:

5 Working Days Approx.

Connect Air Details

MFC: A7048AA

Ideal Standard Connect Air Basin Mixer Tap with Flat Lever Handle - Deck Mounted.

Key Features

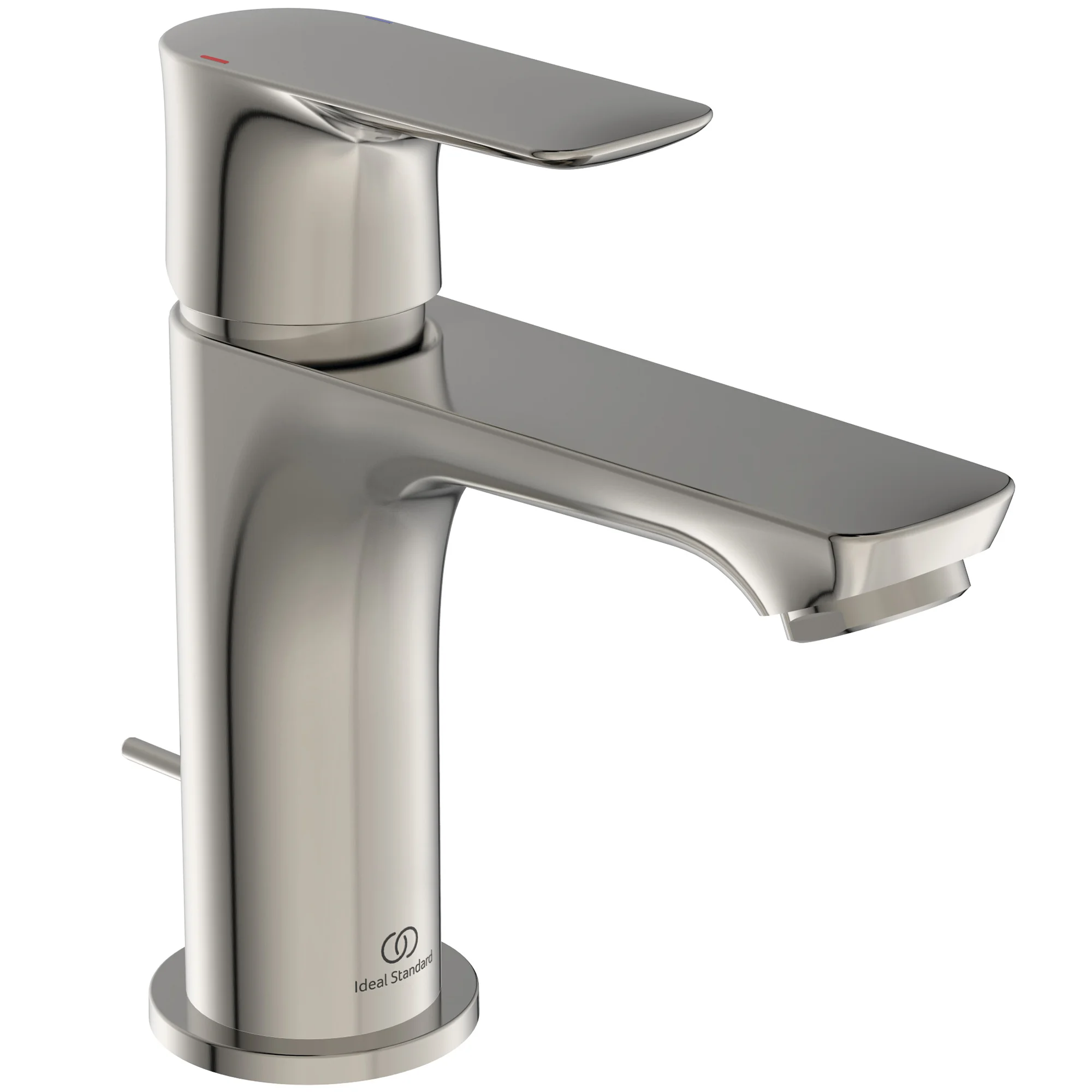

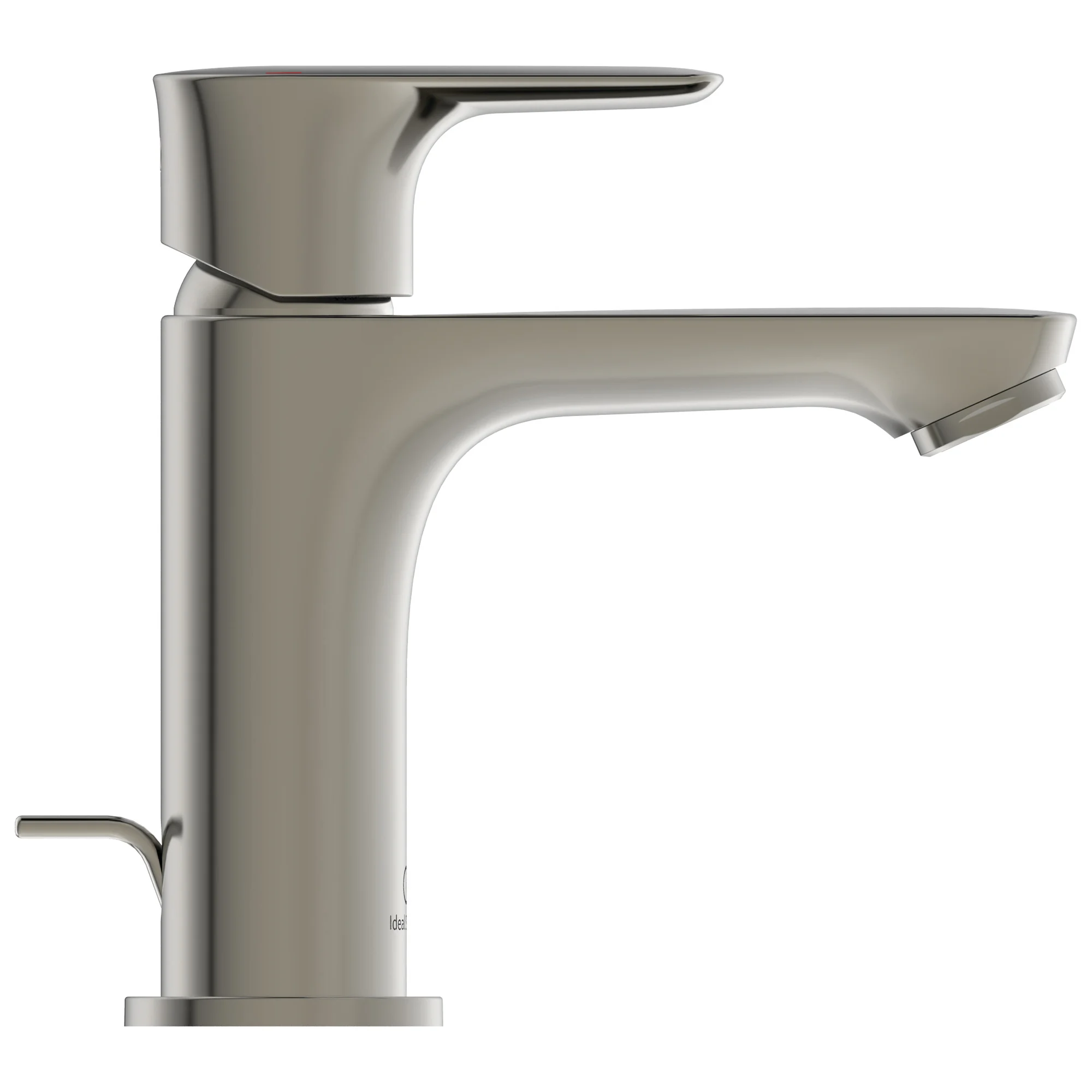

  • Choice of Finishes: Chrome, Silver Storm, Brushed Gold, Magnetic Grey
  • Manufactured using Brass Material
  • FirmaFlow® Ceramic Disc Cartridge
  • Easy Fix - [See Features Explained Section]
  • 5-Year Guarantee from the Manufacturer Against any Manufacturing Defects
  • Choice of Heights: 136mm, 146mm, 156mm
  • Choice of Variations: Without Pop-Up Waste, With Pop-Up Waste
  • Suitable for Balanced Supplies
  • Noise Class 1
  • Inlets with Flexible Hoses and Connections for 15mm Copper Tails
  • Flow Rate: 5 Litres Per Minute at 3 Bar Pressure
  • Factory Fitted with Removable 5 Litres Per Minute Eco Flow Regulator
  • Frequently used in Hotels, Offices and Residential Applications
  • Refer to the Technical Drawing For Size Details
  • Download the Product Data Sheet and Installation Instruction PDF File from the Additional Info Section
  • Features:
  • FirmaFlow Ceramic Cartridges with a Lifespan of 500,000 Cycles
  • Pre-Fitted 5-Litres Per Minute Eco Flow Regulators to Save Water
  • Easyfix for Hassle-Free Installation and Reduced Risk of Leakage and Limescale
  • Water-Saving Click Technology Decreases Water Usage by 50% and Provides Full Flow Only When the Handle is Moved Past Slight Resistance

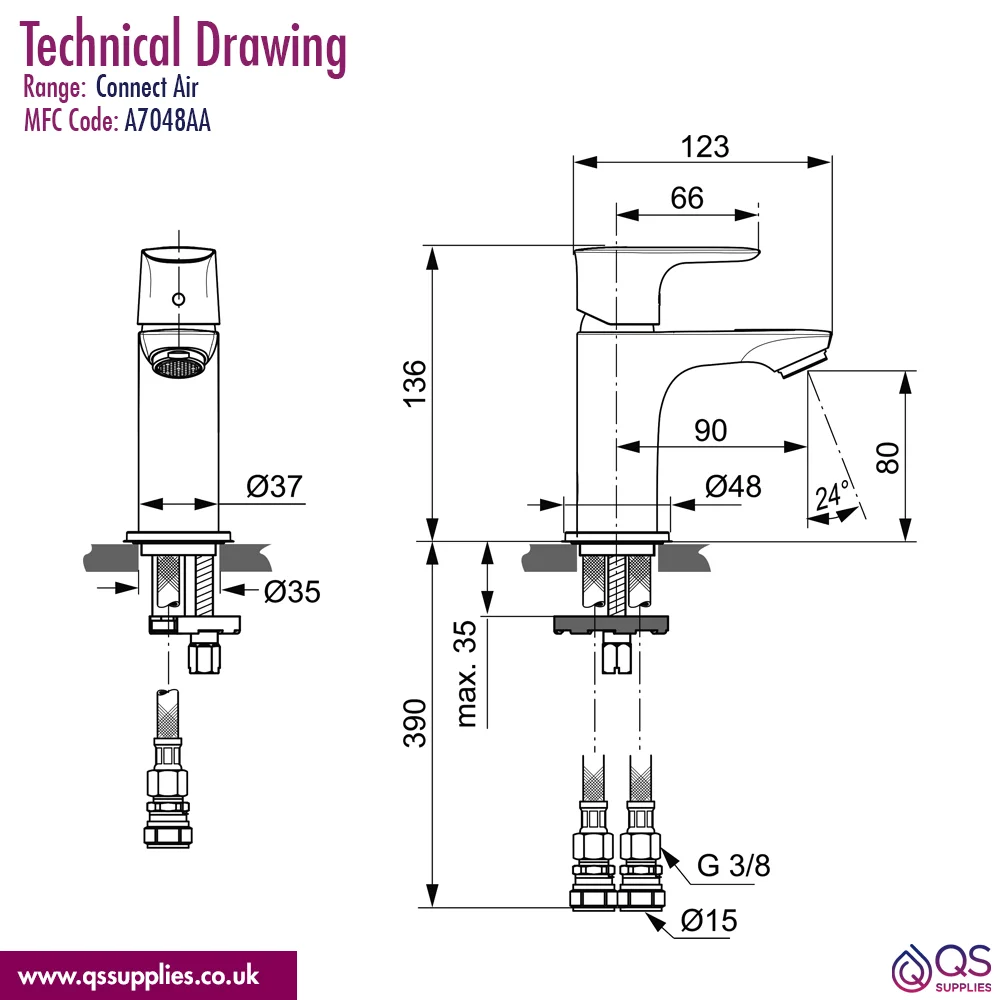

  • Specification Of 136mm Height Without Waste:
  • Weight: 1.09kg
  • Size [mm]: 48 x 123 x 136mm [Width x Depth x Height]
  • Size [cm]: 4.8 x 12.3 x 13.6cm [Width x Depth x Height]
  • Centre of the Inlet to the Centre of the Outlet: 90mm [9cm]
  • Base to Spout: 80mm [8cm]

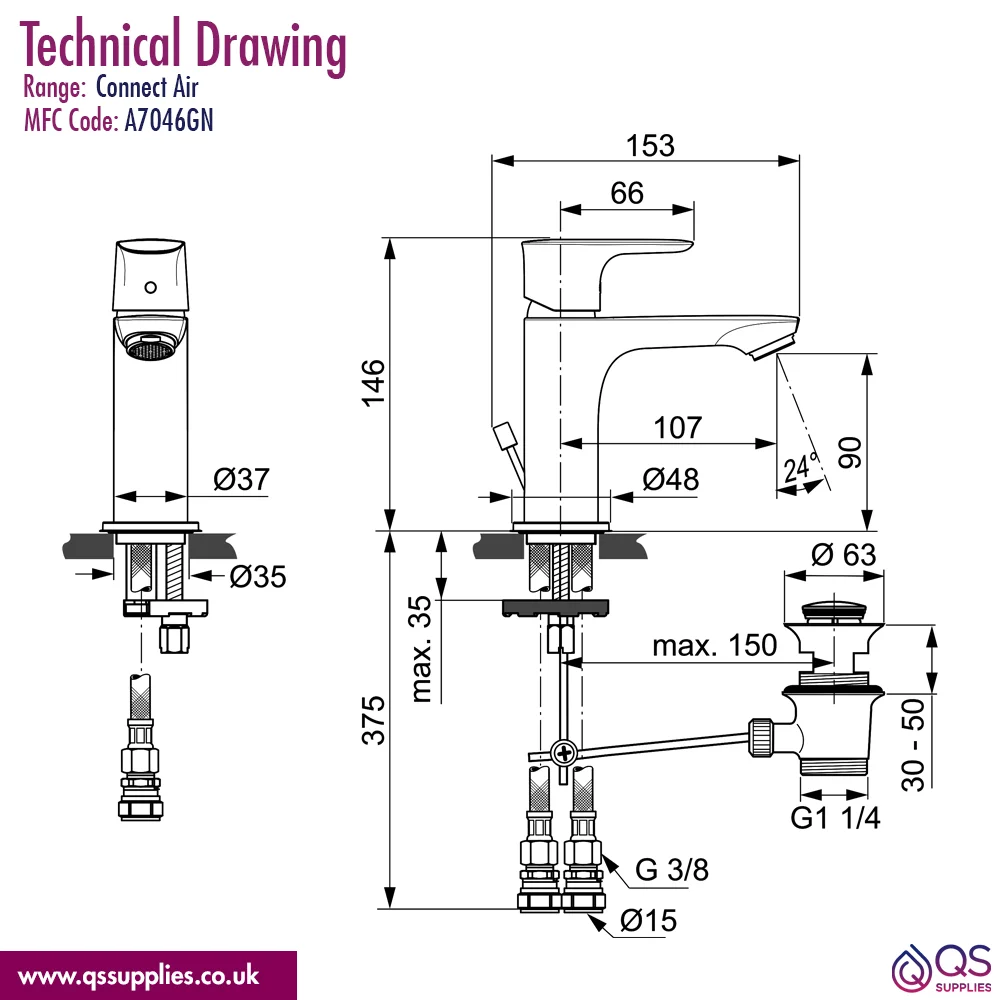

  • Specification Of 146mm Height With or Without Waste:
  • Weight of Without Waste: [1.14kg], Weight of With Waste: [1.44kg]
  • Size [mm]: 48 x 153 x 146mm [Width x Depth x Height]
  • Size [cm]: 4.8 x 15.3 x 14.6cm [Width x Depth x Height]
  • Centre of the Inlet to the Centre of the Outlet: 107mm [10.7cm]
  • Base to Spout: 90mm [9cm]

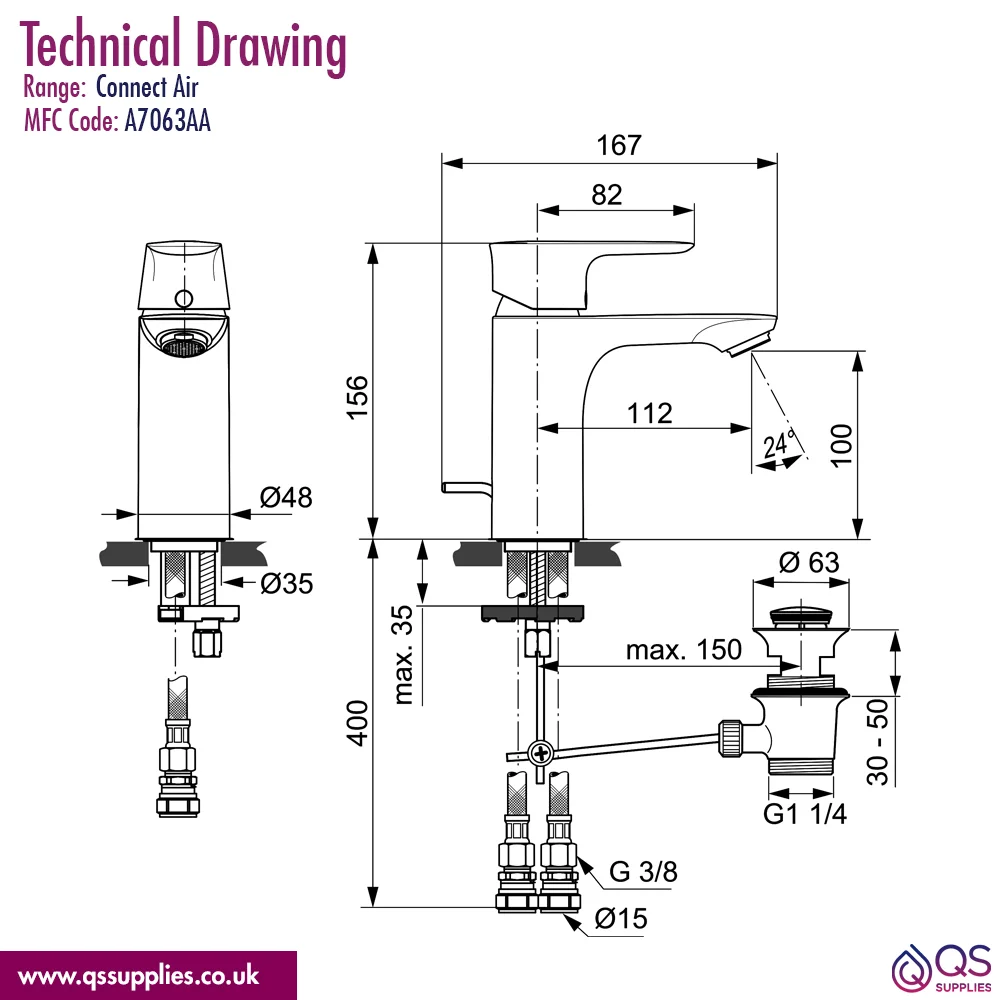

  • Specification Of 156mm Height With or Without Waste:
  • Weight of Without Waste: [1.43kg], Weight of With Waste: [1.63kg]
  • Size [mm]: 48 x 167 x 156mm [Width x Depth x Height]
  • Size [cm]: 4.8 x 16.7 x 15.6cm [Width x Depth x Height]
  • Centre of the Inlet to the Centre of the Outlet: 112mm [11.2cm]
  • Base to Spout: 100mm [10cm]

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Water Activation
  • : By Lifting/Tilting
  • ⤷ Range
  • : Connect Air
  • ⤷ Tap Body Shape
  • : Round
  • ⤷ Handle Position
  • : Upwards
  • ⤷ Colour
  • : Chrome
  • ⤷ Warranty/Guarantee
  • : 5 Years
  • ⤷ Material
  • : Brass
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Deck Mounted
  • ⤷ No. of Holes Required
  • : 1
  • ⤷ Spout type
  • : Fixed
  • ⤷ Valve Included
  • : Yes
  • ⤷ Valve/Cartridge Type
  • : FirmaFlow® Ceramic Disc Cartridge
  • ⤷ Handle Material
  • : Metal
  • ⤷ Base To Spout
  • : 80, 90, 100
  • ⤷ Spout Reach
  • : 90, 107, 112
  • ⤷ Overall Height
  • : 136, 146, 156
  • ⤷ Width
  • : 48
  • ⤷ Depth
  • : 123, 153, 167
  • ⤷ Minimum Operating Pressure (Bar)
  • : 1
  • ⤷ Water Saving
  • : Yes
  • ⤷ Waste Type
  • : Pop-Up
  • ⤷ Flow Rates (l/min)
  • : 3 Bar - 5 Ltr
  • ⤷ Handle Style
  • : Flat
  • ⤷ Deck Mount Drill Hole Diameter
  • : 35
  • ⤷ Technologies
  • : Click
  • ⤷ Waste Included
  • : Sold Separately
  • ⤷ Barcode
  • : 4015413342322
  • ⤷ Product Type
  • : Basin Mixer Tap

Additional Info & Downloads

Download PDFDownload the Product Data Sheet Of 136mm - Without Waste Pdf File Download PDFDownload the Product Data Sheet Of 146mm Height - Without Waste Pdf File Download PDFDownload the Product Data Sheet Of 146mm - With Waste Pdf File Download PDFDownload the Product Data Sheet Of 156mm - Without Waste Pdf File Download PDFDownload the Product Data Sheet Of 156mm - With Waste Pdf File Download PDFDownload the Installation Instruction Of 136 & 146mm Height Pdf File Download PDFDownload the Installation Instruction Of 156mm Height Pdf File Download PDFDownload the Spare Part List Of 136 & 146mm Height Pdf File Download PDFDownload the EPD Environmental Product Declaration Pdf File

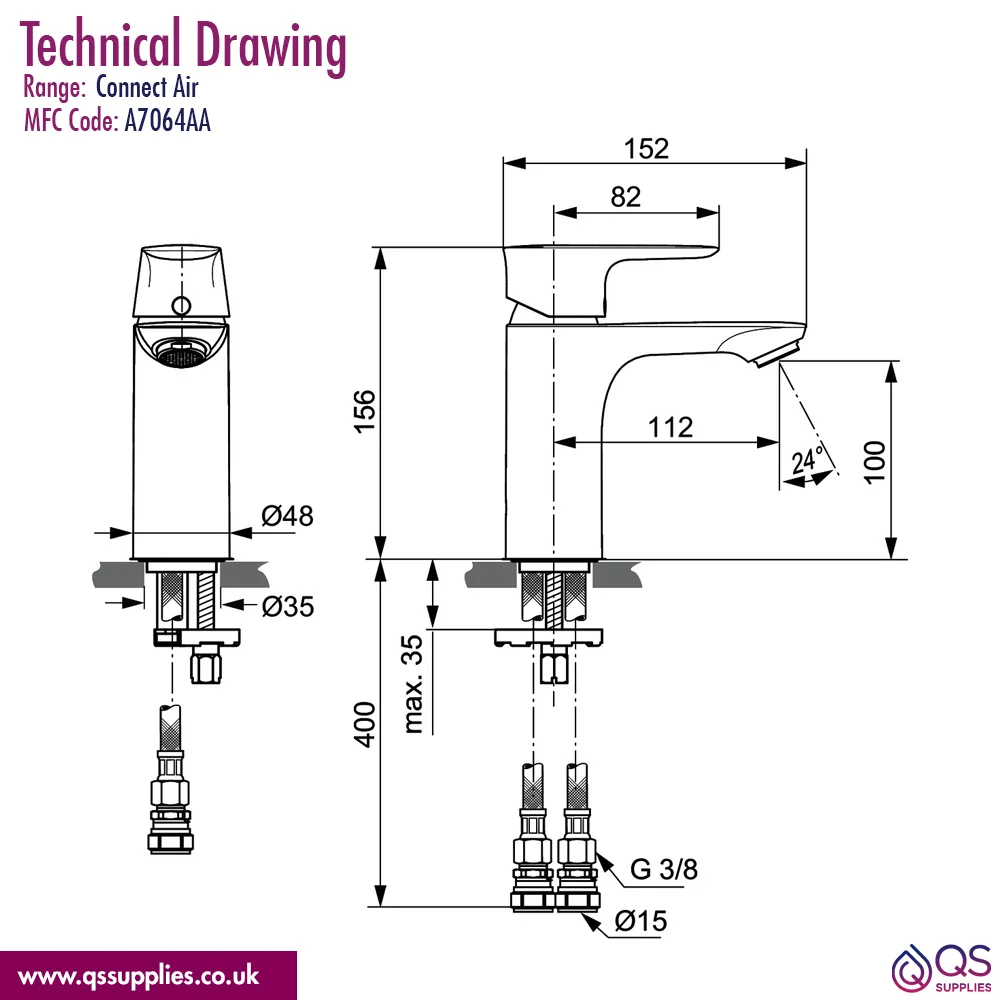

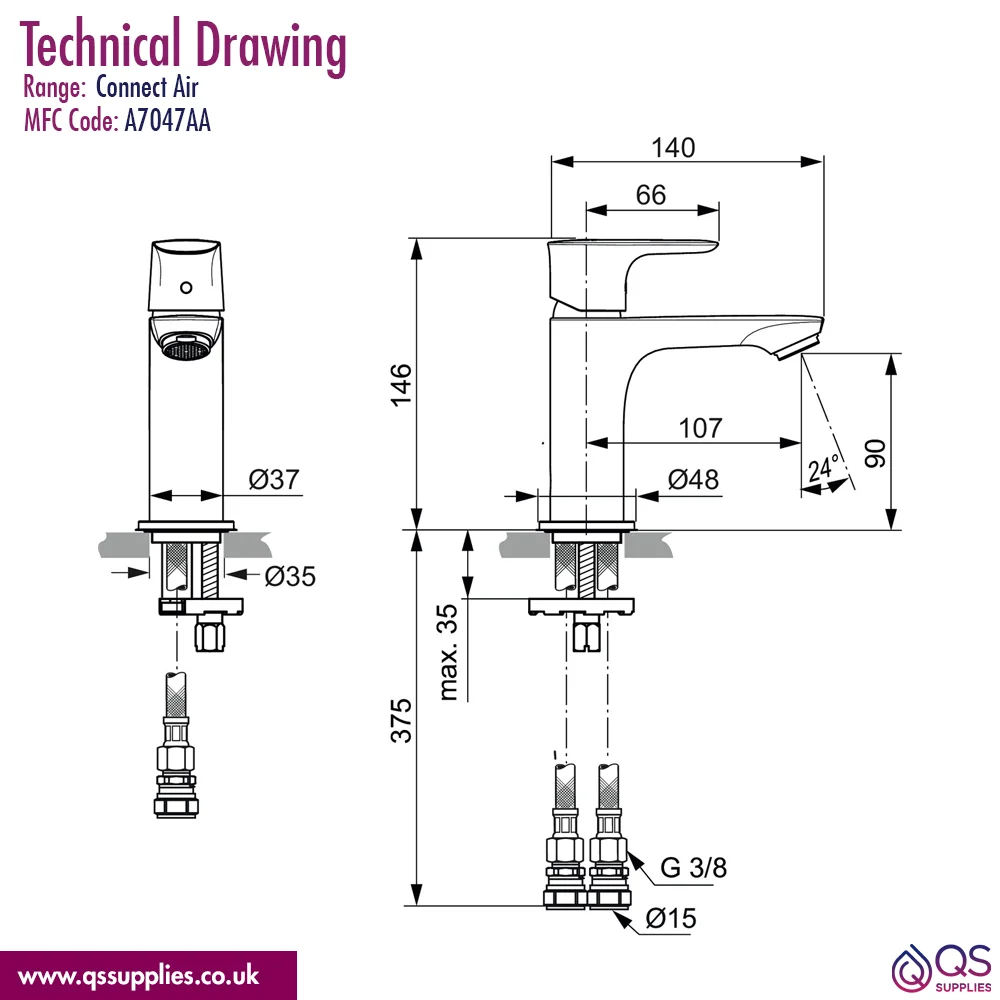

Technical Images

£173.29
RRP: £216.62
Stock Availablity: 5 Working Days Approx
QS Supplies

8 Features Included In This Product Explained

FirmaFlow Ceramic Cartridge

FirmaFlow Ceramic Cartridge

The firmaFlow ceramic disc cartridge uses Click Technology with a mechanical stop to limit the tap water flow at the basin to just the amount needed to wash hands. It maintains flow consistency, reduces use by up to 50%, and offers the utmost temperature precision and safety. It can fine-tune the temperature between 34°C and 42°C. This cartridge has almost double the lifespan as the industry standard lasts– 500,000 cycles, compared to 300,000 cycles. It has a high hot water resistance of greater than 95°C.

Easy-Fix Fixation System

Easy-Fix Fixation System

With the easy-fix system, tap assembly is fast and easy. It is so simple that the tap can be assembled with one hand with the rubber membrane on the "screw-nut". Using the sealing component, you can secure the tap in the best possible way on the porcelain and get the perfect sealing.

Optional: Pop-Up Waste

Optional: Pop-Up Waste

The Pop-Up waste or pop-up assembly refers to the type of pipe fitting for a sink, basin or bidet connected to a waste pipe at the plughole. It comes with a lever or knob-controlled plug or stopper and operates using a lever that can be lowered or lifted to close and open the plug.
Read more...

Balanced Supplies

Balanced Supplies

Balanced supplies in a mixer tap mean the hot and cold water inputs have consistent pressures and temperatures. Maintaining these constants is critical to keep the mixer work at its top form and give a controlled and comfortable flow blended to the required temperature.

Flexible Tail Pipes

Flexible Tail Pipes

Flexible Tails, or "Flexi" Tails, are one of the easiest methods to connect the plumbing pipework to the tap fitting. Mixers generally have two tails, one for the hot water supply and the other for the cold. These tailpipes consist of rubber inside a braided metal and come in many sizes.

Flow Regulator

Flow Regulator

As the name suggests, a flow regulator is a simple device designed to regulate water flow to a predetermined level. The job of a flow regulator is to stop water wastage. For instance, if the regular flow rate through a tap is 20 litres per minute, a flow regulator can reduce the flow rate between 6 to 12 litres per minute to complete the desired chore without feeling low pressure.

Click technology

Click technology

Using this technology, you can control water usage using the adjustable water-saving functionality. You can raise the mixer handle until you hear a “click” to adjust the water supply to 50%. You can adjust up to 100% with just a push.

Single Lever Taps

Single Lever Taps

These taps are designed with a single lever or handle to control the water's temperature and flow. Extremely easy to operate, these also allow you to preset the water temperature by leaving it in the position with your preferred water temperature. Besides, it is simple to control the flow of water; the higher you lift the lever or move it to the end, the stronger the water flow.
