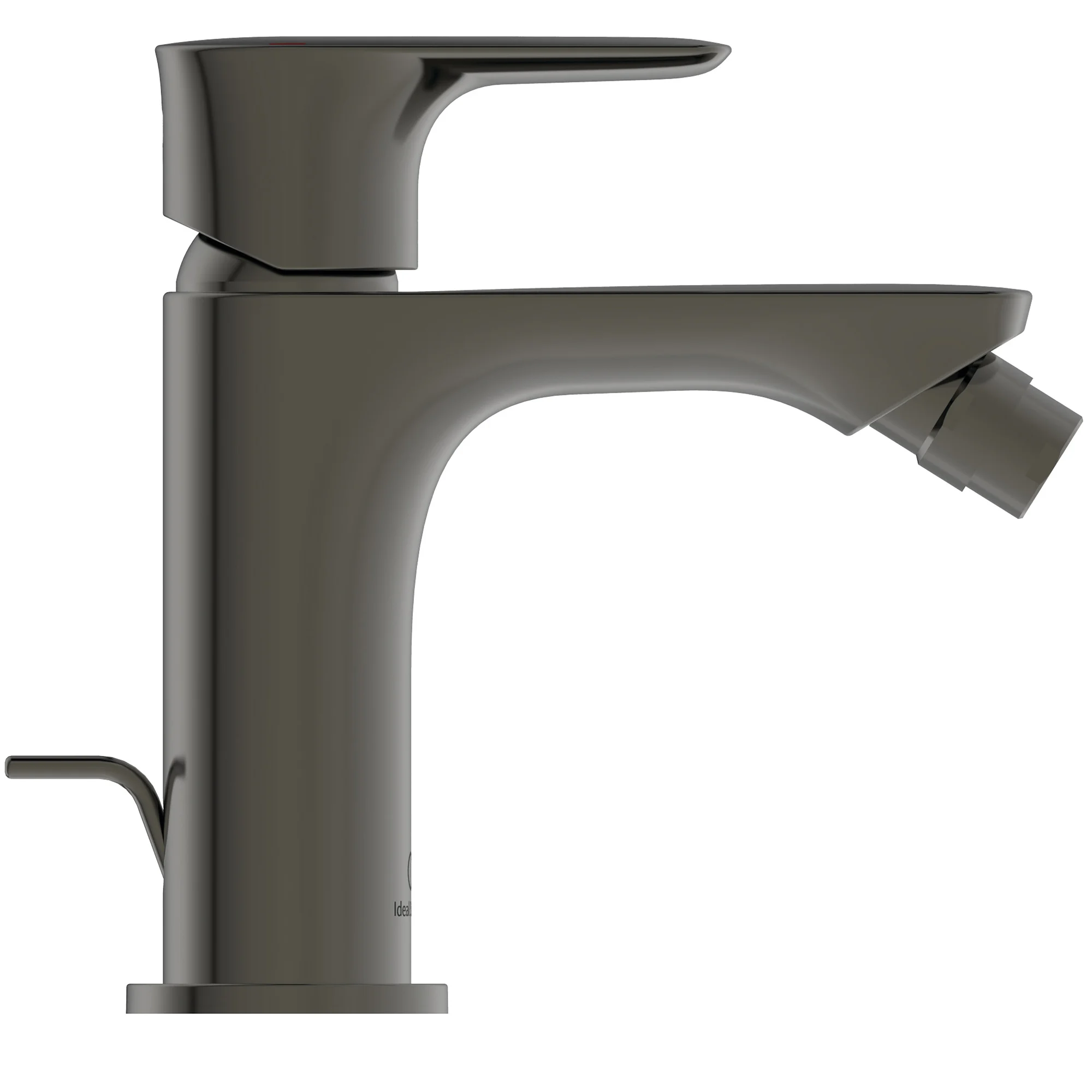

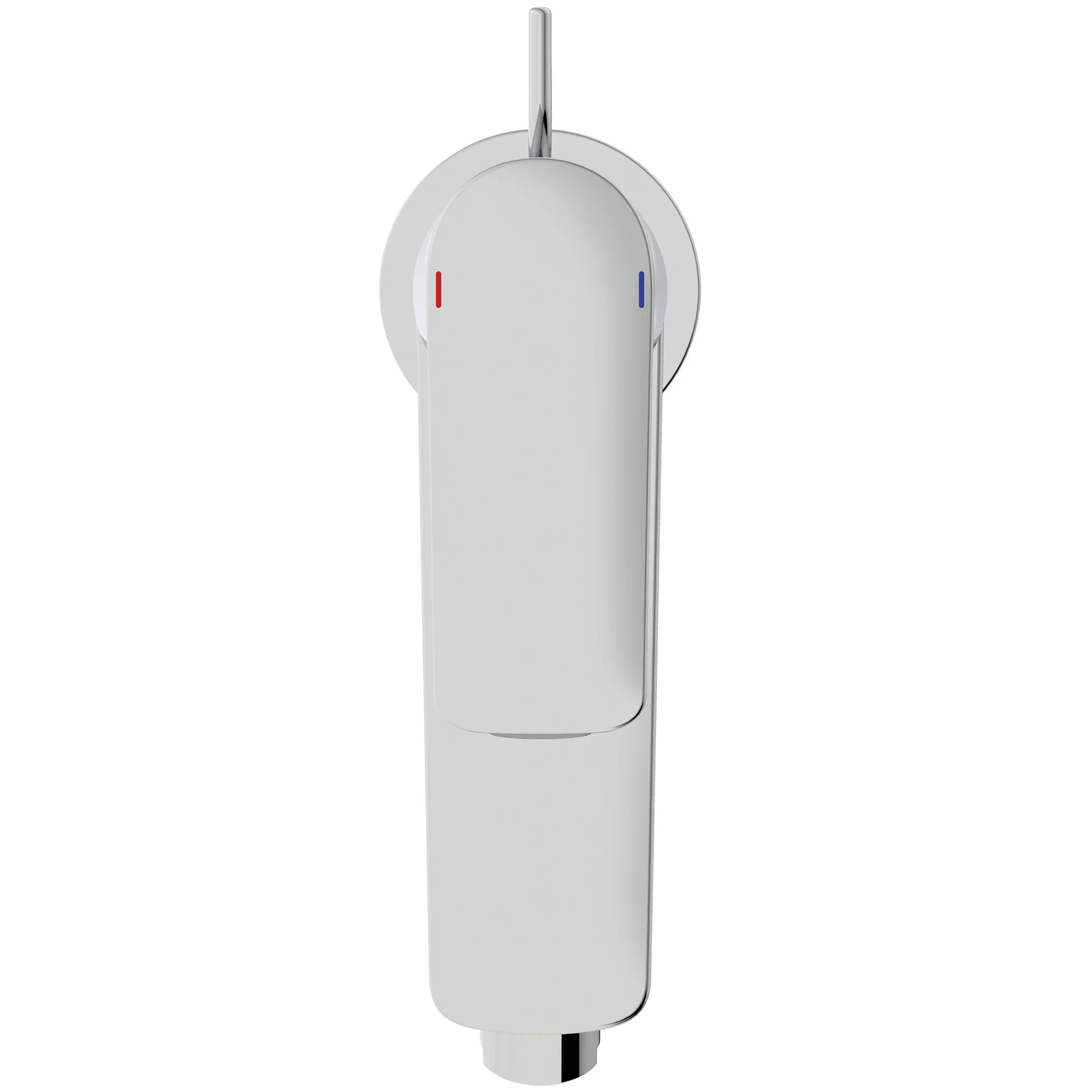

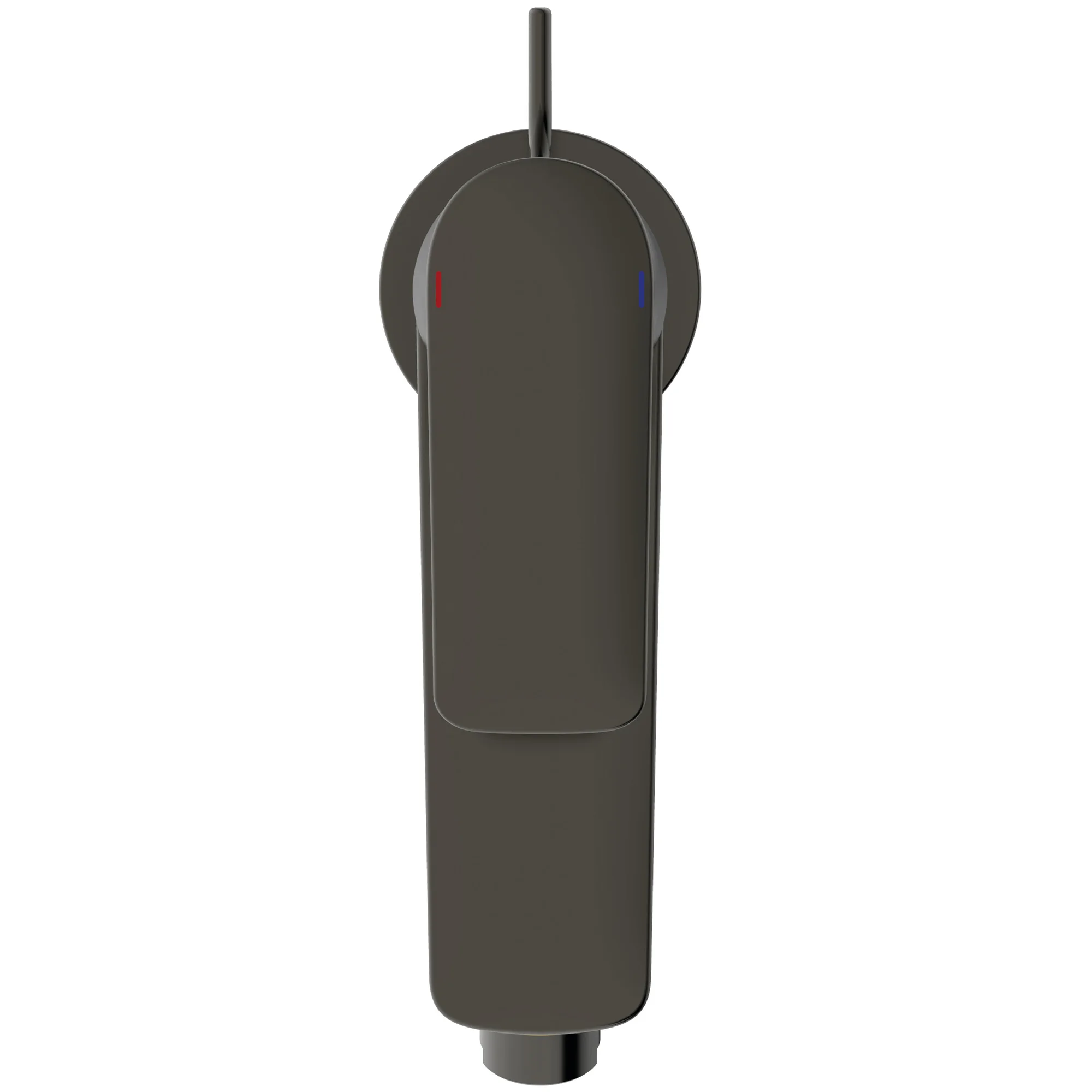

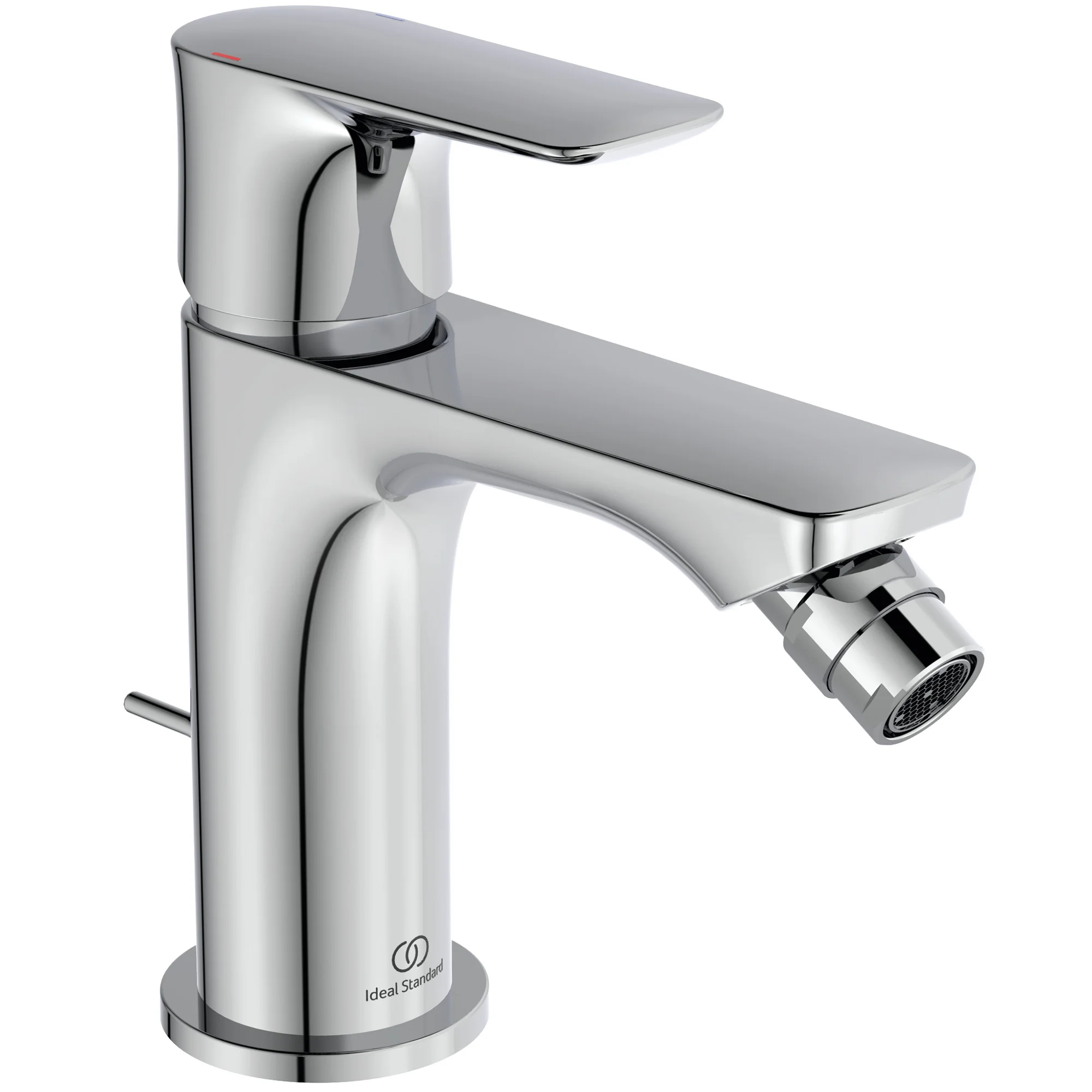

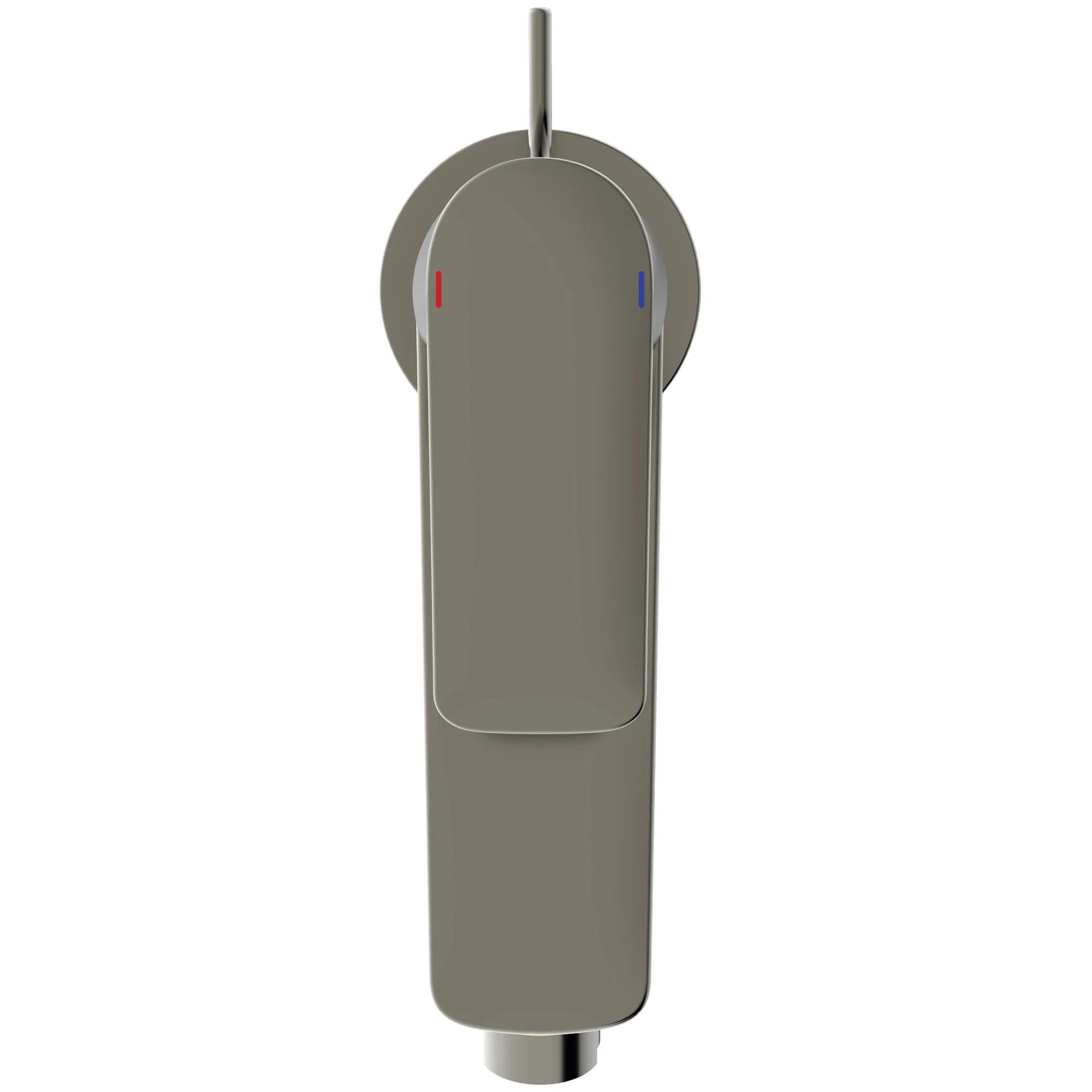

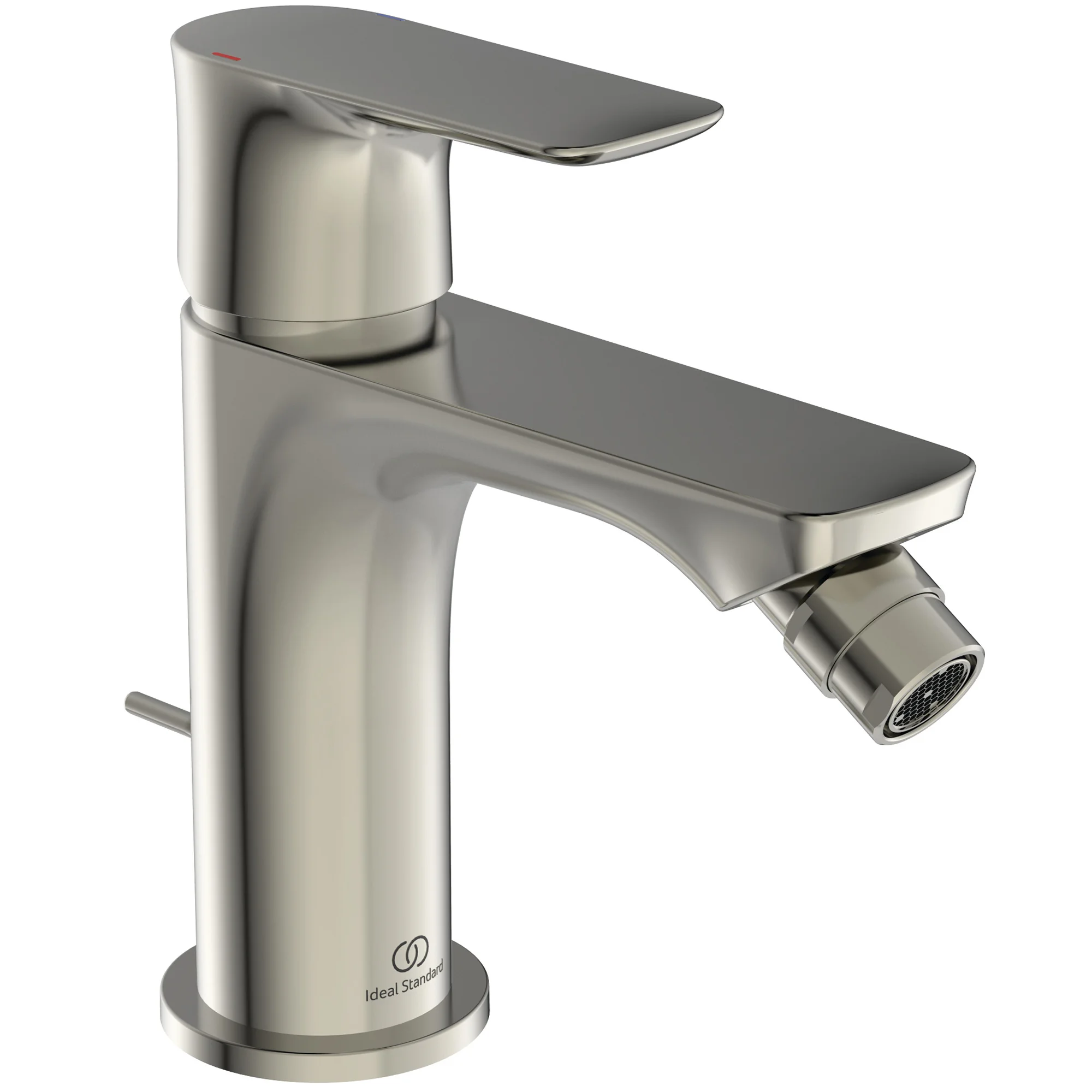

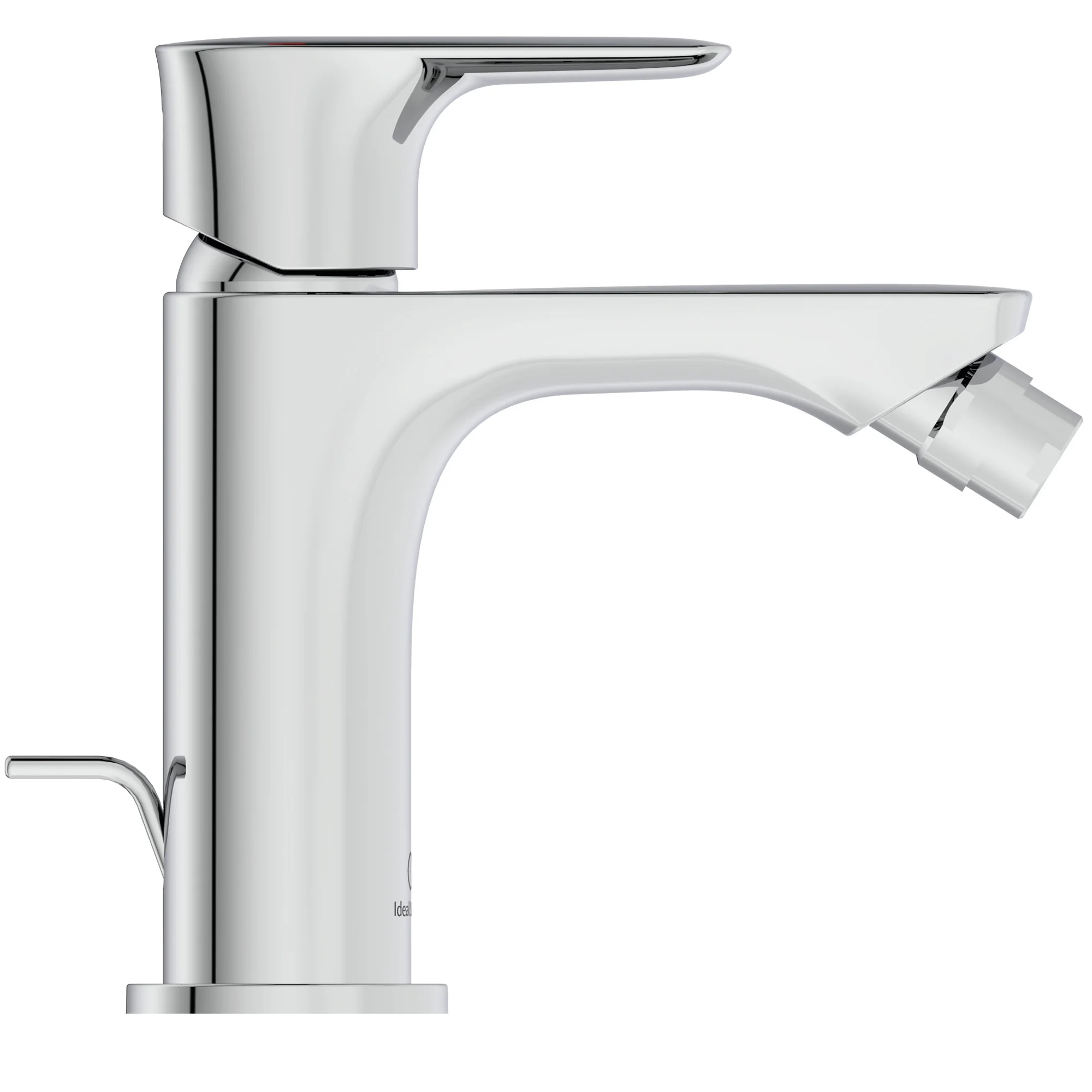

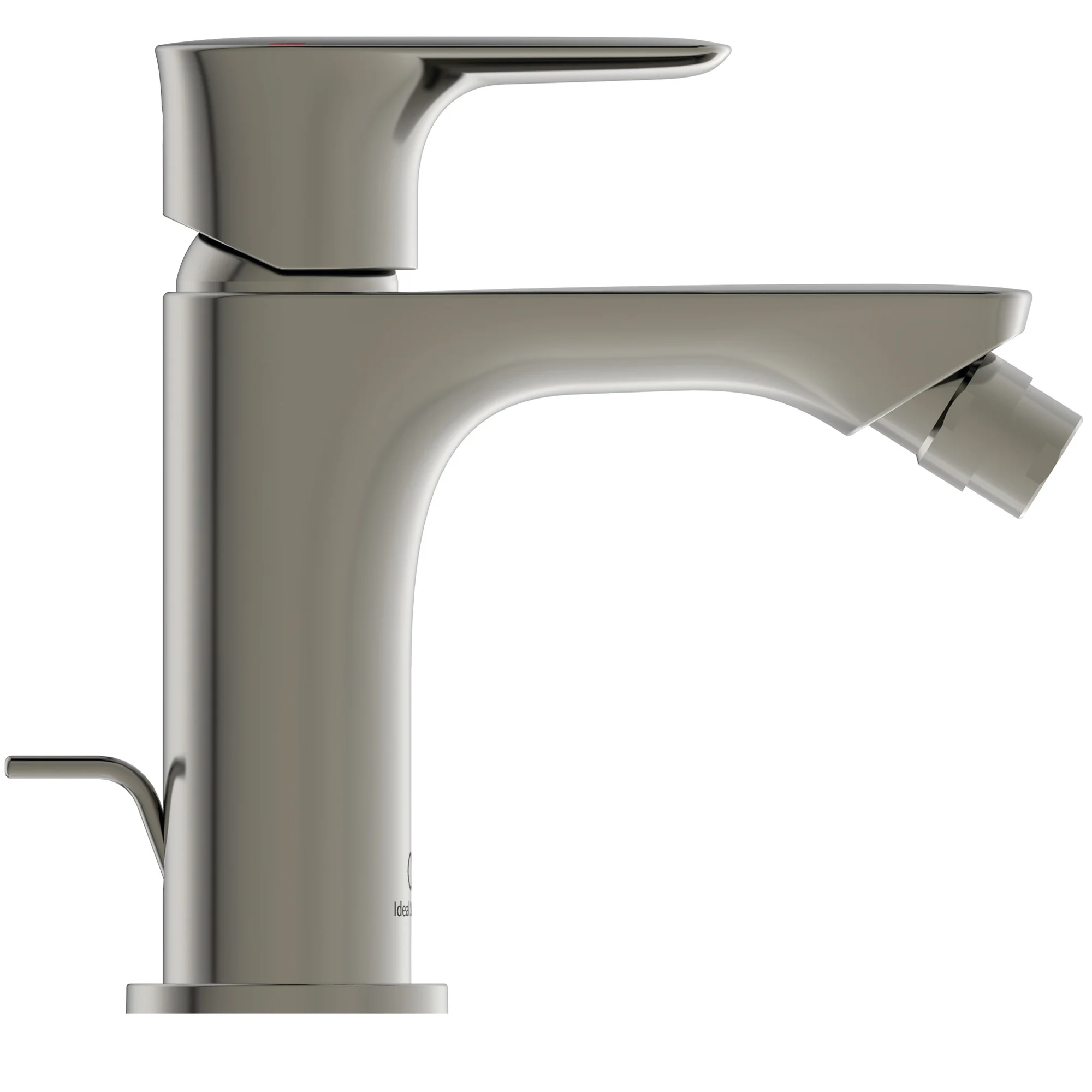

Ideal Standard Connect Air Bidet Mixer Tap with Pop-Up Waste - Flat Handle

Not Yet Rated No Rating

£216.61

RRP: £270.76
SKU: QS-V110693
Select Finish
Selected: OP-256537 - Chrome
Pay in 3-Interest Free Payments
Shipping

Shipping: £7.95

Stock Availability

Stock Availability:

5 Working Days Approx.

Connect Air Details

MFC: A7050AA

Ideal Standard Connect Air Bidet Mixer Tap with Pop-Up Waste - Flat Handle.

Key Features

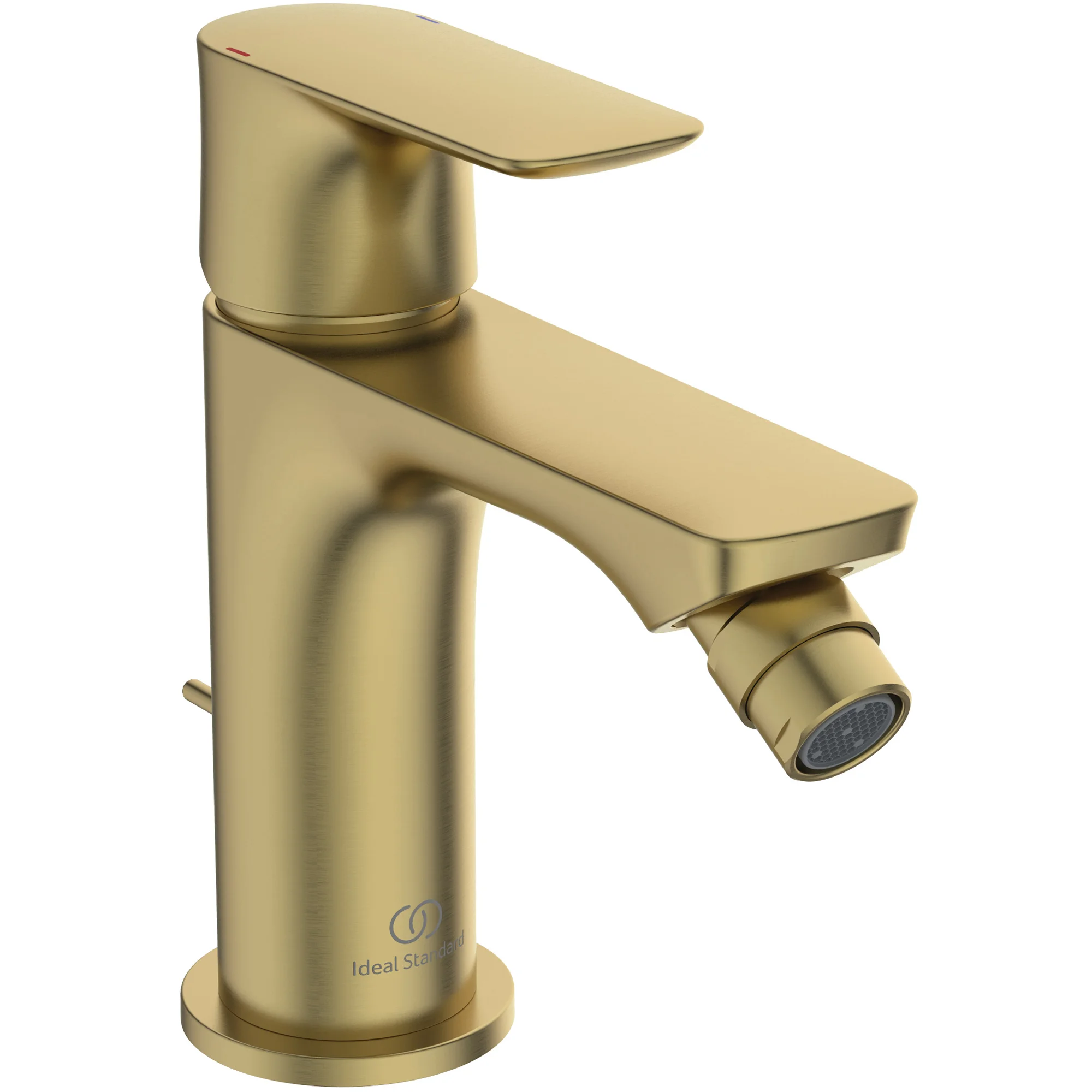

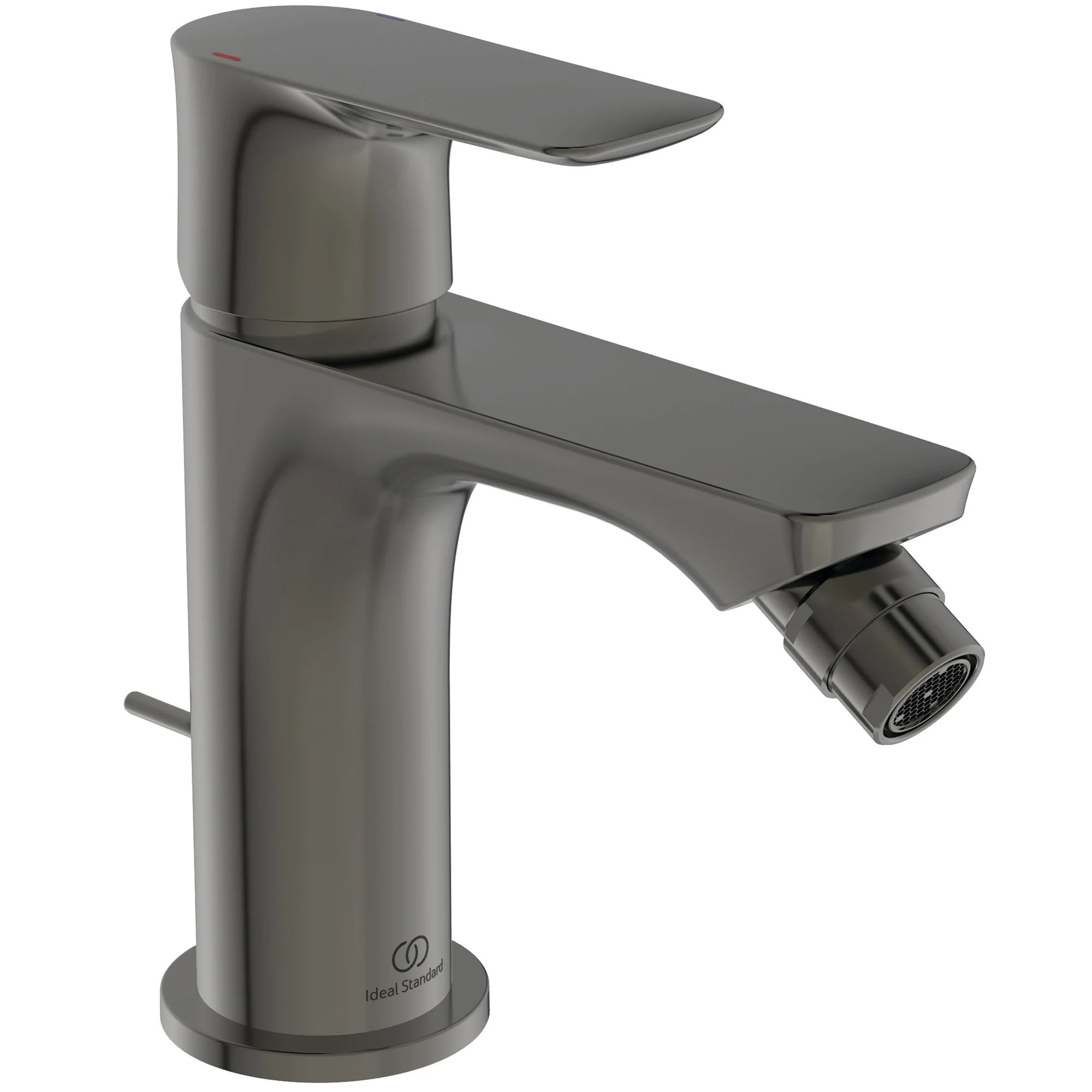

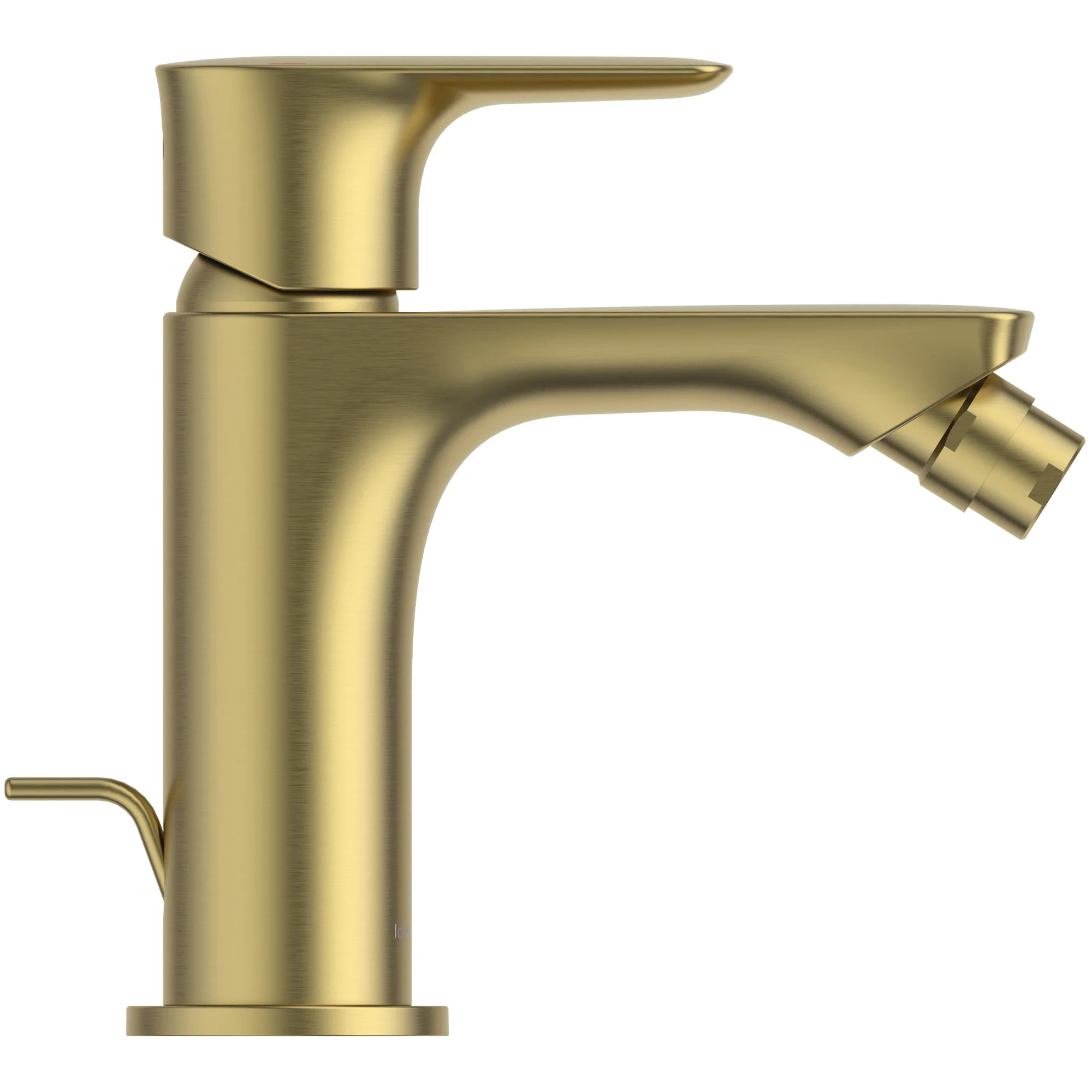

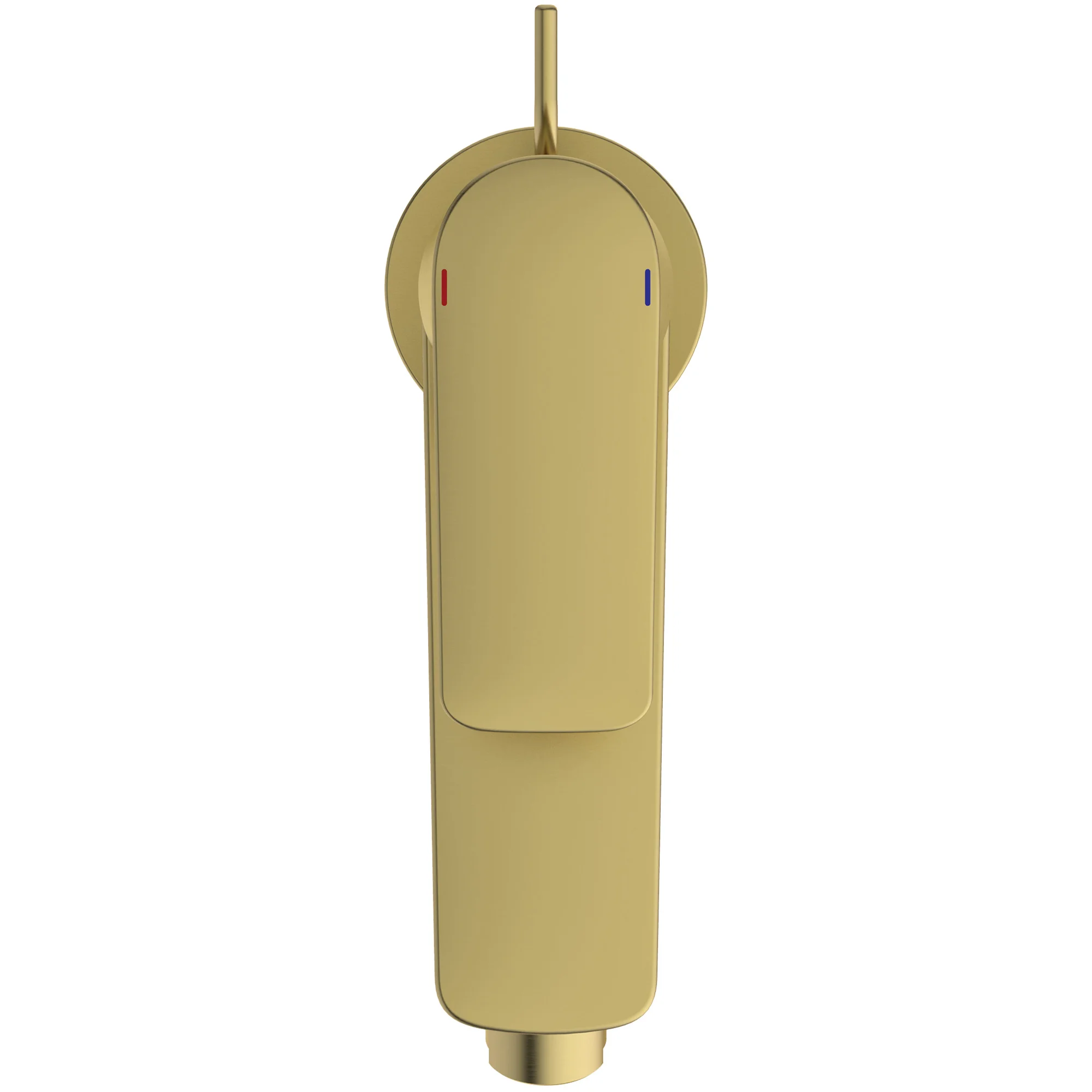

  • Choice of Finishes: Chrome, Silver Storm, Brushed Gold, Magnetic Grey
  • Manufactured Using Brass Material
  • FirmaFlow® Ceramic Disc Cartridge
  • Features Easyfix System
  • 5-Year Guarantee from the Manufacturer Against any Manufacturing Defects
  • Suitable for Balanced Supplies
  • Features: EasyFix, Adjustable Outlet, Ecoflow, PVD Technology
  • Inlets with Flexible Hoses and Connections for 15mm Copper Tails
  • Fitted with a 5 Litre Per Minute Flow Regulator
  • Unregulated Flow Rate 4.7 Litres Per Minute at 1 Bar
  • Size [mm]: 48 x 161 x 146mm [Width x Depth x Height]
  • Size [cm]: 4.8 x 16.1 x 14.6cm [Width x Depth x Height]
  • Centre of the Inlet to the Centre of the Outlet: 114mm [11.4cm]
  • Base to Spout: 81mm [8.1cm]
  • Ball Joint M18x1
  • Metal Escutcheon
  • Noise Class 1
  • Standards: EN 248, Standards: EN 817, Standards: DIN 4109-1
  • Weight:1.45kg
  • Frequently used in Hotels, Offices and Residential Applications

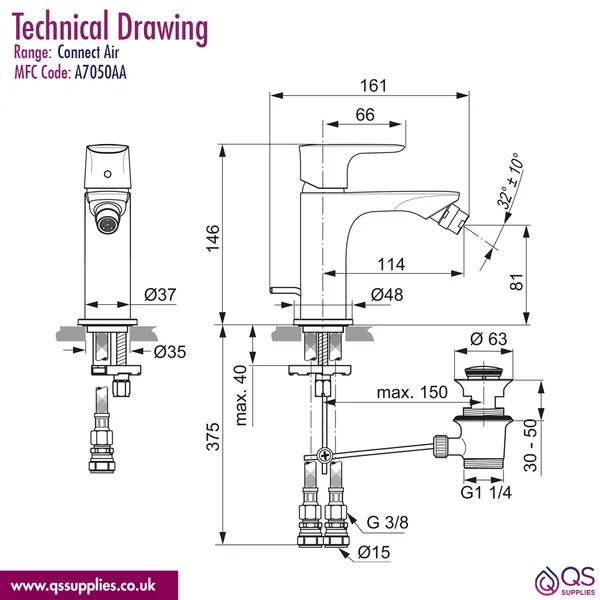

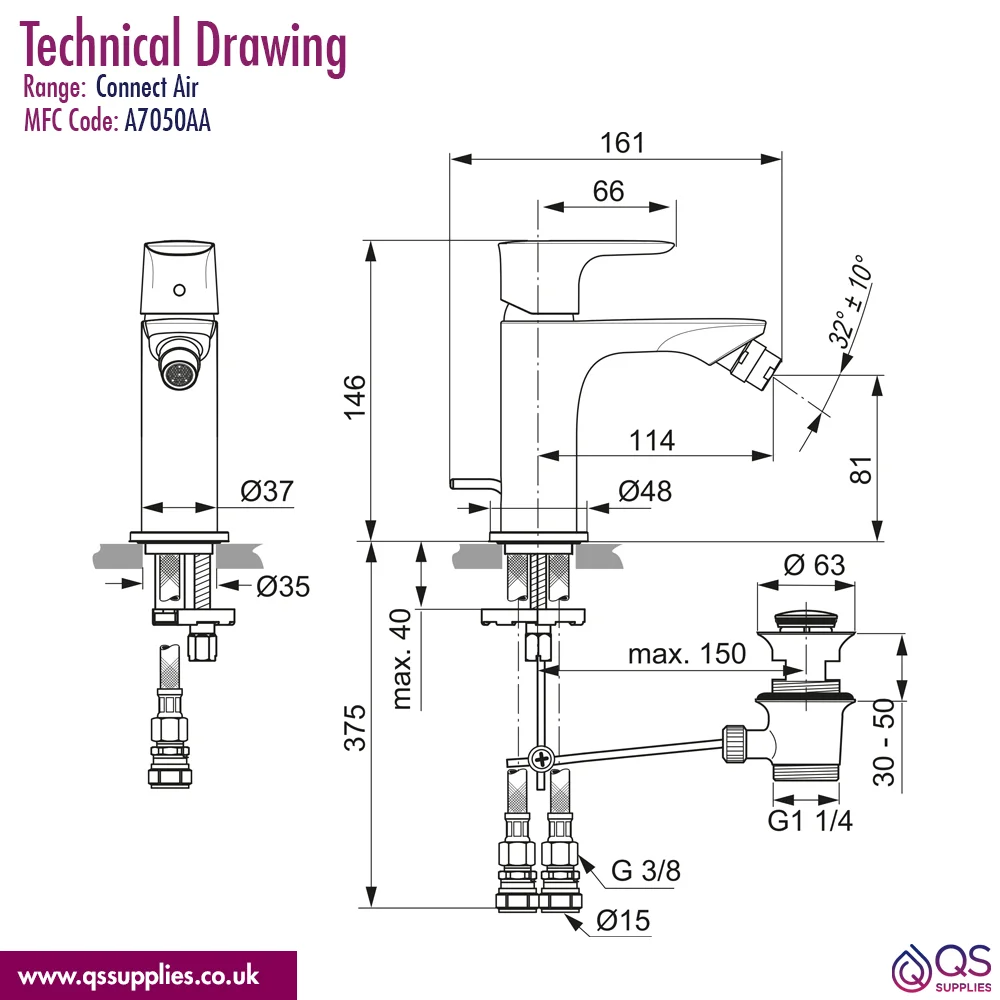

  • Refer to the Technical Drawing For Size Details
  • Download the Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Water Activation
  • : By Lifting/Tilting
  • ⤷ Range
  • : Connect Air
  • ⤷ Tap Body Shape
  • : Square
  • ⤷ Handle Position
  • : Upwards
  • ⤷ Colour
  • : Chrome
  • ⤷ Warranty/Guarantee
  • : 5 Years
  • ⤷ Material
  • : Brass
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Deck Mounted
  • ⤷ No. of Holes Required
  • : 1
  • ⤷ Spout type
  • : Fixed
  • ⤷ Valve Included
  • : Yes
  • ⤷ Valve/Cartridge Type
  • : FirmaFlow Ceramic Disc Cartridge
  • ⤷ Base To Spout
  • : 81
  • ⤷ Spout Reach
  • : 114
  • ⤷ Overall Height
  • : 146
  • ⤷ Width
  • : 48
  • ⤷ Depth
  • : 161
  • ⤷ Minimum Operating Pressure (Bar)
  • : 1
  • ⤷ Water Saving
  • : Yes
  • ⤷ Waste Type
  • : Pop-Up
  • ⤷ Diameter of Waste Connection
  • : 63
  • ⤷ Handle Style
  • : Flat
  • ⤷ Technologies
  • : Click, PVD
  • ⤷ Waste Included
  • : Yes
  • ⤷ Barcode
  • : 4015413342346
  • ⤷ Product Type
  • : Bidet Taps

Additional Info & Downloads

Download PDFDownload the Product Data Sheet Pdf File Download PDFDownload the Installation Instruction Pdf File Download PDFDownload the Spare Part List Pdf File

£216.61
RRP: £270.76
STOCK AVAILABLITY: 5 Working Days Approx
QS Supplies

6 Features Included In This Product Explained

Pop-Up Waste

Pop-Up Waste

The Pop-Up waste or pop-up assembly refers to the type of pipe fitting for a sink, basin or bidet connected to a waste pipe at the plughole. It comes with a lever or knob-controlled plug or stopper and operates using a lever that can be lowered or lifted to close and open the plug.
Read more...

FirmaFlow Ceramic Cartridge

FirmaFlow Ceramic Cartridge

The firmaFlow ceramic disc cartridge uses Click Technology with a mechanical stop to limit the tap water flow at the basin to just the amount needed to wash hands. It maintains flow consistency, reduces use by up to 50%, and offers the utmost temperature precision and safety. It can fine-tune the temperature between 34°C and 42°C. This cartridge has almost double the lifespan as the industry standard lasts– 500,000 cycles, compared to 300,000 cycles. It has a high hot water resistance of greater than 95°C.

EasyFix+ Fixation System

EasyFix+ Fixation System

EasyFix+, along with the Easy-Fix fixation system, enables the fast installation of the taps, making the process up to two times faster. With the EasyFix+ fixation system, you can push the nut directly against the ceramics and screw the tap using the regular tube key. The result is a perfectly secured tap with guaranteed perfect sealing.

Flow Regulator

Flow Regulator

As the name suggests, a flow regulator is a simple device designed to regulate water flow to a predetermined level. The job of a flow regulator is to stop water wastage. For instance, if the regular flow rate through a tap is 20 litres per minute, a flow regulator can reduce the flow rate between 6 to 12 litres per minute to complete the desired chore without feeling low pressure.

Click technology

Click technology

Using this technology, you can control water usage using the adjustable water-saving functionality. You can raise the mixer handle until you hear a “click” to adjust the water supply to 50%. You can adjust up to 100% with just a push.

Balanced Supplies

Balanced Supplies

Balanced supplies in a mixer tap mean the hot and cold water inputs have consistent pressures and temperatures. Maintaining these constants is critical to keep the mixer work at its top form and give a controlled and comfortable flow blended to the required temperature.
