Ideal Standard Connect Air 1 Tap Hole Cube Basin with Overflow, E074601

Connect Air Details

MFC: E074601

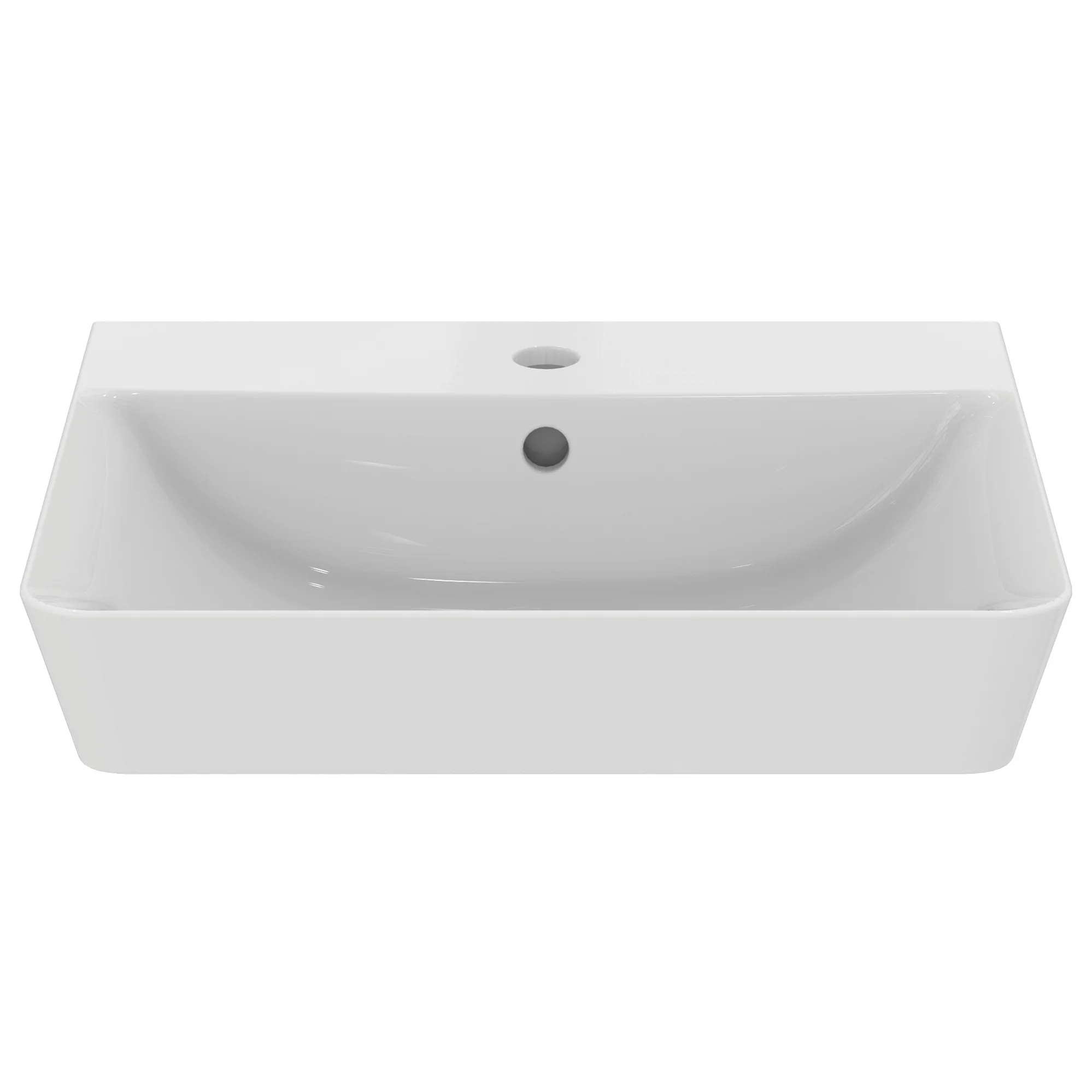

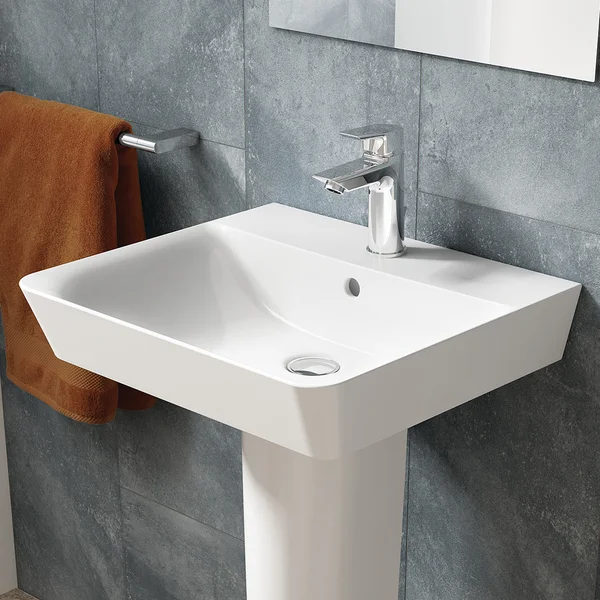

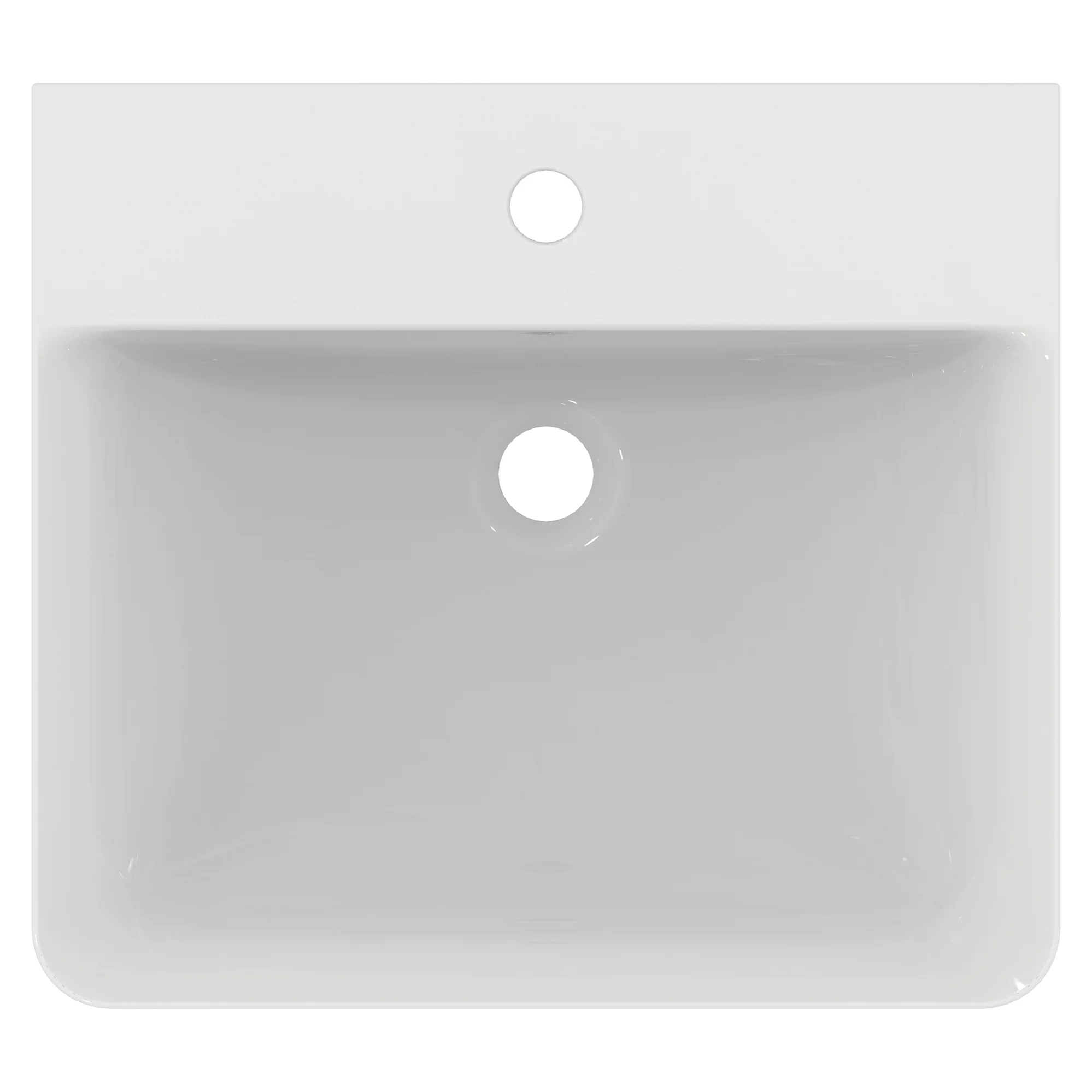

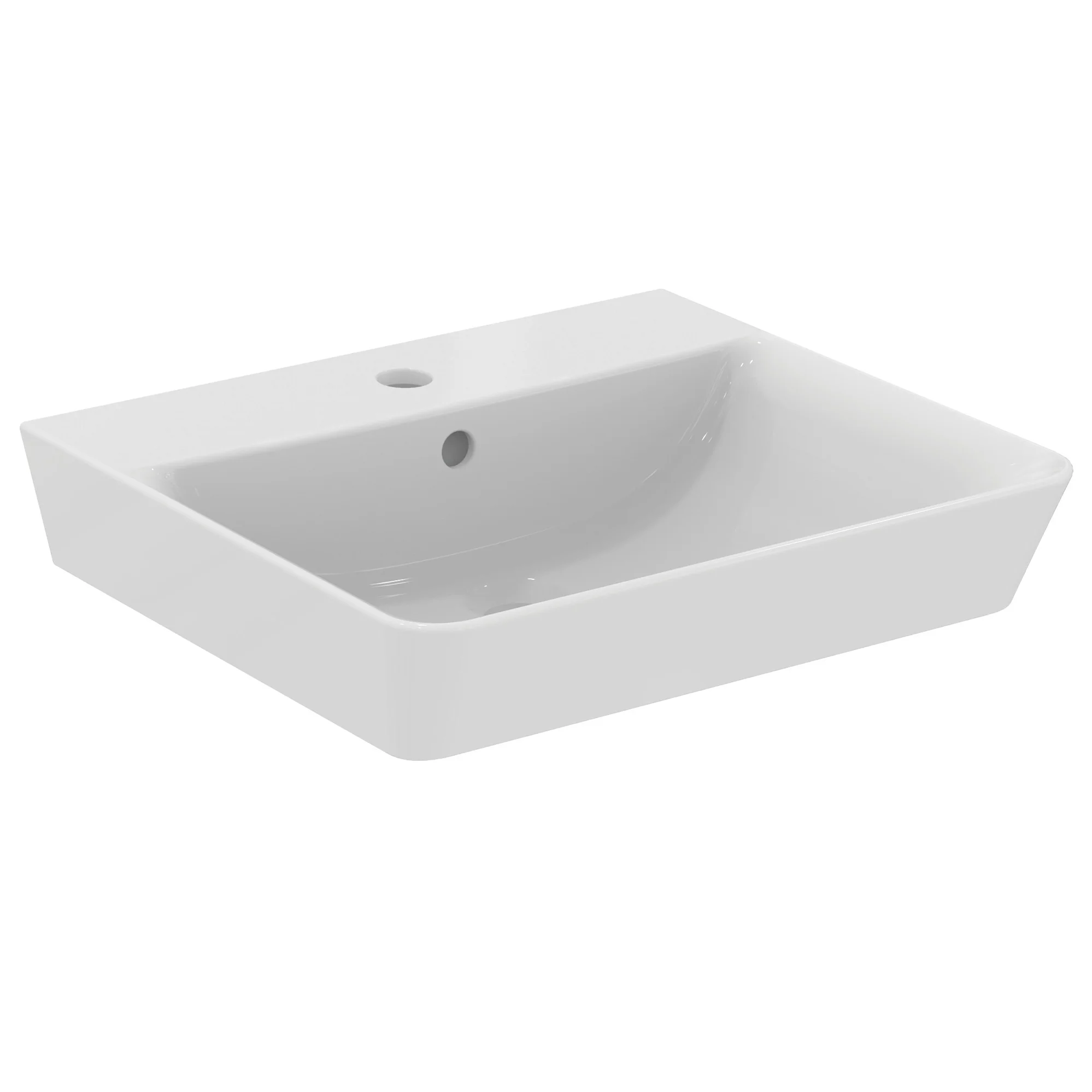

Ideal Standard Connect Air 1 Tap Hole Cube Basin with Overflow

Key Features

✔Supplied with 1 Tap Hole
✔Incorporates with an Overflow
✔Manufactured Using Fine Fireclay Material
✔Lifetime Guarantee from Manufacturer Against Manufacturing Defects

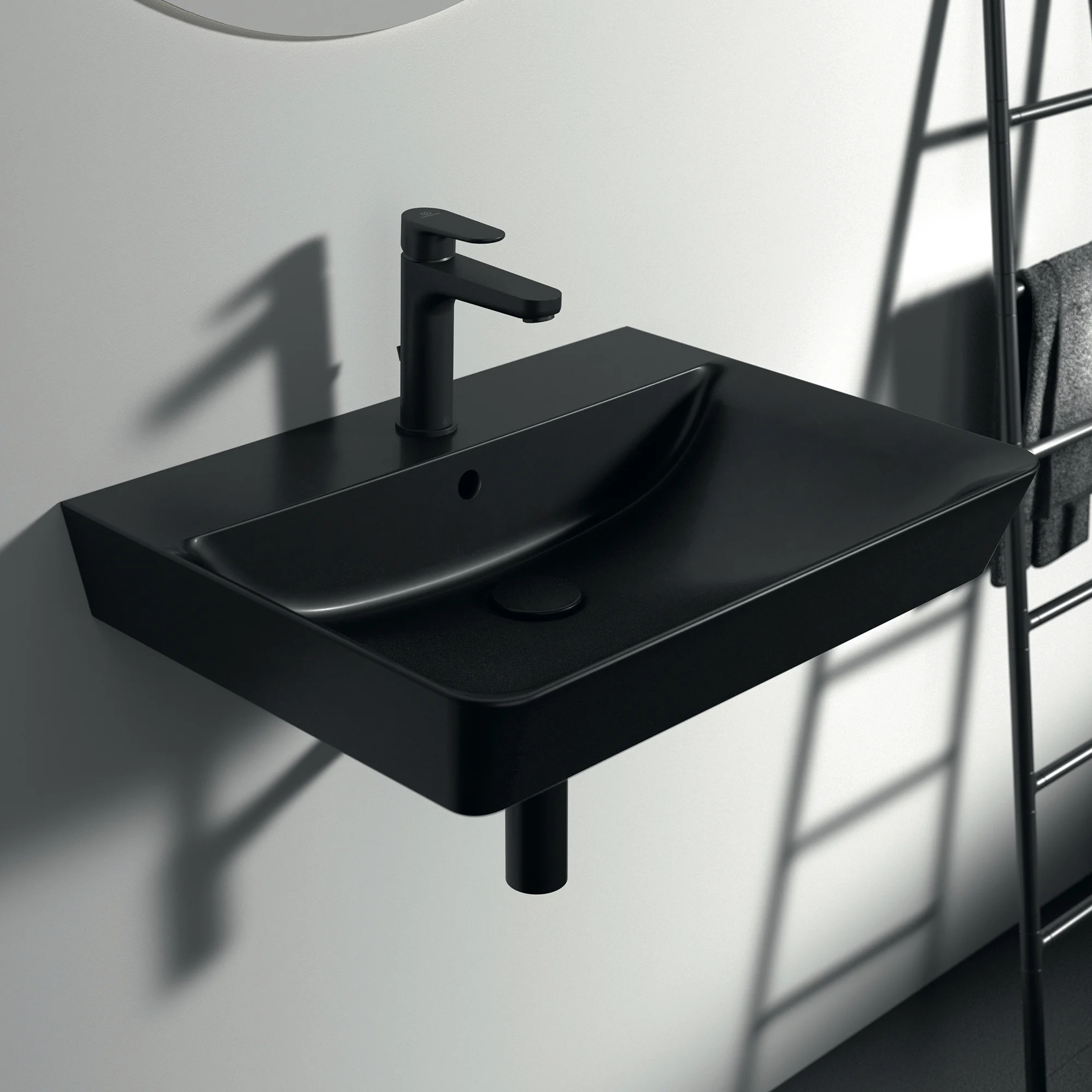

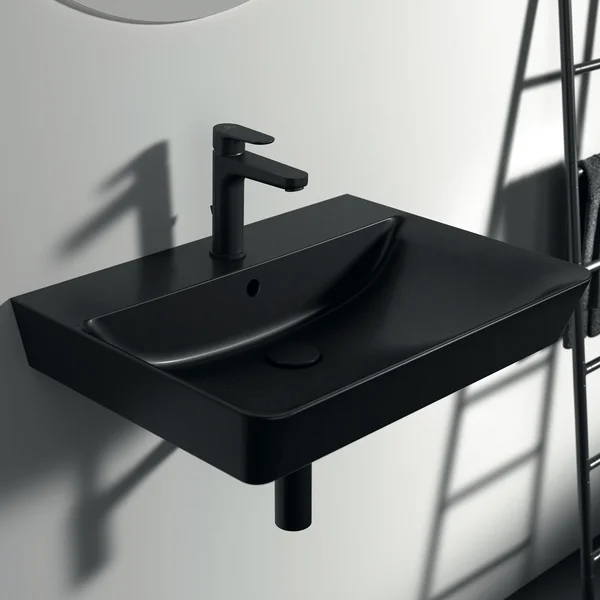

Choice of Finishes: White, Matt Black
Choice of Variations: 500mm, 550mm, 600mm
Designer: Studio Levien
Shape: Squared / Geometric
Sector: Hotel, Office, Residential
Accreditations: DoP, Standards
Certificate Number: DoP = CL 25, Standards = BS EN 14688 and BS EN 31
Refer to the Technical Diagram for Complete Technical Dimensions
Details of 500mm Basin:
Size [mm]: 500 x 450 x 160mm [Width x Depth x Height]
Size [cm]: 50 x 45 x 16cm [Width x Depth x Height]
Weight: 12.08kg
Details of 550mm Basin:
Size [mm]: 550 x 460 x 160mm [Width x Depth x Height]
Size [cm]: 55 x 46 x 37.8cm [Width x Depth x Height]
Weight: 13.94kg
Details of 600mm Basin:
Size [mm]: 600 x 460 x 160mm [Width x Depth x Height]
Size [cm]: 60 x 46 x 16cm [Width x Depth x Height]
Weight: 14.5kg

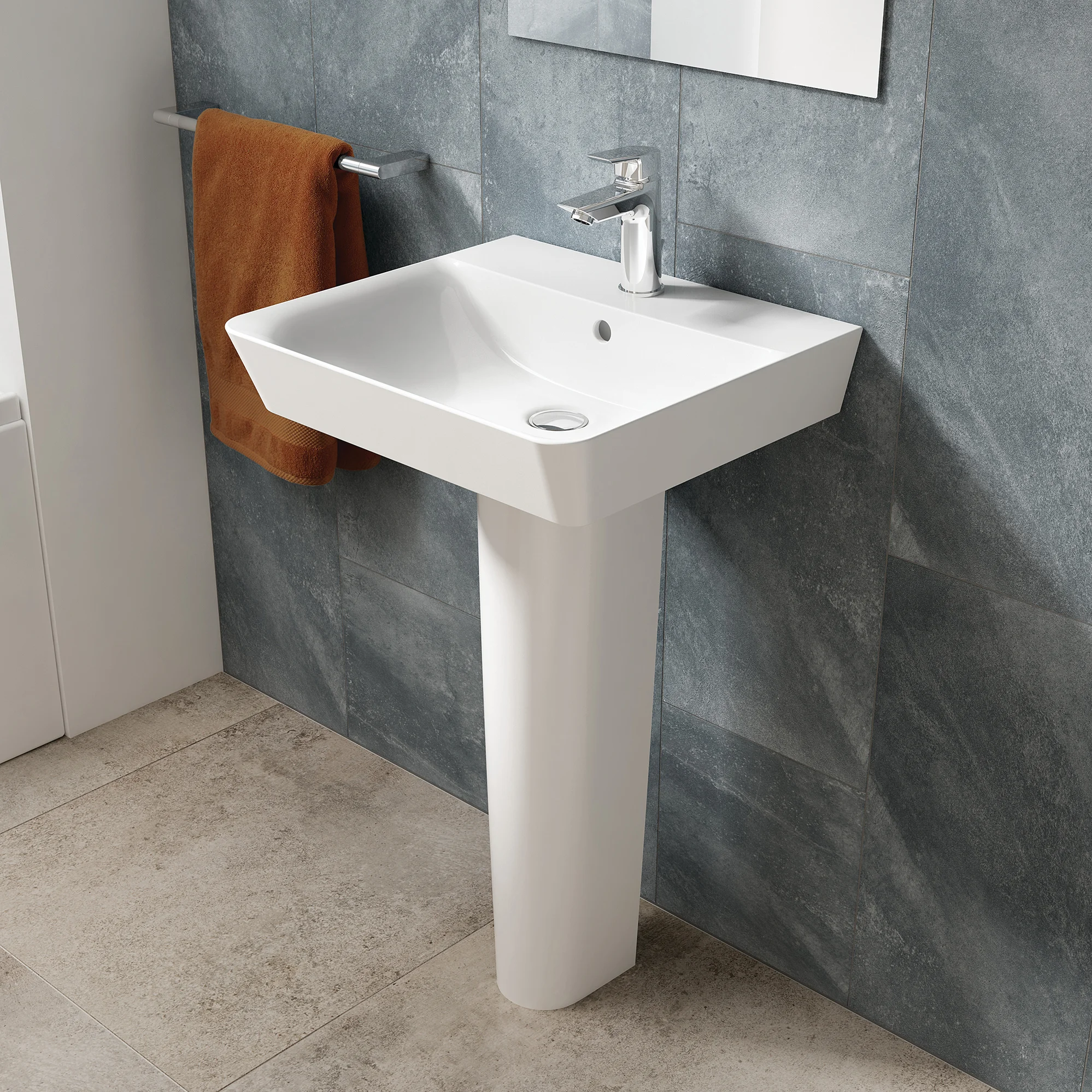

Tap, Waste, Pedestal and Trap Shown in the Image are Not Included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Connect Air
⤷ Colour
: Gloss White, Matt Black
⤷ Weight in kg
: 12.08
⤷ Shape
: Rectangular
⤷ Warranty/Guarantee
: Lifetime
⤷ Material
: Fine Fireclay
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Projection (Depth)
: 450, 460
⤷ Width
: 500
⤷ Height
: 160
⤷ Distance rear edge to centre of waste hole
: 190

⤷ Fixing Holes Centre
: 280
⤷ Distance rear edge to centre of tap hole
: 60
⤷ Number of bowls
: 1
⤷ No. of Tap Holes
: 1
⤷ Tap Hole Position
: Centre
⤷ Overflow Included
: Yes
⤷ Compliance/Approvals/Standard
: DoP=CL25, Standards=BSEN14688 and BSEN31
⤷ Tap Hole Size
: Ø35
⤷ Barcode
: 5017830514695
⤷ Distance from floor to centre of fixing hole
: 795
⤷ Distance finished floor level to top edge
: 850

Additional Info & Downloads

This item can also be found in:

Technical Images

Ideal Standard Connect Air 1 Tap Hole Cube Basin with Overflow

500mm Basin

550, 600mm Baisn

Add-Ons

Basin Fixing Set

Wall-mounted basin fixing bolts set for use with all wall-mounted basins. The image shown is for illustration purposes only.

No Option Selected
OP-204553 - Washbasin Wall Fixings Set - E015767 + £18.00

Trap 1¼ Contemporary metal bottle 75mm seal

Dedicated Metal Bottle Trap. Note: Image for Illustration Purpose Only

No Option Selected
OP-204548 - Bottle Trap 1 1/4" Metal Bottle + £172.80

£147.60

RRP: ~~£184.00~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called 'without-overflow' and will need a compatible drain.

Fireclay

It is incredibly hard-wearing and has an everlasting shiny surface. They have a high heat resistance (1600°C) and are chemical resistant, non-porous, and hygienic.

BS EN 14688 Standard

It is a European Standard relating to sanitary appliances. BS EN 14688 specifies the functional features and test methods for domestic use washbasins. The standard provides the requirements of characteristics and test methods for basin manufacture, performance, and safety.
