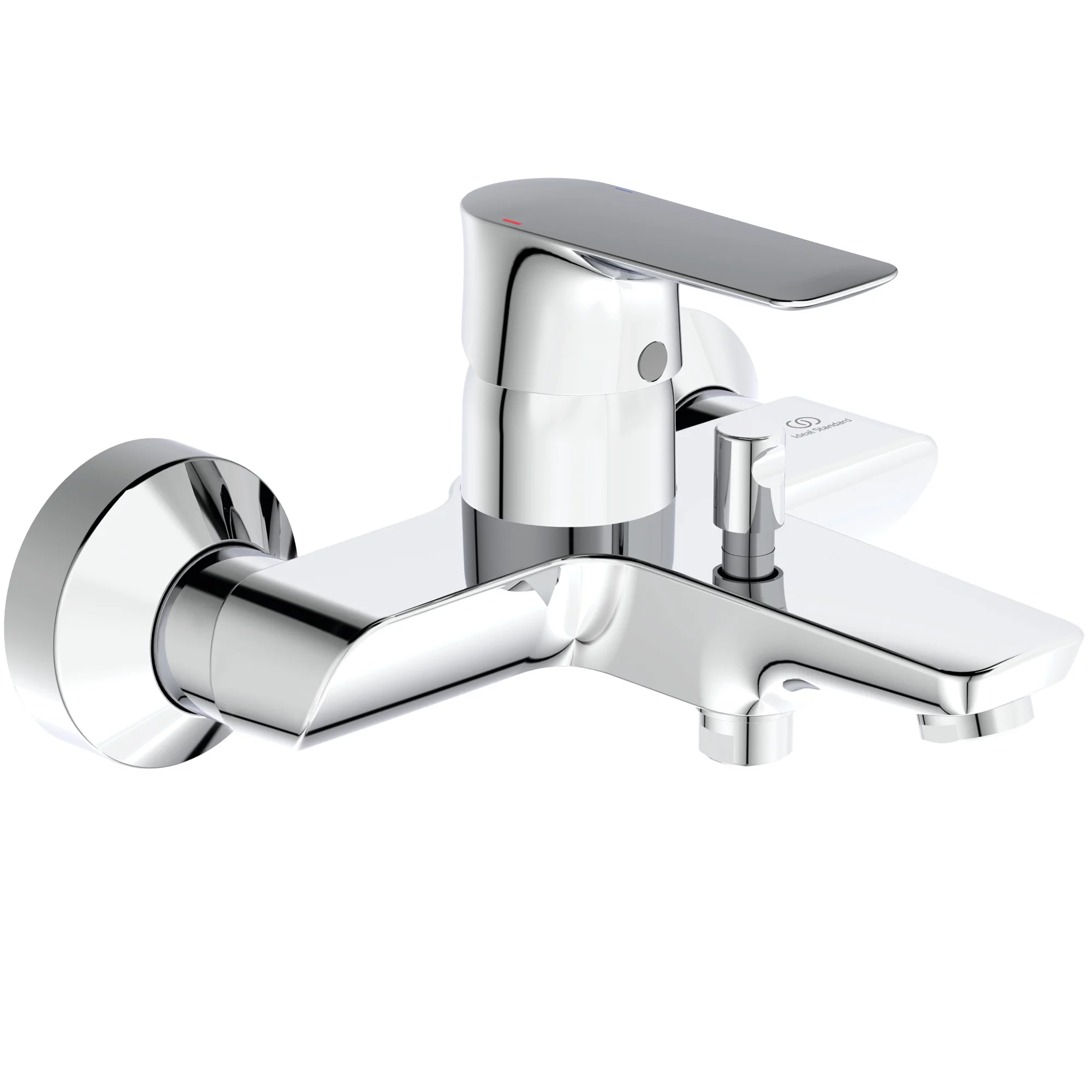

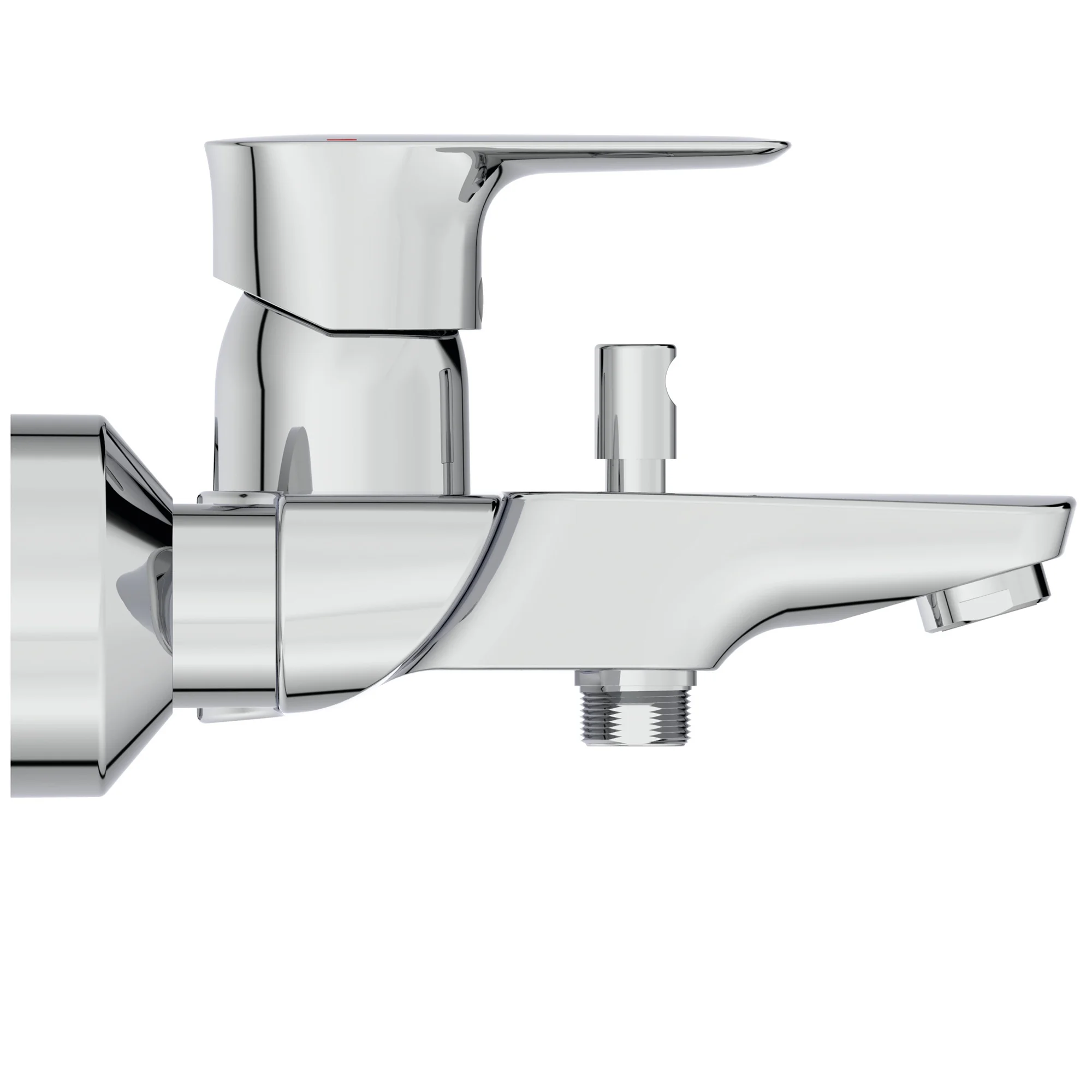

Ideal Standard Connect Air Bath Shower Mixer Tap with Diverter - Flat Handle - Wall Mounted

Not Yet Rated No Rating

£395.68

RRP: £494.59
SKU: QS-V110694
Select Finish

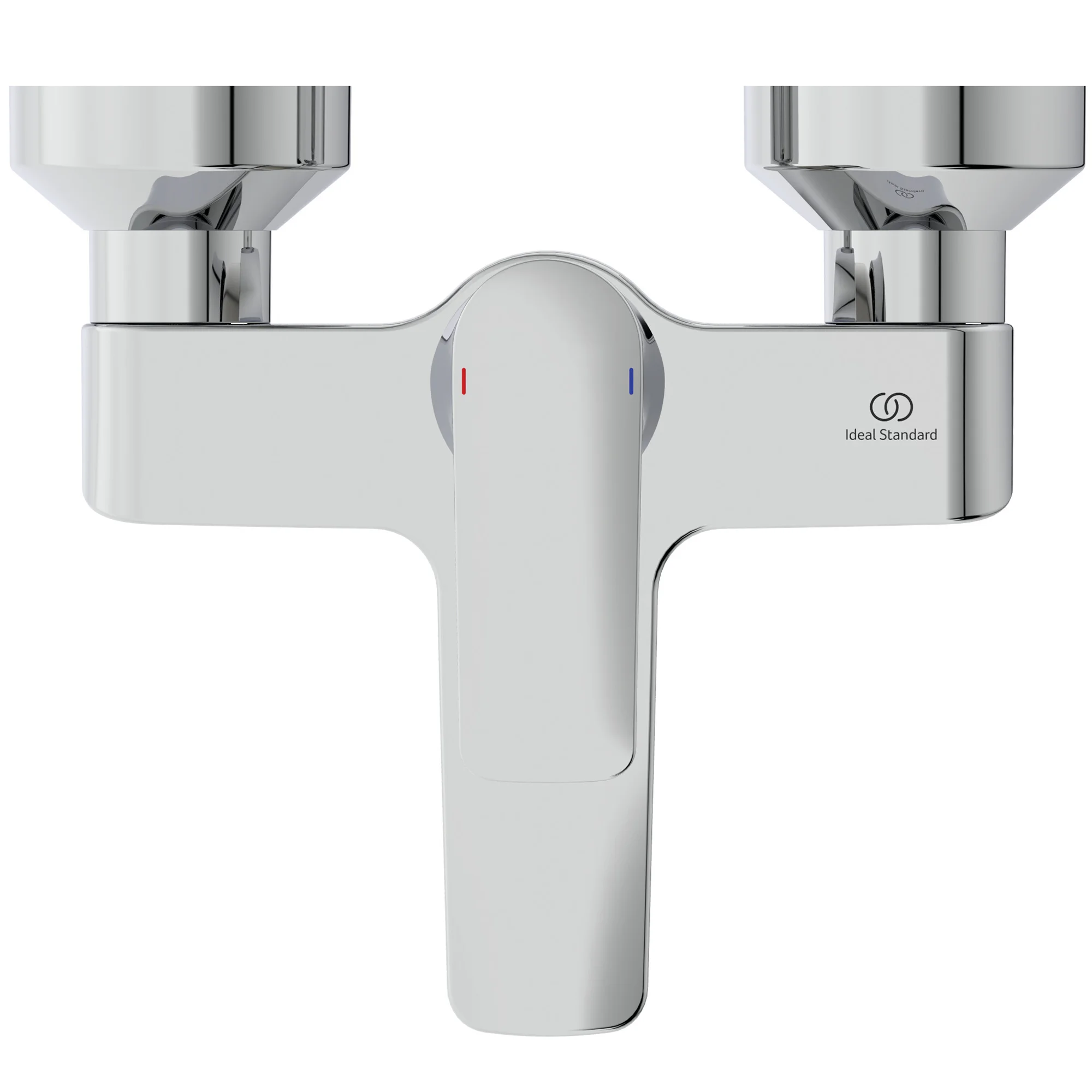

Selected: OP-256639 - Chrome
Pay in 3-Interest Free Payments
Shipping

Shipping: £7.95

Stock Availability

Stock Availability:

5 Working Days Approx.

Connect Air Details

MFC: A7033AA

Ideal Standard Connect Air Bath Shower Mixer Tap with Diverter - Flat Handle - Wall Mounted.

Key Features
  • Manufactured Using Brass Material
  • Automatic Pull Diverter
  • Features Easyfix System
  • FirmaFlow® Ceramic Disc Cartridge
  • 5-Year Guarantee from the Manufacturer Against any Manufacturing Defect

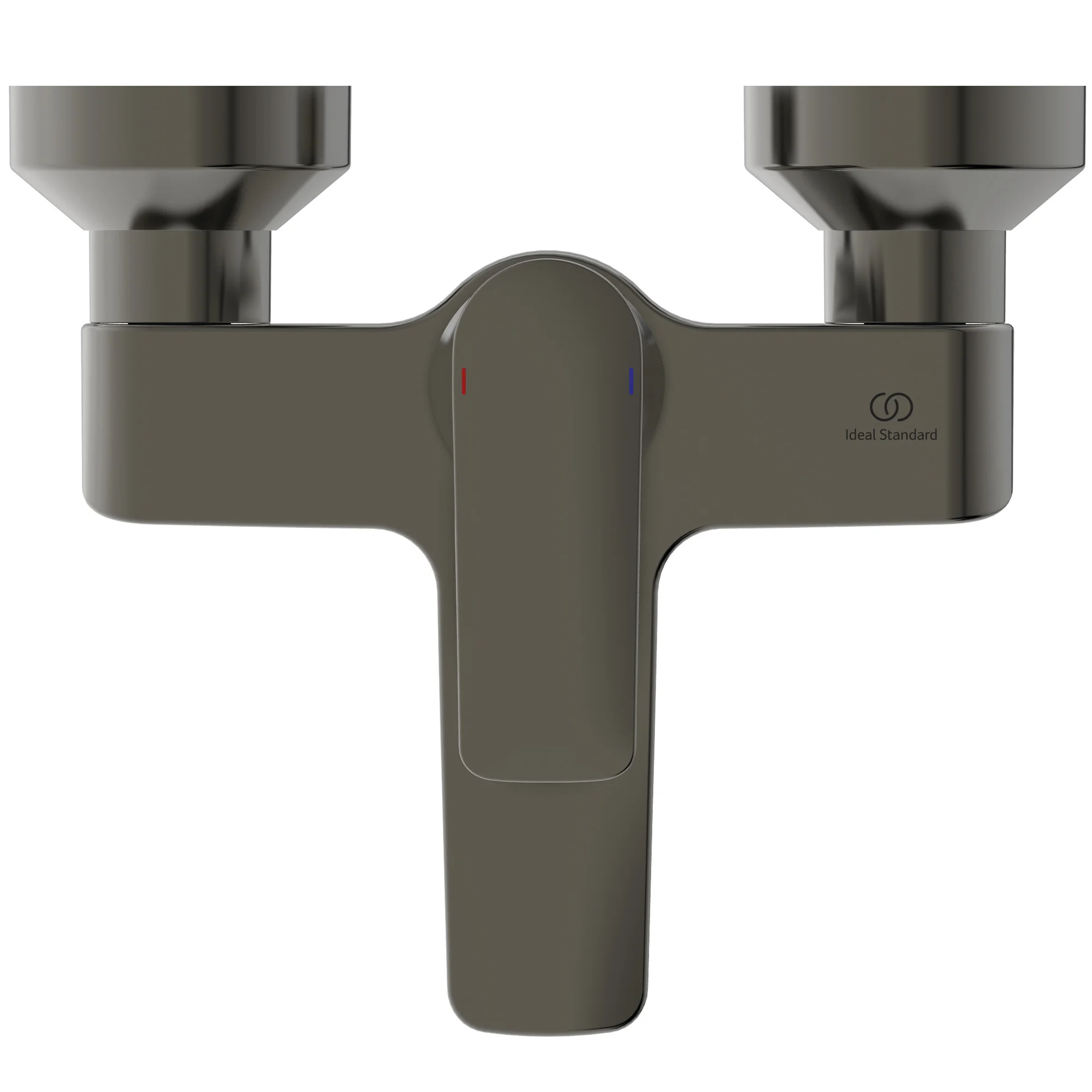

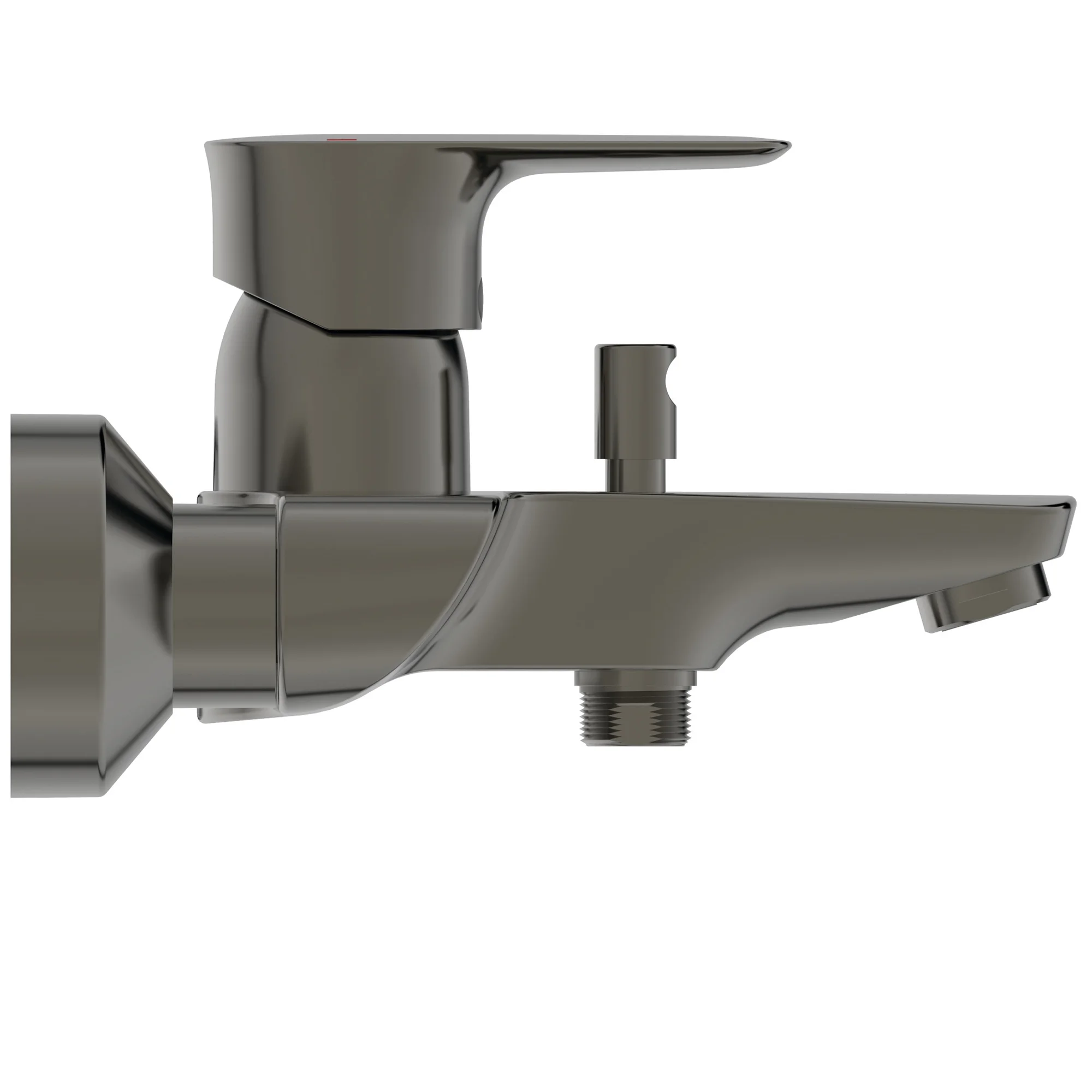

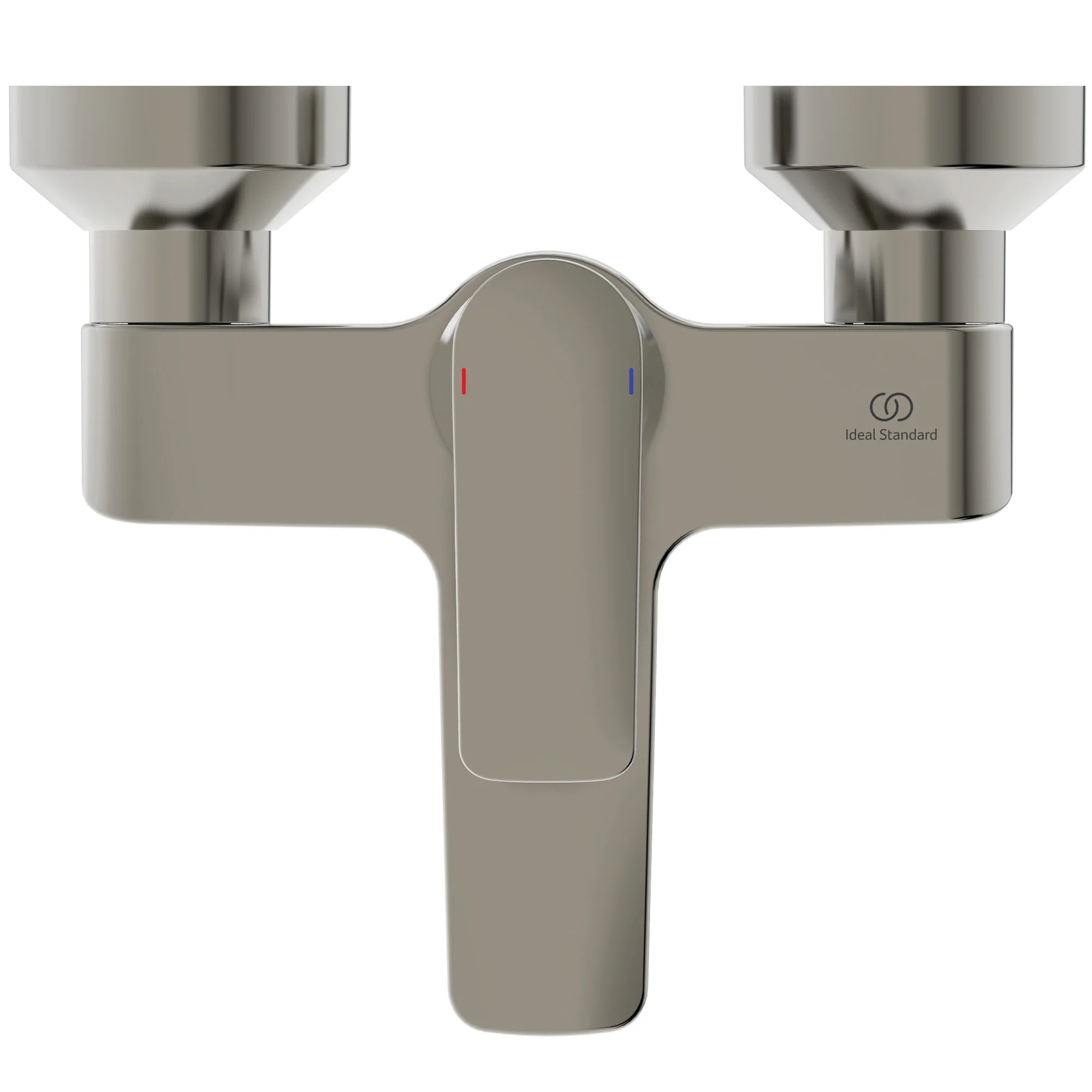

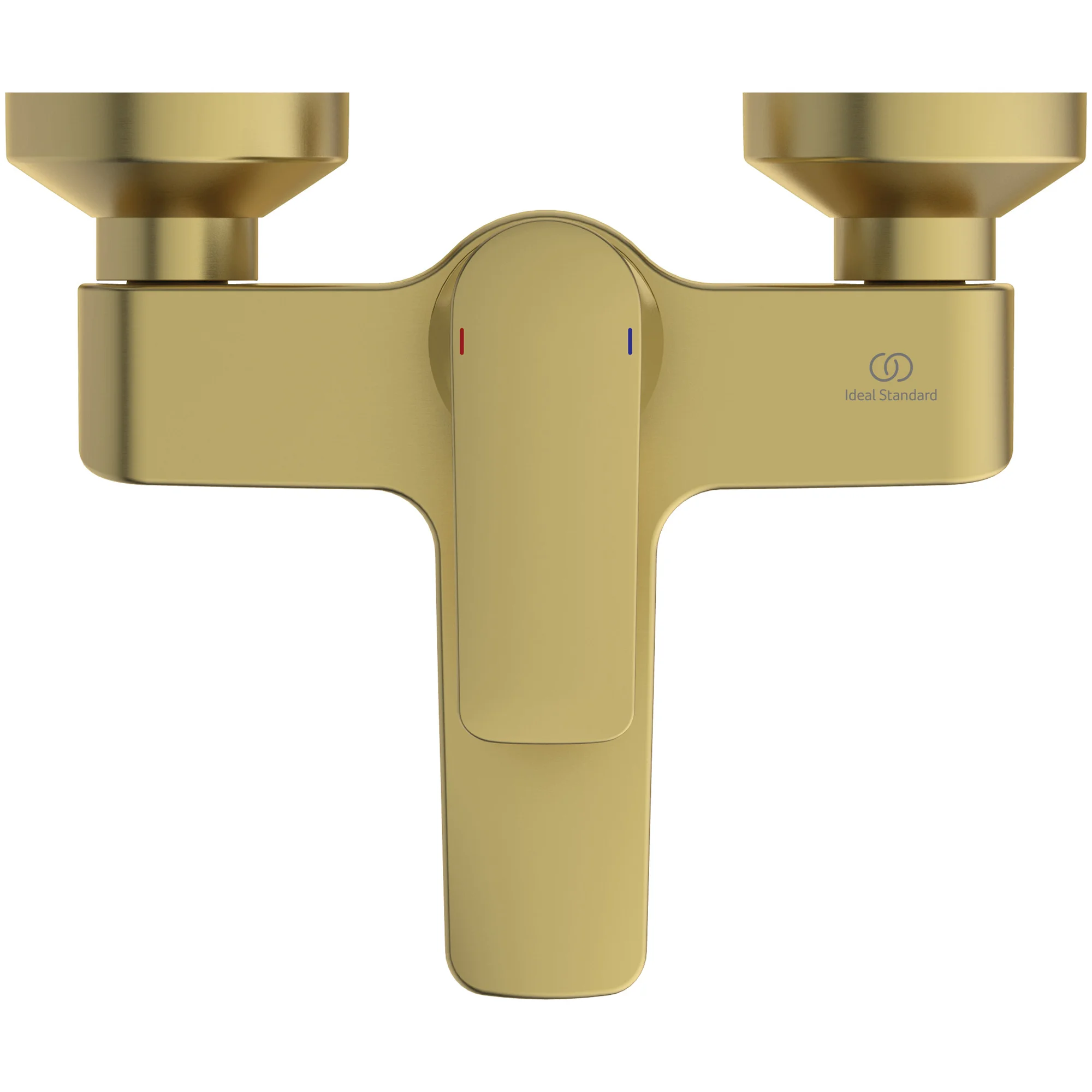

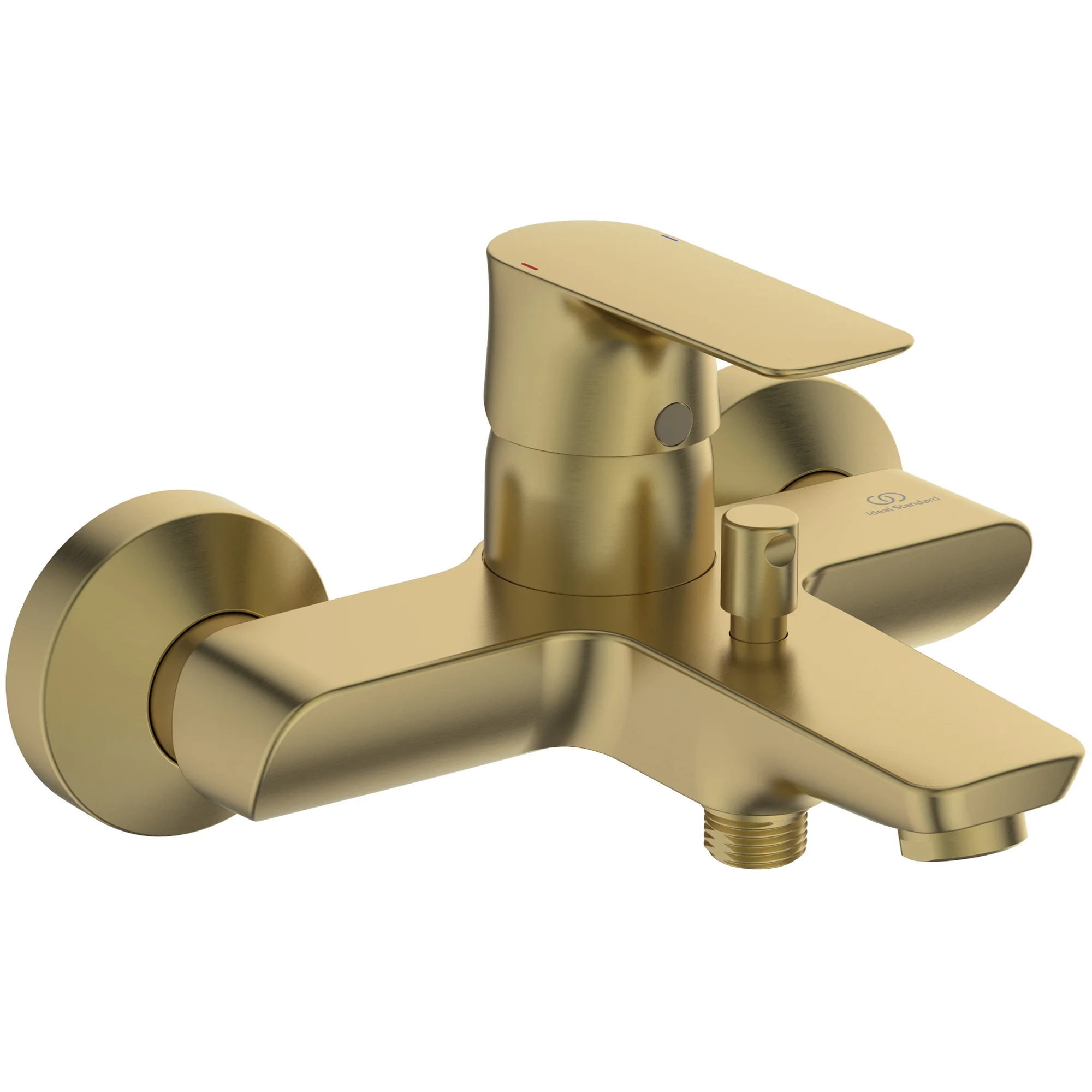

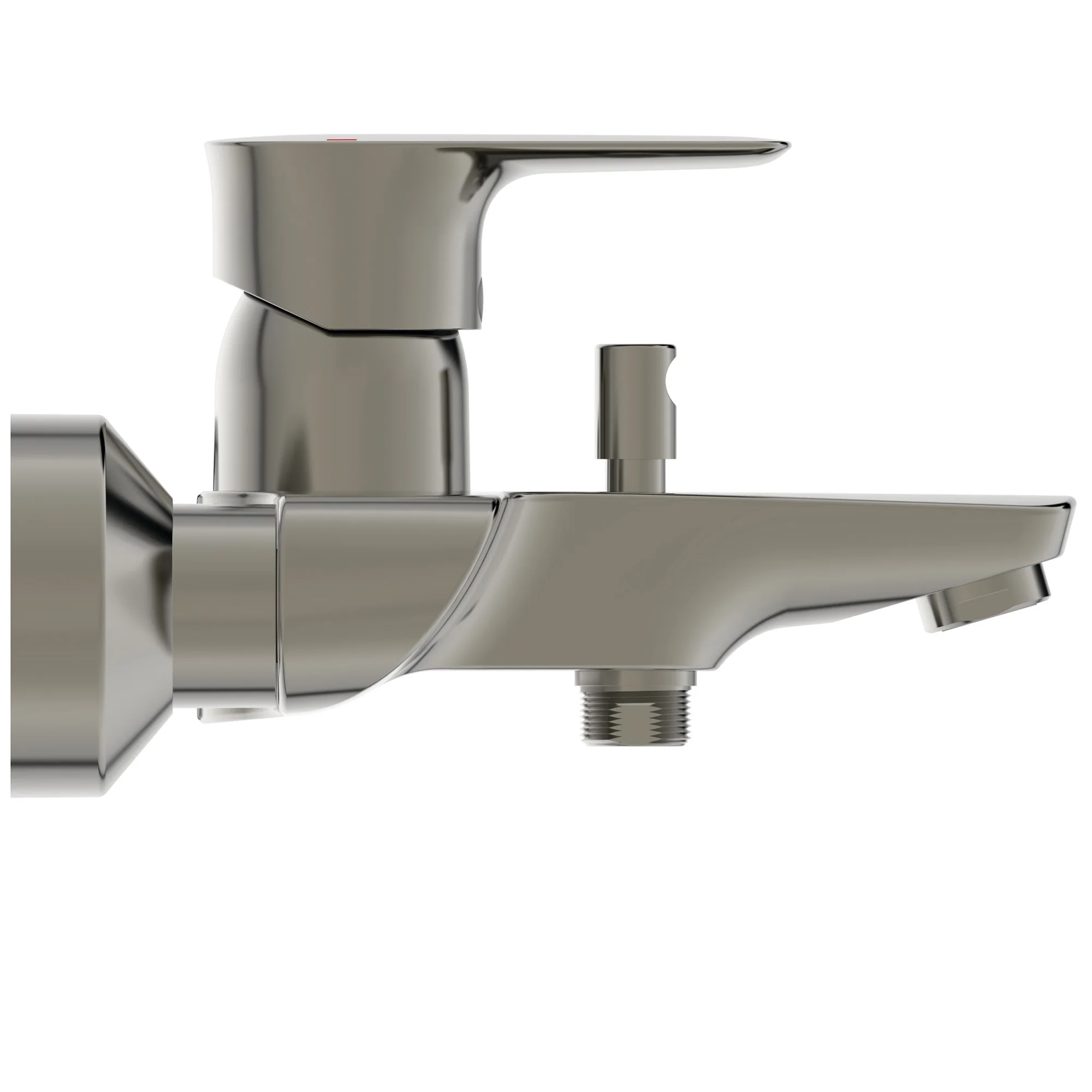

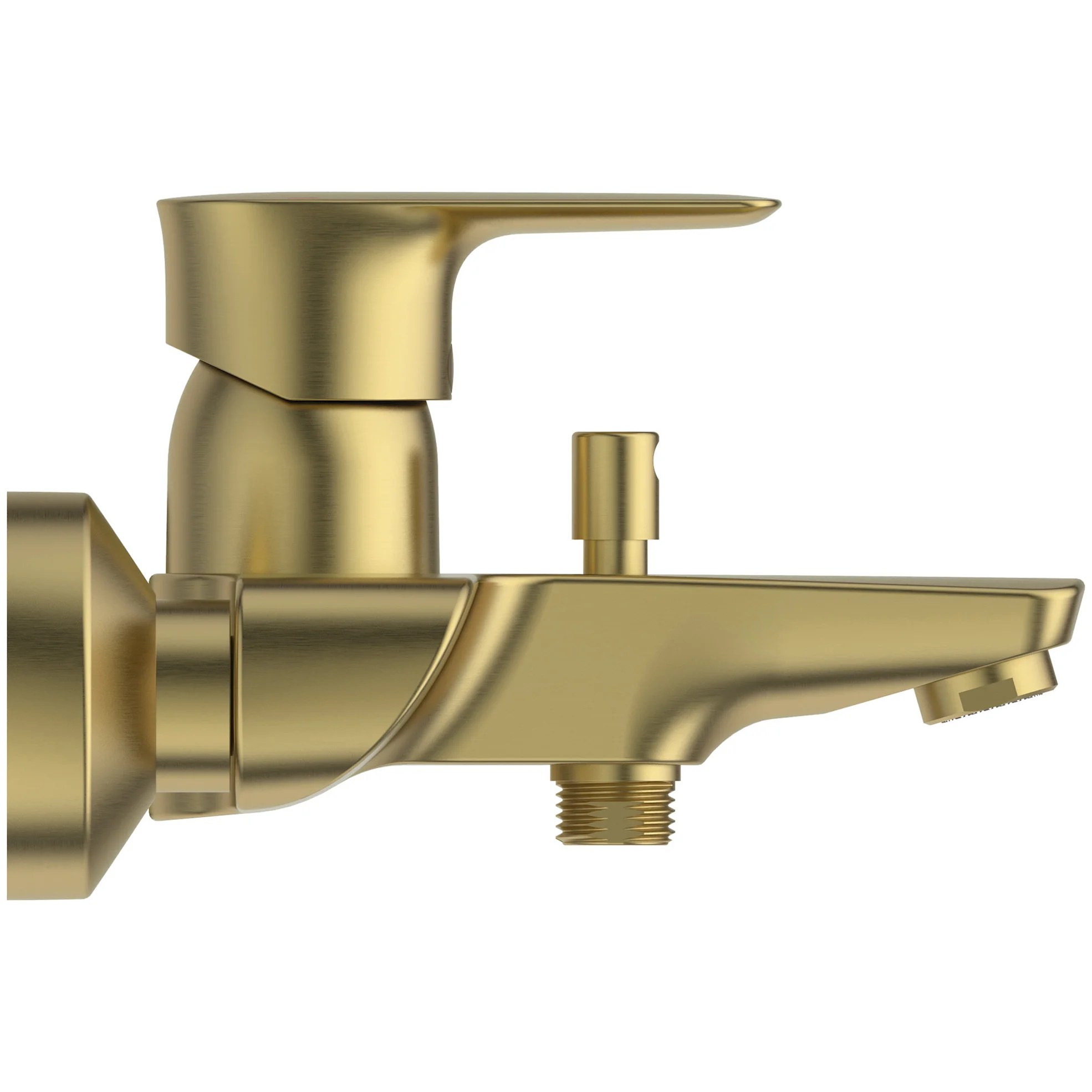

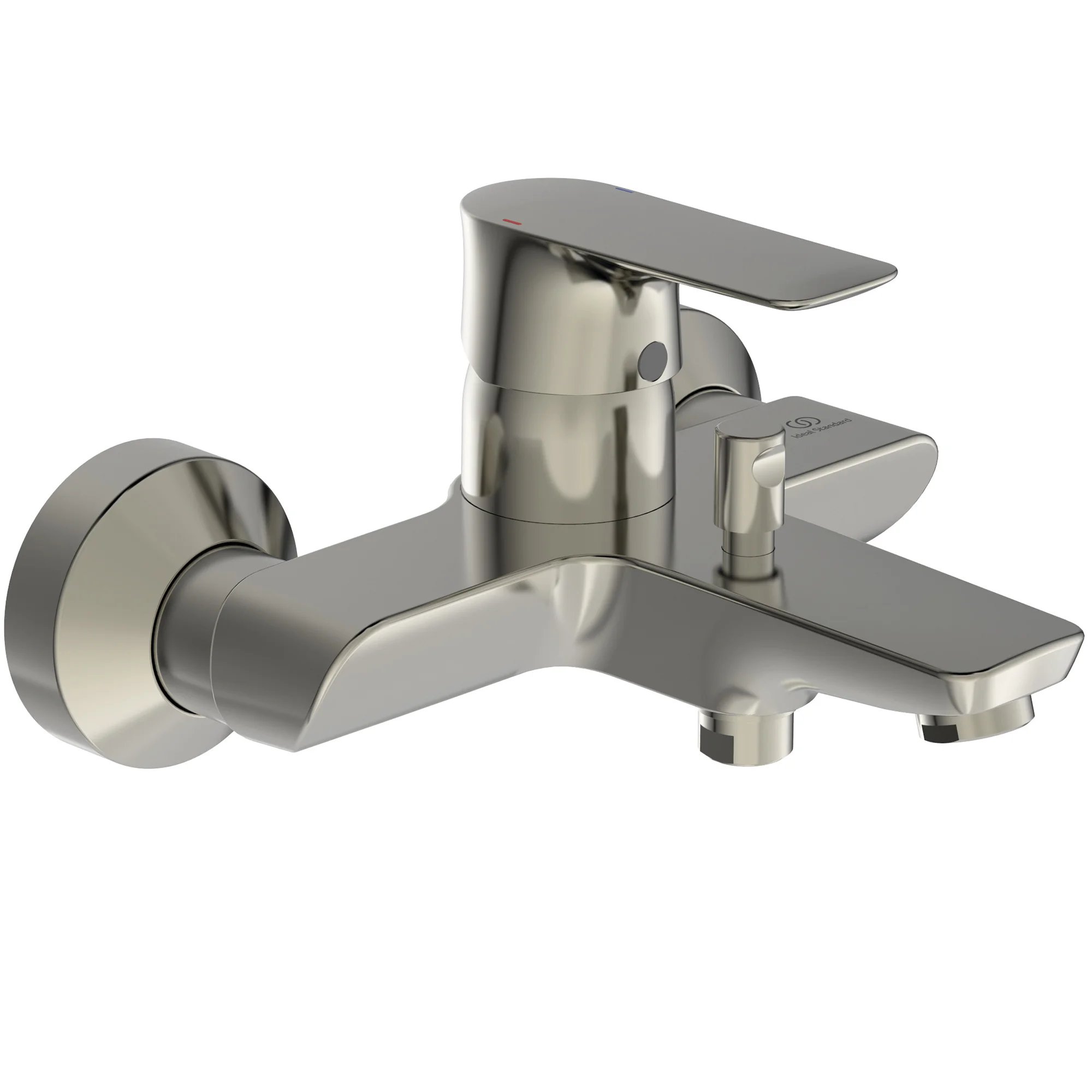

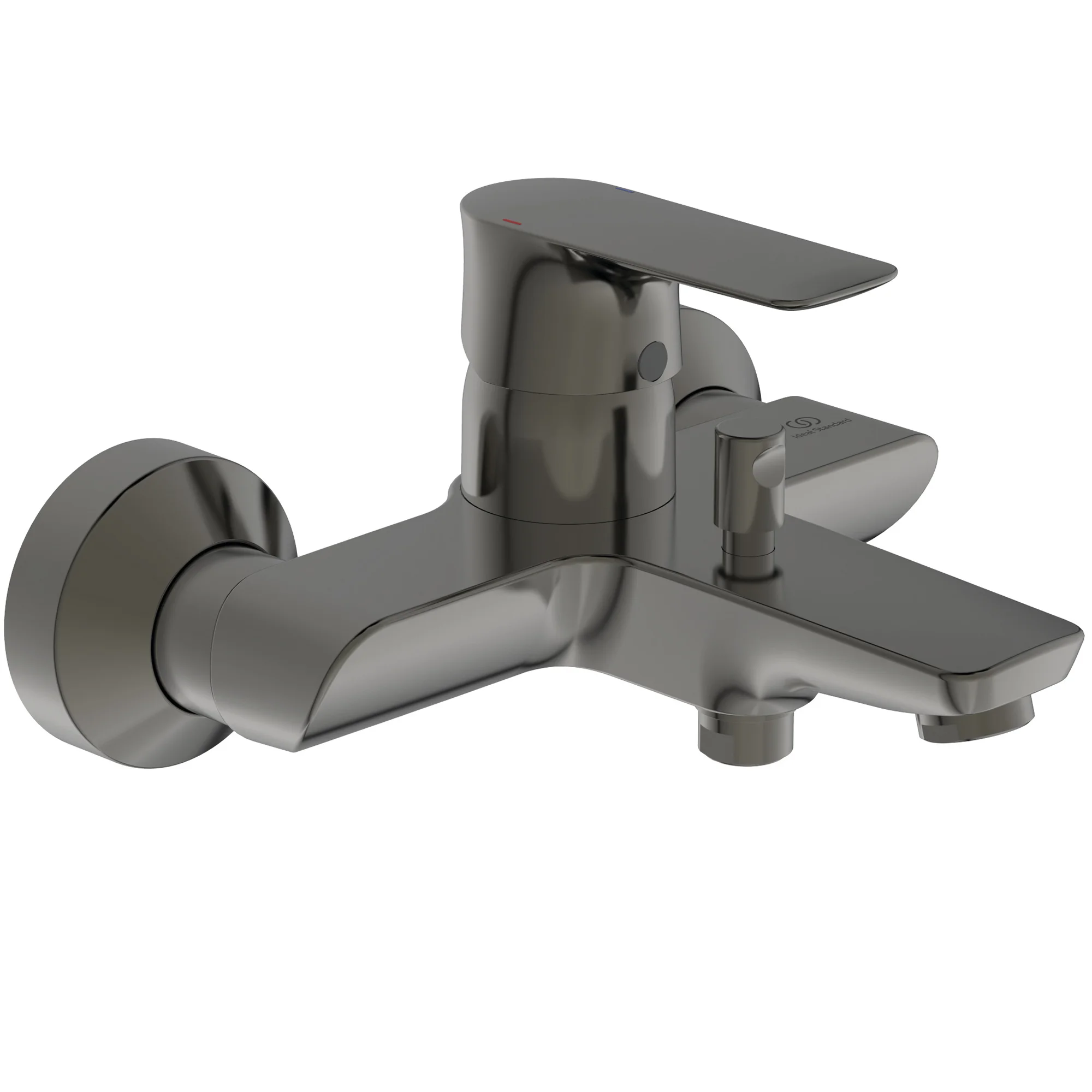

  • Choice of Finishes: Chrome, Silver Storm, Brushed Gold, Magnetic Grey
  • Wall-Mounted Installation
  • Supplied with S Connectors with Noise Reducers
  • PVD Technology
  • Metal Operating Lever
  • Check Valve
  • Inlet Centre: 150mm [15cm]
  • Centre of the Inlet to the Centre of the Outlet: 174mm [17.4cm]
  • Base to Spout: 193mm [19.3cm]
  • Adjustable Inlet Centres: 137-163mm [13.7-16.3cm]
  • Weight: 1.92kg
  • Suitable for High Water Pressure Systems
  • Unregulated Flow Rate for Bath Fill: 12 Litres Per Minute at 1 Bar and 22.5 Litres Per Minute at 3 Bar
  • Frequently used in Hotels and Residential Applications
  • Water-Saving Click Technology Decreases Water Usage by 50% and Provides Full Flow Only When the Handle is Moved Past Slight Resistance

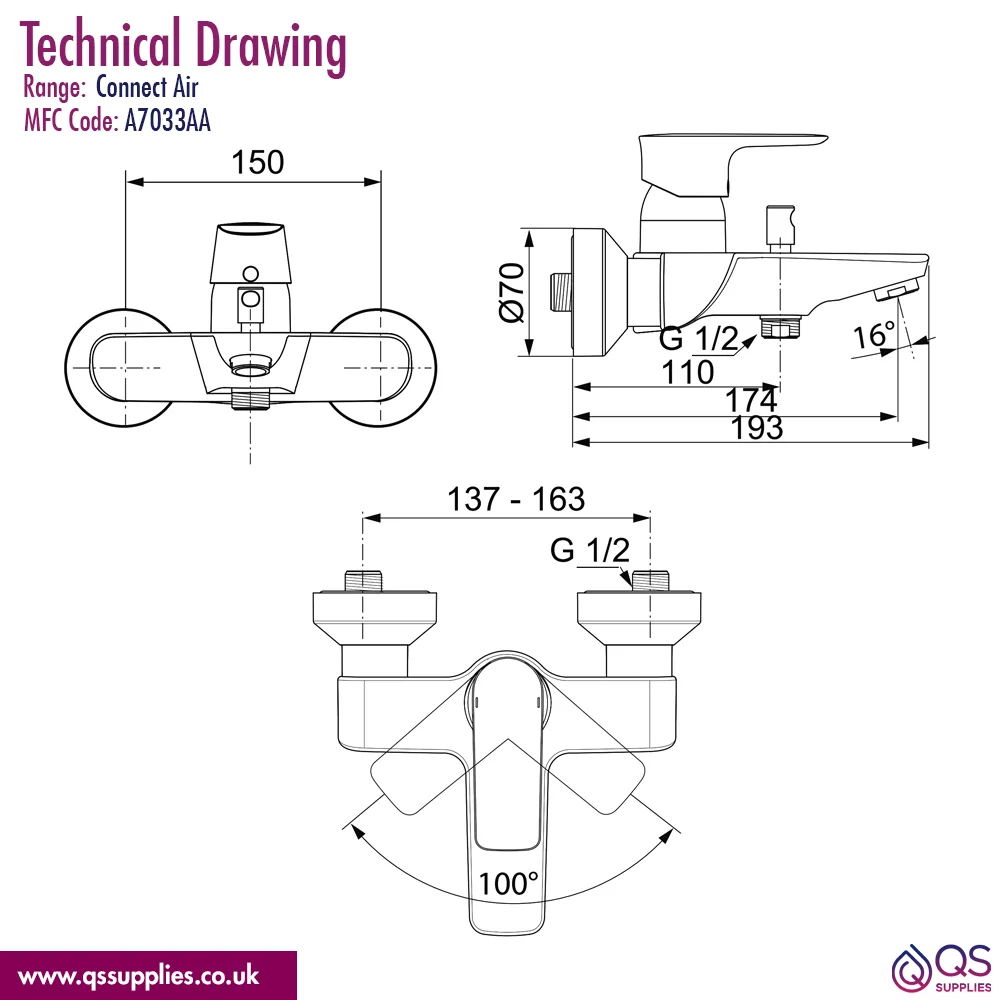

  • Refer to the Technical Drawing For Size Details
  • Download the Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Water Activation
  • : By Lifting/Tilting
  • ⤷ Range
  • : Connect Air
  • ⤷ Handle Position
  • : Upwards
  • ⤷ Colour
  • : Chrome
  • ⤷ Warranty/Guarantee
  • : 5 Years
  • ⤷ Material
  • : Brass
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Wall Mounted
  • ⤷ Spout type
  • : Fixed
  • ⤷ Valve Included
  • : Yes
  • ⤷ Valve/Cartridge Type
  • : FirmaFlow® Ceramic Disc Cartridge
  • ⤷ Handle Material
  • : Metal
  • ⤷ Base To Spout
  • : 193
  • ⤷ Spout Reach
  • : 174
  • ⤷ Inlet Centres
  • : 150
  • ⤷ Water Saving
  • : Yes
  • ⤷ Handle Style
  • : Flat
  • ⤷ Technologies
  • : Click, PVD
  • ⤷ Number of Handles
  • : 1
  • ⤷ Number of Outlet
  • : 1
  • ⤷ Diverter Included
  • : Yes
  • ⤷ Barcode
  • : 4015413342117
  • ⤷ Product Type
  • : Bath Mixer Tap
  • ⤷ Diverter Type
  • : Automatic Pull

Additional Info & Downloads

Download PDFDownload the Product Data Sheet Pdf File Download PDFDownload the Installation Instruction Pdf File Download PDFDownload the Spare Part List Pdf File Download PDFDownload the EPD Environmental Product Declaration Pdf File

This item can also be found in:
£395.68
RRP: £494.59
STOCK AVAILABLITY: 5 Working Days Approx
QS Supplies

5 Features Included In This Product Explained

Diverter

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

FirmaFlow Ceramic Cartridge

FirmaFlow Ceramic Cartridge

The firmaFlow ceramic disc cartridge uses Click Technology with a mechanical stop to limit the tap water flow at the basin to just the amount needed to wash hands. It maintains flow consistency, reduces use by up to 50%, and offers the utmost temperature precision and safety. It can fine-tune the temperature between 34°C and 42°C. This cartridge has almost double the lifespan as the industry standard lasts– 500,000 cycles, compared to 300,000 cycles. It has a high hot water resistance of greater than 95°C.

Click technology

Click technology

Using this technology, you can control water usage using the adjustable water-saving functionality. You can raise the mixer handle until you hear a “click” to adjust the water supply to 50%. You can adjust up to 100% with just a push.

High Water Pressure

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Single Lever Taps

Single Lever Taps

These taps are designed with a single lever or handle to control the water's temperature and flow. Extremely easy to operate, these also allow you to preset the water temperature by leaving it in the position with your preferred water temperature. Besides, it is simple to control the flow of water; the higher you lift the lever or move it to the end, the stronger the water flow.
