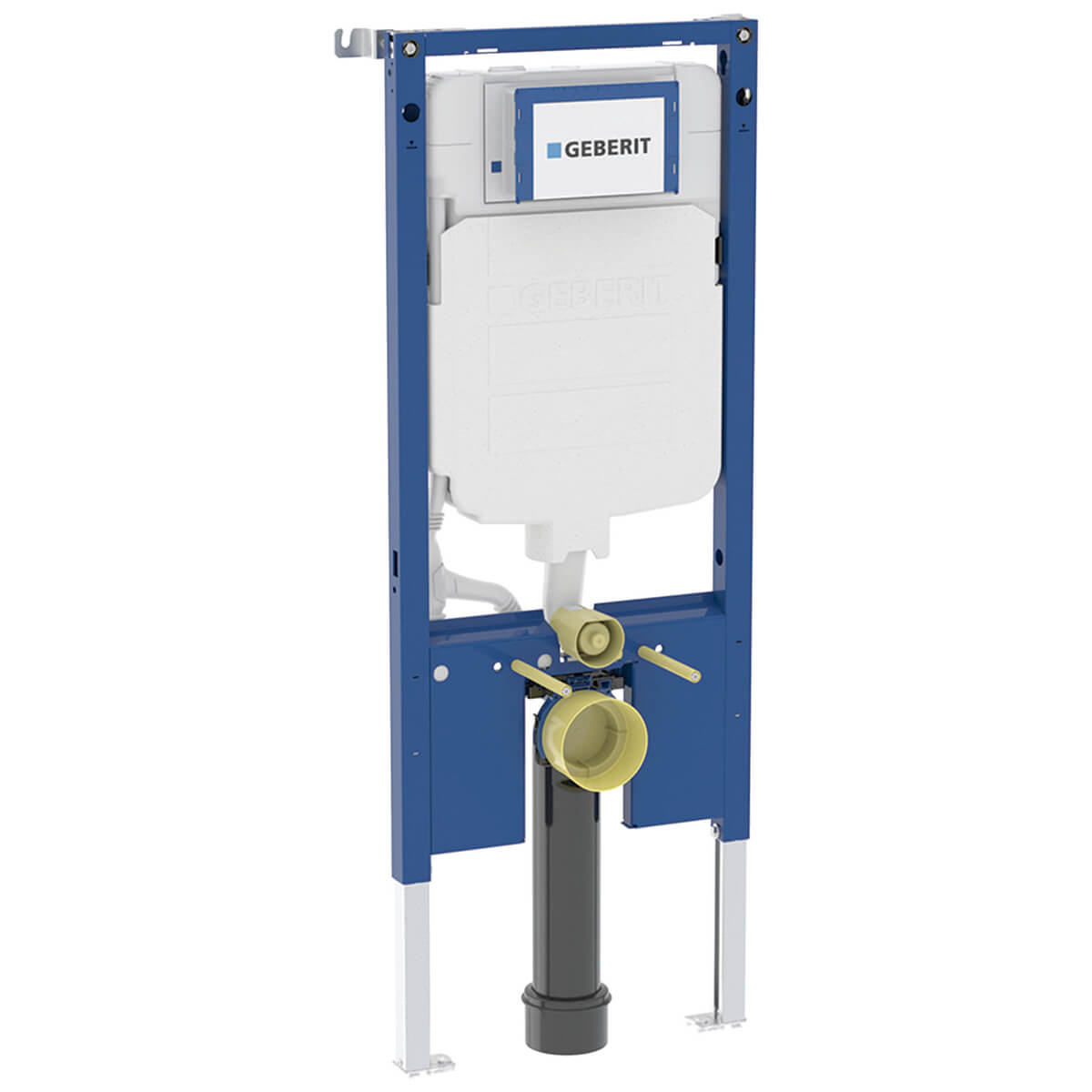

Geberit Duofix Wall Hung WC Frame with 8cm Sigma Concealed Cistern - 500 x 1140mm

Geberit Duofix Wall Hung WC Frame with 8cm Sigma Concealed Cistern - 500 x 1140mm.

• The Manufacturing Code of this Product is 111.799.00.6
• Duofix Frame with Sigma Concealed Cistern 8cm for Wall-Hung WC
• Size [mm]: 500 x 80 x 1140mm [Width x Depth x Height]
• Size [cm]: 50 x 8 x 114cm [Width x Depth x Height]
• Statically Self-Supporting Frame, Protected Against Corrosion with Powder Coating

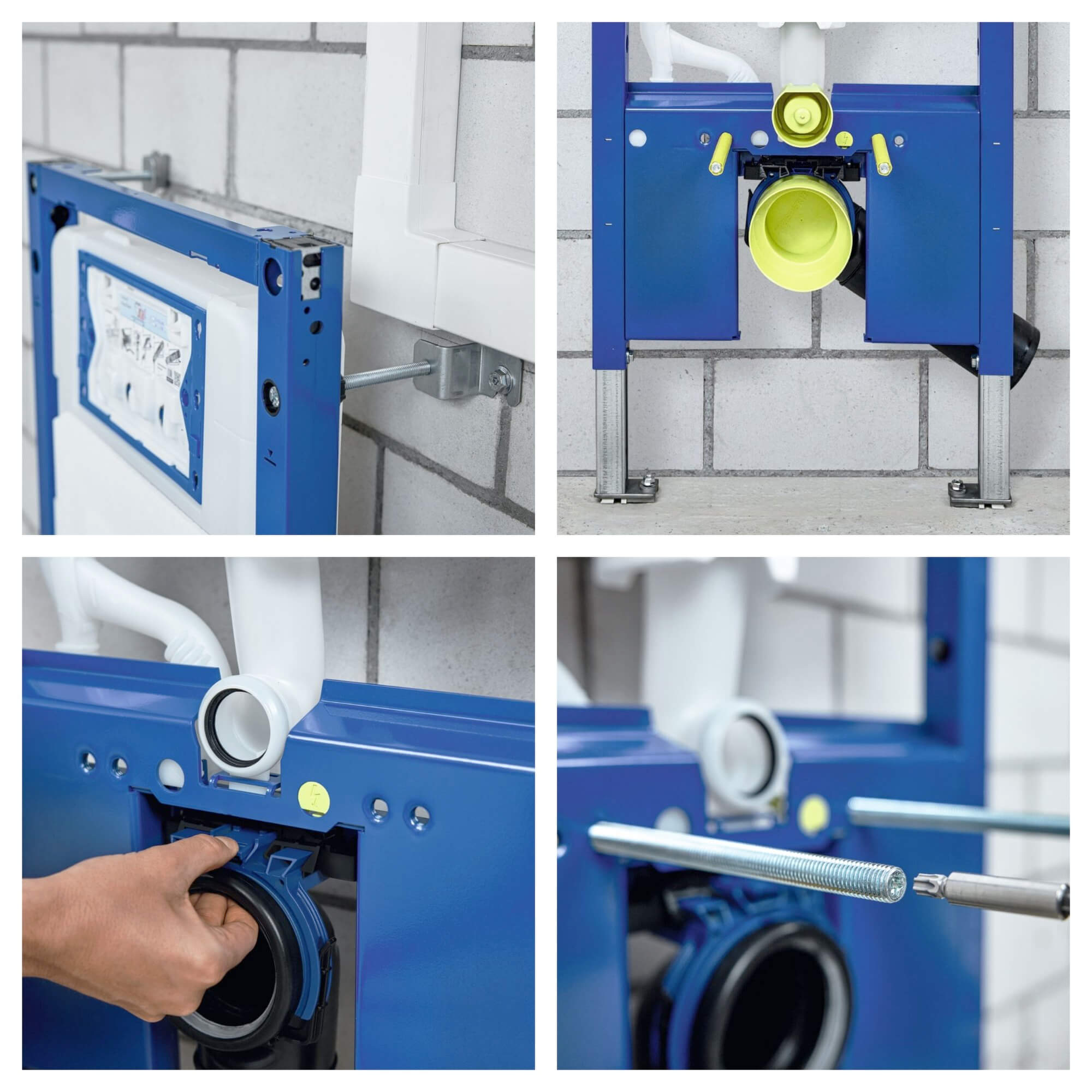

• Come with Pull-Out Plate for Lateral Fastening Above the Element on Metal or Wood Profiles or on Geberit Duofix System Studs
• Alternative Fastening Point for Wall Anchors
• Rotating Foot Plates, Suitable for Installation in U Profiles UW 50 and UW 75
• Foot Plates that can be Mounted in Geberit Duofix System Rail without Tools and Additional Components
• Galvanised Non-Slip Leg Supports Protected Against Corrosion
• Connection Bend can be Mounted without Tools at Different Depths, with an Adjustable Range of 80mm
• Interrupted Crossbar Enables a Front Flush Depth for the Vertical Outlet Bend
• Waste Connector Bend, Extended, for Connection in Floor
• Cistern Fulfils Standard Requirements in Accordance with EN 14055, CLASS II
• For Front Actuation, Suitable for Single, Dual and Stop-and-Go Flushes
• Immediate Post Flush Possible with Factory Setting
• Tool-Free Installation and Maintenance Work on Concealed Cistern
• Water Supply Connection on the Top Left
• Protection Box for Service Opening, can be Cut to Length, Protects Against Moisture and Dirt
• Completes with Conduit Pipe for Feed Pipe for Geberit AquaClean Shower Toilets and for Connection Cable
• Fastening Option for Electrical Connection
• Flow Pressure: 0.1-10 Bar
• Maximum Operating Temperature of Water: 25° Celsius
• Flush Volume, Factory Setting: 5.8 / 3 Litres
• Flush Volume Large, Adjustment Range: 4.5 / 6 / 7.5 Litres
• Flush Volume Small, Adjustment Range: 2-4 Litres
• Frame Material: Steel
• Refer to the Technical Drawing for More Details
• 10-Year Guarantee from Geberit Against Manufacturing Defects
• Application Purposes
• For Metal and Wood Frame Walls
• For Geberit Duofix System Walls
• For Installation in Part or Room-Height Prewalls
• For Installation in Room-Height Partition Walls
• For Floor Constructions 0-25cm
• For Wall-Hung WCs
• Scope of Delivery:
• Water Supply Connection R 1/2-Inch, Compatible with MasterFix and MeplaFix, with Integrated Angle Stop Valve and Hand Wheel
• Protection Box for Service Opening
• 2x Wall Anchors
• Connection Set for WC, Ø 90mm
• Connection Bend 90° Made of PE-HD, Ø 90mm
• Adaptor Socket Made of PE-HD, Ø 90 / 110mm
• Fastening and Protection Material
