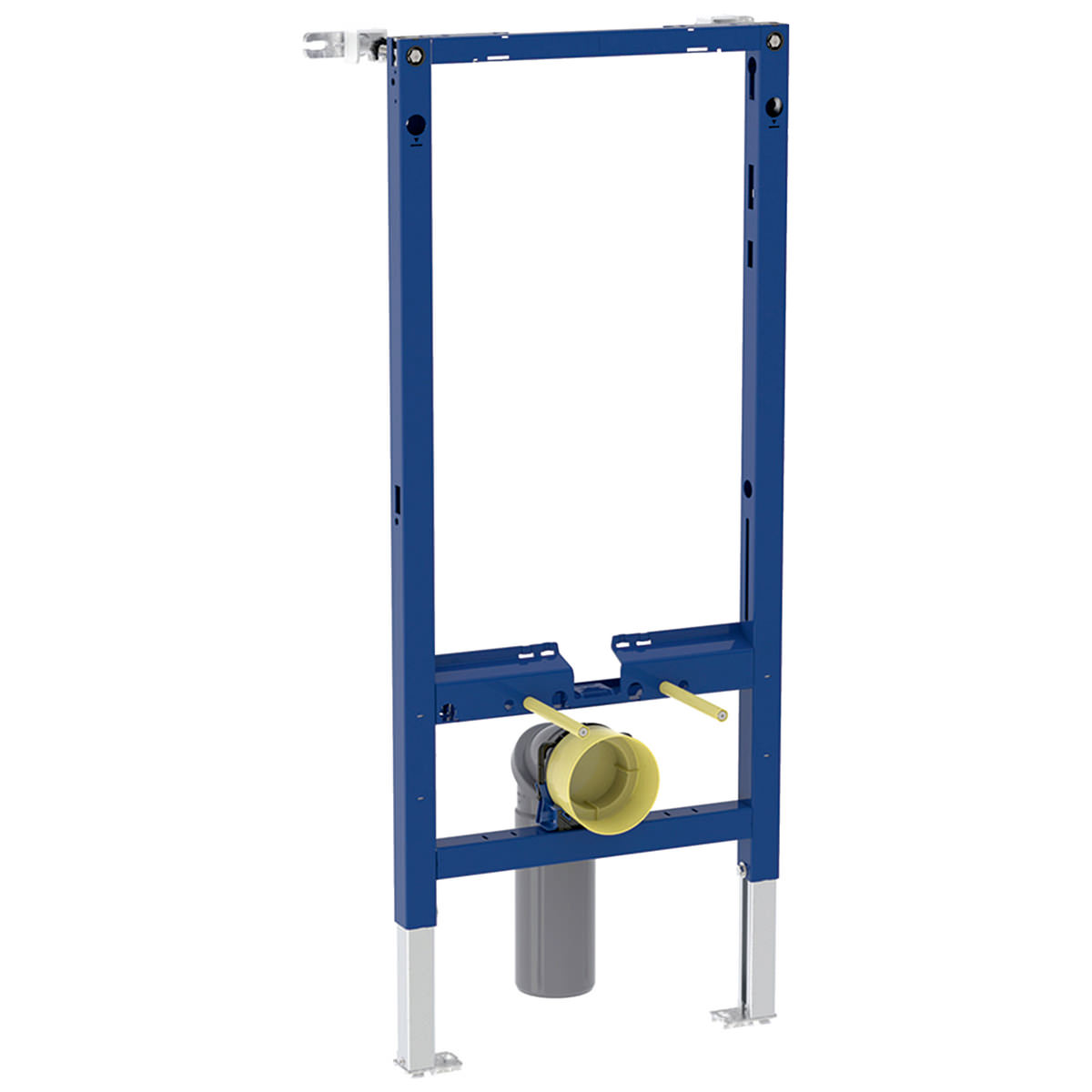

Geberit Duofix Blue Steel Frame for Wall-Hung Toilet - 500 x 1120mm

Geberit Duofix Blue Steel Frame for Wall-Hung Toilet - 500 x 1120mm.

• The Manufacturing Code of this Product is 111.321.00.2
• Comes in a Blue Finish
• Size [mm]: 500 x 40 x 1120mm [Width x Depth x Height]
• Size [cm]: 50 x 4 x 112cm [Width x Depth x Height]
• Compatible with Metal, Wood Frame Walls and Floor Constructions 0-25cm
• Can be Installed in Part or Room-Height Prewalls and Room-Height partition Walls
• Frame for Wall-Hung WCs with Connection Dimensions as Per EN 33 and Projection Up to 70cm
• Comes with a Pull-Out Plate for Lateral Fastening Above the Element on Metal or Wood Profiles or on Geberit Duofix System Studs
• Rotating footplates, Suitable for Installation in U Profiles UW 50 and UW 75
• Foot Plates that can be Mounted in Geberit Duofix System Rail without Tools and Additional Components
• Galvanised Non-Slip Leg Supports Protected Against Corrosion
• Connection Bend can be Mounted without Tools at Different Depths Adjustable Range of 45mm
• Rotatable Connection Bend for Connection Piece for Horizontal Outlet to the Rear
• Fastening for Electrical Connection, Power and Connect Box
• Refer to the Technical Drawing for More Details
• 10-Year Guarantee from Geberit Against Manufacturing Defect
• Scope Of Delivery:
• 2x Wall Anchors
• Connection Set for WC: Ø 90mm
• Connection Bend 90° Made of PVC: Ø 90 / 100mm
• Fastening and Protection Material
