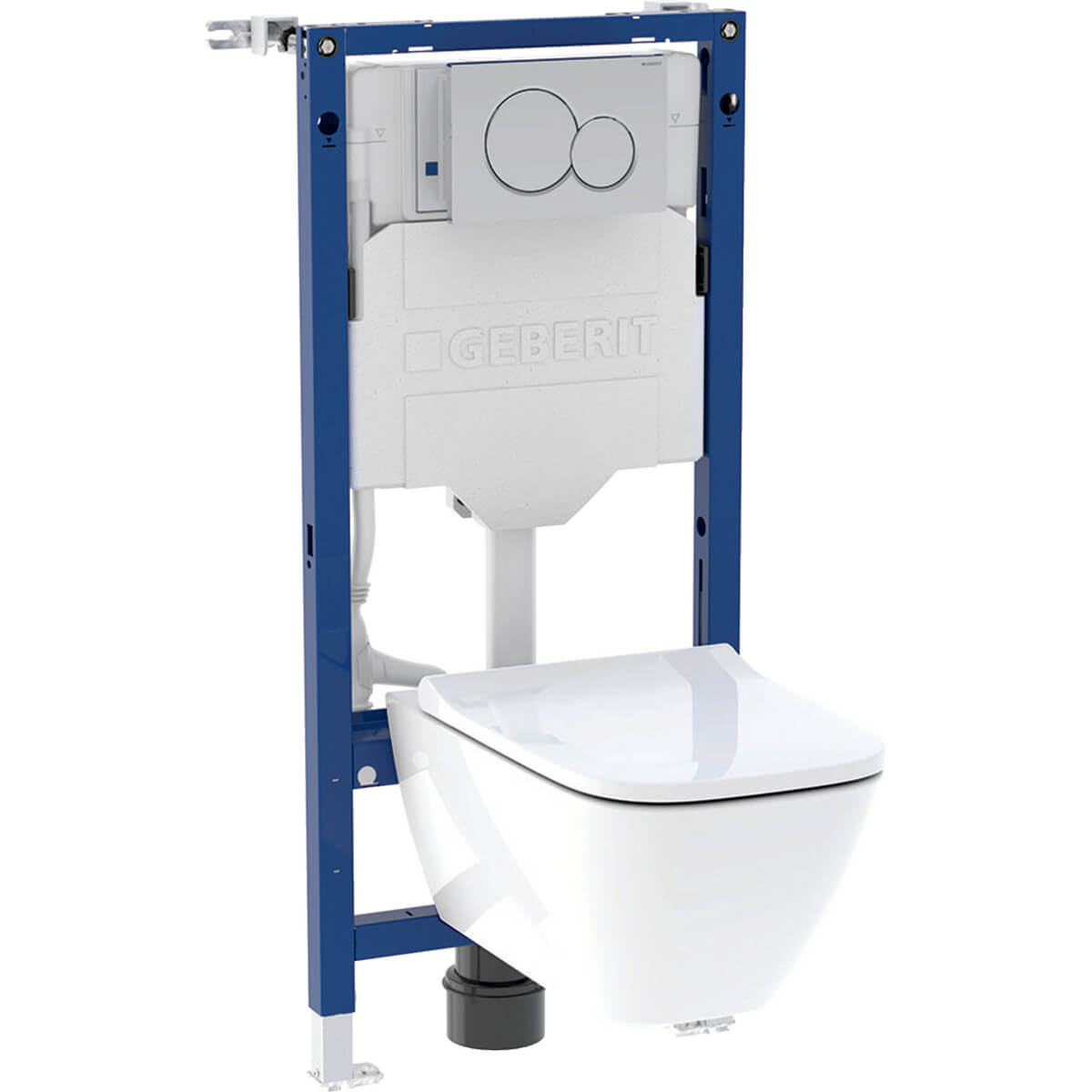

Geberit Duofix 112cm Frame with 12cm Concealed Cistern and Wall Hung Rimless Toilet - Soft-Close Seat

Geberit Duofix 112cm Frame with 12cm Concealed Cistern and Wall Hung Rimless Toilet - Soft-Close Seat.

• The Manufacturing Code of this Product is 118.349.21.2

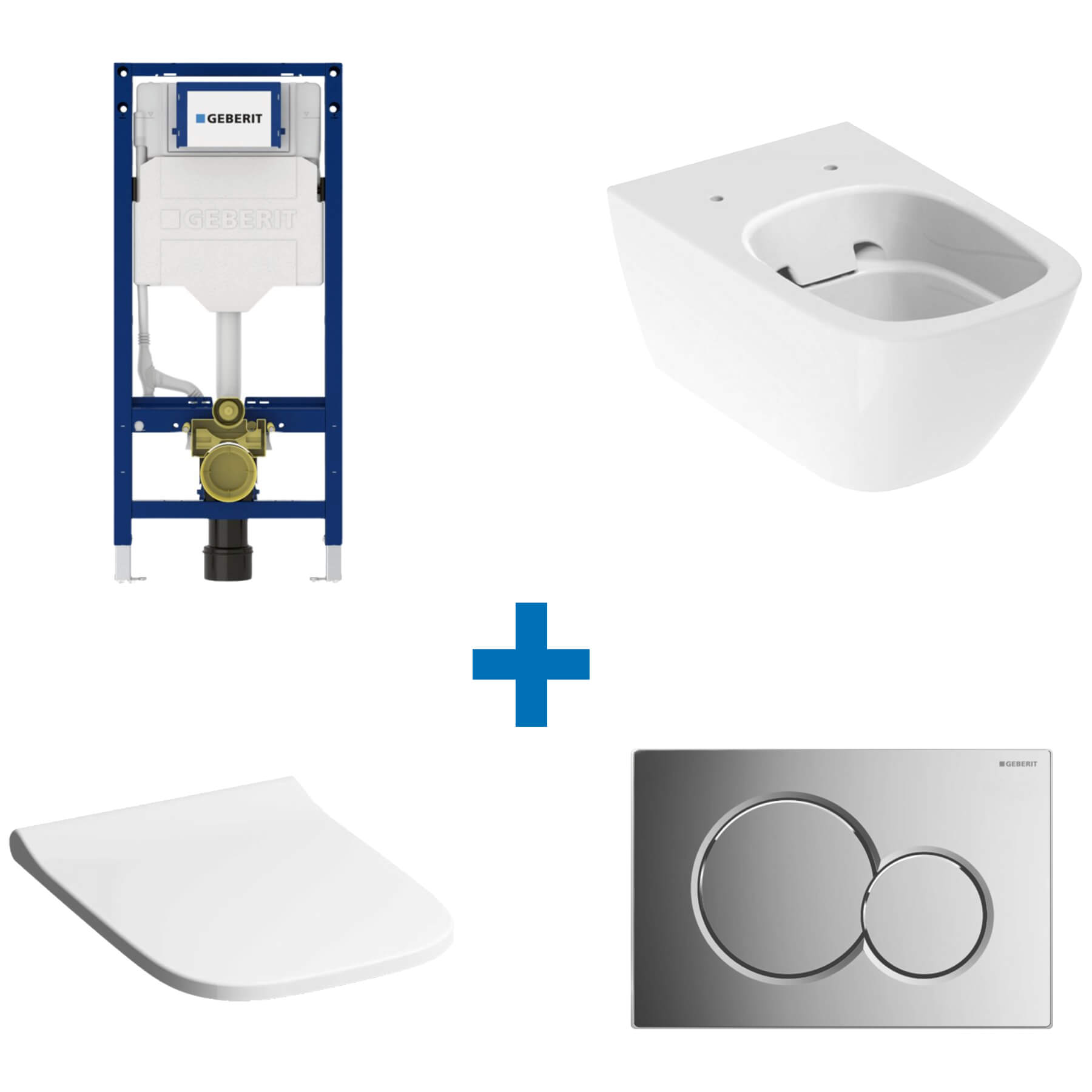

• 4-In-1 Wall-Hung Toilet Pack
• Refer to the Technical Drawing for More Details
• Fastening Distance: 18cm
• Flow Pressure: 0.1-10 Bar
• Flush Volume, Factory Setting: 5.8 / 3 l
• Maximum Operating Temperature of Water: 25° Celsius
• Application Purposes:
• For Floor Constructions 0-25cm
• For Geberit Duofix System Walls
• For Installation in Part or Room-Height Prewalls
• For Installation in Room-Height Partition Walls
• For Metal and Wood Frame Walls
• Details Of WC Frame & Cistern:
• Size of Frame [mm]: Width 500mm x Depth 120mm x Height 1120mm
• Size of Frame [cm]: Width 50cm x Depth 12cm x Height 112cm
• Frame Material: Steel
• Alternative Fastening Point for Wall Anchors
• Connection Bend can be Mounted without Tools at Different Depths, with an Adjustable Range of 45mm
• Fastening Option for Electrical Connection
• Foot Plates that can be Mounted in the Geberit Duofix System Rail without Tools and Additional Components
• Frame for Wall-Hung WCs with Connection Dimensions as Per EN 33 and Projection Up to 70cm
• Galvanised Non-Slip Leg Supports Protected Against Corrosion
• Protection Box for Service Opening, can be Cut to Length, Protects Against Moisture and Dirt
• Rotating Foot Plates, Suitable for Installation in U Profiles UW 50 and UW 75
• Statistically Self-Supporting Frame, Protected Against Corrosion with Powder Coating
• Water Supply Connection on the Rear or Top Centre
• Completes with Conduit Pipe for Feed Pipe for Geberit AquaClean Shower Toilets and Connection Cable
• It Comes with a Pull-Out Plate for Lateral Fastening Above the Element on Metal or Wood Profiles or on Geberit Duofix System Studs
• Geberit Sigma Concealed Cistern 12cm, Fully Insulated Against Condensation
• Suitable for Dual Flush and Front Actuation
• Tool-Free Installation and Maintenance Work on Concealed Cistern
• Immediate Post Flush Possible with Factory Setting
• Cistern Fulfils Standard Requirements in Accordance with EN 14055, CLASS II
• 10-Year Guarantee from Geberit Against Manufacturing Defects
• Details Of Sigma01 Dual Flush Plate:
• It Comes in a Gloss Chrome Finish
• Size: Width 246mm (24.6cm) x Height 164mm (16.4cm)
• Thickness: 13mm (1.3cm)
• Button Shape Round
• Material: Plastic
• Actuation Force Max. 20 N
• 5-Year Guarantee from Geberit Against Manufacturing Defects
• Details Of Smyle Square Toilet:
• It Comes in a Gloss White Finish
• Size [mm]: 350 x 330mm [Width x Height]
• Size [cm]: 35 x 33cm [Width x Height]
• Projection from Wall: 540mm [54cm]
• Rimless WC Ceramic Appliance Featuring Rimfree Flush Technology
• Shrouded and Washdown WC Model
• Hidden Fastening
• Horizontal Outlet
• Material: Vitreous China
• Suitable for Wall-Hung Installation
• Type 1, Full Flush Volume 6 / 5 / 4 l, in Accordance with EN 997
• Easy Fastening with Easy Fast Fixing (Type EFF3)
• 10-Year Guarantee from Geberit Against Manufacturing Defects
• Details Of Smyle Square Slim Design Seat:
• It Comes in a Gloss White Finish
• Soft-Closing and Quick-Release Hinges
• Brass Chrome-Plated Hinge Material
• WC Seat Made of Duroplast, Antibacterial
• Overlapping WC Lid
• Fastening from Above
• 2-Year Guarantee from Geberit Against Manufacturing Defects
• Scope Of Delivery:
• 2x Wall Anchors
• Sound Insulation Set
• Connection Set for WC, Ø 90mm
• Fastening and Protection Material
• Protection Box for Service Opening
• Connection Bend 90° Made of PE-HD, Ø 90mm
• Adaptor Socket Made of PE-HD, Ø 90 / 110mm
• Geberit Duofix Element for Wall-Hung WC
• Geberit Sigma01 Flush Plate for Dual Flush, Round
• Geberit Smyle Square Wall-Hung WC Set, Washdown, Shrouded, Rimfree, with WC Seat, Overlapping Lid
• Water Supply Connection R 1/2", Compatible with MasterFix and MeplaFix, with Integrated Angle Stop Valve and Hand Wheel
