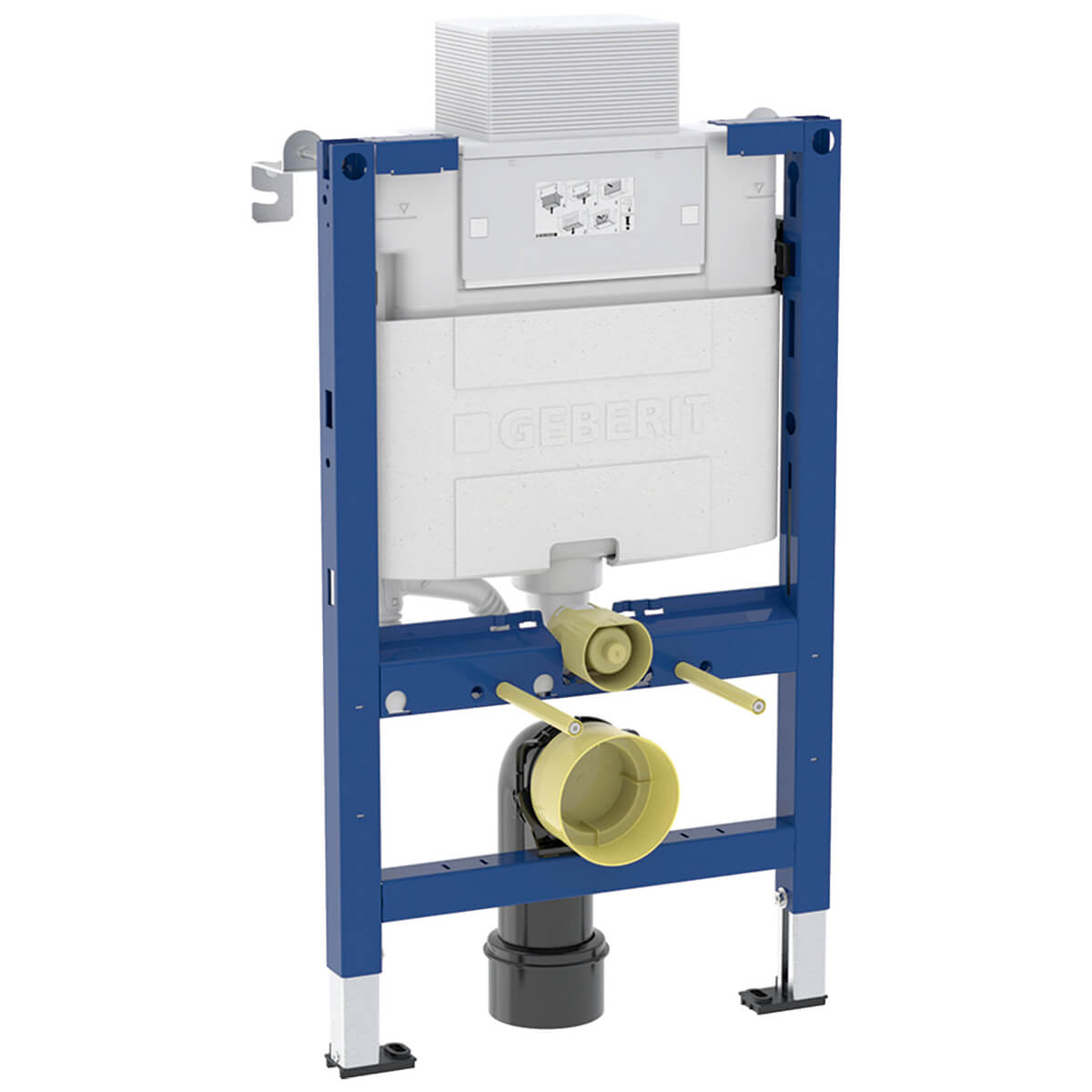

Geberit Duofix Wall Hung WC Frame with 12cm Alpha Concealed Cistern 5.8/3L - 500 x 820mm

Geberit Duofix Wall Hung WC Frame with 12cm Alpha Concealed Cistern 5.8/3L - 500 x 820mm.

• Choice of Variants: Frame with Cistern Only or with Dual Flush Plate

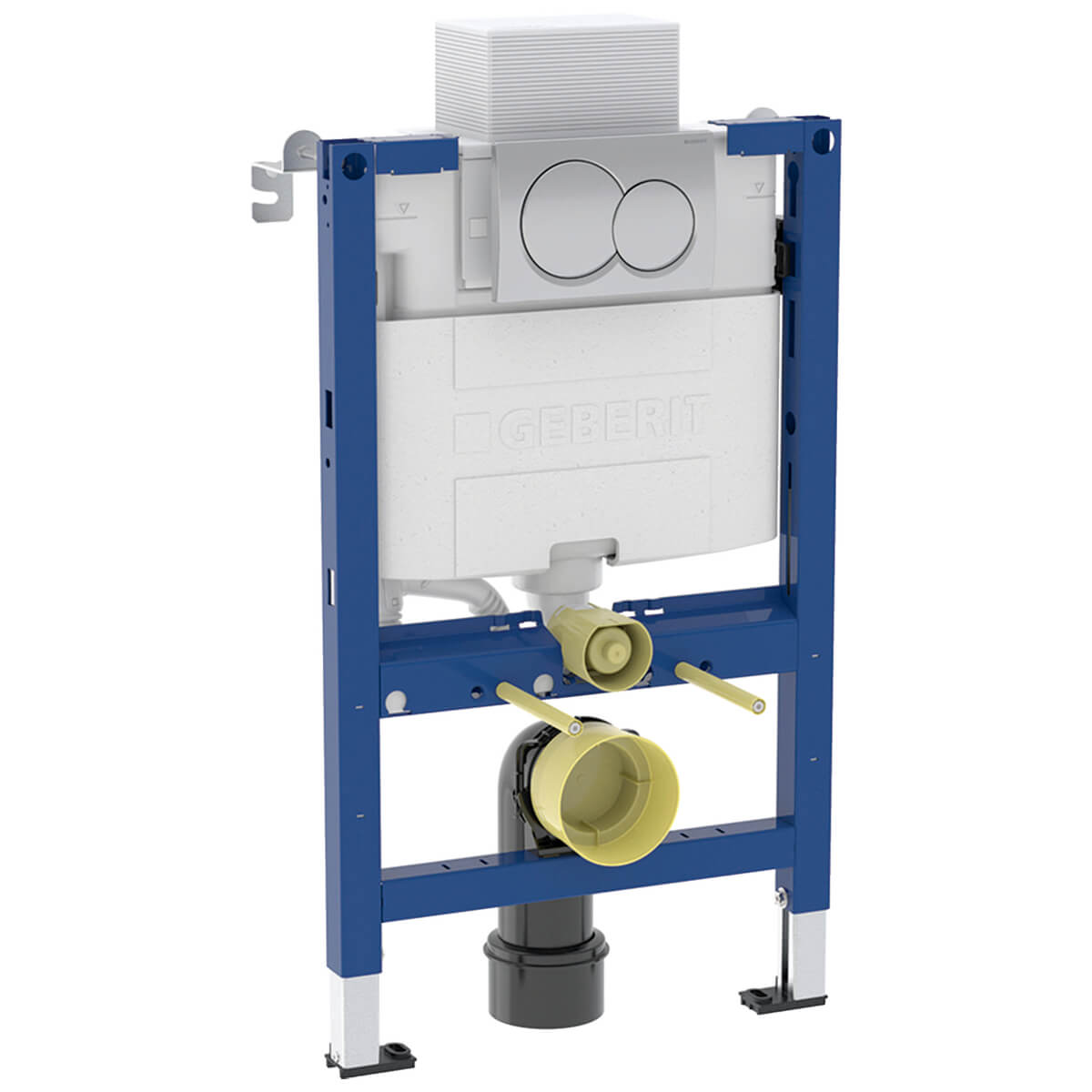

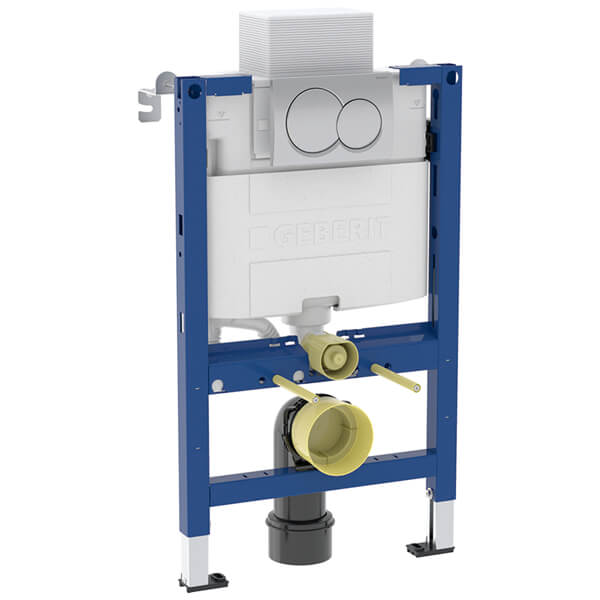

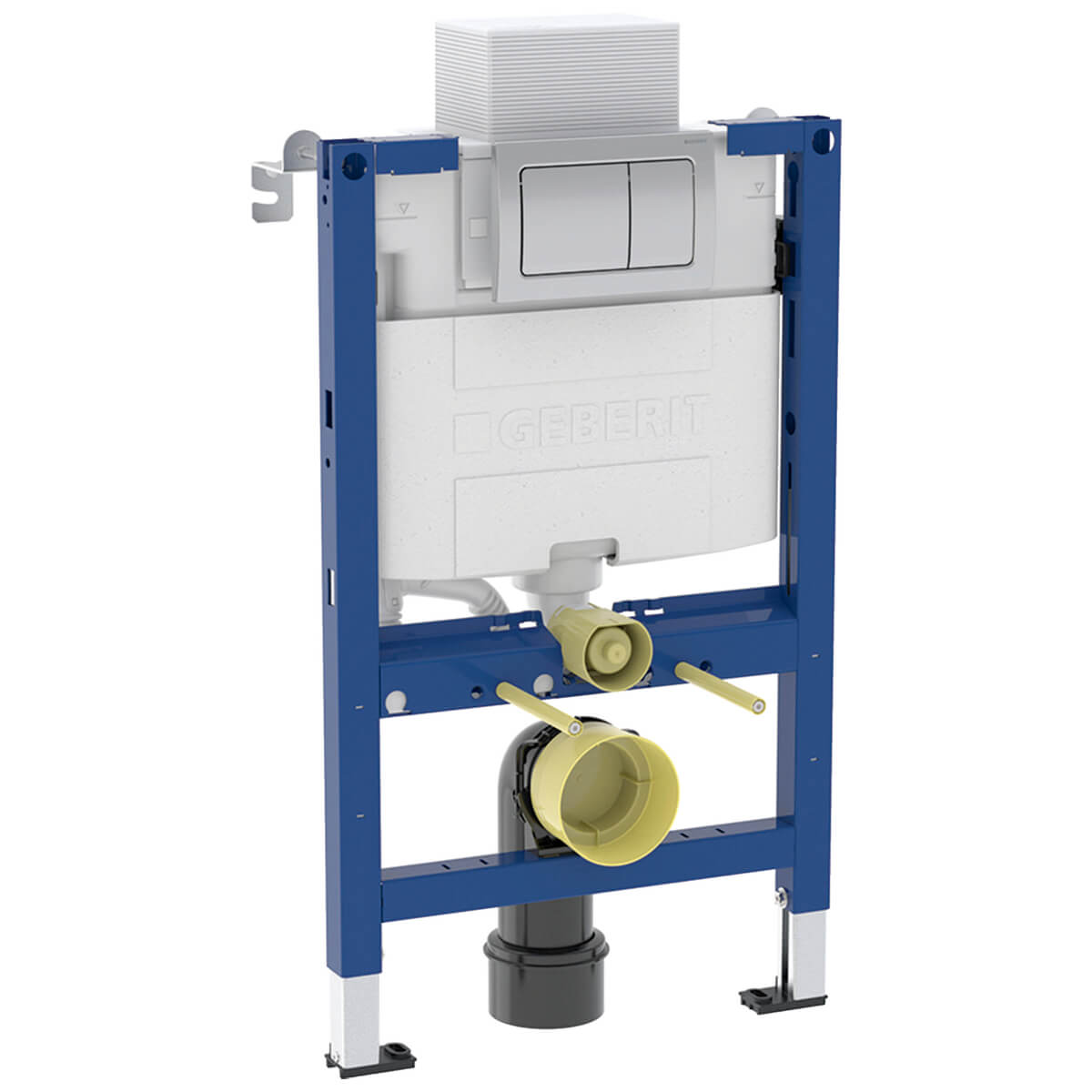

• Gloss Chrome Finish Flush Plate – Rectangular or Round Buttons
• Frame Size: Width 500 x Depth 170mm x Height 820mm
• Statistically Self-Supporting Frame, Protected Against Corrosion with Powder Coating
• Frame for Wall-Hung WCs with Connection Dimensions as Per EN 33 and Projection Up to 62cm
• Frame with Ø 9mm Drilling Holes for Fastening in Wood Frame Construction
• Foot Plates Made of Plastic
• Foot Plate Depth Suitable for Installation in U-Profiles UW 50
• The Connection Bend can be Mounted without Tools
• Cistern Fulfils Standard Requirements in Accordance with EN 14055, CLASS II
• Immediate Post-Flush is Possible with Factory Settings
• Protection Box for Service Opening, can be Cut to Length, Protects Against Moisture and Dirt
• Comes with Conduit Pipe for Feed Pipe for Geberit AquaClean Shower Toilets, and for Connection Cable
• Fastening Option for Electrical Connection
• Flow Pressure: 0.1–10 Bar
• Maximum Operating Water Temperature: 25° Celsius
• Flush Volume, Factory Setting 5.8 / 3 Litres
• Flush Volume Large, Adjustment Range 4 / 4.5 / 6 / 7.5 Litres
• Flush Volume Small, Adjustment Range 2–4 Litres
• Frame Material: Steel
• Flush Plate: Plastic
• Actuation Force Max. 20 N
• Refer to the Technical Drawing for More Details
• 10-Year Guarantee from Geberit Against Manufacturing Defects
• Application Purposes
• For Metal and Wood Frame Walls
• For Installation in Part-Height Prewalls
• For Floor Constructions 0–20cm
• For Wall-Hung WCs
• Scope Of Delivery
• Water Supply Connection R 1/2 Inch, Compatible with MasterFix and MeplaFix, with Integrated Angle Stop Valve and Hand Wheel
• Protection Box for Service Opening
• 2x Wall Anchors
• Connection Set for WC, Ø 90mm
• Connection Bend 90° Made of PE-HD, Ø 90mm
• Adaptor Socket Made of PE-HD, Ø 90 / 110mm
• Fastening and Protection Material
