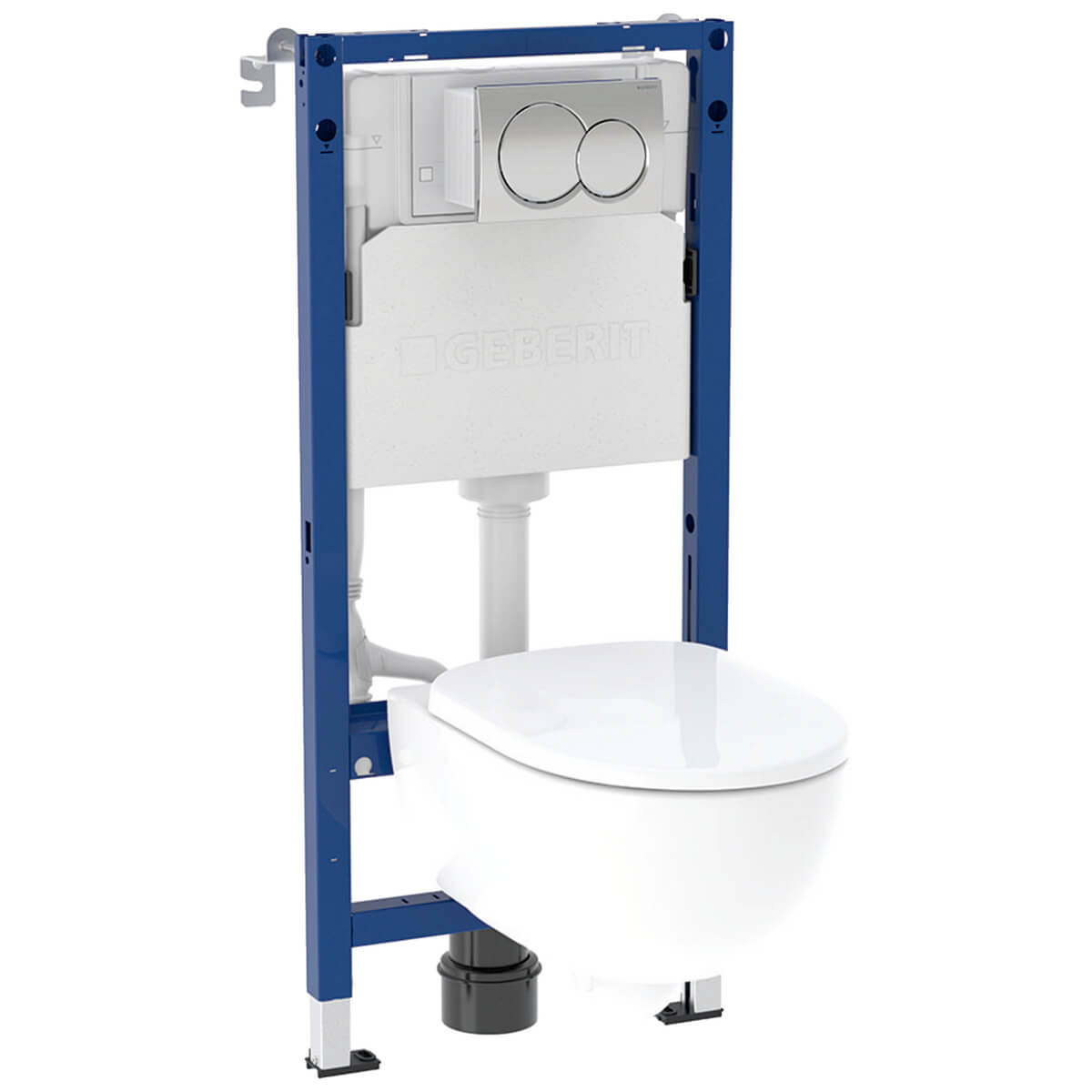

Geberit Duofix Frame 112cm with Alpha Concealed Cistern 5.8/3L and Flush Plate - Selnova Rimless Toilet

Geberit Duofix Frame 112cm, 5.8 / 3 Litres Alpha Concealed Cistern 12cm with Dual Flush Plate, Selnova Wall Hung Rimless Toilet and Soft-Close Seat.

• The Manufacturing Code of this Product is 118.362.21.2
• 4-In-1 Wall-Hung Toilet Pack
• Flow Pressure 0.1-10 Bar
• Maximum Operating Temperature of Water: 25° Celsius
• Flush Volume, Factory Setting: 5.8 / 3 Litres
• Flush Volume Large, Adjustment Range: 4 / 4.5 / 6 / 7.5 Litres
• Flush Volume Small, Adjustment Range: 2–4 Litres
• Fastening Distance 18cm
• Refer to the Technical Drawing for More Details
• Application Purposes:
• For Metal and Wood Frame Walls
• For Installation in Part or Room-Height Prewalls
• For Installation in Room-Height Partition Walls
• For Floor Constructions 0-20cm
• Details Of Duofix Frame with Alpha Concealed Cistern:
• Size of Frame [mm]: Width 500mm x Depth 120mm x Height 1120mm
• Size of Frame [cm]: Width 50cm x Depth 12cm x Height 112cm
• Frame Material: Steel
• Statistically Self-Supporting Frame, Protected Against Corrosion with Powder Coating
• Frame for Wall-Hung WCs with Connection Dimensions as Per EN 33 and Projection Up to 62cm
• Alternative Fastening Point for Wall Anchors
• Foot Plates Made of Plastic
• Foot Plate Depth Suitable for Installation in U-Profiles UW 50
• Galvanised Leg Supports are Protected Against Corrosion
• The Connection Bend can be Mounted without Tools
• Geberit Alpha Concealed Cistern 12cm Fully Insulated Against Condensation
• Cistern Fulfils Standard Requirements in Accordance with EN 14055, CLASS II
• For Front Actuation, Suitable for Dual Flush
• Immediate Post-Flush is Possible with Factory Settings
• Water Supply Connection on the Rear or Top Centre
• Protection Box for Service Opening, can be Cut to Length, Protects Against Moisture and Dirt
• Conduit Pipe for Feed Pipe for Geberit AquaClean Shower Toilets, and Connection Cable
• Fastening Option for Electrical Connection
• 10-Year Guarantee from Geberit Against Manufacturing Defects
• Details Of Selnova WC And Seat:
• Size of WC: Width 360mm (36cm) x Height 330mm (33cm)
• Projection from Wall: 530mm (53cm)
• It Comes in a White Finish
• Suitable for Wall-Hung Installation
• Shrouded and Washdown WC
• Rimless WC Ceramic appliance featuring Rimfree Flush Technology
• Easy Fastening with Easy Fast Fixing (Type EFF3)
• Type 1, Full Flush Volume 6 / 5 / 4 Litres, in Accordance with EN 997
• 4 Litres Flush
• Toilet Material: Vitreous China
• 10-Year Guarantee On Toilet from Geberit Against Manufacturing Defects
• Overlapping WC Lid
• Soft-Closing Mechanism and Quick-Release Hinges
• Stainless Steel Hinge Material
• Fastening from Above
• Seat Made of Duroplast
• 2-Year Guarantee on the Seat from Geberit Against Manufacturing Defects
• Details Of Alpha01 Flush Plate:
• Size: Width 213mm (21.3cm) x Height 142mm (14.2cm)
• Thickness: 16mm (1.6cm)
• It Comes in Gloss Chrome Finish
• Material: Plastic
• Actuation Force Max. 20 N
• Round Buttons Dual Flush Plate
• 5-Year Guarantee from Geberit Against Manufacturing Defects

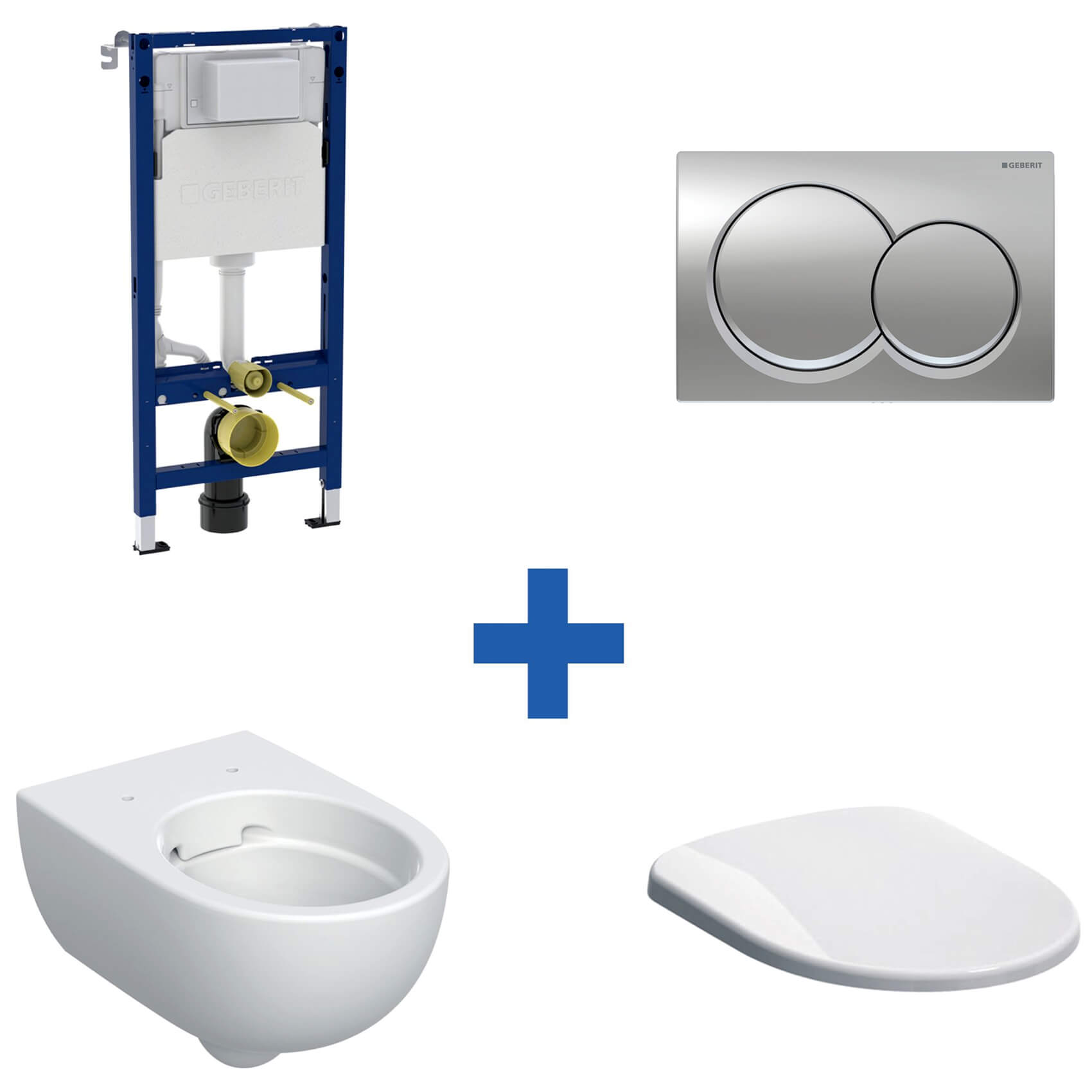

• Scope Of Delivery:
• Geberit Duofix Frame 112cm
• Geberit Alpha Concealed Cistern 12cm - 5.8 / 3 Litres
• Geberit Alpha01 Flush Plate for Dual Flush, Round
• Geberit Selnova Premium Wall-Hung WC Set, Washdown, Shrouded, Rimfree, with WC Seat
• 2x Wall Anchors
• 2x Fixing Brackets
• Protection Box for Service Opening
• Connection Set for WC Ø 90mm
• Connection Bend 90° Made of PE-HD Ø 90mm
• Adaptor Socket Made of PE-HD Ø 90 / 110mm
• Fastening and Protection Material
• Water Supply Connection Unit R 1/2 Inch, Compatible with MasterFix and MeplaFix, with Integrated Angle Stop Valve and Adapter Ring
