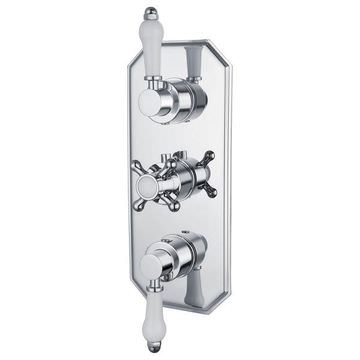

Niagara Arlington Traditional Thermostatic Concealed Shower Valve Chrome


RRP: £258.00


In-Stock In Stock

Not Yet Rated No Rating

Shipping: FREE* Check Postcodes

Delivery in 2 Working Days Approx.
Select Variations
You've Selected: OP-163657 - Twin Valves With One Outlet
Key Features
  • Ceramic disc flow control cartridge
  • The body is made of brass, the Handles of zinc and a Plate of stainless steel
  • WRAS and TMV2 approved
  • Ten-year guarantee from Niagara against manufacturing defects
SKU Code: QS-V93872

MFC Code: 9316

Niagara Arlington 9316 Details

Niagara Arlington Thermostatic Concealed Shower Valve Traditional comes to you in 2 models, twin and triple valves-the twin model come with a single outlet while the triple valves have two outlets. This is a traditionally styled valve and concealed in installation for an excellent look. It features dual control-with separate controls for flow and control and has a thermostatic mechanism that maintains the showering temperatures at near-constant. Suitable for the medium and high pressure water system, it is backed by a 10 years guarantee from the manufacturers against manufacturing defects.

  • Available in two variants: twin and triple valves [Optional].
  • Twin valves with one outlet and Triple valves with two outlets.
  • Twin valves size [mm]: 120mm x 156mm x 215mm [Width x Depth x Height].
  • Triple valves size [mm]: 120mm x 150mm x 280mm [Width x Depth x Height].
  • It comes completed in a chrome finish.
  • Traditional design concealed shower valve.
  • Dual Control - flow and temperature are controlled separately, giving accurate control of both.
  • The thermostatic cartridge maintains the showering temperature to +/- 2°C giving a stable outlet temperature.
  • Suitable for medium and high-pressure water system.
  • Requires a minimum of 0.5 bar and a maximum of 10 bar of water pressure.
  • Inlet connections: G3/4 BSP.
  • If using a temperature < 42° C, automatic shut-off in the event of cold water supply failure to prevent scalding.
  • The temperature factory set to 38° C to eliminate the ability to select an unsafe temperature without overriding.
  • Refer to the technical drawing for more technical specifications.

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Colour
  • : Chrome
  • ⤷ Warranty/Guarantee
  • : 10 Years
  • ⤷ Material
  • : Body: Brass
  • ⤷ Theme
  • : Traditional
  • ⤷ Inlet Connections
  • : G3/4” BSP
  • ⤷ Minimum Operating Pressure (Bar)
  • : 0.5
  • ⤷ Flow Rates (l/min)
  • : 0.5 bar - 9.5, 1 bar - 13.5, 3 bar - 25
  • ⤷ Handle Style
  • : Lever and Crosshead
  • ⤷ WRAS Approved
  • : Yes
  • ⤷ Temperature Control
  • : Thermostatic
  • ⤷ Backplate Width
  • : 120
  • ⤷ Backplate Height
  • : 215
  • ⤷ TMV2 Approved
  • : Yes
  • ⤷ Number of Handles
  • : 2
  • ⤷ Number of Outlet
  • : 1
  • ⤷ Outlet Connection
  • : G3/4” BSP
  • ⤷ Maximum Operating Pressure (Bar)
  • : 10
  • ⤷ Cartridge Included
  • : Yes

Total: £115.22 3-4 Working Days Approx QS Supplies

5 Features Included In This Product Explained

Thermostatic Control

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.

TMV2 Approved Product

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

WRAS Approved Product

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.

Ceramic Disc Cartridge

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.

Medium Water Pressure

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.
