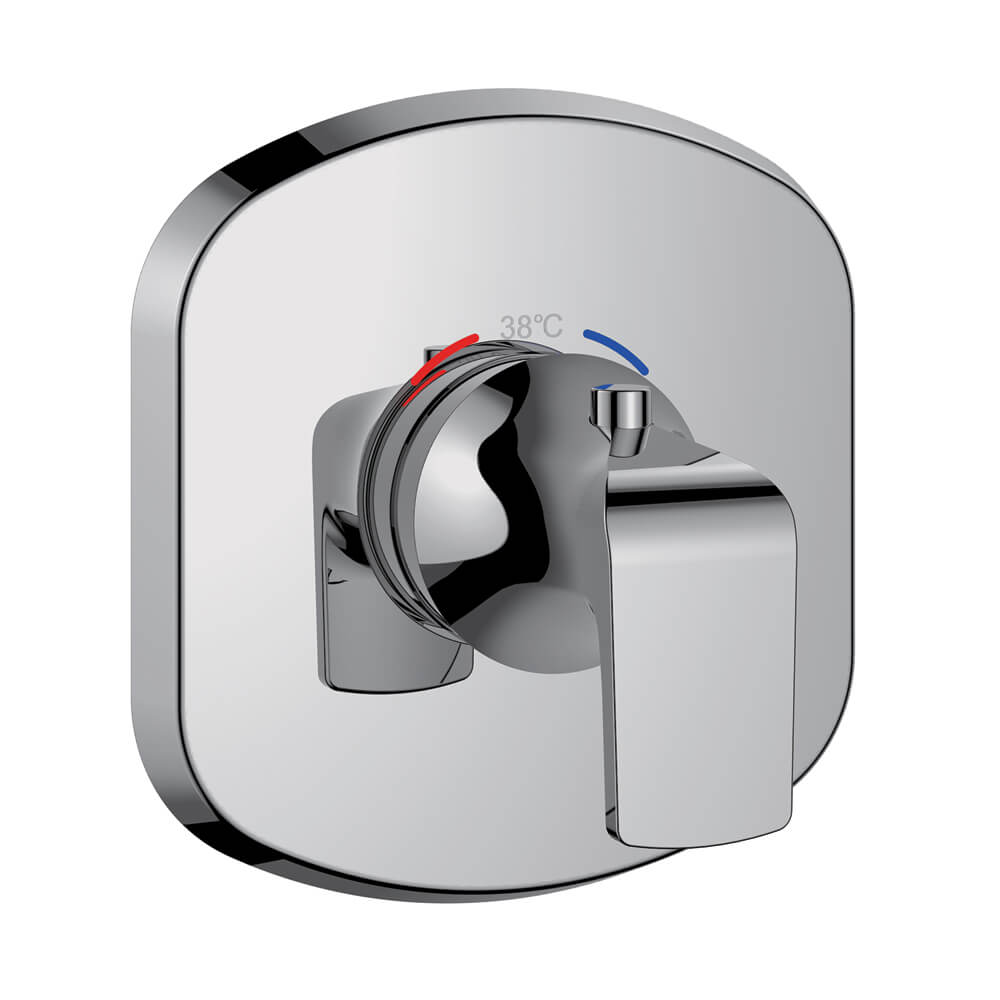

Flova Fusion Concealed Thermostatic Chrome Mixer Valve

Flova Fusion Details

MFC: FNT111

Update the look of your bath and shower area with the Flova Fusion Concealed Thermostatic Mixer Valve. The product features a rounded rectangular shape that provides a nice contrast against the flat rectangular lever, allowing you to control the flow and temperature of the water. It features advanced anti-scald technology for safe use, but does not include a shut-off feature. It is crafted from high-quality, rust-resistant brass from top to bottom and backed by a 15-year manufacturer's guarantee.

Manufacturing Code of this Product: FNT111
Easy Clean
It Comes in a Diamond Chrome Finish
Excludes Shut Off
Size of Back Plate [mm]: 135 x 142mm [Width x Height]
Size of Back Plate [cm]: 13.5 x 14.2cm [Width x Height]
Safety Temperature Override Button
Thermostatic Mixer Valve Only - Requires a Separate Divert
Temperature Control: Thermostatic
Single or Dual Outlet
Blanking Plug Required for Single Outlet Purposes, or 2 Outlets Can be Run Simultaneously
Requires Separate Flow Control
Suitable for Medium Water Pressure Systems
Required Minimum Pressure of 0.5 Bar
Refer to the Technical Diagram for Complete Technical Dimensions

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Fusion
⤷ Colour
: Diamond Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Inlet Connections
: G 3/4
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Handle Style
: Lever

⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 135
⤷ Backplate Height
: 142
⤷ Anti-Scald
: Yes
⤷ Number of Handles
: 1
⤷ Number of Outlet
: 1
⤷ Barcode
: 5057199927378
⤷ Product Type
: Thermostatic Shower Valve
⤷ Plumbing Option
: Concealed

Additional Info & Downloads

This item can also be found in:

Concealed Shower Valves

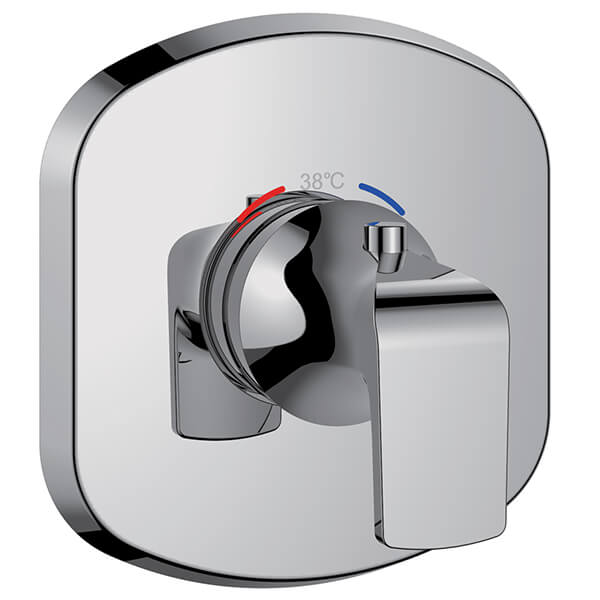

Flova Fusion Concealed Thermostatic Chrome Mixer Valve - 1 Outlet - 1 Control

£395.66

RRP: ~~£585.00~~

Stock Availablity: 6 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
