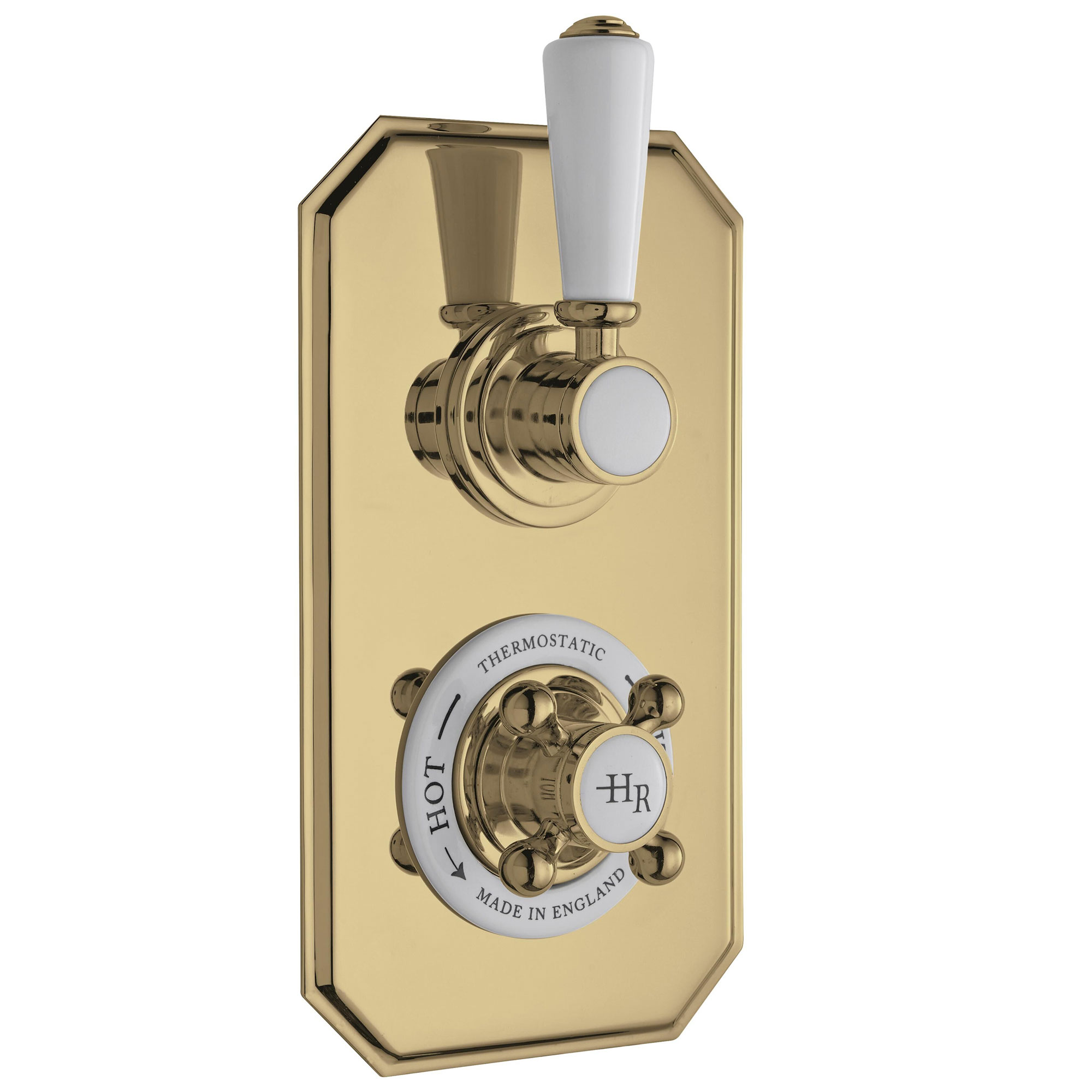

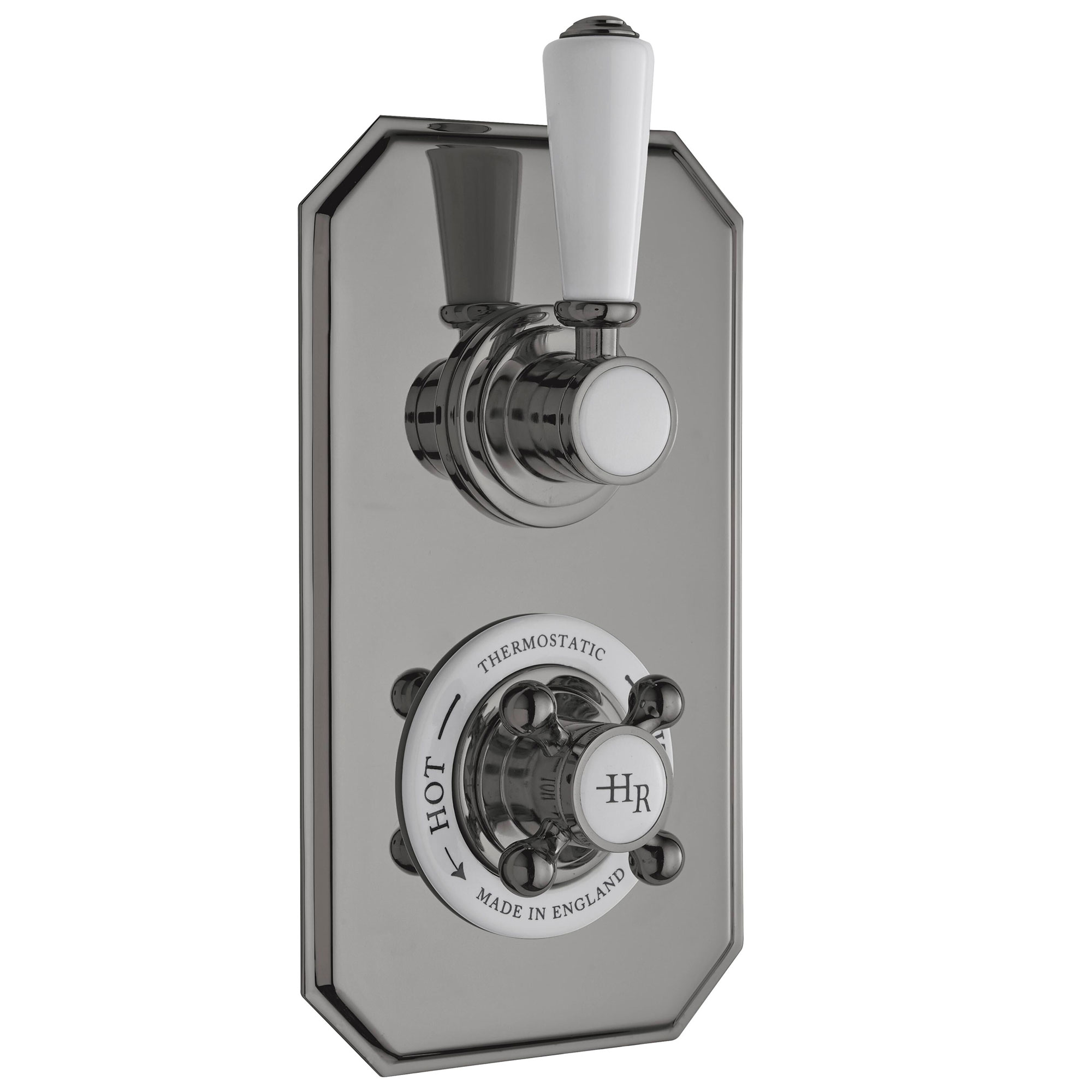

Hudson Reed Topaz Twin Thermostatic Shower Valve With Diverter

Hudson Reed Topaz TSVT004 Details

The Hudson Reed Topaz Twin Thermostatic Shower Valve with Diverter is designed for concealed, wall-mounted installation and suitable for use in all systems, including gravity-fed, high pressure and fully modulated combi-boilers. Offering a minimum flow rate of 5.5 litres per minute at only 0.1 bar of water pressure, this unit comes in more than one finish choice, making it a great option for a wide variety of bathroom layouts. Complete with a reversible, patented cartridge thats resistant to calcium build-up, even in hard water situations; this model also features thermal protection to prevent scalding.

Choice of different finishes: Chrome-White or Chrome-Black - [Optional]
Size [mm]: 120mm x 135mm x 230mm [Width x Depth x Height]
Size [cm]: 12cm x 13.5cm x 23cm [Width x Depth x Height]
Pipe Size: 15mm (1.5cm)
No of Outlets: 2
Concealed wall-mounted installation
Diverter included
Accurate flow control and excellent flow rates - even at low-pressure
Thermostatic control to +/- 2 °C even if the water pressure fluctuates
In the event of hot or cold water failure, the valve will shut down automatically
Suitable for use with all systems, gravity-fed pumped unvented high-pressure or fully modulated combi-boilers
The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn't need re-plumbing - remove the cartridge, turn 180°, and replace
Suitable for low-pressure water system
Requires a minimum of 0.1 bar or above water pressure to operate smoothly
Download the Customer Data Sheet and Installation Instruction PDF file from the Additional Info Section
Refer to the technical drawing for complete size details
Twenty-year guarantee from Hudson Reed against manufacturing defects

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Topaz
⤷ Colour
: Chrome And White
⤷ Shape
: Rectangular
⤷ Warranty/Guarantee
: 20 Years
⤷ Material
: Brass | ABS
⤷ Theme
: Traditional
⤷ Installation Type
: Wall Mounted
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Flow Rates (l/min)
: 5.5
⤷ Handle Style
: Lever
⤷ Depth
: 135

⤷ Backplate Width
: 120
⤷ Backplate Height
: 230
⤷ Anti-Scald
: Yes
⤷ Number of Handles
: 2
⤷ Number of Outlet
: 2
⤷ Diverter Included
: Yes
⤷ Orientation
: Portrait
⤷ Barcode
: 5055275831618
⤷ Plumbing Option
: Concealed
⤷ Cartridge Included
: Yes
⤷ Cartridge Type
: 1/4 Turn Ceramic Disc

Additional Info & Downloads

Download the Customer Data Sheet Pdf File Download the Installation Instruction Pdf File

Hudson Reed Topaz Twin Thermostatic Shower Valve With Diverter

£209.32

RRP: ~~£614.00~~

IN-STOCK

Delivery in 2 Working Days Approx.

QS Supplies

6 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Combi-Boiler System

The showerhead or shower system is suitable for use with a Combi-Boiler System. This system heats cold water on demand, relying solely on mains pressure to move water around your home. These are suitable for mixer showers, as they provide hot water instantaneously and at the highest pressure.

Unvented System

The unvented water systems usually have a separate hot water cylinder, which is pre-heated via a combi boiler or other heating sources to store a quantity of hot water at mains pressure.

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...
