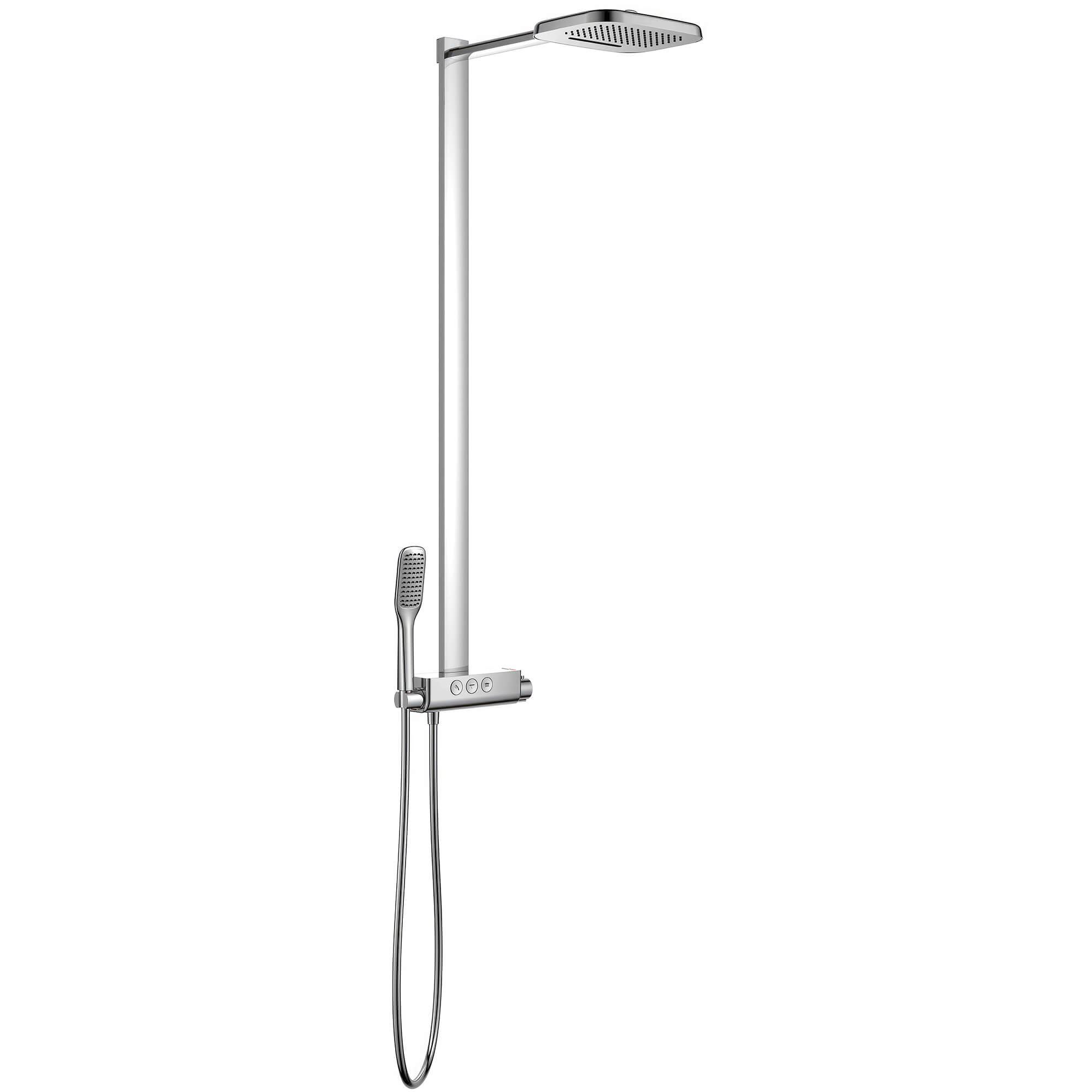

Flova Fusion Exposed Thermostatic Diamond Chrome Shower Column, FNTEXGO3-V

Flova Fusion Details

MFC: FNTEXGO3-V

The Flova Fusion Goclick Exposed Thermostatic Shower Column with 3 Outlets is designed for placement within any modern bathroom layout. It features an Air-Max rain shower feature that infuses air into the water as it falls from the showerhead, reducing water consumption overall. Manufactured from solid brass material and coated in a gorgeous diamond chrome finish, this unit will serve you for the long term. It requires a floor-to-handset holder height of 1000mm and allows for outlets that can efficiently be run simultaneously if desired. Suitable for installation within a high-pressure water system, this model requires a water pressure of 1.0 bar to function as intended.

Manufacturing Code of this Product: FNTEXGO3-V
Installation Type: Exposed
Comes in a Diamond Chrome Finish
Inlet to Outlet of Shower Head: 450mm
Height: 1150mm
Inlet Centre: 150mm
Required Floor to Handset Holder Height: 1000mm
Safety Temperature Override Button
Temperature Control: Thermostatic
Air-Mixed Rainshower with Rainstream Function
Includes Shower Set with 1.5m Smooth PVC Hose
Eyeball Fixing System
Outlet: 3 Outlets
Outlets Can be Run Simultaneously
Handshower: Wipe-Clean Rubber Nozzles for Effortless Use
Suitable for High Water Pressure Systems
Required Minimum Pressure of 1.0 Bar

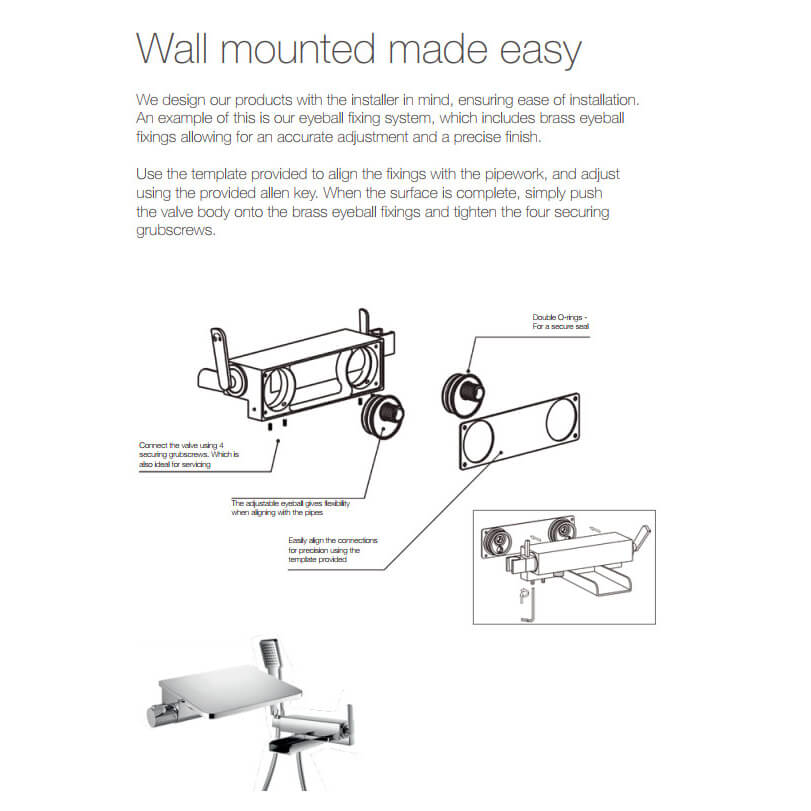

The Adjustable Eyeball Gives Flexibility When Aligning with the Pipes
When Installing this Product with a Shower Pump, a Negative Head Pump is Recommended for Optimum Performance

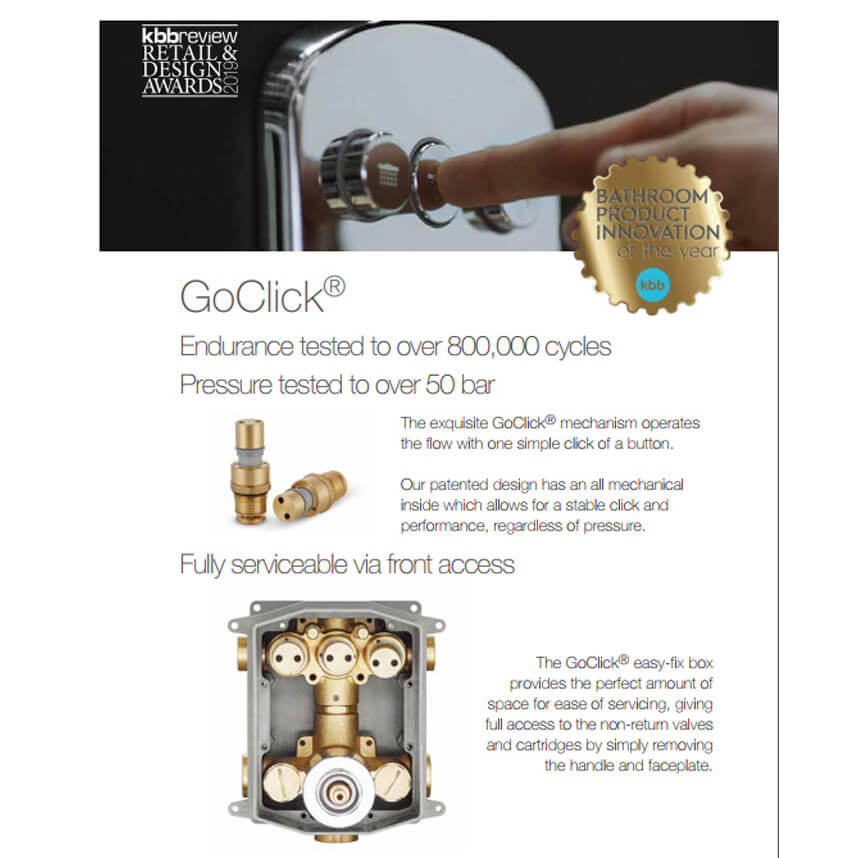

The GoClick Easy-Fix Box Provides the Perfect Amount of Space for Ease of Servicing, Giving Full Access to the Non-Return Valves and Cartridges by Simply Removing the Handle and Faceplate
Refer to the Technical Diagram for Complete Technical Dimensions

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Diamond Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Inlet Centres
: 150
⤷ Inlet Connections
: G 1/2
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500

⤷ Spray Setting
: 2
⤷ Height
: 1150
⤷ Temperature Control
: Thermostatic
⤷ Anti-Scald
: Yes
⤷ Showerhead Finish
: Diamond Chrome
⤷ Riser Rail & Kit Finish
: Diamond Chrome
⤷ Handset Included
: Yes
⤷ Shower Head Included
: Yes

Additional Info & Downloads

This item can also be found in:

Thermostatic Mixer Showers

Flova Fusion Exposed Thermostatic Diamond Chrome Shower Column with Flow Control

£1443.39

RRP: ~~£2150.00~~

Stock Availablity: 6 Working Days Approx

QS Supplies

7 Features Included In This Product Explained

Easy Clean Nozzles

Shower heads and handsets can be easily cleaned with a damp cloth, preventing limescale build-up.

Air-Mix Rainshower

An Air-Mix Rainshower in a Flova bathroom aerates the water that flows through the showerhead for a softer showering experience.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

3-Outlets

Also known as a triple valve, these valves feature three outlets, and either two or three can run simultaneously, depending on the manufacturer. You can also operate each outlet independently if required. The three outlet connections connect to three different fixtures, e.g., an overhead shower, body jets, side showers, or a bath mixer tap.

GoClick TECHNOLOGY

GoClick® technology in Flova makes life easy for the installer. The GoClick easy-fit box has been designed to allow accurate installation. It has 3/4 inch inlets for high-flow water pressure and a built-in spirit level, easy snap guides and offset fixing points for easing the installation process. The valve can be adjusted between 85 and 105mm to ease installation. The GoClick® mechanism enables water flow just with the click of a button. The user can enjoy a relaxing and intuitive showering experience. Products equipped with GoClick® are easy to operate, safe to use and offer consistent temperature without the risk of scalding. The built-in safety override button has been pre-set to 38 degrees Celcius and increases the temperature after the button is pressed. The button is within easy reach if you want to switch it back to 38 degrees Celcius.
