Jaquar Exposed Thermostatic Shower Valve for Douche Kit, 1 Outlet, 1 Control

Details

MFC: ALD-CHR-649K|ALD-CHR-649C

Jaquar Exposed Thermostatic Shower Valve for Douche Kit - 1 Outlet - 1 Control.

Key Features

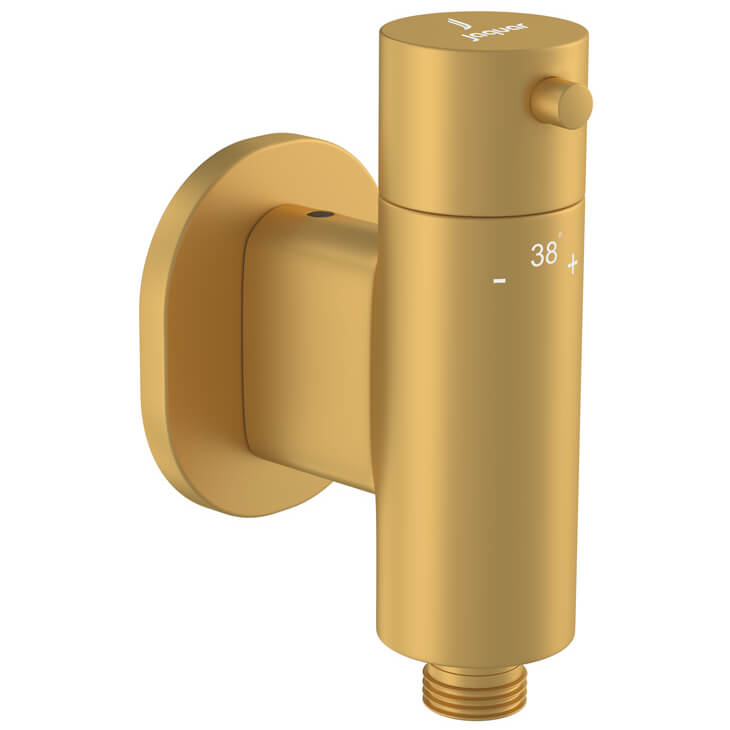

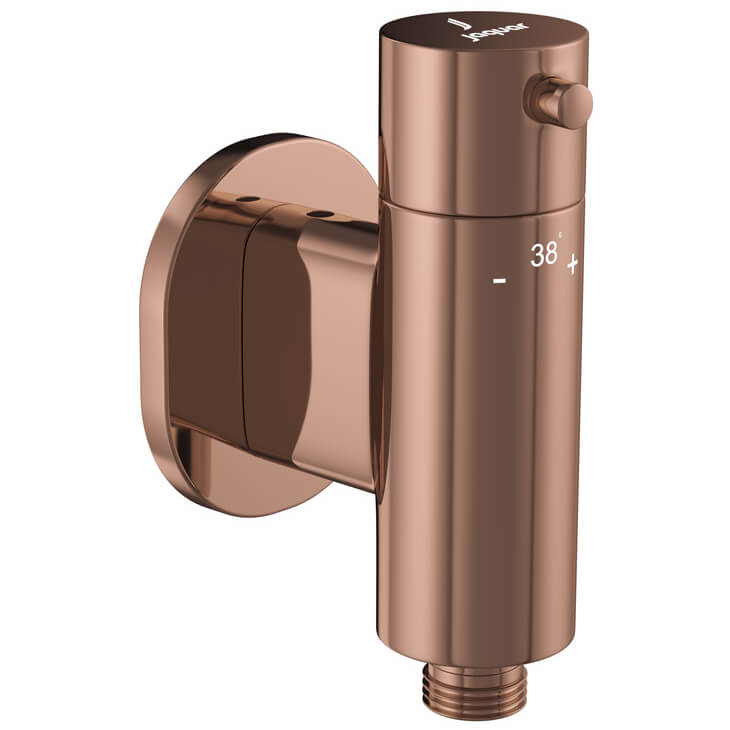

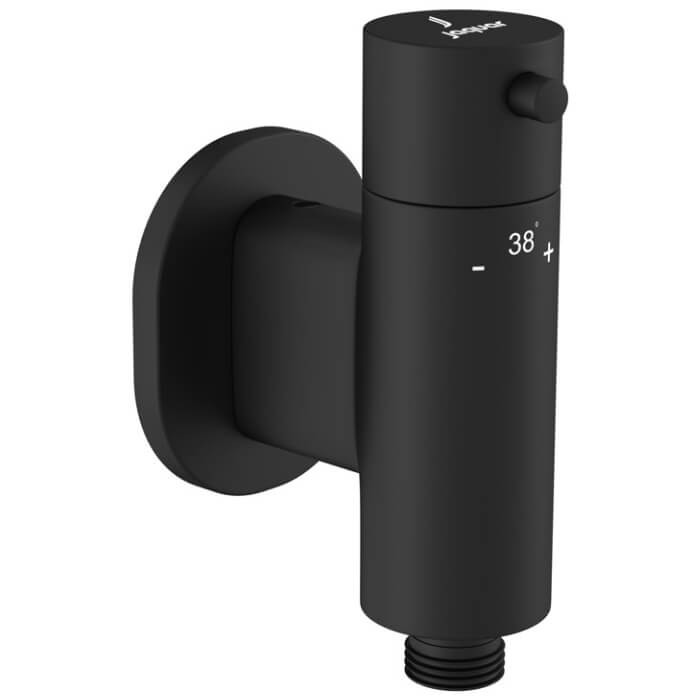

✔Available in 5 Finishes
✔Supplied Complete with In-Wall Body
✔10-Year Warranty from the Manufacturer Against Manufacturing Defects

Thermostatic Cartridge to Regulate the Temperature
Thermostatic Cartridge Made from High Quality Polymer that Resists Scale Build-Up
The Cartridge Confirms to European Norms, NF EN 1111. In Case of a Cold Water Cut
The Disposal of Hot Water Shall Not exceed 200 ml in 0-5 sec
WRAS Approved European Thermostatic Cartridge
Standard Temperature Range 15°C to 60°C
Highest Level of Convenience
Protected Against Backflow
Flow Rate: 18.76 lpm at 3bar
Suitable for Low and High Water Pressure System
Works on a Minimum 0.2 Bar to a Maximum 5.0 Bar Water Pressure
Refer to the Technical Diagram for Complete Technical Dimensions

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Shape
: Round
⤷ Warranty/Guarantee
: 10 Years
⤷ Theme
: Modern
⤷ Minimum Operating Pressure (Bar)
: 0.2 Bar
⤷ Handle Style
: Knob
⤷ Temperature Control
: Thermostatic
⤷ Number of Handles
: 1

⤷ Number of Outlet
: 1
⤷ Orientation
: Portrait
⤷ Barcode
: 5057199985439
⤷ Product Type
: Thermostatic Valve
⤷ Plumbing Option
: Exposed
⤷ Maximum Operating Pressure (Bar)
: 5.0
⤷ Concealed Body Included
: Yes

Additional Info & Downloads

This item can also be found in:

Technical Images

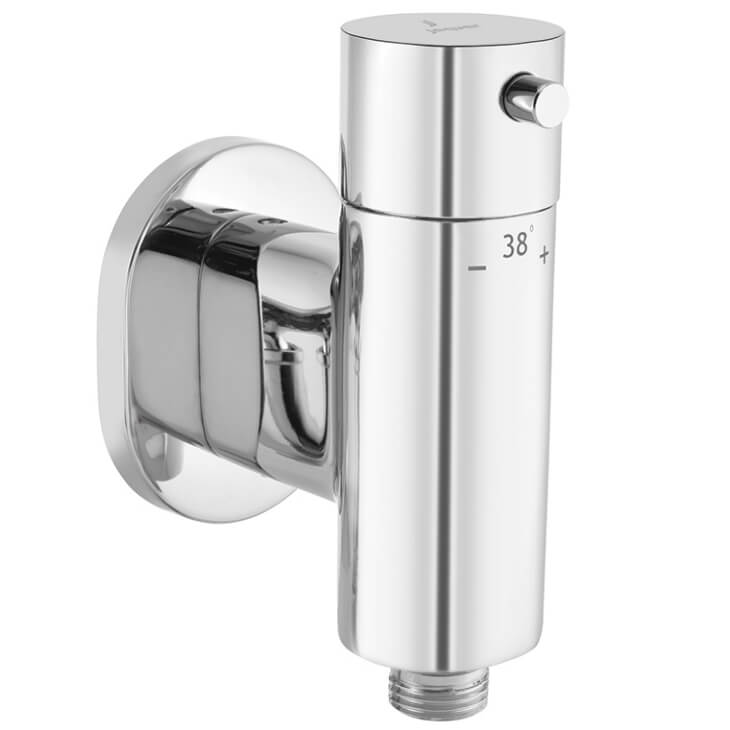

Shower Valve

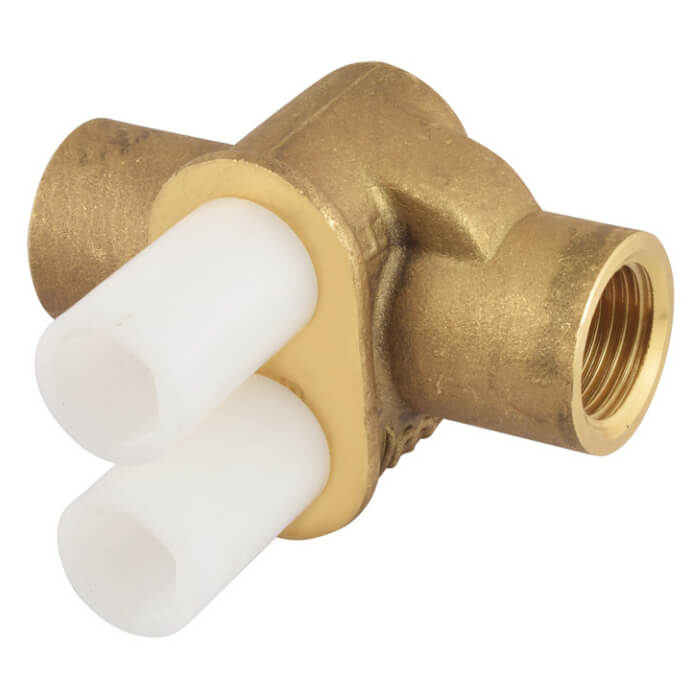

In-Wall Body

£118.30

RRP: ~~£169.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
