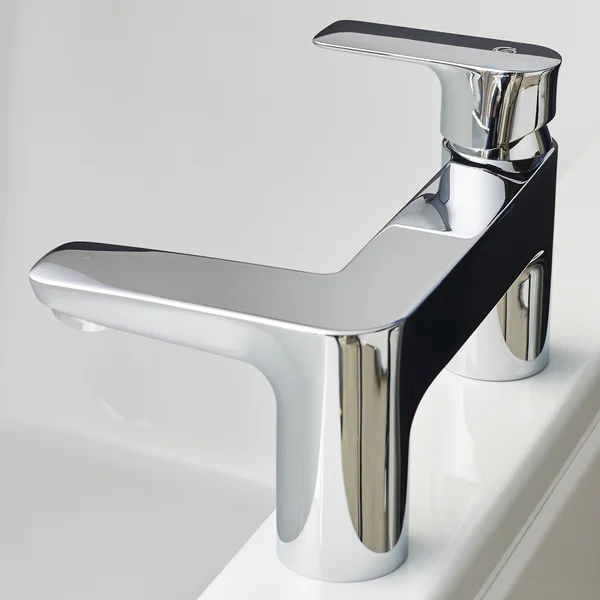

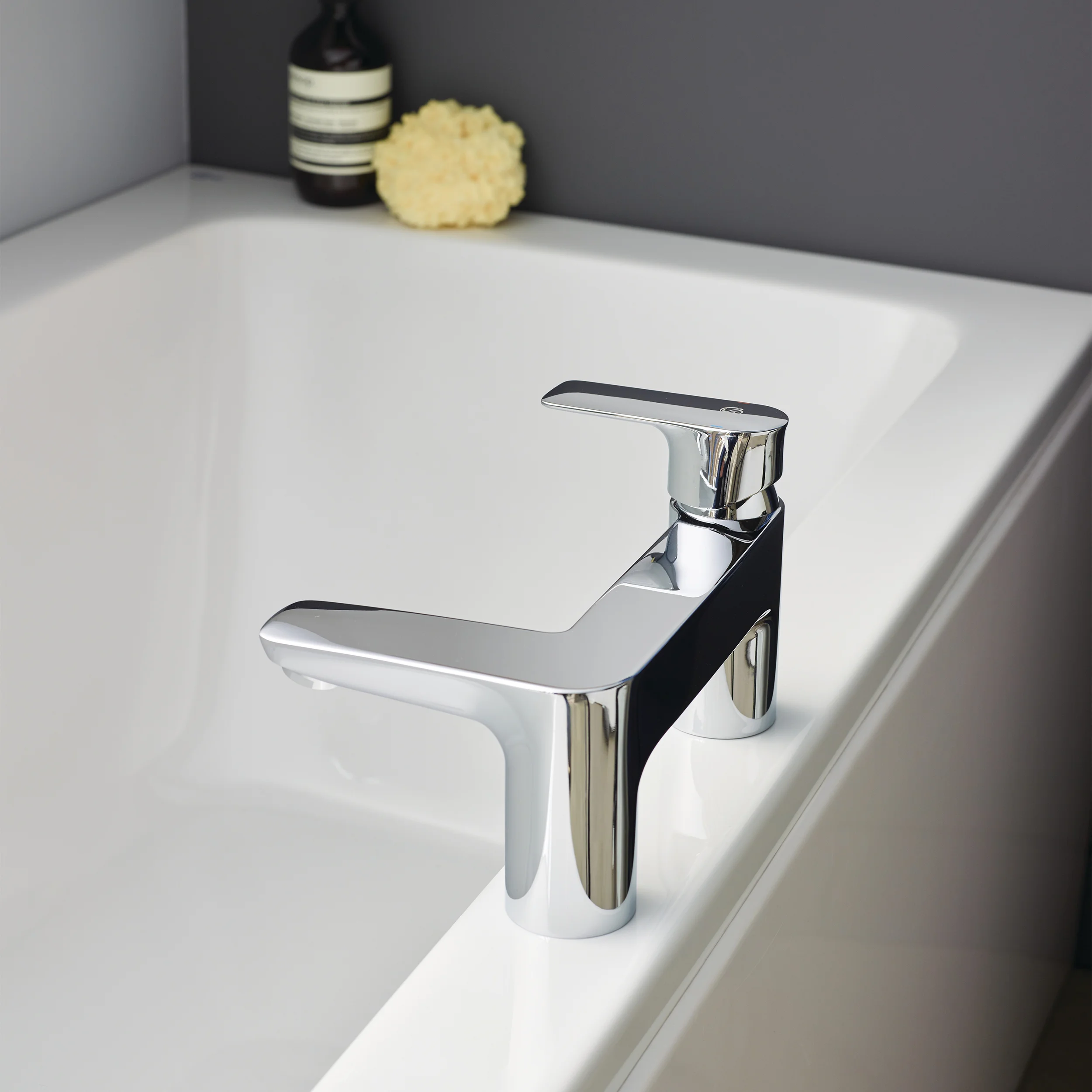

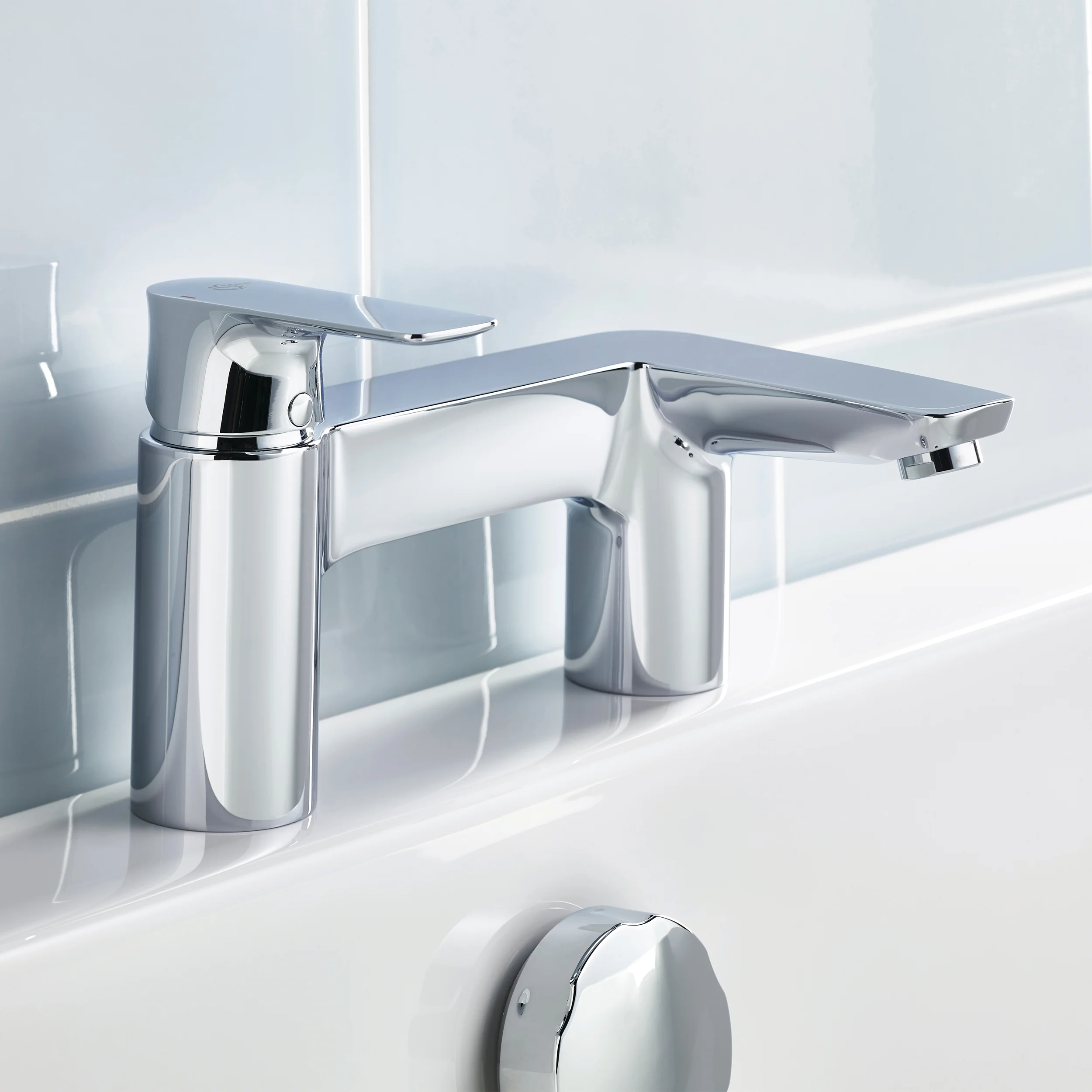

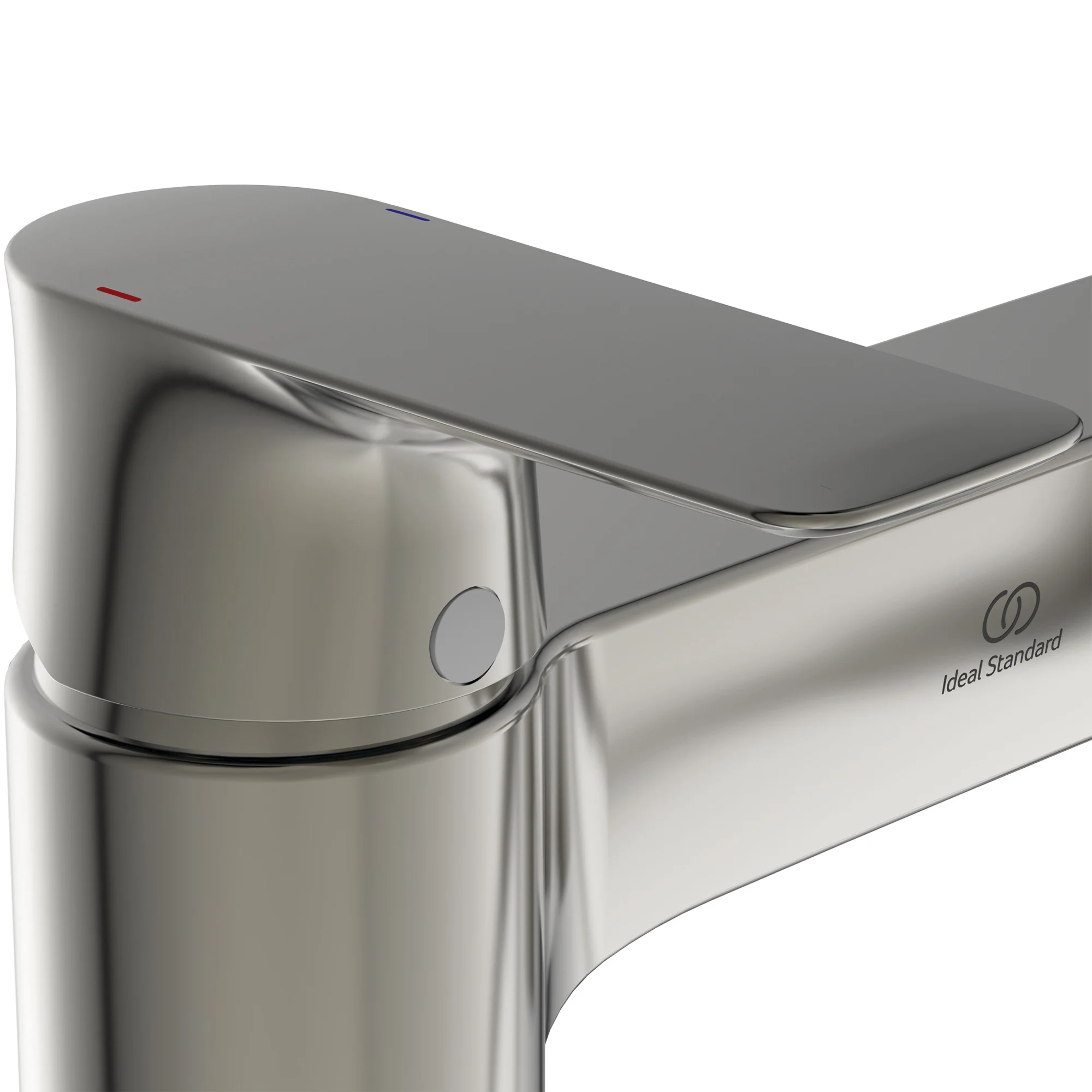

Ideal Standard Connect Air Bath Filler Tap - Flat Handle and Spout - Deck Mounted

Not Yet Rated No Rating

£415.91

RRP: £519.89
SKU: QS-V110695
Product Variants
Select Finish Step 1
Select Tap Step 2
Pay in 3-Interest Free Payments
Shipping

Shipping: £7.95

Delivery Time Delivery in 4 Working Days Approx.
Stock Availability

Stock Availability:

In-Stock In Stock

Connect Air Details

MFC: A7051AA

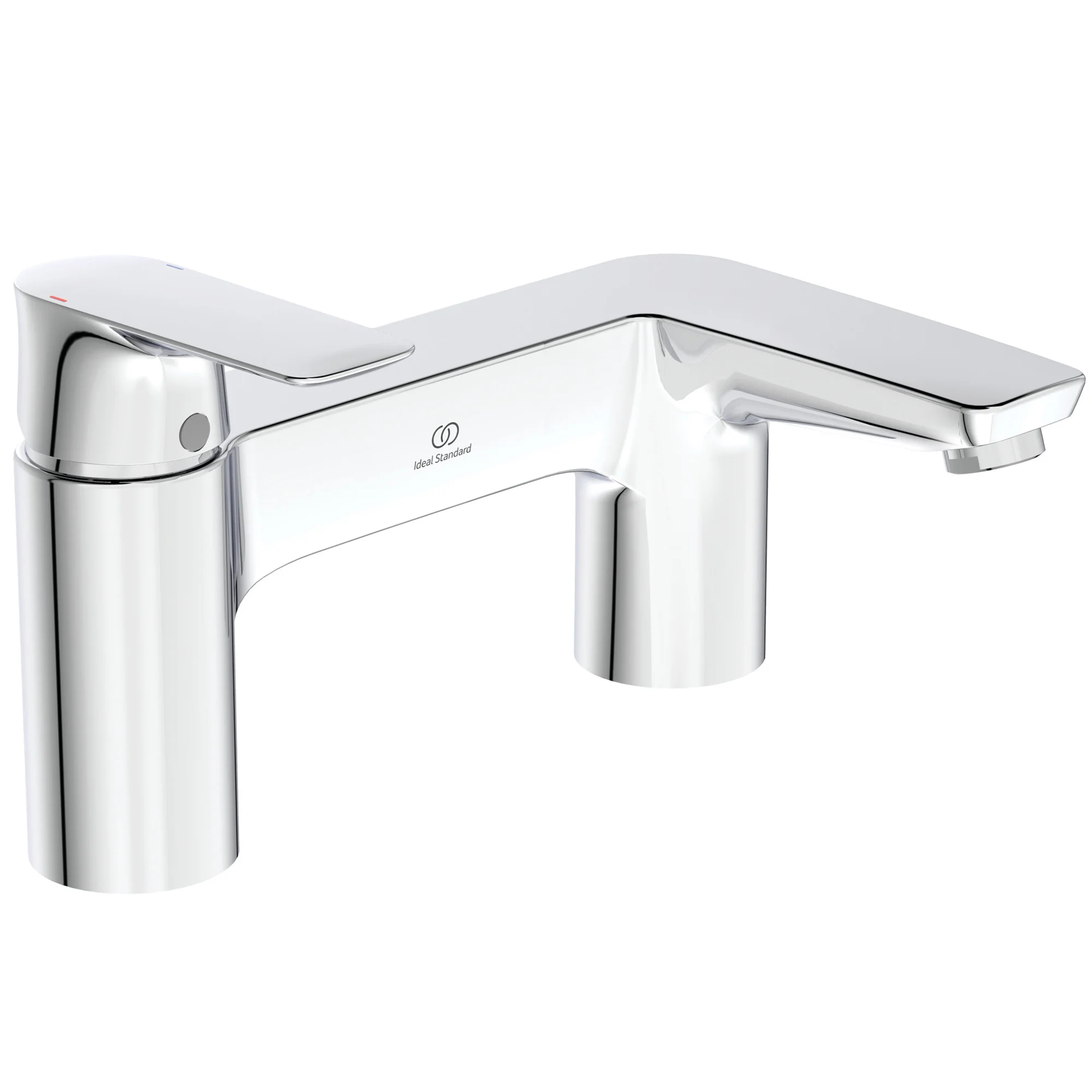

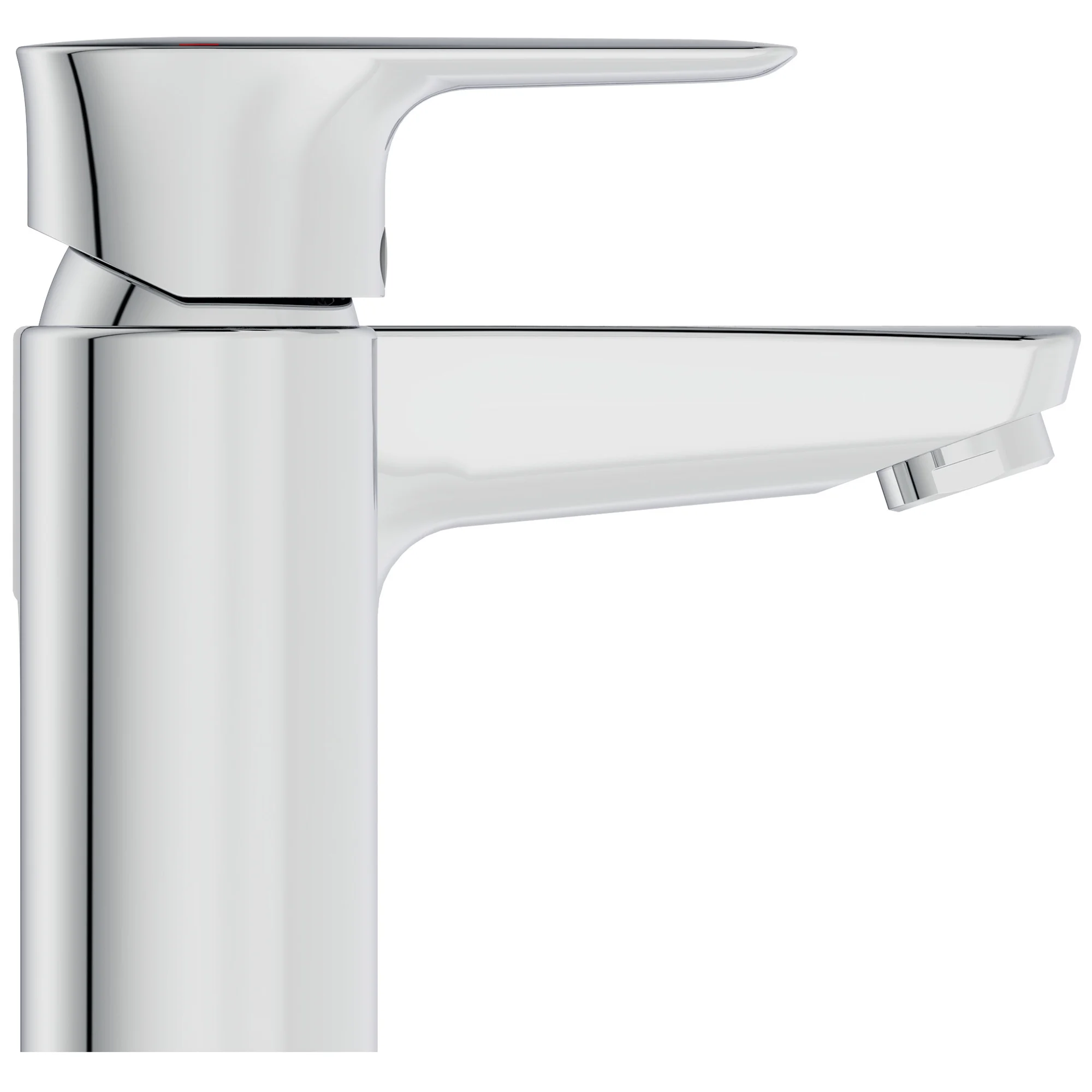

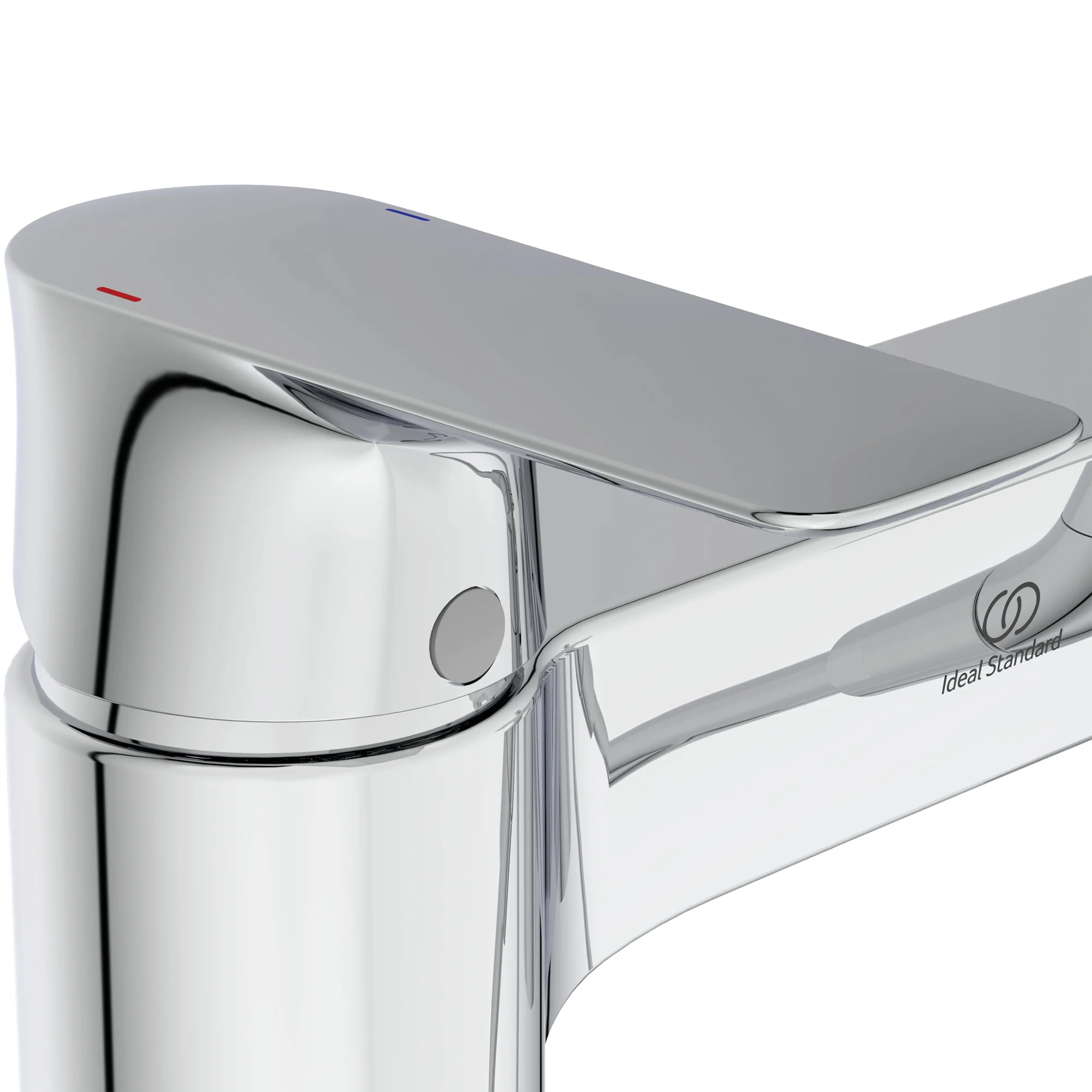

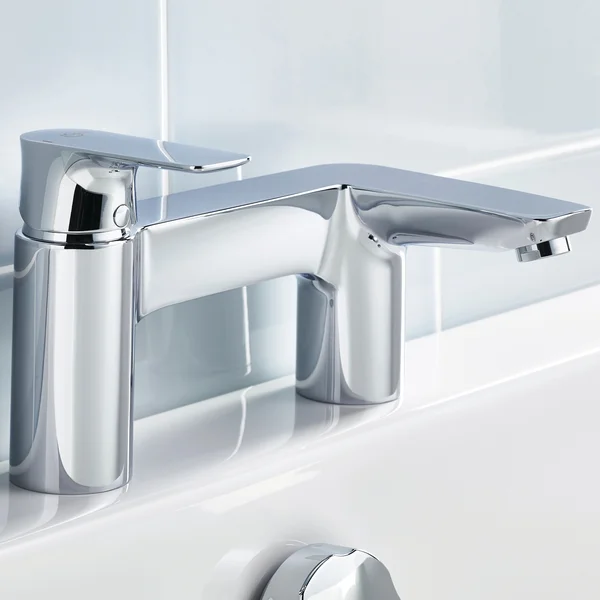

Ideal Standard Connect Air Bath Filler Tap - Flat Handle and Spout - Deck Mounted.

Key Features
  • WRAS Approved
  • Manufactured using Brass Material
  • FirmaFlow® Ceramic Disc Cartridge
  • Features Easyfix system
  • 5-Year Guarantee from the Manufacturer Against any Manufacturing Defects

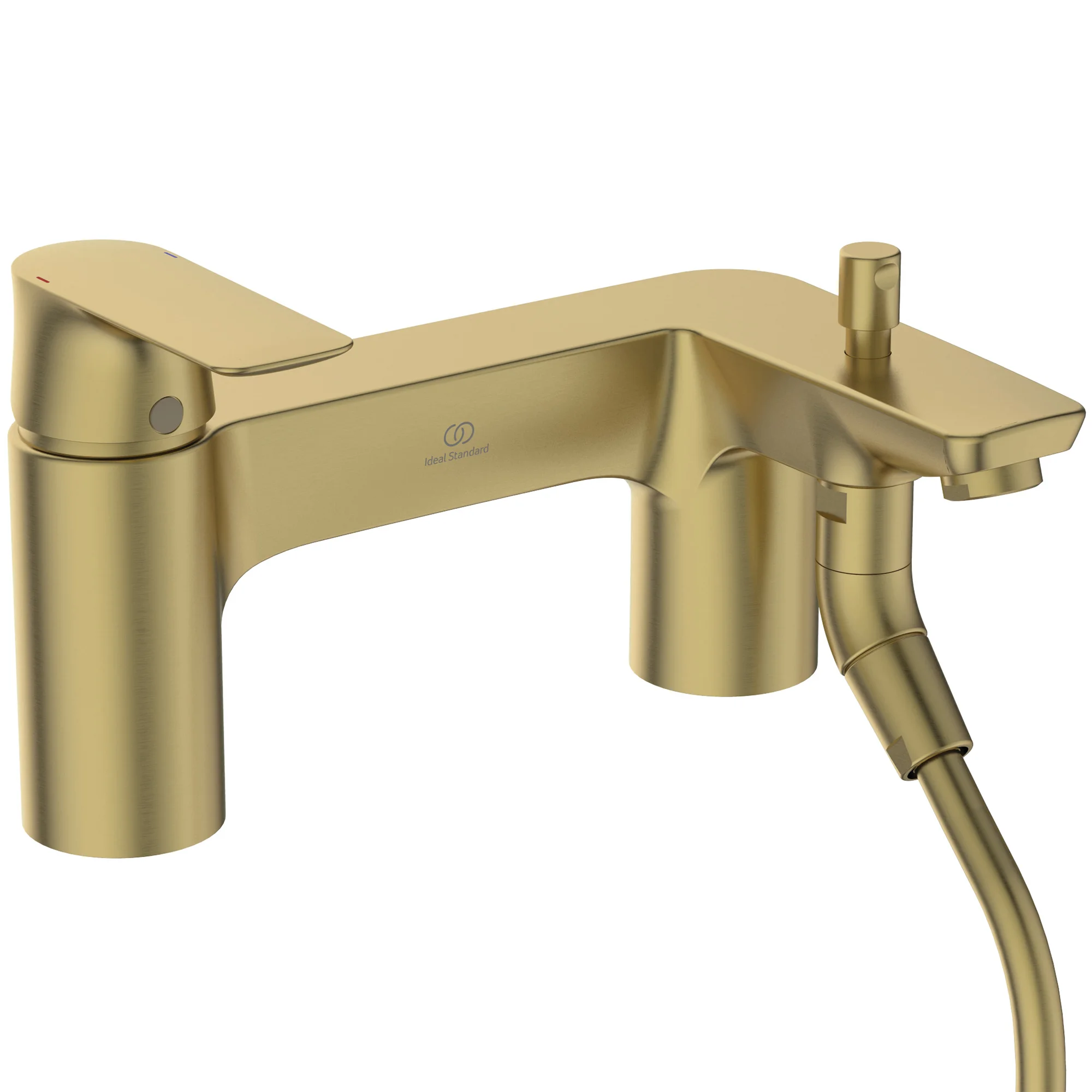

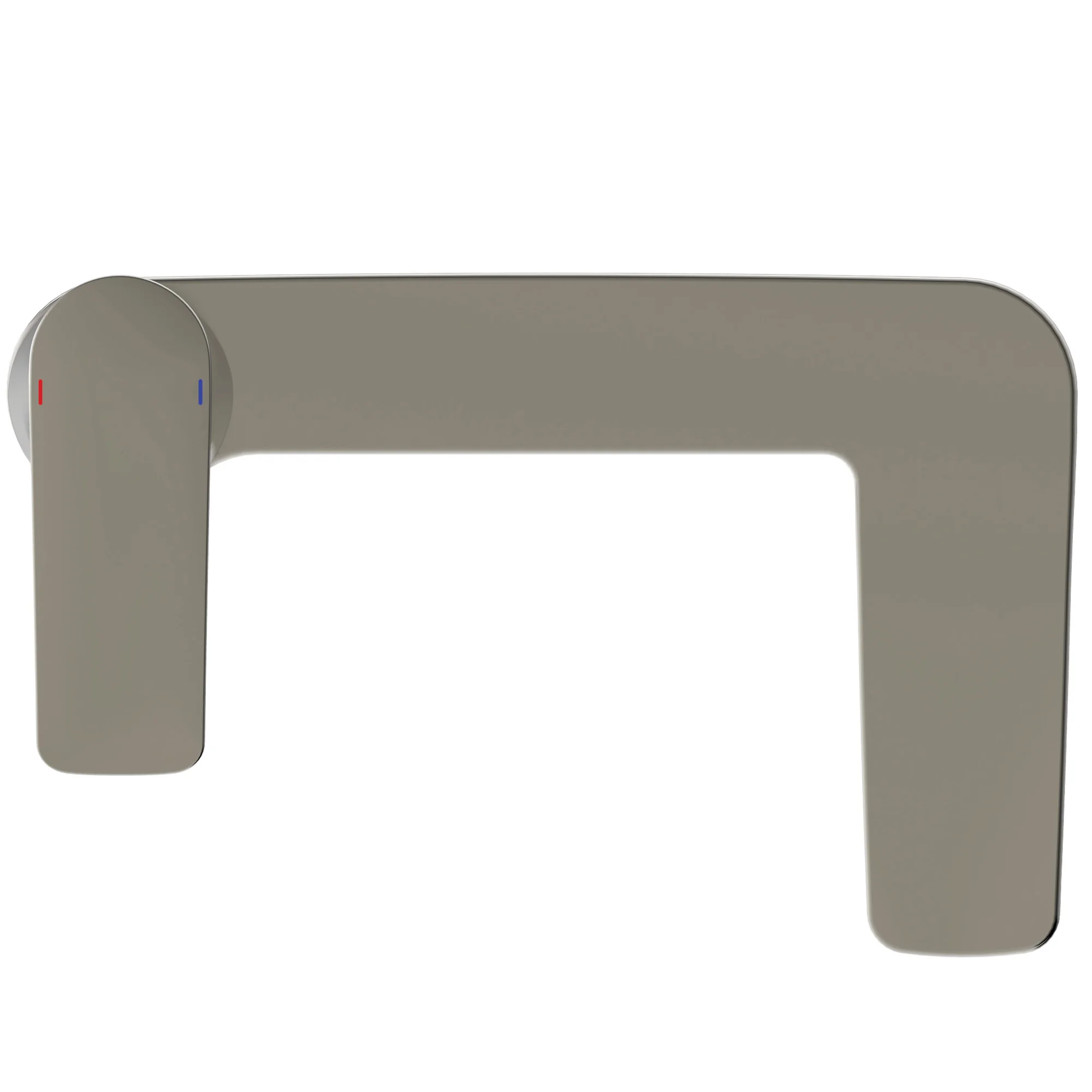

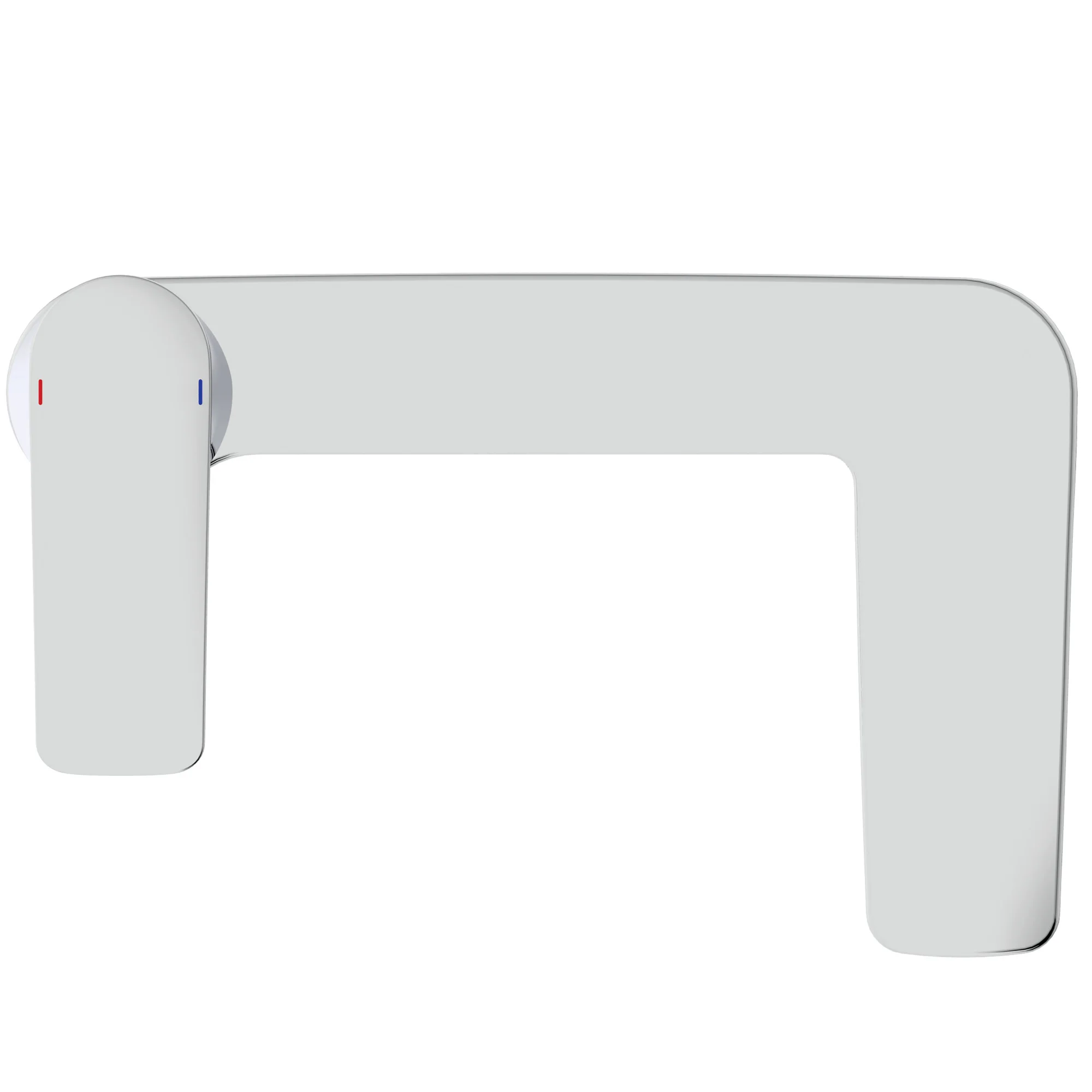

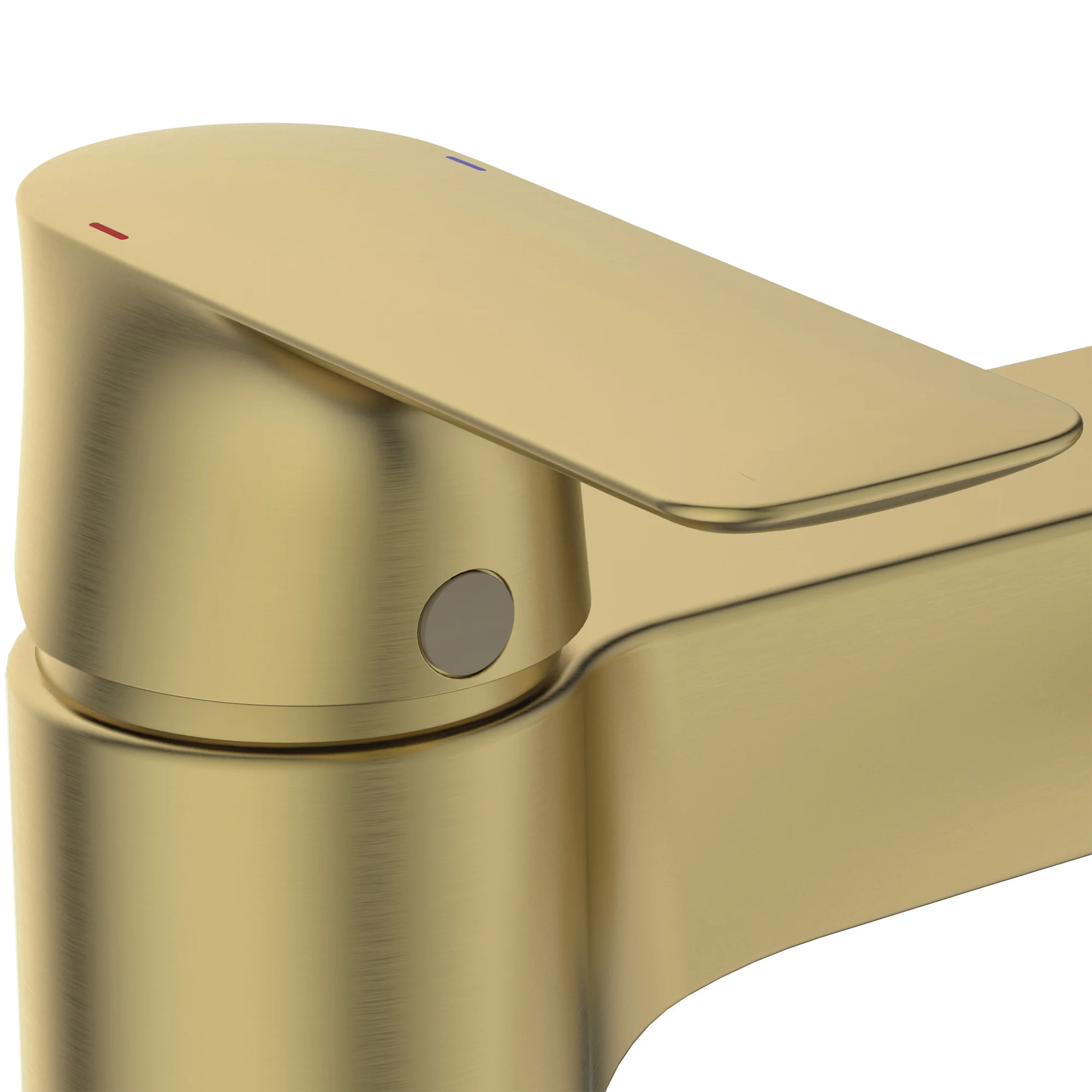

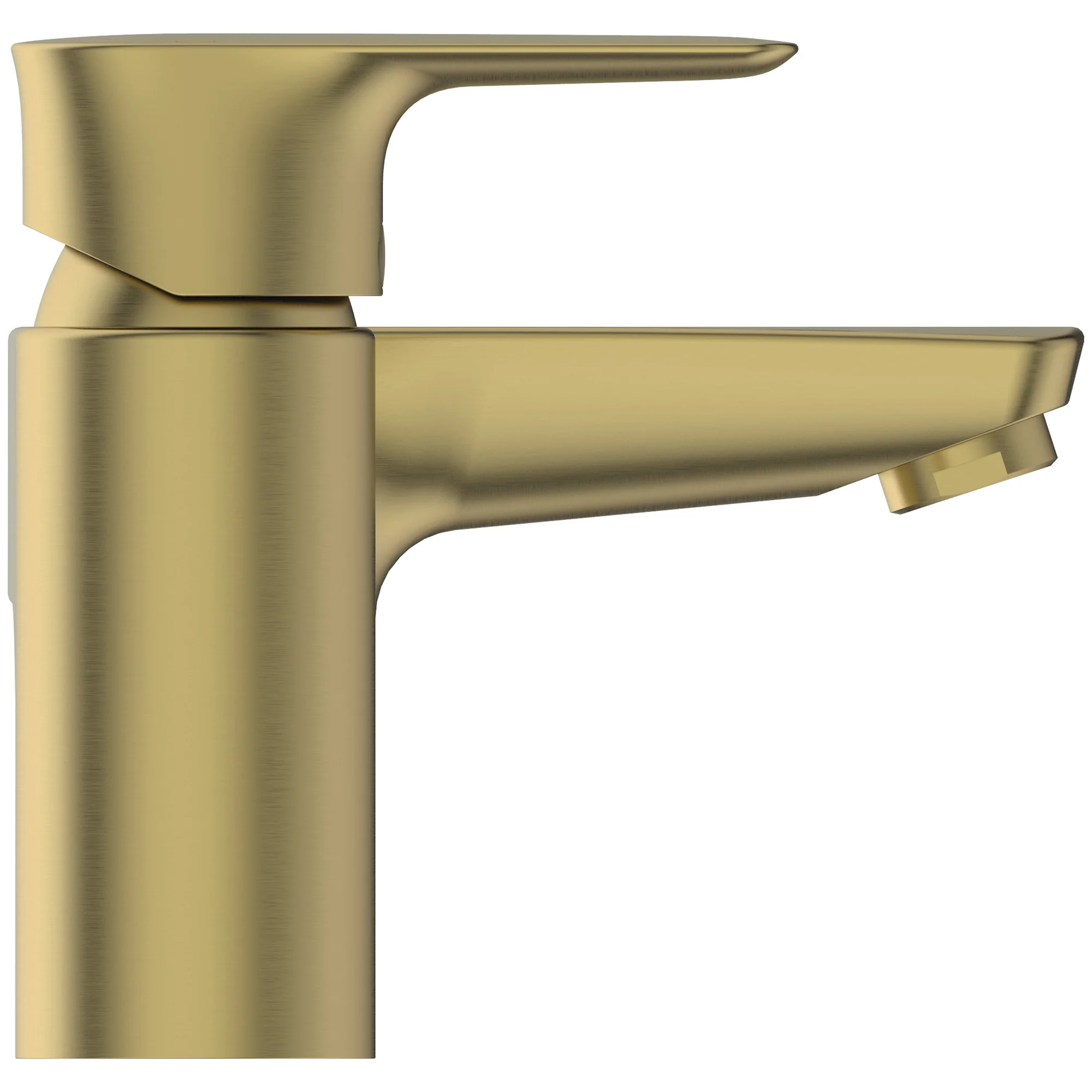

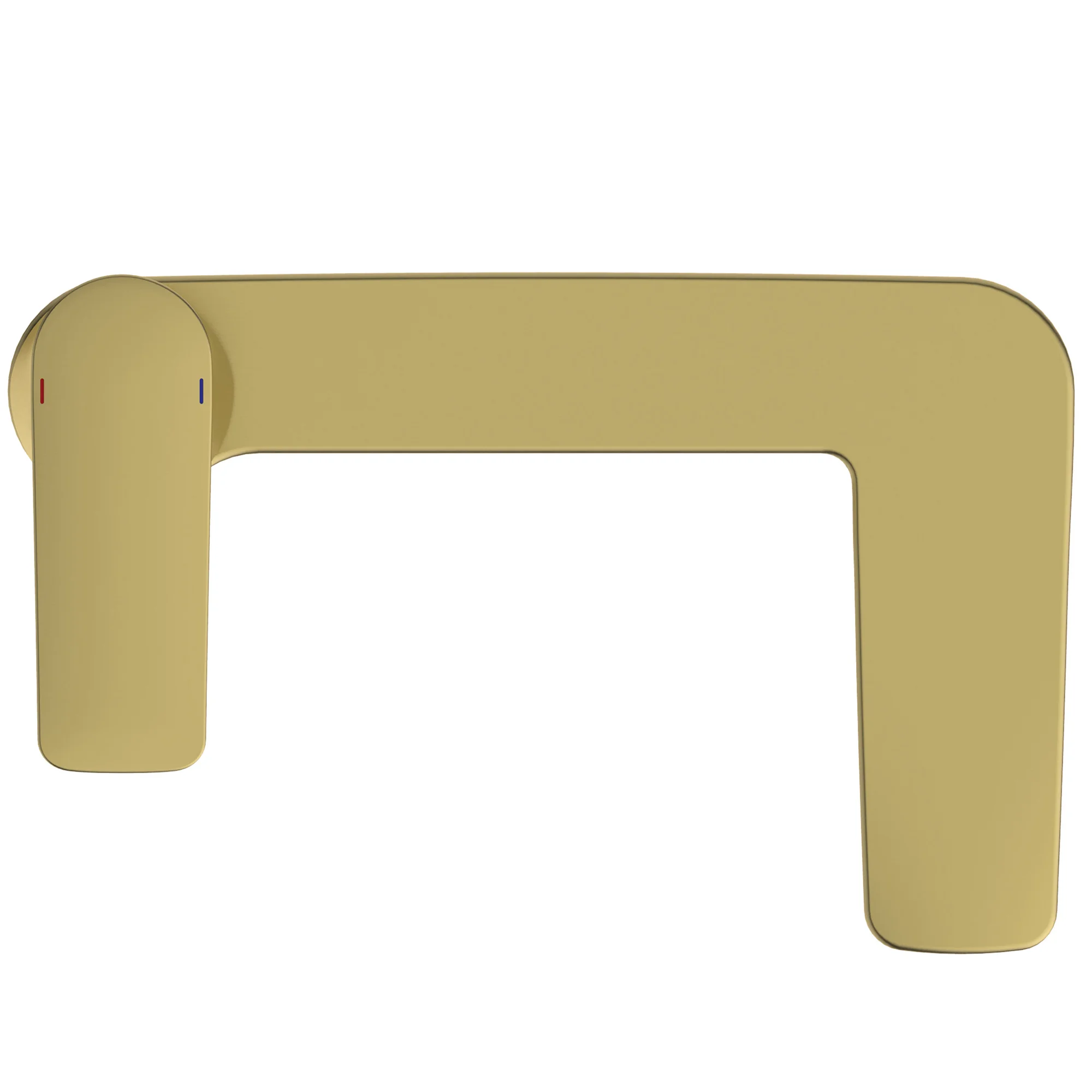

  • Choice of Finishes: Chrome, Brushed Gold, Magnetic Grey, Silver Storm
  • Choice of Variations: Without Shower Kit, With Shower Kit
  • 2 Hole Single Lever Bath Tap
  • Suitable for Balanced Supplies
  • Inlets 3/4" BSP Male coned for Copper
  • Supplied with Brass Back Nuts
  • Features: Click Technology, EPD, PVD Technology
  • Height: 139mm [13.9cm]
  • Inlet Centres: 180mm [18cm]
  • Centre of the Inlet to the Centre of the Outlet: 106mm [10.6cm]
  • Base to Spout: 77mm [7.7cm]
  • Frequently used in Hotels, Offices and Residential Applications

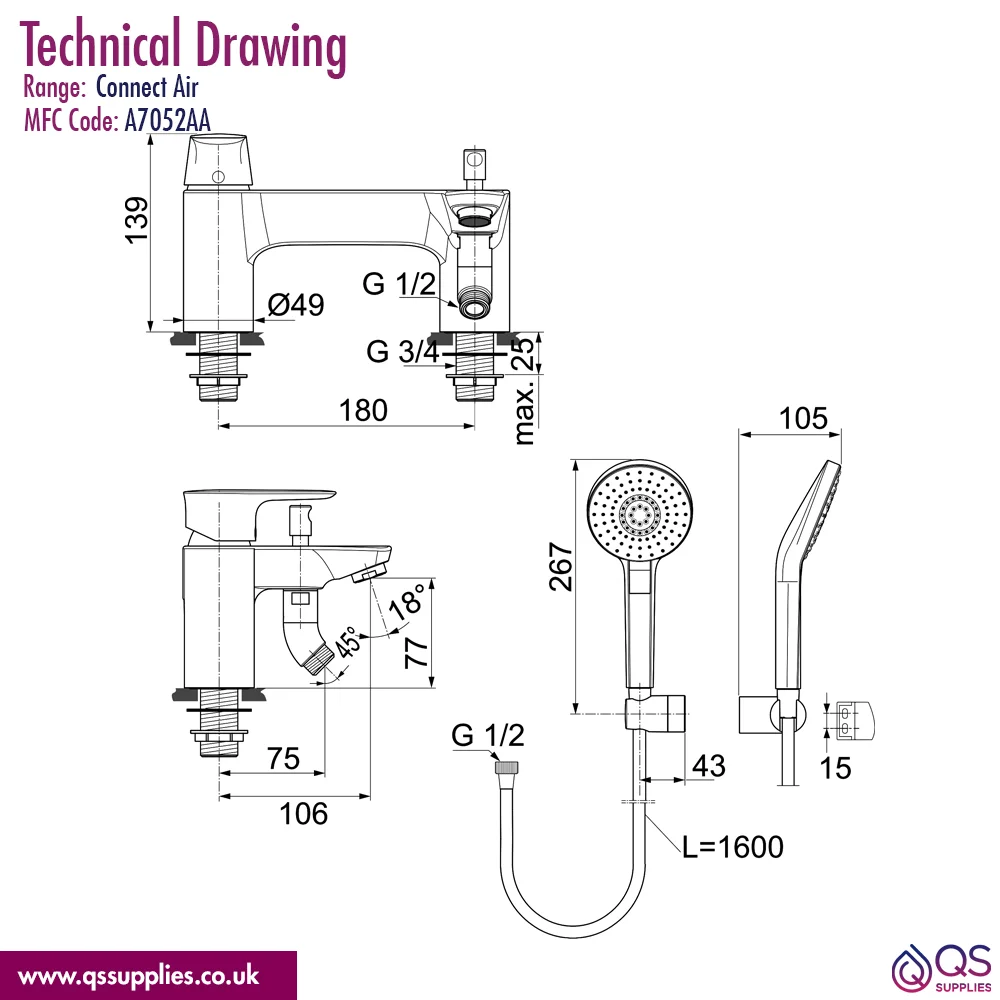

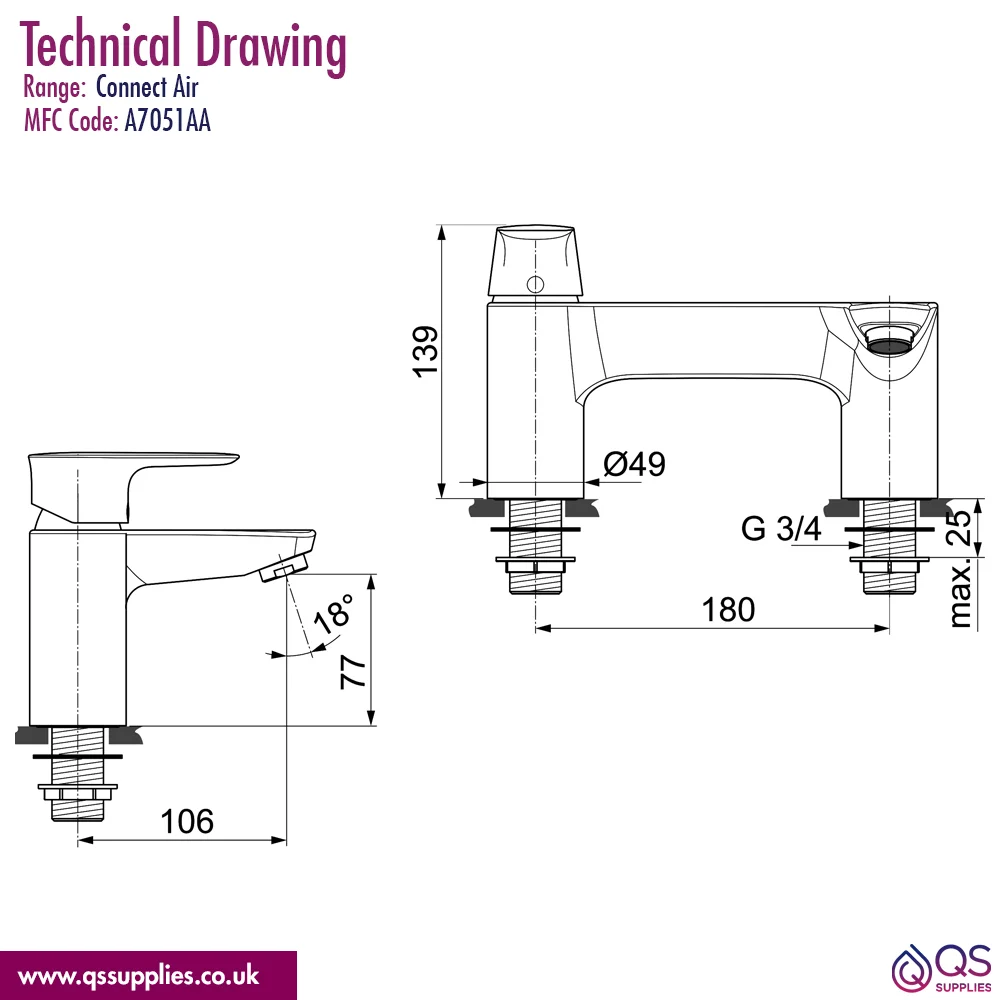

  • Refer to the Technical Drawing For Size Details
  • Download the Installation Instruction PDF File from the Additional Info Section
  • Specification of Without Shower Kit:
  • Weight: 2.83kg
  • Unregulated Flow Rate 15 Litres Per Minute at 1 Bar and 26 Litres Per Minute at 3 Bar

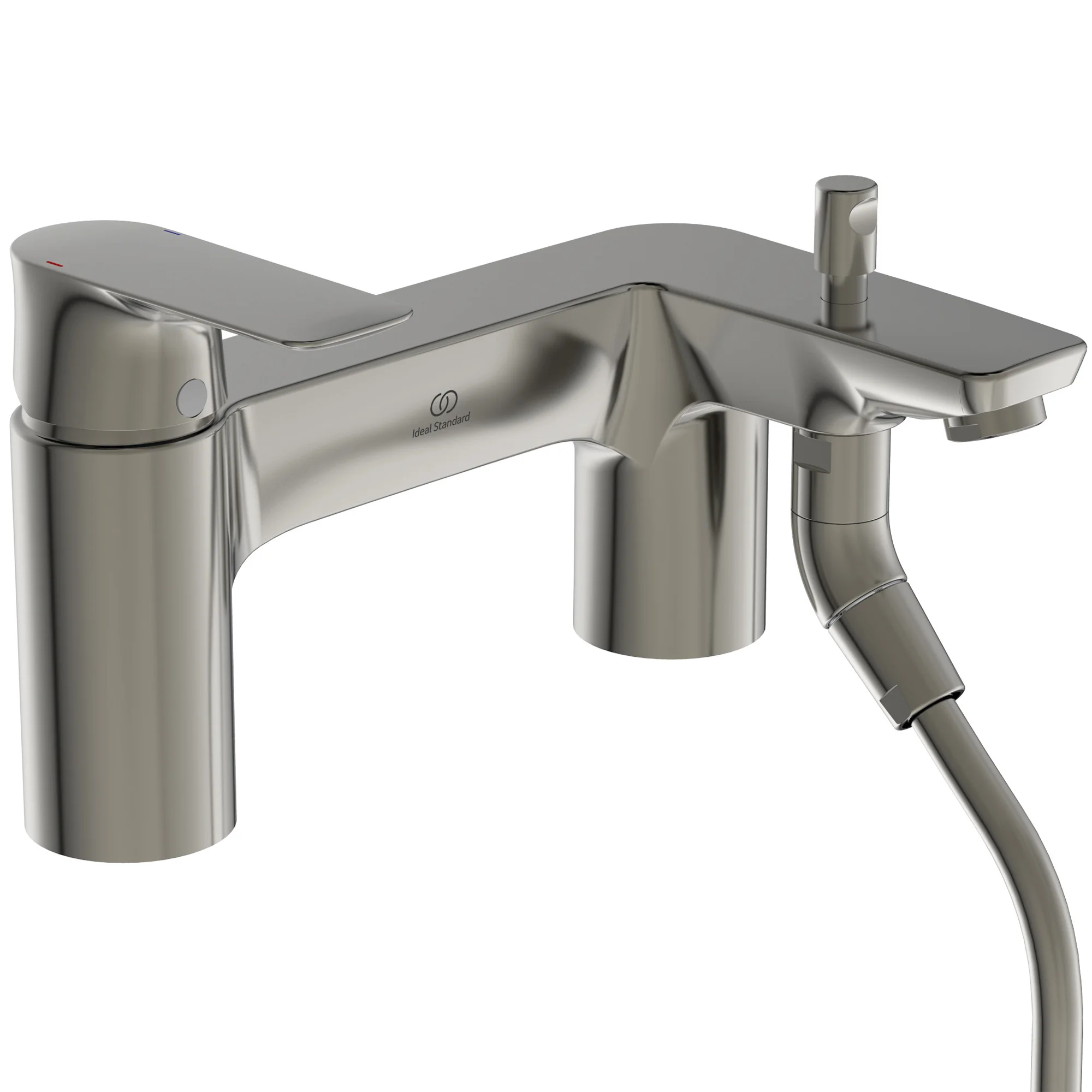

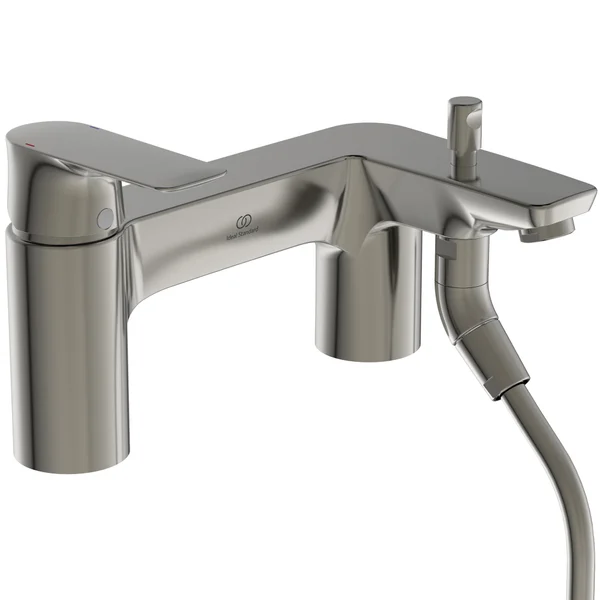

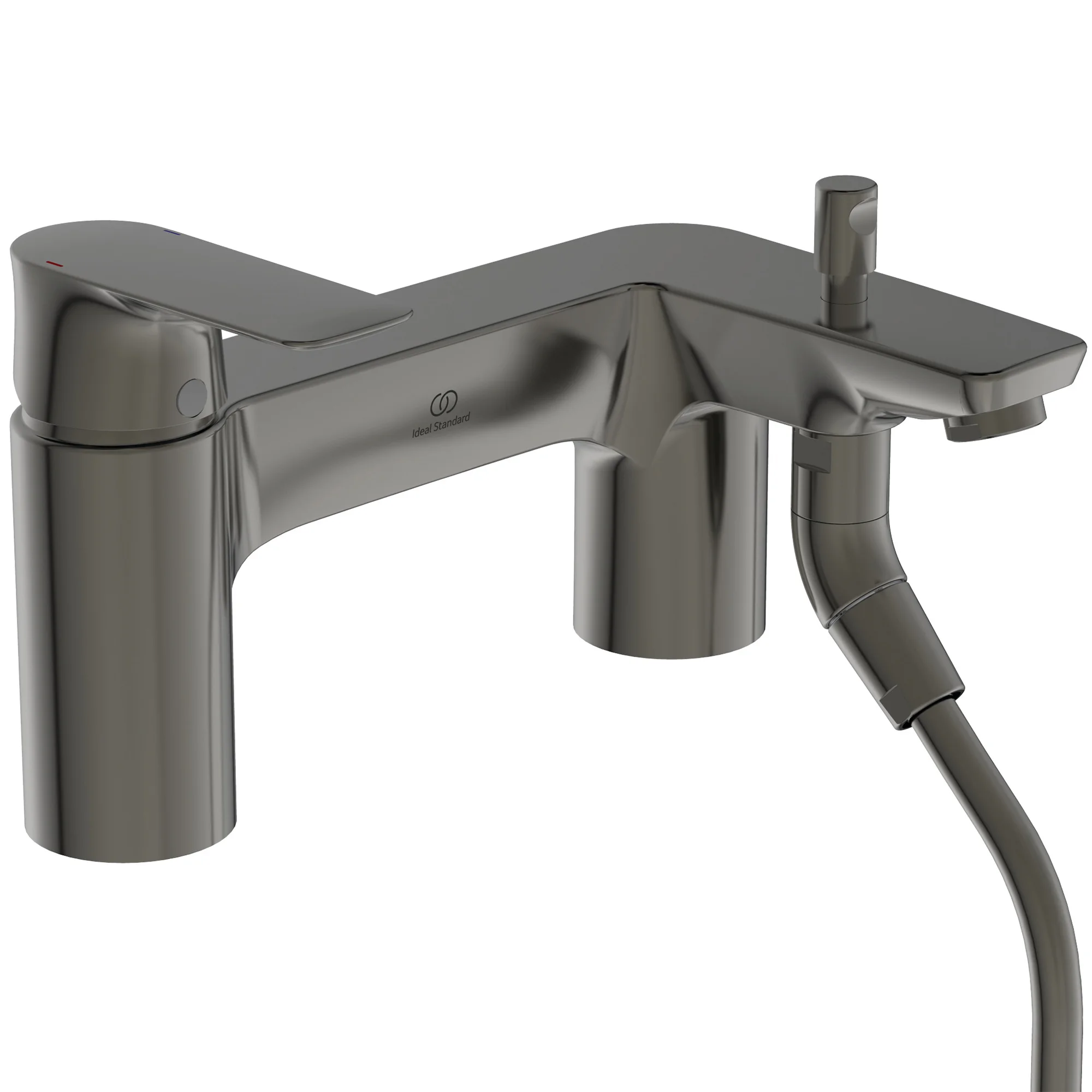

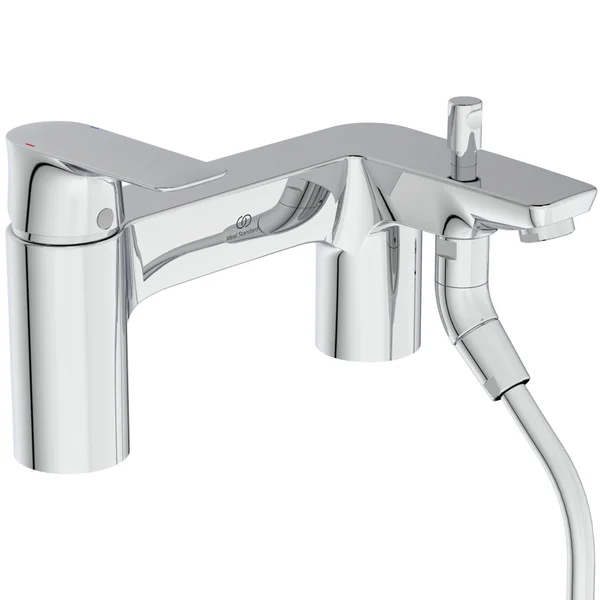

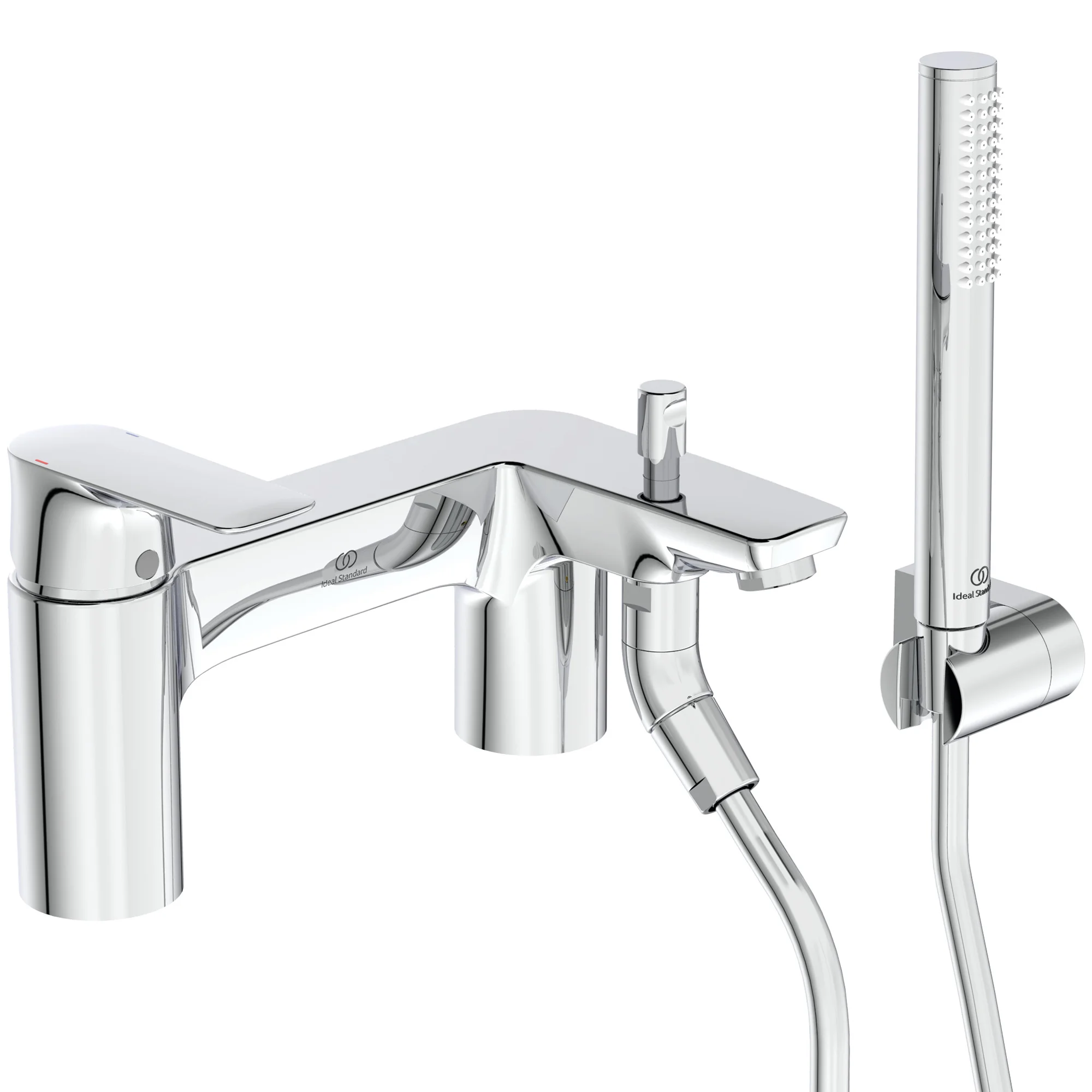

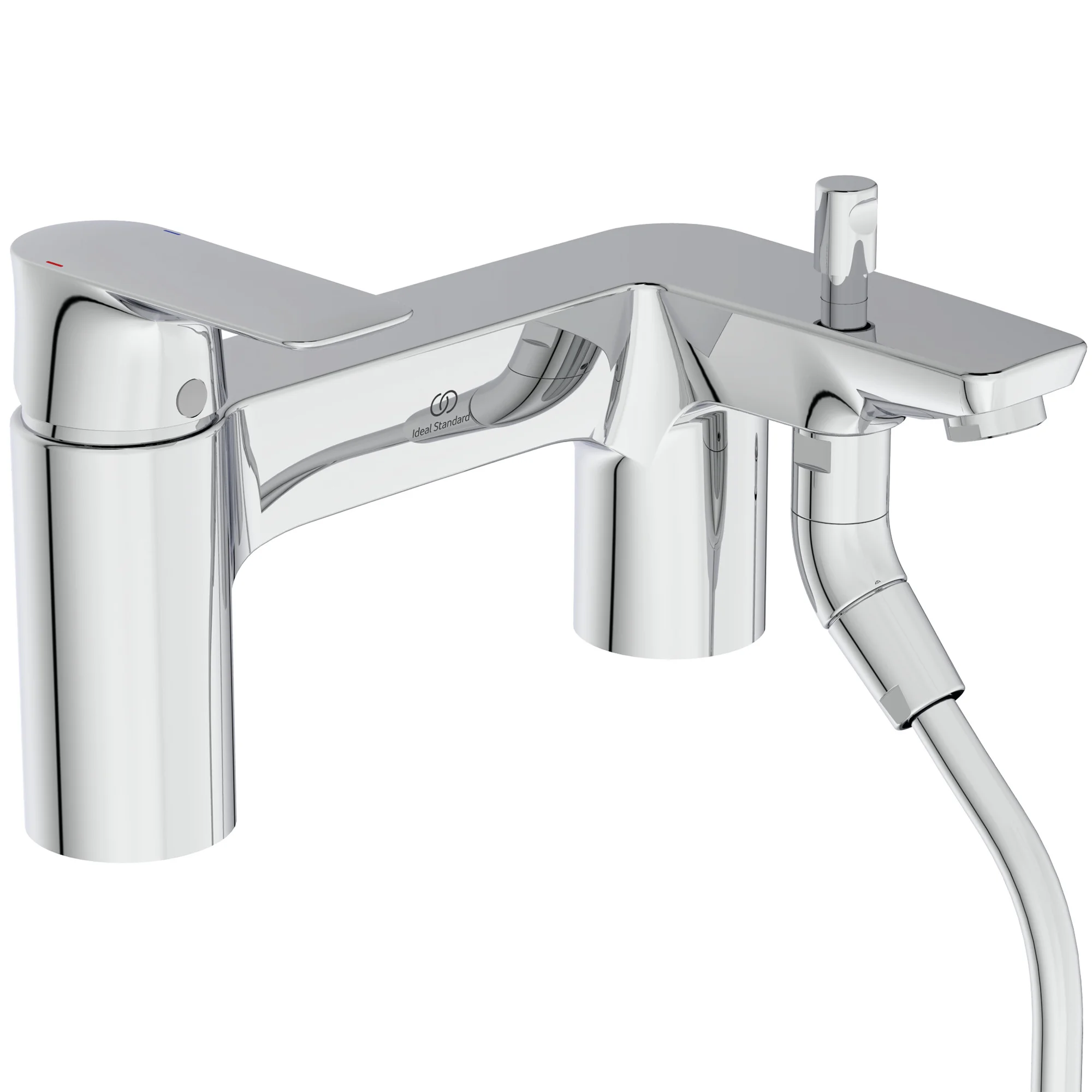

  • Specification of With Shower Kit:
  • Weight: 3.69kg
  • Unregulated Flow Rate 15 Litres Per Minute at 1 Bar and 25.5 Litres Per Minute at 3 Bar
  • Automatic Pull-Diverter Through Spout
  • Elbow for Shower Outlet

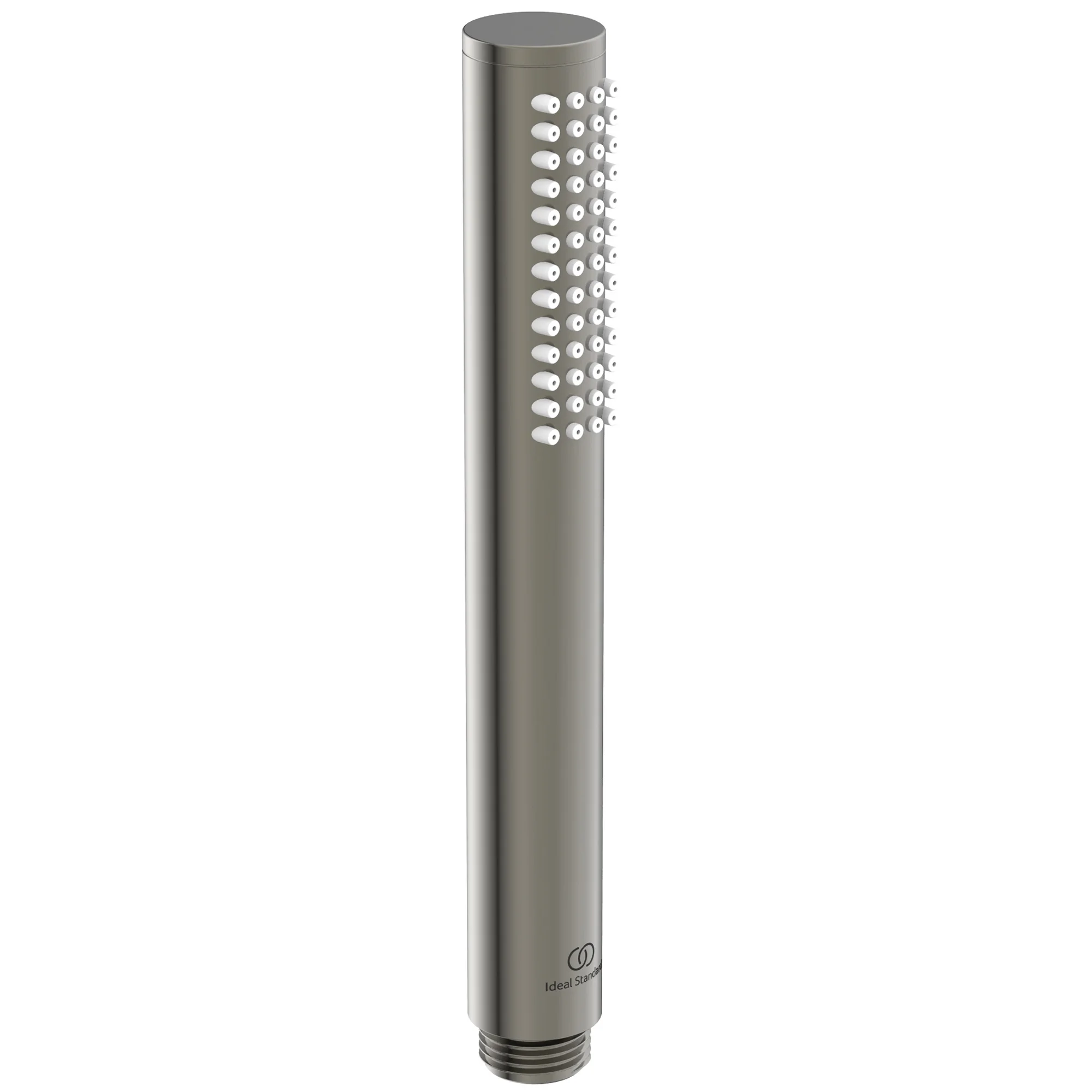

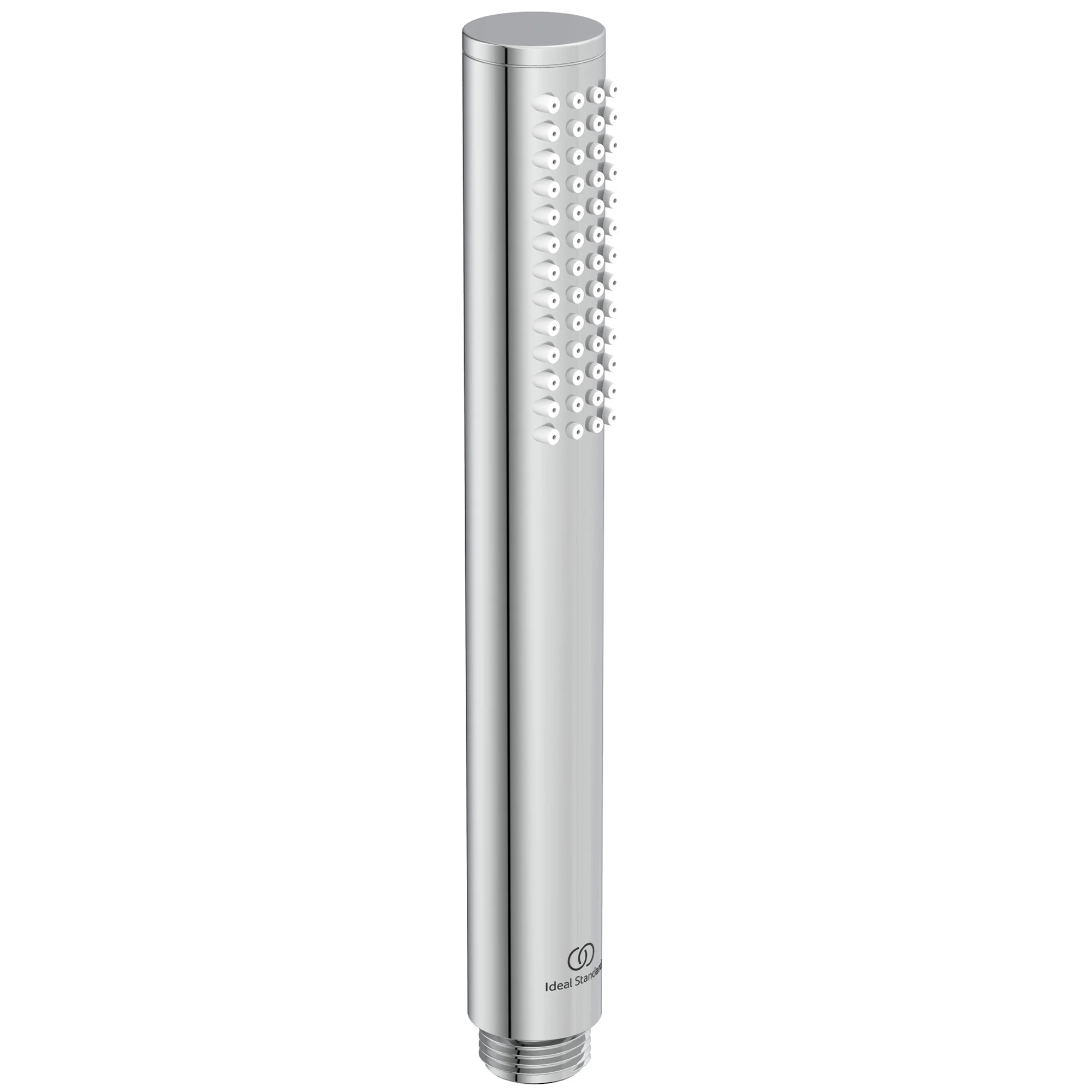

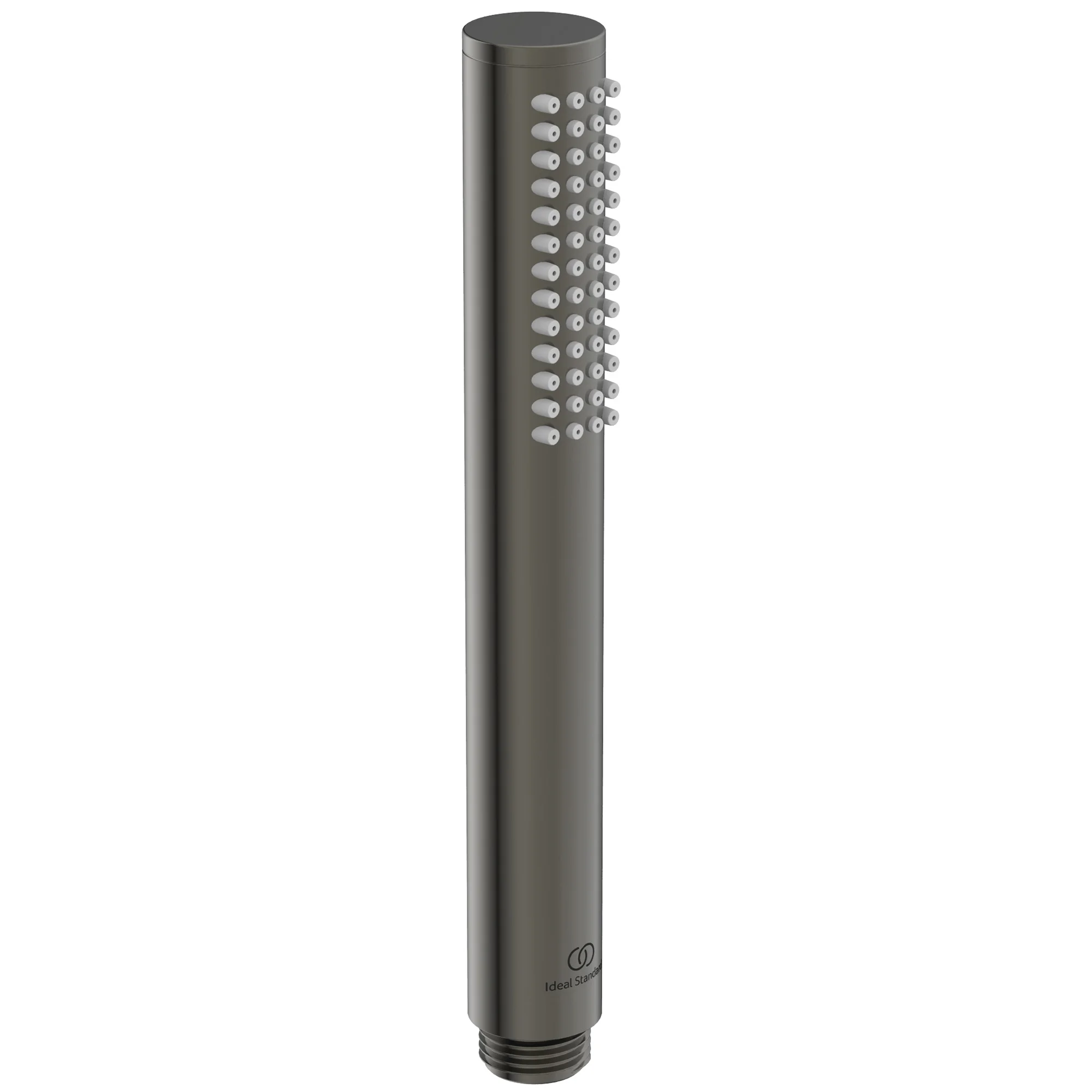

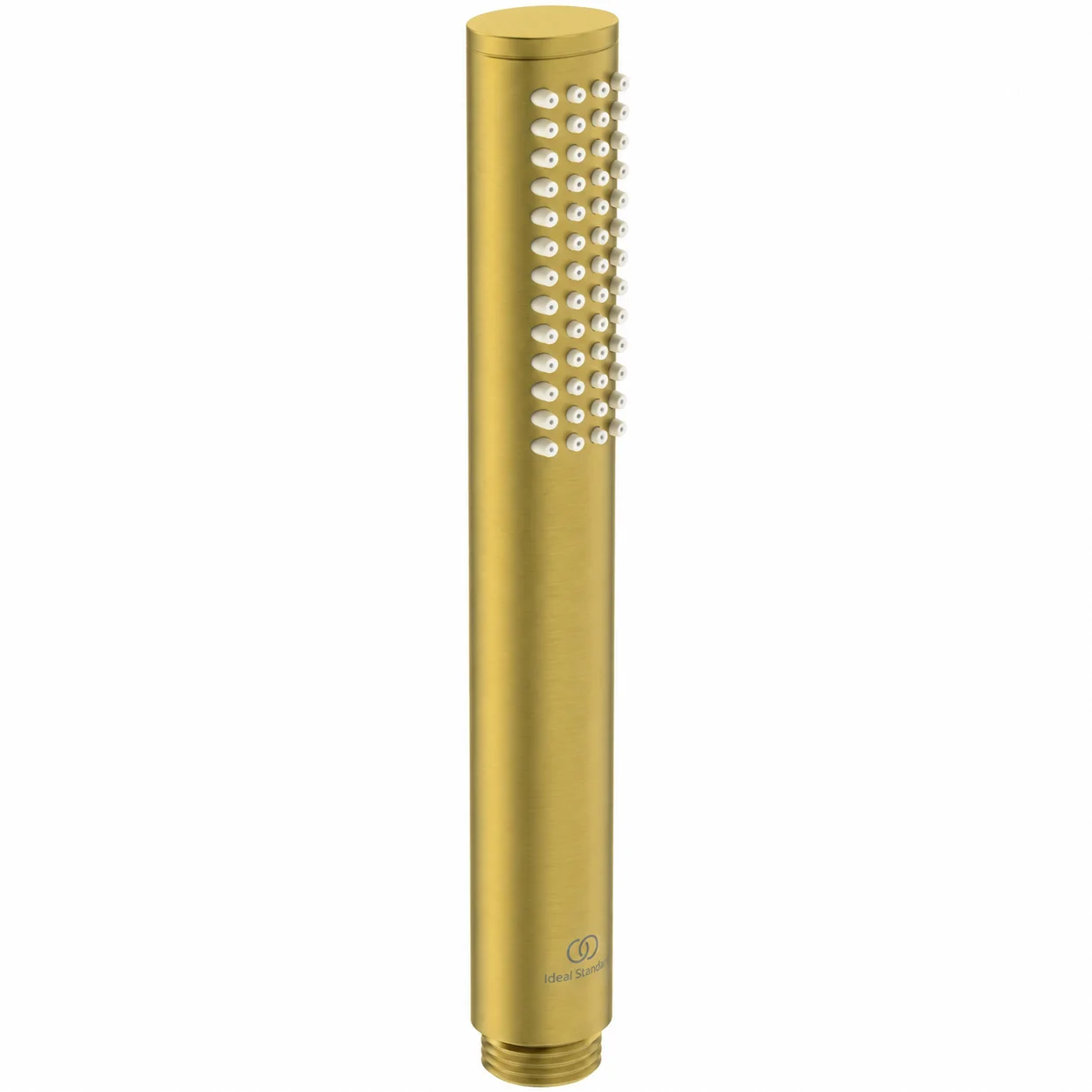

  • EVO 110 handspray
  • Height of Handset: 267mm [26.7cm]
  • IdealFlex Shower Hose 1600mm [160cm]
  • Hose and Wall Bracket Included

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Water Activation
  • : By Lifting/Tilting
  • ⤷ Range
  • : Connect Air
  • ⤷ Tap Body Shape
  • : Round
  • ⤷ Handle Position
  • : Upwards
  • ⤷ Colour
  • : Chrome
  • ⤷ Warranty/Guarantee
  • : 5 Years
  • ⤷ Material
  • : Brass
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Deck Mounted
  • ⤷ No. of Holes Required
  • : 2
  • ⤷ Spout type
  • : Fixed
  • ⤷ Valve Included
  • : Yes
  • ⤷ Valve/Cartridge Type
  • : FirmaFlow® Ceramic Disc Cartridge
  • ⤷ Base To Spout
  • : 77
  • ⤷ Spout Reach
  • : 106
  • ⤷ Inlet Centres
  • : 180
  • ⤷ Minimum Operating Pressure (Bar)
  • : 1
  • ⤷ Water Saving
  • : Yes
  • ⤷ Handle Style
  • : Flat
  • ⤷ WRAS Approved
  • : Yes
  • ⤷ Technologies
  • : Click, EPD, PVD
  • ⤷ Height
  • : 139
  • ⤷ Number of Handles
  • : 1
  • ⤷ No. of Tap Holes
  • : 2
  • ⤷ Barcode
  • : 4015413342353
  • ⤷ Product Type
  • : Bath Mixer Taps

Additional Info & Downloads

Download PDFDownload the Product Data Sheet Of Without Kit Pdf File Download PDFDownload the Installation Instruction Of Without Kit Pdf File Download PDFDownload the Flow Rate Of Without Kit Pdf File Download PDFDownload the EPD Environmental Product Declaration Pdf File Download PDFDownload the Product Data Sheet Of With Kit Pdf File Download PDFDownload the Installation Instruction Of With Kit Pdf File Download PDFDownload the Flow Rate Of With Kit Pdf File

This item can also be found in:

Technical Images

£415.91
RRP: £519.89
IN-STOCK In Stock Delivery in 4 Working Days Approx.
QS Supplies

7 Features Included In This Product Explained

WRAS Approved Product

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

FirmaFlow Ceramic Cartridge

FirmaFlow Ceramic Cartridge

The firmaFlow ceramic disc cartridge uses Click Technology with a mechanical stop to limit the tap water flow at the basin to just the amount needed to wash hands. It maintains flow consistency, reduces use by up to 50%, and offers the utmost temperature precision and safety. It can fine-tune the temperature between 34°C and 42°C. This cartridge has almost double the lifespan as the industry standard lasts– 500,000 cycles, compared to 300,000 cycles. It has a high hot water resistance of greater than 95°C.

Easy-Fix Fixation System

Easy-Fix Fixation System

With the easy-fix system, tap assembly is fast and easy. It is so simple that the tap can be assembled with one hand with the rubber membrane on the "screw-nut". Using the sealing component, you can secure the tap in the best possible way on the porcelain and get the perfect sealing.

Balanced Supplies

Balanced Supplies

Balanced supplies in a mixer tap mean the hot and cold water inputs have consistent pressures and temperatures. Maintaining these constants is critical to keep the mixer work at its top form and give a controlled and comfortable flow blended to the required temperature.

Click technology

Click technology

Using this technology, you can control water usage using the adjustable water-saving functionality. You can raise the mixer handle until you hear a “click” to adjust the water supply to 50%. You can adjust up to 100% with just a push.

Optional: Diverter In Showers

Optional: Diverter In Showers

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Single Lever Taps

Single Lever Taps

These taps are designed with a single lever or handle to control the water's temperature and flow. Extremely easy to operate, these also allow you to preset the water temperature by leaving it in the position with your preferred water temperature. Besides, it is simple to control the flow of water; the higher you lift the lever or move it to the end, the stronger the water flow.
