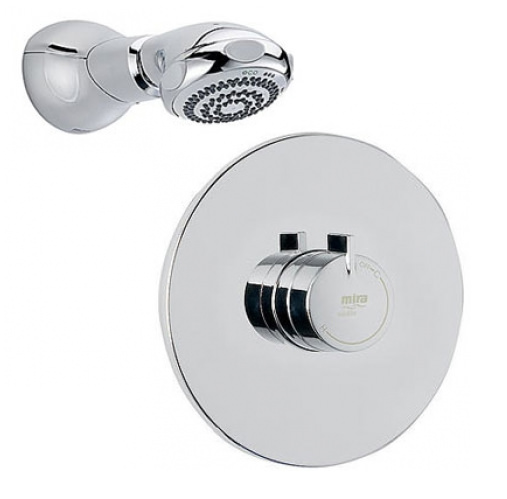

Mira Miniduo BIR Thermostatic Mixer Shower Valve With Eco Showerhead Chrome

Mira Miniduo 1.1663.243 Details

Transform your bathroom into a refined place by installing the dazzling Eco-Showerhead BIR Thermostatic Mixer Shower brought to you from the house of Mira. The glossy chrome-finished bathroom fixture will exude an aura of elegance and luxury in the surroundings. It has a graceful circular backplate and a trendy rounded showerhead design that will meld well with modern bathroom fixtures.

This fantastic creation is manufactured with premium quality material and current technologies to provide comfort and safe showering. This product is WRAS and TMV2. Get this exclusive piece from QS Supplies at an unbeatable rate. Fix it inside a shower enclosure to get a comforting showering experience.

The manufacturing code of this product is 1.1663.243.
It comes in a chrome finish.
Thermostatic temperature control makes showering safer for all.
Separate flow and temperature controls help you fine-tune your perfect shower.
Works on all systems and pressures, even at low pressure.
Separate temperature and flow controls.

Single spray fixed showerhead.
Quickly and easily fits onto reversed inlet supplies.
Suitable for low and high-pressure water system.
Required Min. 0.1 bar and Max. 5.0 bar operating water pressure.

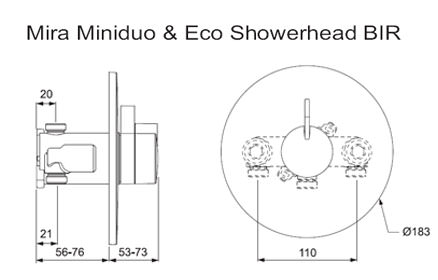

Refer to the technical drawing for more details.
Please refer Installation and User Guide PDF below for more instructions.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Country of Origin
: UK
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass body
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Concealed
⤷ Inlet Centres
: 110
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Flow Rates (l/min)
: 8 litres

⤷ Configuration
: Valve, Shower Head
⤷ Temperature Control
: Thermostatic
⤷ Compliance/Approvals/Standard
: WRAS, TMV2
⤷ Product Type
: Shower Set
⤷ Plumbing System Compatibility
: Suitable For Mains And Gravity Fed Systems
⤷ Water Entry Points
: Rising, falling or rear
⤷ Valve Size
: Ø 183 x D 53-73
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: Depth 212

Additional Info & Downloads

Download the Installation And User Guide Pdf File

Total: £325.90 2-3 Working Days Approx QS Supplies

5 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
