Bristan Sonique3 Recessed Chrome Thermostatic Shower Valve with Riser Kit

Bristan Sonique3 Details

MFC: SOQ3 SHCAR C

To meet hot and mixed temperature shower needs and match the decor of your modern bathroom Bristan presents Sonique3 Thermostatic Recessed Shower Valve with Riser Kit. The kit is adjustable, which means it can accommodate people with different heights for an overhead shower. It is programmed to shut automatically in the event of hot or cold water failure in order to reduce the risk of injuries; capped at 43 degree Celsius to curb the possibility of scalding caused by excessive heat. A 5-year manufacturers guarantee attached to this product.

Manufacturing Code of this Product: SOQ3 SHCAR C
Pack Includes:

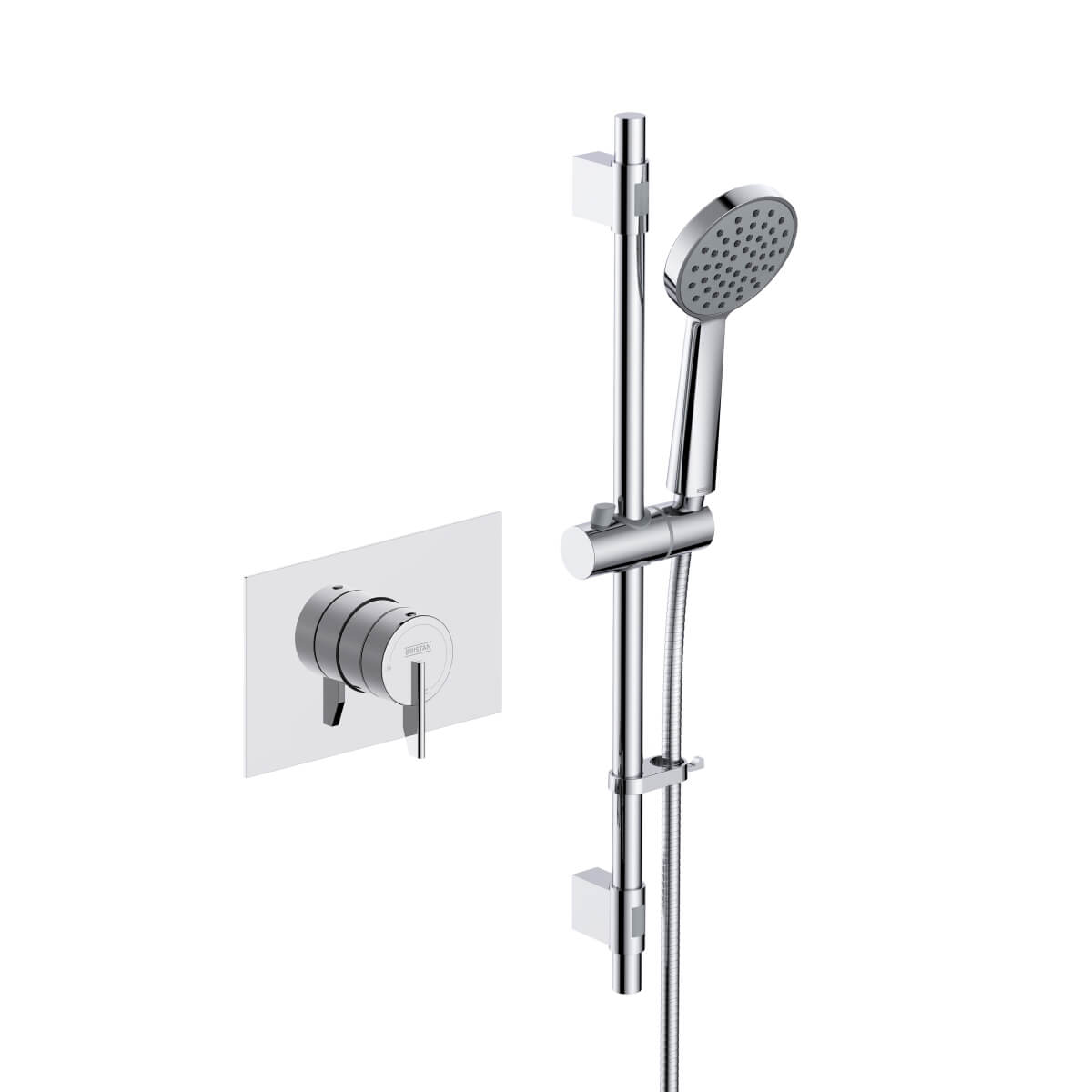

1.5m Shower Hose, Riser Rail, Hose Retainer, Anti-Limescale Single-Function Handset with Clean Rub Nozzle and Concealing Plate
Details of Kits:
It Comes in a Chrome Plated Finish
Complete with Adjustable Riser Kit
Contemporary and Stylish Design
Size of Back Plate [mm]: 190 x 120mm [Width x Height]
Size of Back Plate [cm]: 19 x 12cm [Width x Height]
Height of Riser Rail: 650mm [65cm]
Inlet Centre of Valve: 152mm [15.2cm]
No of Controls: 1
Shower Kit: Adjustable Riser
Valve/Cartridge Type: Sequential Cartridge
Maximum Hot Water Supply Temperature: 60°C
Plumbing System Suitability: Suitable for High-Pressure Systems Only
Maximum Static Pressure: 10 Bar
Connection Inlet: 15mm Compression
Connection Outlet: G 1/2 Inch
Check Valve Included: Yes
Features On/Off Temperature Control
A Hard-Wearing, Flawless, Scratch-Resistant Chrome Finish That Lasts for Years
Salt Spray Tested to Ensure Added Durability
Features a Single Sequential Lever to Control Both Flow and Temperature in One
15mm Compression, with Adjustable Centres of Inlet Connections
Suitable for High Water Pressure Systems
Required Minimum 1.0 Bar to Maximum 5.0 Bar Water Pressure
Features Automatic Shut-Off in the Event of Hot or Cold Water Supply Failure for Family-Safe Showering
Thermostatic Cartridge with Preset Temperature Safety Stop at 41°C for Family-Safe Showering
A Higher Temperature Can be Selected, if Required, by Choosing the Override Function
Factory Set to a Maximum of 43°C to Eliminate the Ability to Select an Unsafe Temperature; this Can be Adjusted to Suit User Preference
Refer to the Technical Image for the Technical Dimension
Download the Product datasheet and Installation Instruction PDF File from the Additional Info Section
5 Years On Parts and 1 Year of Labour Guarantee from the Manufacturer

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass, ABS And Stainless Steel
⤷ Theme
: Modern
⤷ Valve/Cartridge Type
: Sequential Cartridge
⤷ Inlet Connections
: 15mm Compression
⤷ Minimum Operating Pressure (Bar)
: 1
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500
⤷ Temperature Control
: Thermostatic

⤷ Backplate Width
: 190
⤷ Backplate Height
: 120
⤷ Compliance/Approvals/Standard
: TMV2, WRAS, NSF
⤷ Riser Rail & Kit Finish
: Chrome
⤷ Auto shutdown if hot or cold supplies fail
: Yes
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: Single Function
⤷ Rail Length
: 650
⤷ Hose Retainer Included
: Yes
⤷ Outlet Elbow Included
: Yes

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instructions Pdf File

Bristan Sonique3 Recessed Chrome Thermostatic Shower Valve with Riser Kit

£190.80

RRP: ~~£339.00~~

Stock Availablity: 3 Working Days Approx

QS Supplies

Other Sizes / Finishes

Other Sizes / Finishes / Variations Available.

QS Code	Finish	Size / Difference	MFC Code
QS-V79211	-	With Exposed Valve	SOQ3 SHXAR C

Back to QS-V79210 / MFC Code: SOQ3 SHCAR C

11 Features Included In This Product Explained

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

Decor Smart

In an attempt to keep your decor as neat as before, the unit has a design that will easily fit into the existing holes and fixings as your old shower.

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

Drenching

Drenching in Bristan showers means these showers soak you thoroughly, giving you the most indulgent showering experience.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

ABS Plastic

ABS, or Acrylonitrile butadiene styrene, is a thermoplastic polymer used to manufacture many non-food products. It is inexpensive and can be easily shaped and machined. It also features high strength, stiffness, increased chemical and temperature resistance, electrical insulation and a glossy look.

Stainless Steel Material

Stainless Steel is an iron alloy with anti-rust and anti-corrosive properties, unlike iron. Along with other metal alloys, it contains a minimum of 10.5% of chromium and less than 1.2% of carbon. This robust, hygienic, hard-wearing base material is popular in the construction of bathroom products.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...
