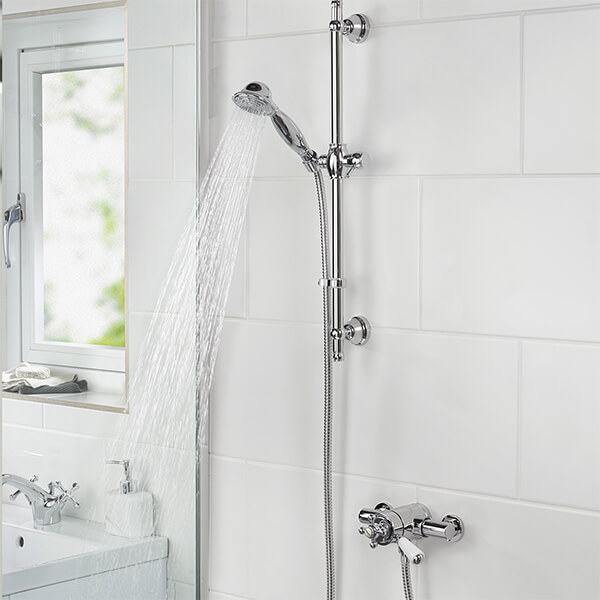

Bristan Regency Thermostatic Dual Control Shower Valve With Adjustable Riser Kit

Bristan Regency R2 SHXAR C Details

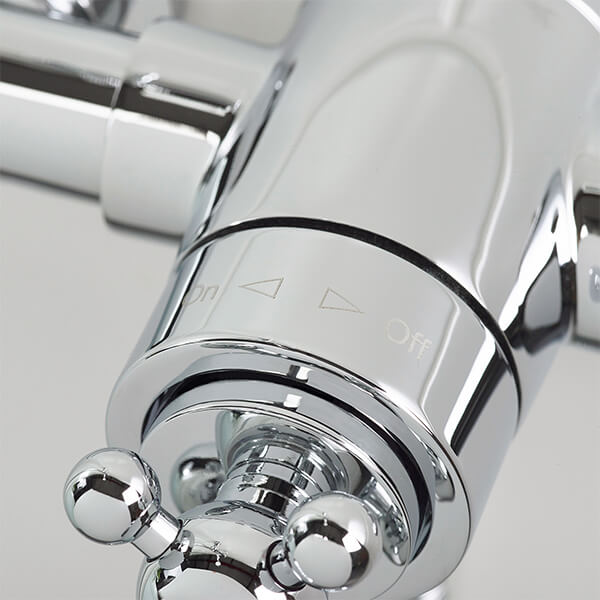

The Regency Shower Valve is controlled by a Thermostatic cartridge to maintain the desired temperature during the shower. Supplied with an Adjustable Riser Kit, it has dual controls for individually controlling temperature and flow rate. It needs a minimum of 0.1 bar water pressure and can perform optimally to 5.0 bar water pressure, which demonstrates its suitability to both low and high water pressure systems.

To eliminate the danger of scaling, the valve is locked and will not go beyond 43 degrees Celsius. A 5-year guarantee from Bristan is attached to this product. Pair it with modern walk-in shower enclosures, which are available from our online store at affordable prices.

The manufacturing code of this product is R2 SHXAR C.
It comes in a chrome finish.

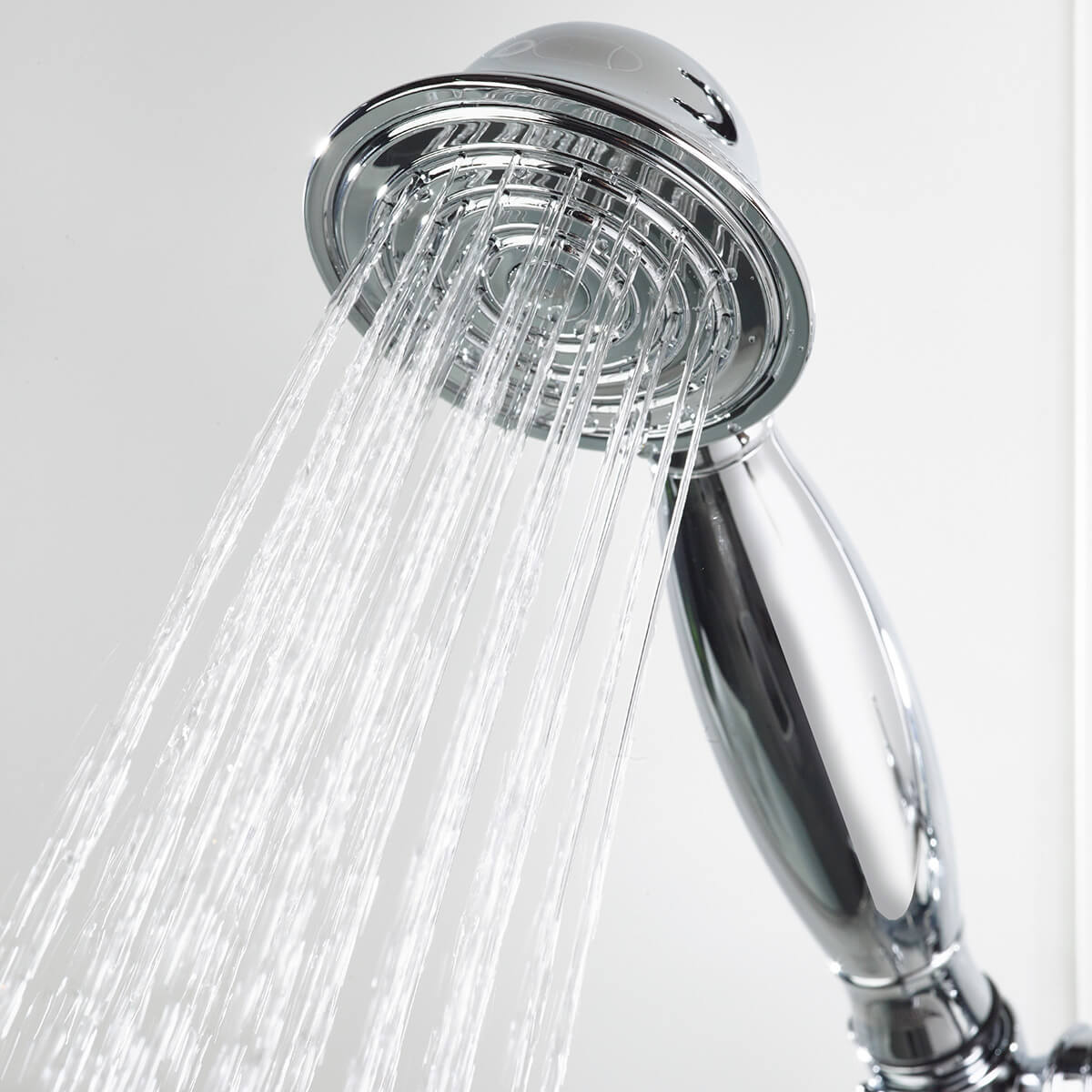

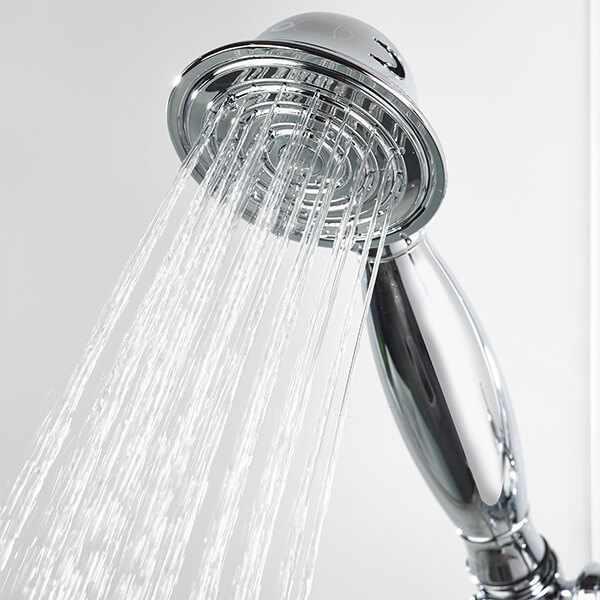

Shower head type: Adjustable.
Valve cartridge type: Exposed.
Maximum hot water supply temperature: 65°C.
Maximum static pressure: 10 bar.
Suitable for all plumbing systems.
Requires a minimum of 0.1 bar to a maximum of 5.0 bar of water pressure.
Flow rate: (l/min @ 3 bar) 8.5.
Connection inlet: 15mm compression elbows.

Connection outlet: G 1/2 inch.
15mm inlet connections.
Overall rail height: 710mm - (71cm).
Valve size in [mm]: 180mm x 135mm x 125mm [Width x Depth x Height].
Valve size in [cm]: 18cm x 13.5cm x 12.5cm [Width x Depth x Height].
Easy replacement with adjustable inlets so you can use them on existing pipework centres between 110mm and 155mm.
Thermostatic cartridge with preset temperature stop at 42°C.
Supplied with 1 x 7L/min and 1 x 5L/min flow regulators.
Download the Installation Instruction PDF File From The Additional Info Section.
Refer to the technical diagram for complete technical dimensions.

Info / Size (mm)

Shower Kit
Height: 600 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Exposed
⤷ Inlet Centres
: 110-155
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Hose Included
: Yes

⤷ Configuration
: Valve, Slide Rail And Handset Kit
⤷ Temperature Control
: Thermostatic
⤷ Product Type
: Shower Set
⤷ Auto shutdown if hot or cold supplies fail
: Yes
⤷ Handset Included
: Yes
⤷ Valve Size
: Depth 132
⤷ Rail Length
: 710

Additional Info & Downloads

Download the Installation Instruction Pdf File

Total: £242.04 2 Working Days Approx QS Supplies

8 Features Included In This Product Explained

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Decor Smart

In an attempt to keep your decor as neat as before, the unit has a design that will easily fit into the existing holes and fixings as your old shower.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

Drenching

Drenching in Bristan showers means these showers soak you thoroughly, giving you the most indulgent showering experience.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Questions & Answers

Submit Your Questions 1 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Rhian Asked :
Hello, Does this item come in the gold finish? I am trying to locate a shower to go with the Bristan 1901 or Regency range, but it needs to come in the gold finish. Many thanks Rhian

Answered By QS Team

No, this item does not come in a gold finish. But if you wish to buy a similar traditional-looking shower set, you can choose from the available ranges, which we have in stock. Please refer this link to select the item you want - http://www.qssupplies.co.uk/Bathrooms/Bathrooms/Thermostatic-Showers/Product/152.htm.
