Bristan Prism Chrome Fixed Head And Adjustable Riser Shower Pack

Bristan PRISM SHWR PK2 Details

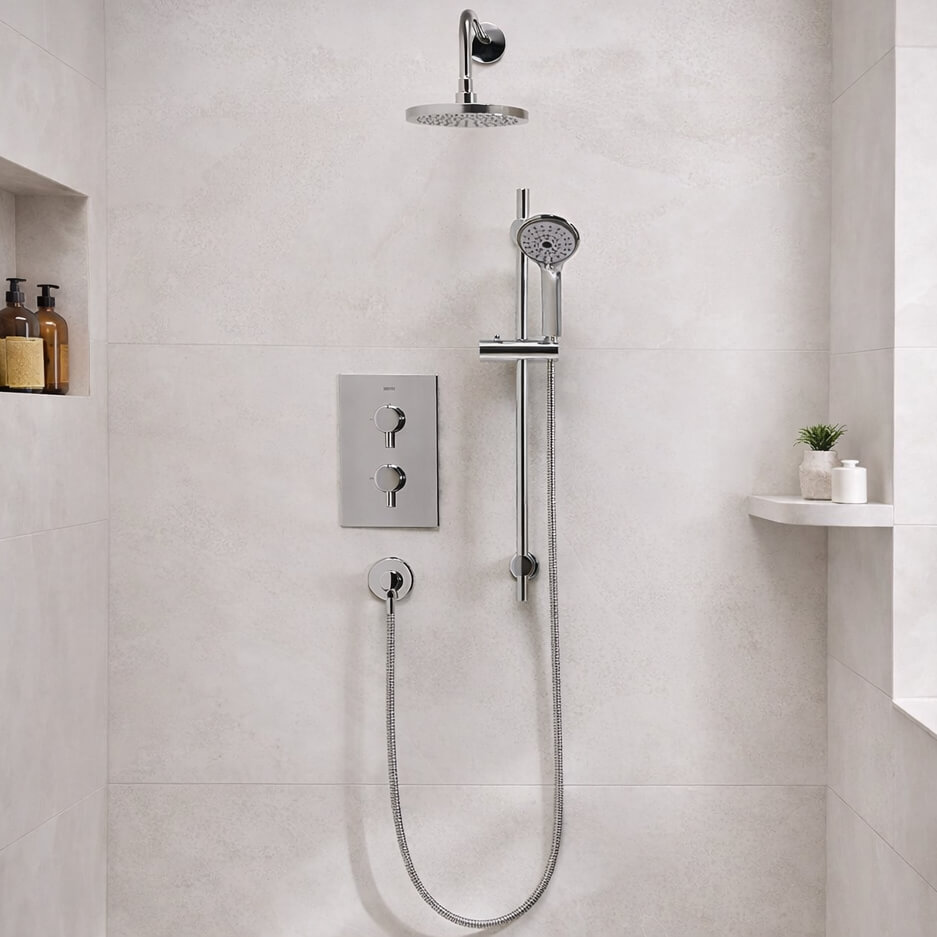

Get ready to experience endless blissfully refreshing showering moments when you bring home this elegantly appealing Bristan Prism Fixed Head and Adjustable Riser Shower Pack. Meticulously crafted from exceptional quality brass, this shower pack is suitable for all plumbing conditions and requires between 0.2 bar and a 5.0 bar water pressure.

The adjustable riser shower kit comes with a large single-mode handset and incorporates with the thermostatic cartridge. Supported by a five-year manufacturer guarantee against any manufacturing faults, this aqua delight comes in a gleaming chrome finish for instantly giving your bathroom an appealing look. Pair it up with a shower enclosure of your choice to give your bathroom a fab look.

Manufacturing code of this product: PRISM SHWR PK2.
It comes in an attractive chrome finish.
Shower type: Dual control.
Shower head type: Shower rose and single-function handset.
Maximum hot water supply temperature: 65°C.
Maximum static pressure: 10 bar.
Suitable for all plumbing systems.
Minimum dynamic pressure: 0.2 bar.
Maximum dynamic pressure: 5.0 bar.
Connection inlet: 15mm compression.
Connection outlet: G 1/2 inch.

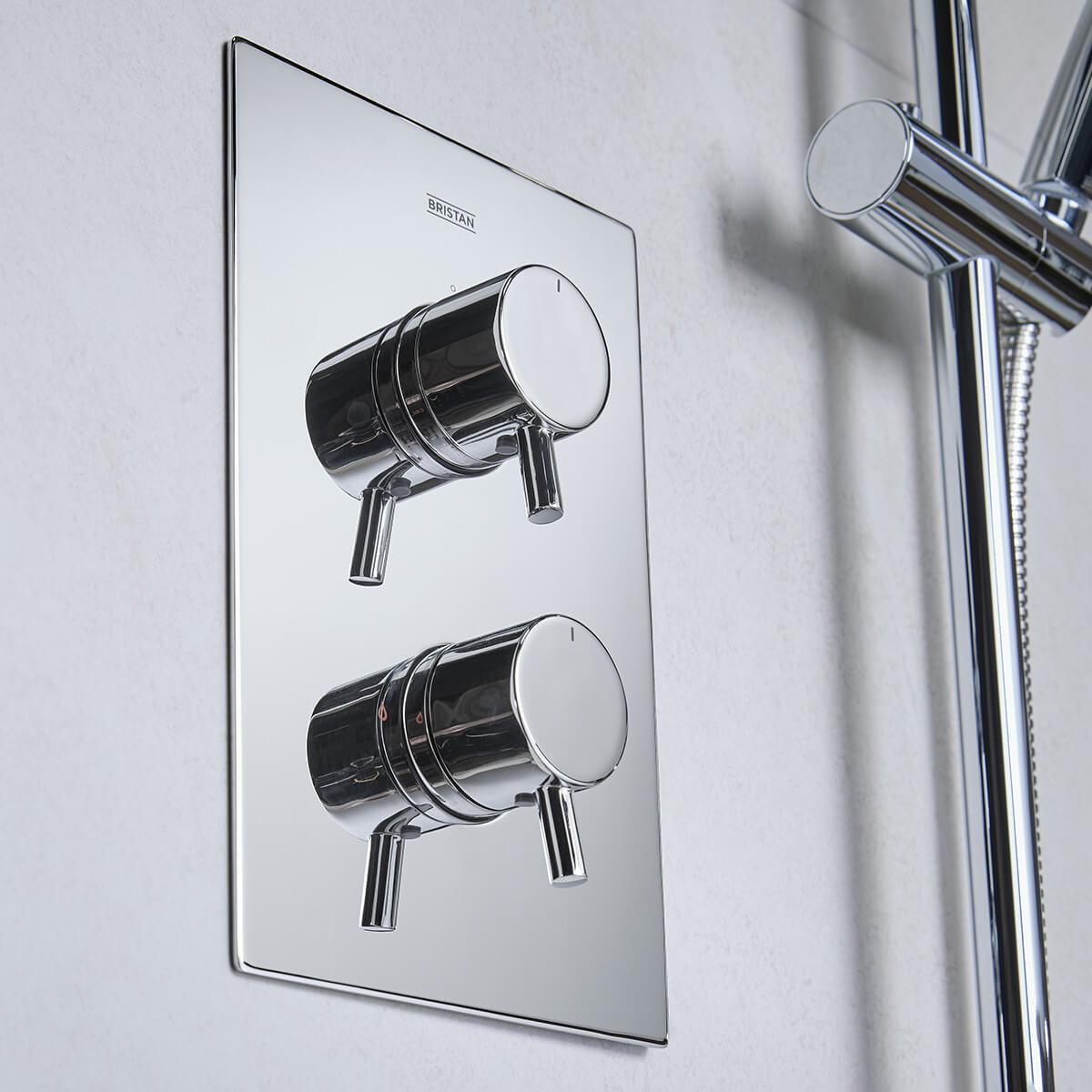

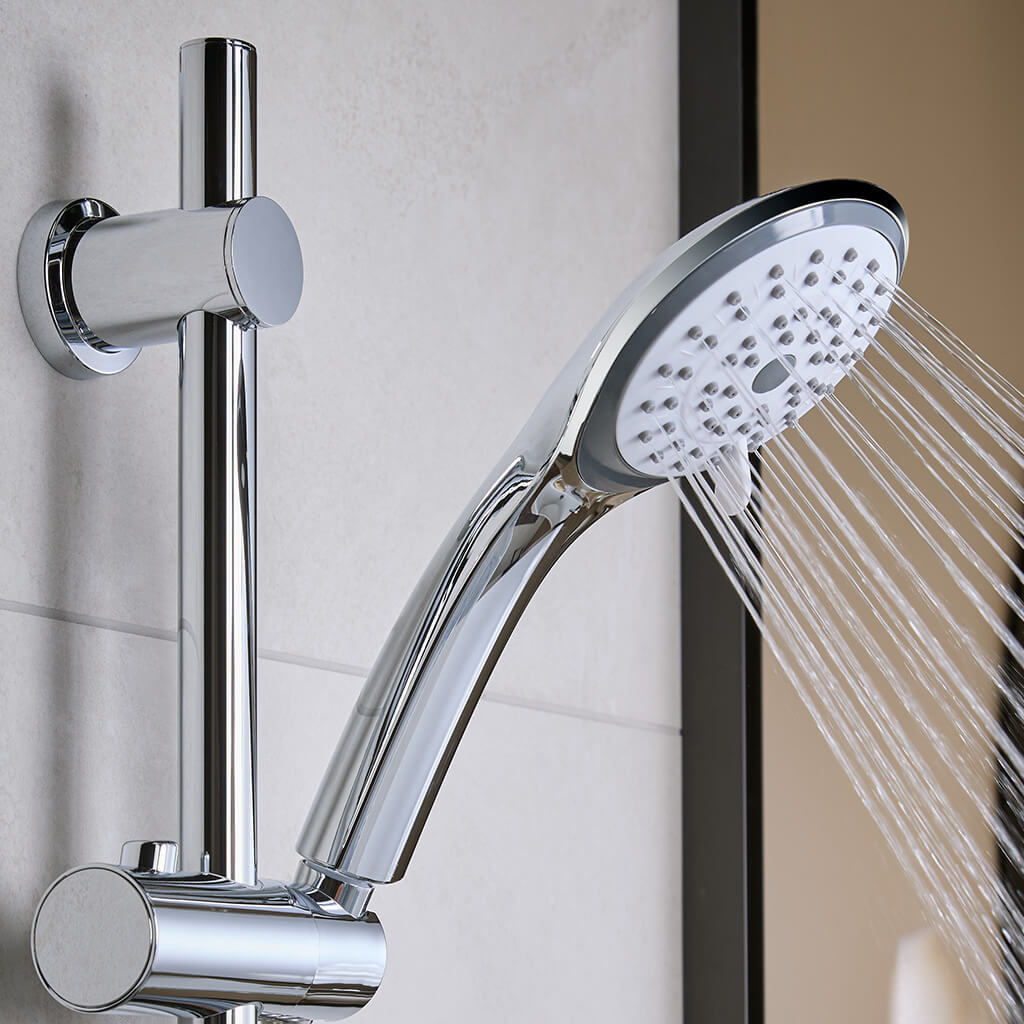

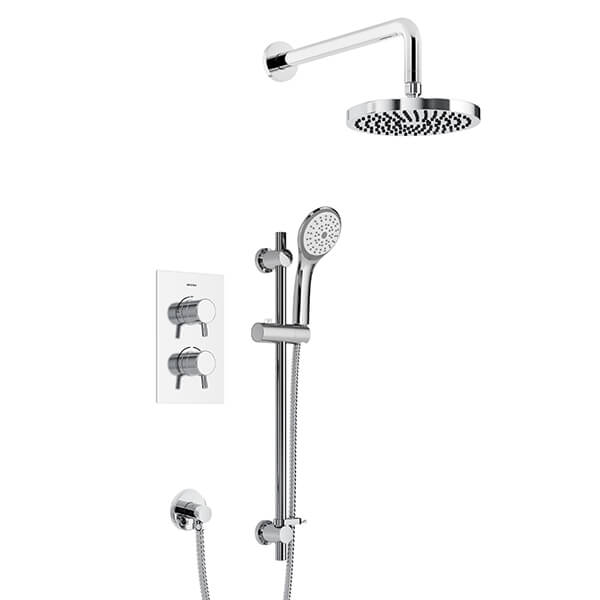

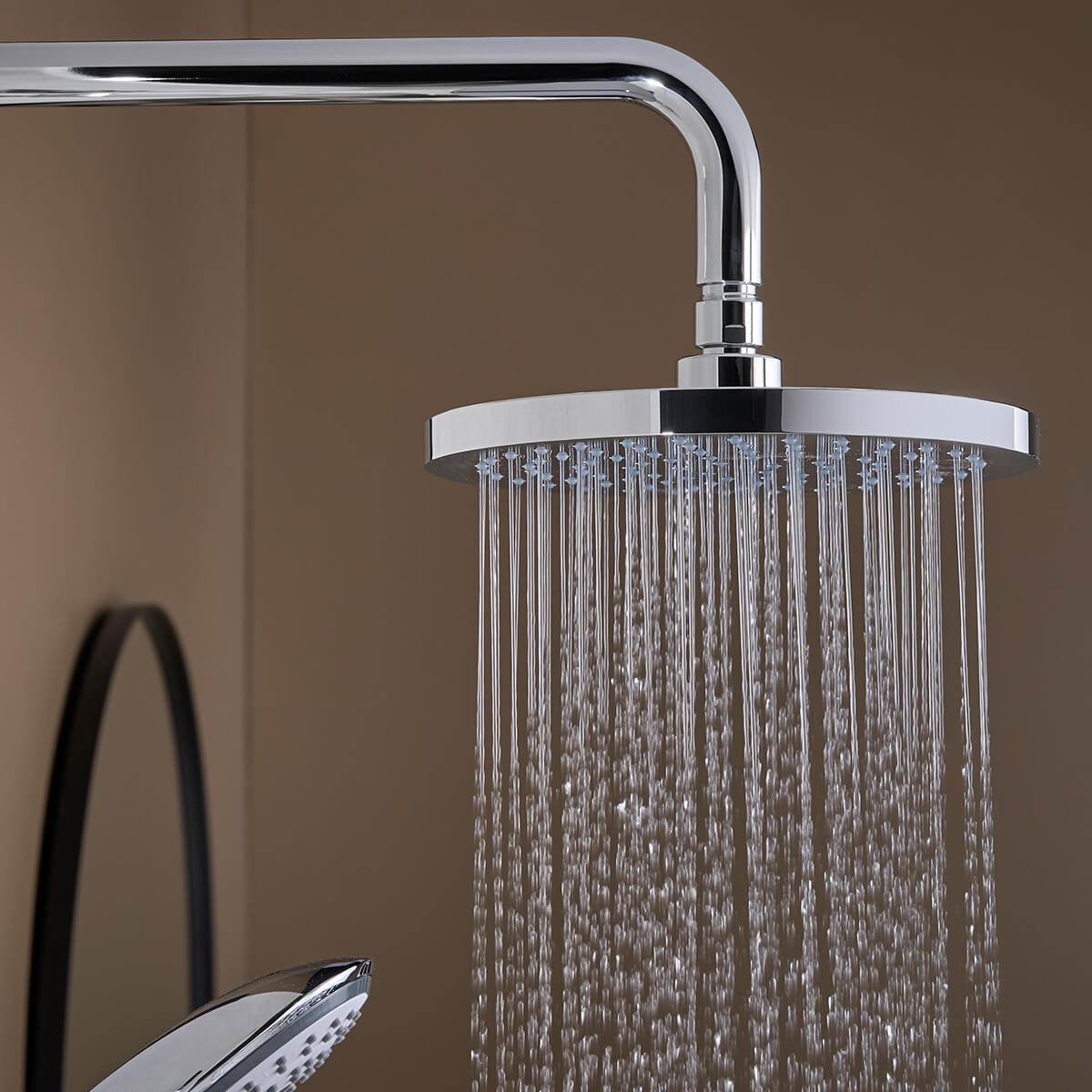

This versatile shower pack contains a Prism shower valve with an integral two-outlet diverter. It has a 200mm (20cm) round fixed head with a shower arm and an adjustable riser shower kit with a single-function large handset.
The shower valve has been designed to fit any UK wall cavity and only needs a 35mm (3.5cm) deep cavity space.
Fully serviceable from the front.
Height of rail: 650mm - (65cm).
Depth of shower arm: 400mm - (40cm).
Base plate of valve in [mm]: 165mm x 255mm [Width x Height].
Base plate of valve in [cm]: 16.5cm x 25.5cm [Width x Height].
Inlet centre of a valve: 150mm - (15cm).
Refer to the technical diagram for technical dimensions.
Download the Installation Instruction PDF File From The Additional Info Section.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Concealed
⤷ Inlet Centres
: 150
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Configuration
: Valve, Fixed Head, Shower Arm, Handset and Shower Kit

⤷ Temperature Control
: Thermostatic
⤷ Diverter Included
: Yes
⤷ Product Type
: Shower Set
⤷ Handset Included
: Yes
⤷ Valve Size
: W 165 x H 255
⤷ Shower Head Included
: Yes
⤷ Rail Length
: 650

Additional Info & Downloads

Download the Installation Instruction Pdf File

Total: £331.67 2 Working Days Approx QS Supplies

6 Features Included In This Product Explained

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

2 Outlets 1 On

There are two outlet connections, of which only one can be used at a given time.

Drenching

Drenching in Bristan showers means these showers soak you thoroughly, giving you the most indulgent showering experience.

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...
