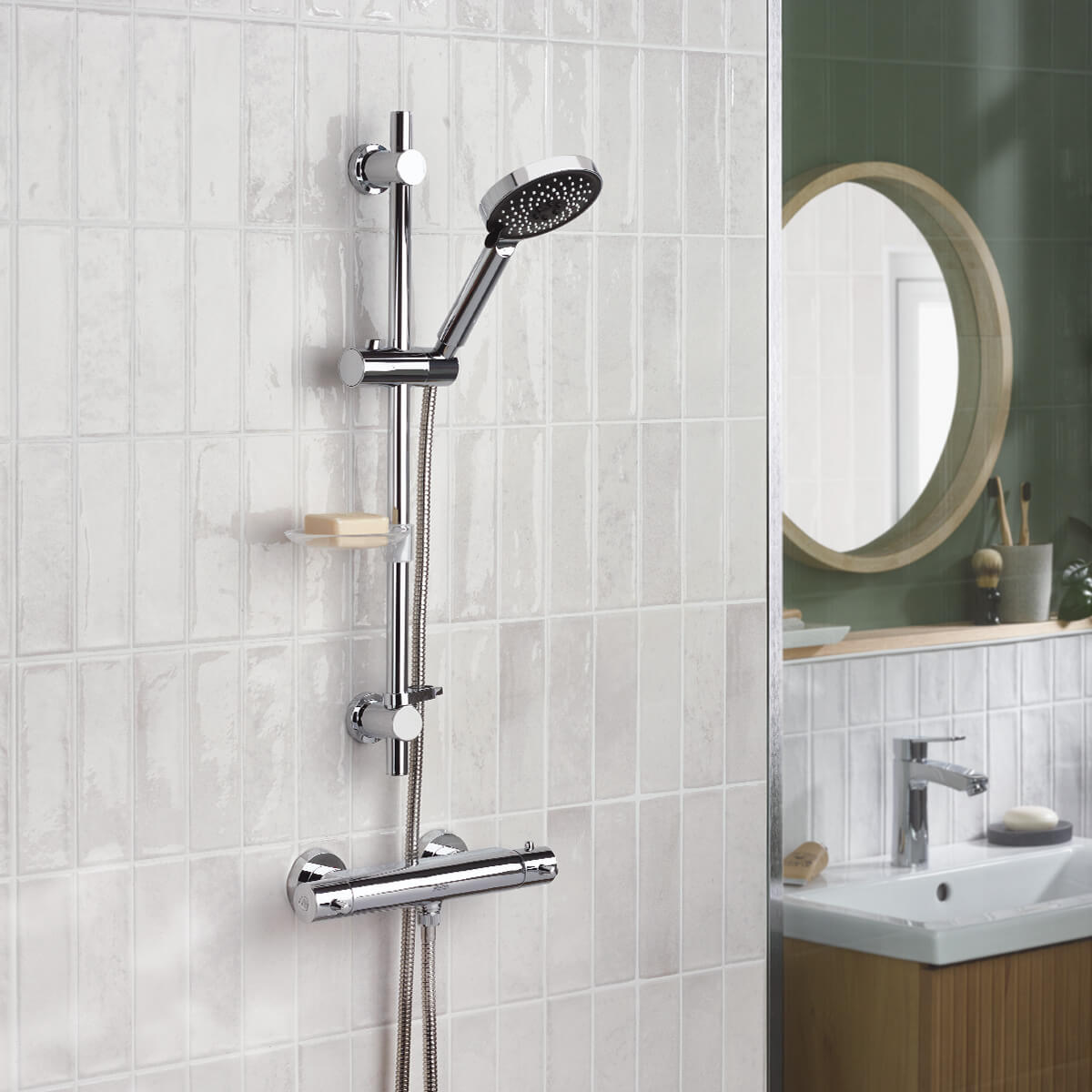

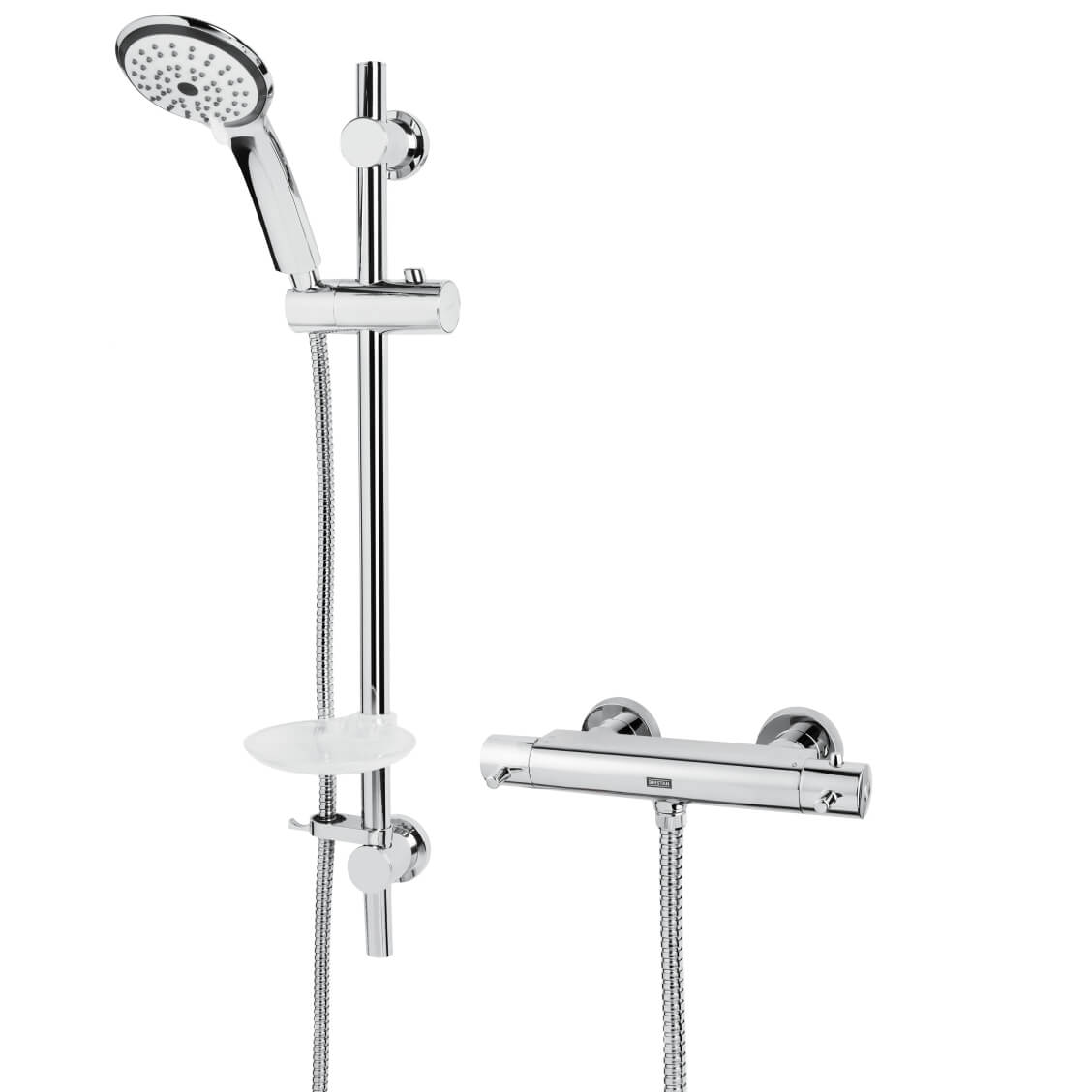

Bristan Prism Cool Touch Bar Mixer With Raiser Rail And Handset

Technical drawing QS-V7706 / PM SHXMMCTFF C

Bristan Prism Cool Touch Bar Mixer With Raiser Rail And Handset

QS-V7706

MFC CODE: PM SHXMMCTFF C

£181.06

RRP: ~~£320.00~~

STOCK AVAILABILITY

2 Working Days Approx

No Rating

Review this Product

Shipping: £5.95

Description

Technical

A delightfully refreshing showering awaits you when you bring home this Bristan Prism Cool Touch Bar Mixer with Riser Rail and Handset. The unique cool chrome technology of this aqua beauty keeps the bar valve cool to the touch when in use. Suitable for all plumbing system, this unit is manufactured from best quality brass for giving excellent long-term performance. You can separately control the water flow and temperature as per your choice. To prevent scalding, this unit comes with a factory set temperature cap of 38°C. You can adjust the temperature up to a maximum of 46°C.

+ Read what's included..

Please Note all the measurements are in 'mm'

Colour	Chrome
Warranty/Guarantee	5 Years
Material	Brass
Valve Included	Yes
Valve Type	Exposed
Inlet Centres	150
Minimum Operating Pressure (Bar)	0.2
Hose Included	Yes
Hose Length	1750
Flow Rates (l/min)	0.2 bar - 4.2, 0.5 bar - 7.5, 1.0 bar - 11.2
Configuration	Valve, Slide Rail and Handset Kit
Temperature Control	Thermostatic
Product Type	Shower Set
Handset Included	Yes
Valve Size	W 269
Shower Head Included	Yes
Rail Length	650

QTY

Bristan Prism PM SHXMMCTFF C DETAILS

Manufacturing code of this product : PM SHXMMCTFF C
Comes in attractive chrome finish
Manufactured using high quality brass material
Connection outlet : G 3/4 inch BSP
Connection inlet : 15mm Compression
Number of controls : 2
Flow control valve type : thermostatic
Suitable for all plumbing systems
Minimum dynamic pressure : 0.2 bar
Maximum dynamic pressure : 5.0 bar
Maximum static pressure : 10 bar
Maximum hot water temperature : 60°C
Pre-set outlet temperature : 38ºC
15mm inlet connections

Height of rail : 650mm
Width of valve : 269mm
Inlet centre of valve : 150mm
Supplied with our wallmount 12 fixing kit. The simplest solution for installing, maintaining and replacing bar showers, using built in front-of-wall isolation valve
Thermostatic cartridge with preset temperature stop at 38°C, can be over-ridden to a maximum of 46°C
TMV2 thermostatic control for a higher level of performance and protection
Unique Safe Touch technology ensures the valves stays cool to the touch while in use
Dual control - flow and temperature are controlled separately

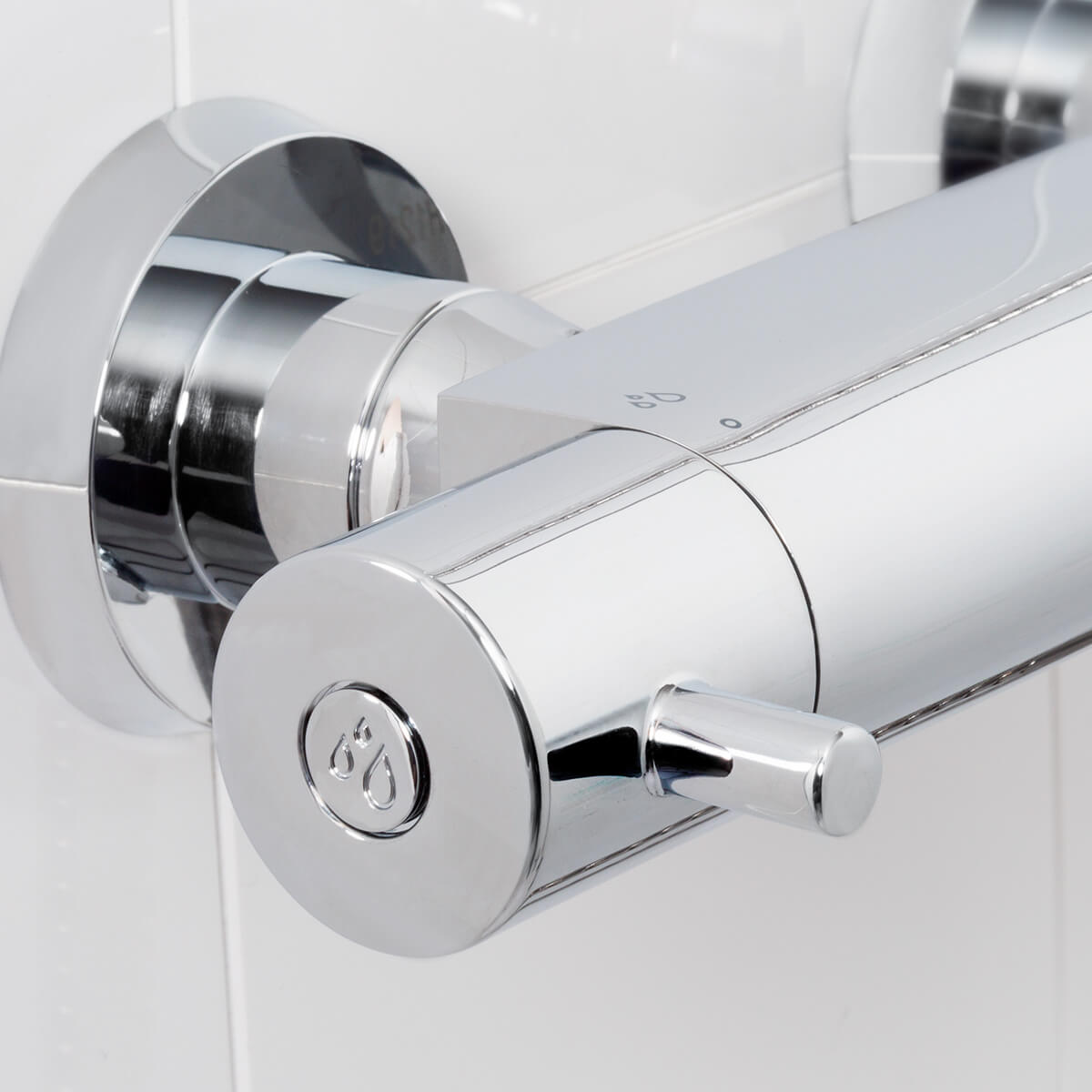

Flow control handle incorporates an eco button to save water, this can be overridden by the user
Adjustable fixing brackets on riser rail enables existing screw holes to be used

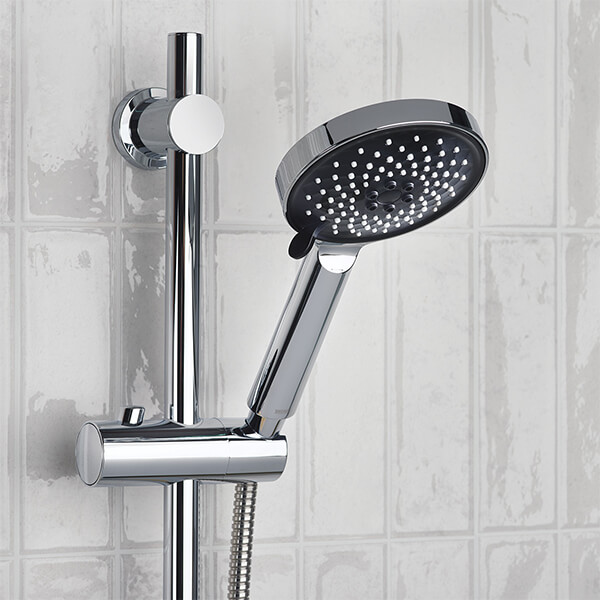

Multi-function rub-clean anti-limescale handset
Refer technical diagram for technical dimensions
Download PDF from technical tab for installations instructions
5 Years of guarantee against any manufacturing defects.
