Bristan Prism Chrome Shower Pack - Fixed Head

Bristan PRISM SHWR PK4 Details

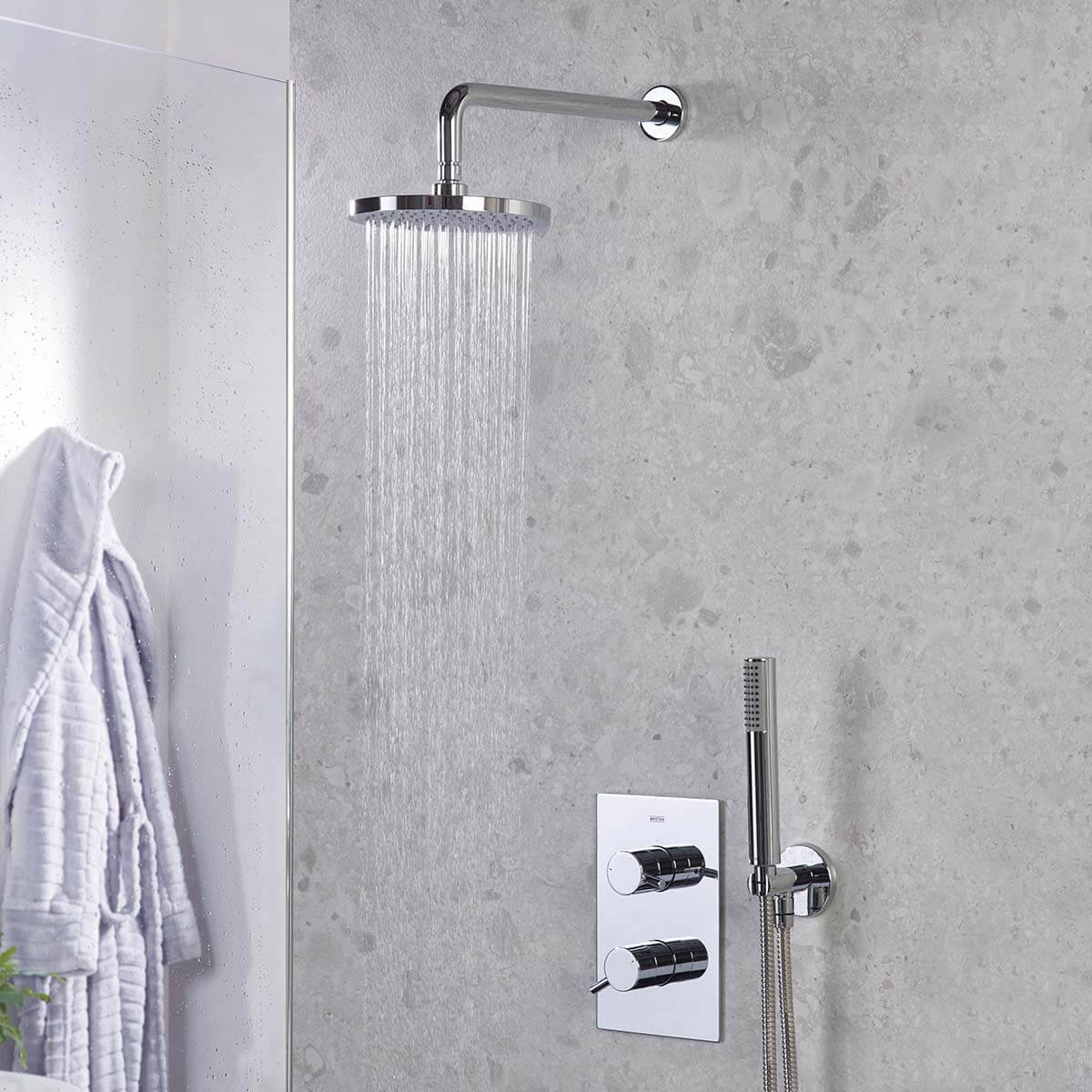

The Bristan Prism Shower Pack - Fixed Head is a simple shower set-up that includes not only the 200mm round shower head and arm but also an integral two outlet diverter valve that allows for control of the flow and temperature of the water moving through it. A contemporary, stylish design that looks especially stunning in a modern style of bathroom decor, this set also features strong and long-lasting ABS brass construction as well as a striking chrome coating a wide variety of users will love the look of.

Manufacturing code of this product: PRISM SHWR PK4.
It comes in an attractive chrome finish.
Contemporary and stylish design.
Suitable for all plumbing systems.

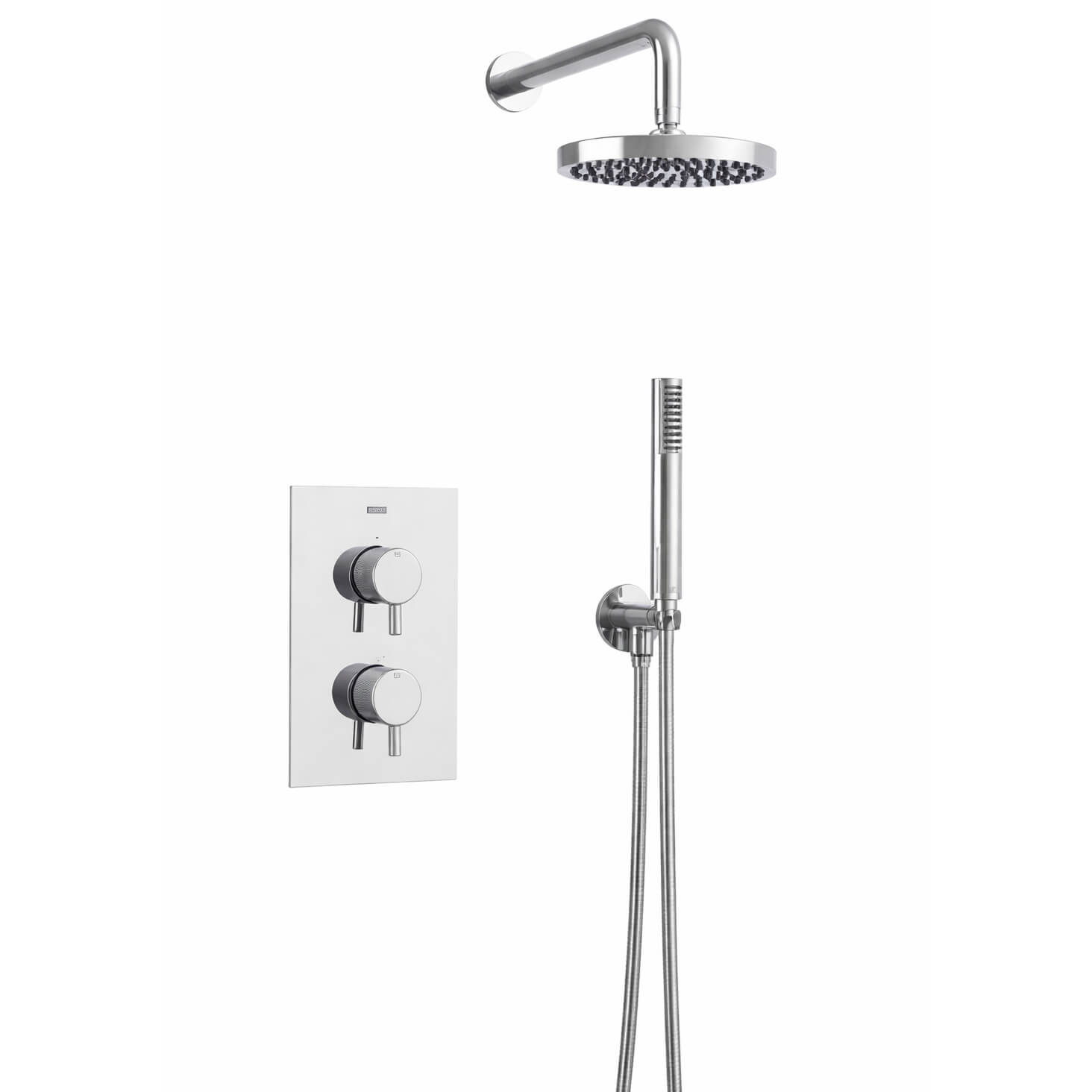

Pack Includes:.

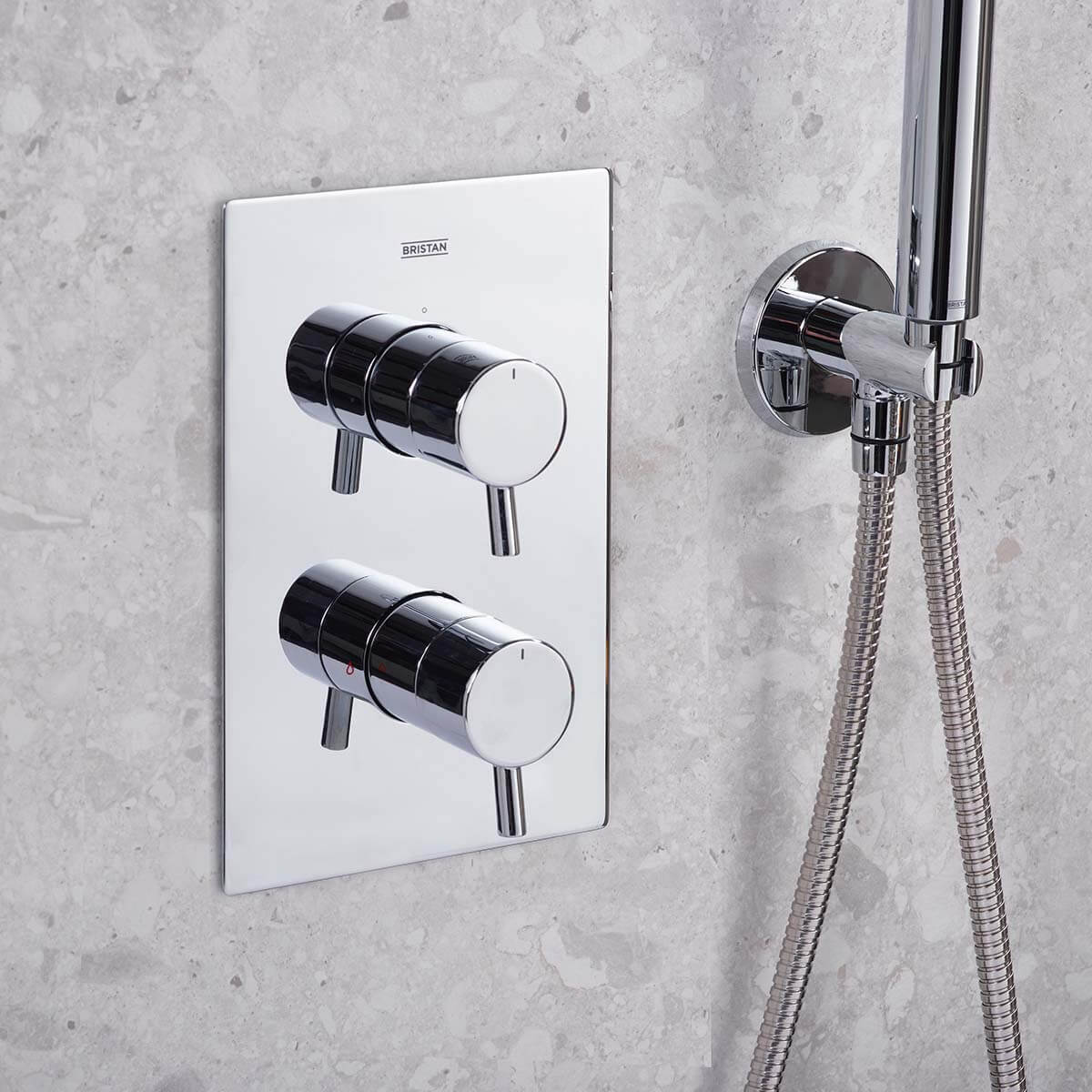

Prism shower valve with integral two-outlet diverter.

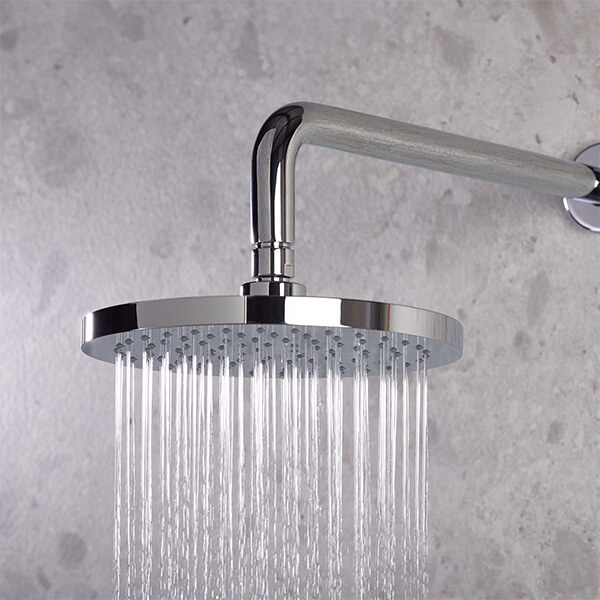

200mm round fixed head with shower arm.
Single function handset.
Hose with integral handset holder and wall outlet.
No of controls: 3.
Maximum hot water supply temperature: 65°C.

Size of shower head: Ø 200mm - (20cm).
Shower arm length: 348mm - (34.8cm).
Inlet and outlet connection of shower arm: G 1/2 inch.
Inlet connections: 15mm compression.
Size of valve in [mm]: 165mm x 255mm [Width x Height].
Size of valve in [cm]: 16.5cm x 25.5cm [Width x Height].
Suitable for low water pressure system.
Requires a minimum of 0.2 bar to a maximum of 5.0 bar of water pressure.
Download the Installation Instruction PDF File From The Additional Info Section.
Refer to the technical diagram for complete technical dimensions.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: ABS Brass
⤷ Theme
: Modern
⤷ Inlet Centres
: 150
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Backplate Width
: 165

⤷ Backplate Height
: 255
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: Single Function
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: Ø200
⤷ Diverter Type
: Two Outlet Diverter

Additional Info & Downloads

Download the Installation Instruction Pdf File

Total: £324.83 2 Working Days Approx QS Supplies

8 Features Included In This Product Explained

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Decor Smart

In an attempt to keep your decor as neat as before, the unit has a design that will easily fit into the existing holes and fixings as your old shower.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

2 Outlets 1 On

There are two outlet connections, of which only one can be used at a given time.

Drenching

Drenching in Bristan showers means these showers soak you thoroughly, giving you the most indulgent showering experience.

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...
