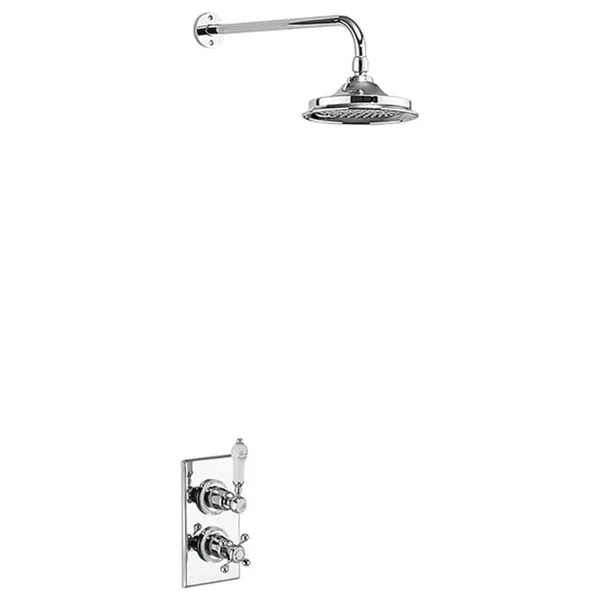

Burlington Trent Concealed Thermostatic Valve With Shower Head And Arm

Burlington Trent TF1S BLA+V16 Details

The Burlington Trent Concealed Thermostatic Valve skillfully merges the old and the new with a mix of both traditional and contemporary features. It keeps all pipework and plumbing concealed behind a traditional brass faceplate. With a stylish ceramic lever handle and a Claremont cross-headed handle, this control unit has an intuitive operation and a subtle nautical character. The thermostatic safety features ensure the temperature of your shower will not vary by more than 1 degree even if someone flushes a WC while you are showering. Attached to the wall via a right-angled arm, the shower rose with a built-in Airburst gives a broad, rain-like experience which is sure to relax and rejuvenate you.

Key Features

✔WRAS Approved
✔10 years of guarantee from the manufacturer
✔Anti-limescale nozzles
✔Body made from brass
✔AirBurst Built-in [more power, less water - saves water without ruining your shower]

Available in different variants.
Traditional design.
Product Includes:.
One outlet concealed the thermostatic valve.
Airburst head.
390mm (39cm) adjustable fixed arm.
Valve Specification:.
It comes complete with a traditional brass faceplate, Claremont handle and ceramic lever.
Also available with Anglesey and Birkenhead handle optional [See Option].

Thermostatic safety - The temperature of your shower will not vary by more than +- 1°C - even if someone flushes a WC whilst you are showering.
Minimum operating pressure required: 3.0 bar [HP-High Pressure].
Size [mm]: 120mm x 82mm x 259mm [Width x Depth x Height].
Size [cm]: 12cm x 8.2cm x 25.9cm [Width x Depth x Height].
Shower Head Specification:.
Made from ABS or ABS/Brass.
AirBurst Built-in [more power, less water - saves water without ruining your shower].
For the complete size, detail refer to the technical drawing.
Download the installation instruction PDF file from the Additional Info Section.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Weight in kg
: 3.65
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Concealed
⤷ Minimum Operating Pressure (Bar)
: 3.0 bar

⤷ Flow Rates (l/min)
: 0.2bar - 3.84, 0.5bar - 4.94, 1bar - 7.95, 2bar - 11.29, 3bar - 13.21
⤷ Configuration
: Valve, Shower Head
⤷ Temperature Control
: Thermostatic
⤷ Valve Size
: W 120 x H 259
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: Ø 180

Additional Info & Downloads

Download the Valve Installation Instructions Pdf File Download the Shower Head Installation Instructions Pdf File

Technical Images

Burlington Trent Concealed Thermostatic Valve With Shower Head And Arm

Customise Your Product

Optional Handles

Anglesey and Birkenhead handle available as optional. The image shown is for illustration purposes only.

No Option Selected
OP-92233 - Anglesey Handle With White Accent + £26.95
OP-92234 - Anglesey Handle With Black Accent + £52.39
OP-215401 - Birkenhead Handle With White Accent + £24.61
OP-215402 - Birkenhead Handle With Black Accent + £50.05

Total: £341.80 2-3 Working Days Approx QS Supplies

5 Features Included In This Product Explained

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Airburst Shower Head

The Airburst system mixes water and air in Burlington Bathroom shower heads to give you a feeling of increased water pressure while saving up to 33% of the water used with a traditional showerhead.
Read more...

Easy Clean Nozzles

Shower heads and handsets can be easily cleaned with a damp cloth, preventing limescale build-up.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
