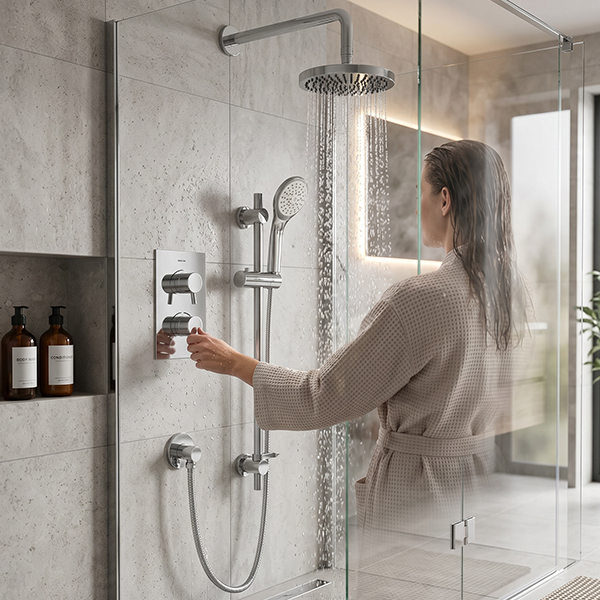

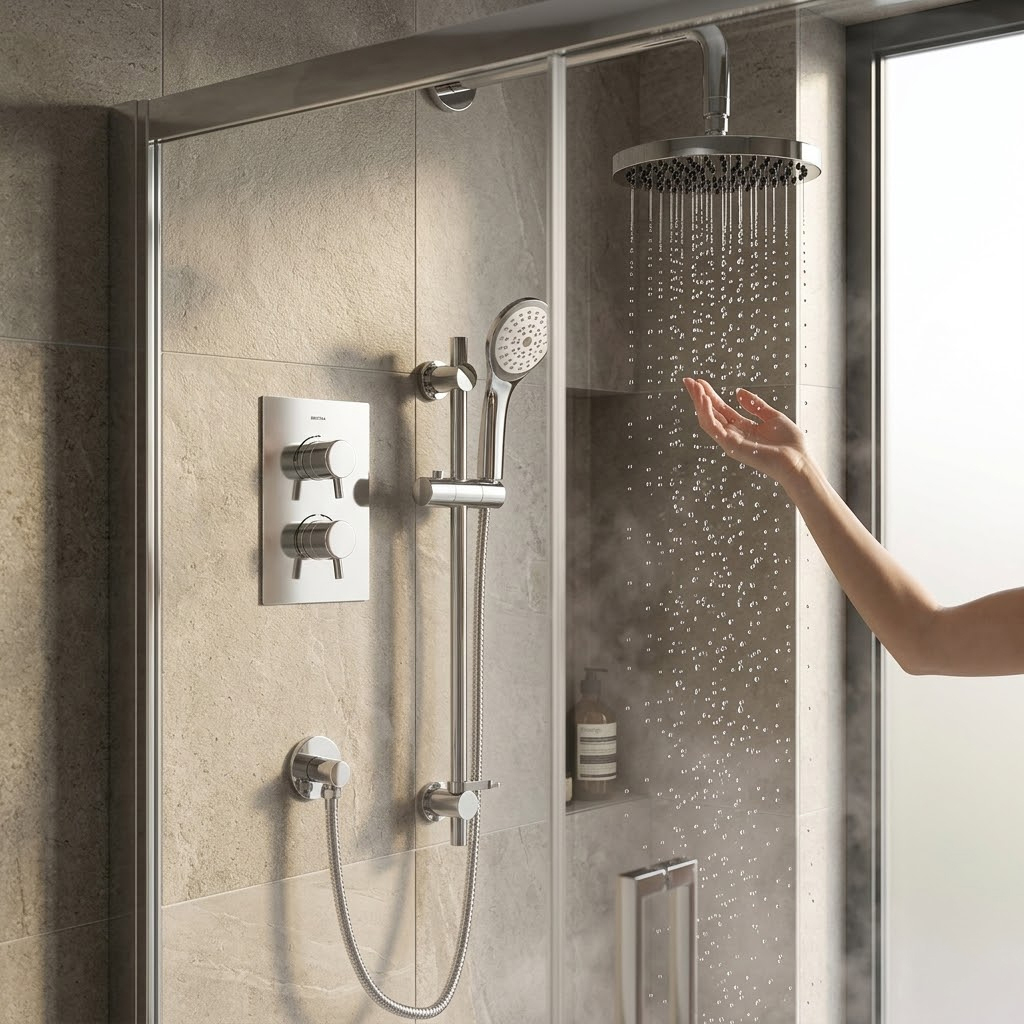

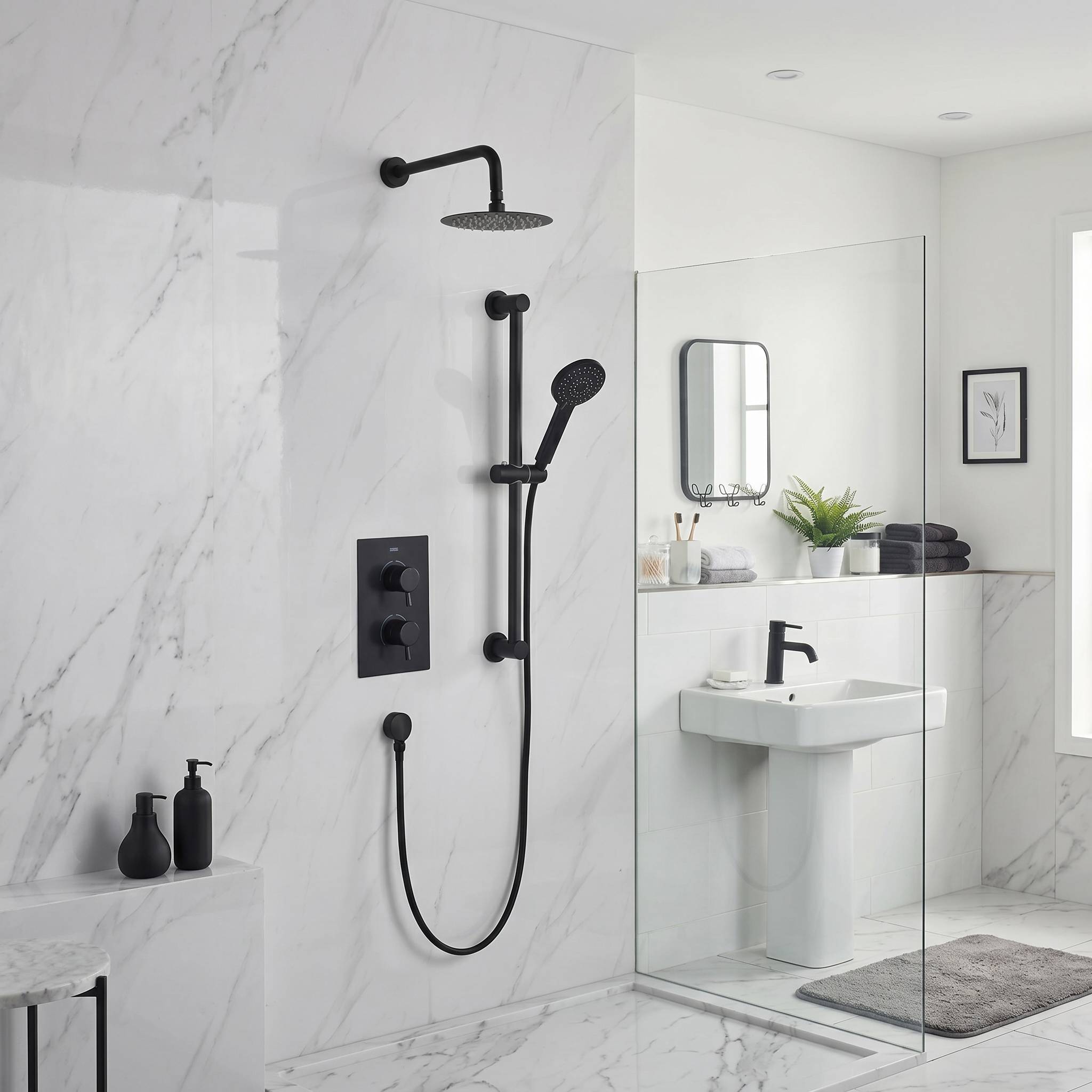

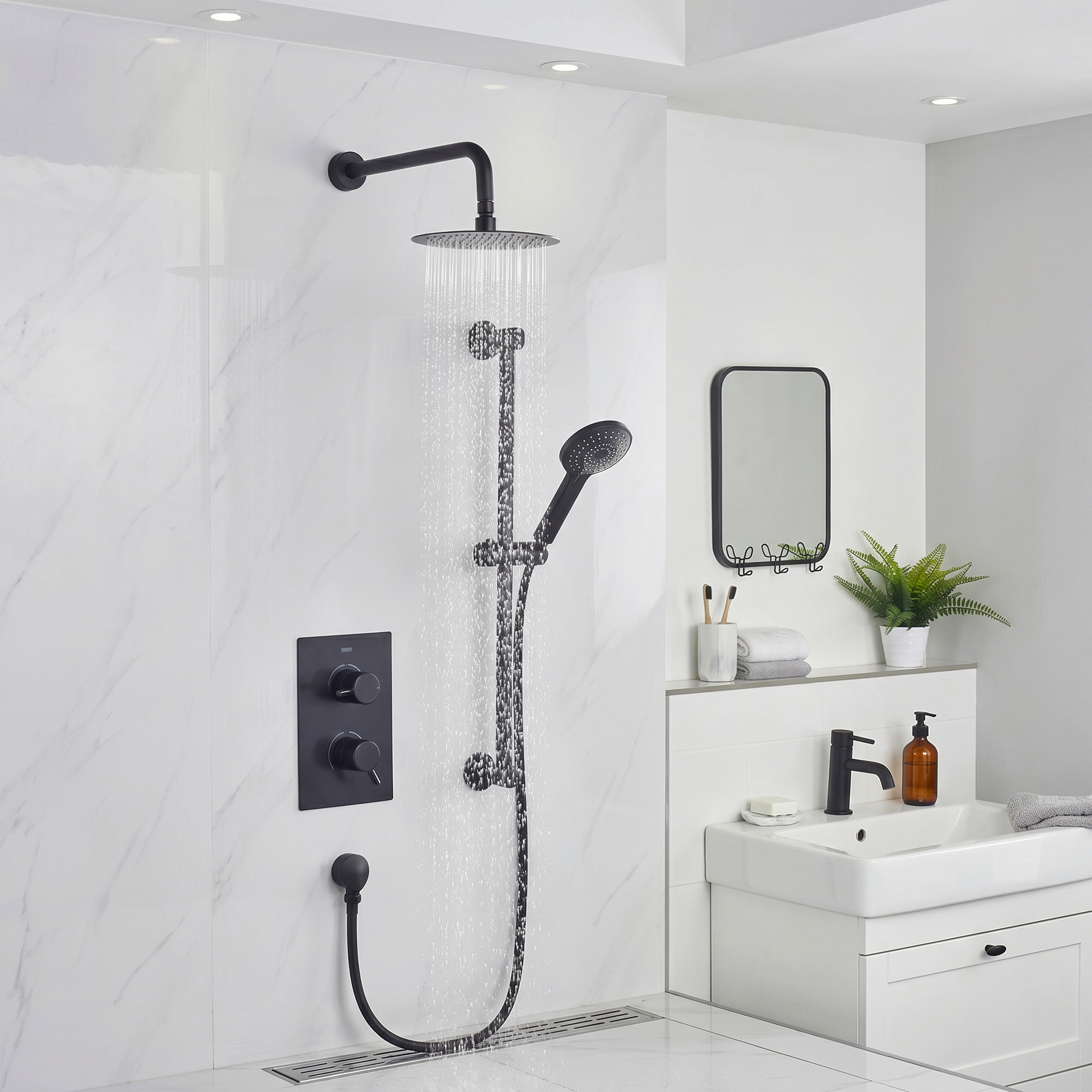

Bristan Apelo Concealed Thermostatic Dual Control Shower Pack, APELO SHWR PK

Bristan Apelo Details

MFC: APELO SHWR PK

Bristan Apelo Concealed Thermostatic Dual Control Shower Pack.

Key Features

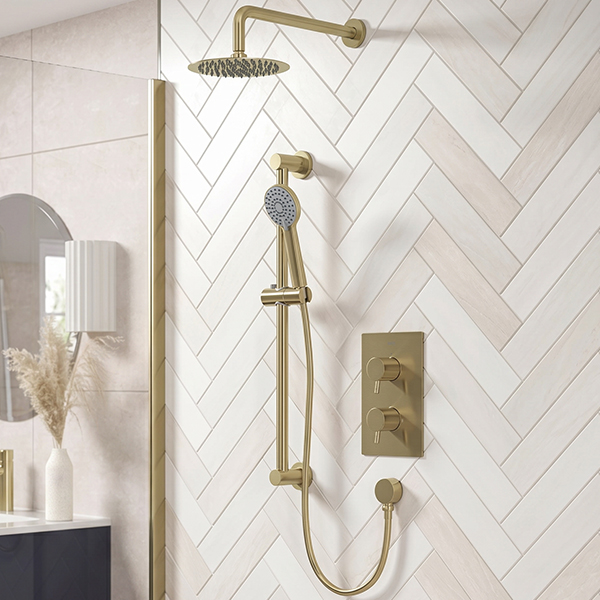

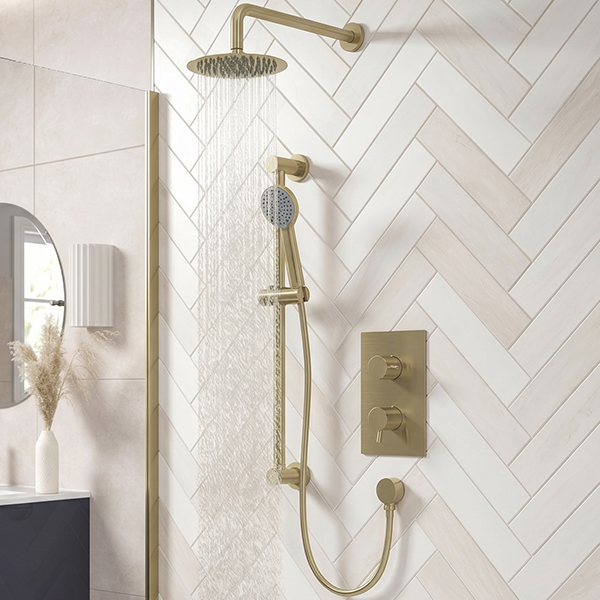

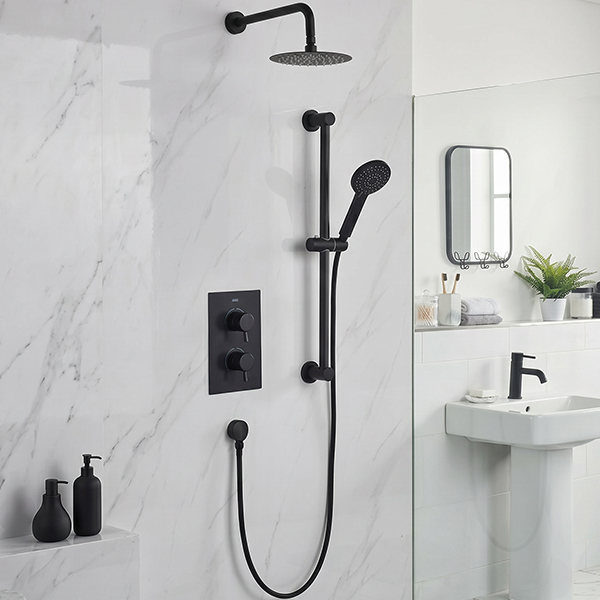

✔Choice of Finishes: Chrome, Matt Black, Brushed Brass
✔Manufactured Using Brass and ABS Material
✔Supplied with Metal Back Plate and Handle
✔Lifetime Guarantee from the Manufacturer Against any Manufacturing Defects

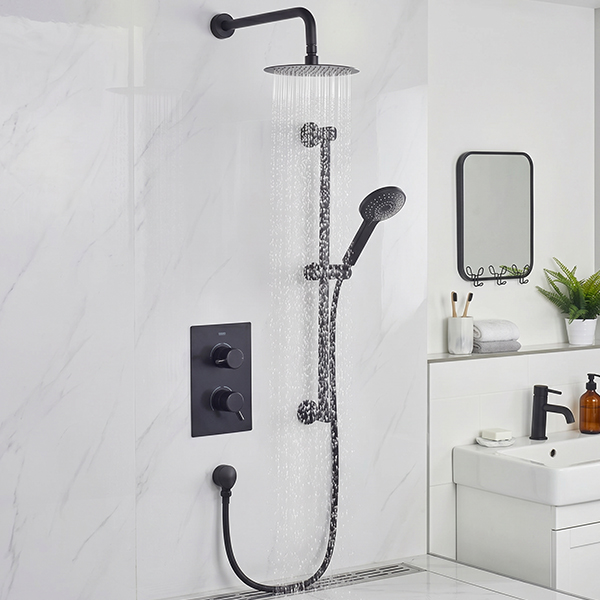

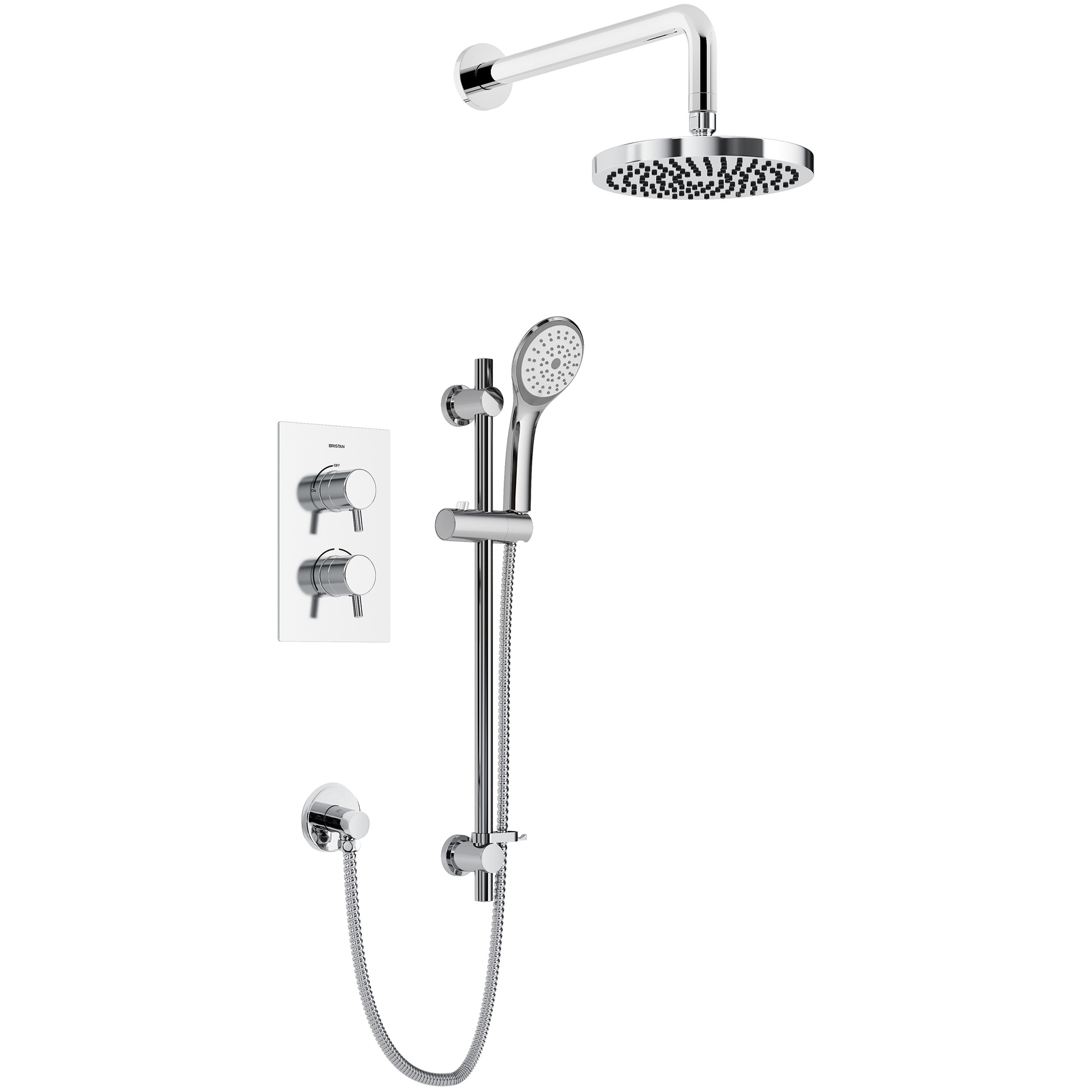

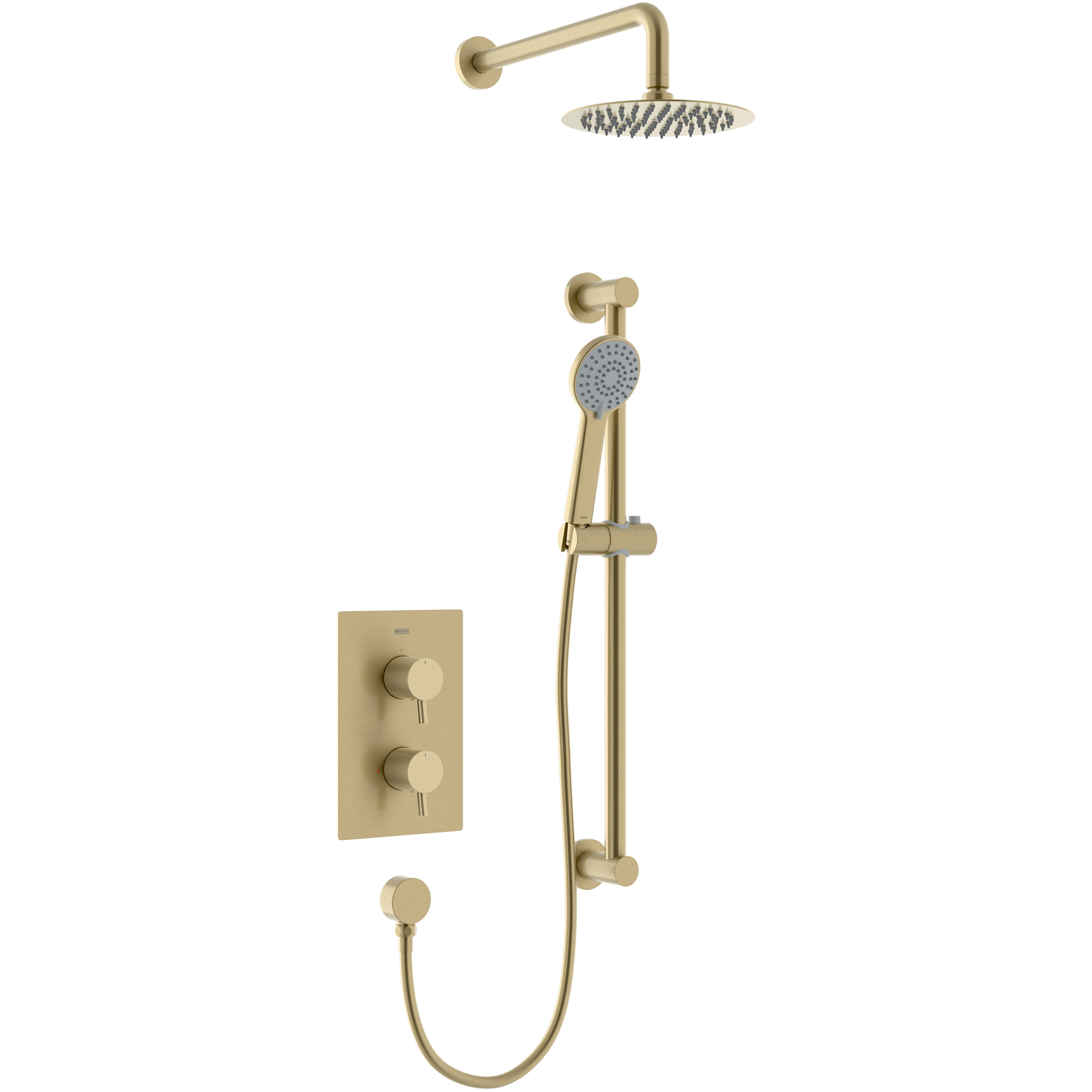

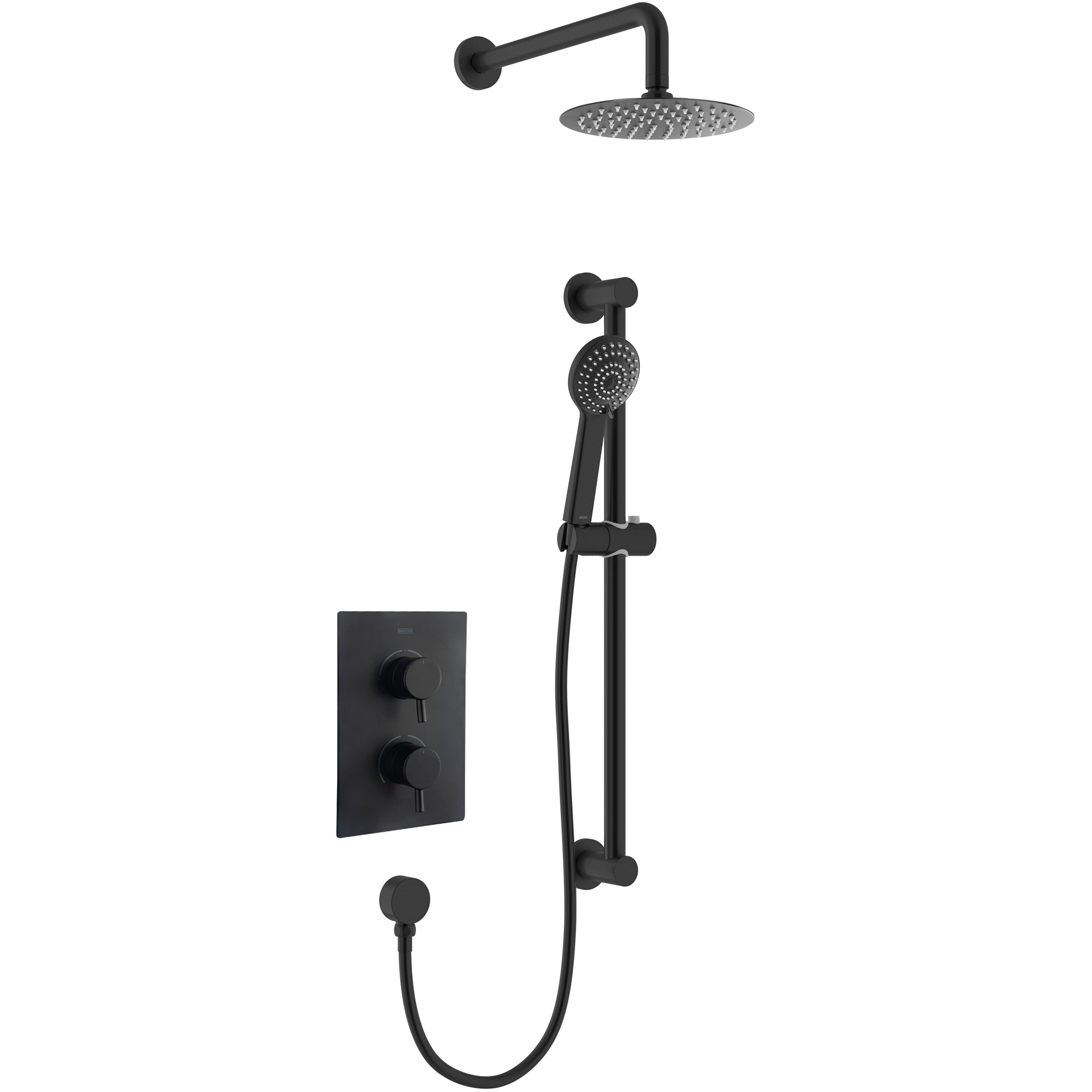

Pack Includes:
Shower Valve with Integral Two-Outlet Diverter

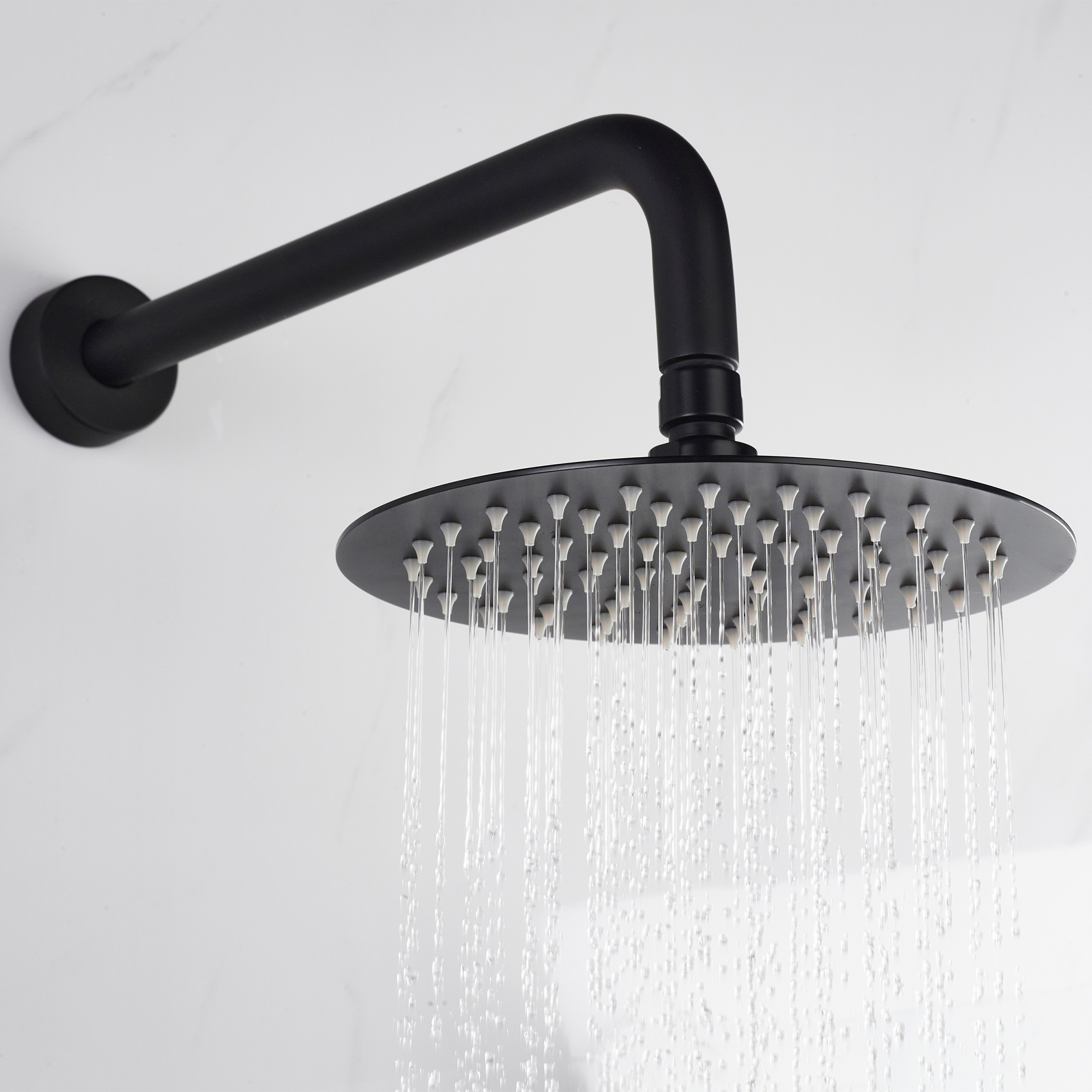

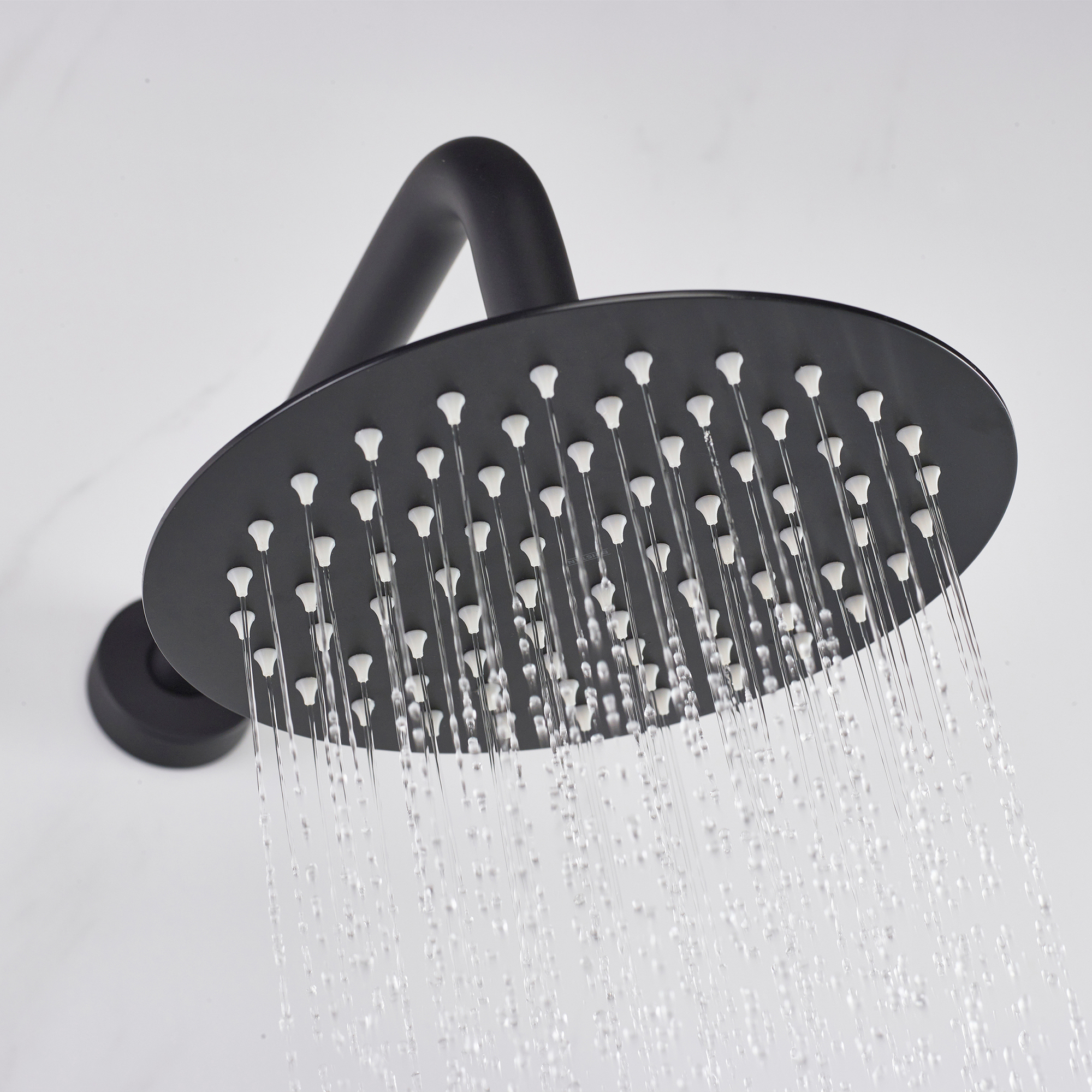

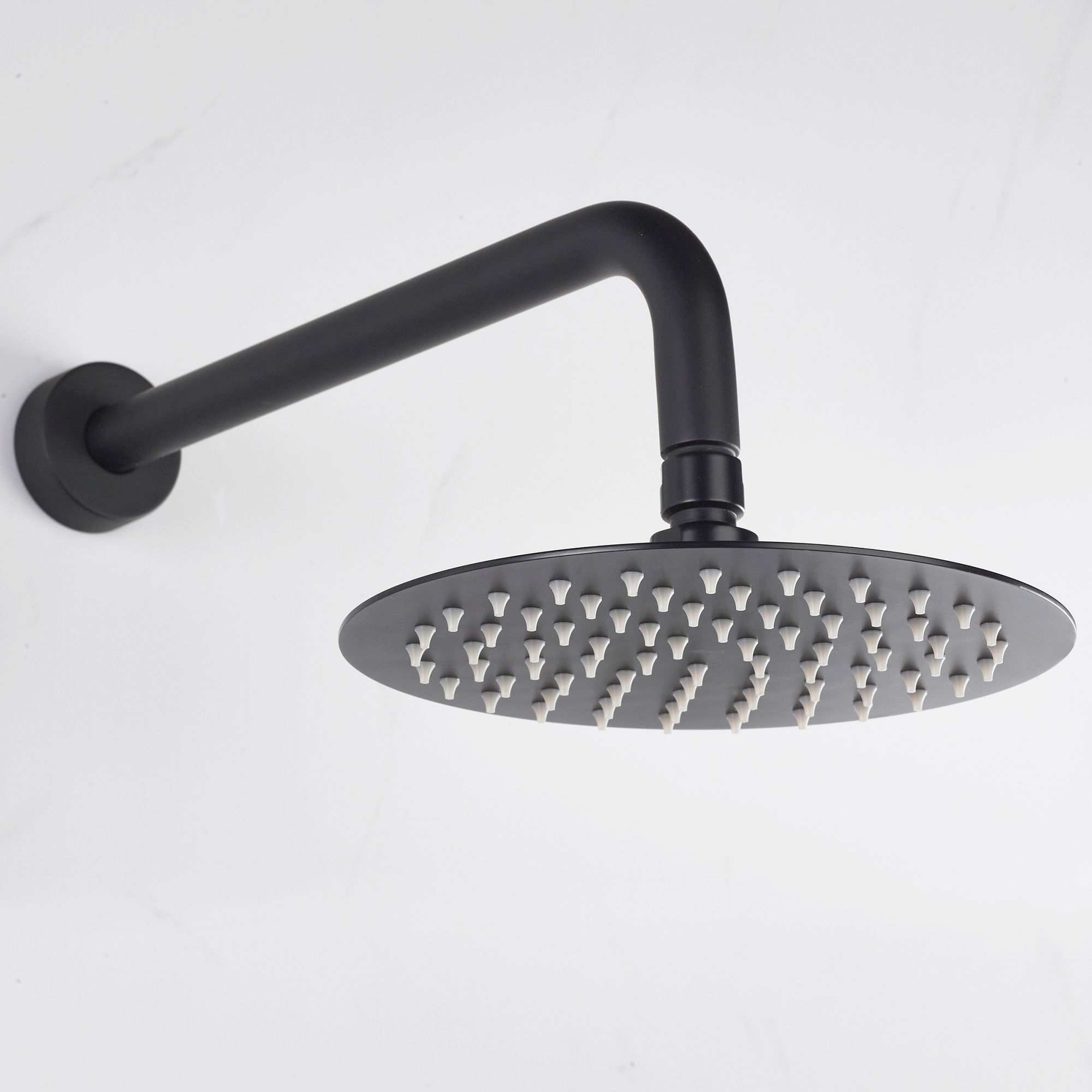

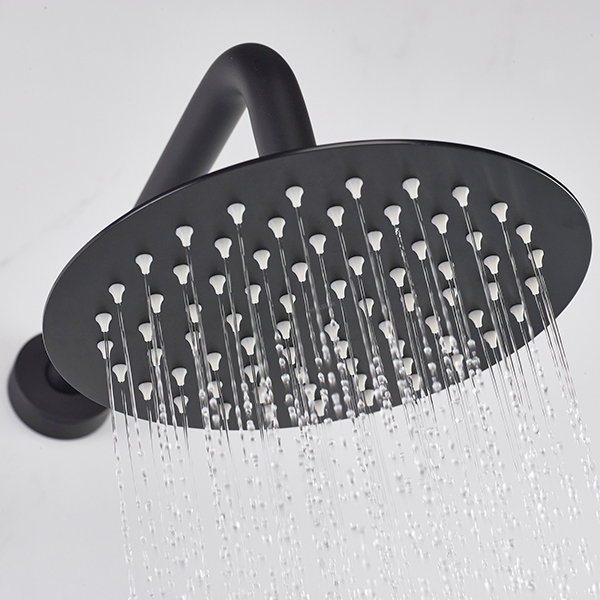

Slimline 200mm Round Drench Head with Shower Arm
Shower Kit with an Adjustable Riser Rail

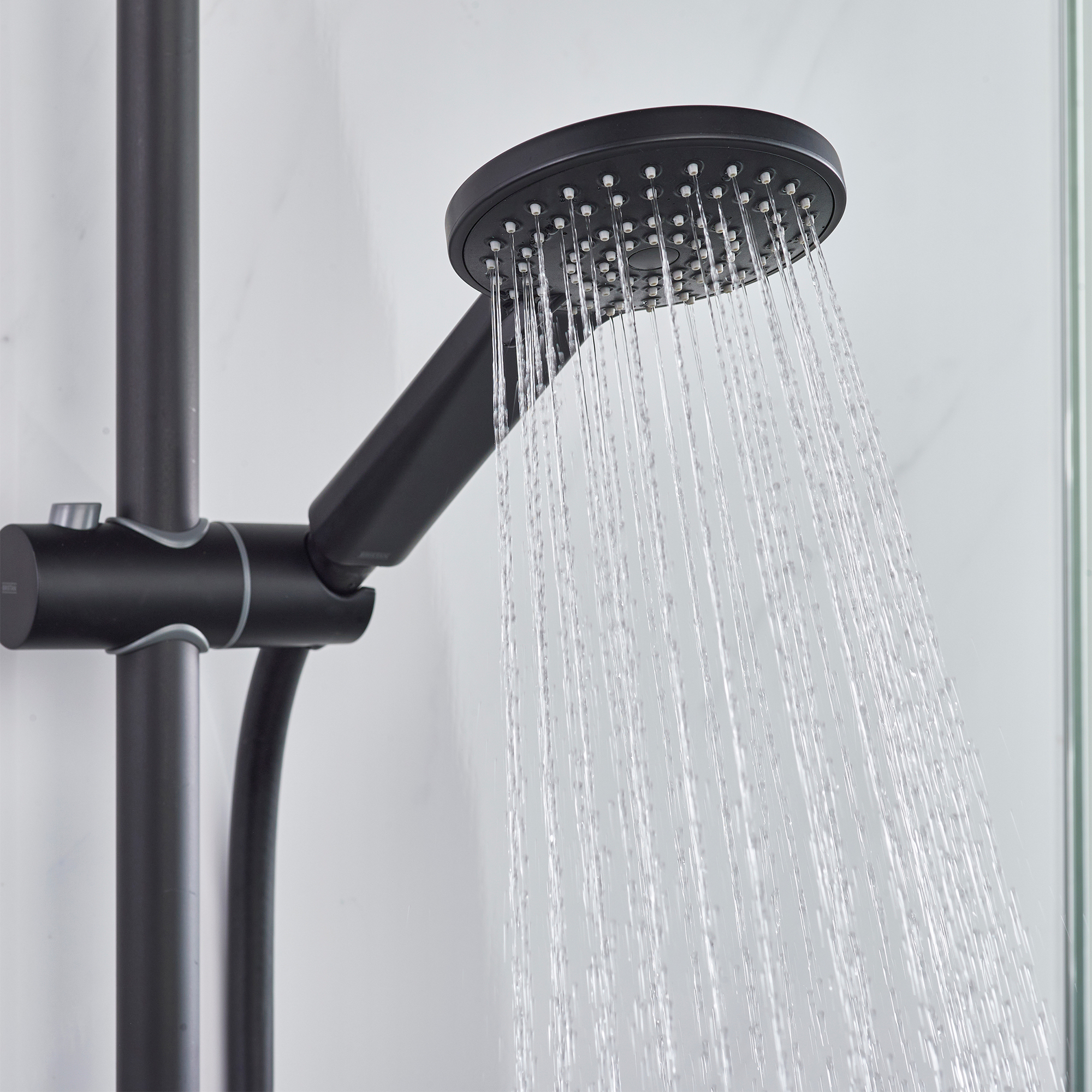

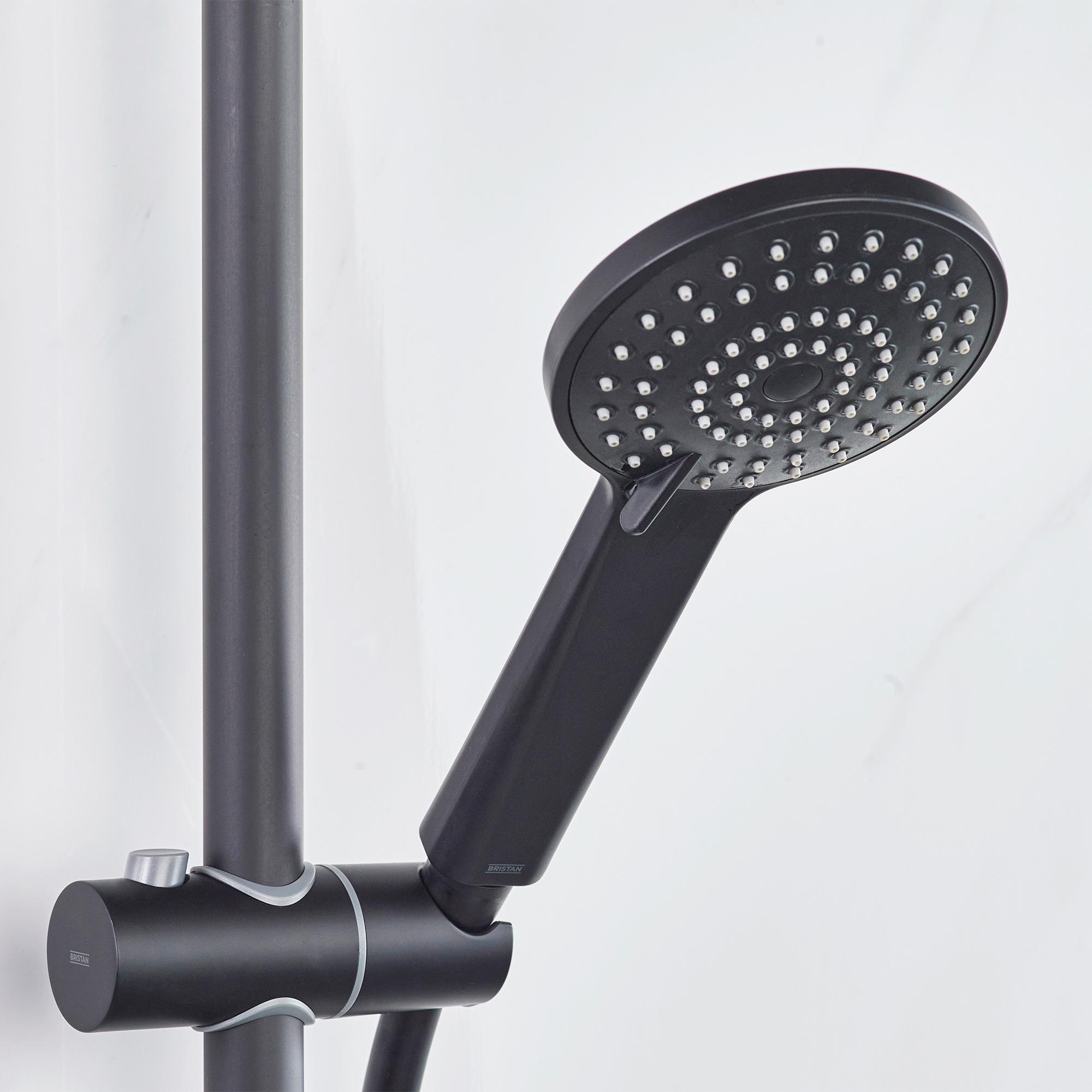

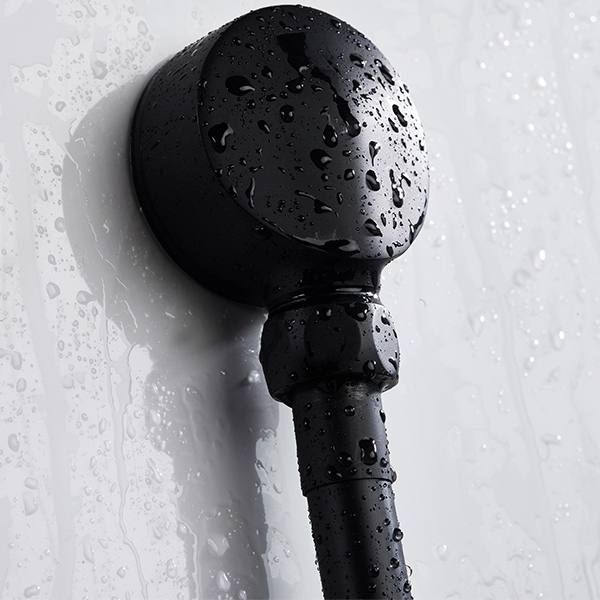

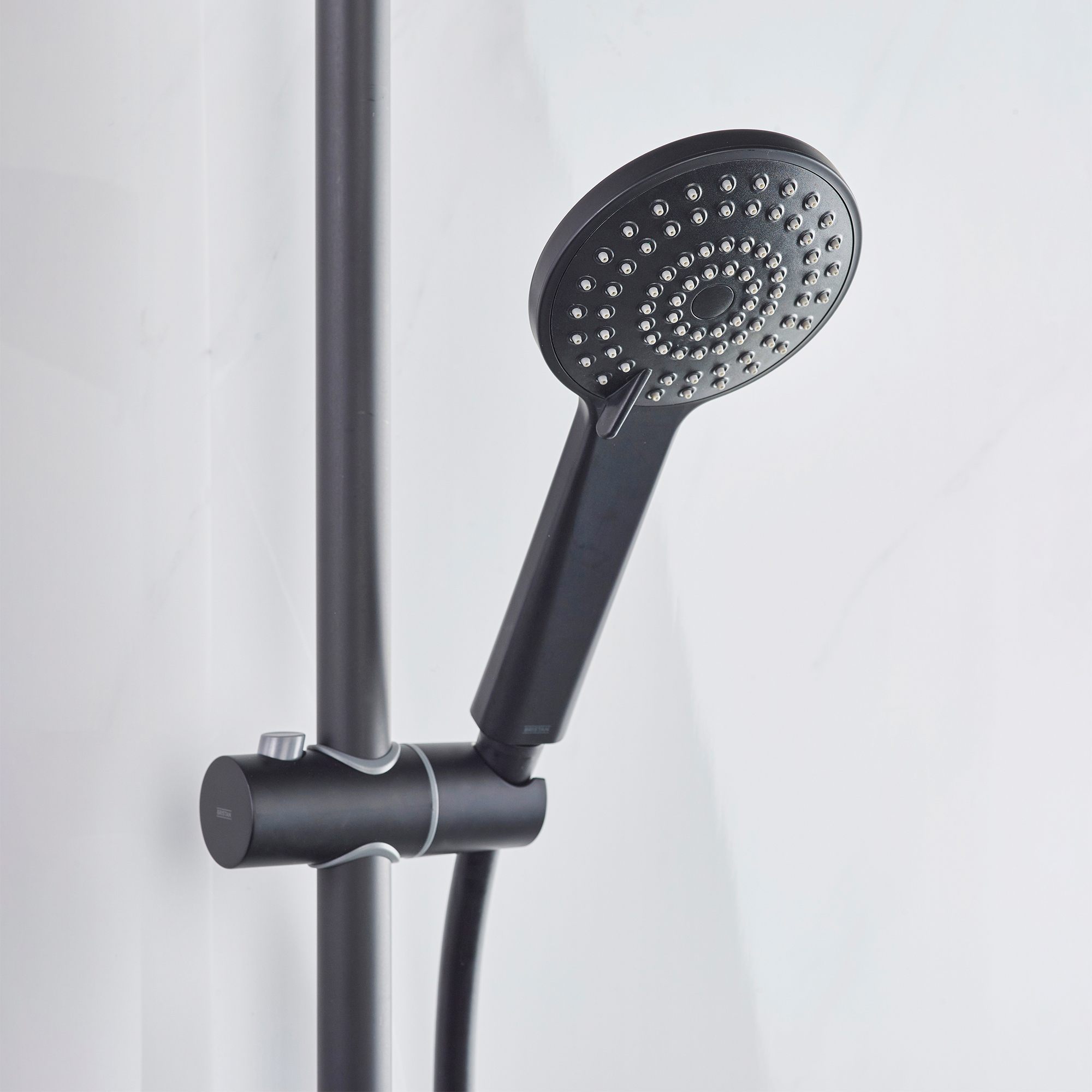

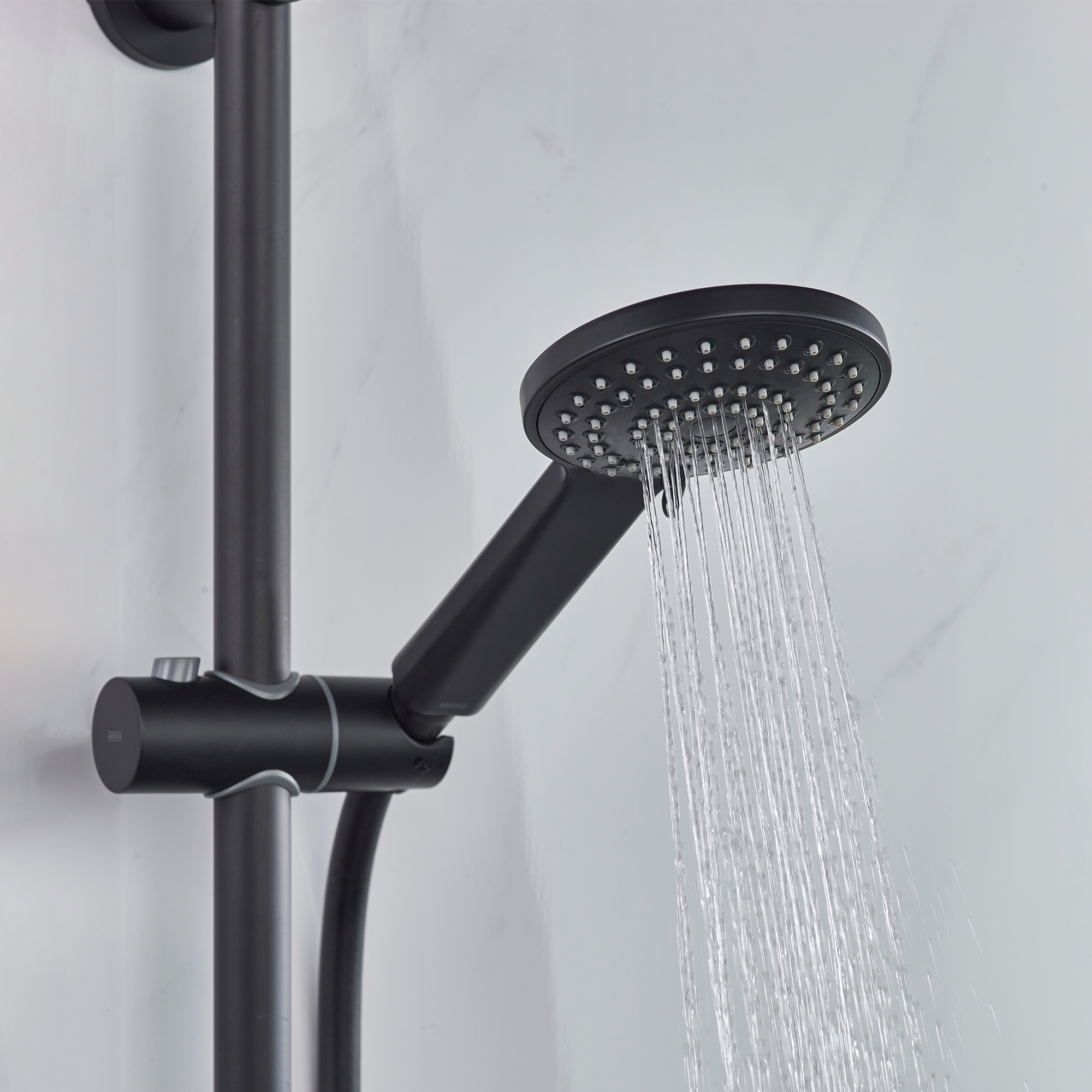

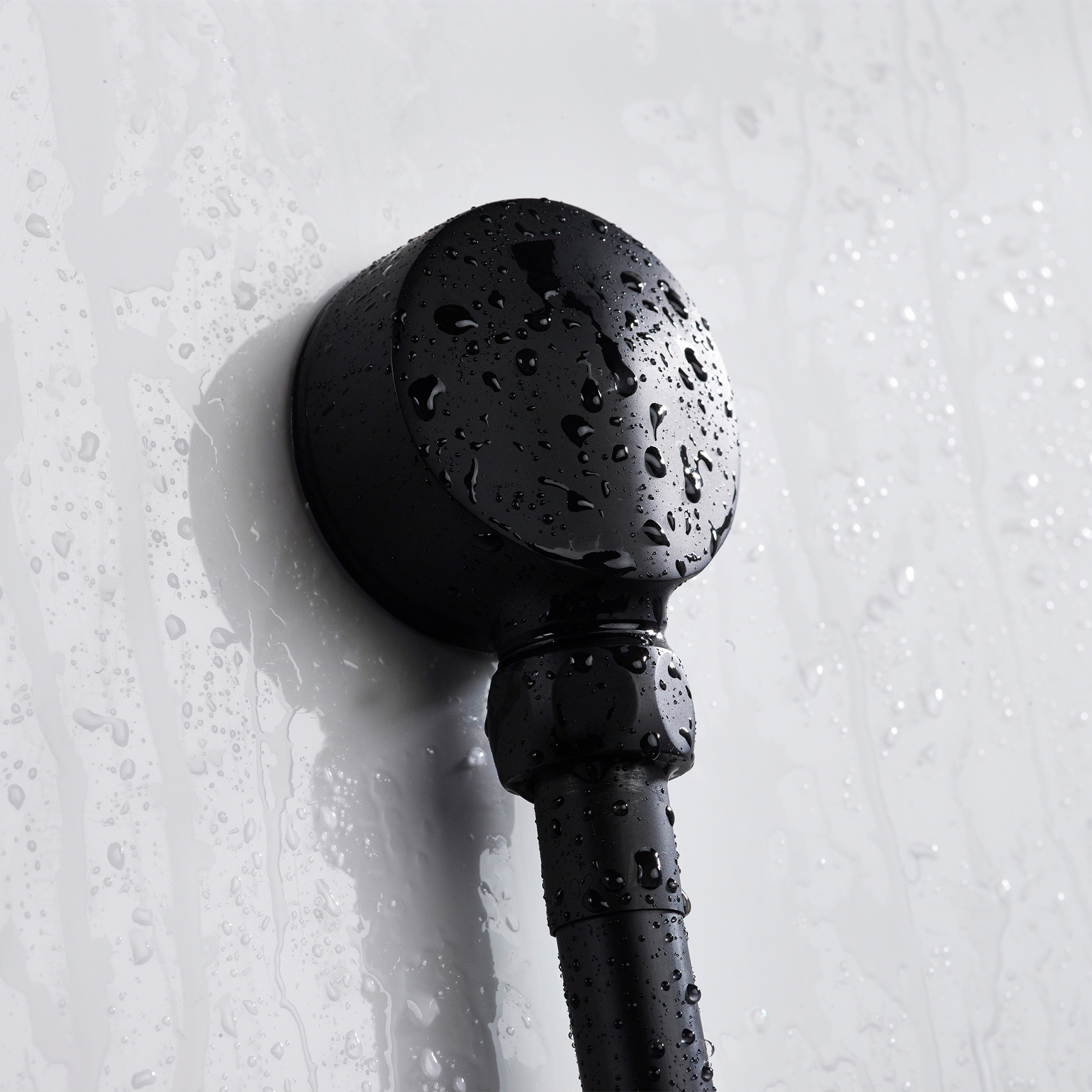

Multi-Function Handset and Wall Outlet

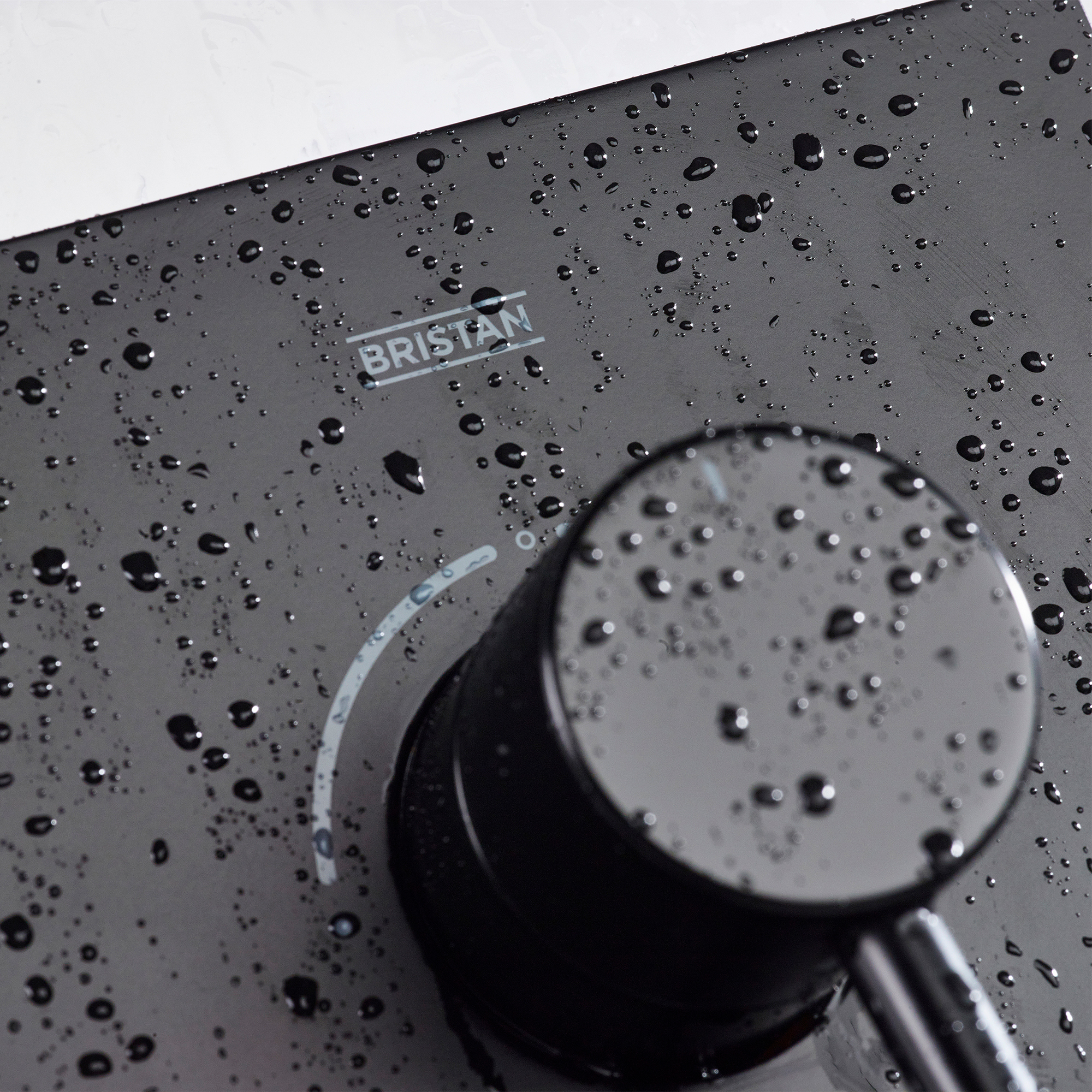

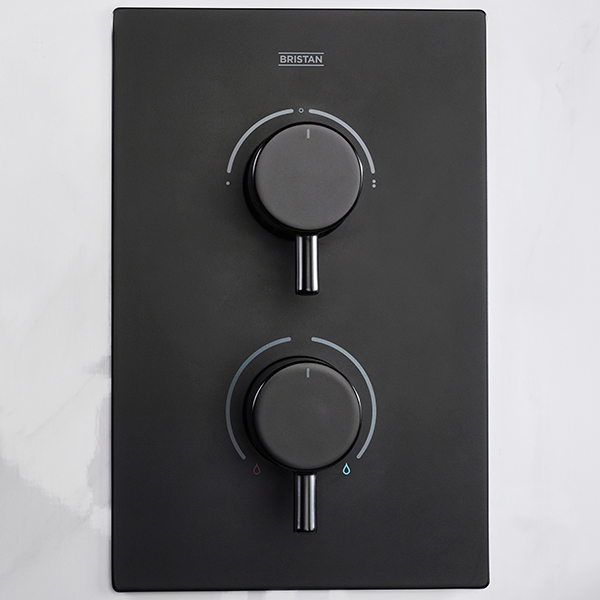

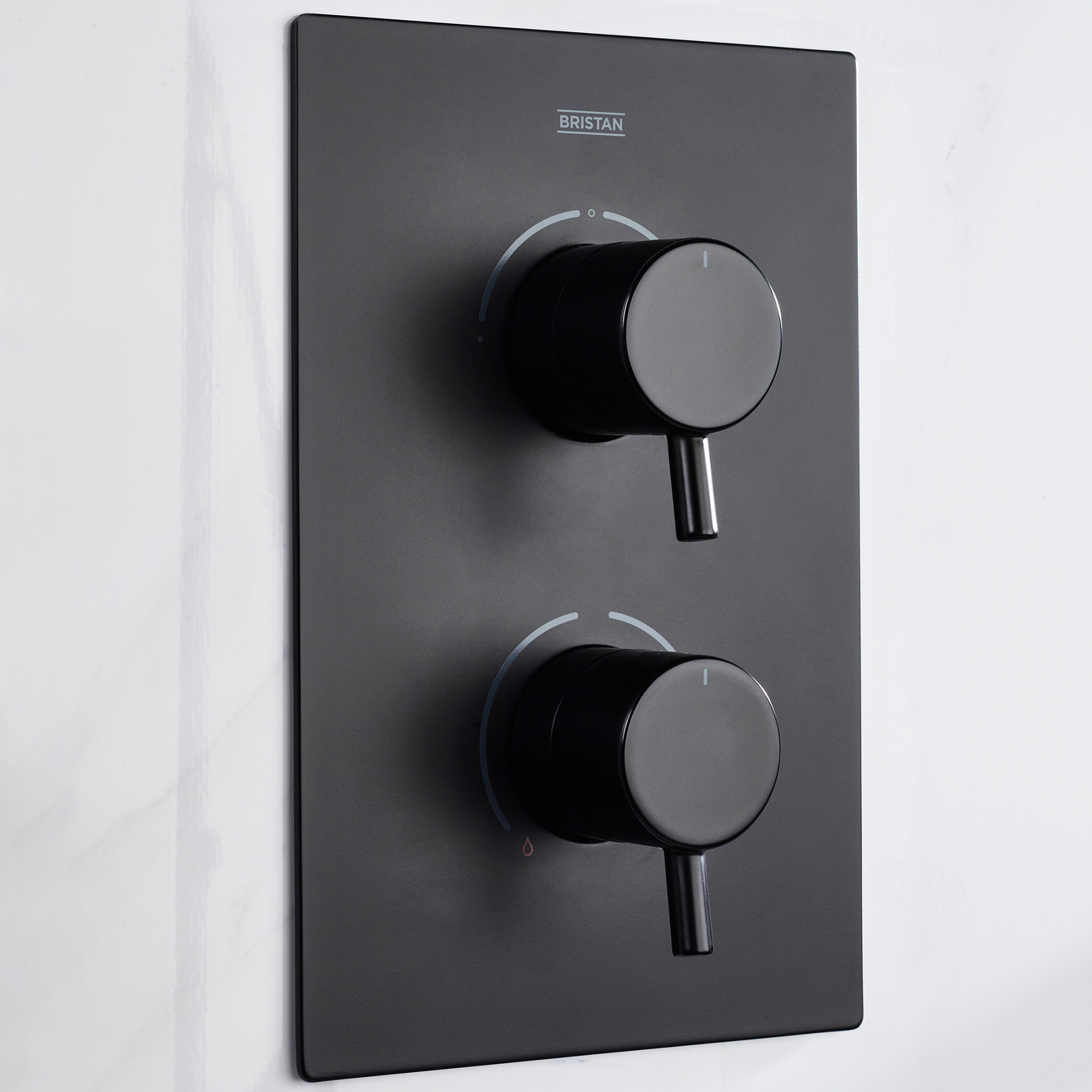

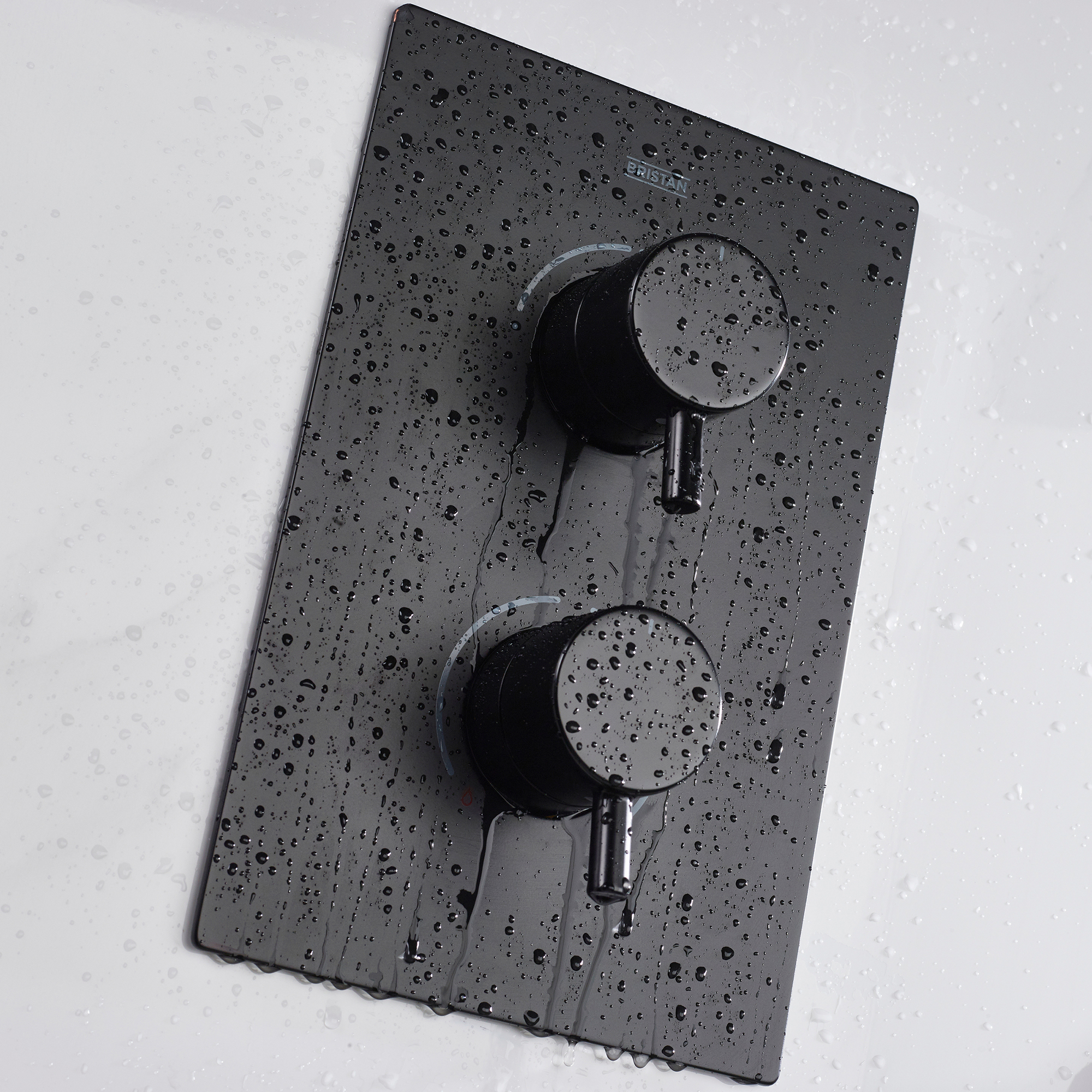

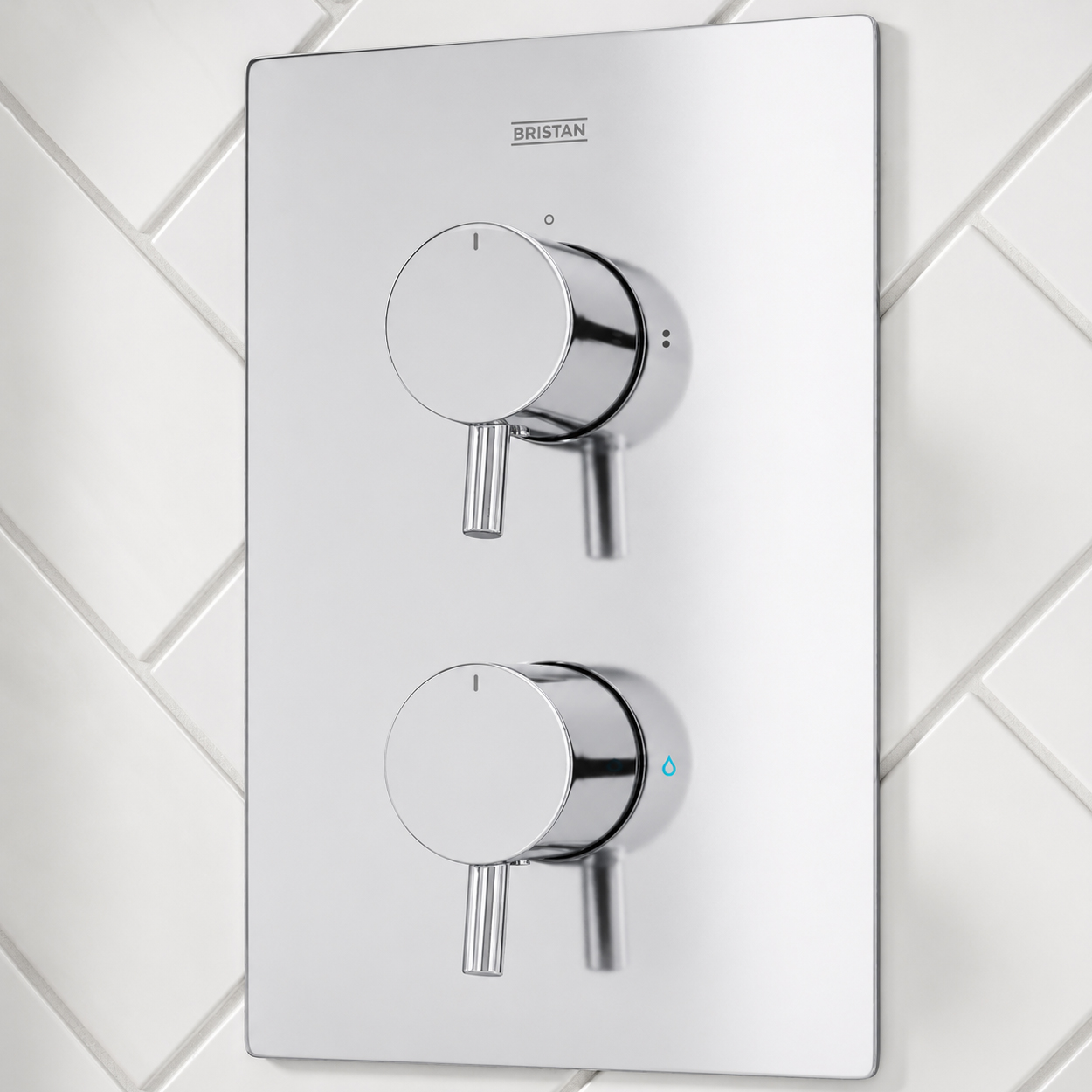

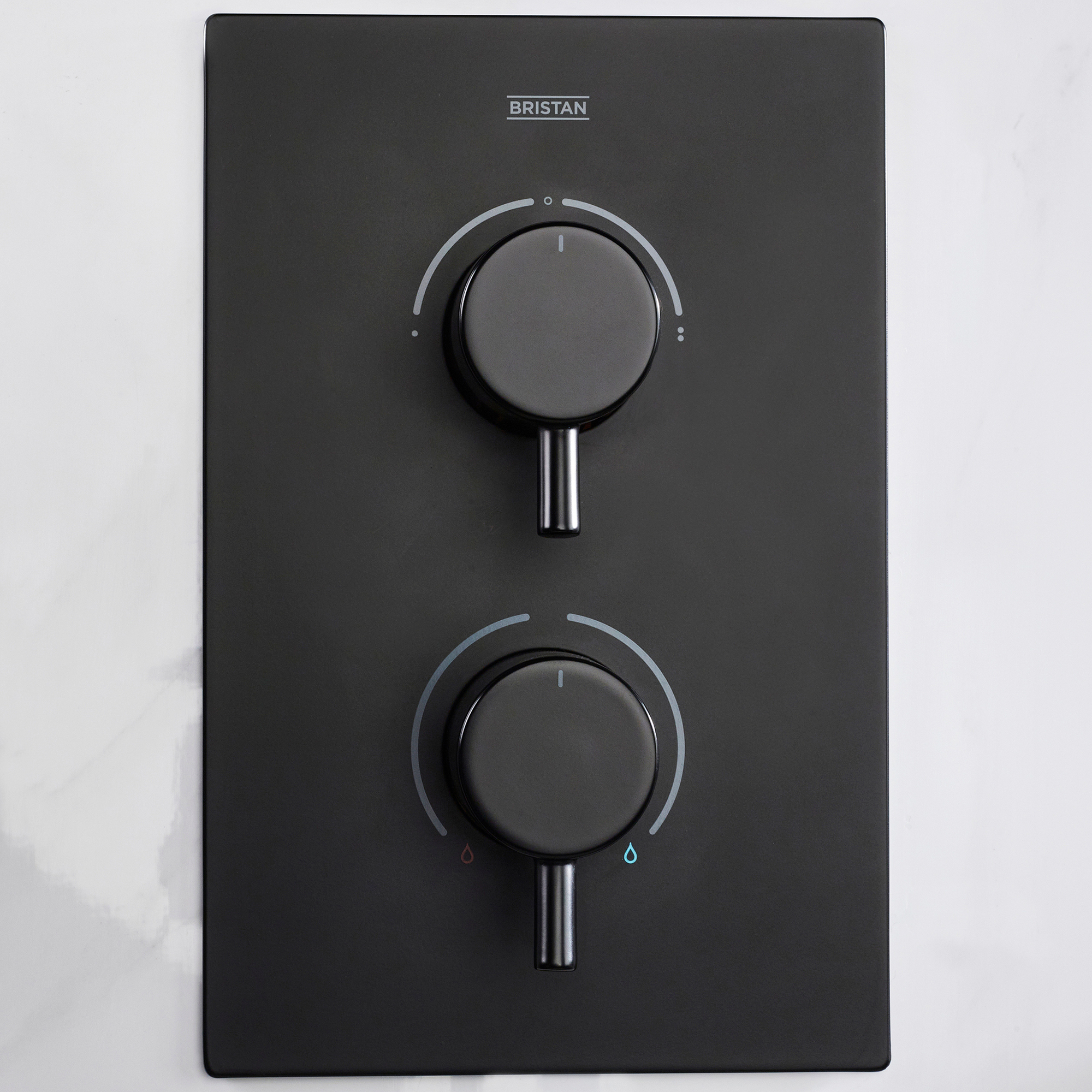

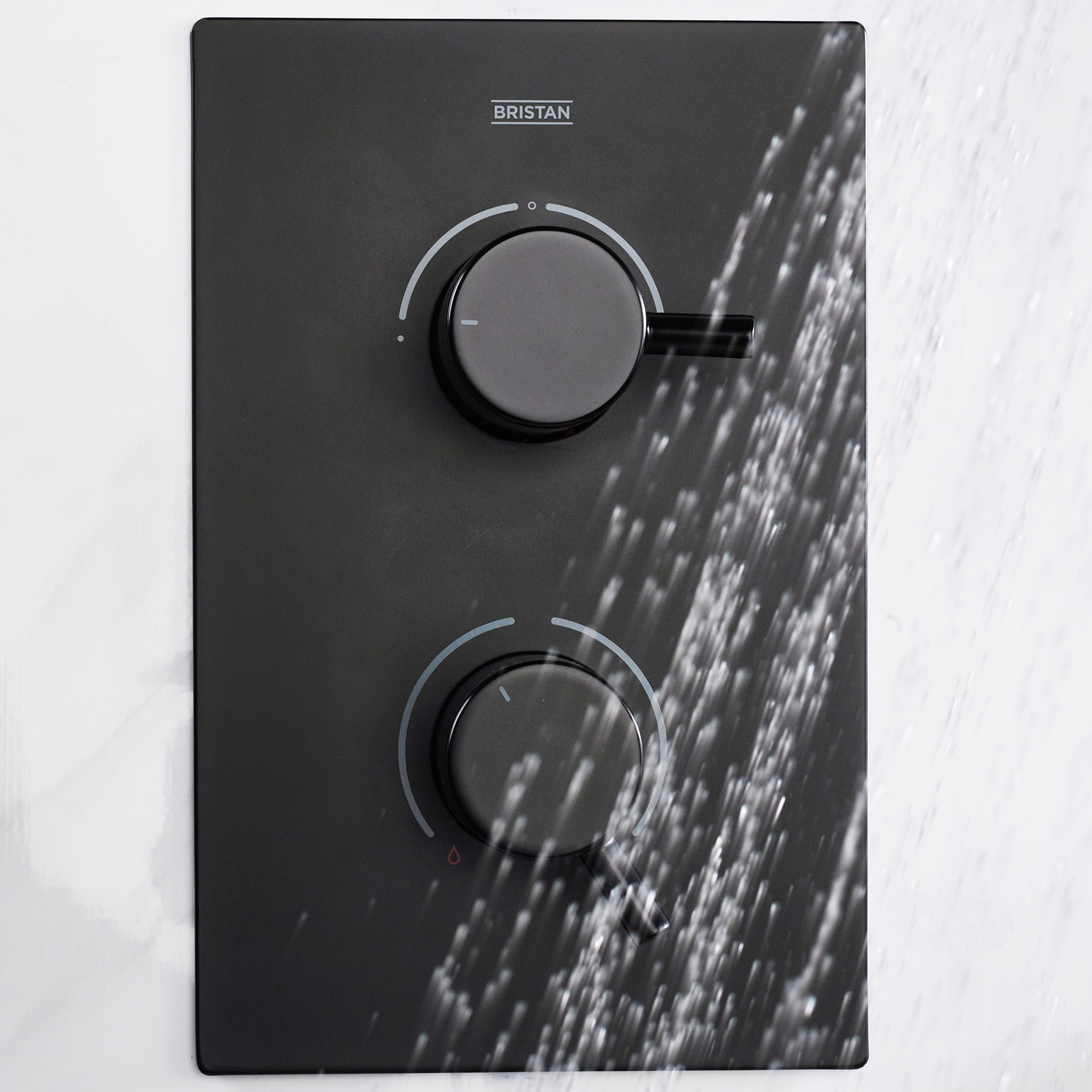

Dual Control - Flow and Temperature are Operated Separately, Giving Accurate Control of Both
Enjoy Peace of Mind with a 42°C Safety Stop, Including Override When Required
Shower Safely with Automatic Shut-off Protection if the Hot or Cold Water Supply Fails
Easy Installation with an Adjustable Faceplate That Fits Total Wall Depths from 45mm to 75mm for a Perfect Flush Finish
Multi-Function Rub-Clean Handset and Drench Head: Limescale and Debris Build-Up are Quickly and Easily Removed by Rubbing a Finger or a Cloth Over the Nozzles
No of Controls: 2
Shower Type: Dual Control
Shower Kit: Fixed Head and Adjustable Riser Kit
Valve/Cartridge Type: 35mm Thermostatic Cartridge
Maximum Hot Water Supply Temperature: 65°C
Suitable for All Plumbing Systems
Maximum Static Pressure [Bar]: 10
Suitable for Both Low and High Water Pressure
Requires a Minimum of 0.2 Bar to a Maximum of 5.0 Bar of Water Pressure
Connection Inlet: 15mm Compression
Connection Outlet: G 1/2 Inch
Height of Riser Rail: 730mm [73cm]
Length of Arm: 348mm [34.8cm]
Diameter of Head: Ø200mm [20cm]
Size of Handset [mm]: 95 x 230mm [Width x Height]
Size of Handset [cm]: 9.5 x 23cm [Width x Height]
Size of Valve [mm]: 165 x 110 x 255mm [Width x Depth x Height]
Size of Valve [cm]: 16.5 x 11 x 25.5cm [Width x Depth x Height]
Effortless Fitting with Adjustable Brackets That Reuse Existing Screw Holes

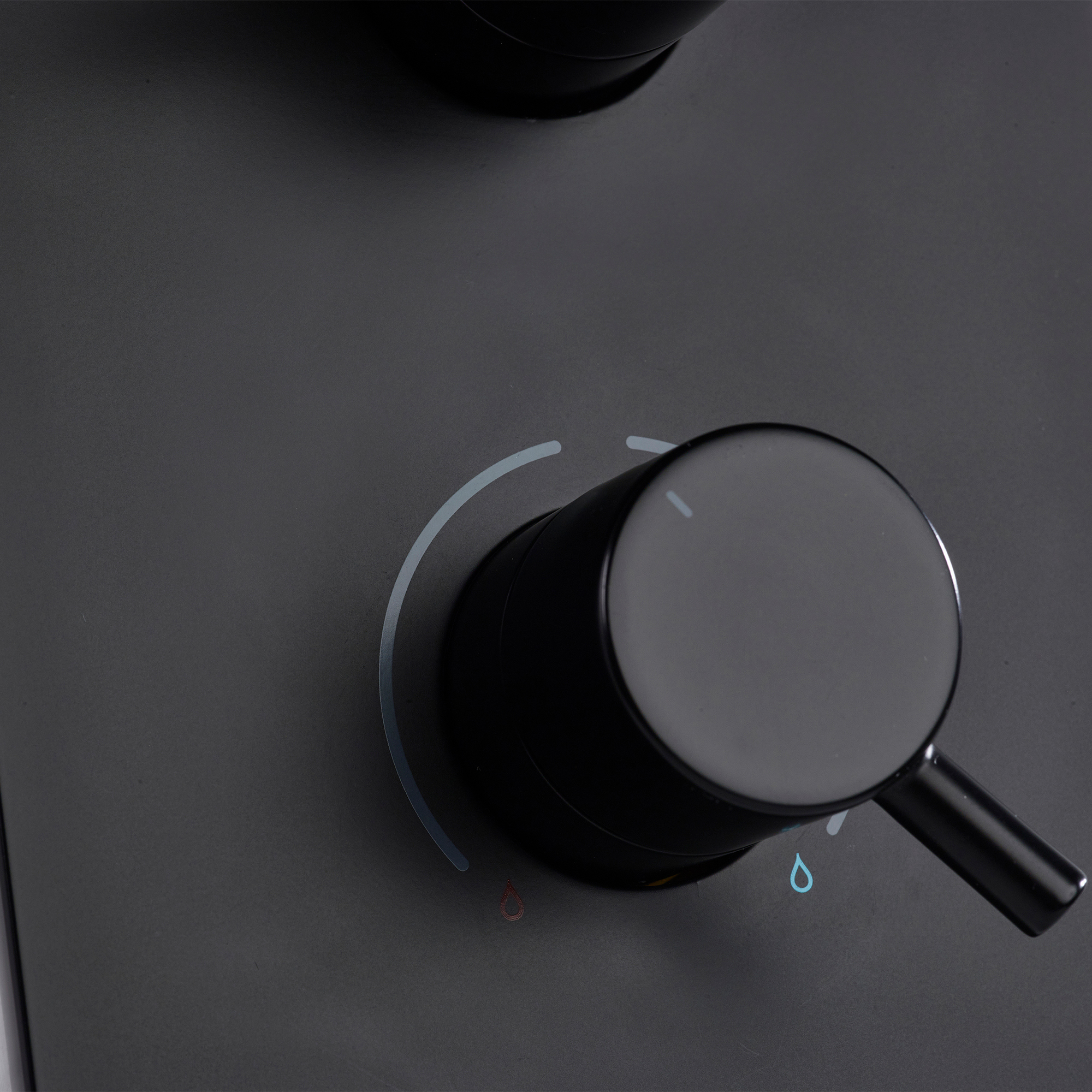

Control Your Perfect Shower Experience with Separate Flow and Temperature Controls for Precise Adjustment
Switch Effortlessly Between Handset and Drench Head with the Integrated Diverter
Save Time On Maintenance with a Front-Access Cartridge for Quick Servicing
Refer to the Technical Drawing for Size Details
Download the Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: Lifetime
⤷ Material
: ABS & Brass
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: 35mm Thermostatic Cartridge
⤷ Inlet Connections
: 15mm Compression
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Hose Included
: Yes
⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 165
⤷ Backplate Height
: 255
⤷ Diverter Included
: Yes

⤷ Product Type
: Shower Set
⤷ Plumbing System Compatibility
: Yes
⤷ Showerhead Type
: Fixed
⤷ Showerhead Finish
: Chrome
⤷ Riser Rail & Kit Finish
: Chrome
⤷ Numbered temperature control
: 42°C
⤷ Auto shutdown if hot or cold supplies fail
: Yes
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: Multi Function
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: Ø200
⤷ Rail Length
: 730
⤷ Outlet Elbow Included
: Yes

Additional Info & Downloads

This item can also be found in:

Thermostatic Mixer Showers

Bristan Apelo Concealed Thermostatic Dual Control Shower Pack

£359.00

RRP: ~~£644.57~~

STOCK AVAILABLITY: 3 Working Days Approx

QS Supplies

8 Features Included In This Product Explained

2 Outlets 1 On

There are two outlet connections, of which only one can be used at a given time.

Easy Fit Installation

The product is designed for fast and easy installation.

Rub Clean

Any limescale deposits can simply be wiped clean with a clean cloth - no need to scrub or use harsh cleaners.

Drenching

Drenching in Bristan showers means these showers soak you thoroughly, giving you the most indulgent showering experience.

ABS Plastic

ABS, or Acrylonitrile butadiene styrene, is a thermoplastic polymer used to manufacture many non-food products. It is inexpensive and can be easily shaped and machined. It also features high strength, stiffness, increased chemical and temperature resistance, electrical insulation and a glossy look.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...
