Kudos Infinite 1900mm High Straight Hinged Shower Door

QS-V32017

MFC CODE: 4HD80LHS

£433.20

RRP: £760.00

STOCK AVAILABILITY

5-7 Working Days Approx

4.1 out of 5  4.1 out of 5
7 out of 7 customers rated 83%

Review this Product

Shipping: £29.95

Variations
Technical
Select Door Width Step 1

Select Door Variant Step 2

Select Size Of A Side Panel Step 3

Select Tray Step 4

Select Tray Size Step 5

Select 90mm Hi-Flow Waste Step 6

Download the Installation Instructions For Recess Pdf File
Download the Installation Instructions For Corner Pdf File
Download the Installation Instructions For Peninsula Pdf File

Please Note all the measurements are in 'mm'
Country of Origin UK
Warranty/Guarantee Lifetime
Waste Included Sold Separately
Width 800
Configuration Door only
Height 1900
Door Type Hinged
Frame / Profile Finish Silver
Glass Thickness 8
Number Of Doors 1
Side Panel Included Sold Separately
Door Adjustment 765-805
Entry Width 425
Tray Included Sold Separately
Concealed Fixings Yes
Power Shower Proof Yes
Tray Compatible Yes

Kudos Infinite 4HD80LHS DETAILS

The Kudos Infinite 1900mm High Straight Hinged Shower Door is a semi-frameless design that includes silver, chrome-finished frame and 8mm thick toughened safety glass coated in Lifeshield protection. Available in both left and right-hand configurations and several different size options, this unit is not only suitable for use with power showers but also includes glass-to-glass seals that are crystal clear and concealed fixings as well. Complete with a unique three-dimensional adjustment system and chrome plated cast metal corner joints, this product is compatible with optional shower trays, side panels, a fast flow waste and more if chosen as a separate option along with this unit.

  • Available in different sizes [Optional]
  • Available in left or right hand fitting [Optional]
  • Semi frame-less design with silver chrome finish frame
  • Height: 1900mm
  • 8mm toughened safety glass with Lifeshield™ protection
  • Chrome effect wall sections
  • Crystal Clear, glass to glass seals
  • Unique three dimensional adjustment system
  • Suitable for use with power showers
  • Concealed fixings

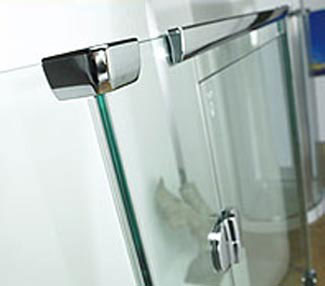

  • Chrome plated, cast metal corner joints
  • Installation Types:
  • Hinge Door Only (Recess)
  • Hinge Door + 1x Side Panel (Corner)
  • Hinge Door +2x Side Panels (Peninsula)

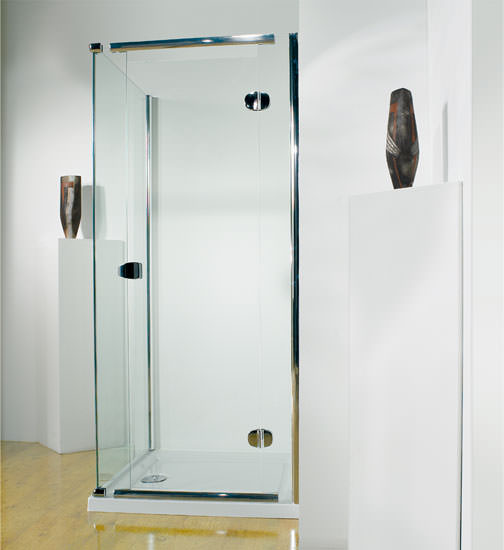

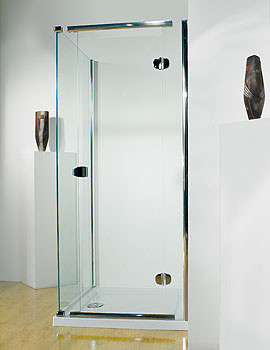

  • Image shown is for illustration purpose only
  • Tray and waste shown in the image are not included
  • Suitable side panels [Optional]
  • Kstone shower trays [Optional]
  • 90mm fast flow waste [Optional]
  • Plinths pack for easy installation [Optional]
  • 10mm wall profile extension [Optional]
  • Refer technical drawing for complete size details
  • Download installation instruction PDF from technical tab
  • Lifetime guarantee from the Kudos against any manufacturing defects.



Technical Images


CUSTOMISE YOUR PRODUCT
Leg Set And Plinth For Shower Tray

Leg Set And Plinth For Shower Tray

Leg Set and Plinth for Kstone shower trays choose the appropriate option from given below. Please Note: Image is for illustration purpose only.

Wall Extension Profiles

Wall Extension Profiles

Kudos Provides wall extension profile for extra 10mm adjustment for door / panels. Please note : image for illustration purpose only.


ADDITIONAL INFO


PRODUCT VARIATIONS INFO & MFC CODE
Available Variants Along With Manufacturing Code

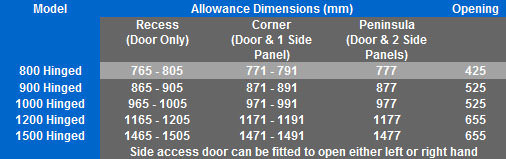

Door Size - mm Recess Adjustment - mm Corner Adjustment - mm Access Width - mm Left Hand - MFC Right Hand - MFC
800 765-805 771-791 425 4HD80LHS 4HD80RHS
900 865-905 871-891 525 4HD90LHS 4HD90RHS
1000 965-1005 971-991 525 4HD100LHS 4HD100RHS
1200 1165-1205 1171-1191 655 4HD120LHS 4HD120RHS
1500 1465-1505 1471-1491 655 4HD150LHS 4HD150RHS
Details For Side Panels
Panel Size - mm Adjustment - mm MFC
760 731-751 4SP76S
800 771-791 4SP80S
900 871-891 4SP90S
1000 971-991 4SP100S
1200 1171-1191 4SP120S
Details For Kstone Trays
Width - mm Depth - mm Waste Position Standard Tray - MFC With KAMBA Anti-Slip Coating - MFC Plinth MFC
800 800 Corner KS80 KS80AS KSPK100T
900 760 Corner KS9076 KS9076AS KSPK100T
900 800 Corner KS9080 KS9080AS KSPK100T
900 900 Corner KS90 KS90AS KSPK100T
1000 760 Corner KS10076 KS10076AS KSPK100T
1000 800 Corner KS10080 KS10080AS KSPK100T
1000 900 Corner KS10090 KS10090AS KSPK100T
1200 760 Corner KS12076 KS12076AS KSPK120T
1200 800 Corner KS12080 KS12080AS KSPK120T
1200 900 Corner KS12090 KS12090AS KSPK120T
1500 800 Centre KS15080 KS15080AS KSPK170T
1500 900 Centre KS15090 KS15090AS KSPK170T

Total: £433.20 5-7 Working Days Approx QS Supplies

You've Selected which adds to a total of



View
×


REVIEWS & RATINGS

Rate this Item.:






Questions & Answers

Submit Your Questions 1 Questions Asked

Have a question about this item? Ask our tech team. We aim to reply within 72 hours. If you want to know get answers fast, please call us on 0116 251 0051

David Asked :
Can you tell me if the side panel for the Kudos infinite shower enclosure is 6 or 8 mm toughened glass - I believe the door is 8mm Thanks David Gosling

Answered By QS Team :
The infinite side panel is 8mm thick
