Aquadart Inline 3 Sided Hinged Shower Door And Side Panels




RRP: £1267.00


5 Working Days Approx

4.0 out of 5  4.0 out of 5
3 out of 3 customers rated 80%

Review this Product

Shipping: £29.95

Available Sizes Step 1

Shower Tray Step 2

90mm Tray Waste Step 3

Download the Guarantee Terms And Condition Pdf File

Please Note all the measurements are in 'mm'
Warranty/Guarantee Lifetime
Installation Type Single Wall
Waste Included Sold Separately
Width 900
Depth 800
Configuration One Door And Two Side Panels
Height 1950
Fixings included Yes
Door Type Hinged
Frame / Profile Finish Polished Silver
Glass Type Clear
Glass Thickness 8
Number Of Doors 1
Side Panel Included Yes
Door Adjustment 870,1170,1370,1570
Side Panel Adjustment 760-785,860-885,
Entry Width 456,650
Tray Included Sold Separately
Easy to Clean Glass Yes
Concealed Fixings Yes
Power Shower Proof Yes

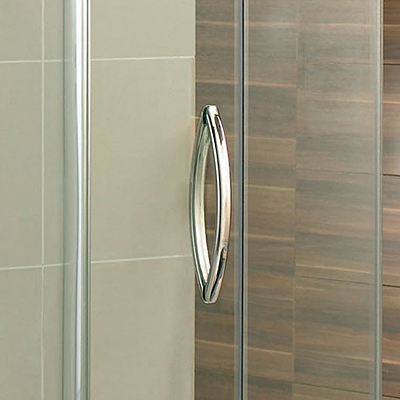

Handle Included Yes
Tray Compatible Yes

Aquadart Inline AQ1034 DETAILS

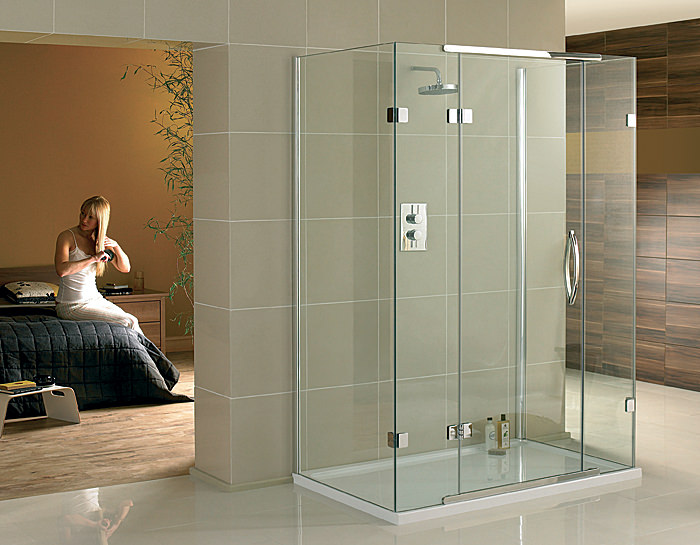

The Aquadart Inline 3 Sided Hinged Shower Door and Side Panel help to create a functional and sophisticated showering solution. Its smooth, defined lines, clear glass and polished silver profile make this ensemble the perfect choice for an impressively modern and roomy bathroom. The combination of high-quality craftsmanship and use of toughened safety glass material in its construction makes this set incredibly hardwearing and appealing. Expertly designed to suit a minimalist theme, this unit fitted with solid brass fixings exudes a cool, calm and stylish look. The almost seamless joins of the 3-sided design maximize the effect of light and space. It is power shower tested to perform through rough wear and tear.

  • Inline hinged door and two side panels
  • Height: 1950mm
  • Available in 8 sizes
  • 8mm thick toughened safety glass
  • Polished silver finish profile
  • Reversible design for left or right hand opening
  • Tray, waste and brassware shown in the image are not included - sold separately
  • Clean & Clear™ glass protection system
  • Features new clear seals

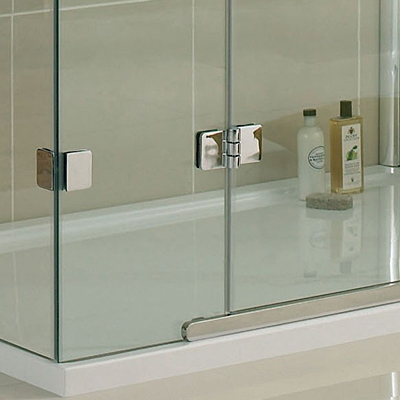

  • Includes high quality solid brass hinges and fixings
  • Generous adjustments and concealed fixings
  • Lifetime guarantee from the manufacturer against any manufacturing defects
  • Optional Products:
  • Trays, Waste and Extension Wall Profiles [Each profile adds 25mm in width, no adjustment]

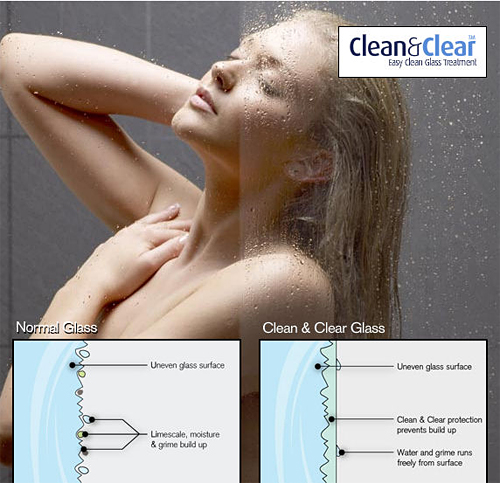

Clean&Clear™ easy clean glass treatment is applied as standard. This glass treatment creates a 'nonstick' surface which resists limescale build up and water spots making the enclosure easier to clean. For more details please refer additional image.
Cleaning Instructions: It is important to clean your enclosure after every use. Please wipe down all the glass and metal parts with a clean soft cloth. Ensure that all residual water on the glass is removed after every use.
Note: The above product is shower door with two side panel, which can be used for single wall installation.

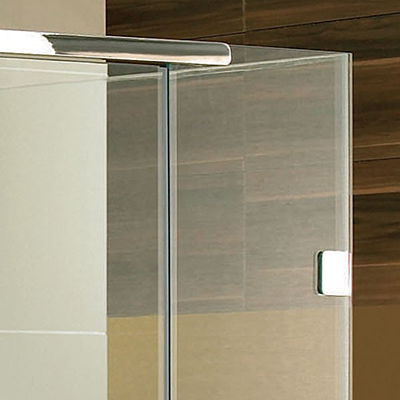

Extension Wall Profile

Extension Wall Profile

Two matching wall channels available in polished silver finish. Please note: Image is for illustration purpose only.

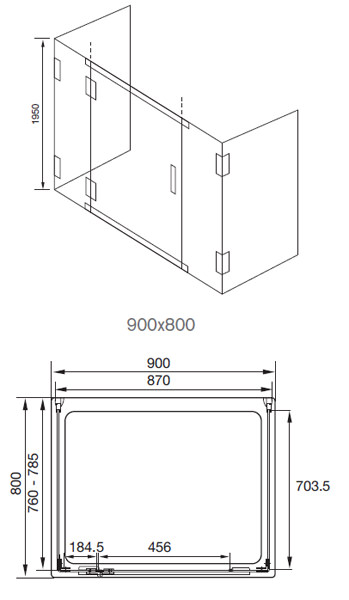

Details Of Sizes
Size Adjustment Aperture MFC
900 x 800mm 870-760-785mm 456mm AQ1034
900 x 900mm 870/860-885mm 456mm AQ1030
1200 x 800mm 1170/760-785mm 650mm AQ1031
1200 x 900mm 1170/860-885mm 650mm AQ1035
1400 x 800mm 1370/760-785mm 650mm AQ1037
1400 x 900mm 1370/860-885mm 650mm AQ1032
1600 x 800mm 1570/760-785mm 650mm AQ1033
1600 x 900mm 1570/860-885mm 650mm AQ1038
Shower Tray Details
Shower Tray Size Height MFC
Stone Resin White 900 x 800mm 45mm AQ9-9080
Stone Resin White 900 x 900mm 45mm AQ9-9090
Stone Resin White 1200 x 800mm 45mm AQ9-1280
Stone Resin White 1200 x 900mm 45mm AQ9-1290
Stone Resin White 1400 x 800mm 45mm AQ9-1480
Stone Resin White 1400 x 900mm 45mm AQ9-1490
Stone Resin White 1600 x 800mm 45mm AQ9-1680
Stone Resin White 1600 x 900mm 45mm AQ9-1690
WAIFER Upstand Stone White 900 x 900mm 45mm 2504U
WAIFER Upstand Stone White 1200 x 800mm 45mm 2512U
WAIFER Upstand Stone White 1200 x 900mm 45mm 2513U
Aqualavo Gloss White 900 x 900mm 37mm AQ5407/000
Aqualavo Gloss White 1200 x 800mm 37mm AQ5509/000
Aqualavo Gloss White 1200 x 900mm 37mm AQ5600/000
Aqualavo Gloss White 1400 x 800mm 37mm AQ5603/000
Aqualavo Gloss White 1400 x 900mm 37mm AQ5604/000
Aqualavo Gloss White 1600 x 800mm 37mm AQ5701/000
Aqualavo Gloss White 1600 x 900mm 37mm AQ5702/000
Waste Details
Tray Waste Finish MFC
Aqualavo 90mm Waste Cover/Grill Silver 540Q/700
Aqualavo 90mm Waste Cover/Grill Black 540Q/999
90mm Grid Style Waste Chrome AQ9-GW/700
90mm Grid Style Waste Black AQ9-GW/999
90mm Turbo Flow Waste 630AQ-90

Total: £556.80 5 Working Days Approx QS Supplies

You've Selected which adds to a total of



Here's what people are saying about this item.

Rate this Item.:

Hide All Reviews

Basingstoke Date: September 22, 2015

Pleasantly surprised
I had found it difficult to find a 3 sided shower enclosure so I was a bit weary ordering this online but it has proved very sturdy and looks good

1 of 1 People have found this Review useful


  • Quality:
  • Value For Money:
  • Style:

Date: February 4, 2010

Enclosure was excellent value and delivered within 48 hrs Excellent Service Thank you QS

4 of 4 People have found this Review useful


  • Quality:
  • Value For Money:
  • Style:

Questions & Answers

Submit Your Questions 4 Questions Asked

Have a question about this item? Ask our tech team. We aim to reply within 72 hours. If you want to know get answers fast, please call us on 0116 251 0051

Michael Asked :
I have a wet room with stone floor, I find the room too cold and uninviting can this shower cubicle go directly on the floor ? Many thanks, Michael Wilson

Answered By QS Team :
No, the shower enclosure needs to go on a shower tray.

Was this answer helpful? -

Renato Asked :
What are the extension wall profiles for, for item MFC CODE:AQ1030 Because I’m not sure if I need them and what would I need them for, thank you

Answered By QS Team :
The extension wall profiles will move the enclosure 25mm out from the wall. If the tray is fit correctly you will not need them.

Was this answer helpful? -

Alan Asked :
Hello - I'm looking at the Aquadart Inline 3 Sided Hinged Shower Door And Side Panels ranges and was wondering if this came in 900mm (side) x 2 and 800mm (door) x 1? I've seen the other way round but not this. Can this be done? Our tray has been laid so we need to find these exact dimensions. Thanks.

Answered By QS Team :
Sorry for the inconvenience to search the exact product, but Aquadart does not do bespoke shower units, they only do the specific sizes.

Was this answer helpful? -

Tom Asked :
Hello, shower AQ1034 does not come with a shower tray or brass fittings. I have been led to understand the brass fitting is only the door handle. My question is do you supply a handle if required? If not, is the glass door pre-drilled to fit a handle?

Answered By QS Team :
We do not supply parts to this enclosure. If the item has been bought from us you have a warranty with the manufacturers for defects and you need to contact our support team giving your order number who will guide you to resolve any issues. The door is pre-drilled to take handles.

Was this answer helpful? -
