Methven Avoca Chrome Thermostatic Bath Mixer Tap, Satinjet Handset, AVTBSM

Methven Avoca Details

MFC: AVTBSM

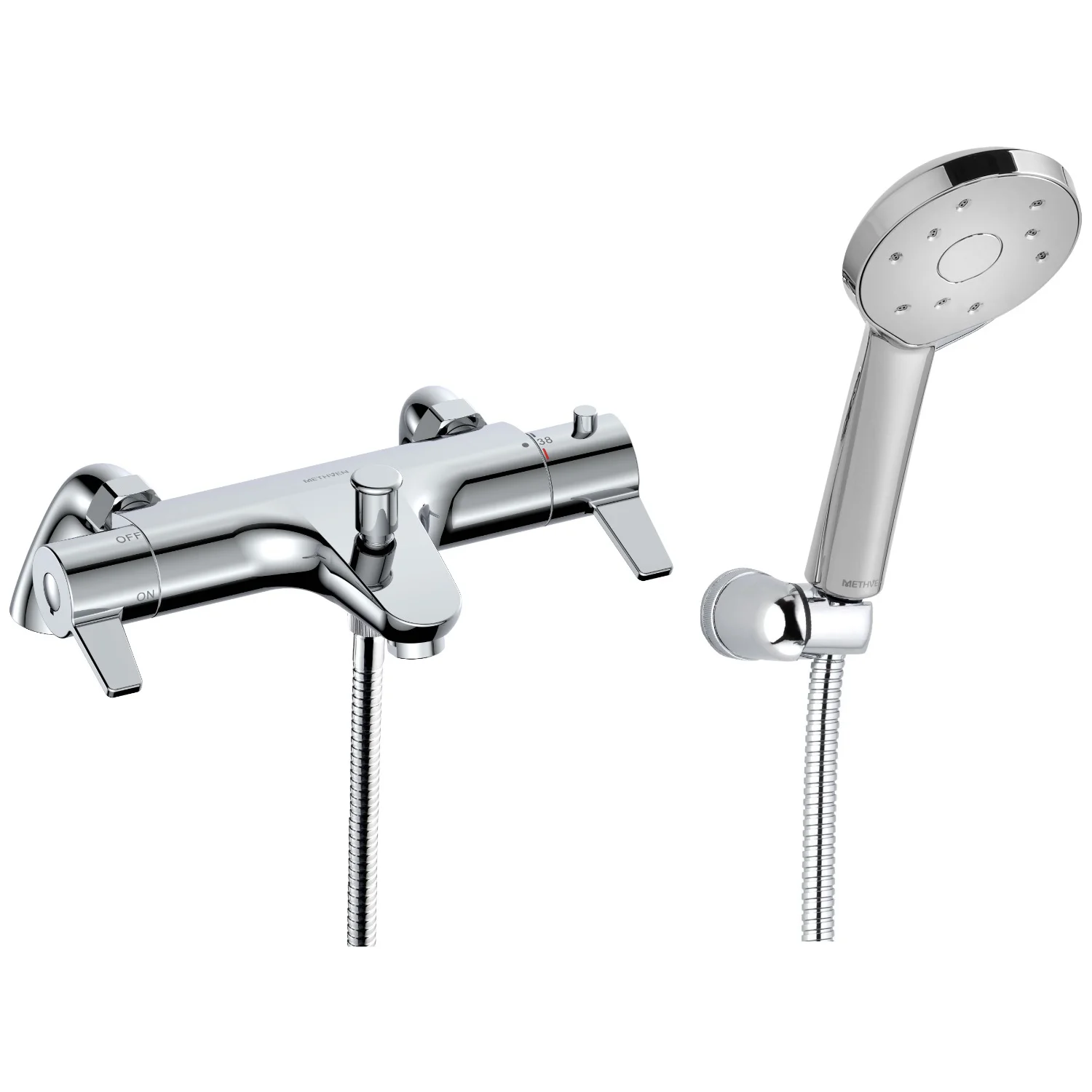

Methven Avoca Chrome Thermostatic Bath Mixer Tap with Satinjet Handset - Paddle Lever

Key Features

✔Thermostatic Control
✔Includes Brass Pillars
✔TMV-2 and NSF Approved
✔Manufactured Using Brass Material
✔5-Year Warranty from the Manufacturer Against any Manufacturing Defects

Choice of Variation: Standard Flow Handset, Low Flow Handset
It Comes in a Polished Chrome Finish
Effortless Operation
Width: 261mm [26.1cm]
Inlet Centres: 180mm [18cm]
Separate Temperature and Flow Controls Provide Precise Control
Built-In 38°C Safety Hot Stop Mechanism with an Override Button
Easy-to-Use Large Paddle Levers for Ease of Operation
Suitable For a 2 Tap Hole Bath
Complete with Satinjet Kiri MK2 Handset & Wall Bracket
Patented Satinjet Showering Technology is optimised at 8 or 5.5 L/Min On the LF Version
1500m Double Interlocked Anti-Twist Hose
Thermostatic Control with 38°C Temperature, Hot Stop with Override
Water Efficient Without Compromising Showering Performance
Safety Hot Stop Function Prevents Accidental Scalding
Brass Backnuts for Secure Installation
Inlet Connections: 3/4 Inch BSP
Suitable for Medium and High Water Pressure Systems
Requires a Minimum of 0.5 Bar to a Maximum of 5.0 Bar Water Pressure

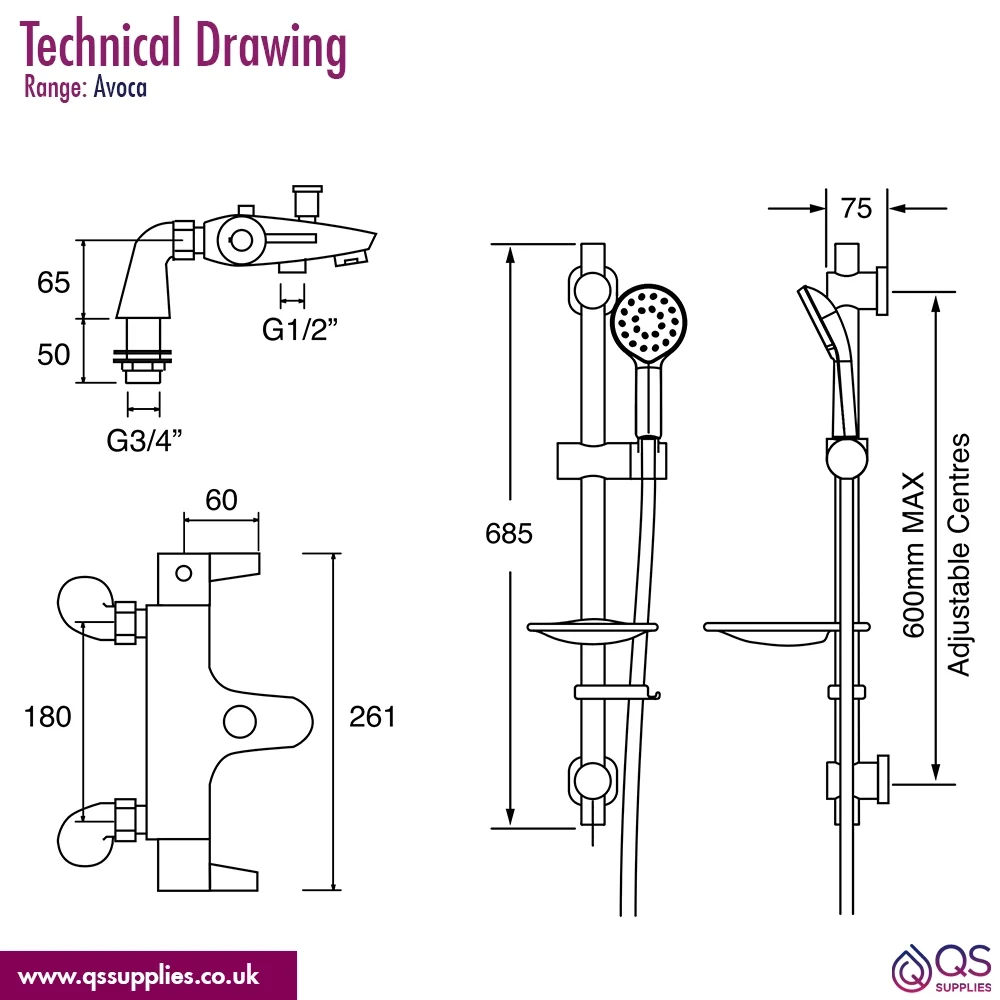

Refer to the Technical Diagram for Complete Technical Dimensions

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Avoca
⤷ Handle Position
: Left, Right
⤷ Colour
: Chrome
⤷ Shape
: Round
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ No. of Holes Required
: 2
⤷ Inlet Centres
: 180
⤷ Width
: 261
⤷ Inlet Connections
: 3/4 Inch BSP

⤷ Hose Included
: Yes
⤷ Hose Length
: 1500
⤷ Hand-Shower Included
: Yes
⤷ Handle Style
: Paddle Lever
⤷ Number of Handles
: 2
⤷ Outlet Connection
: G 1/2 Inch
⤷ Diverter Included
: Yes
⤷ Compliance/Approvals/Standard
: TMV2, NSF
⤷ Barcode
: 5057199883056
⤷ Product Type
: Bath Shower MIxer
⤷ Maximum Operating Pressure (Bar)
: 0.5

Additional Info & Downloads

This item can also be found in:

Methven Avoca Chrome Thermostatic Bath Mixer Tap with Satinjet Handset - Paddle Lever

£351.60

RRP: ~~£440.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

Satinjet

Satinjet® uses unique twin-jet technology to modify the water droplets' size and pressure while creating more than 300,000 droplets per second. The resulting sensation during the shower is so thrilling that it can be considered the perfect showering experience. These come in many variations, both gentle and invigorating.
