Methven Avoca Contemporary Pair of Chrome Basin Tap, Lever Handles, AVBTCP

Methven Avoca Details

MFC: AVBTCP

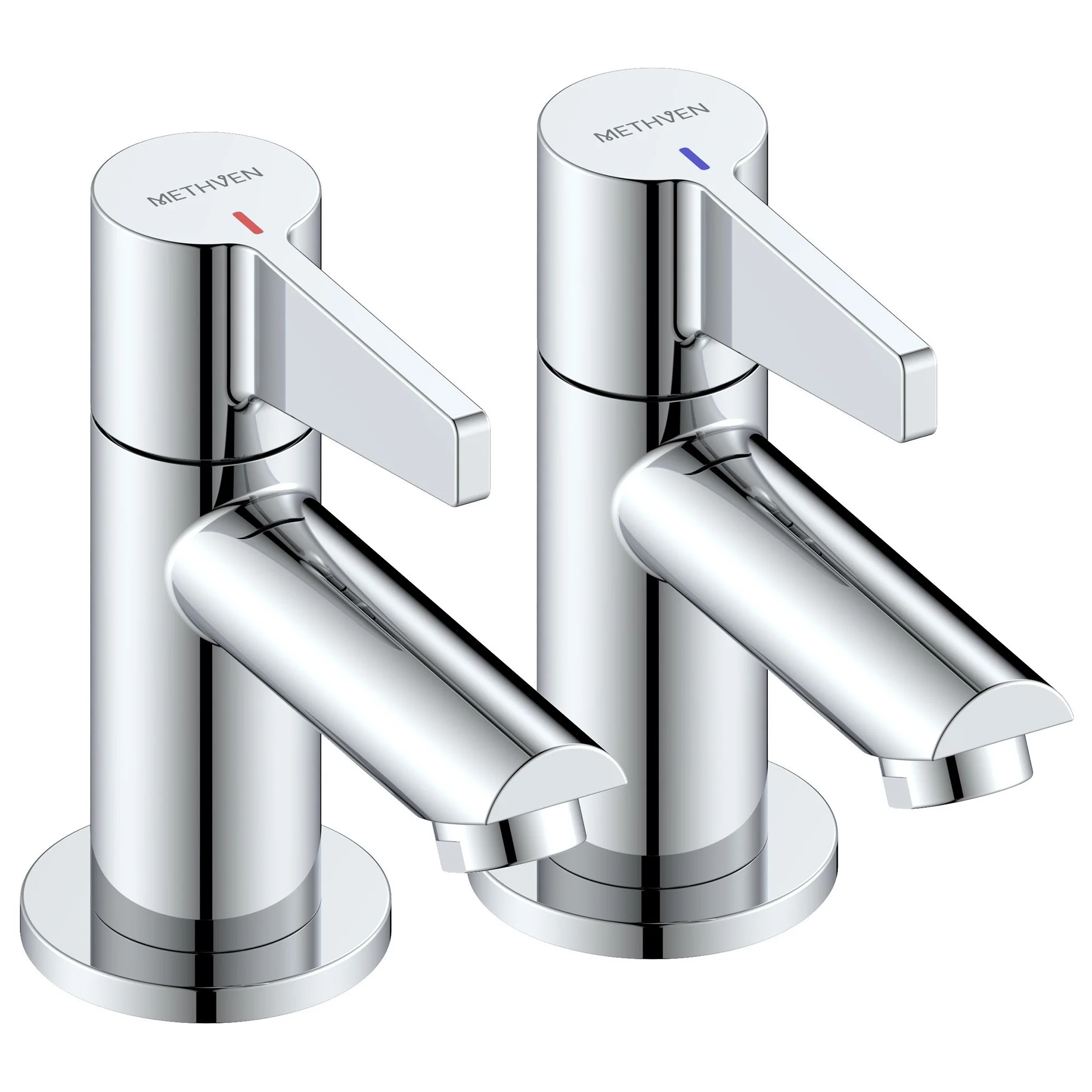

Methven Avoca Contemporary Pair of Chrome Basin Tap - Lever Handles

Manufacturing Code of this Product: AVBTCP
It Comes in a Polished Chrome Finish
Height: 104mm [10.4cm]
Base To Spout: 48mm [4.8cm]
Centre of the Inlet to Centre of the Outlet: 75mm [7.5cm]
Inlet Connections: 1/2 Inch BSP
Fitted with 4 L/min Flow Regulators
Coloured Hot & Cold Temperature Indicator
Supplied with Pre-Fitted Flow Straightener
Suitable for Low and High Water Pressure Systems
Requires a Minimum of 0.3 Bar to a Maximum of 5.0 Bar Water Pressure
Durable Brass Back Nuts for Added Strength and Longevity
Delivers Smooth, Precise Operation and Long‑Lasting Reliability

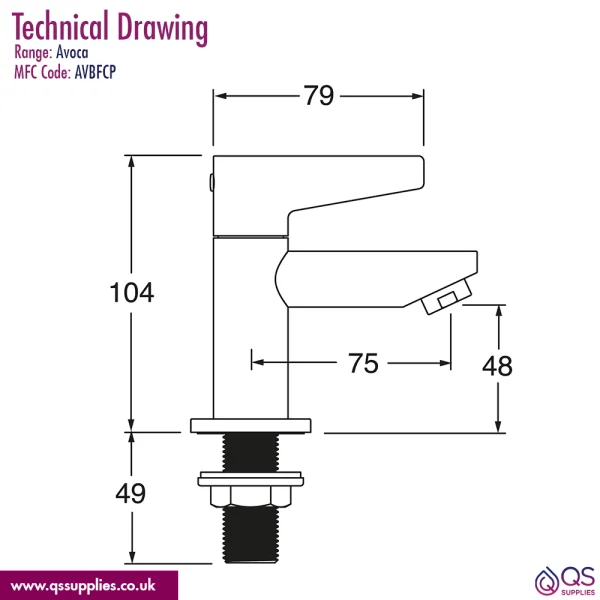

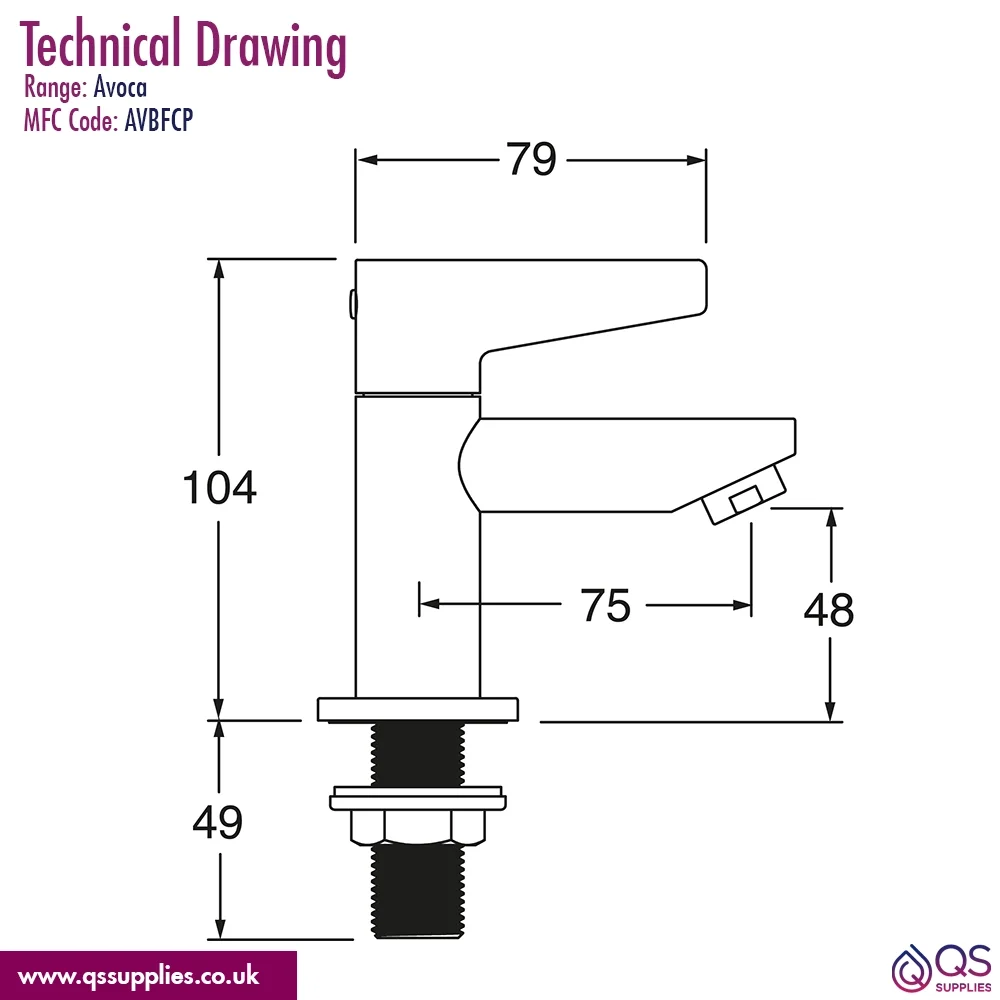

Refer to the Technical Diagram for Complete Technical Dimensions
Download the Product Data Sheet & Installation Guide PDF from Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Avoca
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 20 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2

⤷ Base To Spout
: 48
⤷ Spout Reach
: 75
⤷ Overall Height
: 104
⤷ Inlet Connections
: G 1/2 BSP
⤷ Minimum Operating Pressure (Bar)
: 49
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Barcode
: 5057199882417
⤷ Product Type
: Basin Pillar Taps

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Guide Pdf File

This item can also be found in:

Methven Avoca Contemporary Pair of Chrome Basin Tap - Lever Handles

£106.80

RRP: ~~£134.00~~

Stock Availablity: 5 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Quarter Turn

Operating these taps is almost effortless; it can be turned on and off by rotating the lever at 90 degrees. These taps have such low friction that they are perfect for people with arthritis, weak grip, the elderly and the young.

Flow Regulator

As the name suggests, a flow regulator is a simple device designed to regulate water flow to a predetermined level. The job of a flow regulator is to stop water wastage. For instance, if the regular flow rate through a tap is 20 litres per minute, a flow regulator can reduce the flow rate between 6 to 12 litres per minute to complete the desired chore without feeling low pressure.

Flow Straightener

A flow straightener, also called Honeycomb, is a fitting which directs the flow of water from the outlet in a way as to straighten the stream. They are generally not flow-regulated and differ in design from the pressure-compensating aerator.
