Methven Avoca Thermostatic Bath Shower Mixer, Slide Rail, Handset Kit, AVTBSMEF

Methven Avoca Details

MFC: AVTBSMEF

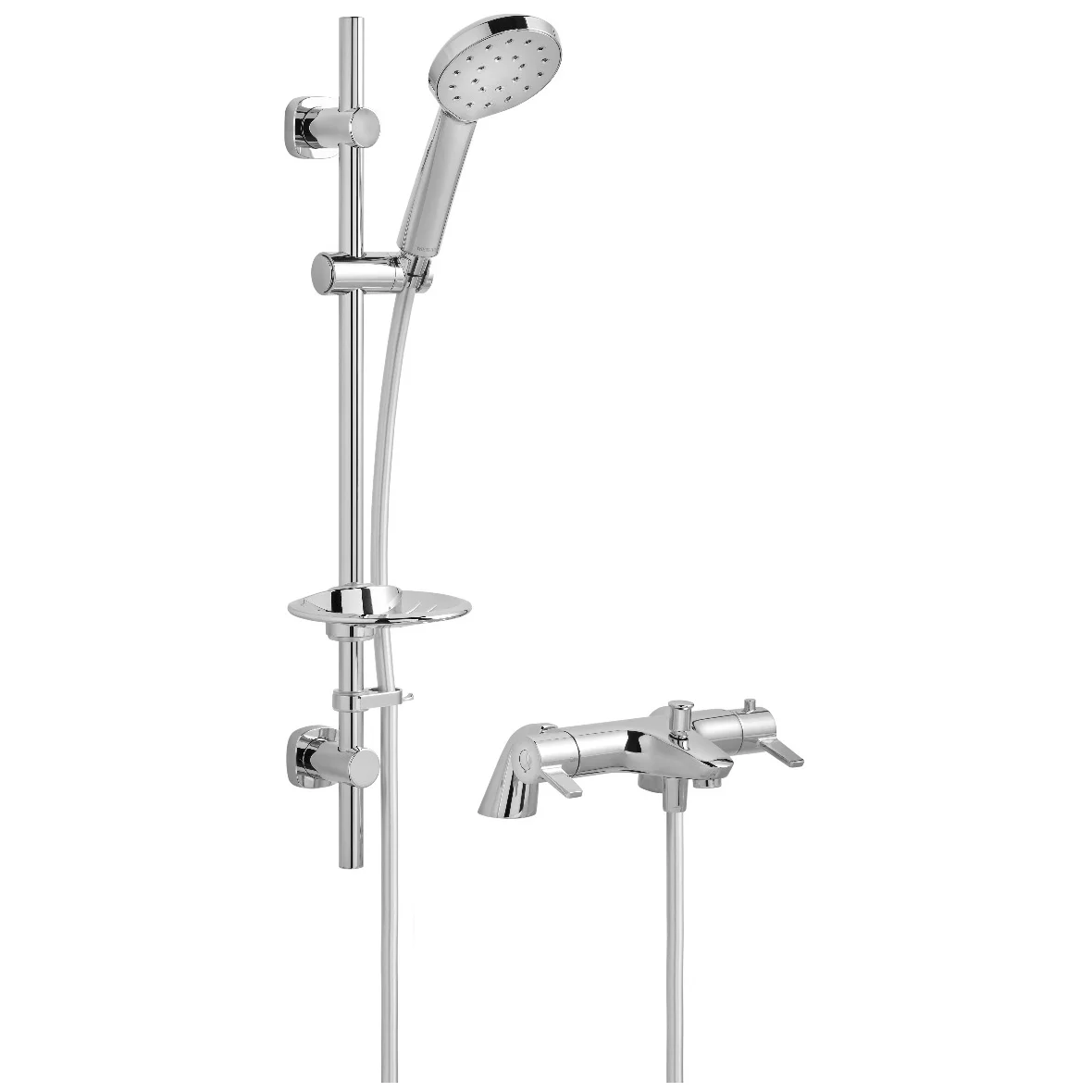

Methven Avoca Chrome Thermostatic Bath Shower Mixer with Slide Rail and Satinjet Handset Kit

Key Features

✔Satinjet® Technology
✔Thermostatic Control Bath Tap
✔Manufactured Using Brass & ABS Material
✔5-Year Warranty from the Manufacturer Against any Manufacturing Defects

Choice of Variation: With Standard Flow Handset, With Low Flow Handset
It Comes in a Polished Chrome Finish
Refer to the Technical Diagram for Complete Technical Dimensions
Download the Product Data Sheet & Installation Guide PDF from the Additional Info Section
Details of Bath Shower Mixer Tap:
Includes Brass Pillars
Width: 261mm [26.1cm]
Inlet Centres: 180mm [18cm]
TMV-2 and NSF Approved
Effortless Operation
Separate Temperature and Flow Controls Provide Precise Control
Built-In 38°C Safety Hot Stop Mechanism with an Override Button
Easy-to-Use Large Paddle Levers for Ease of Operation
Suitable For a 2 Tap Hole Bath
Safety Hot Stop Function Prevents Accidental Scalding
Brass Back Nuts for Secure Installation
Inlet Connections: 3/4 Inch BSP
Suitable for Medium and High Water Pressure Systems
Requires a Minimum of 0.5 Bar to a Maximum of 5.0 Bar Water Pressure
Details of Handset with Slide Rail Kit:
Manufactured Using Brass & ABS Material
Precise Control
Size of Rail [mm]: 75 x 685mm [Depth x Height]
Size of Rail [cm]: 7.5 x 68.5mm [Depth x Height]
Twist-Free Hose
Includes Easy-Fit Connections
Patented Satinjet Showering Technology
Water Efficient Without Compromising Showering Performance
Easy-to-Use Large Paddle Levers for Ease of Operation
Easy To Fit Shower Rail, Simply Twist And Lock Brackets Into Place
Includes Easy Fit Valve Connections
Valve is Safe and Cool to Touch, Making it Ideal for Families
Details of Standard Flow Satinjet Kiri Handset:
Standard Satinjet Kiri Handset
Water Flow: 8 L/Min
Normal Water Saving
Inlet Connections: 15mm Compression
Suitable for Low and High Water Pressure Systems
Requires a Minimum of 0.3 Bar to a Maximum of 5.0 Bar Water Pressure
Details of Low Flow Satinjet Kiri Handset:
Low Flow Satinjet Kiri Handset
Water Flow: 5.5 L/Min
Higher Water Saving
Inlet Connections: 3/4 Inch BSP
Suitable for High Water Pressure Systems
Requires a Minimum of 1.0 Bar to a Maximum of 5.0 Bar Water Pressure

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass, ABS
⤷ Theme
: Modern
⤷ Hose Length
: 2000
⤷ Configuration
: Bath Shower Mixer, Handset, SLide Rail
⤷ Temperature Control
: Thermostatic
⤷ Compliance/Approvals/Standard
: TMV2, NSF

⤷ Product Type
: Thermostatic Shower
⤷ Soap Dish Included
: Yes
⤷ Riser Rail & Kit Finish
: Chrome
⤷ Handset Included
: Yes
⤷ Rail Length
: 685
⤷ Diverter Type
: Yes
⤷ Adjustable Height
: Yes

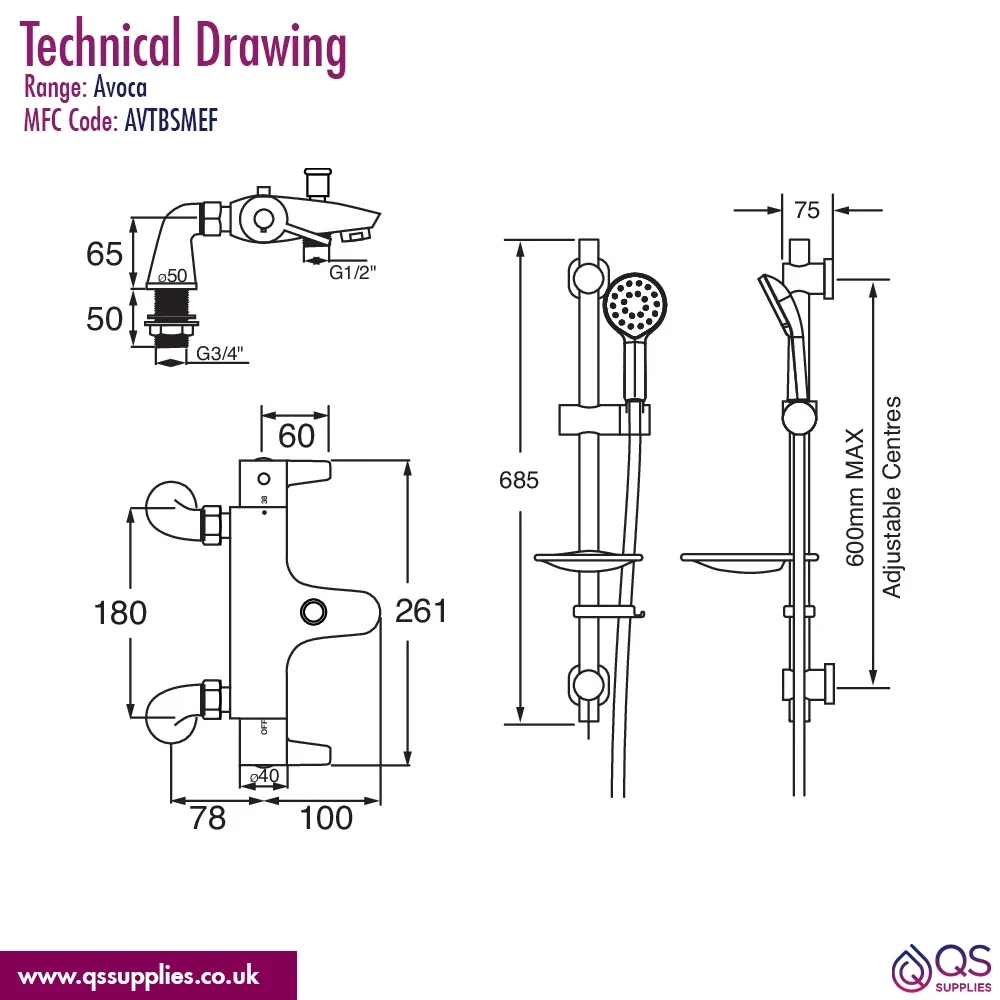

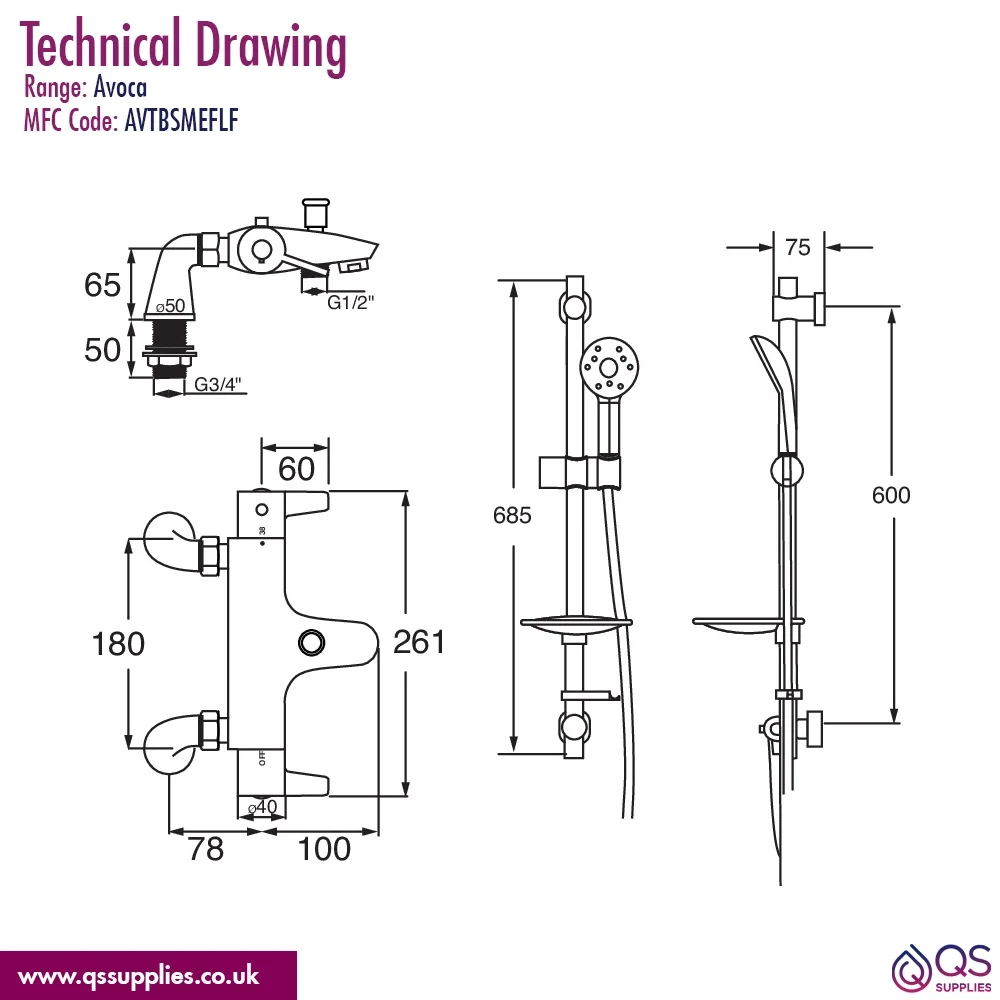

Technical Images

Methven Avoca Chrome Thermostatic Bath Shower Mixer with Slide Rail and Satinjet Handset Kit

Standard Flow

Low Flow

£392.40

RRP: ~~£491.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Satinjet

Satinjet® uses unique twin-jet technology to modify the water droplets' size and pressure while creating more than 300,000 droplets per second. The resulting sensation during the shower is so thrilling that it can be considered the perfect showering experience. These come in many variations, both gentle and invigorating.

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.
