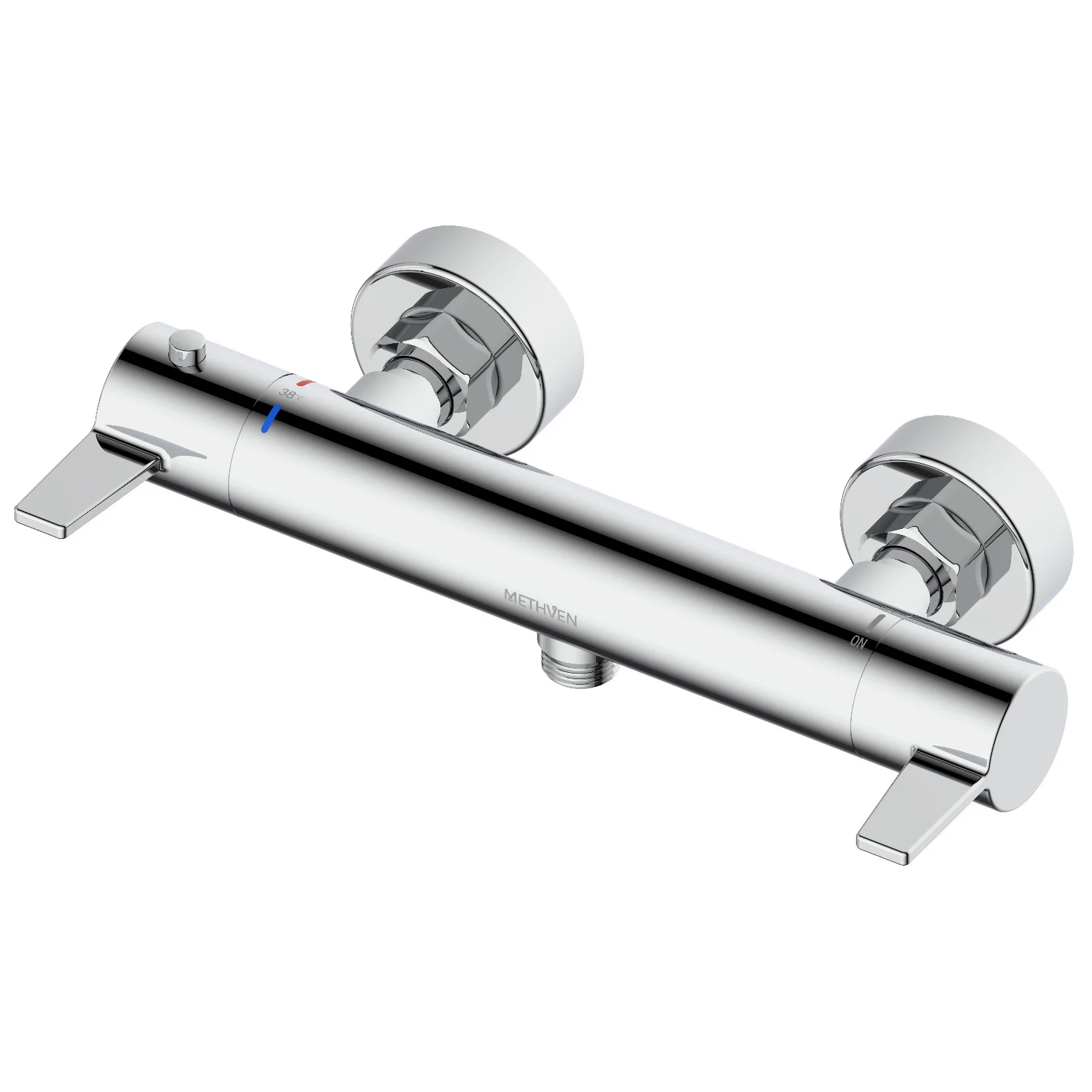

Methven Avoca Thermostatic Exposed Bar Shower Valve, 2 Controls, AVCTBV

Methven Avoca Details

MFC: AVCTBV

Methven Avoca Round Thermostatic Cool Touch Exposed Bar Shower Valve - Chrome - 2 Controls

Manufacturing Code of this Product: AVCTBV
It Comes in a Polished Chrome Finish
Width: 274mm [27.4cm]
Inlet Centre: 150mm [15cm]
Inlet Connections: 15mm Compression
Includes Easy-Fit Connections
Easy-to-Use Lever Handles
Suitable For All Plumbing Systems

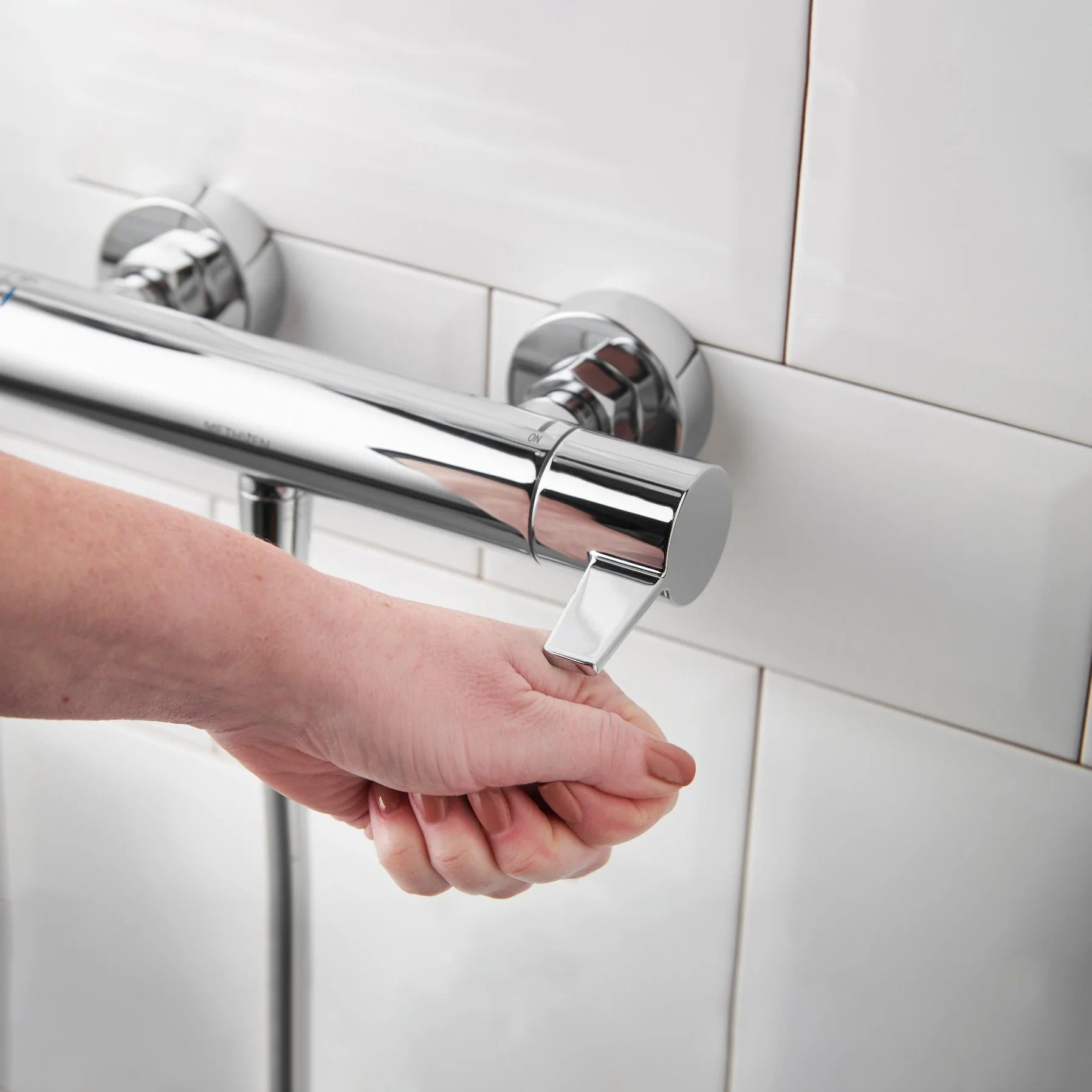

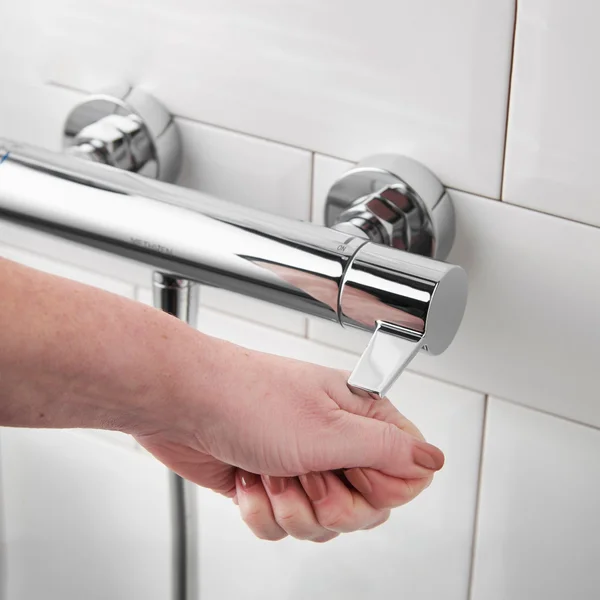

Wide Paddle Handle Allows for Closed Fist Operation
38ºC Temperature Hot Stop with Override Facility
Valve is Safe and Cool to Touch, Making it Ideal for Families
Designed with Ease of Use and Functionality in Mind
Expertly Crafted Lever Handles are Perfectly Suited for All Ages & Abilities
Suitable for Low and High Water Pressure Systems
Requires a Minimum of 0.2 Bar to a Maximum of 5.0 Bar Water Pressure

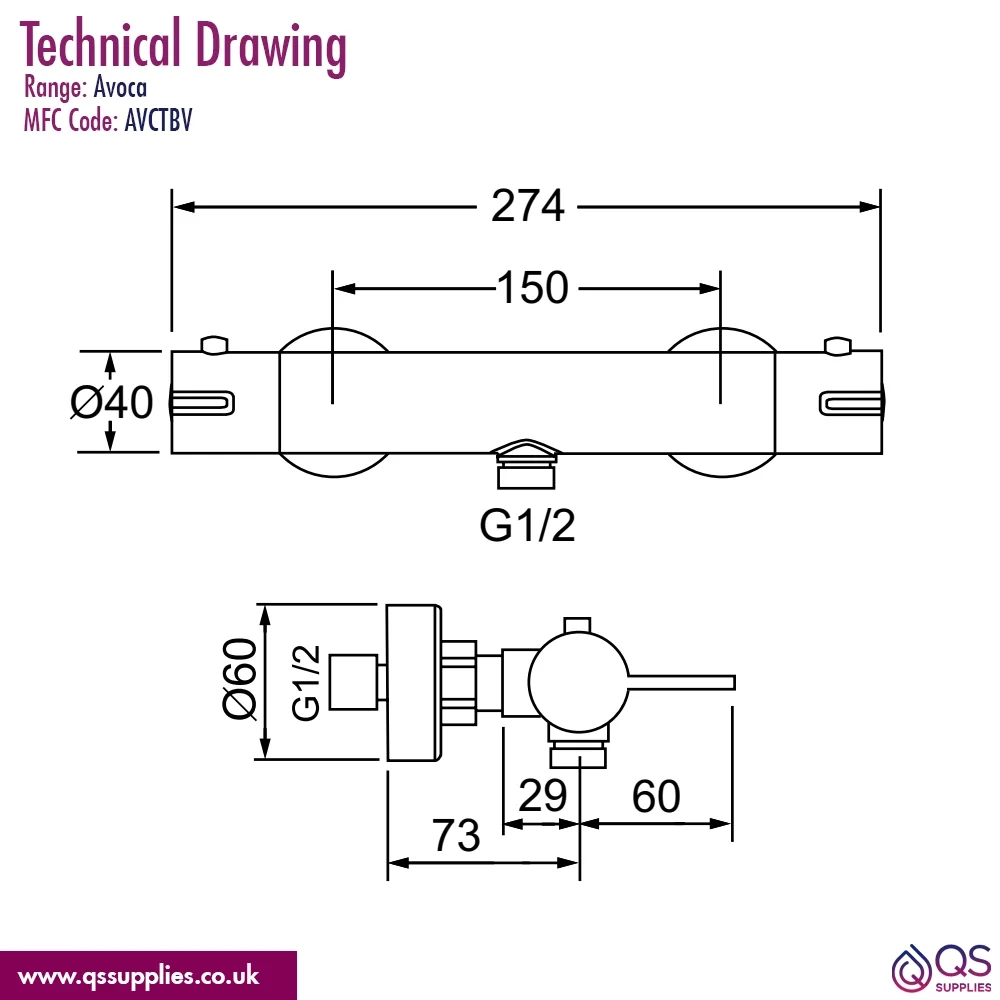

Refer to the Technical Diagram for Complete Technical Dimensions
Download the Product Data Sheet PDF from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Avoca
⤷ Handle Position
: Left, Right
⤷ Colour
: Chrome
⤷ Shape
: Round
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ No. of Holes Required
: 2
⤷ Inlet Centres
: 150
⤷ Width
: 274
⤷ Inlet Connections
: 15mm Compression
⤷ Handle Style
: Paddle Lever
⤷ WRAS Approved
: Yes

⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 60
⤷ Backplate Height
: 60
⤷ TMV2 Approved
: Yes
⤷ Number of Handles
: 2
⤷ Number of Outlet
: 1
⤷ Outlet Connection
: G 1/2
⤷ Orientation
: Landscape
⤷ Compliance/Approvals/Standard
: NSF
⤷ Barcode
: 5057199882509
⤷ Product Type
: Shower Valve
⤷ Plumbing Option
: Exposed
⤷ Maximum Operating Pressure (Bar)
: 0.2
⤷ Number of Inlet
: 2

Additional Info & Downloads

Download the Product Data Sheet Pdf File

This item can also be found in:

Methven Avoca Round Thermostatic Cool Touch Exposed Bar Shower Valve - Chrome - 2 Controls

£153.60

RRP: ~~£193.00~~

Stock Availablity: 5 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.
