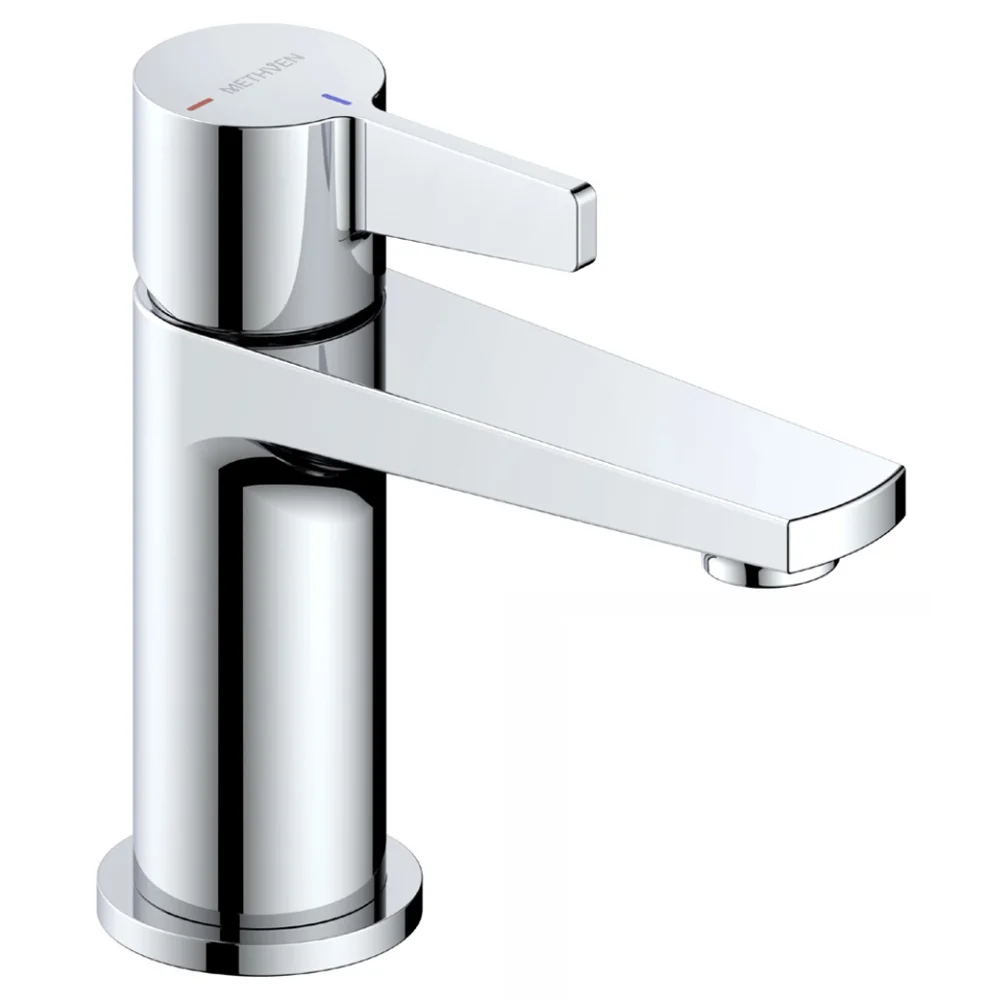

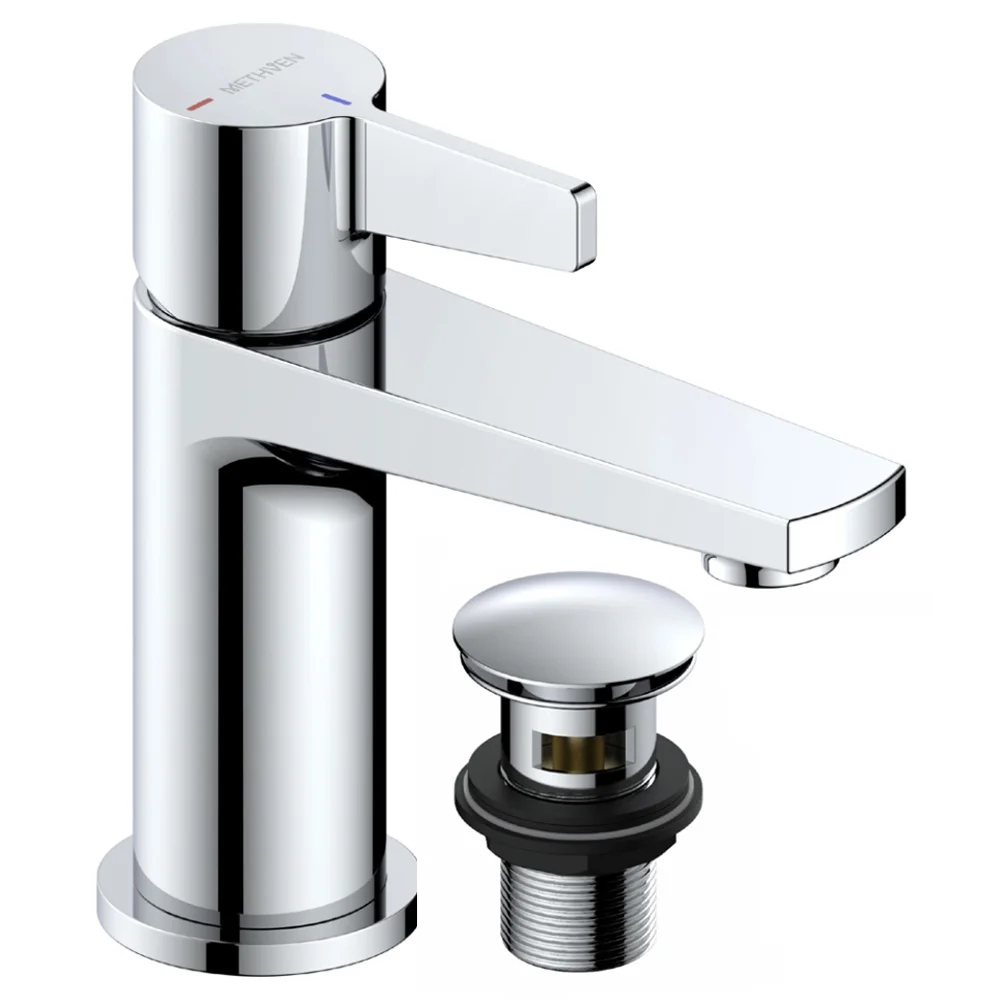

Methven Avoca Basin Mixer Tap with Press Top Waste, Slim Lever Handle, AVBCP

Methven Avoca Details

MFC: AVBCP

Methven Avoca Basin Mixer Tap with Press Top Waste - Slim Lever Handle - Deck Mounted

Manufacturing Code: AVBCP
It Comes in a Chrome Finish
Material: Brass
Size: 54 x 157 x 155mm [Width x Depth x Height]
Centre of Inlet to Centre of Outlet: 110.4mm
Base to Spout: 97mm
Inlet Connection: 1/2" BSP
Coloured H & C Temperature Indicators
Tilt and Turn Temperature and Flow Control
Wide Lever Handles Allows for Closed Fist Operation
Default Start Position of Cold means no Unnecessary Engagement of the Hot Water System
Optimized to use Less than 4 lpm, Saving Water and Energy
Directional Aerator Prevents Splashback
Suitable for High Water Pressure System
Working Pressure: 0.5-5.0 Bar

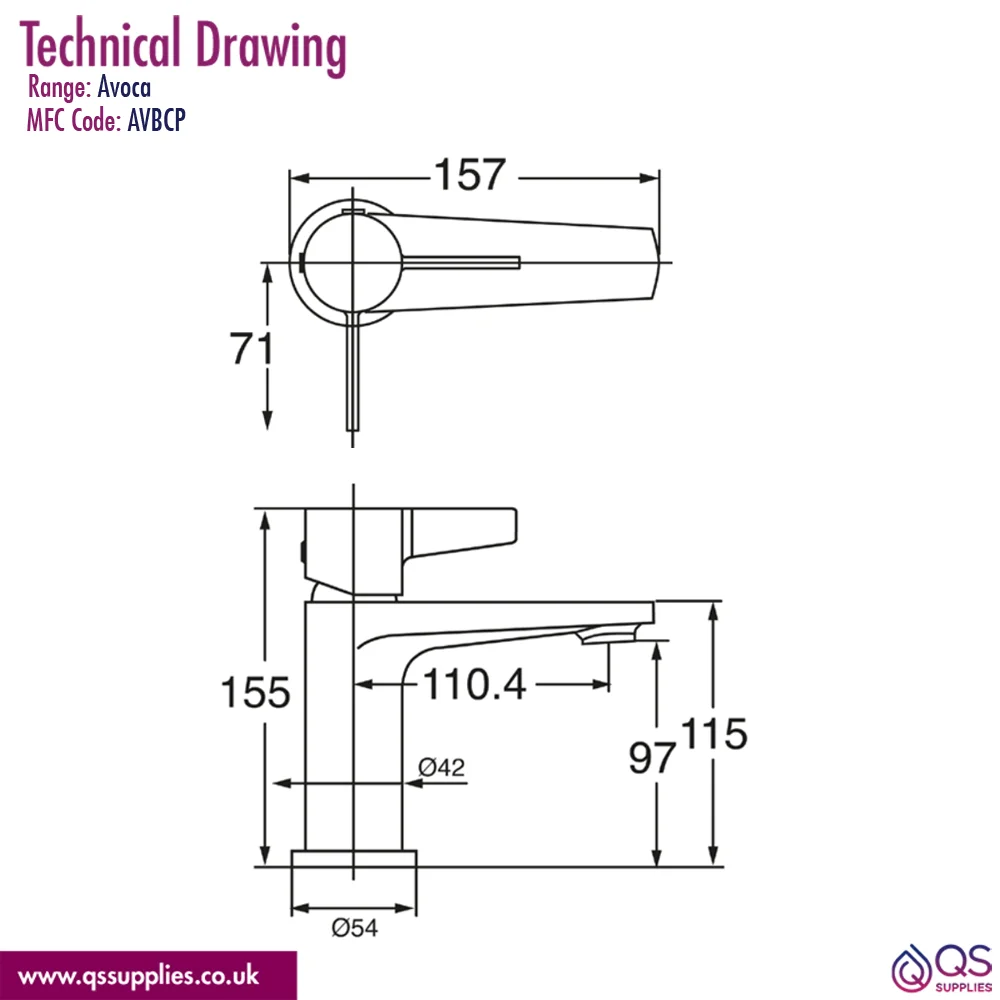

Refer Technical Drawing for Complete Size Details
Download Installation Instruction and Specification Sheet from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Avoca
⤷ Water Activation
: By Lifting & Tilting
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Top
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 20 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Valve/Cartridge Type
: Ceramic

⤷ Base To Spout
: 97
⤷ Spout Reach
: 110.4
⤷ Overall Height
: 155
⤷ Depth
: 157
⤷ Inlet Connections
: 1/2" BSP
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Waste Type
: Press Top
⤷ Handle Style
: Lever
⤷ Technologies
: Cold Start
⤷ Waste Included
: Yes
⤷ Compliance/Approvals/Standard
: KIWA

Additional Info & Downloads

Download the Specification Sheet Pdf File Download the Installation Instruction Pdf File

This item can also be found in:

Methven Avoca Basin Mixer Tap with Press Top Waste - Slim Lever Handle - Deck Mounted

£137.50

RRP: ~~£171.86~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

KIWA Approved

KIWA is a universally accepted Dutch approval standard at par with German DVGW, Austrian OVGW, Swiss SVGW, and French NF approval systems. The KIWA approval means that the products meet a high-quality standard for portable water and gas-related products.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Cold Start

Tap flow always begins with cold water, and water mixing systems become active only when hot water is needed. The cold start prevents unnecessary energy expenditure.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Adjustable aerator

The adjustable aerator is fitting that evens out the water stream in all directions if placed in an accurate position. To get the desired position, all you have to do is press the aerator on a flat surface. The Swiveling angle is +/-7 degrees.
