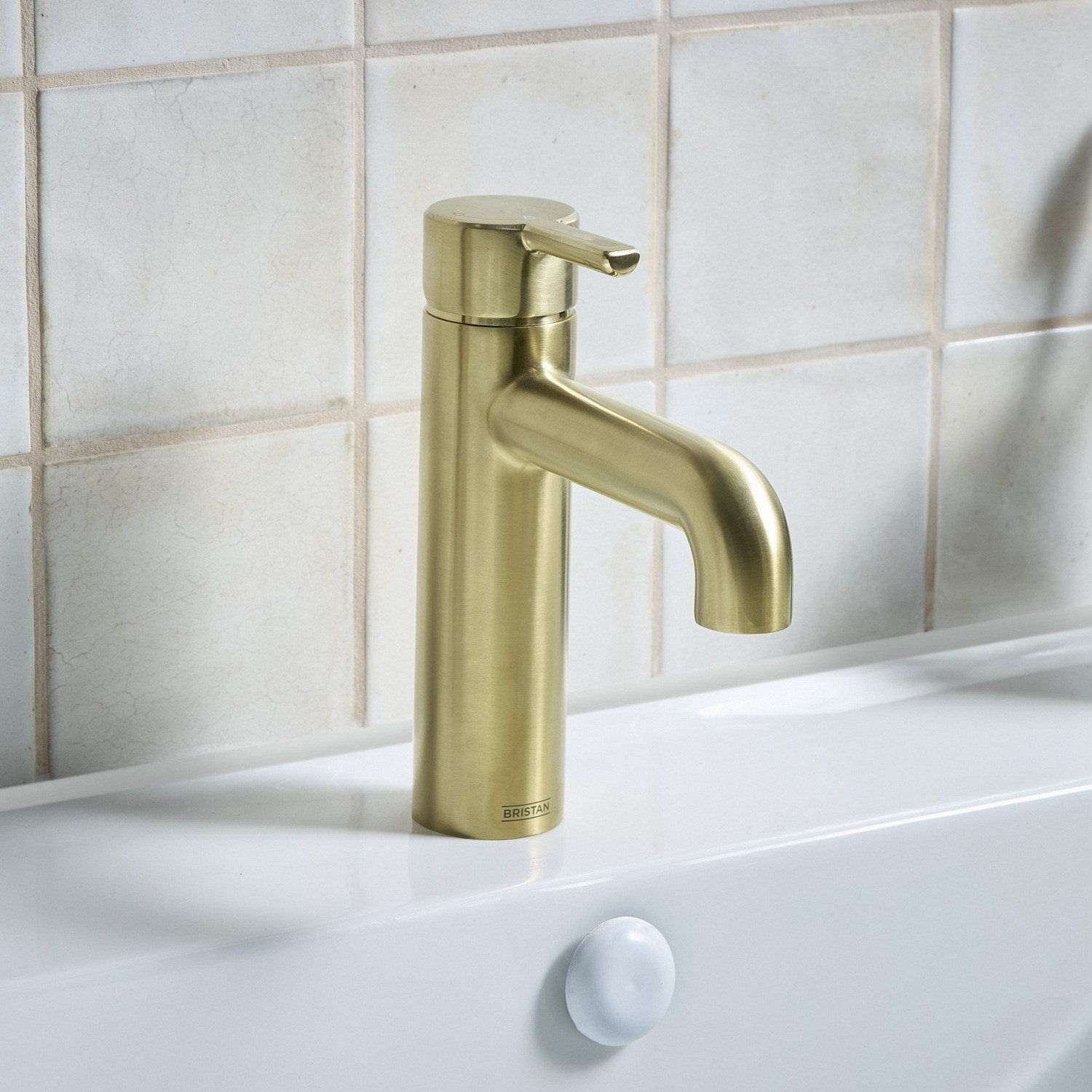

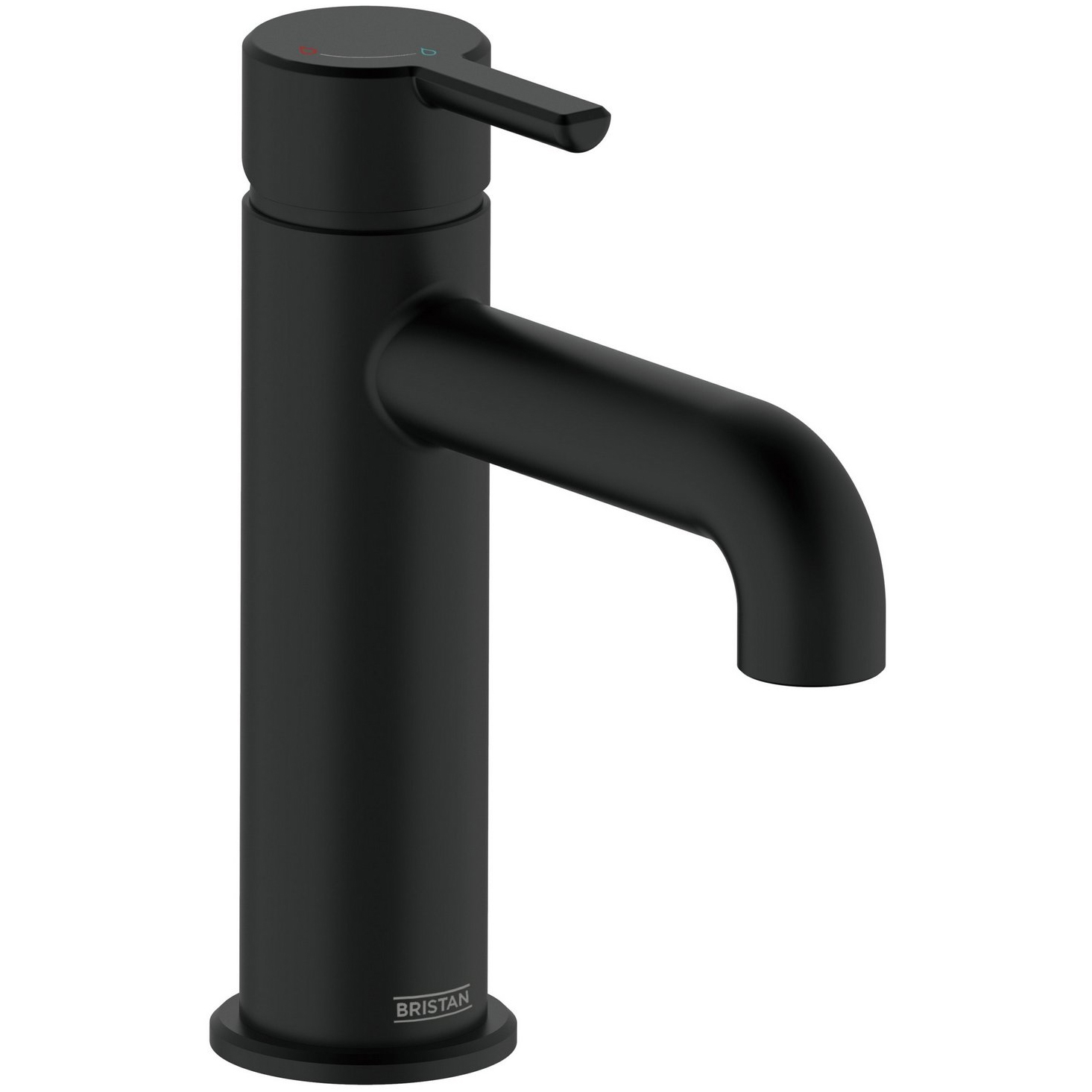

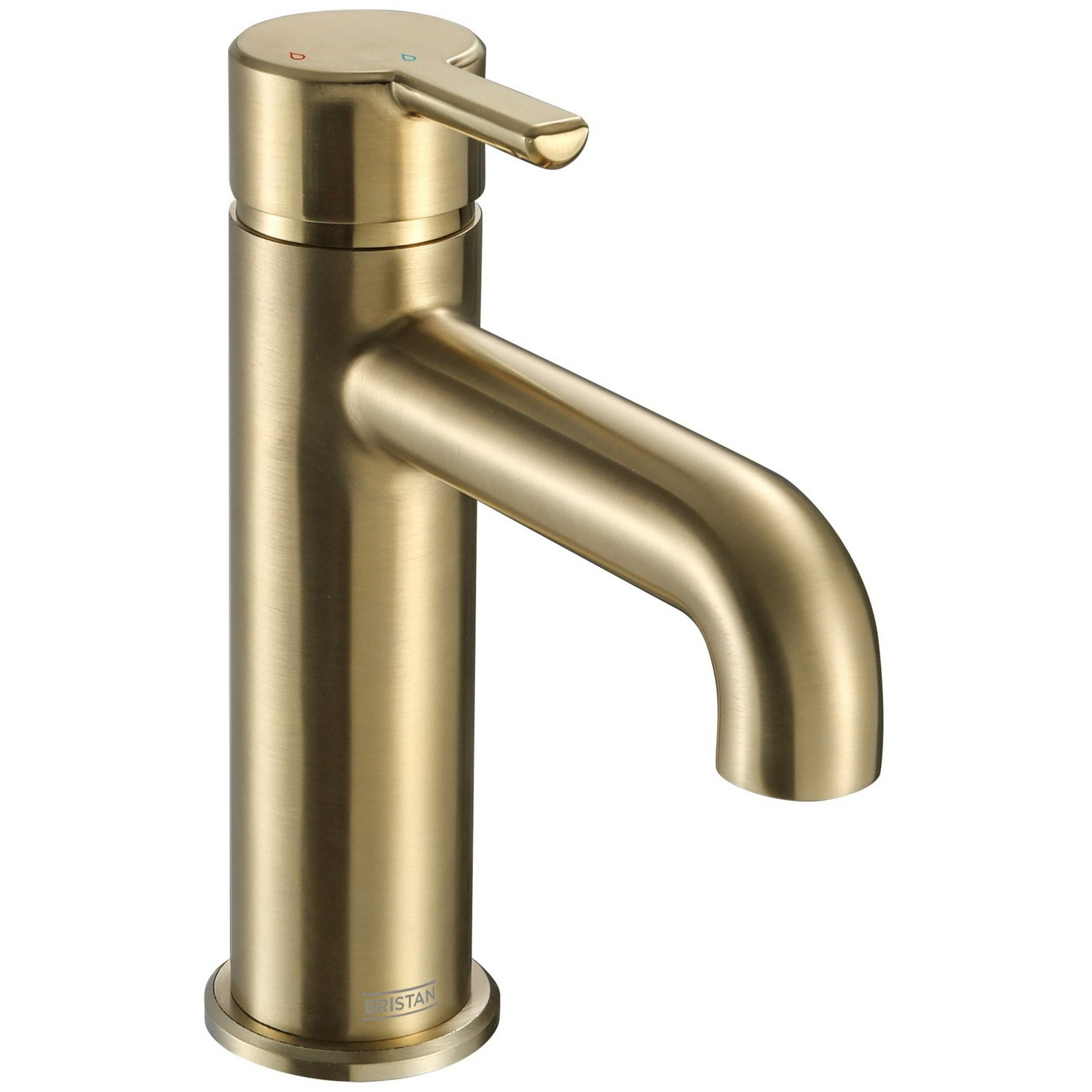

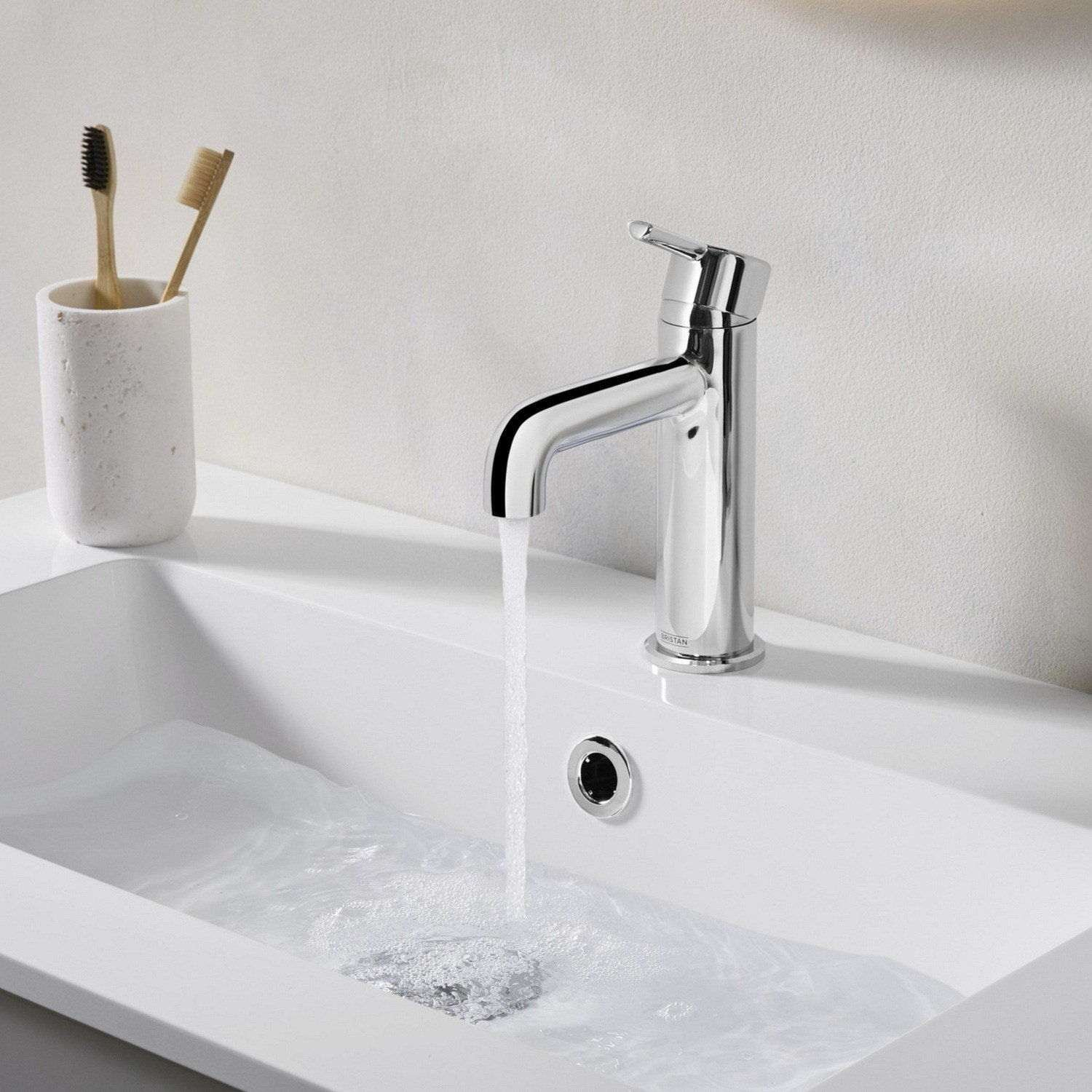

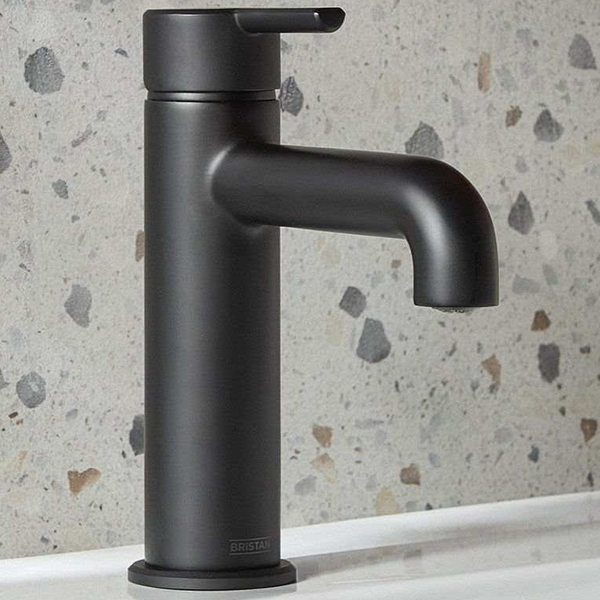

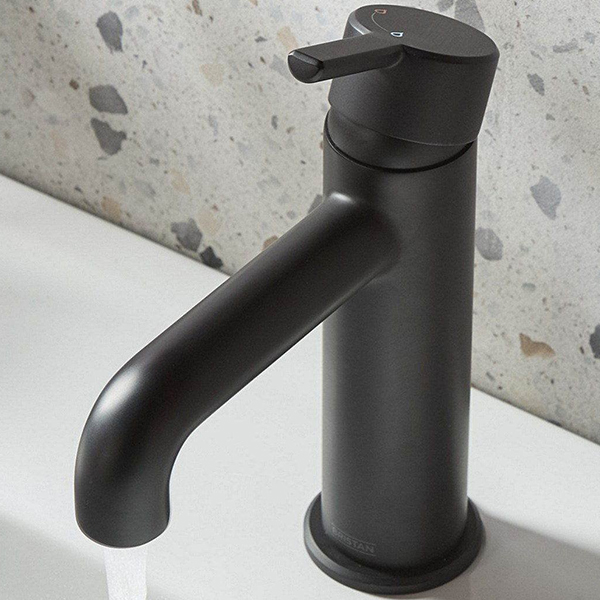

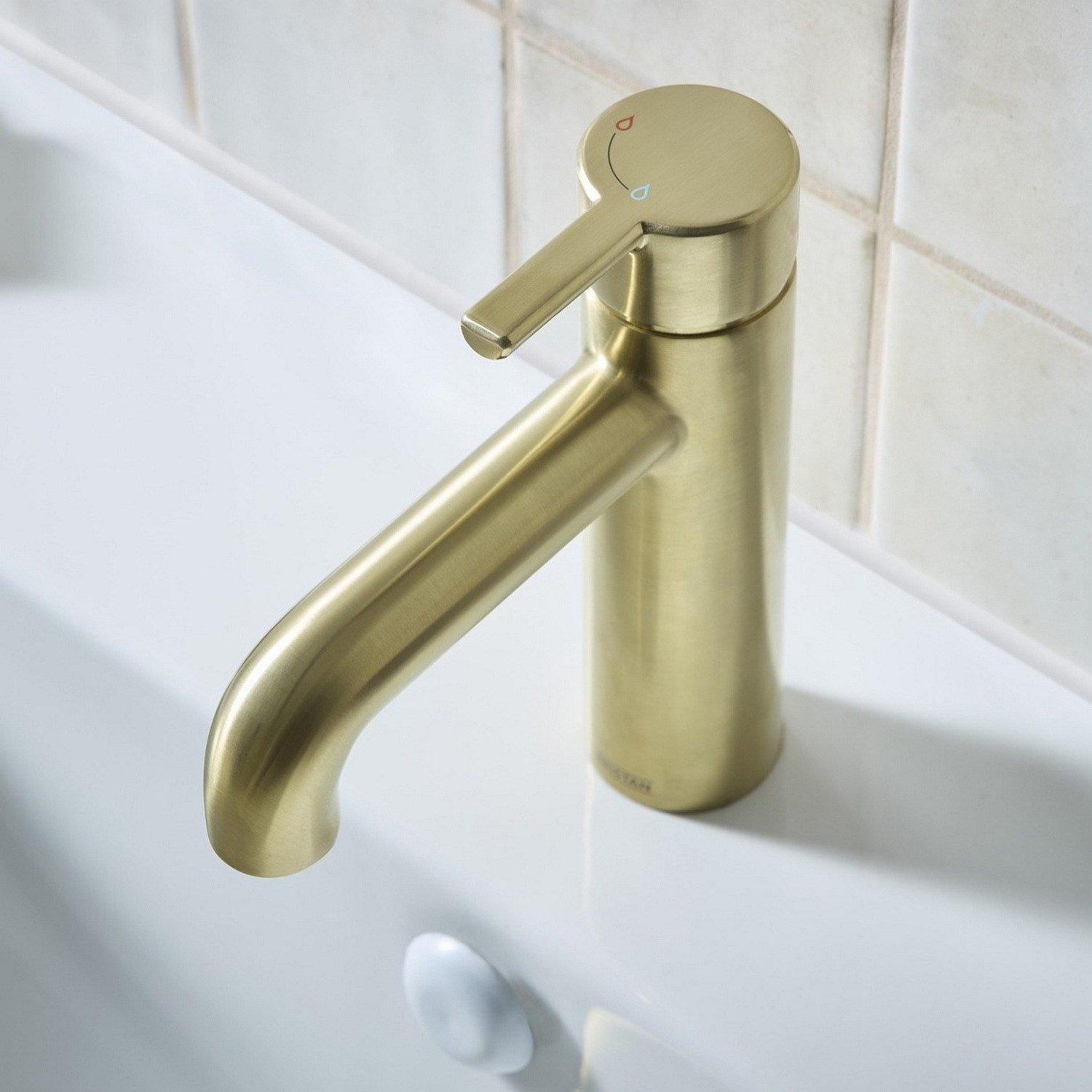

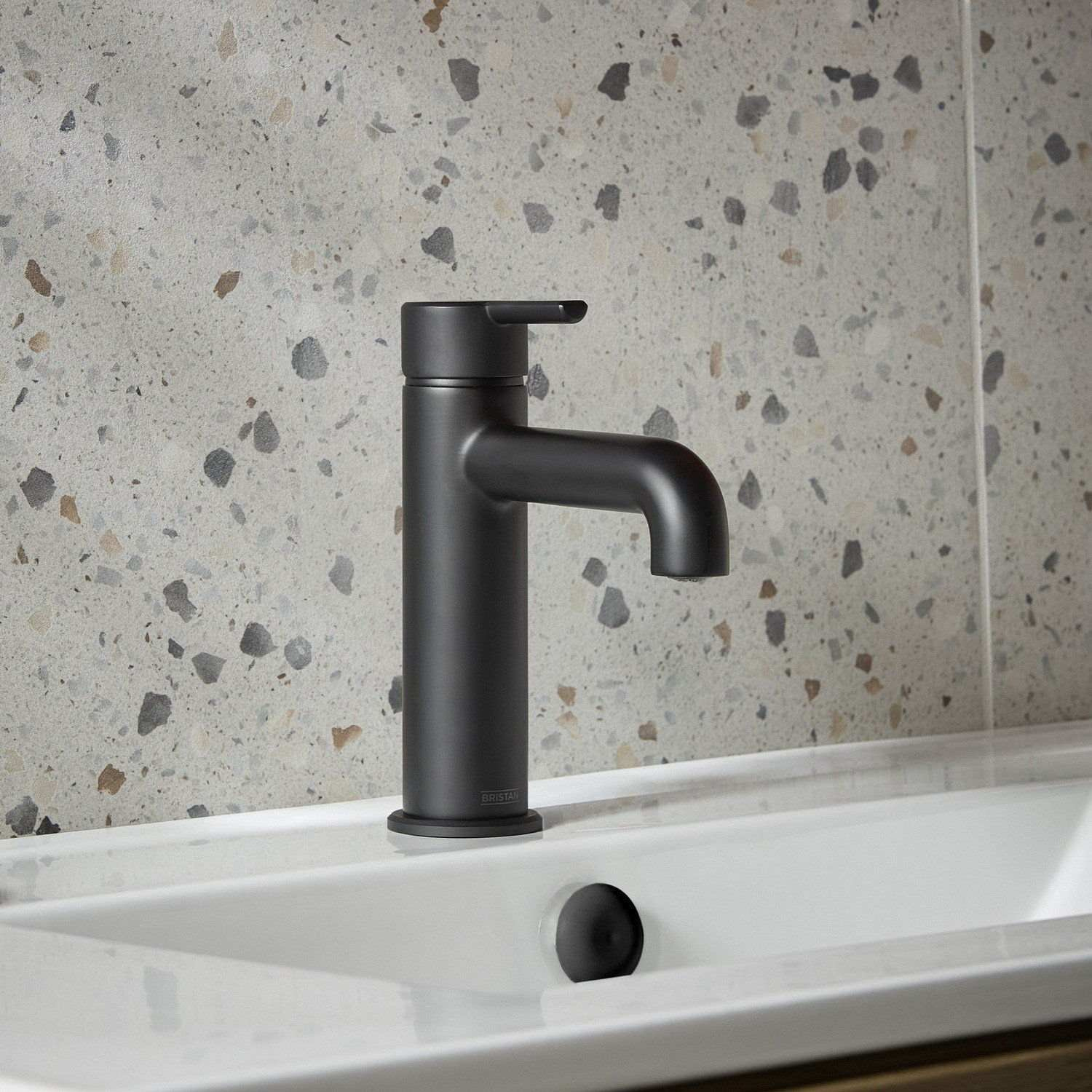

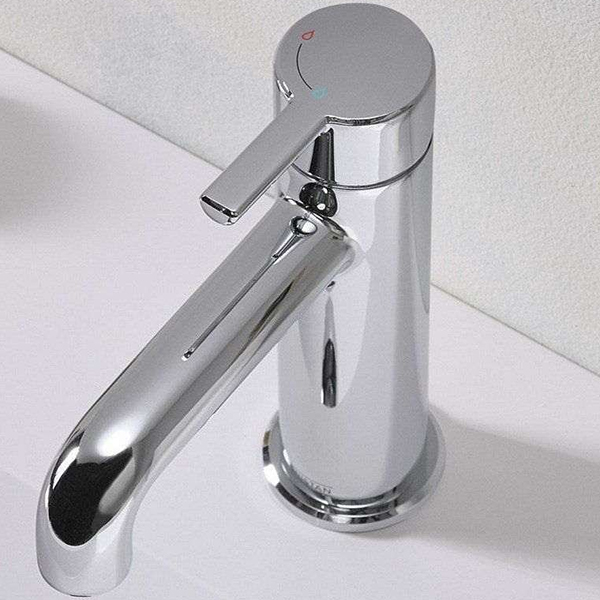

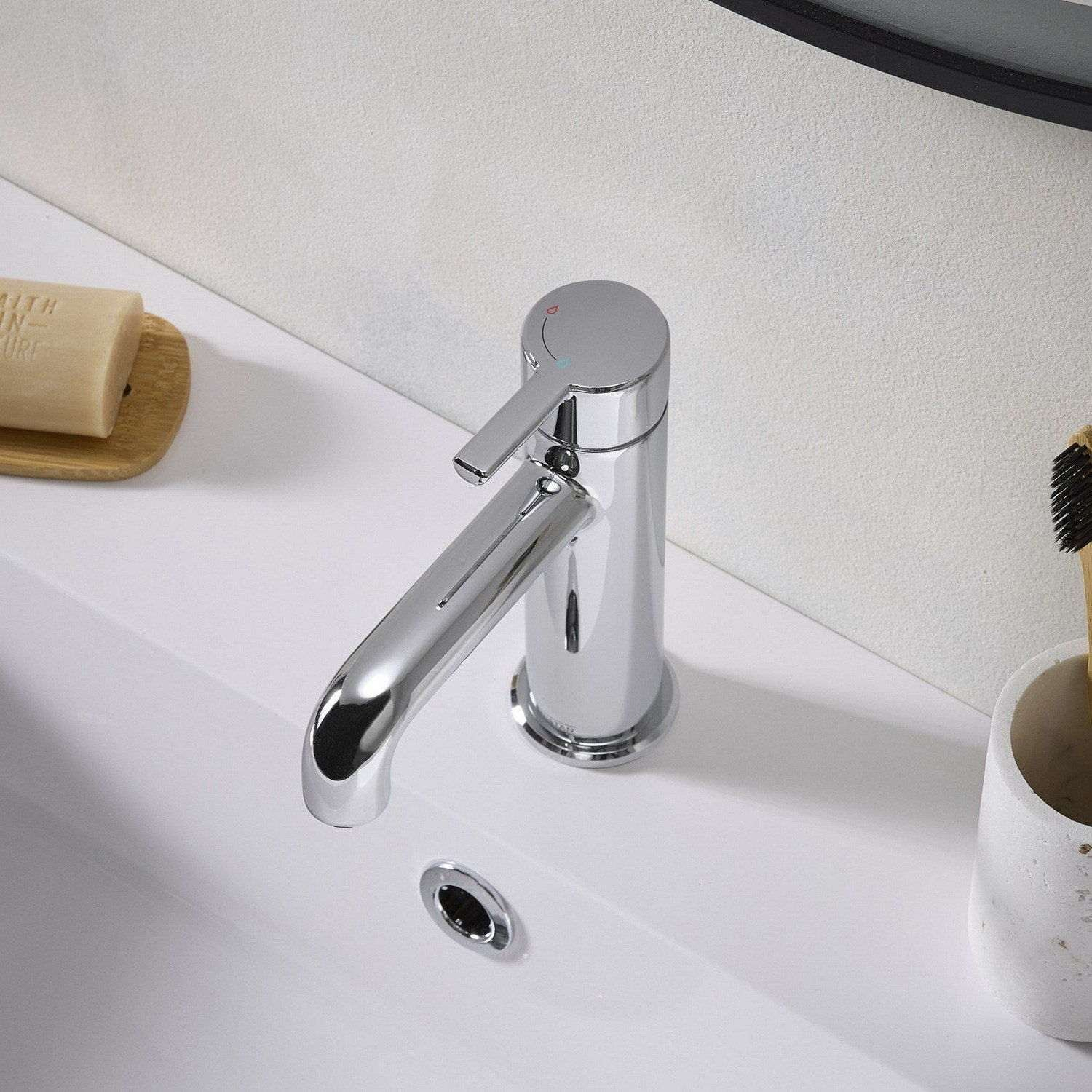

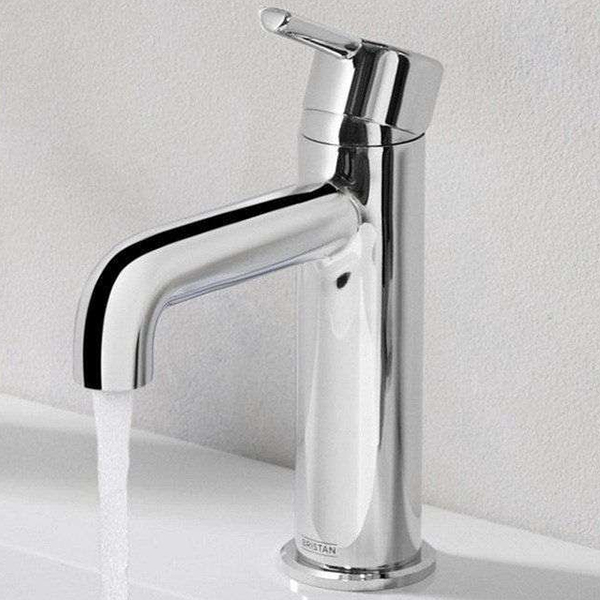

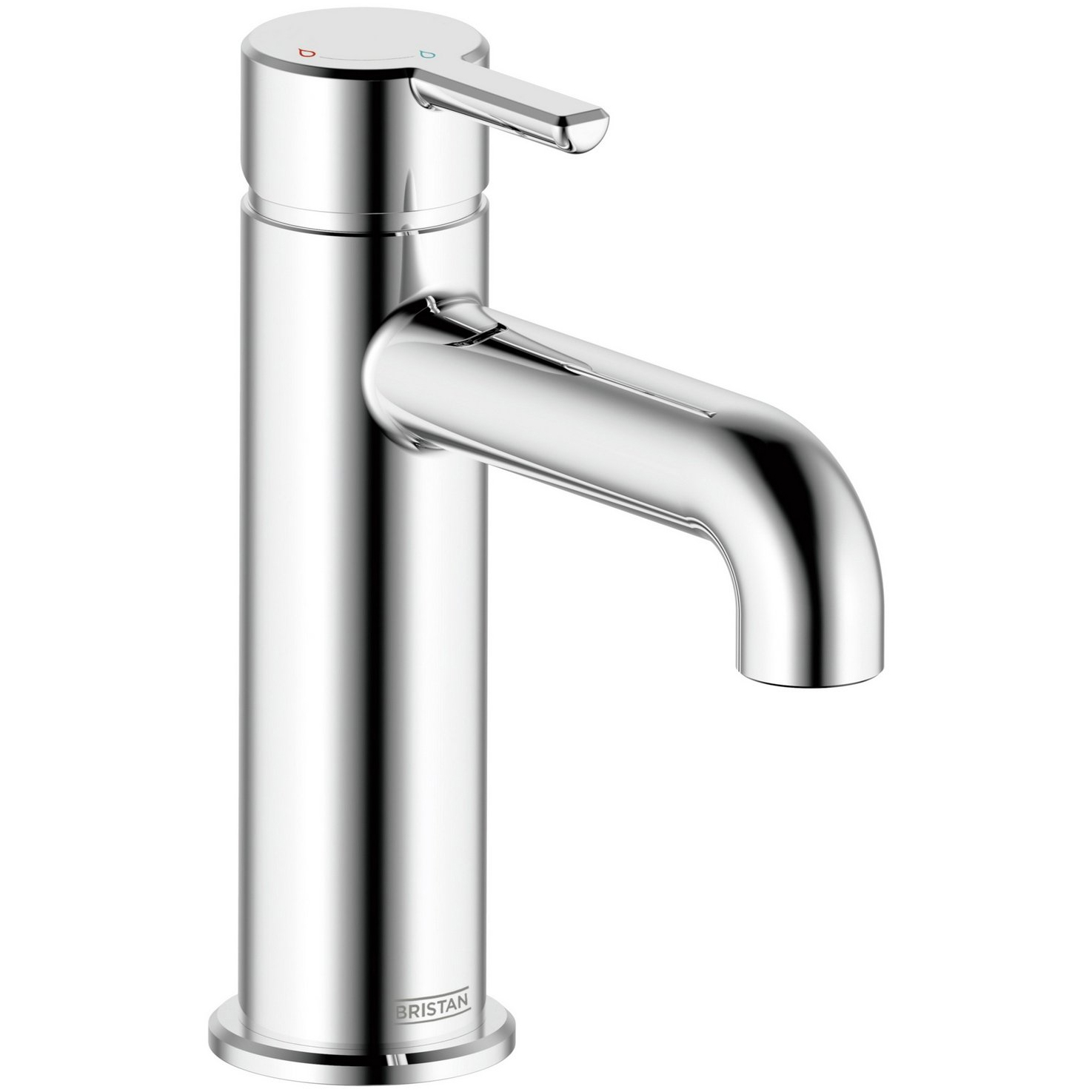

Bristan Altum Basin Mixer Tap with Curved Spout and Clicker Waste - Lever Handle

Not Yet Rated No Rating

£136.00

RRP: £170.00
SKU: QS-V110587
Select Finish
Selected: OP-252105 - Chrome
Pay in 3-Interest Free Payments
Shipping

Shipping: £7.95

Stock Availability

Stock Availability:

10 Working Days Approx.

Bristan Altum Details

MFC: AL ES BAS C

Bristan Altum Basin Mixer Tap with Curved Spout and Clicker Waste - Lever Handle.

Key Features

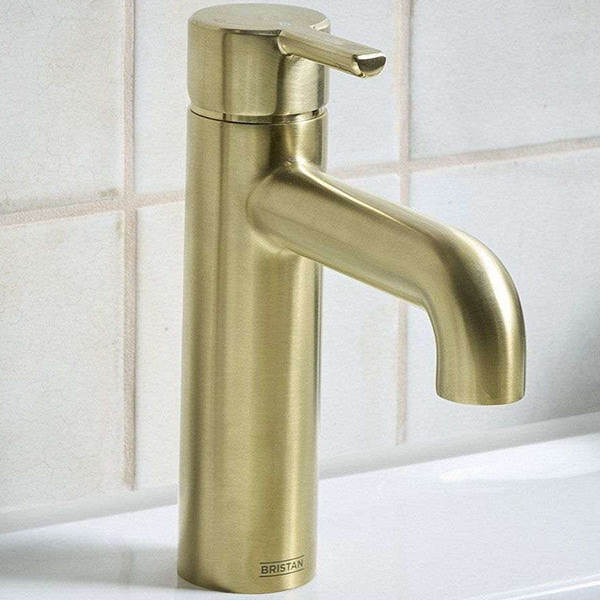

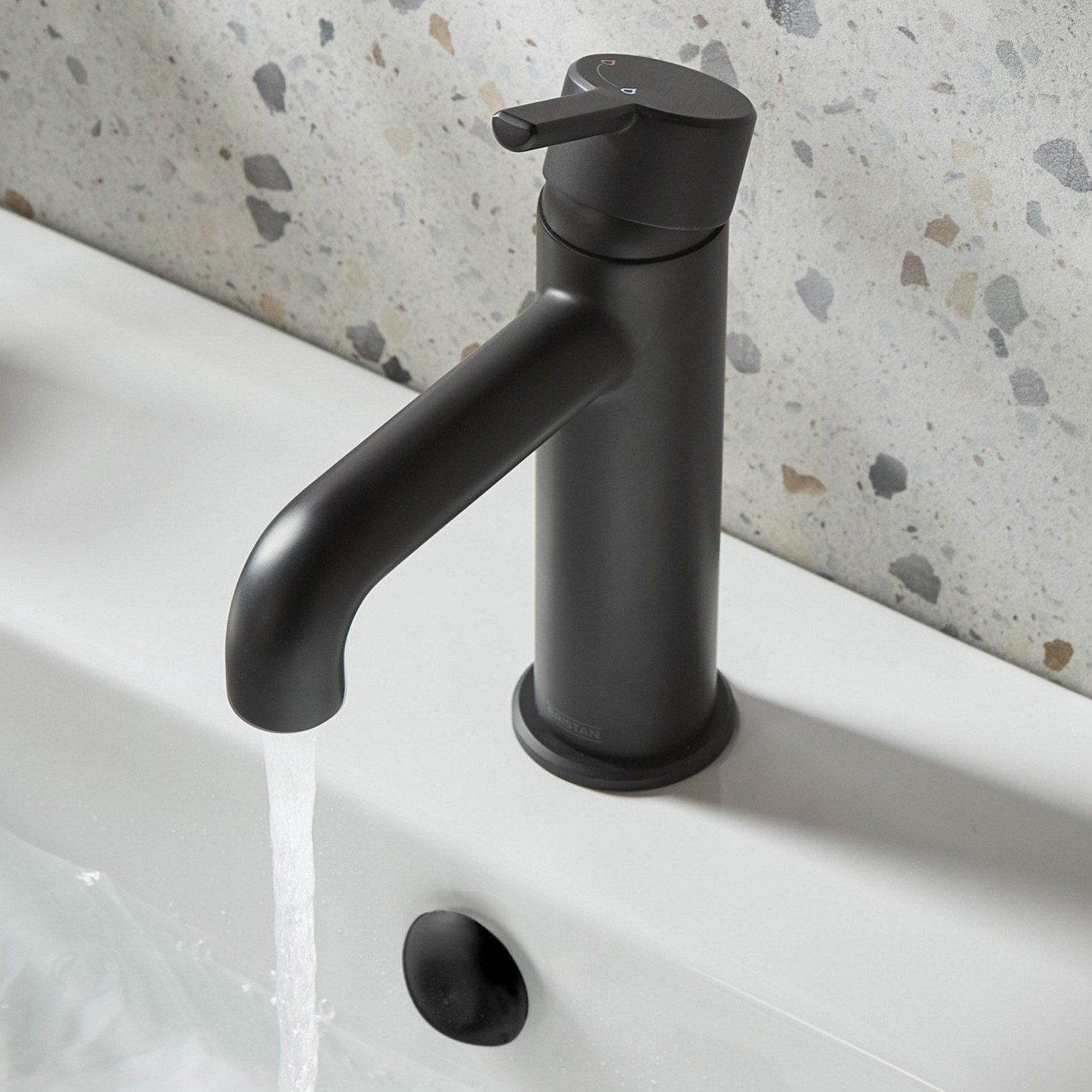

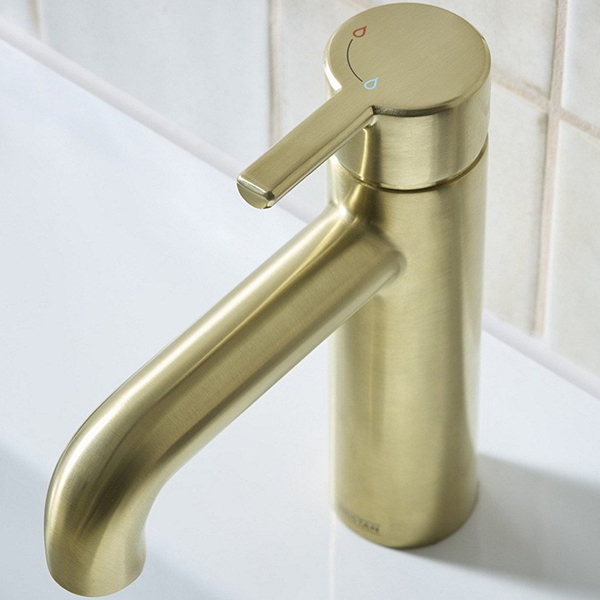

  • Choice of Finishes: Chrome, Matt Black, Brushed Brass
  • WRAS Approved Product
  • Manufactured using Brass Material
  • Clicker Waste Included
  • Lifetime Guarantee from the Manufacturer Against any Manufacturer Defects
  • Deck-Mounted Installation
  • Handle Type: Lever
  • Number of Tap Holes: 1
  • Size [mm]: 50 x 160 x 175mm [Width x Depth x Height]
  • Size [cm]: 5 x 16 x 17.5cm [Width x Depth x Height]
  • Centre of the Inlet to Centre of the Outlet: 120mm [12cm]
  • Base to Spout: 90mm [9cm]
  • Inlet Connection: 1/2 Inch BSP Flexible Tails
  • Outlet Connection: M18 Aerator 5lpm Flow Limiter
  • Valve/Cartridge Type: Top Start Eco Start Cartridge
  • Suitable for All Plumbing Systems
  • Suitable for Medium Water Pressure Systems
  • Requires a Minimum of 0.5 Bar to a Maximum of 5.0 Bar of Water Pressure
  • Maximum Hot Water Temperature °C: 65°C
  • Maximum Static Pressure [Bar]: 10 bar
  • Smooth, Long-Lasting Performance with a High-Quality Ceramic Cartridge
  • Eco Start Technology Reduces Energy use by Running Cold in the Central Position, While a 5L Flow Regulator Conserves Water Without Compromising Performance
  • Hassle-Free Installation – Supplied with Everything you Need, Including Flexible Tails
  • Install with Confidence, Using a Robust Metal Fixing nut that keeps Your Tap Securely in Place
  • Refer to the Technical Drawing for Size Details
  • Download the Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Range
  • : Altum
  • ⤷ Water Activation
  • : By Lifting / Tilting
  • ⤷ Tap Body Shape
  • : Round
  • ⤷ Handle Position
  • : Upwards
  • ⤷ Colour
  • : Chrome
  • ⤷ Material
  • : Brass
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Deck Mounted
  • ⤷ No. of Holes Required
  • : 1
  • ⤷ Spout type
  • : Fixed
  • ⤷ Valve Included
  • : Yes
  • ⤷ Valve/Cartridge Type
  • : Top Start Eco Start Cartridge
  • ⤷ Base To Spout
  • : 90
  • ⤷ Spout Reach
  • : 90
  • ⤷ Overall Height
  • : 175
  • ⤷ Width
  • : 50
  • ⤷ Depth
  • : 160
  • ⤷ Inlet Connections
  • : 1/2" BSP
  • ⤷ Minimum Operating Pressure (Bar)
  • : 0.5
  • ⤷ Waste Type
  • : Clicker
  • ⤷ Handle Style
  • : Lever
  • ⤷ WRAS Approved
  • : Yes
  • ⤷ Waste Included
  • : Yes
  • ⤷ Compliance/Approvals/Standard
  • : WRAS
  • ⤷ Barcode
  • : 5057199879950
  • ⤷ Product Type
  • : Basin Mixer Tap
  • ⤷ Warranty/Guarantee
  • : Lifetime

Additional Info & Downloads

Download PDFDownload the Installation Instruction Pdf File

£136.00
RRP: £170.00
STOCK AVAILABLITY: 10 Working Days Approx
QS Supplies

6 Features Included In This Product Explained

WRAS Approved Product

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Eco-Start

Eco-Start

Eco-Start ensures your tap water is always cold when you start the tap. You can activate hot water when needed by moving the handle towards the hot indicator. This way you save money on your energy bills and reduce your carbon impact.

Medium Water Pressure

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

High Water Pressure

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Single Lever Taps

Single Lever Taps

These taps are designed with a single lever or handle to control the water's temperature and flow. Extremely easy to operate, these also allow you to preset the water temperature by leaving it in the position with your preferred water temperature. Besides, it is simple to control the flow of water; the higher you lift the lever or move it to the end, the stronger the water flow.

Click-Clack Waste

Click-Clack Waste

Also called the Push button or Sprung waste, this waste needs a push down on the stopper to close and a click to open it back again. It is the most commonly used waste due to the ease of its operation.
