Methven Avoca Cool Touch Thermostatic Bar Shower Valve & Slide Rail Kit, AVCTS

Methven Avoca Details

MFC: AVCTS

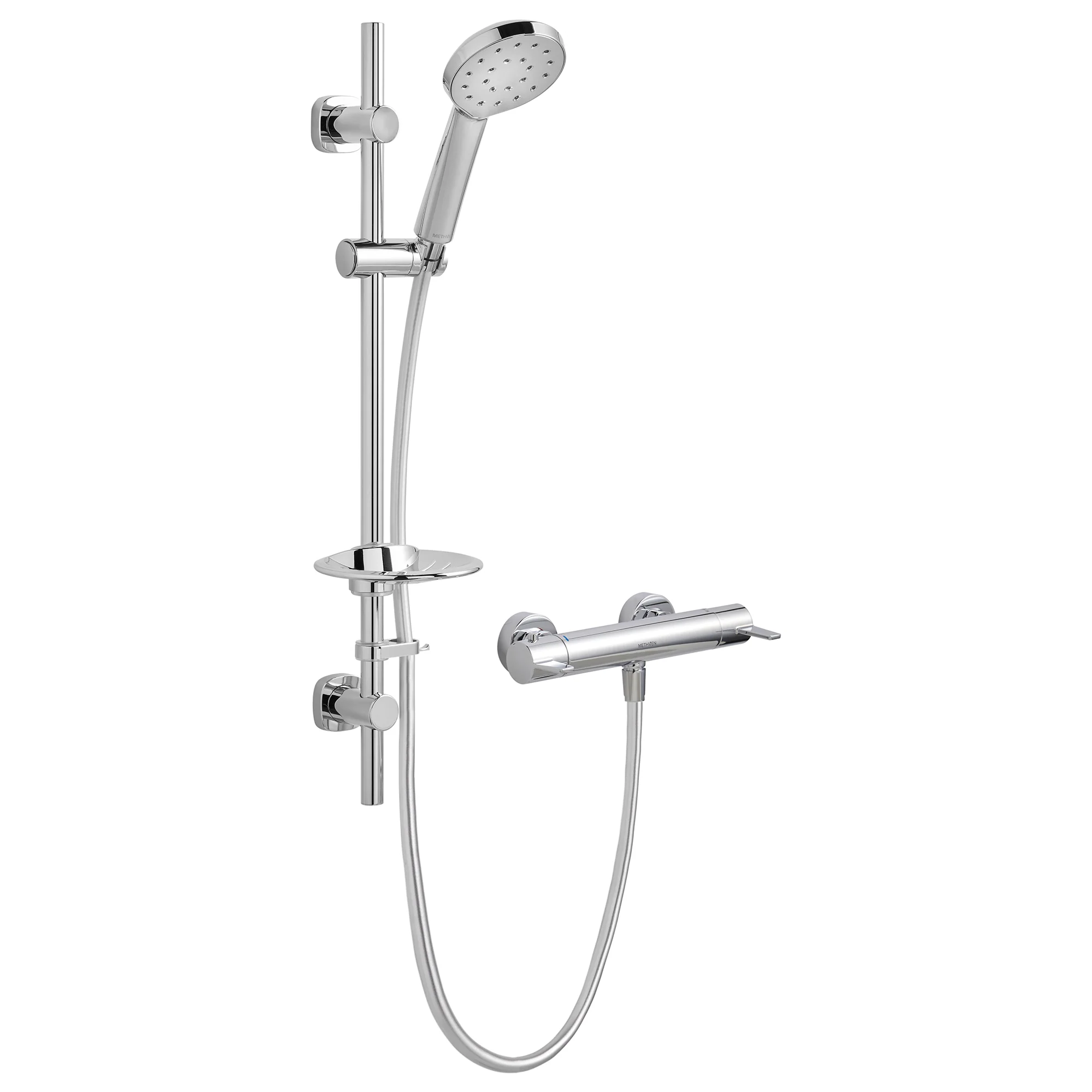

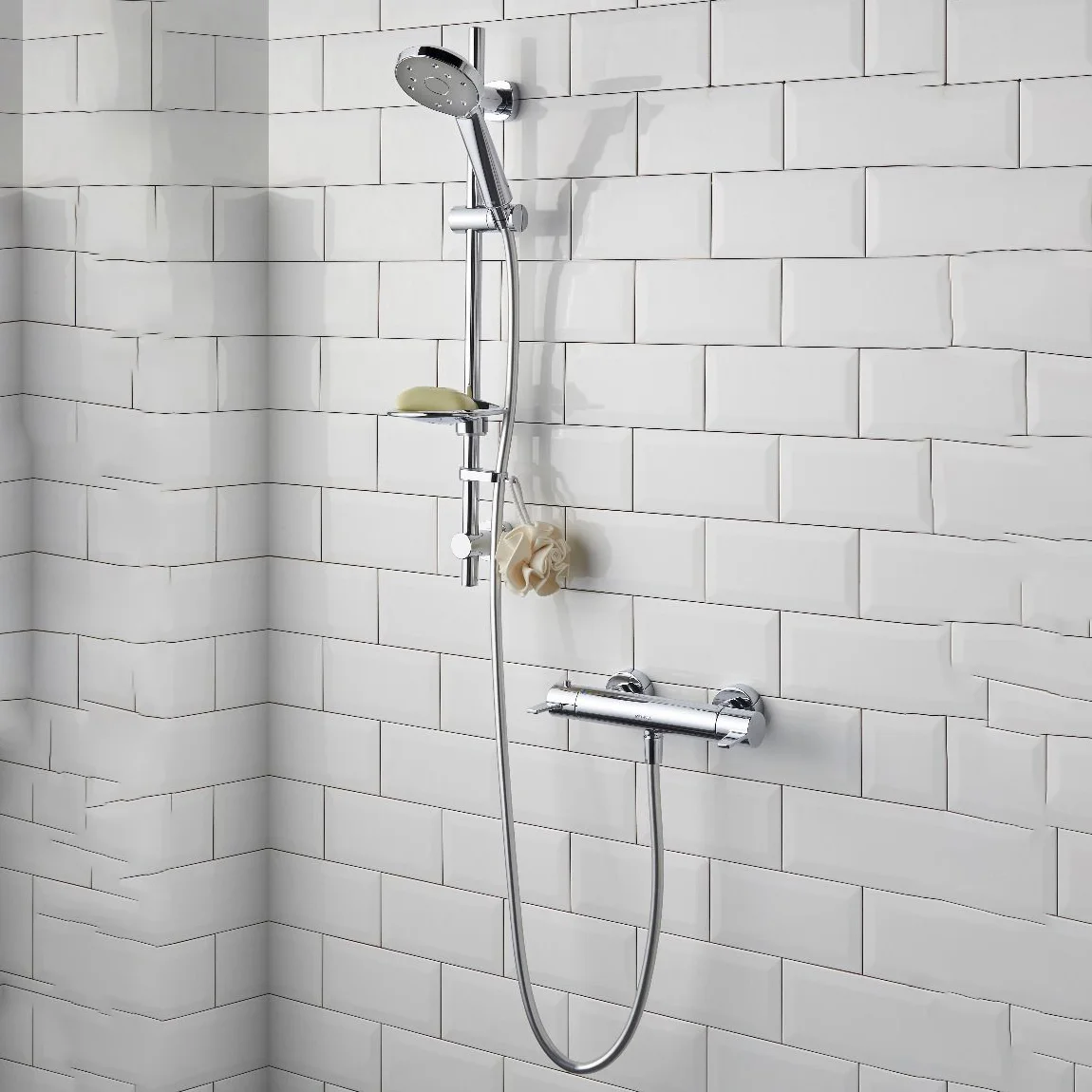

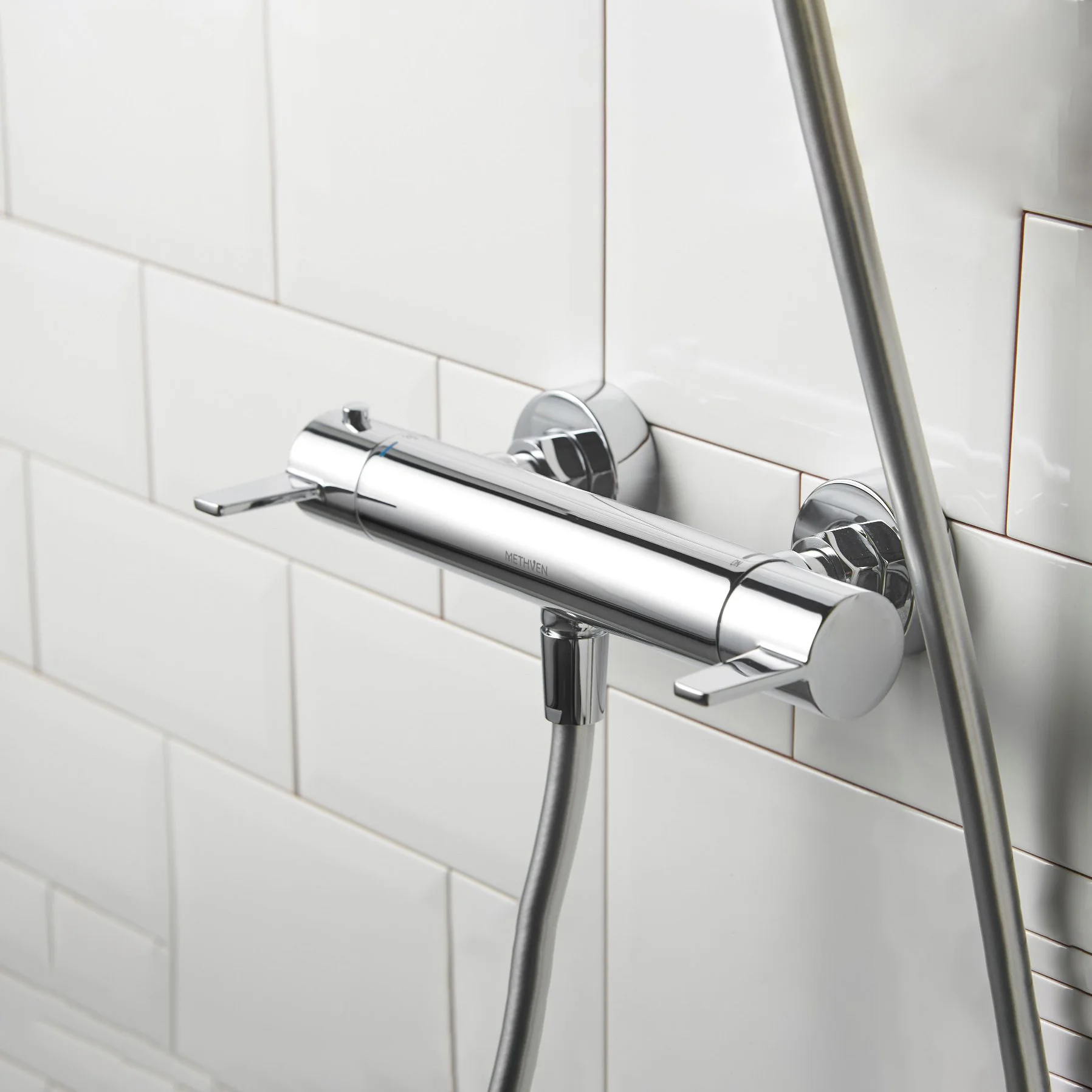

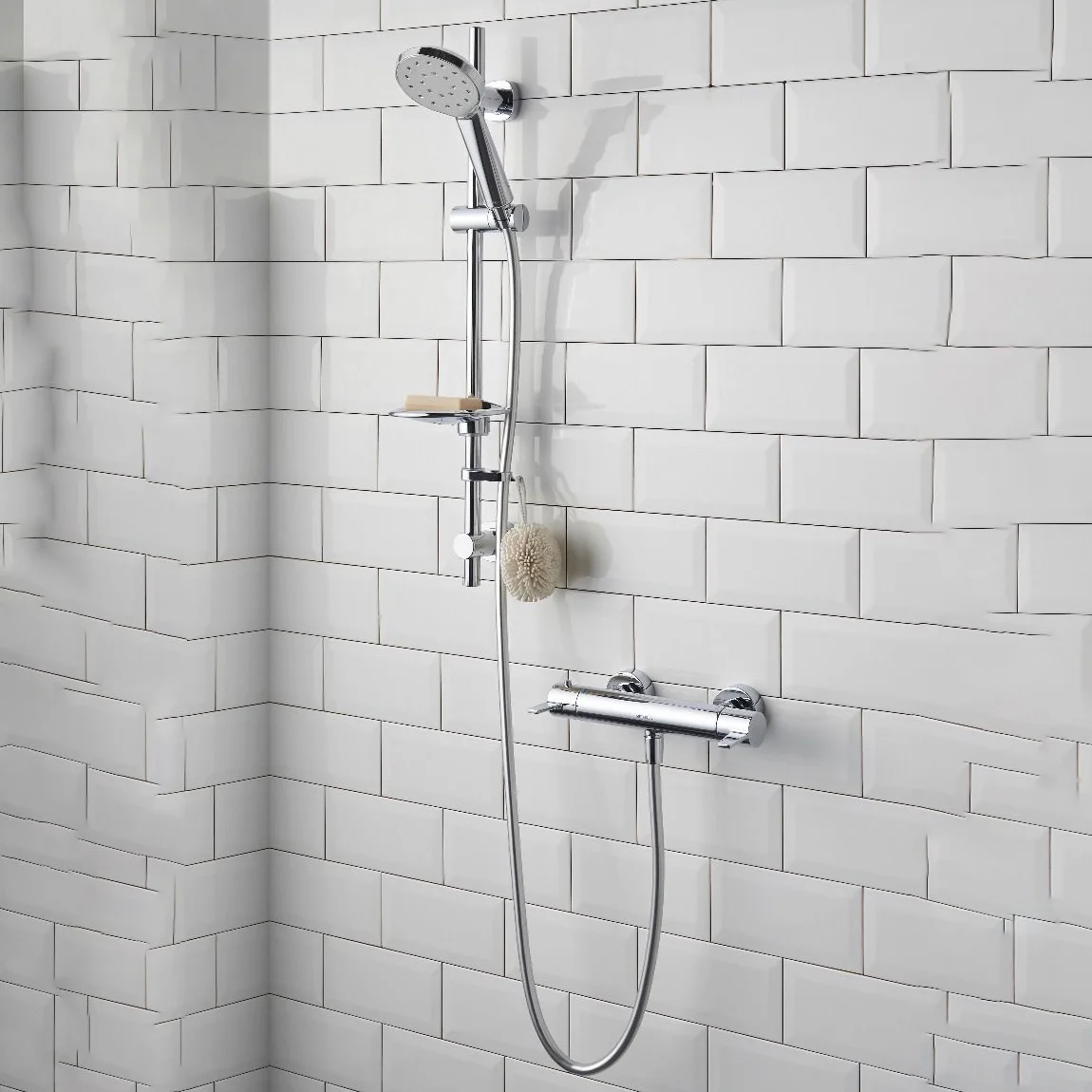

Methven Avoca Cool Touch Thermostatic Chrome Bar Shower Valve with Slide Rail Kit

Key Features

✔WRAS Approved
✔Thermostatic Control
✔Satinjet® Technology
✔Certified to NSF and TMV2
✔Manufactured Using Brass & ABS Material
✔5-Year Warranty from the Manufacturer Against any Manufacturing Defects

Choice of Variation: Standard Flow Handset, Low Flow Water Saving Handset
It Comes in a Polished Chrome Finish
Precise Control
Size of Rail [mm]: 75 x 685mm [Depth x Height]
Size of Rail [cm]: 7.5 x 68.5mm [Depth x Height]
Width of Valve: 274mm [27.4cm]
Inlet Centre: 150mm [15cm]
Twist-Free Hose
Includes Easy-Fit Connections
Cartridge/Valve Type: Thermostatic
Patented Satinjet Showering Technology
Water Efficient Without Compromising Showering Performance

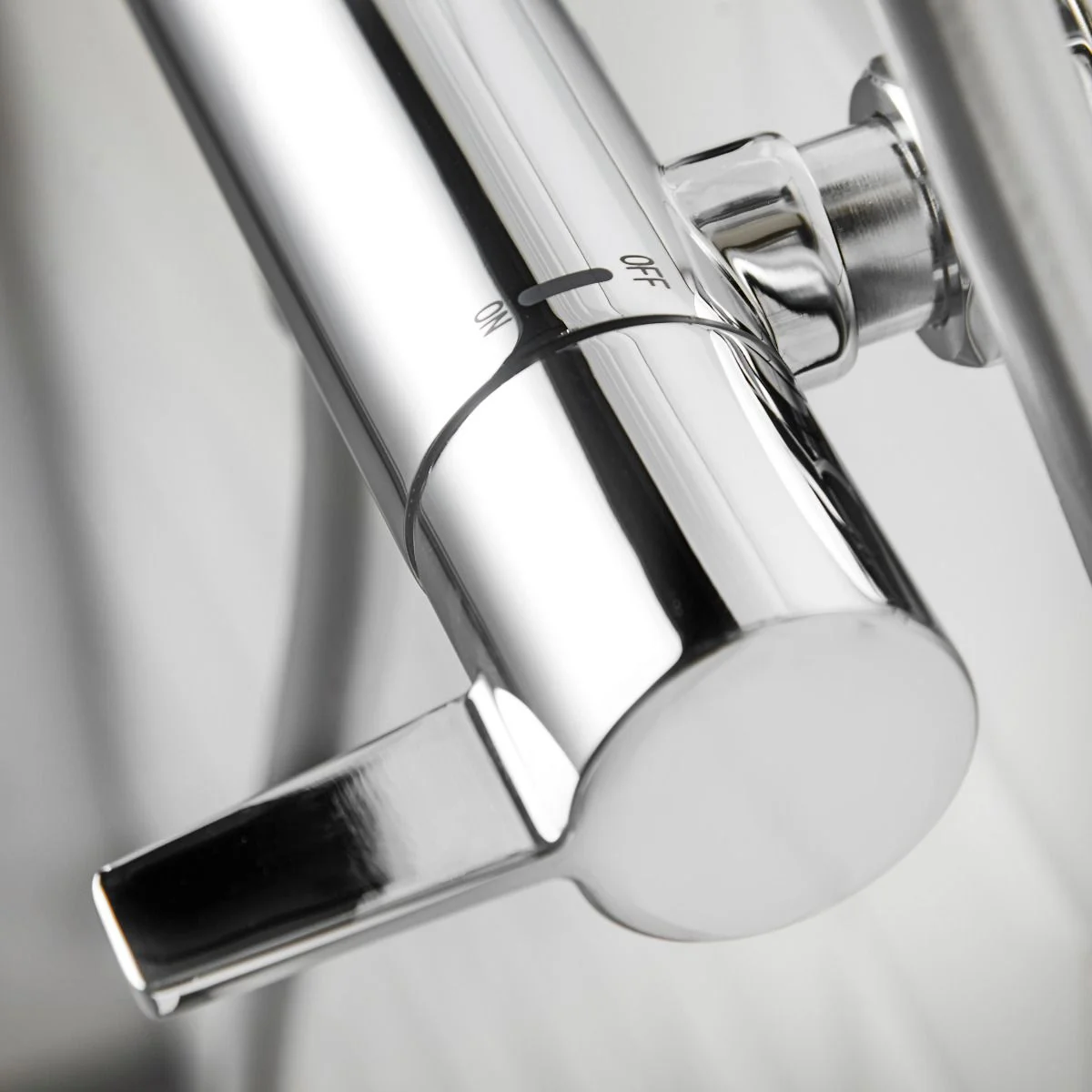

Easy-to-Use Large Paddle Levers for Ease of Operation
Separate the Thermostatic Temperature and Flow Controls
Thermostatic Control with 38°C Temp Safety Hot Stop Mechanism Prevents Accidental Scalding

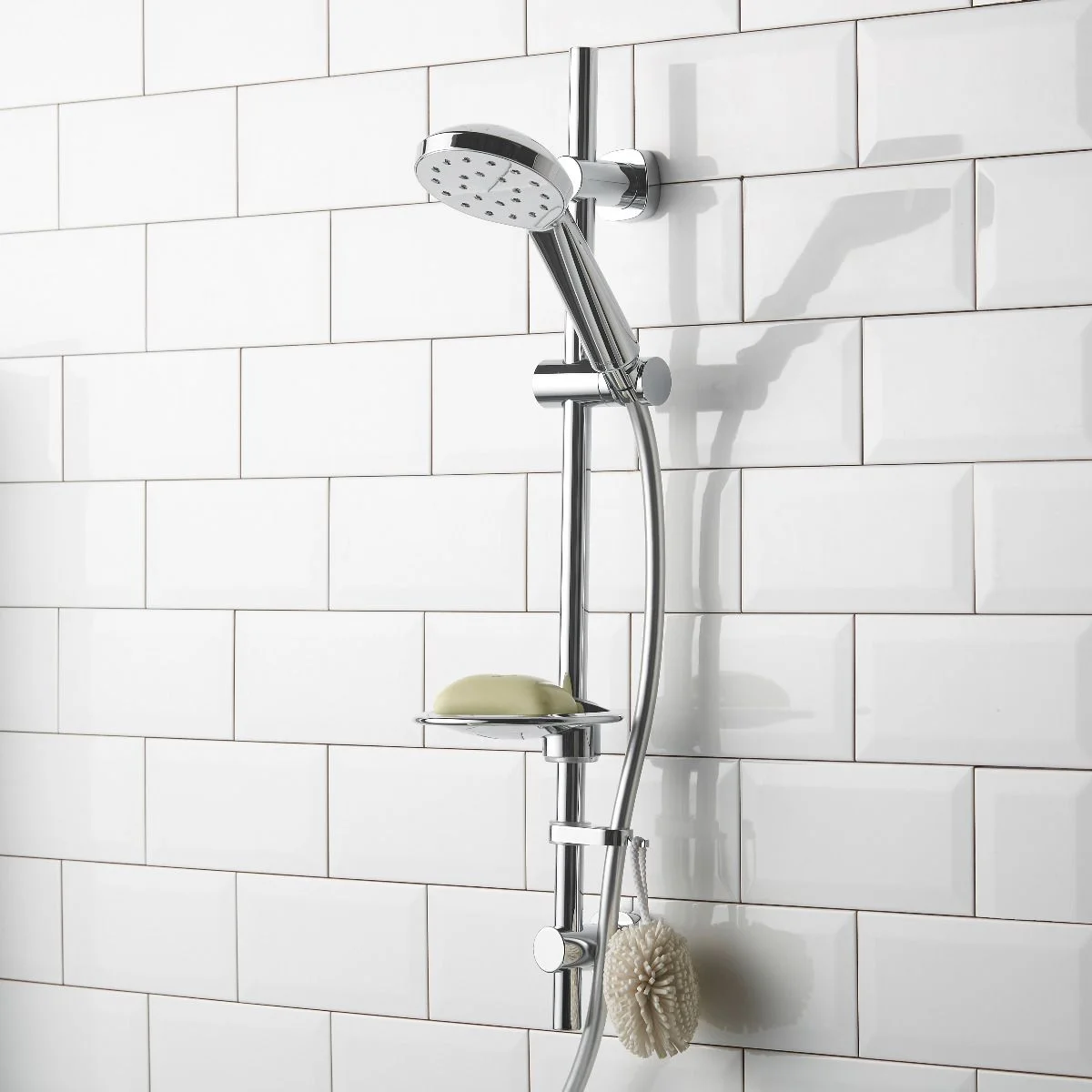

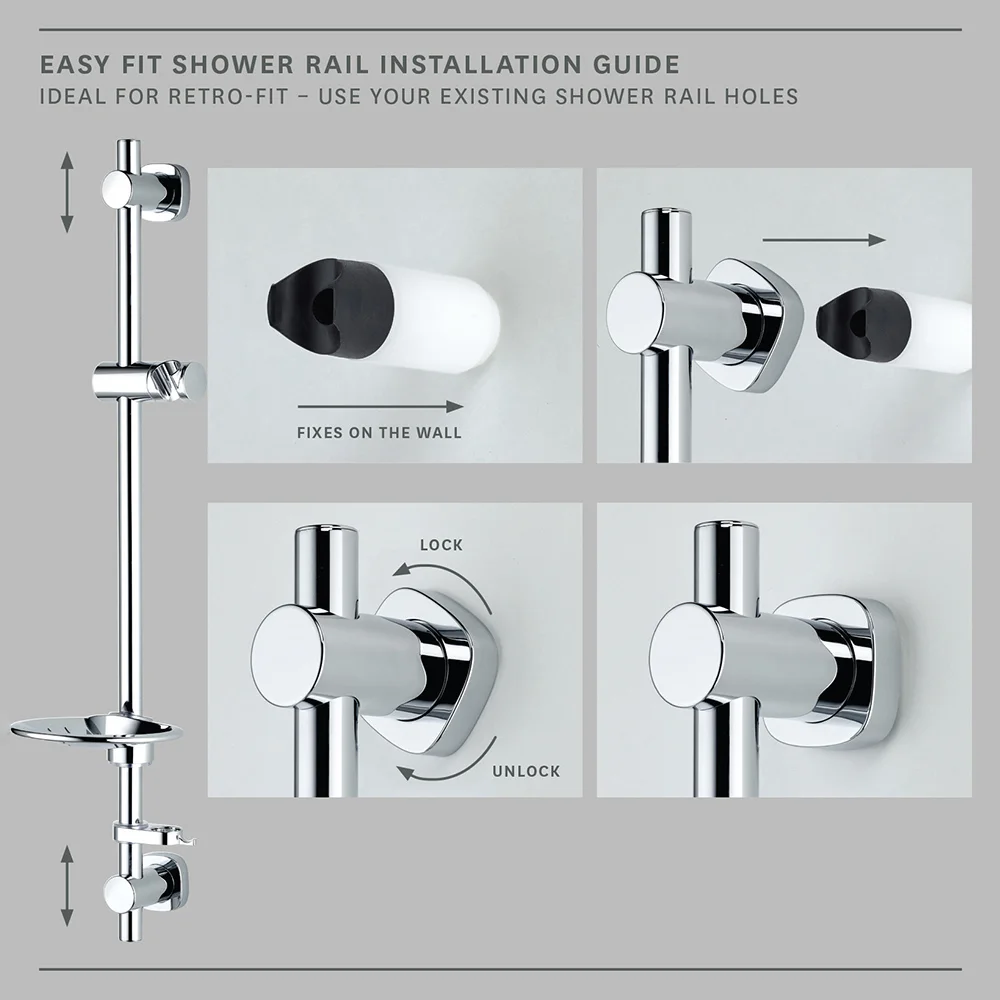

Easy To Fit Shower Rail - Simply Twist And Lock Brackets Into Place
Includes Easy Fit Valve Connections

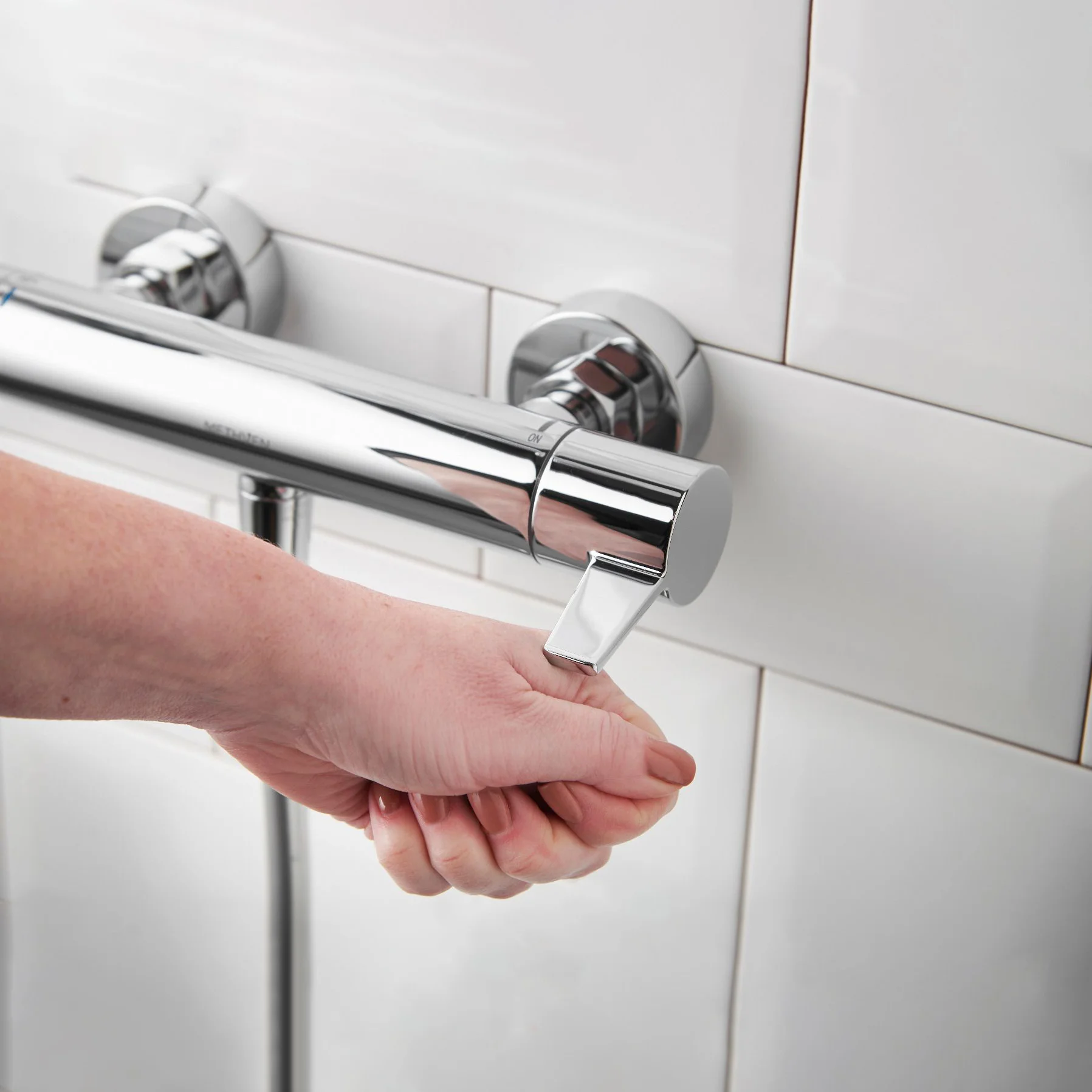

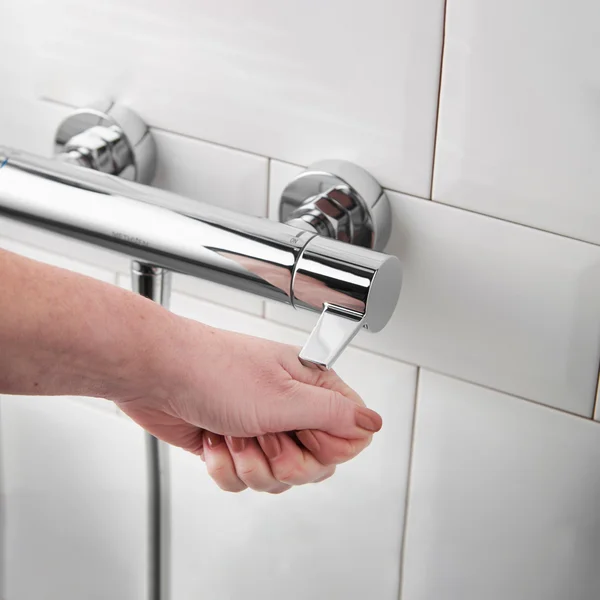

Valve is Safe and Cool to Touch, Making it Ideal for Families

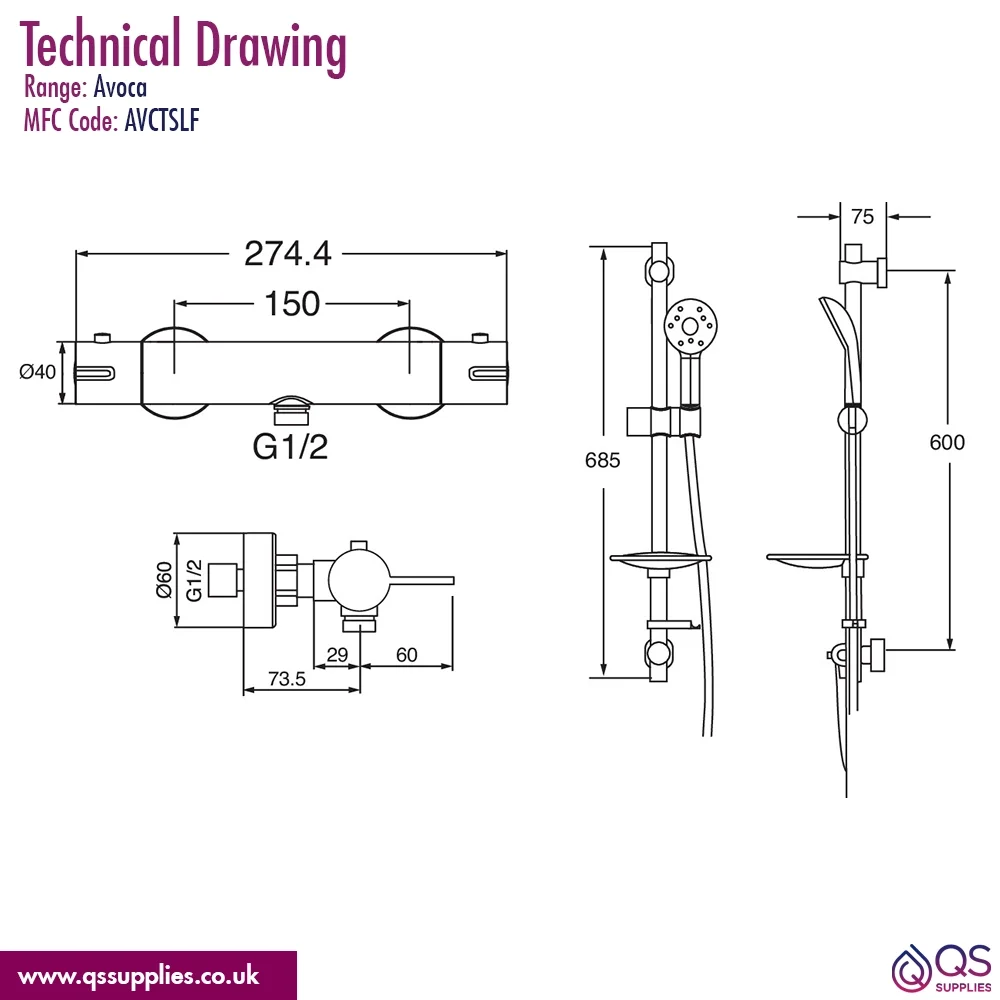

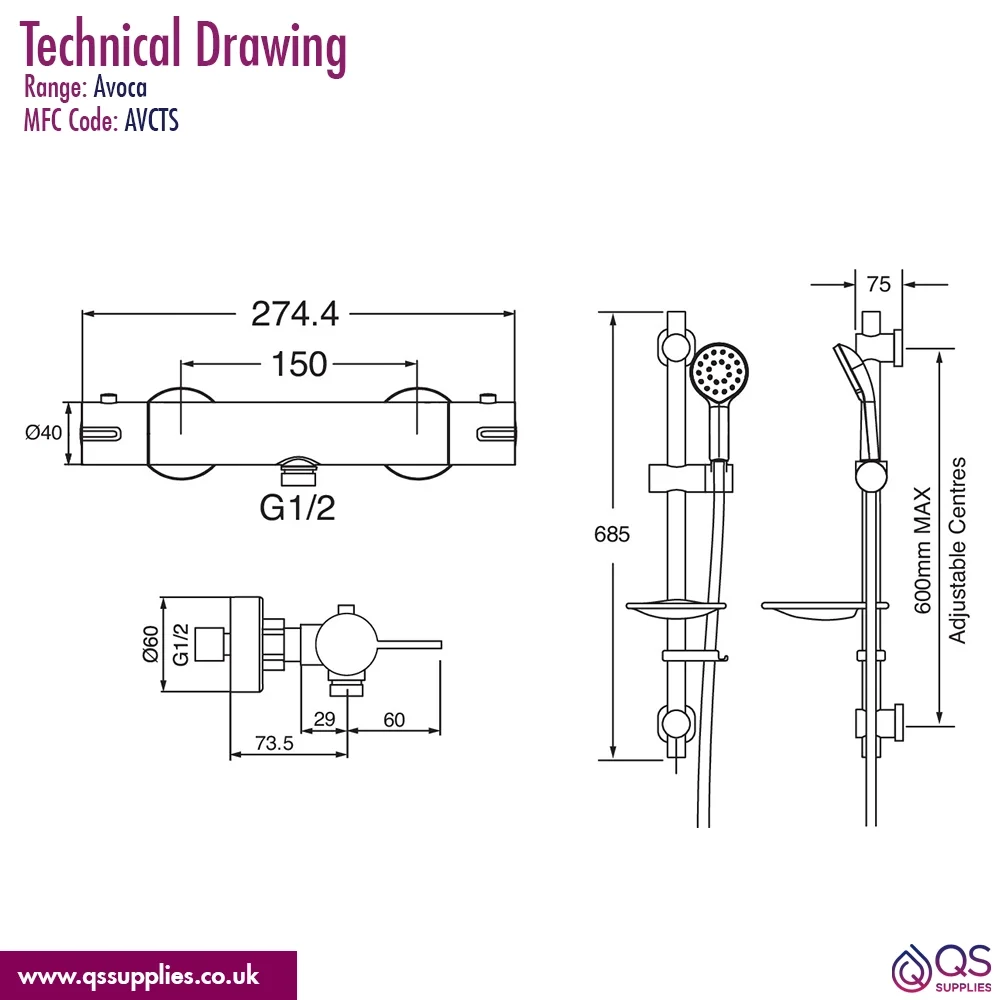

Refer to the Technical Diagram for Complete Technical Dimensions
Download the Product Data Sheet & Installation Guide PDF from the Additional Info Section
Details of Standard Flow Handset:

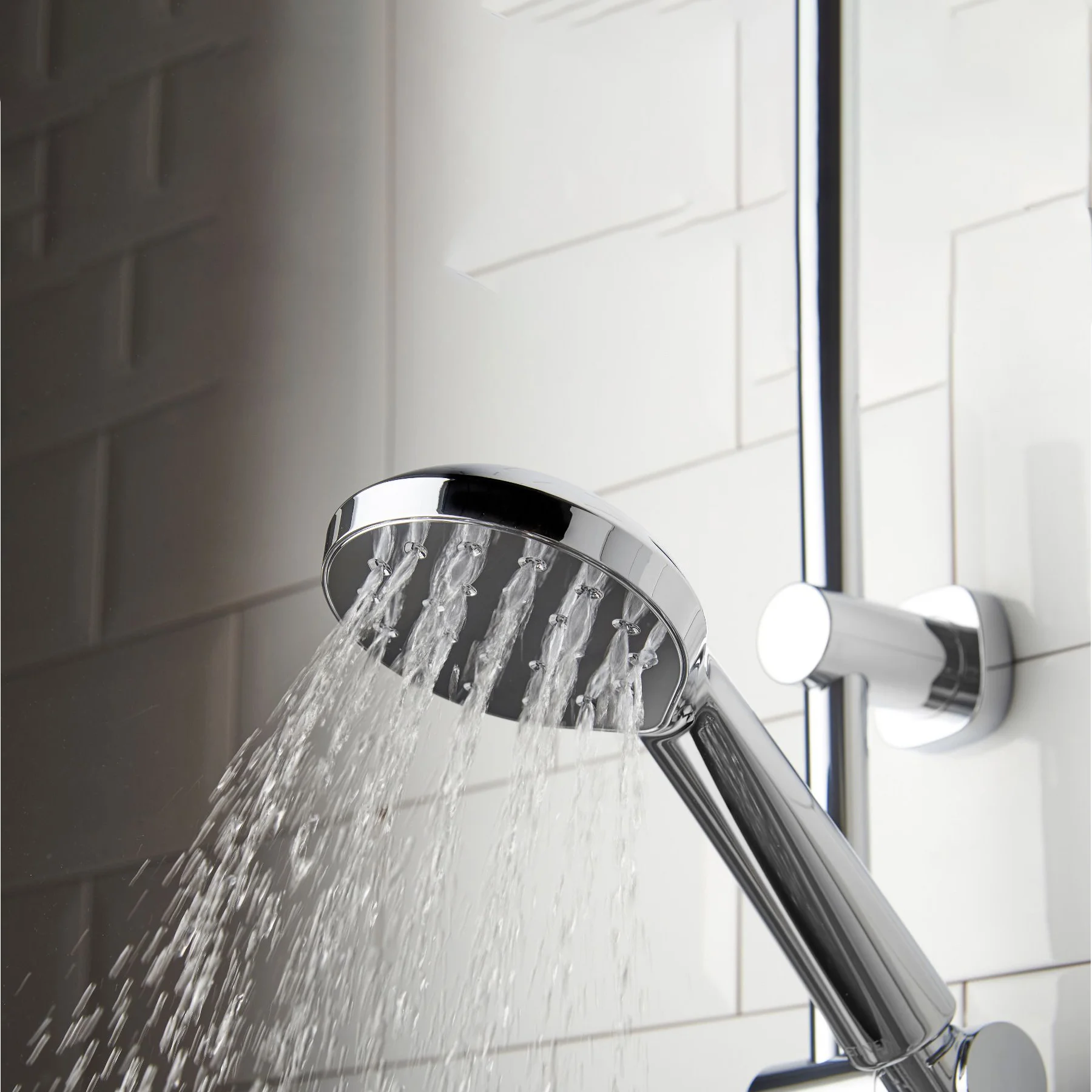

Standard Satinjet Kiri Handset
Water Flow: 8 L/Min
Normal Water Saving
Inlet Connections: 15mm Compression
Suitable for Low and High Water Pressure Systems
Requires a Minimum of 0.3 Bar to a Maximum of 5.0 Bar Water Pressure
Details of Low-Flow Water Saving Handset:

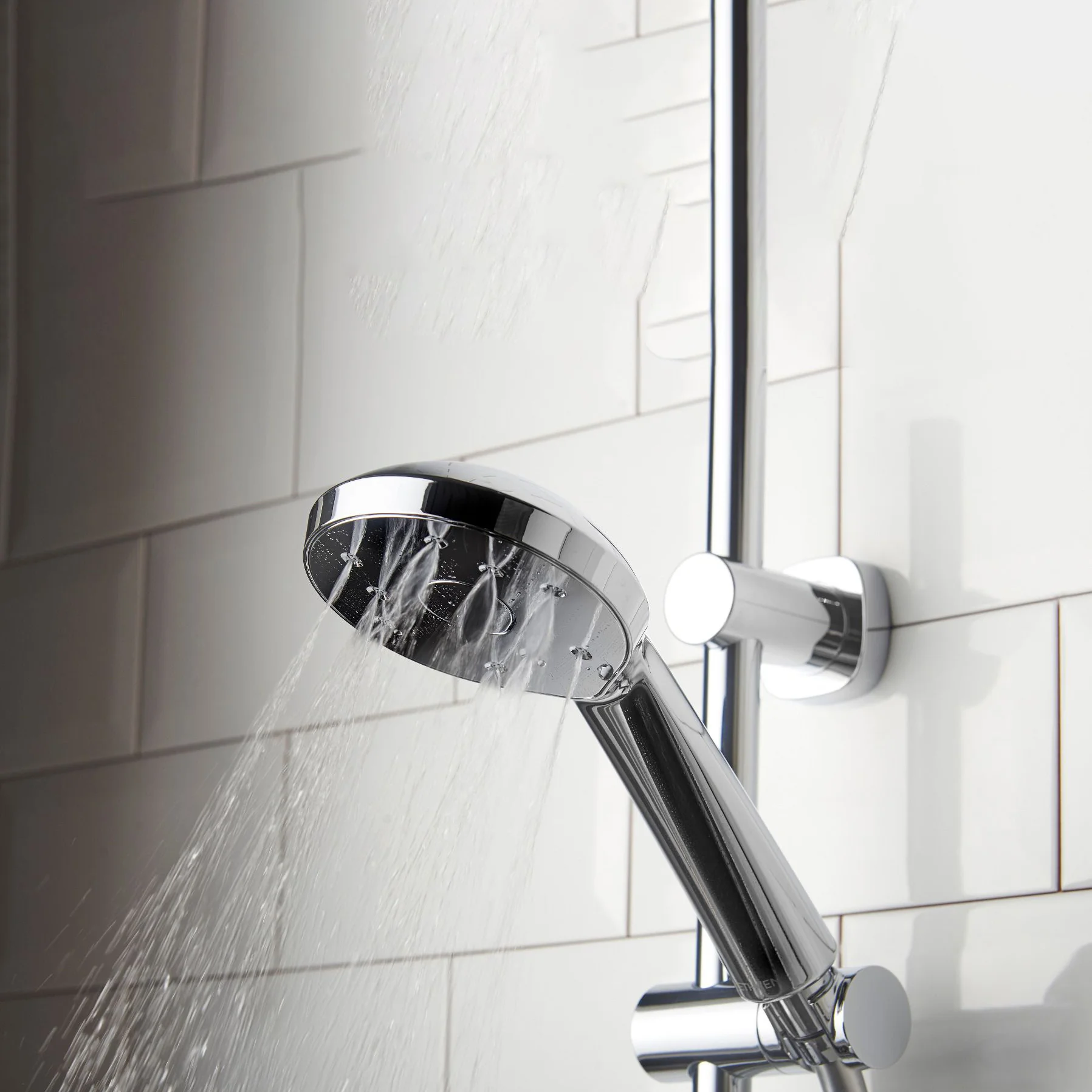

Low Flow Satinjet Kiri Handset
Water Flow: 5.5 L/Min
Higher Water Saving
Inlet Connections: 3/4 Inch BSP
Suitable for High Water Pressure Systems
Requires a Minimum of 1.0 Bar to a Maximum of 5.0 Bar Water Pressure

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass, ABS
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Inlet Centres
: 150
⤷ Inlet Connections
: 15mm Compression
⤷ Minimum Operating Pressure (Bar)
: 0.3, 1.0
⤷ Water Saving
: Yes
⤷ Hose Included
: Yes
⤷ Technologies
: Cool Touch, Satinjet
⤷ Configuration
: Bar Shower Valve, Slide Rail Kit, Handset
⤷ Temperature Control
: Thermostatic
⤷ Anti-Scald
: Yes

⤷ Compliance/Approvals/Standard
: NSF
⤷ Product Type
: Thermostatic Shower
⤷ Plumbing System Compatibility
: Exposed
⤷ Soap Dish Included
: Yes
⤷ Hose Type
: Anti-Twist
⤷ Riser Rail & Kit Finish
: Chrome
⤷ Separate temperature and power controls
: Yes
⤷ Auto shutdown if hot or cold supplies fail
: Yes
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: 1
⤷ Valve Size
: W: 270
⤷ Rail Length
: 685
⤷ Adjustable Height
: Yes

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Guide Pdf File

Technical Images

Methven Avoca Cool Touch Thermostatic Chrome Bar Shower Valve with Slide Rail Kit

Standard Flow Handset

Low Flow Handset

£306.00

RRP: ~~£382.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

7 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

ABS Plastic

ABS, or Acrylonitrile butadiene styrene, is a thermoplastic polymer used to manufacture many non-food products. It is inexpensive and can be easily shaped and machined. It also features high strength, stiffness, increased chemical and temperature resistance, electrical insulation and a glossy look.

Satinjet

Satinjet® uses unique twin-jet technology to modify the water droplets' size and pressure while creating more than 300,000 droplets per second. The resulting sensation during the shower is so thrilling that it can be considered the perfect showering experience. These come in many variations, both gentle and invigorating.

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.
