Nuie Arvan 2 Control Thermostatic Shower Valve with Fixed Head & Wall Arm, SBR01TW1

Nuie Arvan Details

MFC: SBR01TW1

Nuie Arvan Dual Control Thermostatic Shower Valve with Fixed Head and Wall Arm.

Key Features

✔Pack Includes:
✔2 Outlet Concealed Thermostatic Shower Valve
✔Round Fixed Shower Head with Wall Mounted Arm
✔5-Year Guarantee on Chrome and 3-Year on Other Finishes

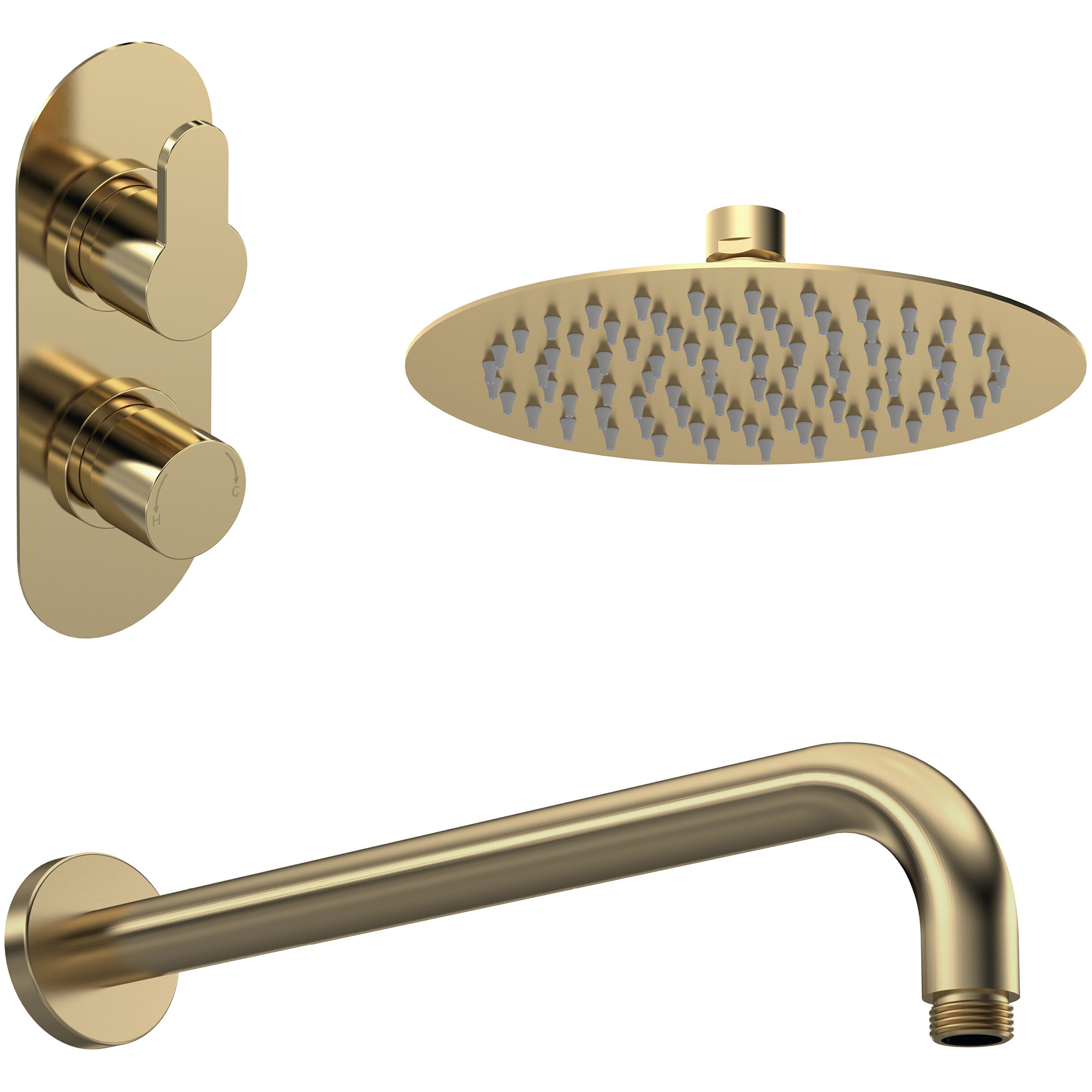

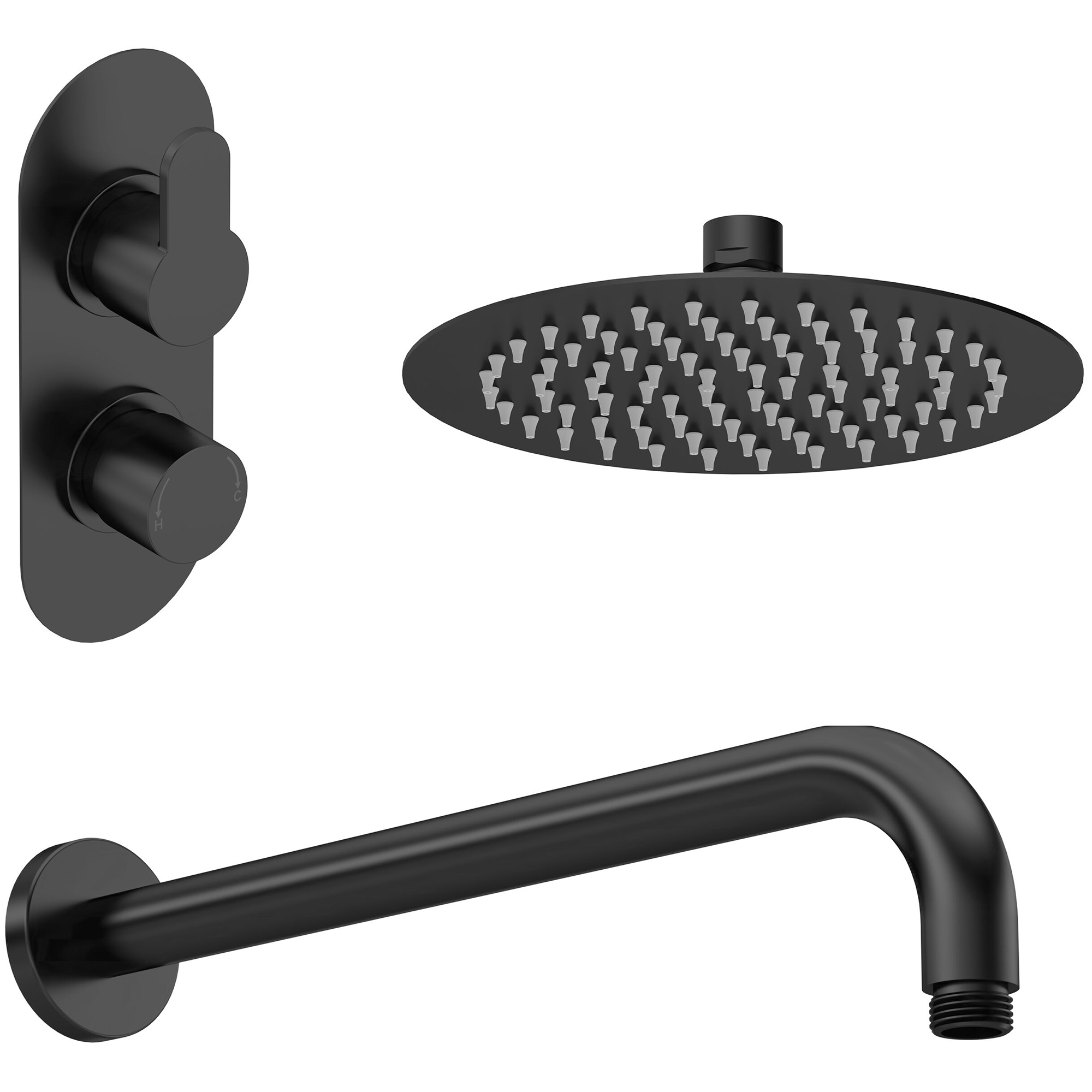

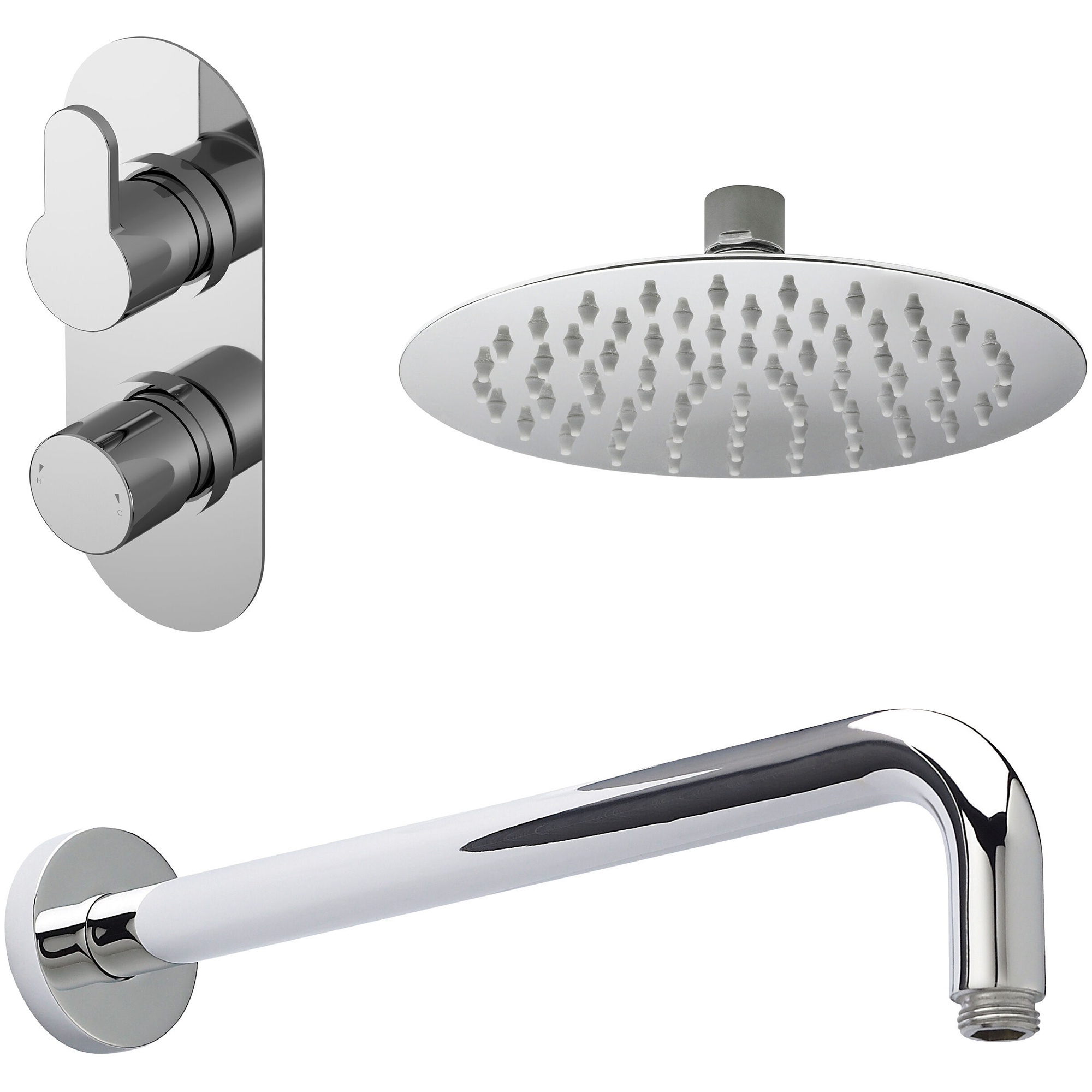

Choice of Finishes: Chrome, Matt Black, Brushed Brass
Contemporary Design
Refer to the Technical Drawing for Size Details
Download the Customer Data Sheet and Installation Instruction PDF File from the Additional Info Section
Specification of Shower Valve:
Number of Outlets: 1
Number of Handles: 2
WRAS and TMV2 Approved
Manufactured Using Brass and ABS Material
Installation Type: Recessed and Wall
Stain- and Rust-Resistant Valve
Supplied with Valve and Cartridge
Accurate Flow Control Thermostatic Valve
1/4-Turn Ceramic Cartridge Disc
Overall Size [mm]: 80 x 136 x 215mm [Width x Depth x Height]
Overall Size [cm]: 8 x 13.6 x 21.5cm [Width x Depth x Height]
Wall-Mount Cavity: Min. 72mm [7.2cm] and Max. 85mm [8.5cm]
Can be Fitted Vertically or Horizontally
Inlet and Outlet Connection: G 1/2 Inch
Suitable for Low-Pressure Water System
Requires 0.1 Bar Operating Water Pressure
Features:
Stain- and Rust-Resistant Construction with Precise and Reliable Flow Control
Advanced Thermostatic Control Maintains Water Temperature Within ±2°C, Even During Pressure Fluctuations
Compatible with Concealed Shower Systems for a Seamless Installation
Patented Cartridge Design resists Calcium Buildup, Making It Ideal for Hard Water Conditions
Suitable for All Plumbing Systems, Including Gravity-Fed, Pumped, Unvented High-Pressure, and Fully Modulated Combi-Boilers
Integrated Thermal Safety Protection Automatically Shuts off in Case of Hot or Cold Water Supply Failure, Preventing Scalding
Fully Reversible Cartridge Eliminates the Need for Re-Plumbing if Hot and Cold Supplies are Incorrectly Connected
Easy Maintenance—Remove, rotate the Cartridge by 180°, and Reinstall
Specification of Round Fixed Shower Head:
Single Head Function
Manufactured Using Stainless Steel Material
Size [mm]: Ø200 x 55mm [Diameter x Height]
Size [cm]: Ø20 x 5.5cm [Diameter x Height]
Installation Type: Wall or Surface Mounted
Inlet Connection: G 1/2 Inch
Suitable for Medium Pressure System
Requires a Minimum 0.5 Bar Water Pressure
Specification of Wall-Mounted Arm:
Manufactured from Solid Brass Material
Size [mm]: 400 x 60 x 85mm [Length x Width x Height]
Size [cm]: 40 x 6 x 8.5cm [Length x Width x Height]
Connection Thread: G 1/2 Inch
Shape: Round

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Weight in kg
: 3.81
⤷ Country of Origin
: China
⤷ Warranty/Guarantee
: Chrome: 5 Years | Other Finishes: 3 Years
⤷ Material
: ABS, Brass, Stainless Steel
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic Cartridge
⤷ Minimum Operating Pressure (Bar)
: 0.1 bar
⤷ Flow Rates (l/min)
: 0.1 bar-5.5 | 0.2 bar-7.1 | 0.5 bar-14 | 1 bar-20 | 2 bar-29 | 3 bar-44
⤷ Configuration
: Valve, Head & Arm

⤷ Temperature Control
: Theromstatic
⤷ Backplate Width
: 80
⤷ Backplate Height
: 215
⤷ Anti-Scald
: Yes
⤷ Compliance/Approvals/Standard
: WRAS | TMV2
⤷ Product Type
: Shower Set
⤷ Showerhead Type
: Single
⤷ Auto shutdown if hot or cold supplies fail
: Yes
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 200

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instruction Of Shower Valve Pdf File Download the Installation Instruction Of Shower Head Pdf File Download the Installation Instruction Of Shower Arm Pdf File

This item can also be found in:

Thermostatic Mixer Showers

Technical Images

Valve

Head

Arm

£508.00

RRP: ~~£635.00~~

STOCK AVAILABLITY: 10 Working Days Approx

QS Supplies

9 Features Included In This Product Explained

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

ABS Material

ABS (Acrylonitrile Butadiene Styrene) is a laminate popularly used in woodworking and furniture manufacturing. It is a thermoplastic polymer used to finish and seal the edges of plywood, chipboard, MDF, HDF, and other boards.

Stainless Steel Material

Stainless Steel is an iron alloy with anti-rust and anti-corrosive properties, unlike iron. Along with other metal alloys, it contains a minimum of 10.5% of chromium and less than 1.2% of carbon. This robust, hygienic, hard-wearing base material is popular in the construction of bathroom products.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.
