Crosswater Module Thermostatic Shower Set 6 with Wall Mounted Arm, MODSET6C200

Crosswater Module Details

MFC: MODSET6C200

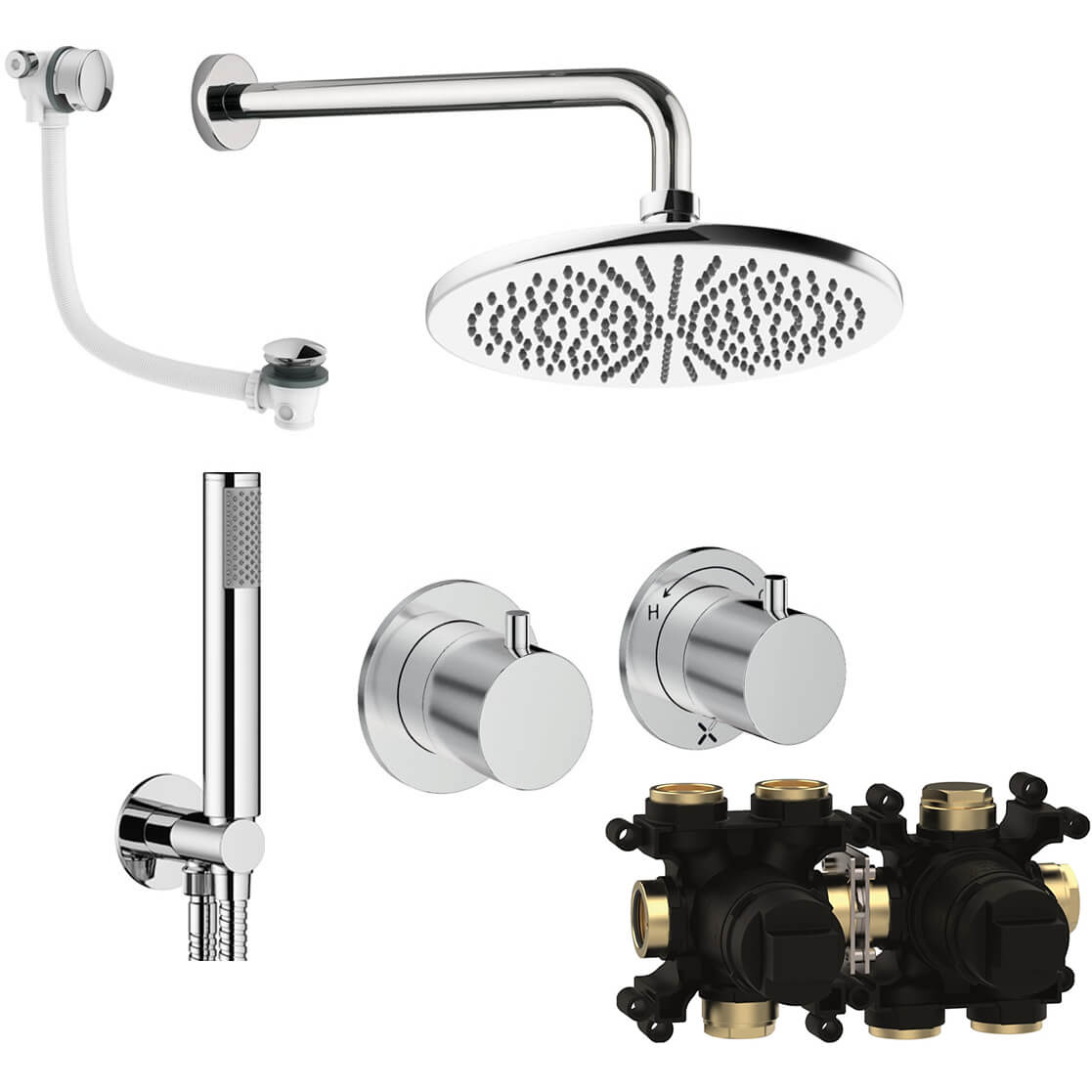

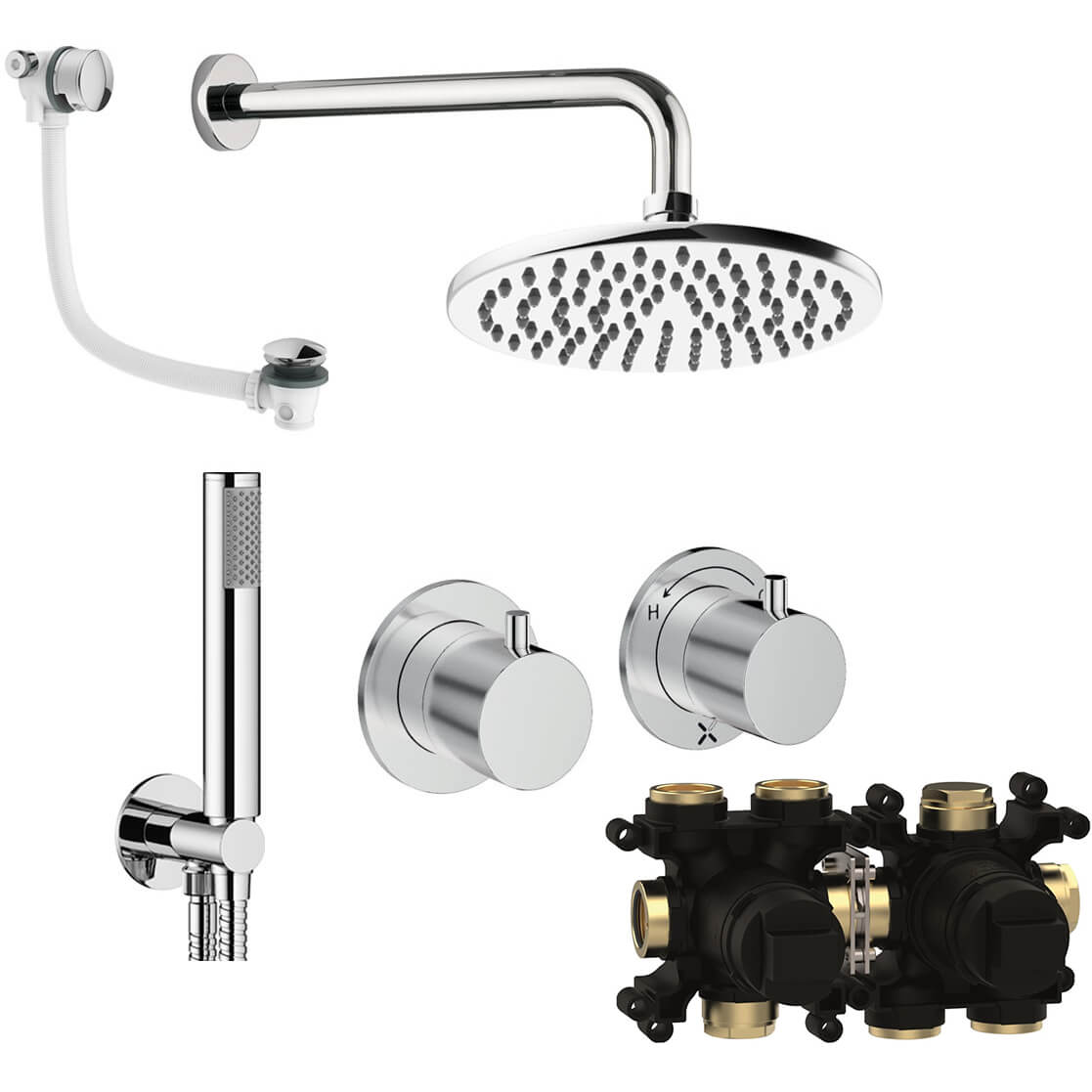

Crosswater Module Thermostatic Shower Set 6 with Wall Mounted Arm.

Key Features

✔Available in 6 Finishes
✔Choice of Shower Head Diameters: 200mm, 300mm
✔15-Year Guarantee from the Manufacturer Against any Manufacturing Defects

Please Refer to the Technical Drawing For Size Details
Download the Data Sheet and Installation Instruction PDF Files from the Additional Info Section
Pack Includes:
Round Contemporary 2 Control Concealed Trim Set
Wall-Mounted Shower Arm
Round Fixed Shower Head
Shower Handset with Wall Outlet and Hose
Bath Filler with Click Clack Waste
Concealed 3 Outlet Thermostatic Shower Valve
Details Of Trimset:
Standard: EN 1111:2008
Thermostatically-Controlled for 100% Safety
Easy-to-Use without the Need for a Lever
Enjoy Water from Multiple Outlets at the Same Time
Easy-to-Use Multi-Button Design for Full Control
Allows You to Leave Temperature and Flow Controls in Place, Ready for the Next Use
Weight 1.9kg
Details Of Wall-Mounted Shower Arm:
KIWA Approved
Manufactured Using High-Quality Material
Wall-Mounted Installation
Style: Modern
Length: 330mm [33cm]
Inlet/Outlet connection: G 1/2 Inch
Suitable for All Crosswater Fixed Heads
Details Of Round Fixed Shower Head:
WRAS and KIWA Approved
Style: Round
Head thickness: 5.8mm
Weight: 1kg
Inlet Connection: G1/2 Inch
Ceiling- or Wall-Mounted Installation
Manufactured Using High-Quality Brass Material
Suitable for High Water Pressure System
Requires a Minimum of 1.0 Bar or Above Water Pressure
Details of Shower Handset with Wall Outlet and Hose:
WRAS Approved
Single Spray Pattern
Constructed from High-Quality Brass Material
Minimalist Design
Modern Aesthetics with Functional Design
Ideal for Contemporary Bathrooms
It Comes in a Fabulous Chrome Finish
Handset Height: 194.5mm [19.45cm]
Suitable for Low and High Water Pressure Systems
Works On a Minimum of 0.2 Bar to 5.0 Bar Water Pressure
Details of Bath Filler with Click Clack Waste:
Manufactured using ABS material
Length: 1340mm [134cm]
Projection: 44mm [4.4cm]
3-in-1 Inlet/Outlet and Overflow Function
Smooth and Simple Cable Waste Operation or Click-Clack Waste - Press with Your Foot
Flexible Overflow for Easier Installation and Fitting Inside Odd Bath Shapes
Ideal for Shower and Bath Combinations
Outlet Connections Thread Waste/Trap: G 1.1/2
Suitable for Medium Water Pressure Systems
Minimum Water Pressure Recommended for Smooth Working is 0.5 Bar
Details of Concealed Valve:
Number of Outlets: 3
Number of Functions: 2
KIWA Approved Product
Size [mm]: 221 x 141 x 120mm [Width x Depth x Height]
Size [cm]: 22.1 x 14.1 x 12cm [Width x Depth x Height]
Weight: 3kg
Standards: EN 1111:2017
Manufactured using Brass material
Headwork: Thermo Cartridge, Flow Controls
Inlet and Outlet Connections Thread: G 3/4 inch
Suitable for High Water Pressure System
Requires Min. 1.0 Bar and Max. 5.0 Bar Operating Water Pressure

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass, ABS
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Thermo Cartridge
⤷ Inlet Connections
: G 1/2, 1.1/2, 3/4 Inch
⤷ Minimum Operating Pressure (Bar)
: 0.2

⤷ Hose Included
: Yes
⤷ Temperature Control
: Thermostatic
⤷ Product Type
: Shower Set
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 200, 300
⤷ Hose Retainer Included
: Yes
⤷ Outlet Elbow Included
: Yes

Additional Info & Downloads

Download the Product Data Sheet Of Trimset Pdf File Download the Product Data Sheet Of Shower Arm Pdf File Download the Product Data Sheet Of Shower Head Pdf File Download the Product Data Sheet Of Shower Handset Pdf File Download the Installation Instructions Of Valve Pdf File Download the Installation Instructions Of Handset Pdf File

Technical Images

Crosswater Module Thermostatic Shower Set 6 with Wall Mounted Arm

Trimset

3 Outlet Valve

Shower Arm

200mm Shower Head

300mm Shower Head

Handset with Wall Outlet and Hose

Bath Filler with Waste

£1294.80

RRP: ~~£1619.00~~

Stock Availablity: 10-14 Working Days Approx

QS Supplies

8 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

KIWA Approved

KIWA is a universally accepted Dutch approval standard at par with German DVGW, Austrian OVGW, Swiss SVGW, and French NF approval systems. The KIWA approval means that the products meet a high-quality standard for portable water and gas-related products.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

ABS Plastic

ABS, or Acrylonitrile butadiene styrene, is a thermoplastic polymer used to manufacture many non-food products. It is inexpensive and can be easily shaped and machined. It also features high strength, stiffness, increased chemical and temperature resistance, electrical insulation and a glossy look.

3-Outlets

Also known as a triple valve, these valves feature three outlets, and either two or three can run simultaneously, depending on the manufacturer. You can also operate each outlet independently if required. The three outlet connections connect to three different fixtures, e.g., an overhead shower, body jets, side showers, or a bath mixer tap.
