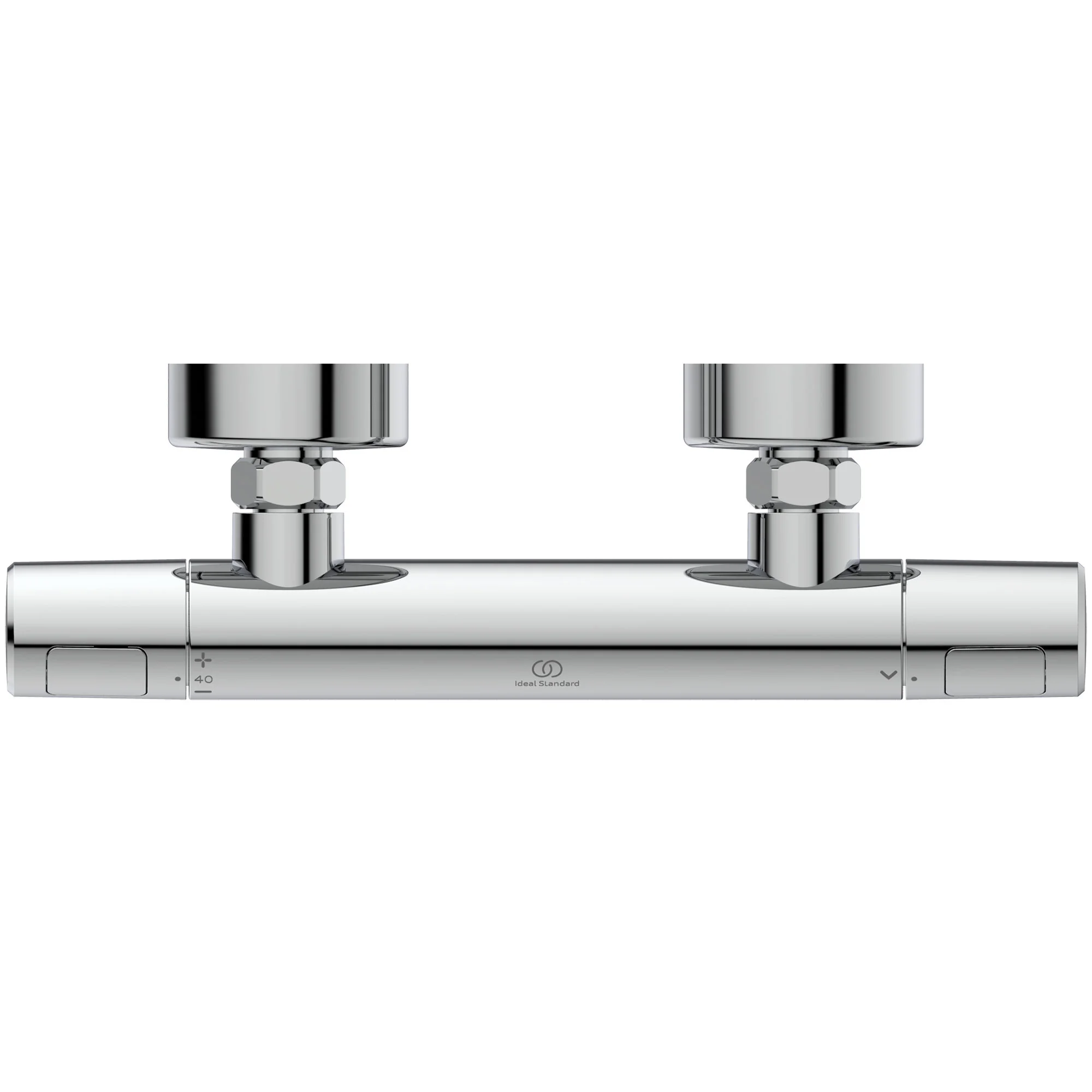

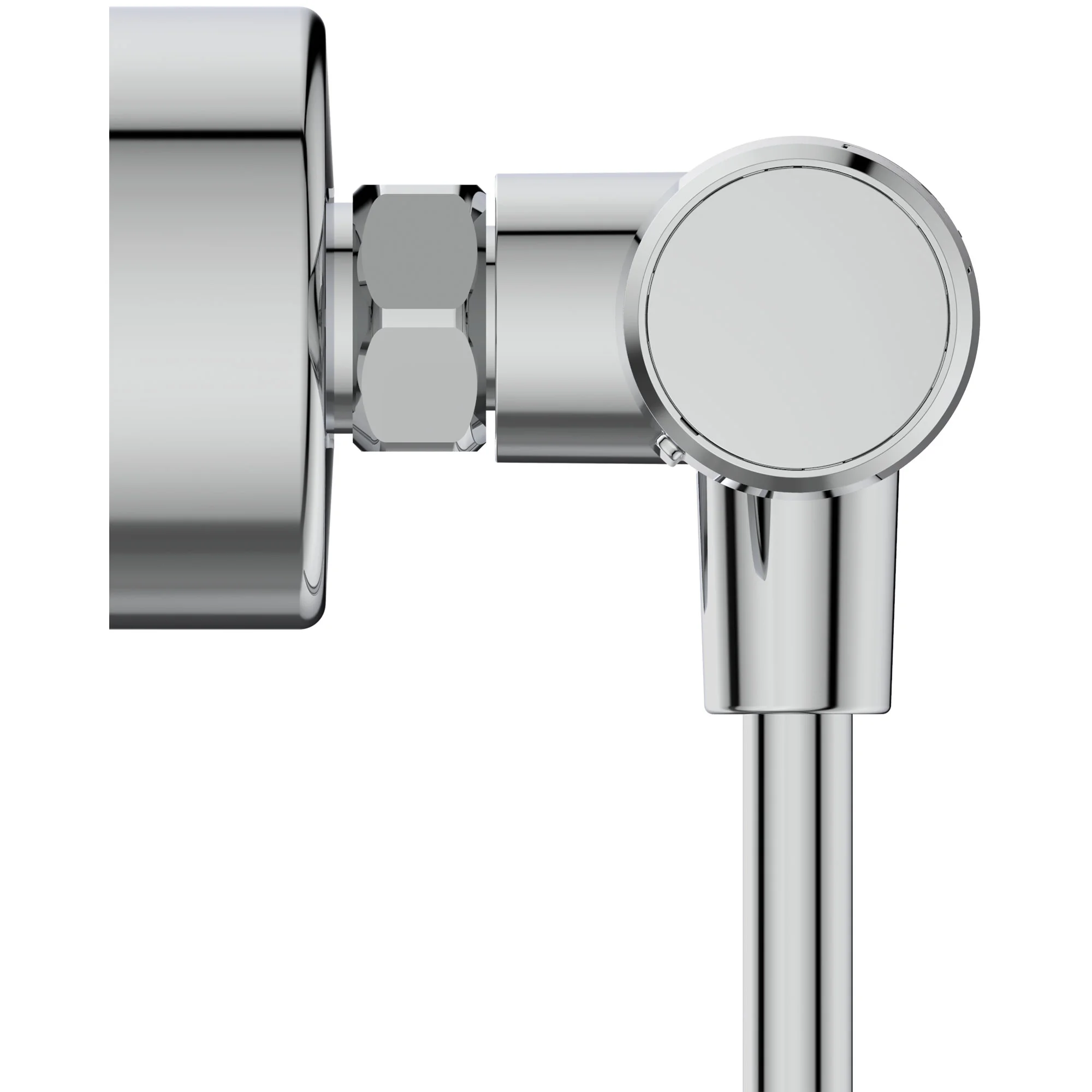

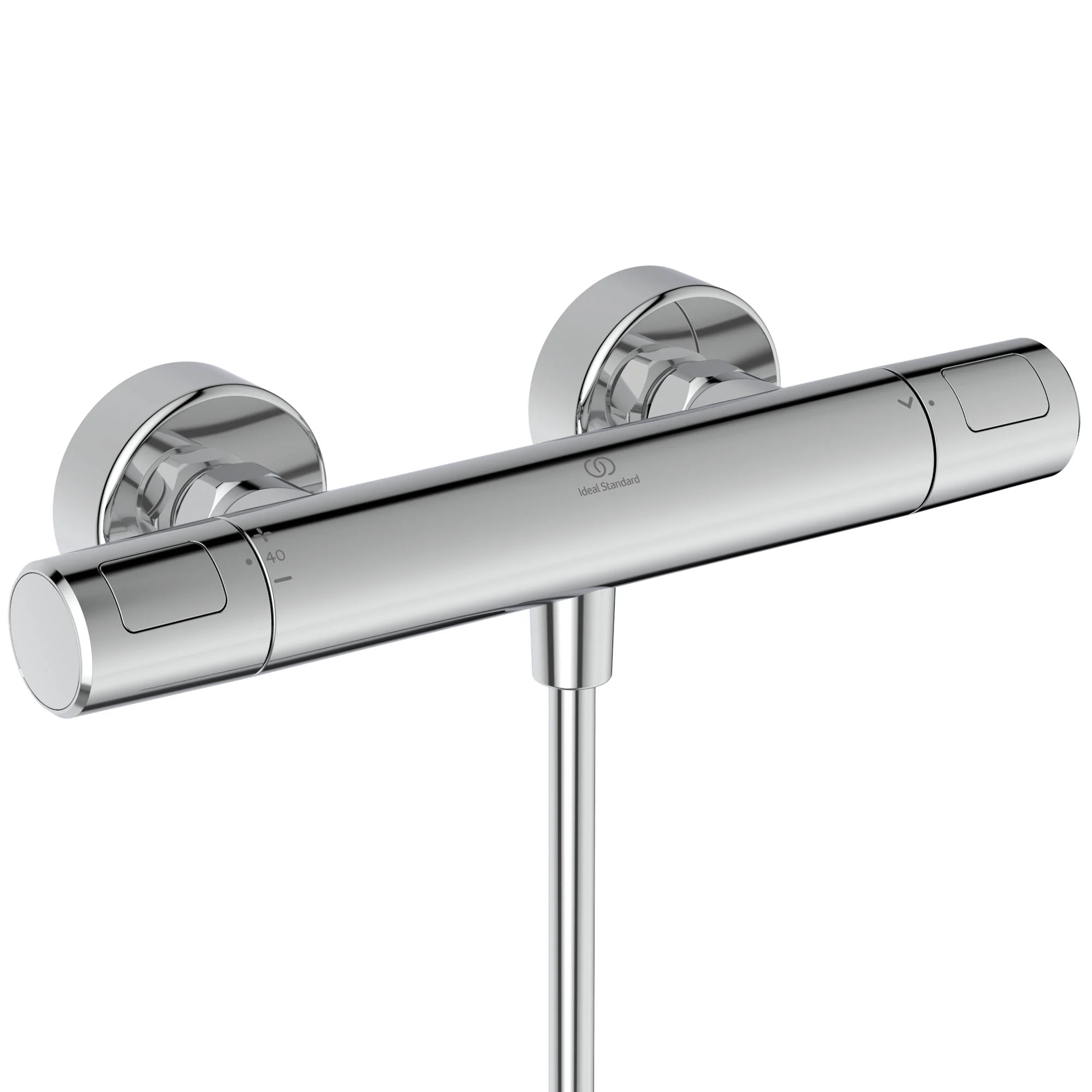

Ideal Standard Ceratherm T25N Thermostatic Exposed Bar Shower Mixer Valve

Details

MFC: A8601AA

Ideal Standard Ceratherm T25N Thermostatic Exposed Bar Shower Mixer Valve.

Key Features

✔Complies with EN817 Standards
✔Surface finish: Glossy

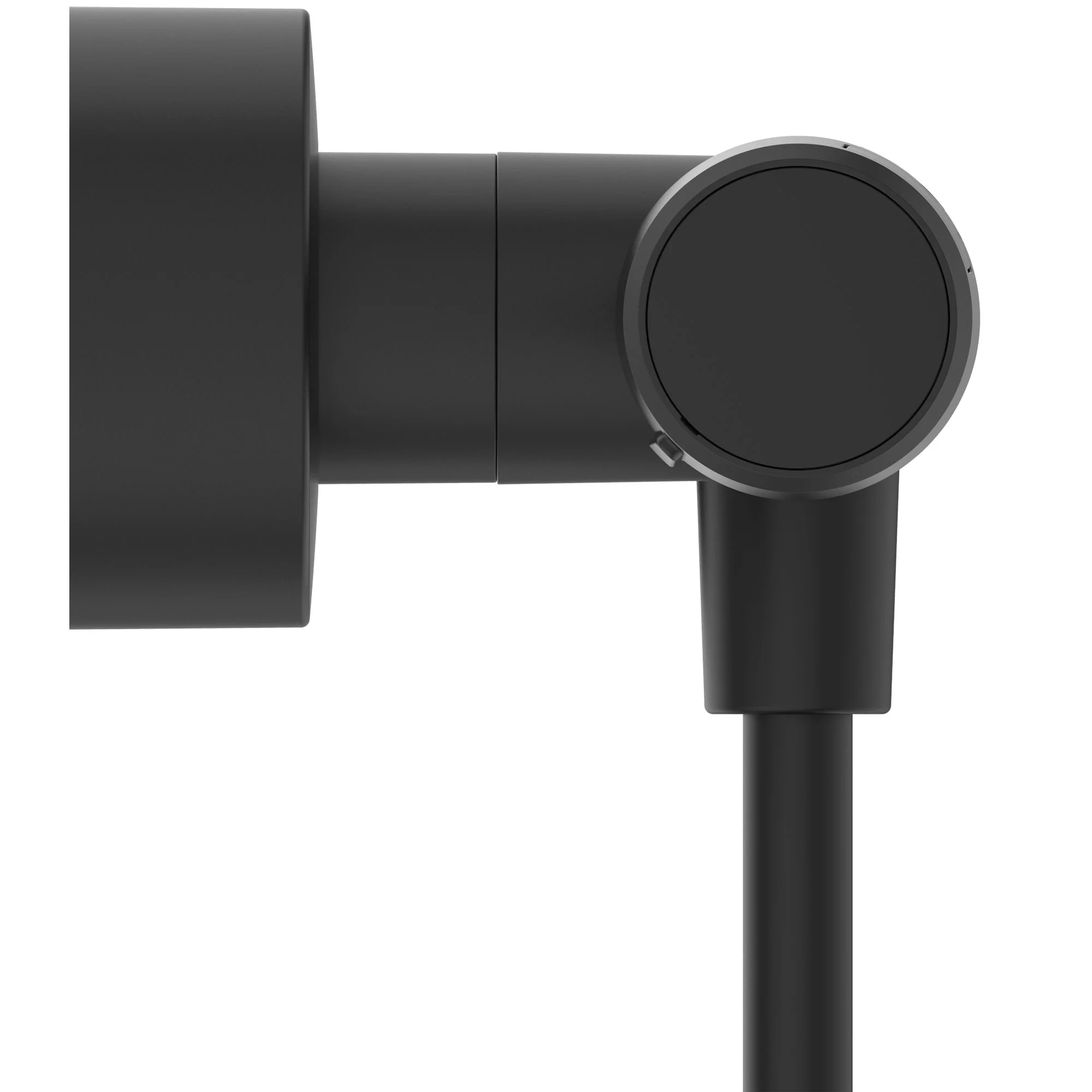

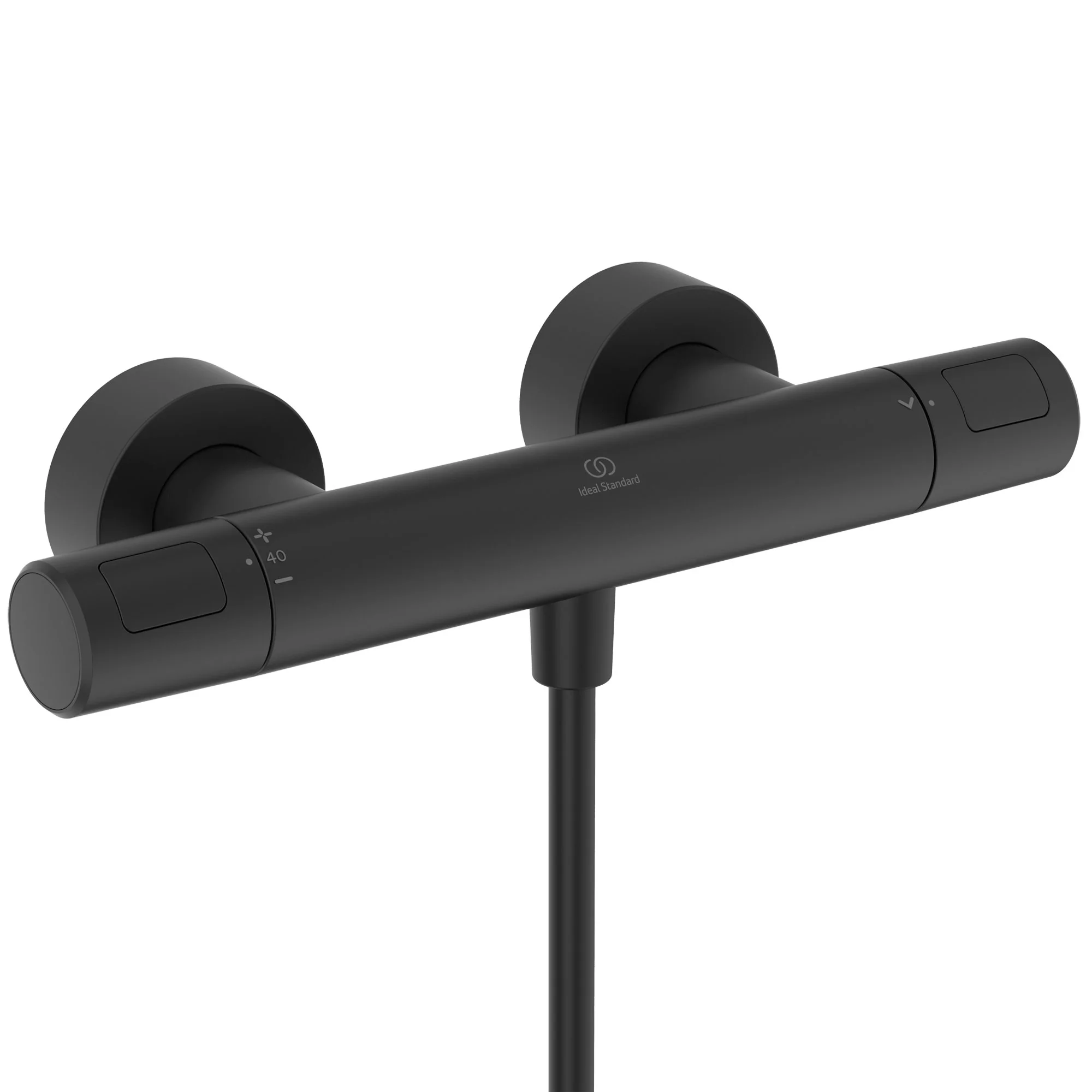

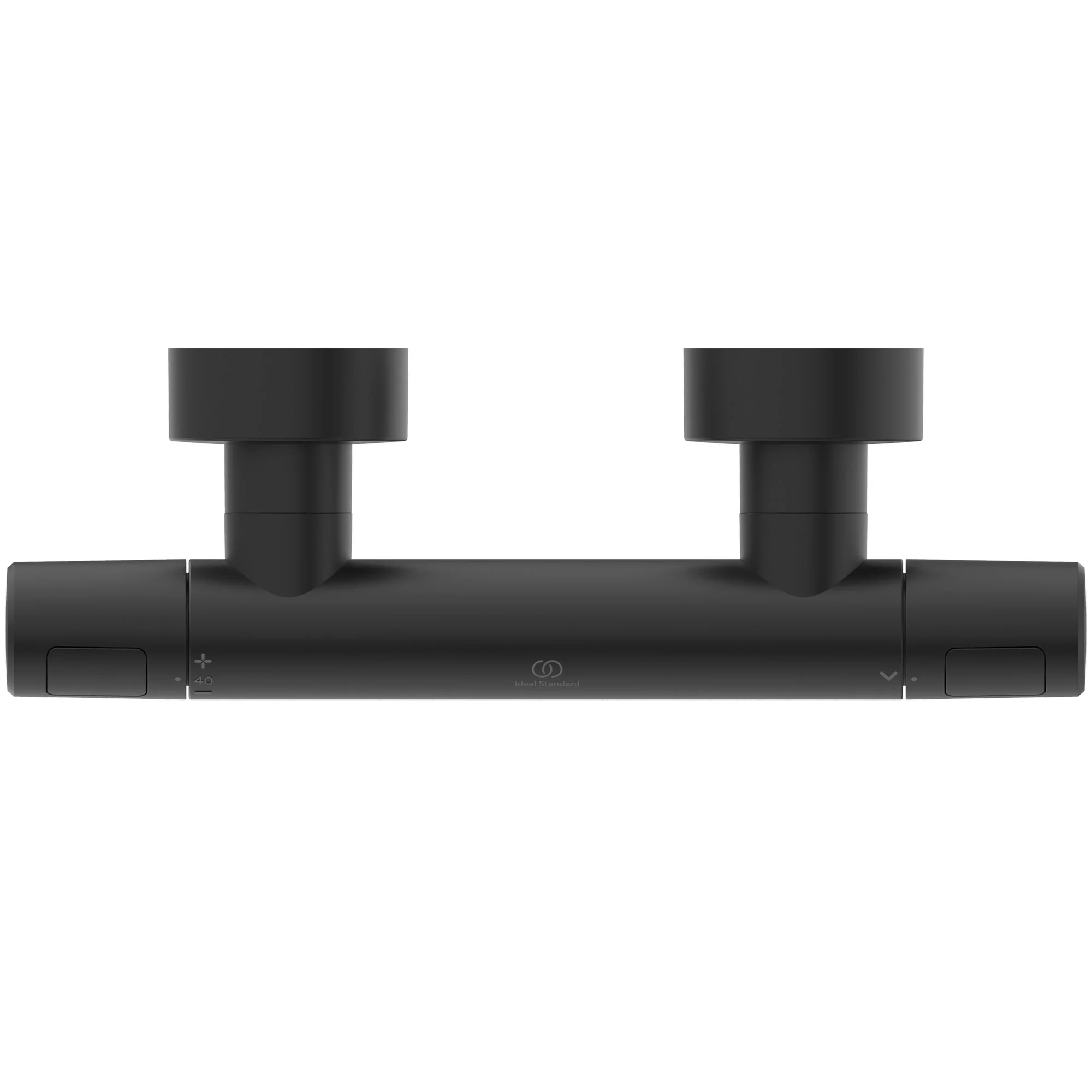

✔Choice of Finishes - Chrome and Silk Black [Optional]
✔Material: Brass
✔Fitting Type: Exposed / Wall Mounted
✔2-Year Guarantee from the Manufacturer Against any Manufacturing Defects

Size in [mm]: 350mm x 70mm [Width x Height]
Size in [cm]: 35cm x 7cm [Width x Height]
Length/Projection: 100mm [10cm]
Inlet centre: 150mm [15cm]
Inlet diameter: 70mm [7cm]
Weight: 1.50 kg
Comes with escutcheons and handles
Fixing Method: Coupling Nut
Max. flow rate at 3 bar (l): 22
Max. flow rate at 3 bar (l) for handspray: 22
Suitable for a medium-pressure water system
Requires min. 0.5 to max. 10 bar operating water pressure
Amount of escutcheons: 2
Material of escutcheons: Metal
Shape of escutcheons: Round
Material of escutcheons: Metal
Amount of handles: 2
Type of handle: Rotary knob
Handle position: Lateral
Material of handle: Plastic
G 1/2 Inch Outlet Connection

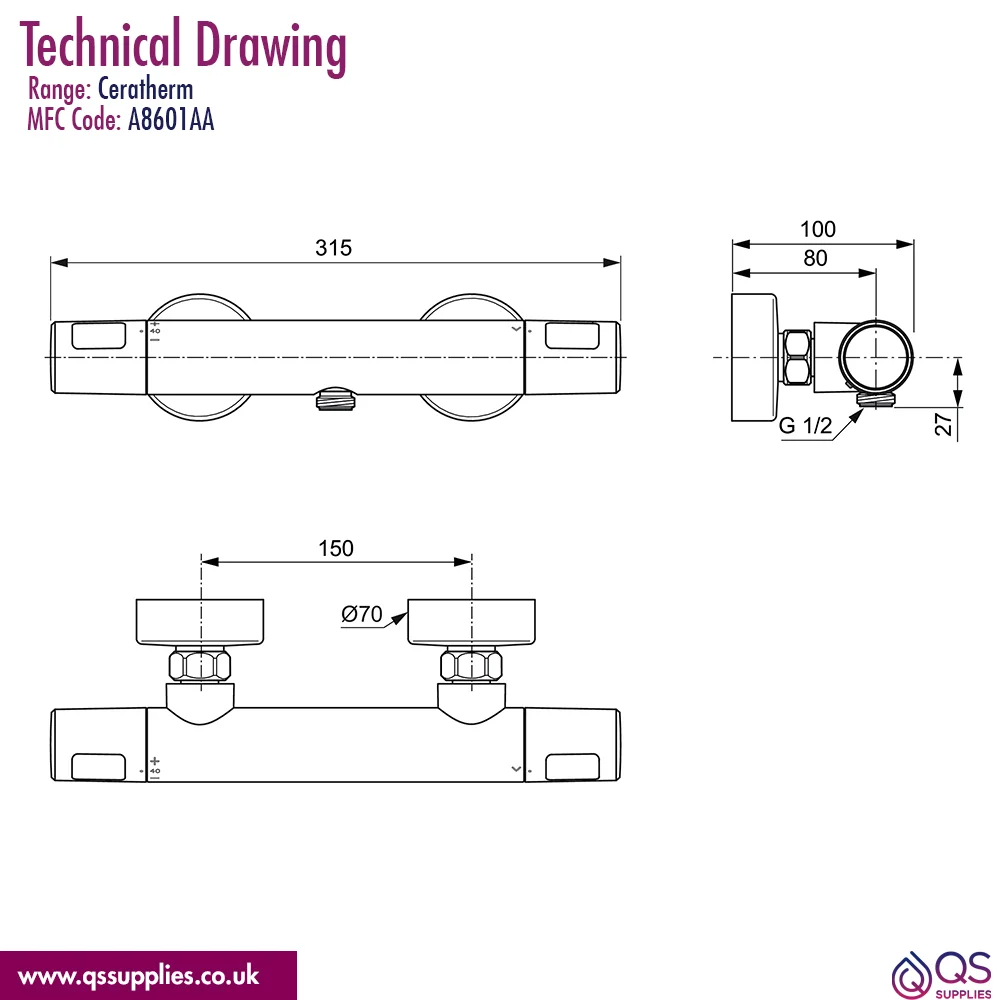

Refer to the Technical drawing for more technical details
Download the Installation Instruction PDF File from the Additional Info Section
Features:
Thermostatic Function
Saving Water and Energy
Temperature Safety Button
SmartShine
Max Temperature Limiter Function to Prevent Accidental Scalding
The Thermostatic Mechanism Controls the Flow of Both Hot and Cold Water
The Cartridge Instantly Adjusts to Maintain your Desired Temperature, even with Changes in Water Supply

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting / Tilting
⤷ Range
: Ceratherm
⤷ Handle Position
: Lateral
⤷ Colour
: Chrome
⤷ Shape
: Round
⤷ Warranty/Guarantee
: 2 Years
⤷ Material
: Metal | Plastic | Brass
⤷ Theme
: Modern
⤷ Installation Type
: Exposed
⤷ No. of Holes Required
: 2
⤷ Inlet Centres
: 150
⤷ Overall Height
: 70
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Water Saving
: Yes
⤷ Flow Rates (l/min)
: 3 Bar: 22

⤷ Handle Style
: Rotary Knob
⤷ Technologies
: Smart Shine | Water & Energy Saving
⤷ Depth
: 100
⤷ Temperature Control
: Thermostatic
⤷ Anti-Scald
: Yes
⤷ Number of Handles
: 2
⤷ Outlet Connection
: G 1/2
⤷ Orientation
: Horizontal
⤷ Compliance/Approvals/Standard
: EN 817
⤷ Barcode
: 4015413361170
⤷ Product Type
: Shower Mixer Valve
⤷ Overall Width
: 315
⤷ Maximum Operating Pressure (Bar)
: 10
⤷ Separate Flow and Temperature Controls
: Yes

Additional Info & Downloads

Download the Customer Datasheet Pdf File Download the Fitting Instructions Pdf File

This item can also be found in:

Ideal Standard Ceratherm T25N Thermostatic Exposed Bar Shower Mixer Valve

£171.07

RRP: ~~£213.84~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.
