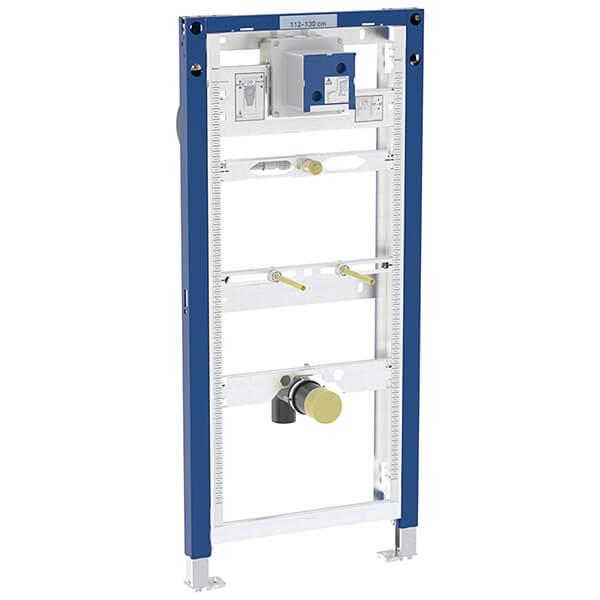

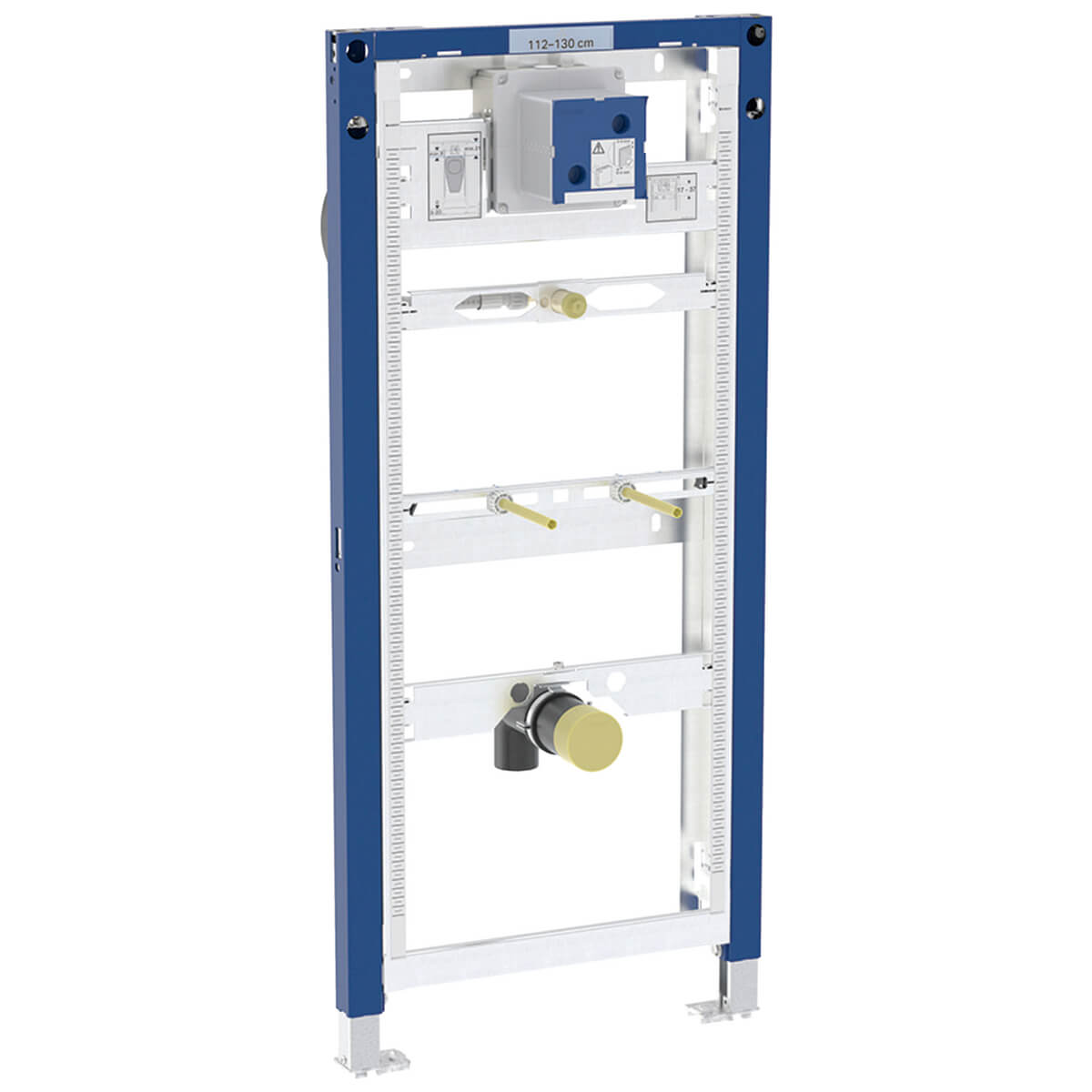

Geberit Duofix Universal Urinal Frame for Spray Head - 500 x 1120-1300mm

Geberit Duofix Universal Urinal Frame for Spray Head - 500 x 1120-1300mm

No Rating

Geberit Duofix Universal Urinal Frame for Spray Head - 500 x 1120-1300mm

Technical drawing QS-V116524 / 111.676.00.2

QS-V116524 small Image 1

QS-V116524 small Image 2

£312.15

RRP: ~~£577.13~~

SKU: QS-V116524

Key Features

✔Fastening for Connection Bend, Height-Adjustable and Sound-Absorbing
✔Connection Positions for Preda Urinal Prepared
✔Foot Plates that can be Mounted in Geberit Duofix System Rail without Tools and Additional Components
✔Galvanised Non-Slip Leg Supports Protected Against Corrosion

QTY

Shipping: £39.99

Stock Availability:

5-7 Working Days Approx.

Geberit Duofix Details

MFC: 111.676.00.2

Geberit Duofix Universal Urinal Frame for Spray Head - 500 x 1120-1300mm.

The Manufacturing Code of this Product is 111.676.00.2
Universal Urinal Frame for Spray Head with Adjustable Height
Size [mm]: 500 x 75 x 1120-1300mm [Width x Depth x Height]
Size [cm]: 50 x 7.5 x 112-130cm [Width x Depth x Height]
Alternative Fastening Point for Wall Anchors
Comes with Pull-Out Plate for Lateral Fastening Above the Element on Metal or Wood Profiles or on Geberit Duofix System Studs
Completes with Built-In Conduit Pipe to Rinse the Pipeline
Crossbars with Centring Marks, Adjustable without Tools
Elbow Connector can be Mounted without Tools
Element Height Adjustable to Urinal, 112-130cm
Fastening for Inlet Rp 1/2-Inch, Adjustable in Height and Sideways
Flush Hose can be Bent
Flush Hose with Guide to Prevent Standing Water
Premounted Stop Valve with Throttle
Protection Box for Service Opening 10.5 x 10.5cm can be Cut to Length without Tools
Rotating Foot Plates, Suitable for Installation in U Profiles UW 50 and UW 75
Statically Self-Supporting Frame, Protected Against Corrosion with Powder Coating
Terminal for Electrical Connection in Concealed Housing
Universal Concealed Housing for Geberit Urinal Flush Controls
Urinal fasteners M8 Width and Height-Adjustable
Water Supply Connection Compatible with MasterFix and MeplaFix
Water Supply Connection on the Right, on the Concealed Housing
Markings for Connection Positions of Preda and Selva Urinals
Additional Fastening Possible for Urinal with Accessories
Flow Pressure: 1-8 Bar
Maximum Test Pressure of Water: 16 Bar
Maximum Test Pressure of Air/Inert Gas: 3 Bar
Maximum Operating Temperature of Water: 30° Celsius
Flow Rate at 1 Bar without Flow Limiter: 0.3 l/s
Flow Rate at 1 Bar with Flow Limiter: 0.18 l/s
Frame Material: Steel
Application Purposes
For Metal and Wood Frame Walls
For Geberit Duofix System Walls
For Installation in Part or Room-Height Prewalls
For Installation in Room-Height Partition Walls
For Floor Constructions 0-25cm
For Mounting Urinals
For Narva Urinals
For the Installation of Geberit Urinal Controls
Scope of Delivery
Elbow Tap Connector R 1/2-Inch
Protection Box with Cover
Connection Bend Made of PE-HD, Ø 63/50mm
Seal Ø 57/50mm
Urinal Trap Ø 50mm, with Seal on Urinal
Fastening and Protection Material

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Duofix
⤷ Country of Origin
: Germany
⤷ Warranty/Guarantee
: 10-Years
⤷ Material
: Steel
⤷ Width
: 500

⤷ Depth
: 75
⤷ Height
: 1120-1300
⤷ Fixings included
: Yes
⤷ Water Supply Connections
: On Right

Geberit Duofix Universal Urinal Frame for Spray Head - 500 x 1120-1300mm

£312.15

RRP: ~~£577.13~~

Stock Availablity: 5-7 Working Days Approx
