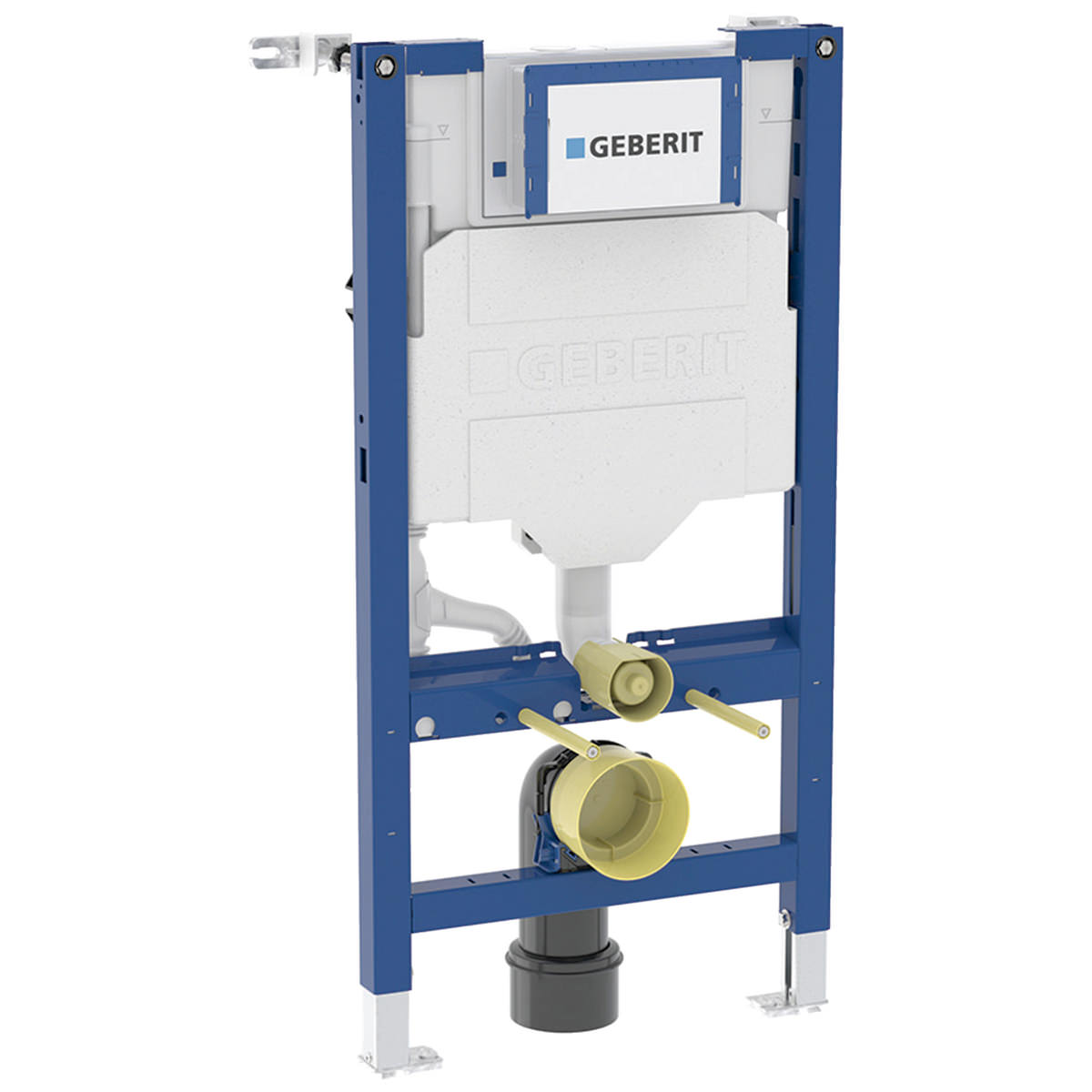

Geberit Duofix Steel Frame for Wall Hung Toilet with 12cm Sigma Concealed Cistern 2-5.8 Litres - 500 x 980mm

Geberit Duofix Steel Frame for Wall Hung Toilet with 12cm Sigma Concealed Cistern 2-5.8 Litres - 500 x 980mm

• The Manufacturing Code of this Product is 111.911.00.6
• Size [mm]: 500 x 120 x 980mm [Width x Depth x Height]
• Size [cm]: 50 x 12 x 98cm [Width x Depth x Height]
• It Comes in a Blue Finish
• Suitable to Use with Wall Hung WCs
• Compatible with Geberit Duofix System Walls, Metal, Wood Frame Walls and Floor Constructions 0-25cm
• For Installation in Part or Room-Height Prewalls and Installation in Room-Height partition Walls
• Not Suitable for Sigma70 and Sigma80 Flush Plates
• Flush Bend Fitted
• Fastening Option for Electrical Connection
• Immediate Post Flush possible with Factory Setting
• Galvanised Non-Slip Leg Supports Protected Against Corrosion
• Tool-Free Installation and Maintenance Work on the Concealed Cistern
• Cistern fulfils Standard Requirements in Accordance with EN 14055, CLASS II
• Rotating Foot Plates, Suitable for Installation in U Profiles UW 50 and UW 75
• Statically Self-Supporting Frame, Protected Against Corrosion with Powder Coating
• Connection Bend can be Mounted without Tools at Different Depths, Adjustable Range 45mm
• Frame for Wall-Hung WCs with Connection Dimensions as Per EN 33 and Projection Up to 70cm
• Protection Box for Service Opening can be Cut to Length, Protects Against Moisture and Dirt
• With Conduit Pipe for Feed Pipe for Geberit AquaClean Shower Toilets and for Connection Cable
• Foot Plates that can be Mounted in Geberit Duofix System Rail without Tools and Additional Components
• Flow Pressure 0.1-10 Bar
• Maximum Operating Water Temperature: 25° Celsius
• Factory Setting Flush Volume [Litres]: 5.8 l / 3 l
• Small Flush Volume Adjustment Range [Litres]: 2–4 l
• Refer to the Technical Drawing for More Details
• 10-Year Guarantee from Geberit Against Manufacturing Defects
• Scope of delivery
• 2x Wall Anchors
• Connection Set for WC Ø 90mm
• Fastening and Protection Material
• Protection Box for Service Opening
• Connection Bend 90° Made of PE-HD Ø 90mm
• Adaptor Socket Made of PE-HD Ø 90 / 110mm
• Water Supply Connection R 1/2 Inch Compatible with MasterFix and MeplaFix, with Integrated Angle Stop Valve and Hand Wheel
