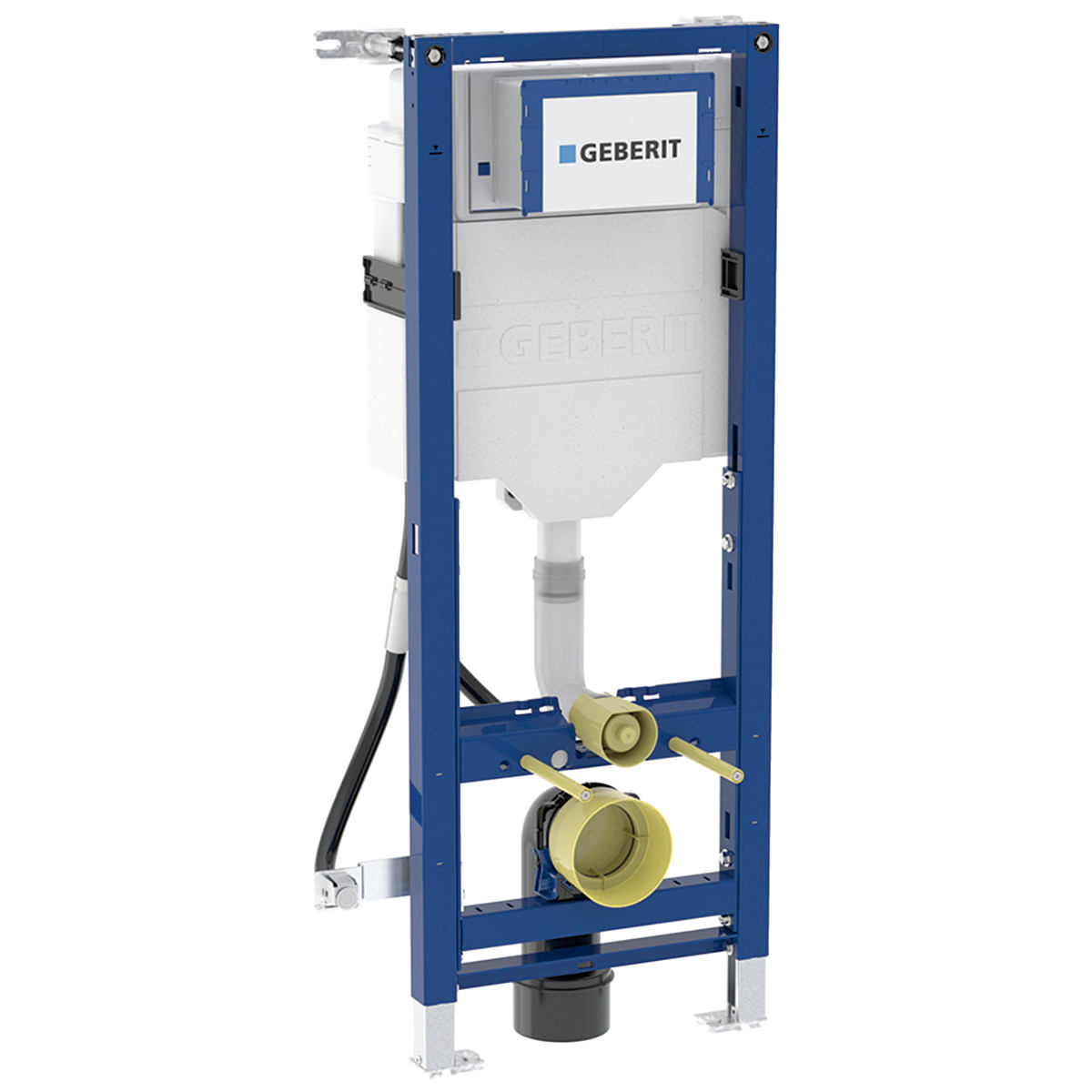

Geberit Duofix Barrier-Free Steel Frame with Sigma Concealed Cistern 12cm for Wall-Hung Toilet - 425 x 1120mm

Geberit Duofix Barrier-Free Steel Frame with Sigma Concealed Cistern 12cm for Wall-Hung Toilet - 425 x 1120mm.

• The Manufacturing Code of this Product is 111.352.00.6
• Comes in a blue Finish
• Size [mm]: 425 x 170 x 1120mm [Width x Depth x Height]
• Size [cm]: 42.5 x 17 x 112cm [Width x Depth x Height]
• Geberit Sigma Concealed Cistern 12cm Fully Insulated Against Condensation
• Compatible with Metal, Wood Frame Walls and Floor Constructions 0-25cm
• Can be Installed in Part or Room-Height Prewalls and Room-Height partition Walls
• Suitable Geberit Duofix System Walls and for Wall-Hung WCs
• Statically Self-Supporting Frame Protected Against Corrosion with Powder Coating
• Frame for Wall-Hung WCs with Connection Dimensions as Per EN 33 and Projection Up to 70cm
• Frame Width Reduced for Placement of Support Handles Next to the Element
• Adjustable Installation Height of WC during the Installation Phase 41-46cm
• Comes with a Pull-Out Plate for Lateral Fastening Above the Element on Metal or Wood Profiles or on Geberit Duofix System Studs
• Rotating Foot Plates, Suitable for Installation in U Profiles UW 50 and UW 75
• Foot Plates that can be Mounted in Geberit Duofix System Rail without Tools and Additional Components
• Galvanised Non-Slip Leg Supports Protected Against Corrosion
• Connection Bend can be Mounted without Tools at Different Depths, Adjustable Range of 45mm
• Cistern Fulfils Standard Requirements in Accordance with EN 14055, CLASS II
• Immediate Post Flush Possible with Factory Setting
• Tool-Free Installation and Maintenance Work on Concealed Cistern
• Water Supply Connection on the Rear or Top Centre
• The Protection Box for Service Opening can be Cut to Length, which Protects Against Moisture and Dirt
• Completes with Conduit Pipe for Feed Pipe for Geberit AquaClean Shower Toilets or Connection Cable
• Fastening for Electrical Connection, Power and Connect Box
• Flow Pressure: 0.1-10 bar
• Maximum Operating Water Temperature: 25° Celsius
• Flush Volume Factory Setting [Litres]: 5.8 l / 3 l
• Flush Volume Large Adjustment Range [Litres]: 4 l / 4.5 l / 6 l / 7.5 l
• Flush Volume Small Adjustment Range [Litres]: 2-4 l
• Refer to the Technical Drawing for More Details
• 10-Year Guarantee from Geberit Against Manufacturing Defects
• Scope of Delivery:
• Water Supply Connection R 1/2 Inch Compatible with MasterFix and
• MeplaFix with Integrated Angle Stop Valve and Hand Wheel
• Protection Box for Service Opening
• 2x Wall Anchors
• Connection Set for WC Ø 90mm
• Connection Bend 90° Made of PE-HD, Ø 90mm
• Adaptor Socket Made of PE-HD Ø 90 / 110mm
• Fastening and Protection Material
