Vado DX Elements Concealed Thermostatic Shower Valve

Vado Elements Details

MFC: ELE-148D-C/P

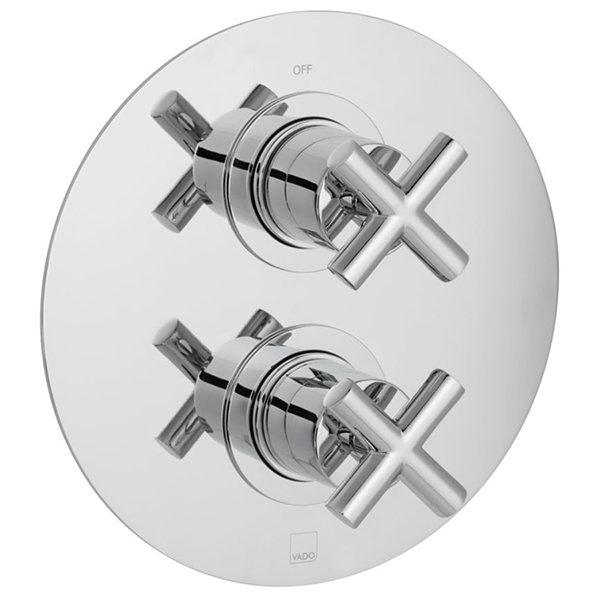

Vado DX Elements 2-Control Concealed Thermostatic Chrome Shower Valve - Crosshead Handles.

The Manufacturing Code of this Product is ELE-148D-C/P
Concealed 1 Outlet, 2 Handle Thermostatic Shower Valve
It Comes in a Chrome Finish
Diameter: 196mm
Supplied with a Mortar/Tile Guard
Thermostatic Cartridge: V-704-34S
Flow Cartridge: C-301-RTC
2 x 3/4-Inc Female Inlets
1 x 3/4-Inc Female Outlet
Includes 3/4-Inc. - 1/2-Inc. Adaptors
Suitable for Wall-Mounted Installation
Min-Max Wall Mount 70-95mm (7-9.5cm)
Optimum Installation Depth 82mm (8.2cm)
The Maximum Required Water Pressure is 5 Bar
Minimum Operating Pressure: 0.2 Bar - Low Pressure [Shower], 1.0 Bar - High Pressure [Bath]
Trim Kit [Optional]
Studfast Concealed Shower Valve Mounting Brackets [Optional]
Download the Installation Instruction PDF File from the Additional Info Section

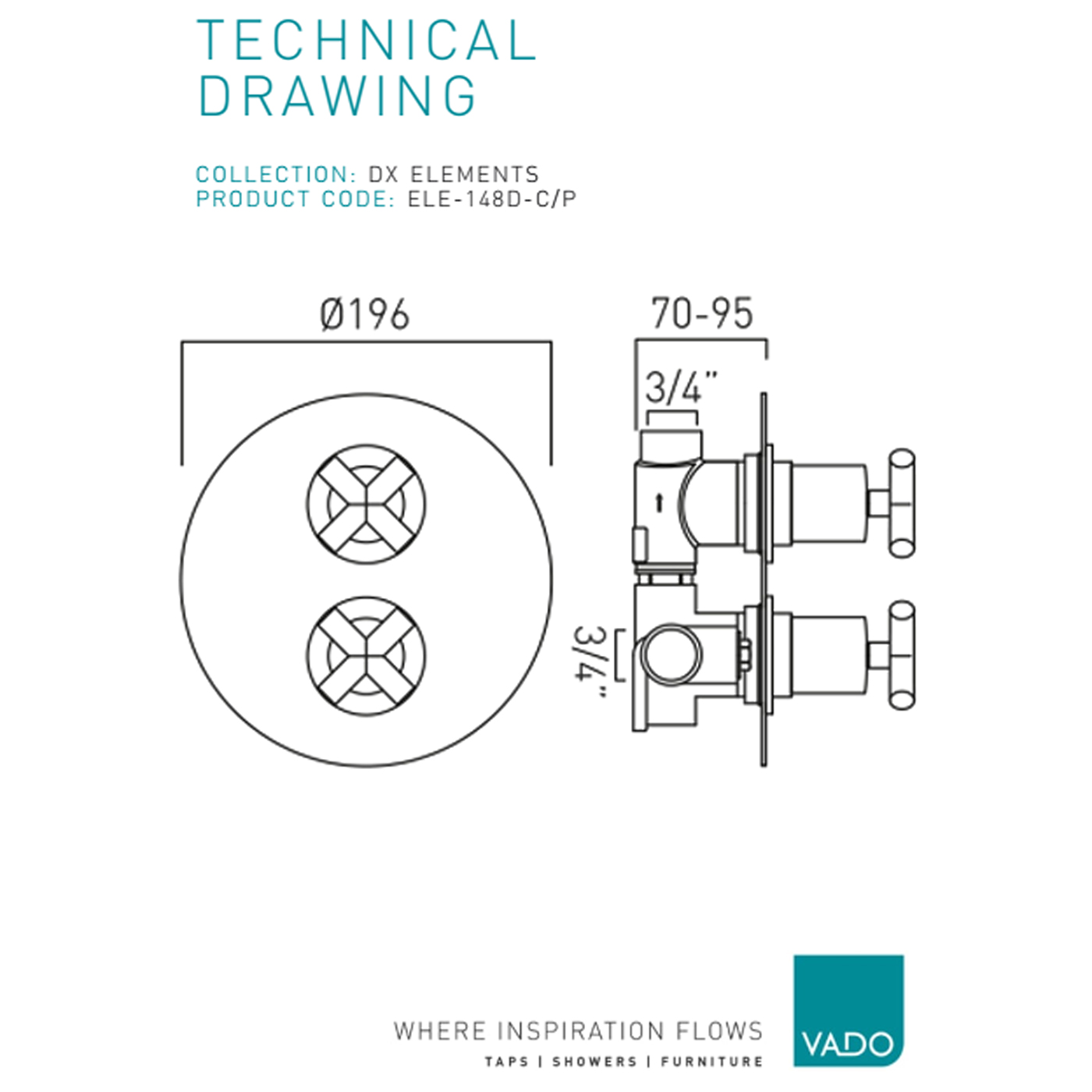

Refer to the Technical Drawing for Size Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Elements
⤷ Colour
: Chrome
⤷ Shape
: Round
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Installation Type
: Wall-Mounted
⤷ Min-Max Wall Mount
: 70-95

⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Crosshead Handle
⤷ Temperature Control
: Thermostatic
⤷ Number of Handles
: 2
⤷ Number of Outlet
: 1
⤷ Barcode
: 5052120181591

Additional Info & Downloads

Download the Installation Instruction Pdf File

Add-Ons

Studfast Brackets

The Studfast is an easy, secure and robust method of mounting thermostatic shower valves into stud walls to create a firm and trouble-free installation. Please Note: The image shown is for illustration purposes only.

No Option Selected
OP-44782 - Studfast Concealed Wall Bracket + £34.48

Trim Kit

It is designed for wall mounting and works together with the corresponding thermostat body (valve) to control 2 outlets, using two handles. Please note: Image shown is just for illustration purpose only.

No Option Selected
OP-245671 - Trim Kit + £130.88

Vado DX Elements 2-Control Concealed Thermostatic Chrome Shower Valve - Crosshead Handles

£316.25

RRP: ~~£575.00~~

Stock Availablity: 5 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...
